SmallRig V Mount to Gold Mount Plate 4680

SmallRig V Mount to Gold Mount Plate 4680

1. The plate features a standard Gold Mount on the front and a standard V Mount on the back, ensuring it is universally compatible with various models of Gold Mount and V Mount batteries. It can be used to convert G-mount batteries to V-mount.

2. It includes a D-Tap port on the side for both input and output.

3. The electrodes are made of metal and the panel is made of ABS+PC, ensuring solid and durable material quality.

4. The internal circuitry includes multiple protections such as overcurrent and overvoltage protection, ensuring safe usage.

Notice: This item is ONLY sold in the U.S.A.

$79.99
Sku 4680
EAN 6941590017327

Availability: Available soon

This product has been viewed 159 times

Product Description



SmallRig V Mount to Gold Mount Plate 4680

SmallRig V Mount to Gold Mount Plate 4680 is designed with versatility and durability in mind. It features a standard Gold Mount on the front and a standard V Mount on the back, making it universally compatible with a wide range of Gold Mount and V Mount batteries. This allows for the conversion of G-mount batteries to V-mount. Additionally, it comes equipped with a D-Tap port on the side, providing options for both input and output. Crafted with high-quality materials, the electrodes are made of metal while the panel is constructed from ABS+PC, ensuring durability and longevity. To ensure safe usage, the adapter plate's internal circuitry includes multiple protections, such as overcurrent and overvoltage protection.

Certification: FCC

Work With

The majority of Gold Mount batteries and V Mount batteries available on the market.

Packing List

V Mount to Gold Mount Plate x 1

User Manual x 1

Technical Data

Product Weight: 120 ± 10g / 4.23 ± 0.4oz

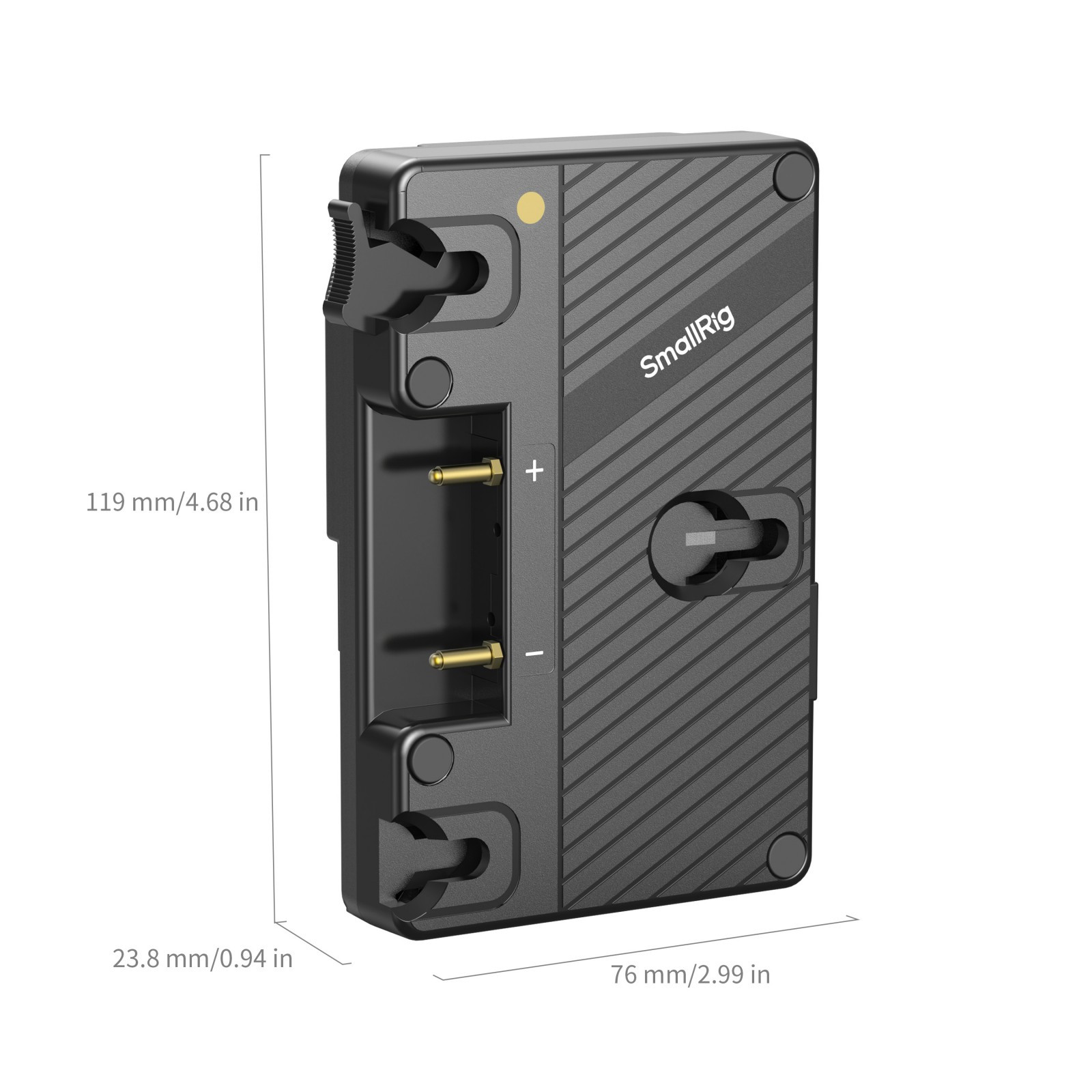

Product Dimensions: 119.4 x  83.8 x 25.4 mm / 4.7 x 3.3 x 1 in

Package Weight: 182 ± 10g / 6.4 ± 0.2oz

Package Dimensions: 124 x 110 x 61 mm / 4.9 x 4.3 x 2.4 in

Main Port Input/Output Voltage: 10.8~16.8V

Main Port Input/Output Current: 20A(Max)

D-Tap Input/Output Voltage: 10.8~16.8V

D-Tap Input/Output Current: 10A(Max)

Material: PC+ABS

Operating Temperature: -20℃~50℃/ -4°F to 122°F
