SmallRig GB99 Gold Mount Battery 4678
SmallRig GB99 Gold Mount Battery 4678 features a highly integrated design, effectively reducing the external volume of the battery for more convenient portability. The battery uses top-tier LG A-grade 18650 high-rate cells, ensuring accurate capacity, excellent performance, and stability through repeated charging and discharging cycles. It has passed FCC certification for safe use. The battery comes with 1 Main Port (Gold Mount), 1 D-Tap, and 1 USB-A, offering a rich interface that can power multiple devices simultaneously, including cameras, mirrorless cameras, monitors, image transmission devices, photography lights, and mobile phones, providing you with integrated and efficient power supply. The battery internally offers multiple protections including overcurrent, short circuit, over-temperature, and overvoltage, fully ensuring safety. The exterior of the battery is made of fire-resistant PC material, which is heat-resistant and durable. The battery level can be checked at any time with buttons and LED lights. From the inside out, it's safe and powerful, letting you capture each splendid moment with peace of mind!
Certification: FCC

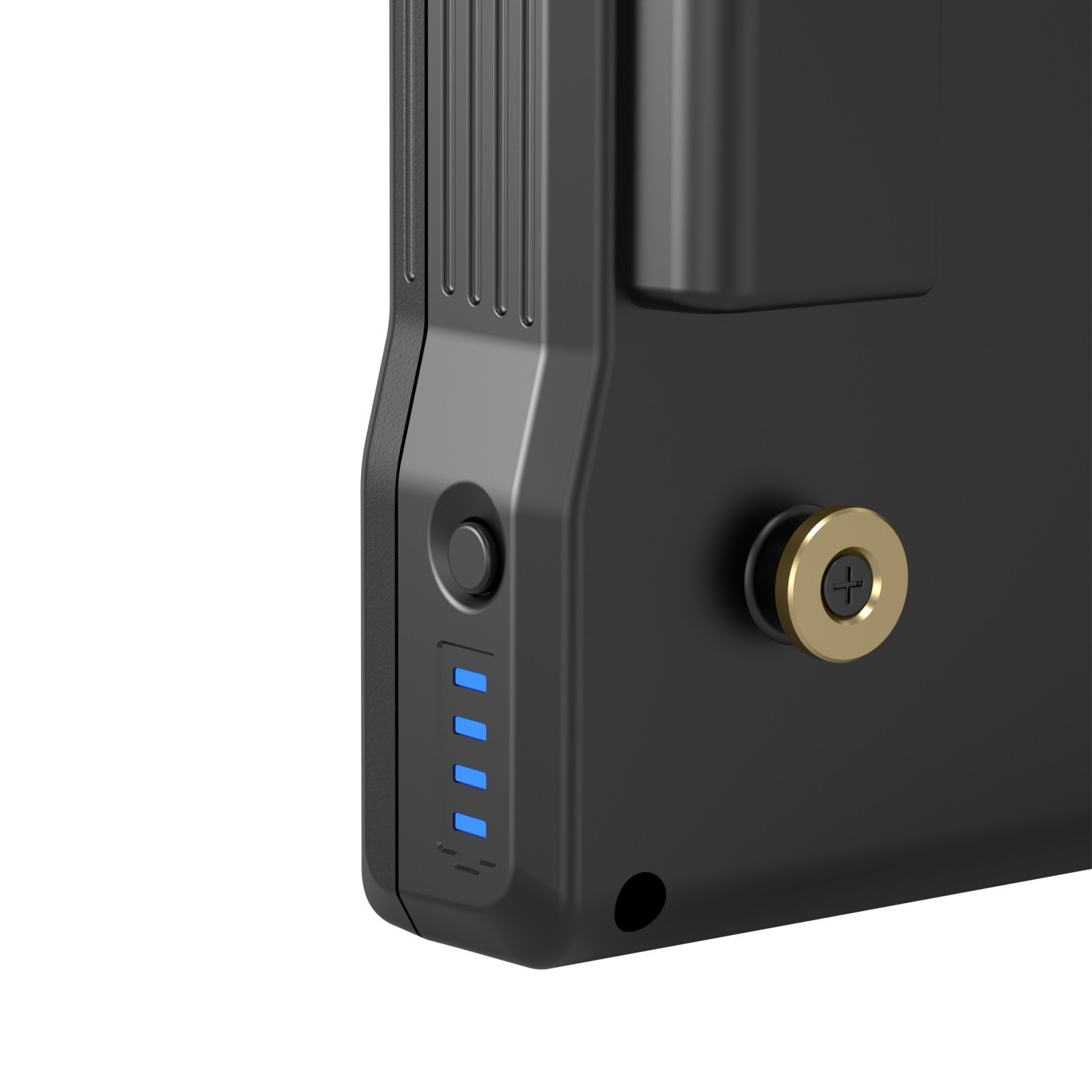

Button / LED Light Function:
Button:
Single-click the button to check the battery level
Press and hold the button to turn off the USB-A output function, single click to restore
LED Light:
One light flickering: The battery level is below 1%
One light on: The battery level is between 1% and 25%
Two lights on: The battery level is between 25% and 50%
Three lights on: The battery level is between 50% and 75%
Four lights on: The battery level is between 75% and 100%
Work With
MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, etc.
Packing List
GB99 Gold Mount Battery x 1
User Manual x 1
Technical Data

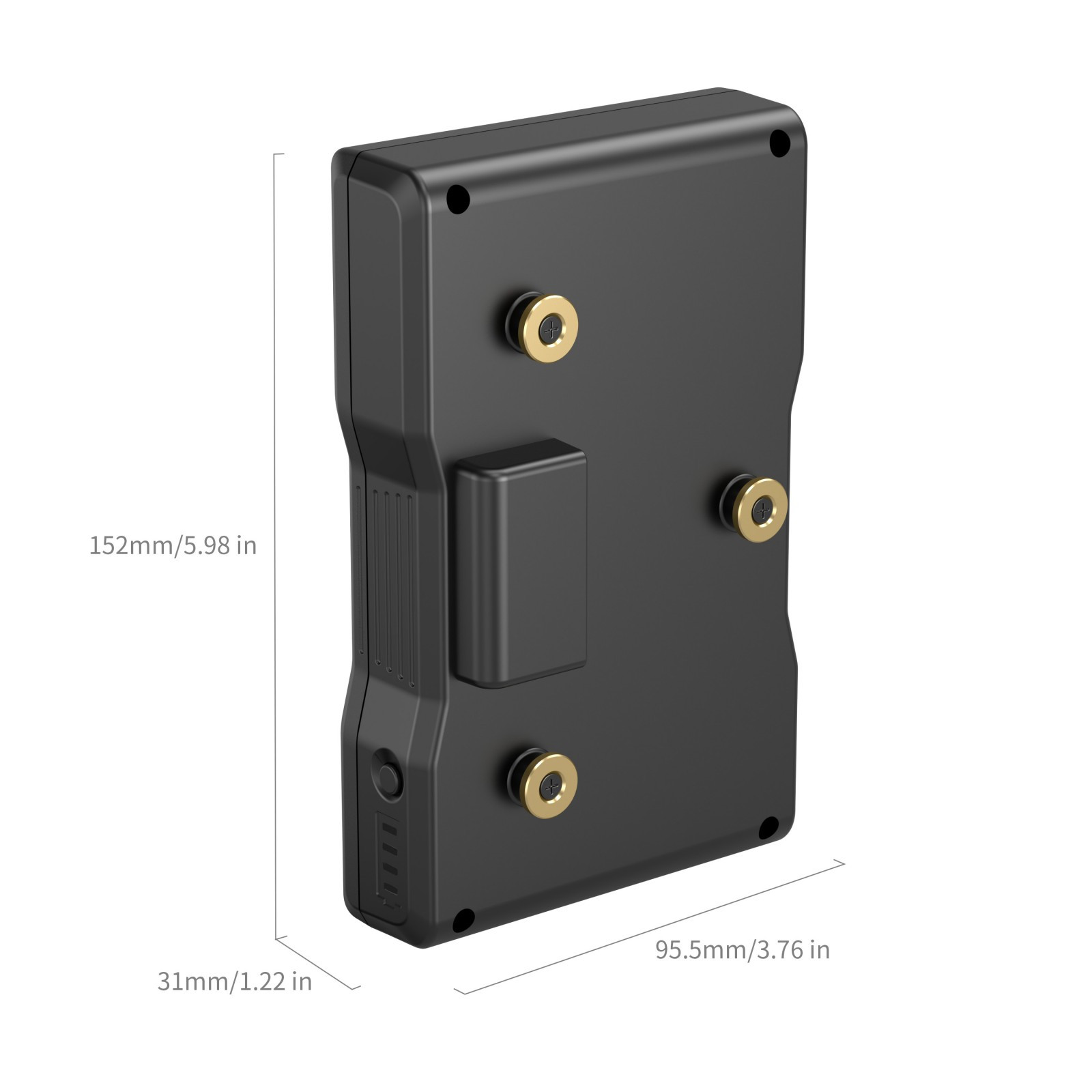

Product Dimensions: 152.0 x 96.0 x 40.9mm / 6.0 x 3.8 x 1.6in
Package Dimensions: 183.5 x 127.5 x 49mm / 7.2 x 5.0 x 1.9in
Product Weight : 582 ± 10g / 20.5 ± 0.40z
Package Weight: 760 ± 10g / 26.8 ± 0.40z
Material(s): Fire-Resistant PC Material
Battery Parameter: 14.54V 6800mAh 98.872Wh
Rated Total Output Power: 99W
Input:
Rated Voltage: 16.8V
Main Port: 3.5A (Max)
D-Tap: 3A (Max)
Output:
Rated Voltage: 14.54V
Main Port: 20A (Max) / 200W(Max)
D-Tap: 6A(Max)
USB-A: 5V/2.1A
Discharge Cut-off Voltage: 10V
Discharge Temperature: -10℃～60℃/14℉～140℉
Charging Temperature: 0℃～45℃/32℉～113℉
Optional Charging Method: Main Port (Gold Mount) / D-Tap
