SmallRig Dual Channel Gold Mount Battery Charger (US standard) 4679
SmallRig Dual Channel Gold Mount Battery Charger (US standard) 4679 utilizes two autonomous power and control systems, enabling simultaneous charging of two Gold mount batteries for enhanced efficiency. Equipped with an intelligent charging circuit, this charger maximizes battery lifespan protection. It has undergone rigorous reliability tests including circuit inspections, drop tests, and high/low-temperature environment assessments. Additionally, it holds FCC certifications, ensuring safety and reliability for your peace of mind. The charger supports SmallRig Gold mount batteries as well as the majority of Gold mount batteries on the market. On its side, you will find several operational indicator lights, such as power, charging status, and battery installation indicators, facilitating real-time monitoring of the battery's charging progress. This charger has innovative color matching in appearance, and the surface material has been spray-painted, which greatly increases its luster and texture. Finally, the charger features a comfortable handle on top for easy portability, while the foldable support stand at the bottom ensures stable and convenient operation, making it the ideal charging companion for Gold mount batteries.
Certification: FCC
LED Indicator Lights:
|
Indicator Light Type |
Indicator |
Status |
|
AC Power |
Red light on |
Charger power activated |
|
Red light off |
No AC power connected or switch not turned on |
|
|
Charging state |
Red light on |
Battery charging, battery level is below 85% |
|

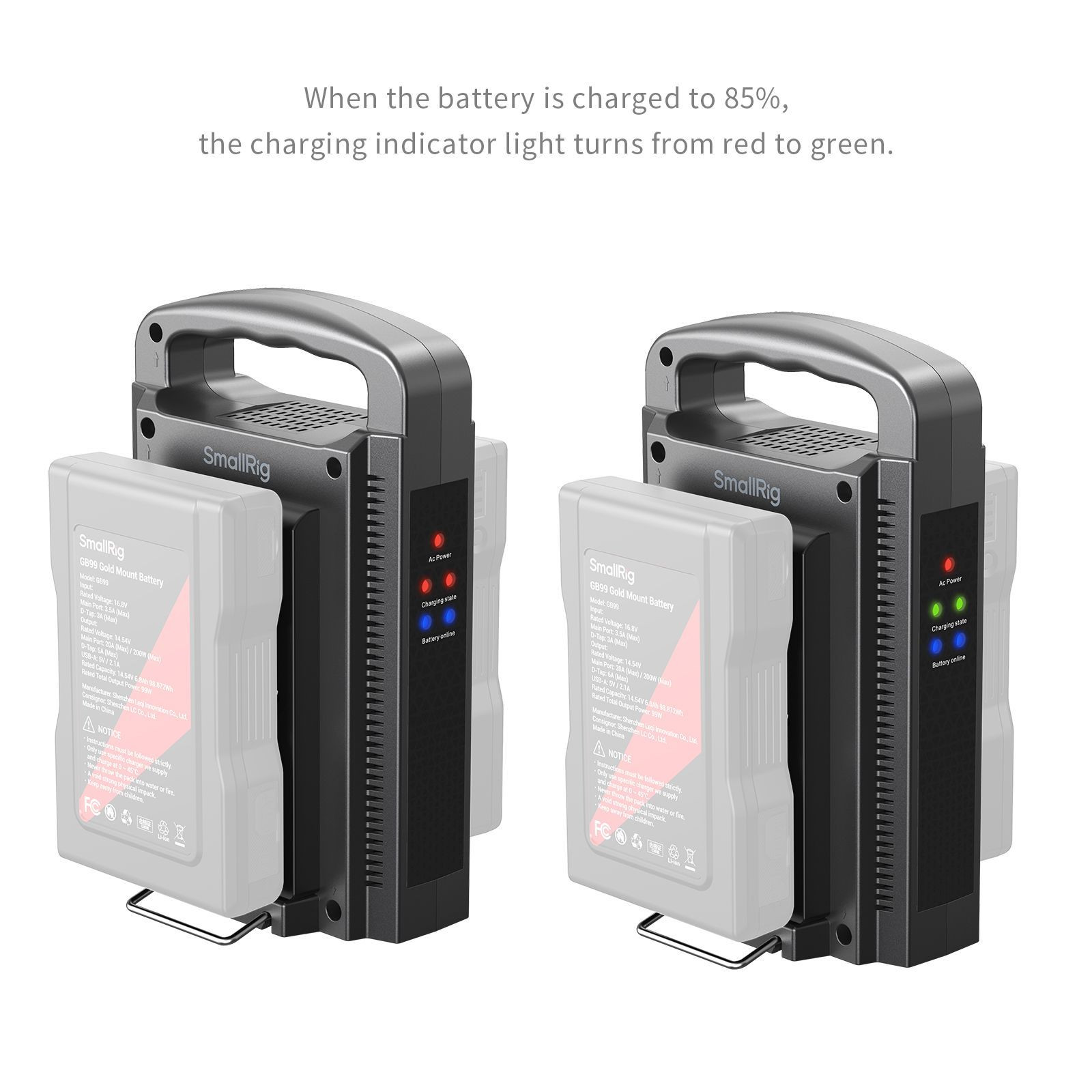

Green light on |
Battery charged to 85% |
|
|
Green light off |
Battery charged to 100% |
|
|
Red light flashing |
Short circuit or overload |
|
|
Battery online |
Blue light on |
The battery has a good connection with the charger |
|
Blue light off |
Poor connection between battery and charger or low battery voltage |
|
|
Blue light flashing |
Battery voltage below 10.6V |
Charging time (taking SmallRig Gold mount battery as an example):
|
One battery |
Model |
GB99 |
|
Charging Time |
2H30M |
|
|
Two batteries |
Model |
GB99 |
|
Charging Time |
4H |
Work With
The majority of Gold mount batteries available on the market
Packing List

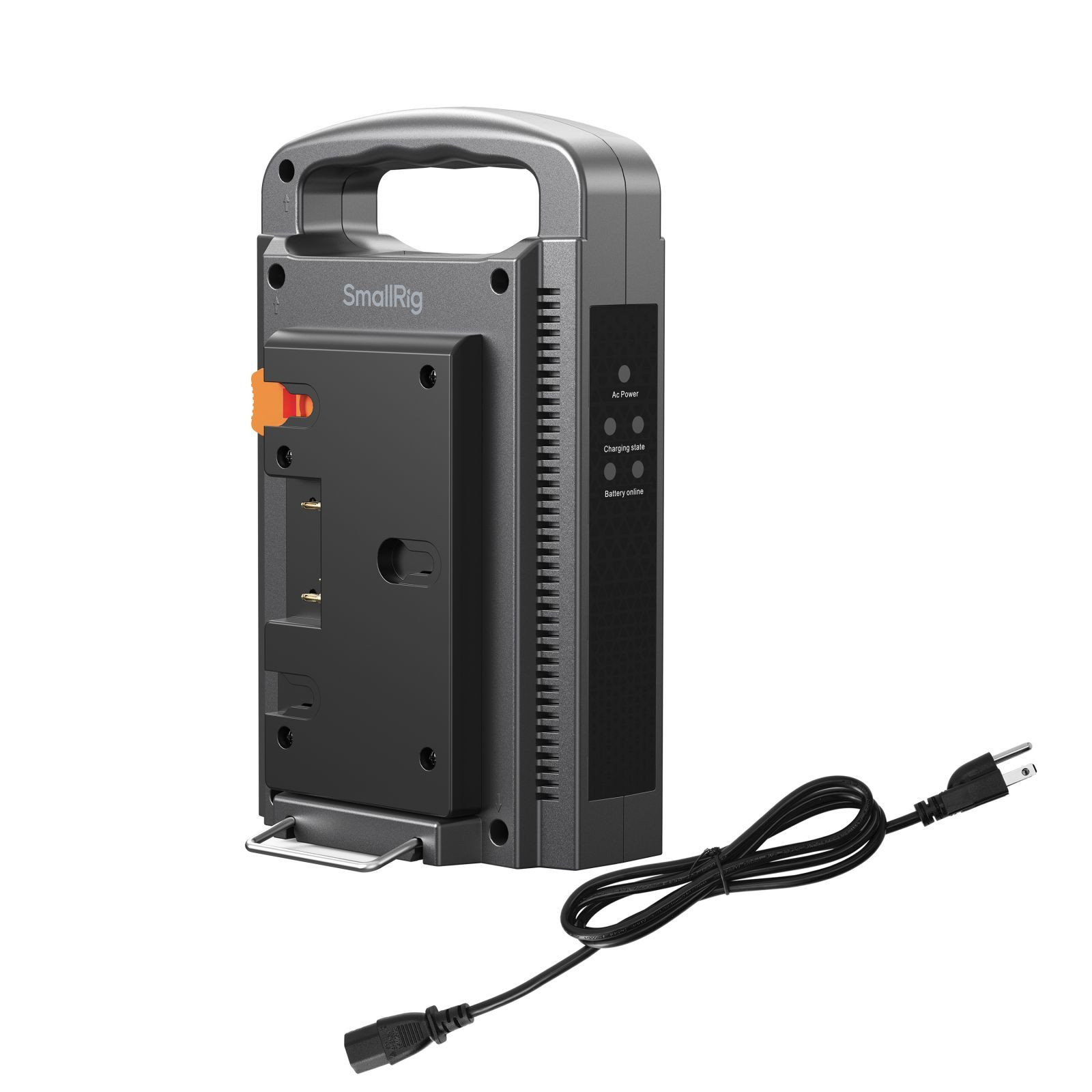

SmallRig Dual Channel Gold mount Battery Charger x 1
AC Charging Cable x 1
User Manual x 1
Technical Data

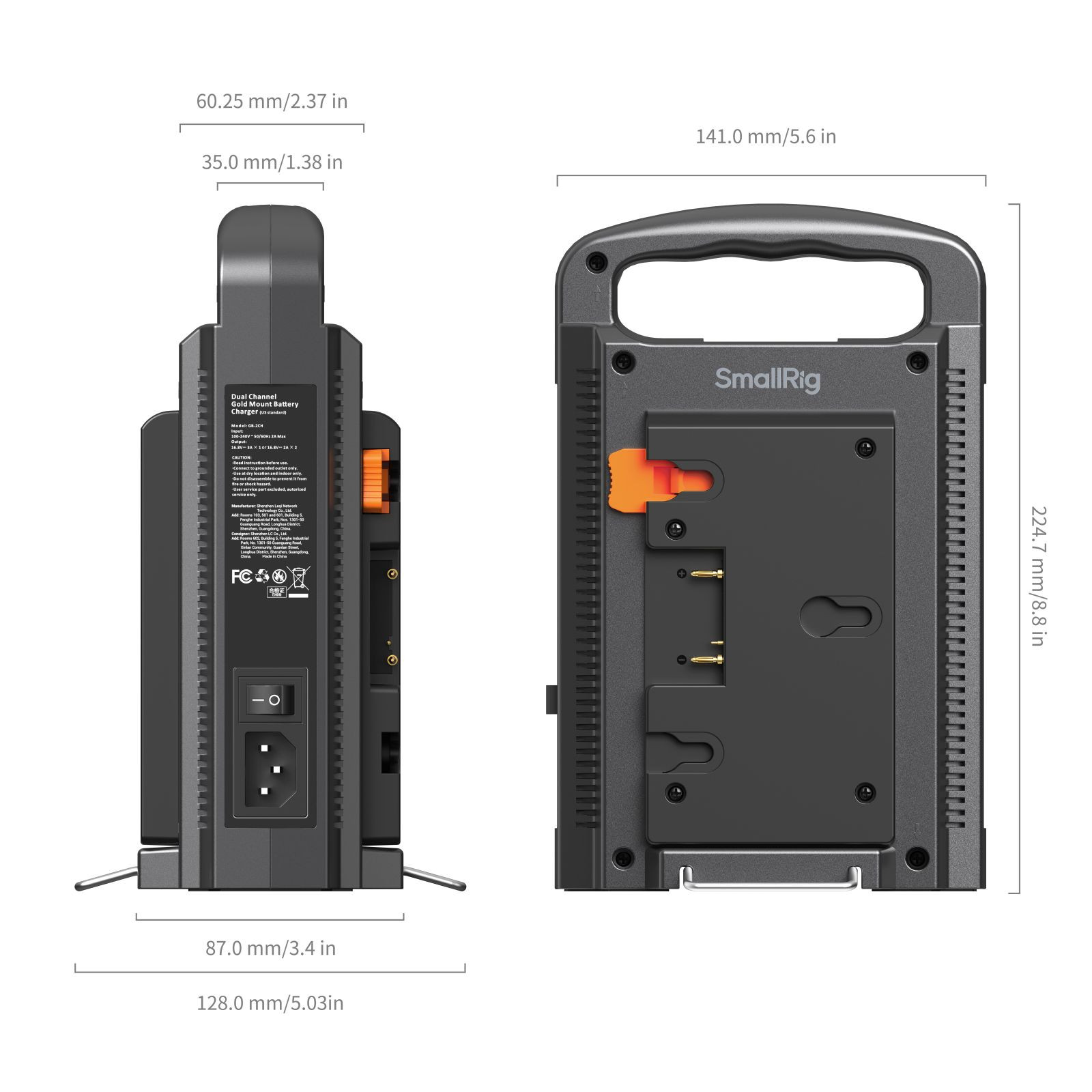

Product Dimensions: 224.7 x 141.0 x 128.2mm / 8.8 x 5.6 x 5.0 in
Package Dimensions: 270 x 205 x 110 mm / 9.5 x 7.2 x 3.9 in
Product Weight (including charging cable): 1054 ± 10g / 37 ± o.4oz
Package Weight: 1335 ± 10g / 47 ± o.2oz
Material: PC+ABS
Input: AC 100-240V 50 / 60Hz 2A Max
Charging Voltage: DC 16.8V
Charging Current: One battery: 3.0A
Two batteries: 2.0A
Charging Termination Current: 80mA
Operating Temperature: 0℃ to 40℃ / 32°F to 104°F
Storage Temperature: -10℃ to 50℃ / 11°F to 122°F
