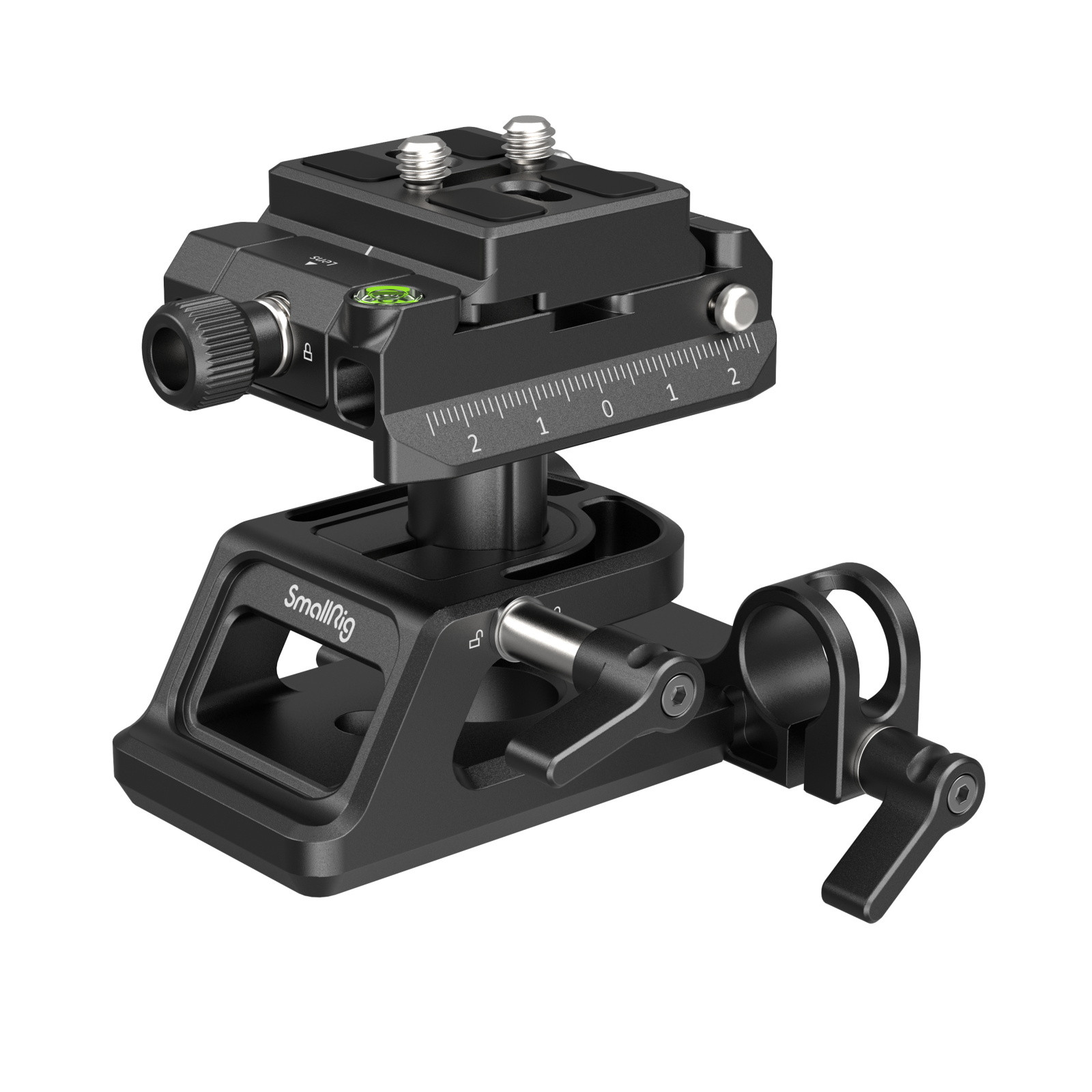

SmallRig Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233

SmallRig Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233

1. Built-in 15mm rod clamps, easy-to-expand follow focus, matte box, lens support, and other accessories.

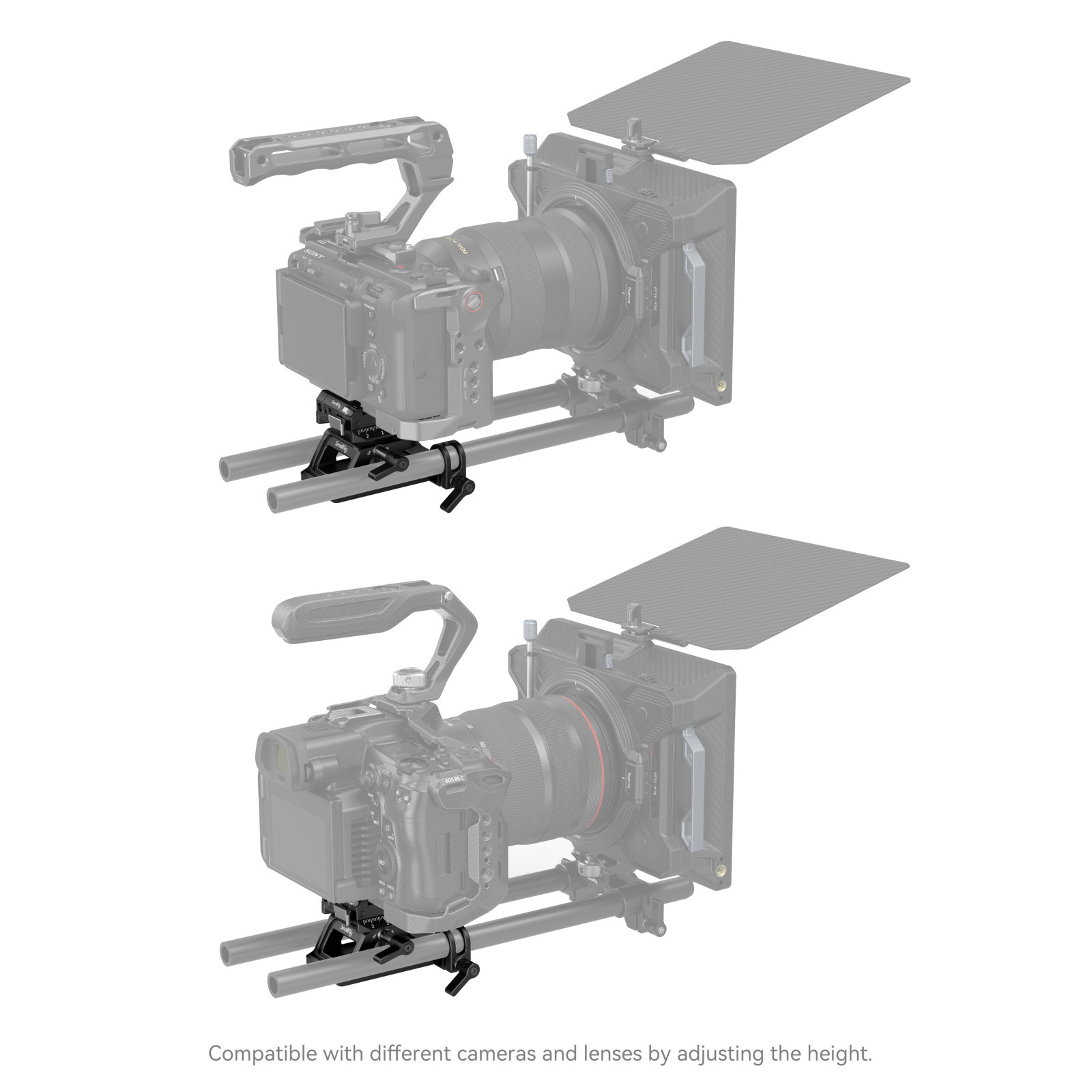

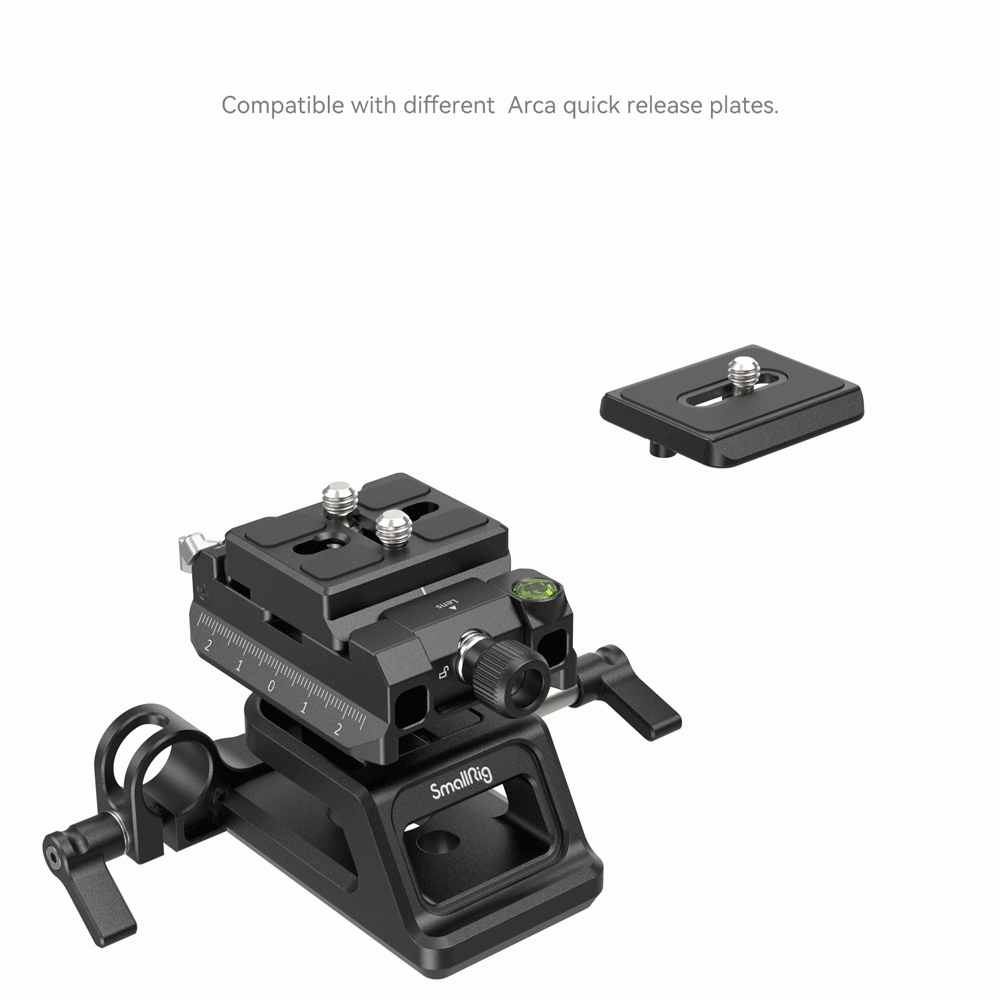

2. Strong compatibility. Height adjustable, compatible with different cameras and lenses; Arca base width adjustable, compatible with most Arca quick-release plates.

3. Anti-false-touch design, built-in anti-off pin, double insurance equipment safer.

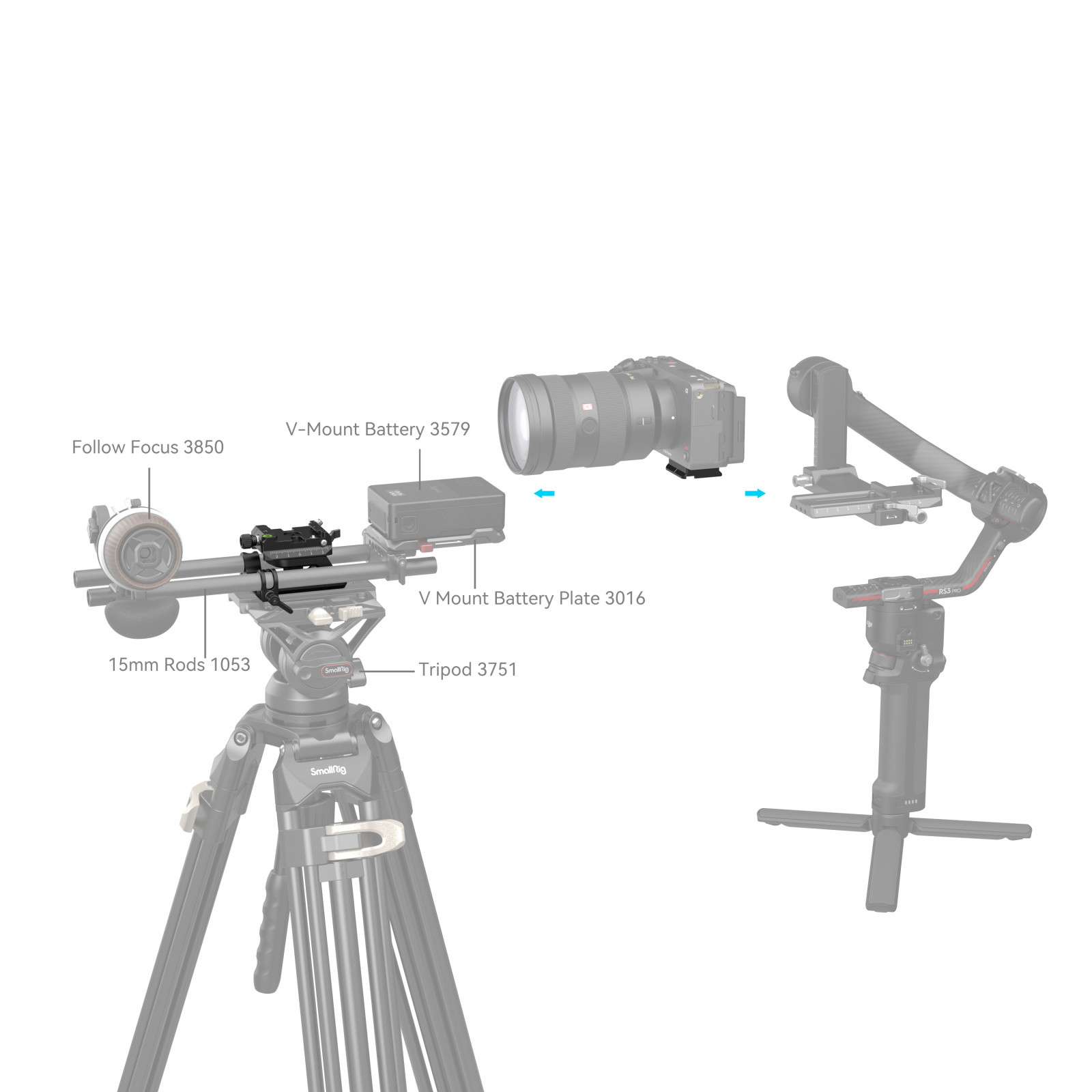

4. The top Arca quick-release plate is compatible with DJI RS series stabilizers, allowing for quick transitions between handheld, stabilizer, and tripod shooting.

5. The Arca base is adjustable both horizontally and vertically. Horizontal adjustment facilitates cage installation, while vertical adjustment aids in telephoto lens center of gravity adjustment.

6. Modular design allows for independent use of the top part.

$109.00
Sku 4233
EAN 6941590014401

Availability: In stock 92

This product has been viewed 545 times

Alcohol wipes or battery items included, please confirm if able to import or export.Especially for country / region:South Korea, India, Taiwan, Japan.
Product Description



SmallRig Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233

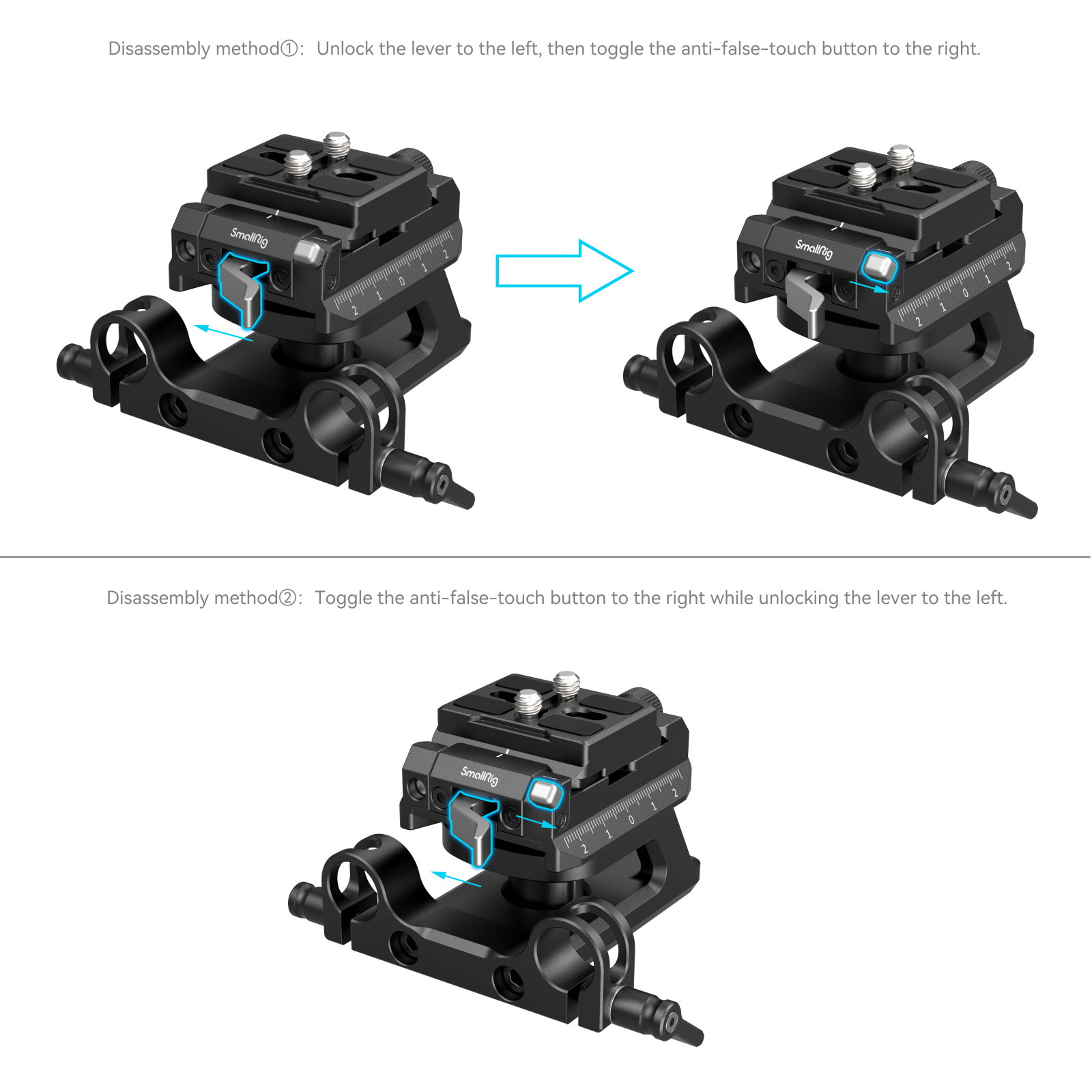

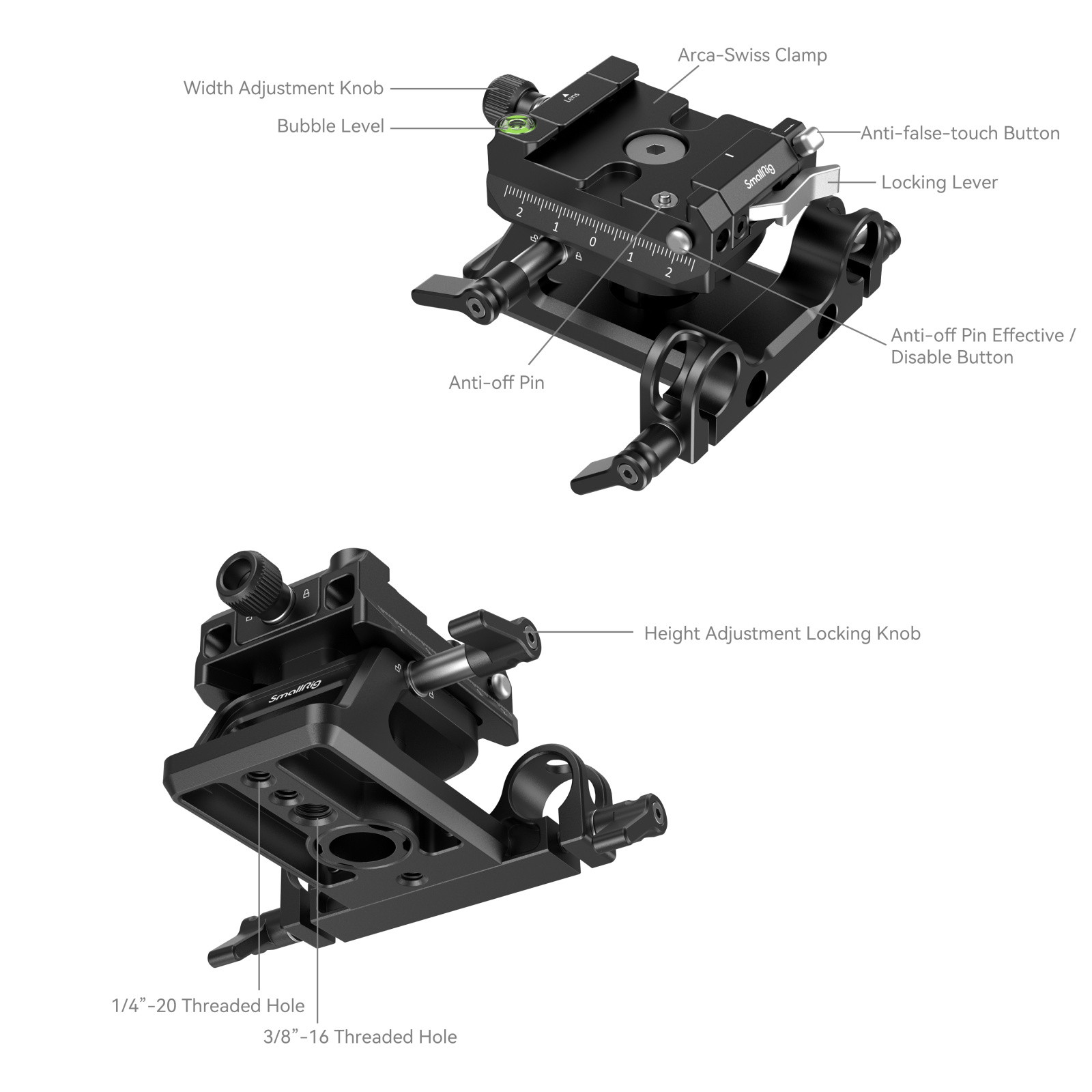

SmallRig Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233 is designed to make it easy for users to install accessories such as follow focus, matte box, lens support, etc. after installing the 15mm rods. The mount plate is height-adjustable and compatible with most mirrorless cameras and lenses. The top width can be quickly adjusted through a knob, ensuring compatibility with most Arca quick-release plates on the market, eliminating any compatibility concerns. The included Arca quick release plate is compatible with DJI RS series stabilizers, allowing for quick transitions between handheld, stabilizer, and tripod setups.; locking lever with two-stage unlocking design and built-in anti-dislodgement, preventing accidental contact, to protect the equipment safety. The top of the Mount Plate features a modular design, making it easy to switch its orientation for compatibility with cages and telephoto lenses to adjust the center of gravity. When disassembled, it can be used independently as an Arca-Swiss/Manfrotto Mount Plate. Built-in 1/4"-20 threaded holes and 3/8"-16 threaded holes at the bottom, expandable quick release plate for easy mounting to a tripod.

Work With

Compatible with most mirrorless cameras and lenses

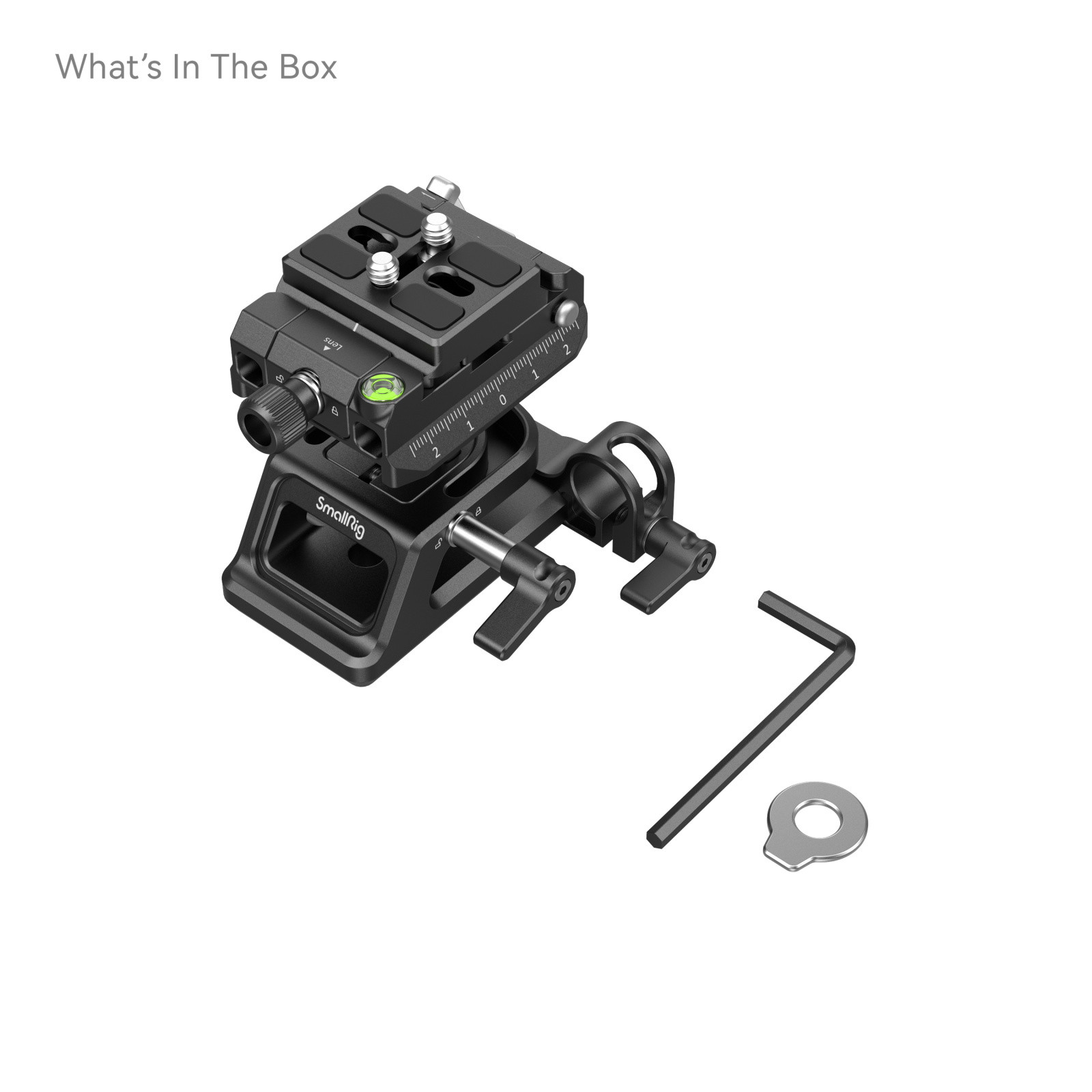

Packing List

Universal Arca-Swiss Height-Adjustable Mount Plate Kit x1

Flat-head Screwdriver x 1

Allen Wrench x 1

User Manual x 1

Technical Data

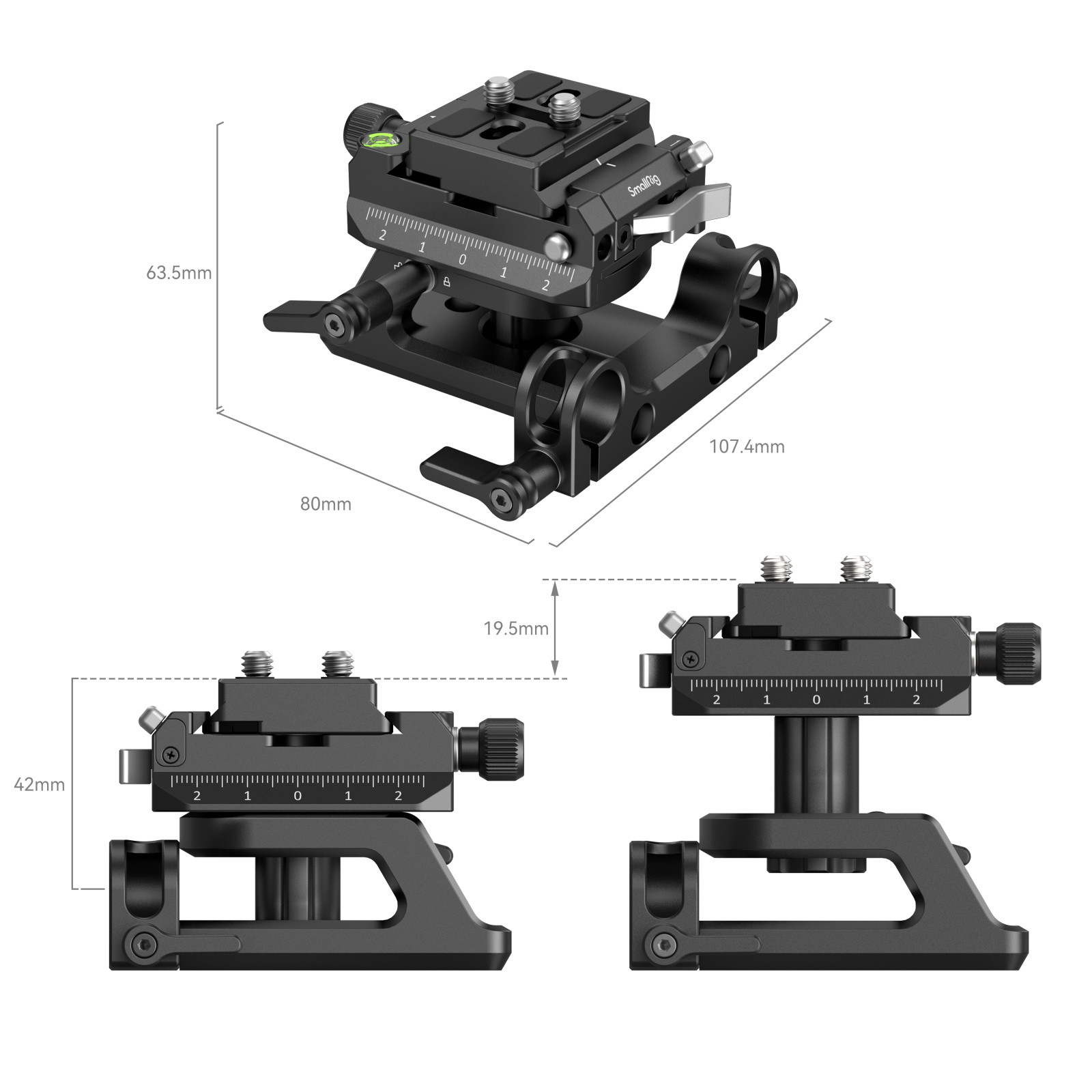

Product Dimensions: 107.4 x 80 x 63.5mm

Package Dimensions: 126 x 110.5 x 87mm

Product Weight: 287±5g

Package Weight: 367±5g

Material(s): Aluminum Alloy, Stainless Steel
