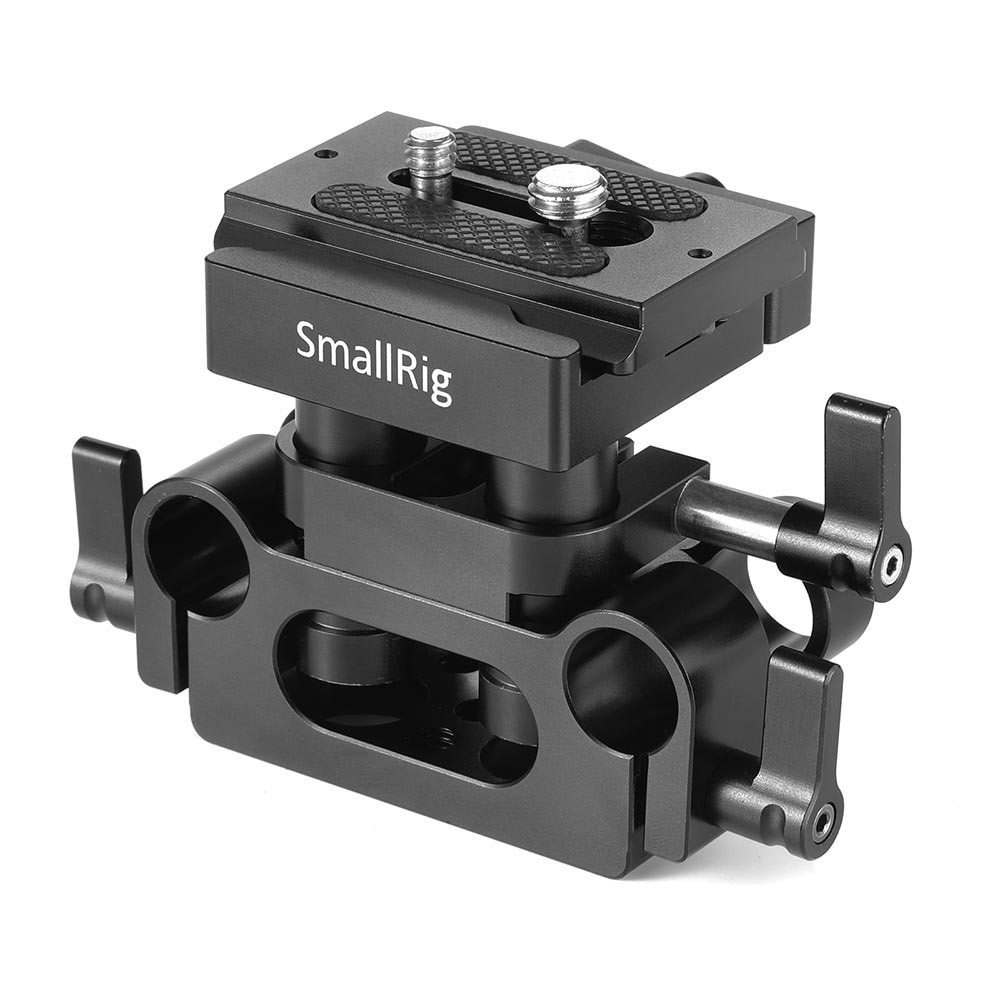

SmallRig Universal 15mm Rail Support System Baseplate 2272B

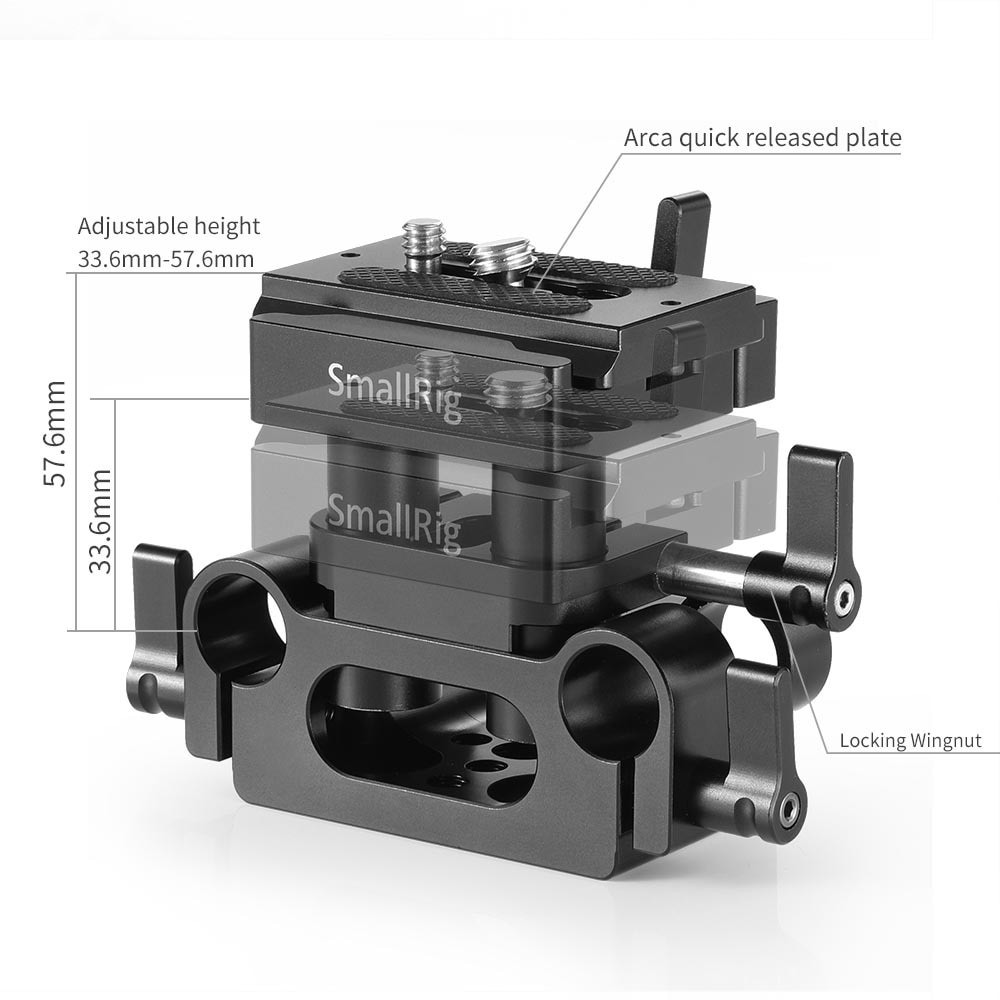

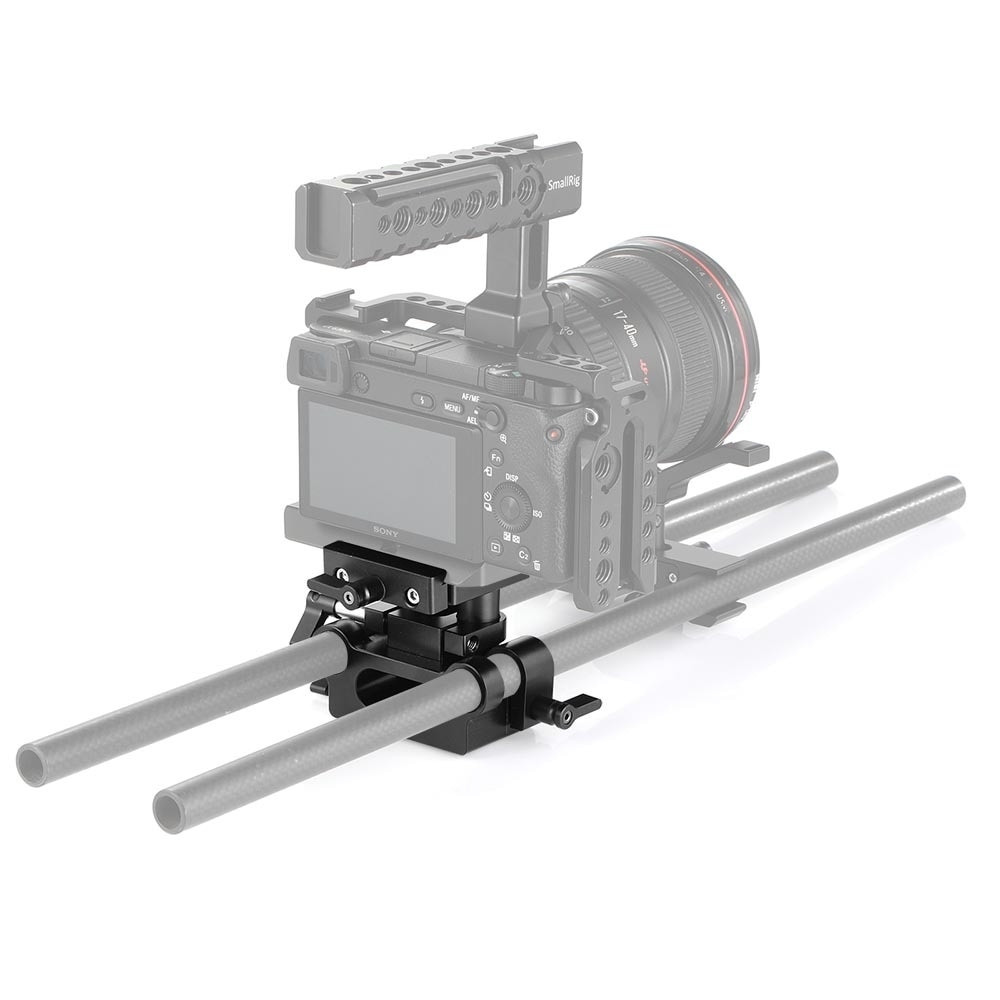

SmallRig Universal 15mm Rail Support System Baseplate 2272 is a dedicated baseplate designed for mirrorless and DSLR cameras. It is height-adjustable to ensure different cameras sit on the baseplate complying with the LWS standard. Simply unscrew the wingnut on the side, adjust the height and tighten the wingnut. On the top are Arca compatible QR plate and receiver; attach the QR plate to SmallRig cage or camera tripod socket, drop it in to the receiver and tighten the knob screw. The baseplate holds SmallRig 15mm Rods 1053, where accessories like SmallRig Lens Support 2152, SmallRig Shoulder Pad 2077, Matte Box and follow focus can be attached. Additionally, there are multiple 1/4"-20 and 3/8"-16 threaded holes on the bottom of the baseplate so tripod plates can be attached.
Key Features
1.Designed for mirrorless and DSLR cameras;
2.Arca compatible QR plate and receiver on the top;
3.15mm rail support provided;
4.Height adjustable;
5.1/4"-20 and 3/8"-16 threaded holes on the bottom for attaching tripod plates.
Work With
Sony A6000/A6300/A6400/A6500/A7/A7II/A7SII/A7RII/A9/A7III/A7RIII
Panasonic GH3/GH4/GH5/G80/GX85/G7/G85/G9
Canon 5D Mark IV/M50/M5/M3/M6/EOS R
Fujifilm X-H1/X-T1/X-T2/X-T20
Olympus E-M1 Mark II
Nikon Z6/Z7
Canon EOS R
Canon EOS RP

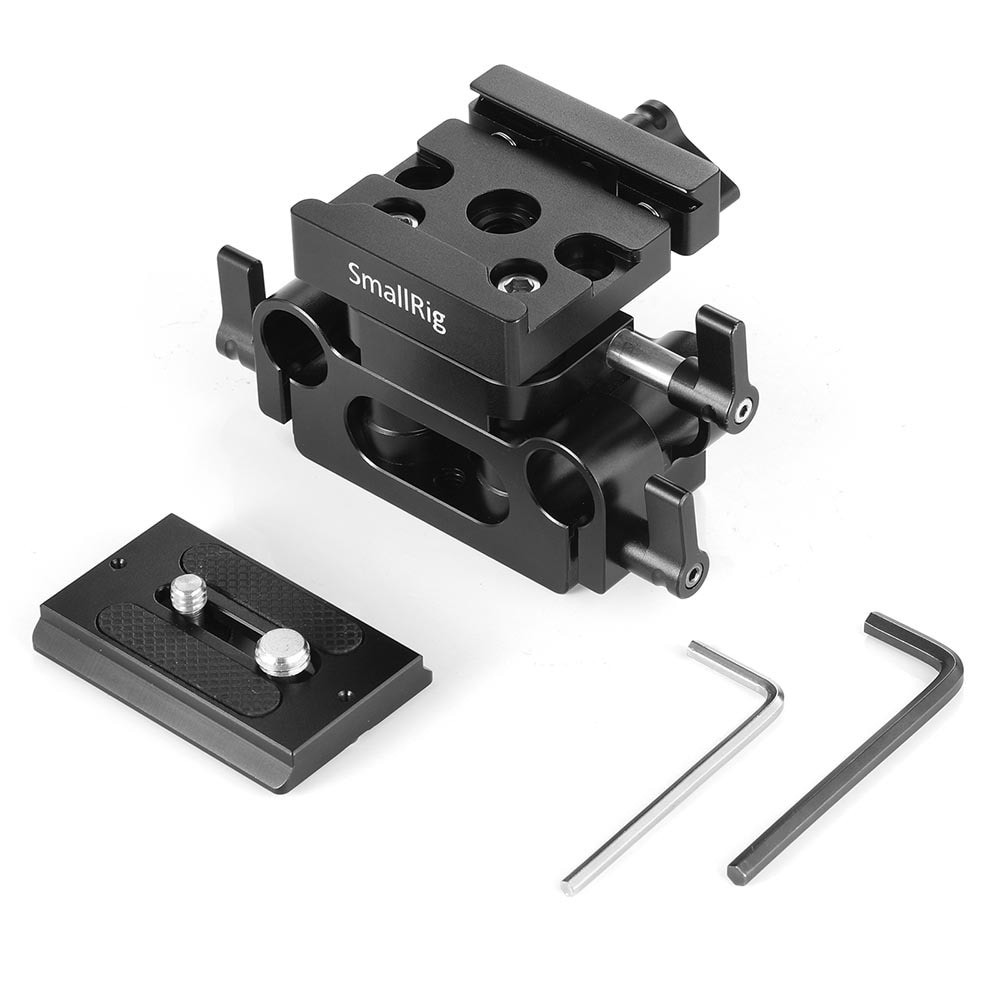

Packing List
1 x Baseplate
2 x Hex Spanner
Technical Data

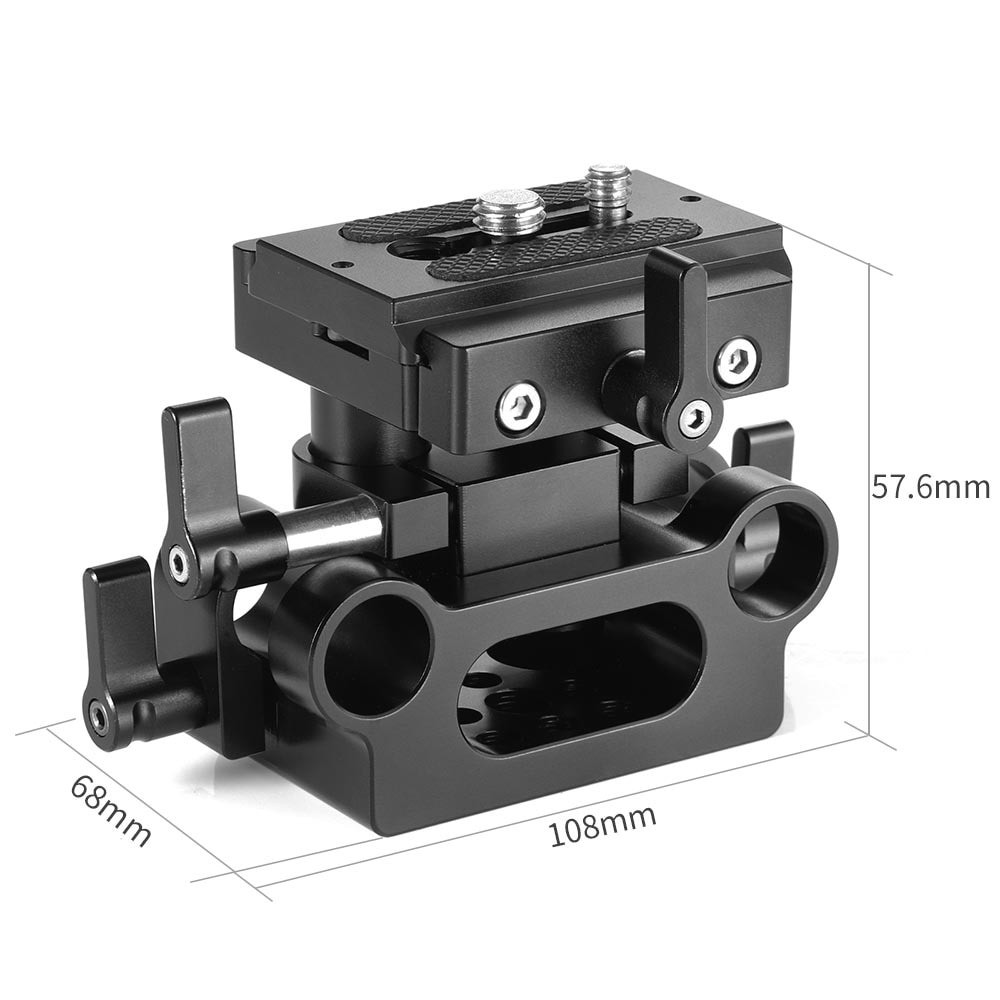

Product Dimensions: 108 x 68 x 54 mm
Package Dimensions: 126 x 110 x 88 mm
Net Weight: 267g
Package Weight: 337g
Material(s): Aluminum Alloy
