SmallRig T CINE Support for Panasonic Lumix GH5/GH5S 2265

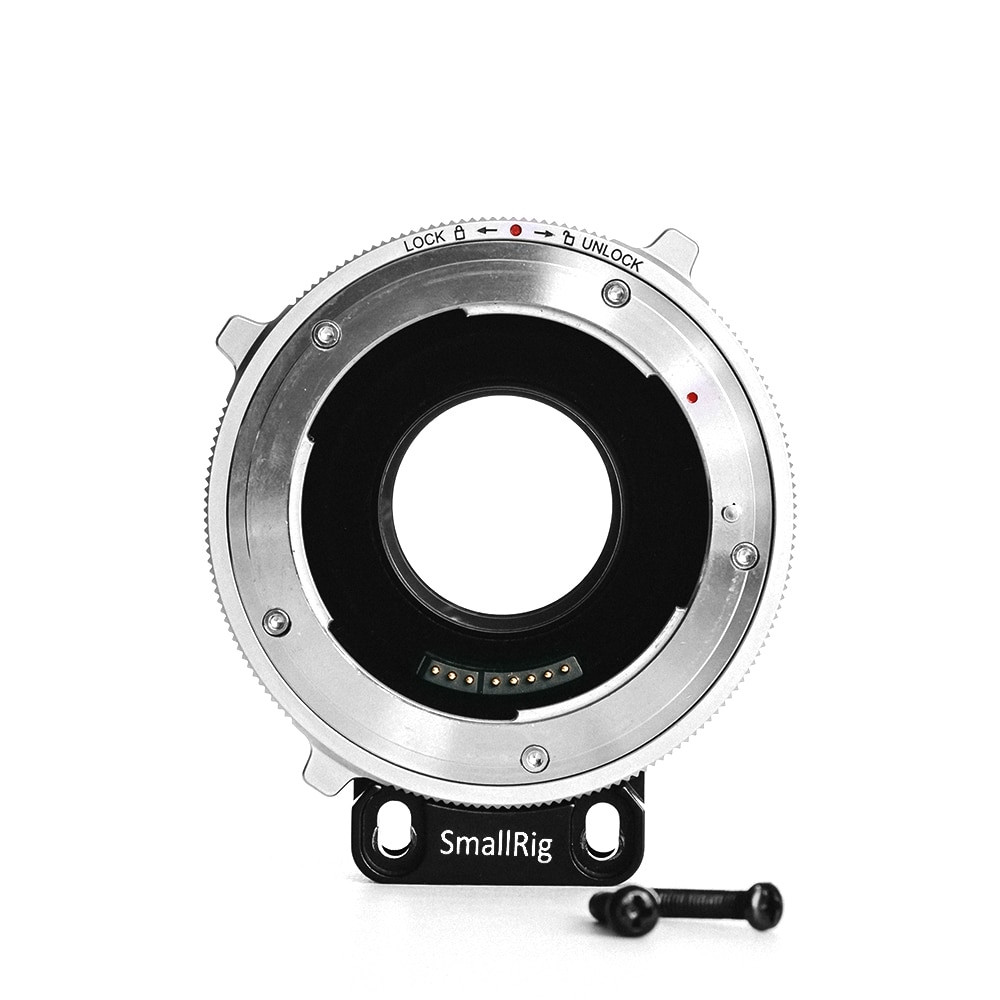

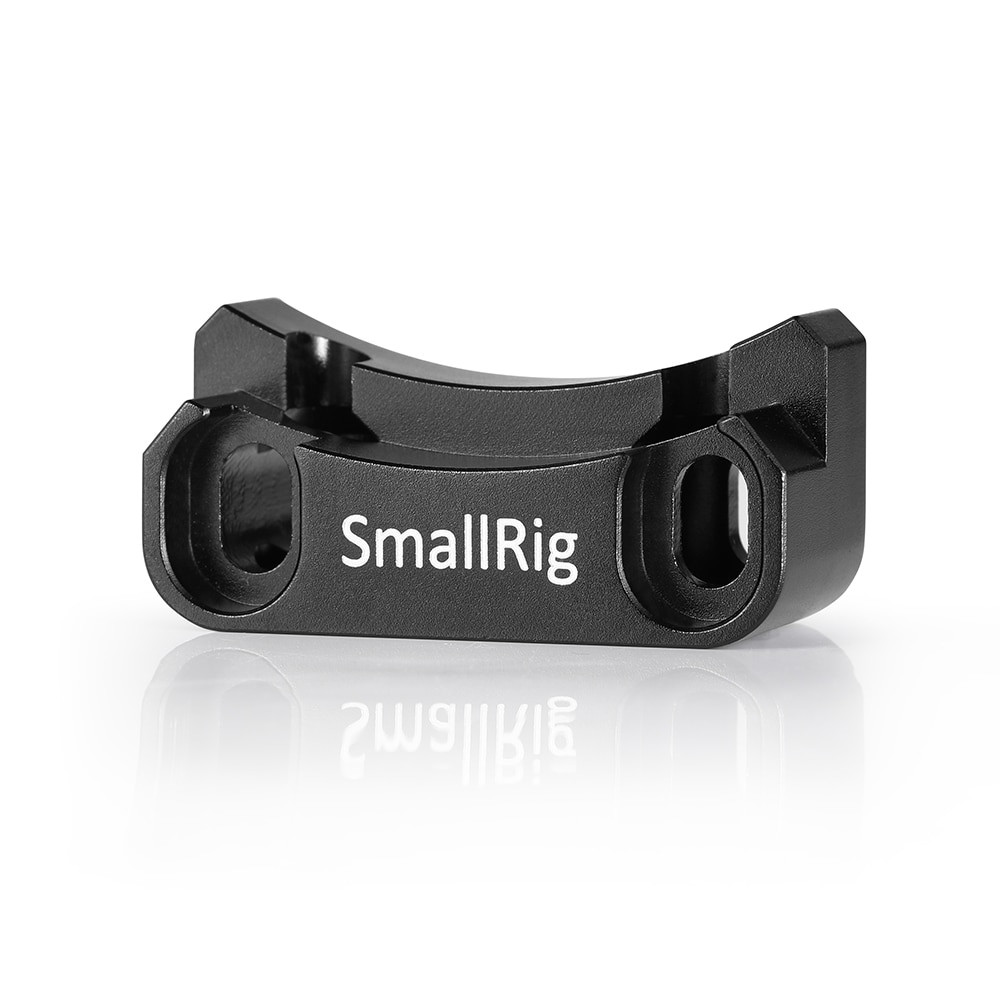

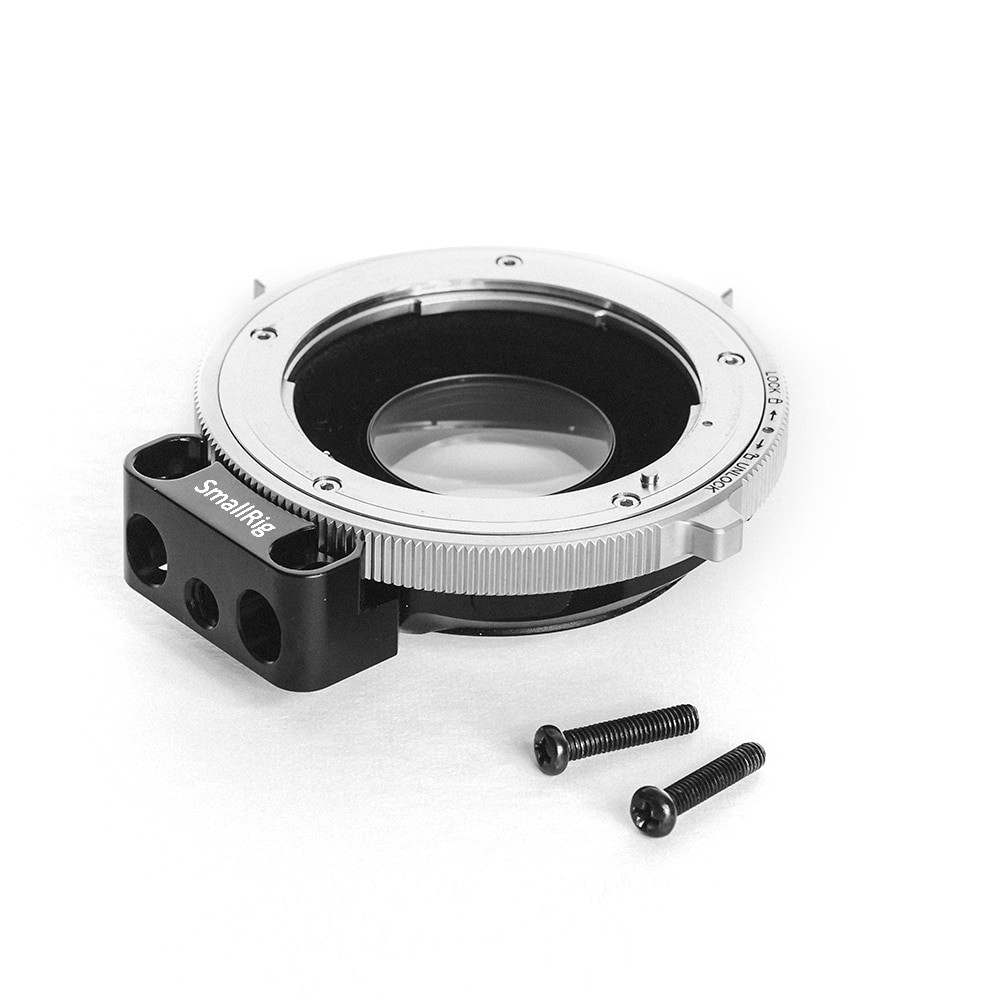

SmallRig T CINE Support for Panasonic Lumix GH5/GH5S 2265 is designed exclusively for the GH5/GH5S cage 2049. It uses two short M4 screws to attach it to the Metabones T CINE line of adapters for M4/3 (Speed Booster Ultra, & Speed Booster XL) and the additional two longer M4 screws are used to screw the support to the cage after attaching the adapter to the camera. This prevents wiggle in the M4/3 mount of lens adapter caused by the weight of heavy cinema EF lenses or due to follow focus systems and servo motors. The support also prevents rotation of the camera body in the camera cage and increases overall rigidity. In addition, 1/4" threaded hole at the base can be used as a second point of attachment for any desired quick release plate system. NOTE: It is imperative that the order of assembly first be threading the screws attaching the support to the adapter and tightened before installation of the screws attaching the support to the cage due to interference between the screw holes.
Key Features
1. Supports lens adapter and prevents wiggle of the adapter or lens for follow-focus use
2. Provides a second point of contact for the camera to the cage, increasing overall rigidity and preventing twist
3. Equipped with an additional 1/4 threaded hole for use with tripod plates
Work With
Panasonic Lumix GH5/GH5S Cage 2049
Canon EF Lens to Micro Four Thirds T CINE Speed Booster XL 0.64x (MB_SPEF-m43-BT6)
Canon EF Lens to Micro Four Thirds T CINE Speed Booster ULTRA 0.71x (MB_SPEF-m43-BT5)

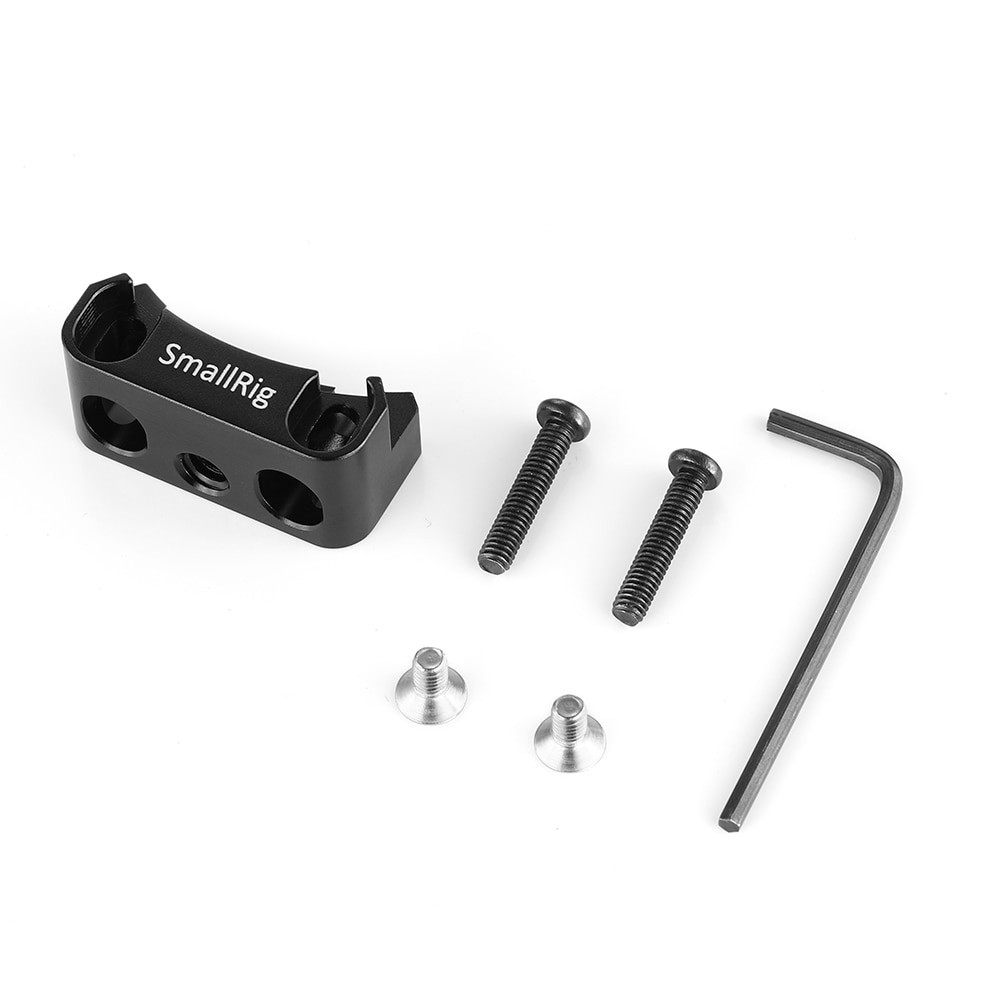

Packing List
1 x Lens Adapter Support
4 x M4 Screw
2 x Hex Spanner
