SmallRig Rotating Side Handle with Trigger REC for Selected Sony Mirrorless Cameras 3893

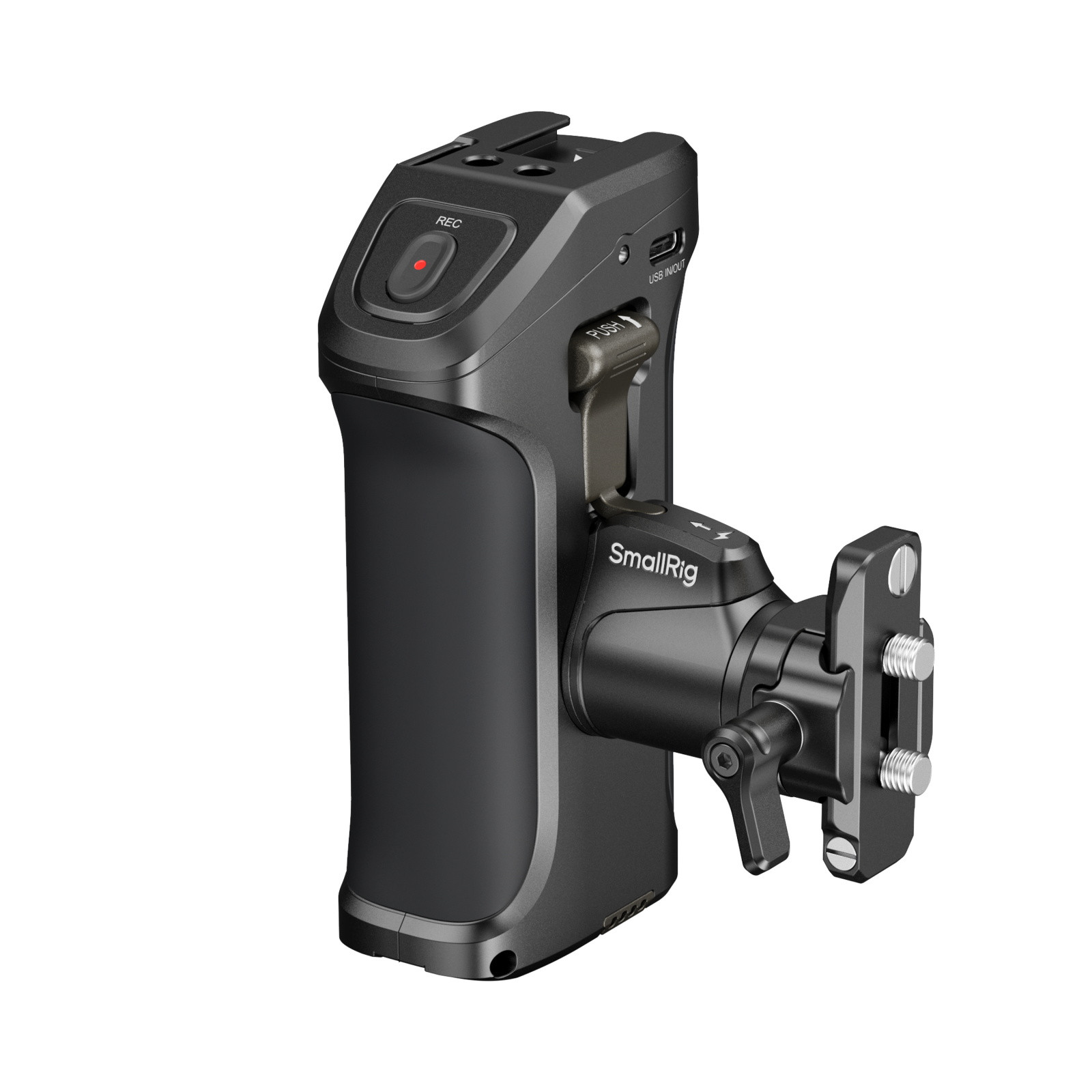

SmallRig Rotating Side Handle with Trigger REC for Selected Sony Mirrorless Cameras 3893 is designed to provide a secure grip for seamless camera control. The handle features an integrated shutter control function and is compatible with NP-F550 / 570 batteries for extended power supply. The ergonomic handle, coated with silicone, ensures a comfortable grip for both hands and offers one-click, step-less rotation for fluid camera movement at any angle.

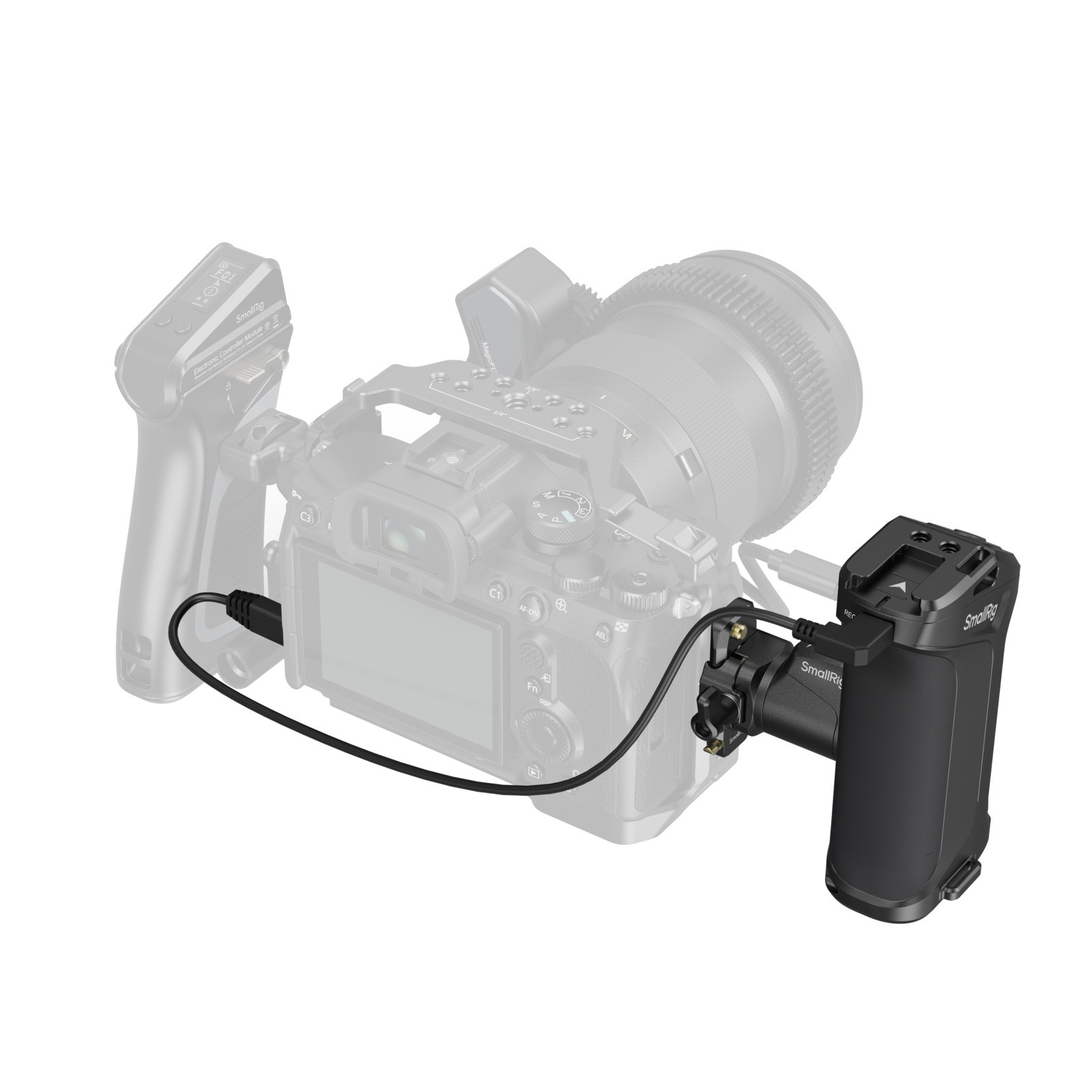

This handle integrates a REC button with a complimentary control cable to control recording. In addition, it allows for attaching NP-F550 / 570 batteries to the bottom, enabling charging of other devices or the handle itself using the USB-C IN / OUT ports. With a maximum input and output of 20W, it supports multiple fast-charging protocols including PD, QC, AFC, and FCP. The handle also incorporates 1/4"-20 threaded holes, a cold shoe mount, and a strap slot for attaching accessories like monitors, fill lights and wrist straps.
Note:
1. The package does not include the NP-F550 or NP-F570 batteries. When using the SmallRig NP-F550 battery (ID: 4331 / 4791), remove the adaptor plate inside the handle.
2. Control of Sony camera recording functions can be realized without installing the NP-F550 / 570 battery.
3. When the remaining memory card space is low, the handle may not be able to control the camera recording function.
Work With
Sony Alpha 7 III / Alpha 7 IV / Alpha 7R III / Alpha 7R IV / Alpha 7R V / Alpha 7S III / FX3 / FX30 / Alpha 1 / Alpha 1 II / Alpha 9 / Alpha 9 II / Alpha 9 III
Packing List
Handle x 1
Control Cable for Sony x 1
NATO Rail x 1
Allen Wrench x 1
Technical Data
Input Voltage & Current: 5V--3A,9V--2.22A,12V--1.67A,20V--1A
Output Voltage & Current: 5V--3A,9V--2.22A,12V--1.67A,15V--1.33A,20V--1A
Operation temperature: 0~40℃
humidityOperation: 10%-90%RH (no condensing)
Product Dimensions: 115.3 x 56.7 x 85.0mm / 4.5 x 2.2 x 3.3in
Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 2.9in
Product Weight: 312.0 ± 5.0g / 11.0 ± 0.2oz
Package Weight: 398.0 ± 5.0g / 14.0 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone, Copper, TPE
