SmallRig Quick Release Baseplate Kit for Panasonic Lumix GH5 2035
SmallRig Quick Release Baseplate Kit 2035 is exclusively designed for GH5 Cage 2049. It offers possibilities to extend the mountings as per your needs during shooing. It also enables to switch different shooting modes, like handheld shooting and tripod shooting, run-and-gun and tripod shooting in different scenarios. It features great convenience for the cameraman.
SmallRig Quick Release Baseplate Kit 2035 could attach GH5 Cage 2049 without blocking the screws to mount the camera on the cage. It is very convenient for the quick release of cage. Quick release baseplate is locked tight with quick release plate via a wingnut, so that you can detach and attach them with great ease. Dual rod clamp enables 85mm rod height to mount matte box, follow focus and lens adapter etc. Lens adapter bolt is utilized to secure M43Metabones lens adapter, protecting the camera bayonet and preventing the loss of signals while shooting. Threaded holes at the bottom are compatible with Quick Dovetail(Manfrotto) 1647 and Vinten Camera Quick Release Plate 1700. It could be mounted on Arri Standard Dovetail(12") 1463 and then sits on tripod for balance.
Key Features
1. It is exclusively designed for GH5 Cage 2049, and the dual rod clamp enables 85mm rod height to mount matte box and follow focus.
2. The Arca baseplate is locked tight via a locking lever, thus it is very convenient to attach and detach the cage with camera mounted. Handheld shooting mode and tripod shooting mode could be switched quickly.
3. It is compatible with M43 Metabones lens adapter, protecting the camera bayonet and preventing the accidental loss of signals while shooting.
4. Arri dovetail groove at the bottom is compatible with Arri Standard Dovetail(12") 1463.
5. Threaded holes at the bottom are compatible with Quick Dovetail(Manfrotto) 1647 and Vinten Camera Quick Release Plate 1700.
Work With

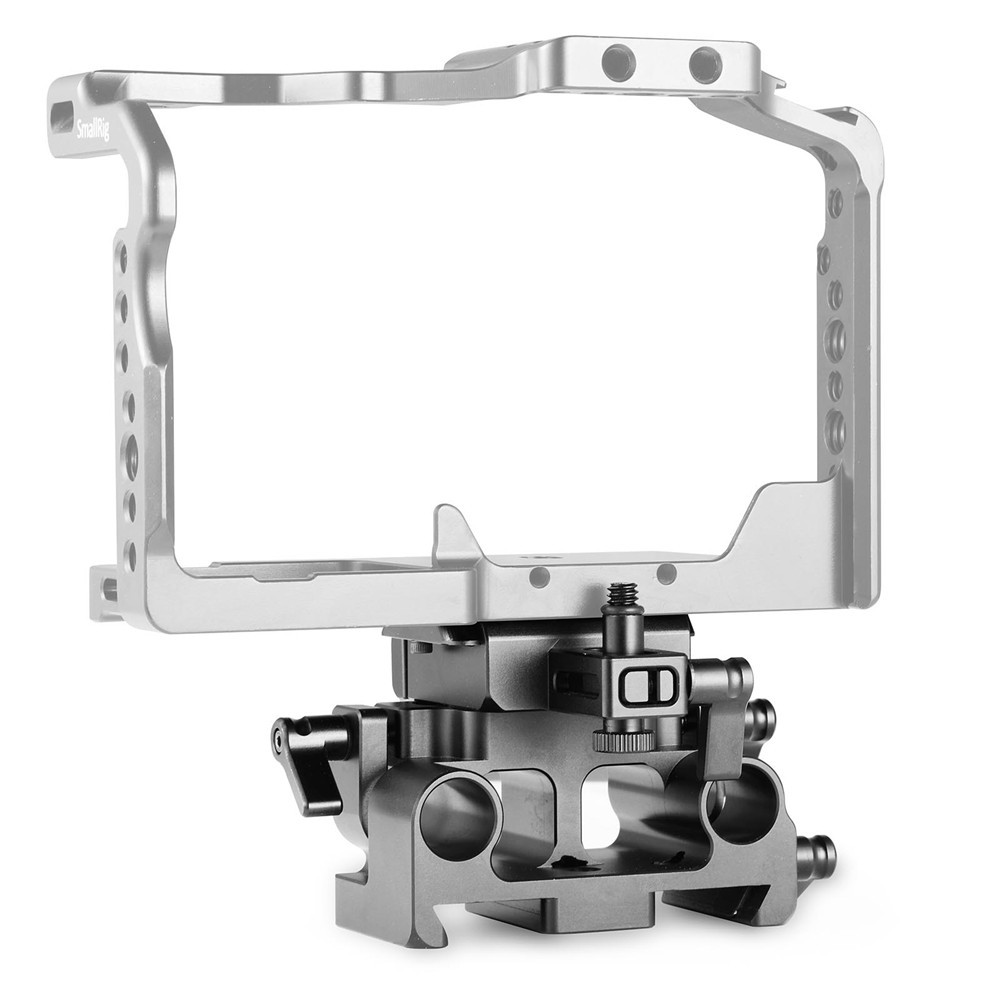

Panasonic Lumix GH5/GH5S Cage 2049

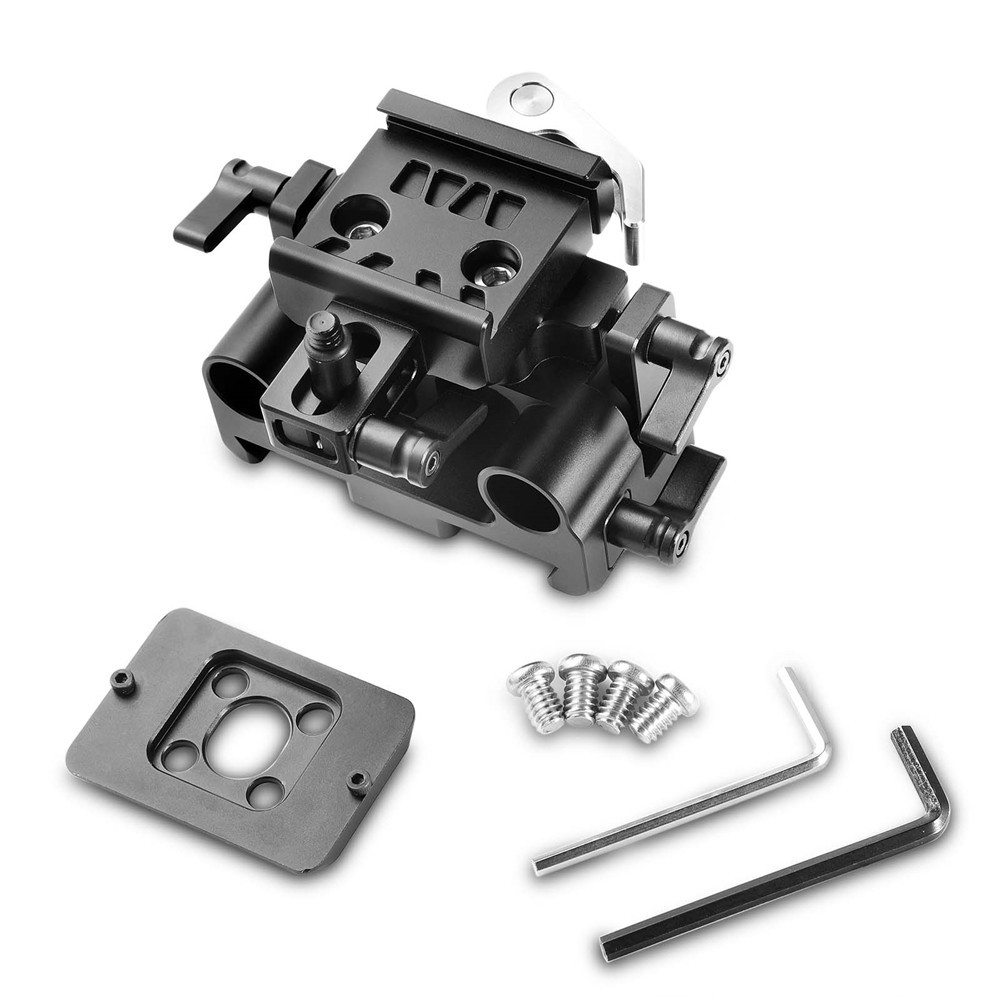

Packing List
1 x Quick Release Baseplate
1 x Quick Release Plate
4 x 1/4"-20 Screw
2 x Hex Spanner
Technical Data

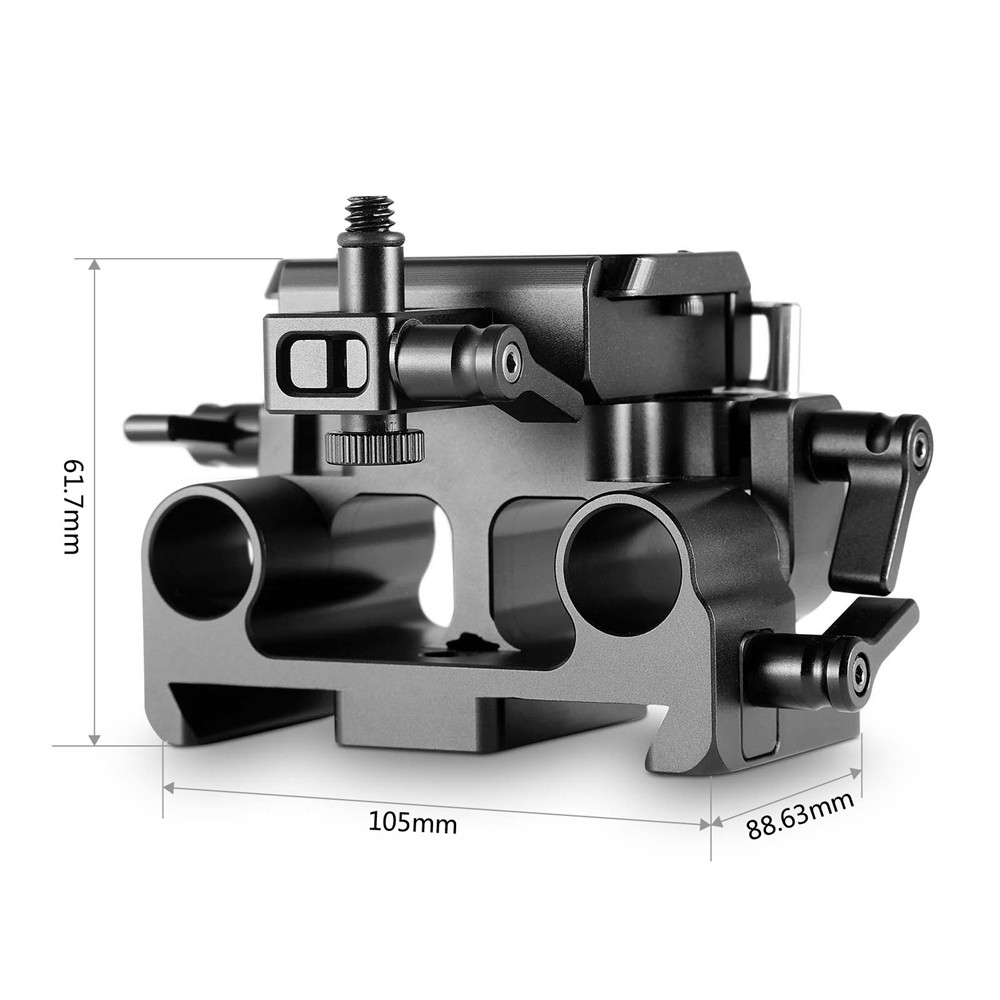

Product Dimensions: 105x88.6x61.7 mm
Net Weight: 235g
Package Size: 125x108x98 mm
Material(s): Aluminum Alloy
