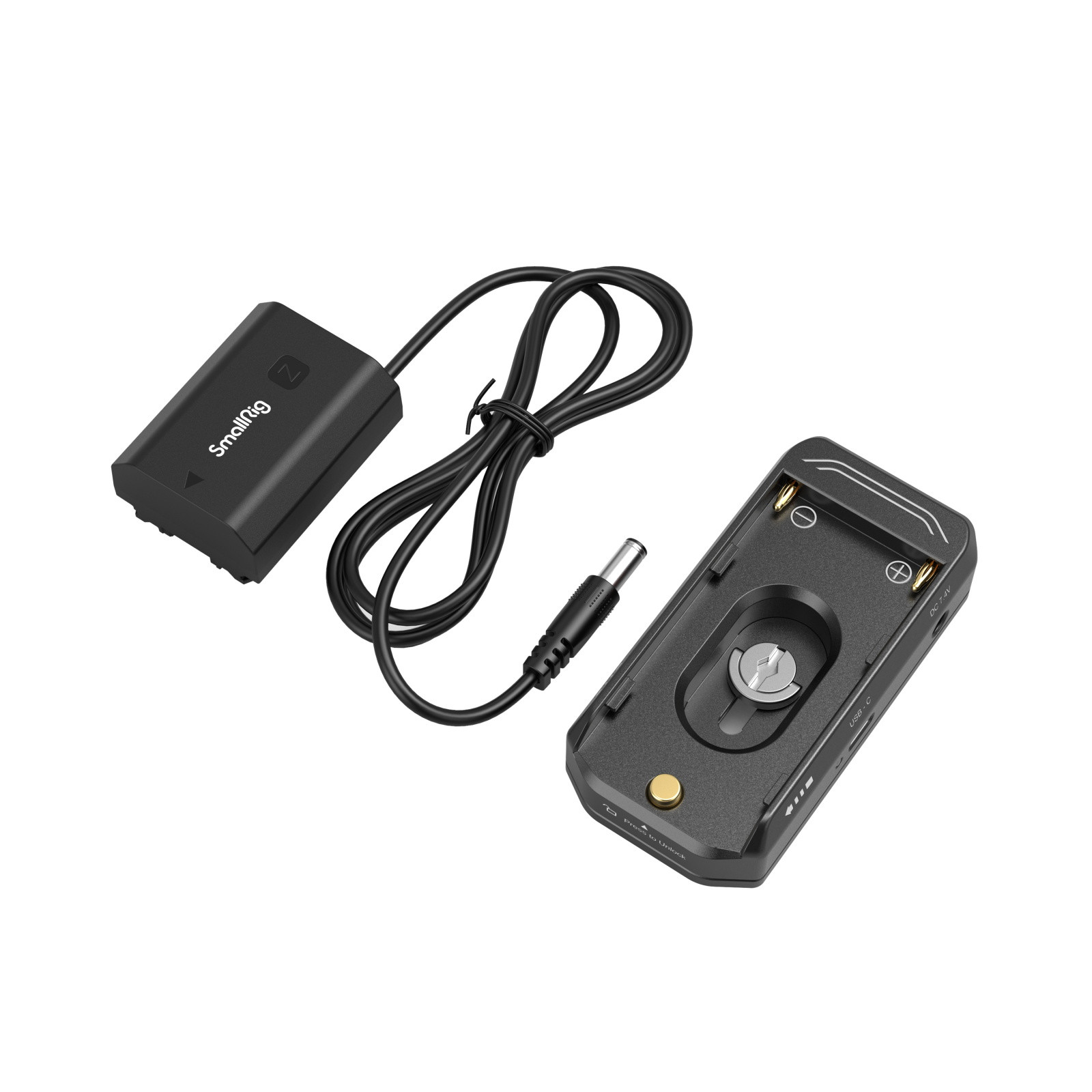

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

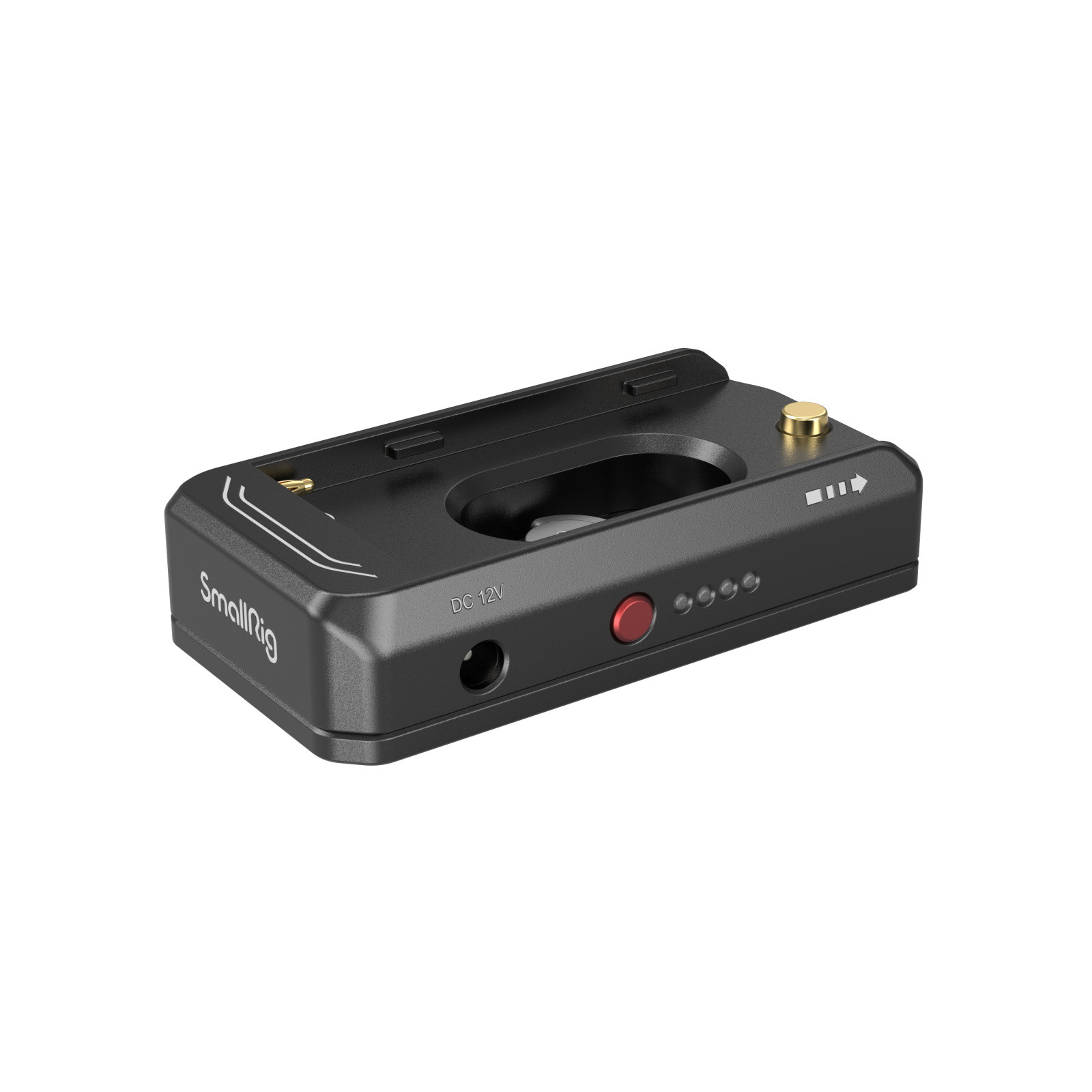

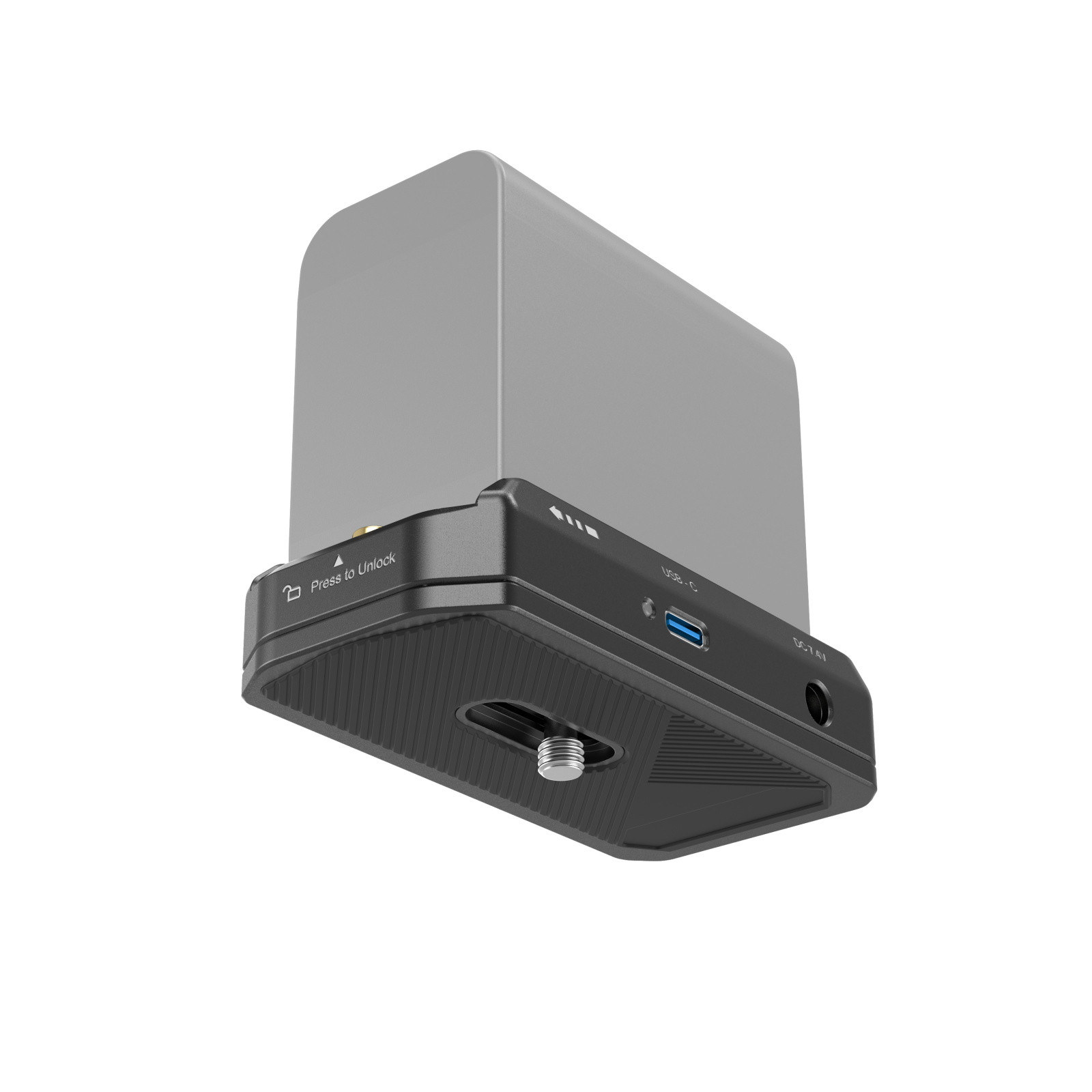

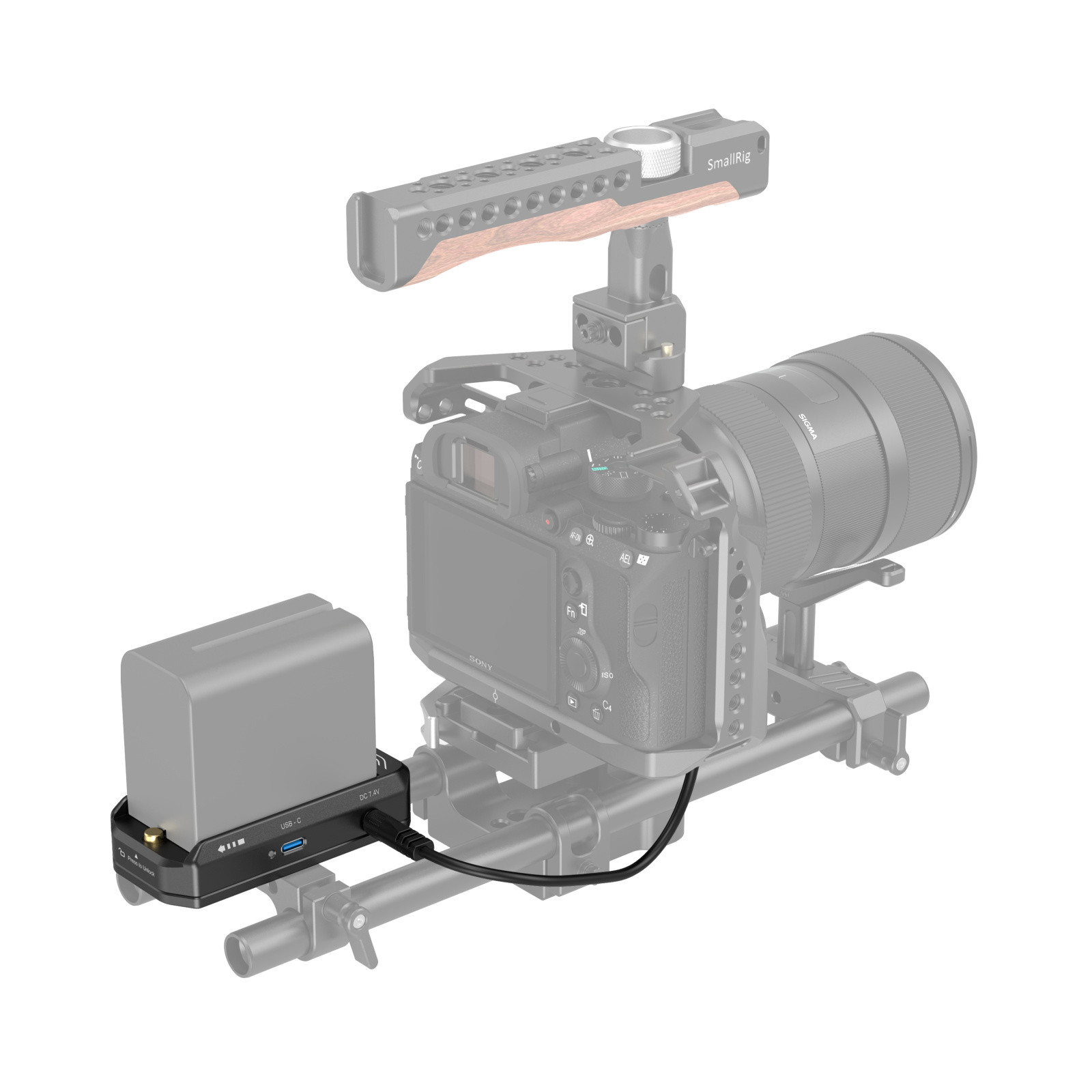

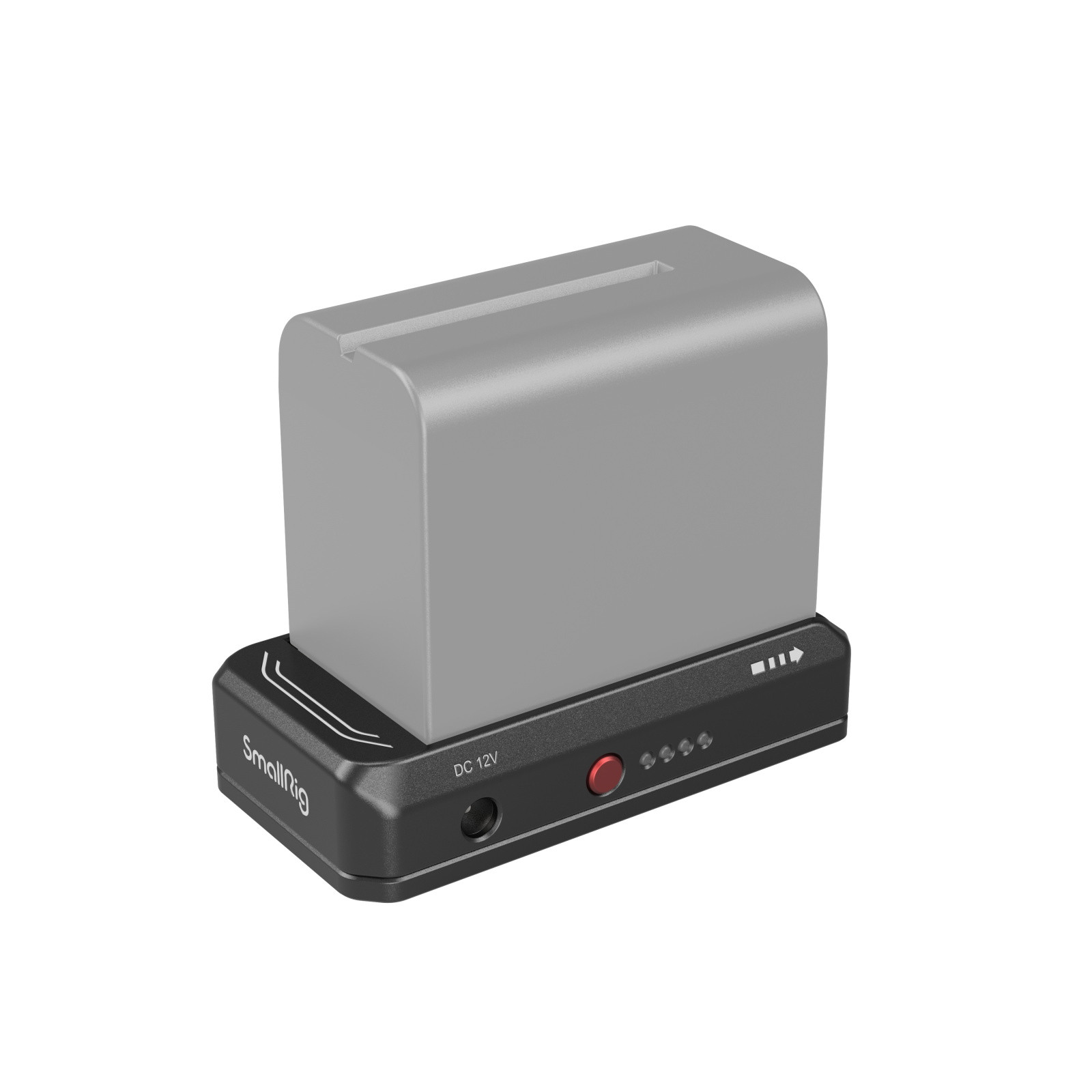

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341 is designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power Sony FX3 / FX30/ α7CR / α7C II / α7 IV/ ZV-E1 and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.

Certification: FCC、UKCA、CE、ISED、RoHS

NP-F Battery Adapter Mount Plate Specifications:

The maximum operating power of the whole machine: ≤ less than battery power (based on NP-F battery capacity)

Standby power (static reference power): ≤0.2W

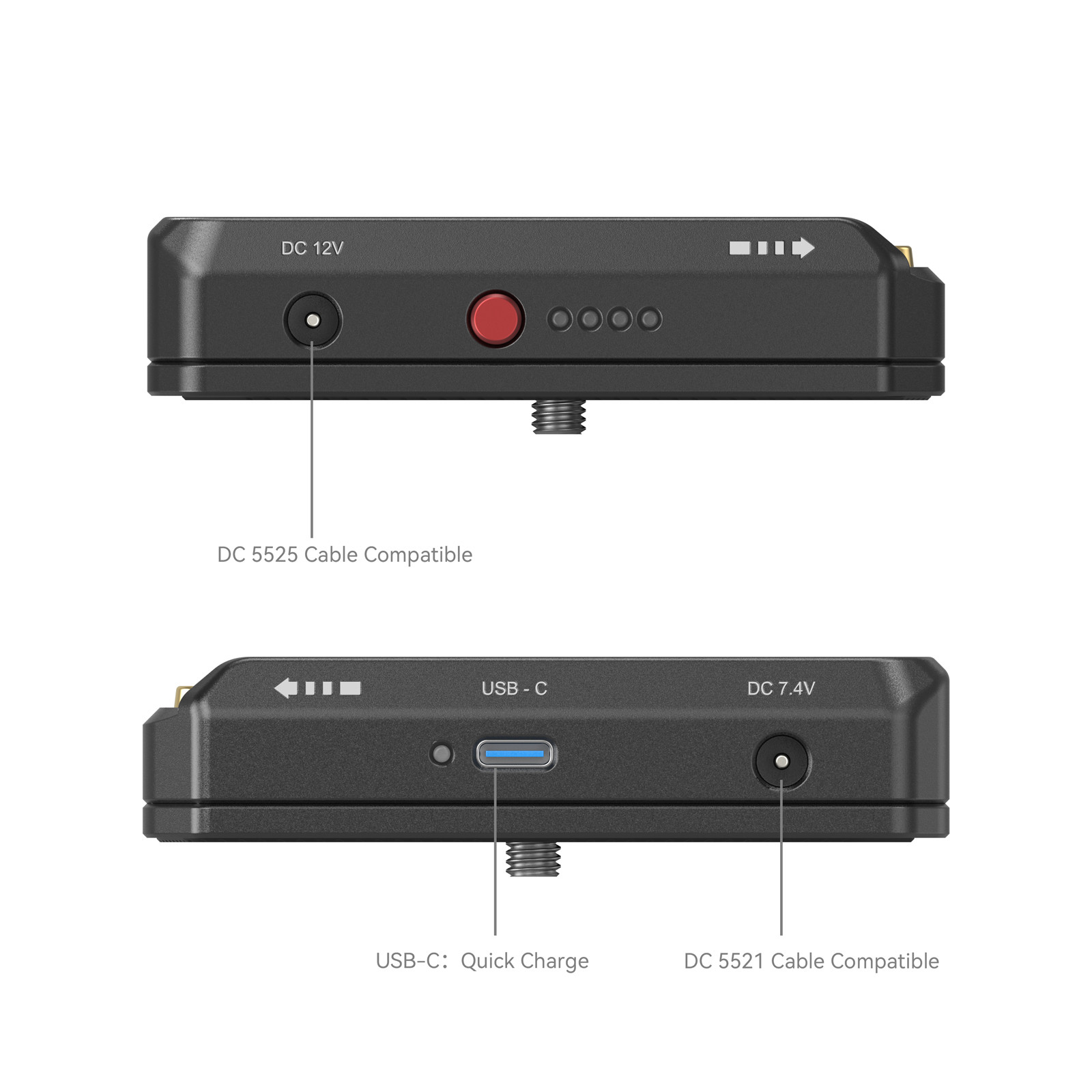

DC5521 7.4V output port: 6.4V-8.4V MAX:3A

DC5525 12V output port: 12V±5%MAX:3A

USB-C input/output port charging input: 5V / 3A,9V / 2.7A,12V / 2.1A(MAX:25W)

USB-C input/output port discharge output: 5V/3A,9V/3A12V/3A(MAX:36W)

Charging operating temperature: 0℃~40℃

Working humidity range: Relative humidity 20%~90%RH without condensation

Storage temperature: -40℃～70℃

USB-C supports protocols:

Input: PD3.0、QC2.0、QC3.0、SCP、FCP、AFC

Output: PD3.0、QC2.0、QC3.0、SCP、FCP、AFC

FZ100 Dummy Battery Specifications:

Input Voltage: 7.6~8.4V

Input Current: 3A

Output Voltage: 7.6~8.4V

Output Current: 2A(Max)

NP-F Battery Adapter Mount Plate Button/Indicator Function Display:

Power Display Button: Touch to check the battery level

Working Indicator Light:

USB-C port charging and discharging indicator light: Orange - slow charge/slow discharge, ice blue light - fast charge/fast discharge

battery indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%
