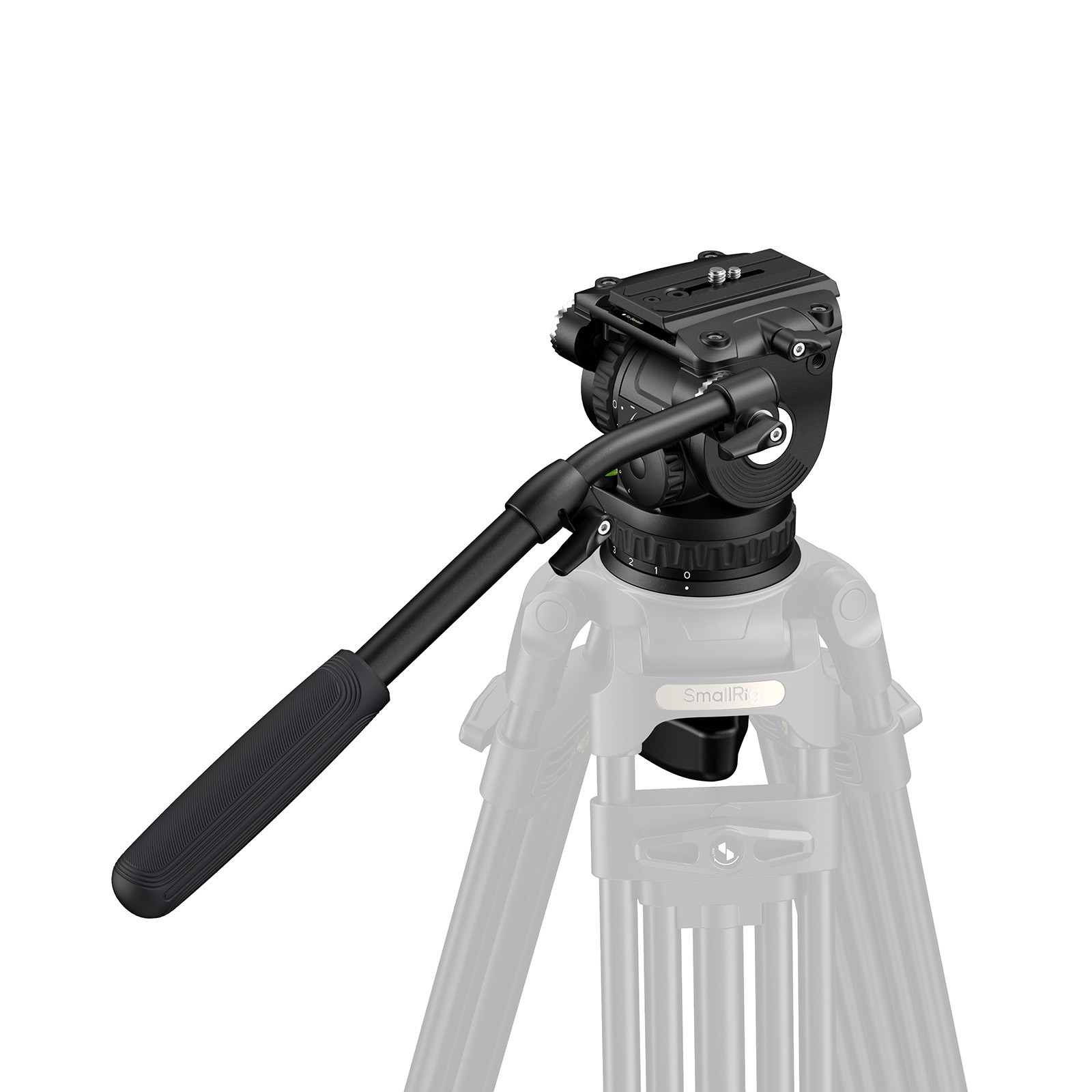

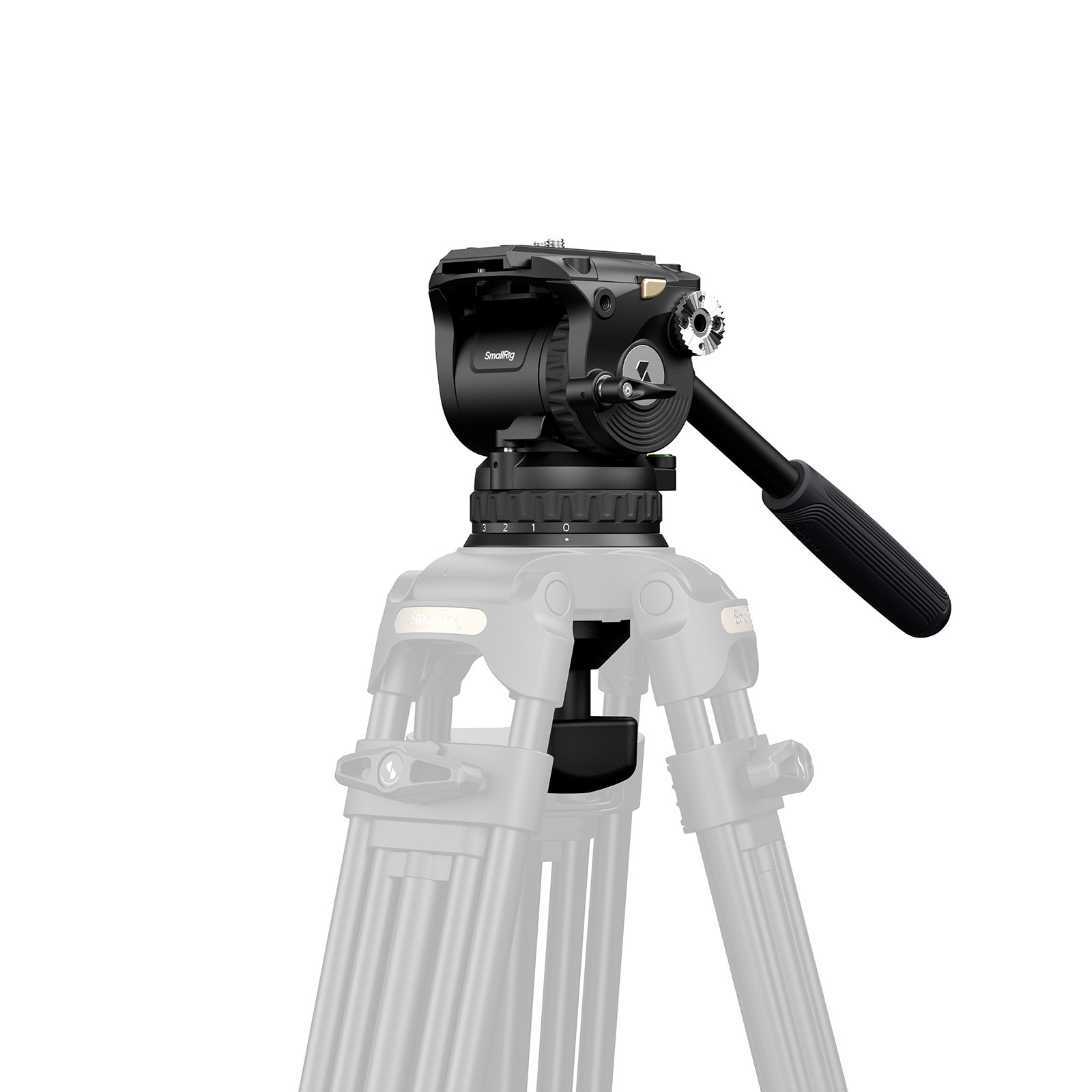

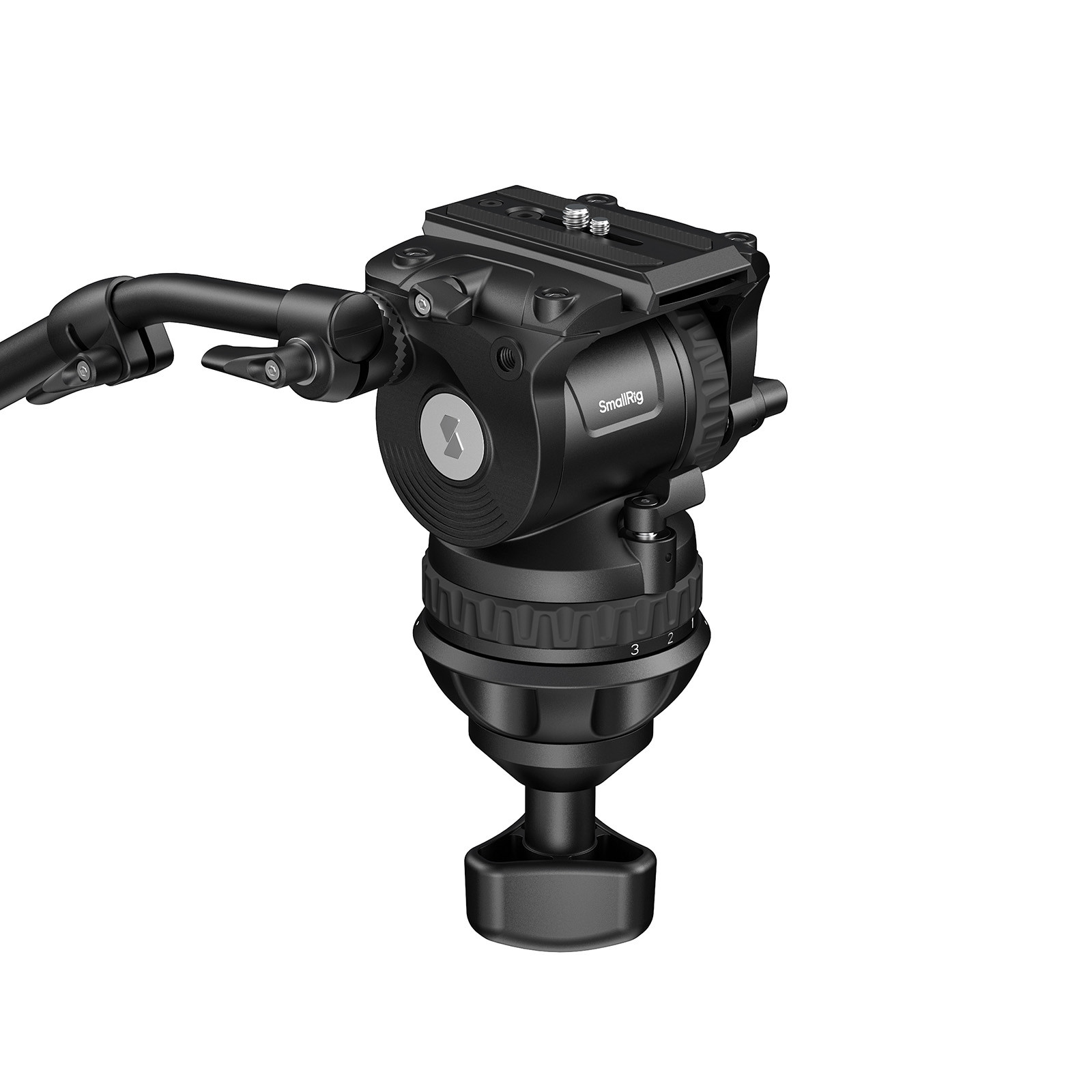

SmallRig Heavy-Duty Video Head 6554

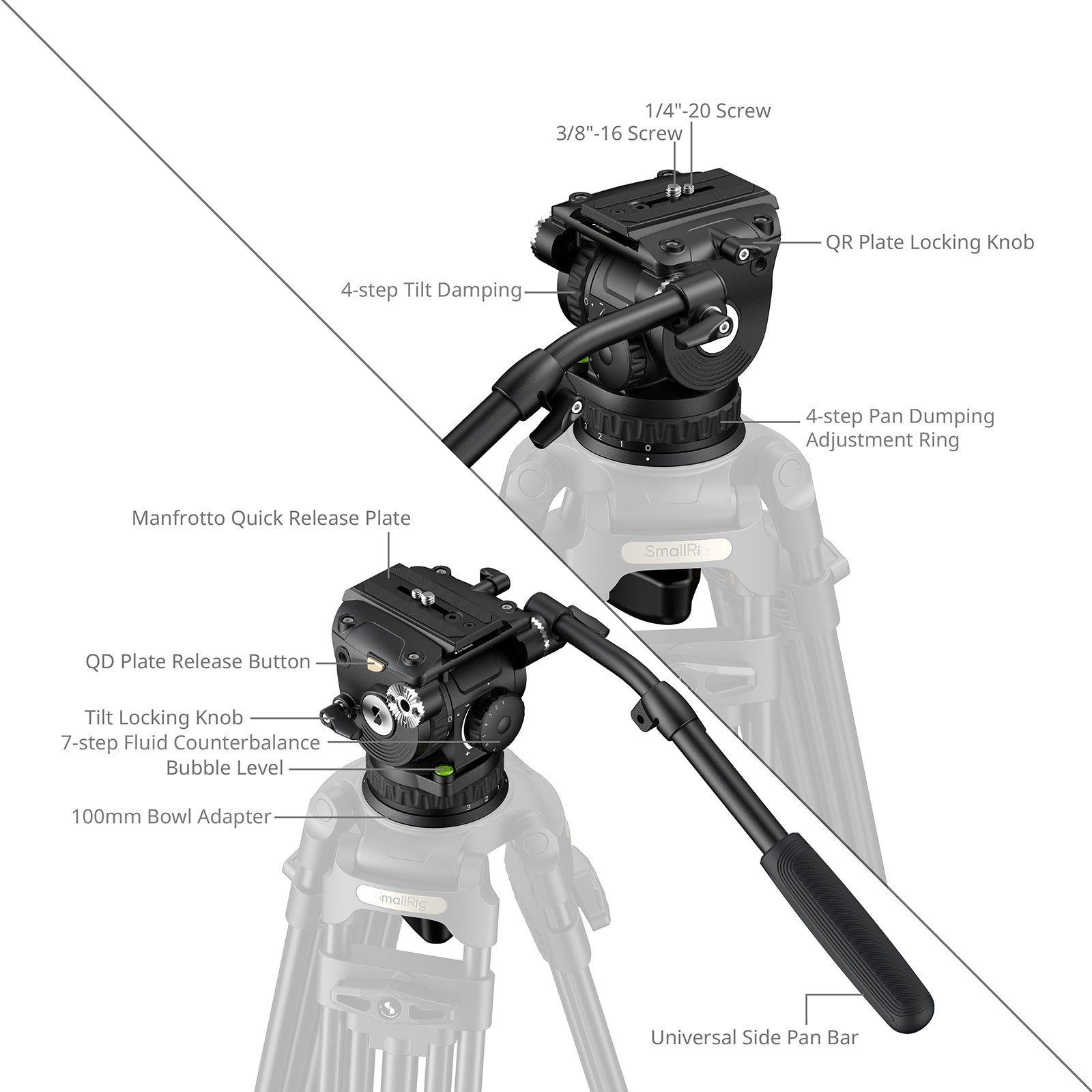

SmallRig Heavy-Duty Video Head 6554 is a high-quality hydraulic video head made of aluminum alloy. It features a standard 100mm bowl base, 7-step counterbalance adjustment, and 4-step pan and 4-step tilt damping adjustment for smooth, controlled camera movement. The counterbalance system supports a payload range of 4.0-10.0kg (8.8-22.0lb), while the head offers a safe payload capacity of 15.0kg (33.1lb) and a maximum load capacity of 17.0kg (37.5lb).
It also provides fast switching between Manfrotto and DJI RS quick release plate systems. In addition, the head supports handle mounting on either the left or right side for both left- and right-hand operation. A built-in 1/4"-20 threaded hole allows attachment of accessories such as a magic arm.
Work With
1. Standard Manfrotto quick release plate (501PL).
2. DJI Manfrotto-style quick release plate.
3. 100mm bowl base.
Packing List
Video Head × 1
Wrench × 1
Guarantee Card × 1
Technical Data

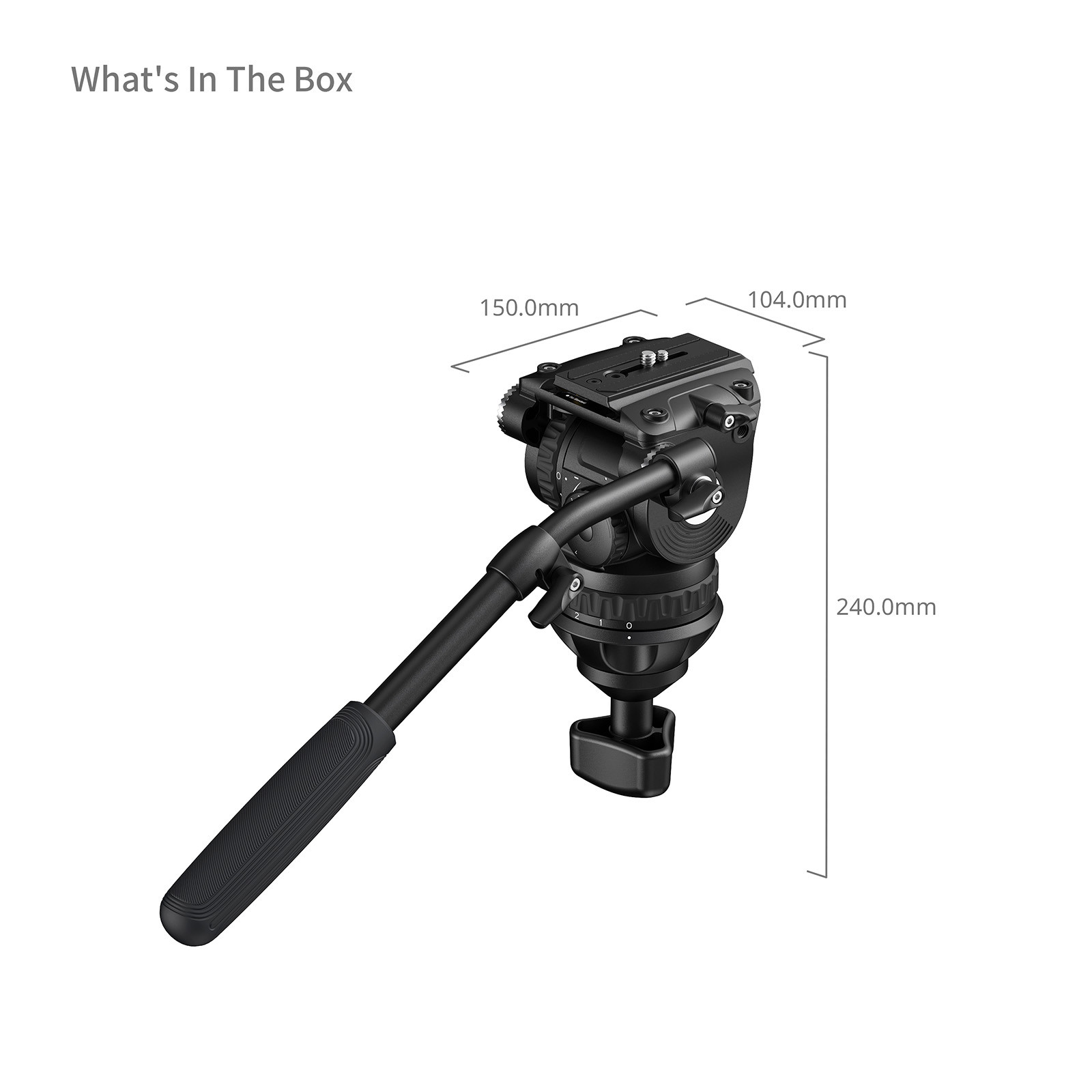

Product Dimensions: 10.3 × 15 × 24.0 cm / 4.1 × 5.9 × 9.4in
Package Dimensions: 19.0 × 15.0 × 40.2cm / 7.5 × 5.9 × 15.8in
Product Weight: 2.46 ± 0.05kg / 5.4 ± 1.8oz
Package Weight: 2.98 ± 0.05kg / 6.6 ± 1.8oz
Bowl Diameter: 100.0mm / 3.9in
Tilt Range: 90° / -60°
Tilt Damping Levels: 4
Pan Damping Levels: 4
Counterbalance Steps: 7
Counterbalance Payload: 4.0-10.0kg / 8.8-22.0lb
Maximum Load: 17.0kg / 37.5lb
Safe Load: 15.0kg / 33.1lb
Handle Length: 38.5-55.0cm / 15.2-21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy
Sensitive Attribute: Contains 0.06ml liquid
