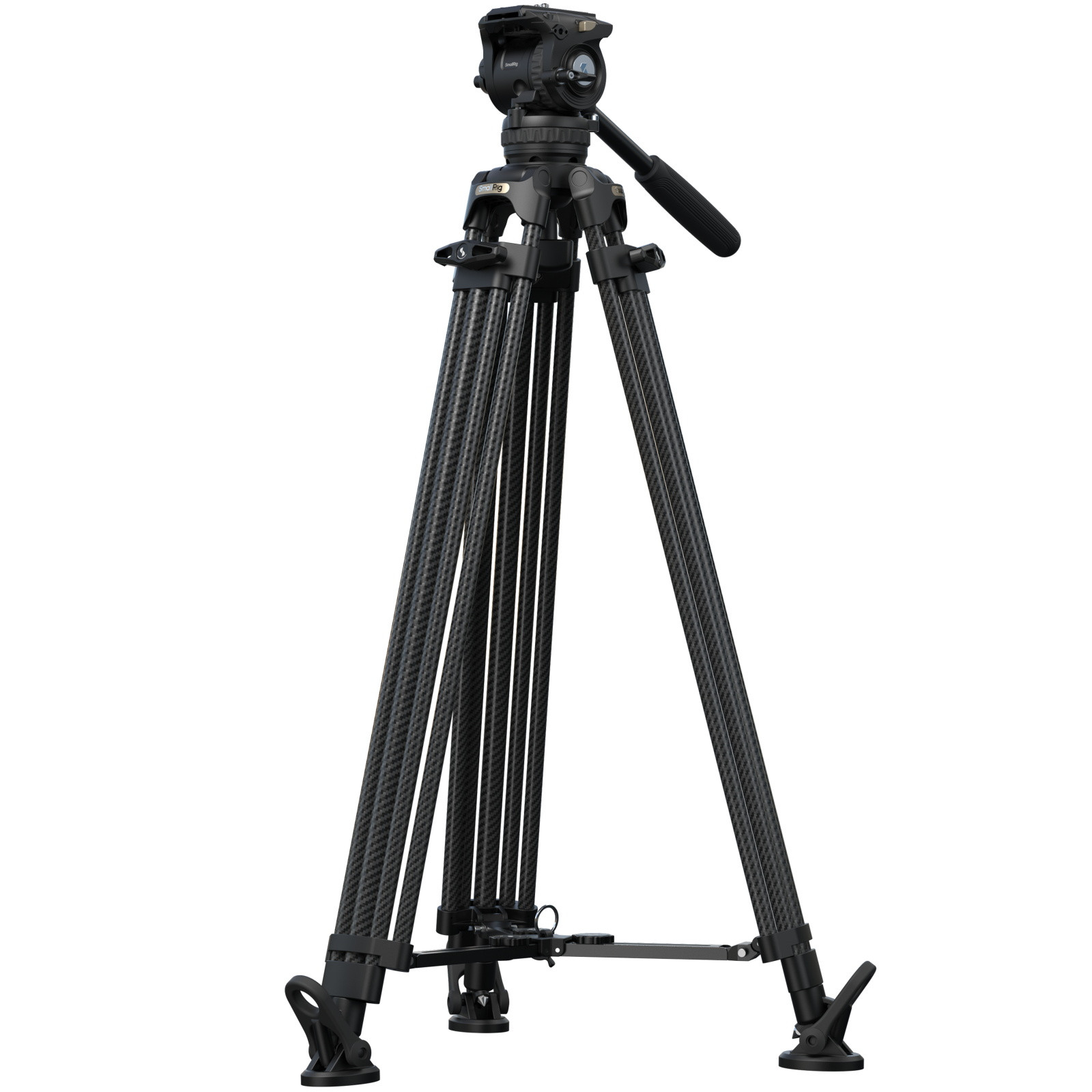

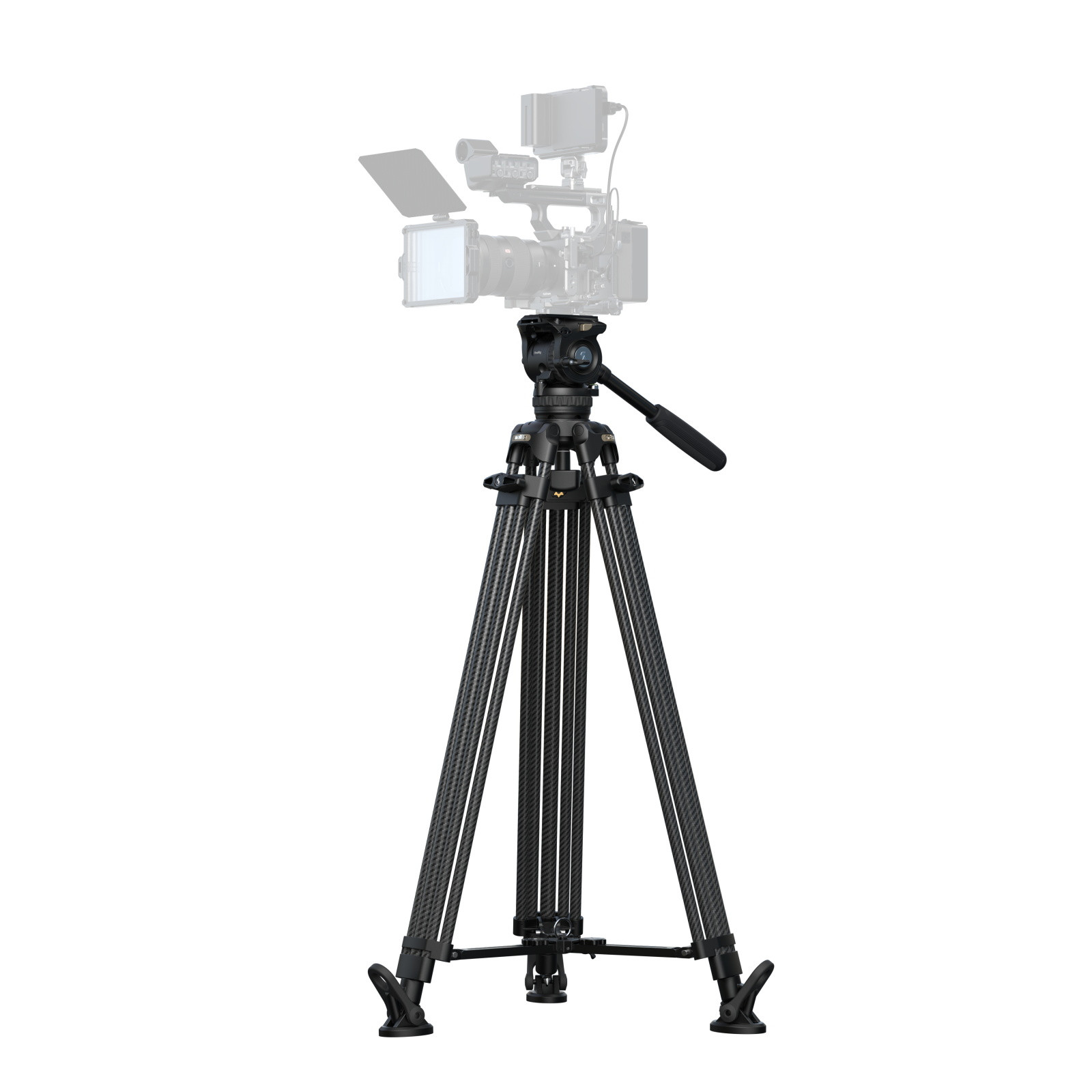

SmallRig FSD16 FreeSpeed Heavy-Duty Carbon Fiber Tripod 5580

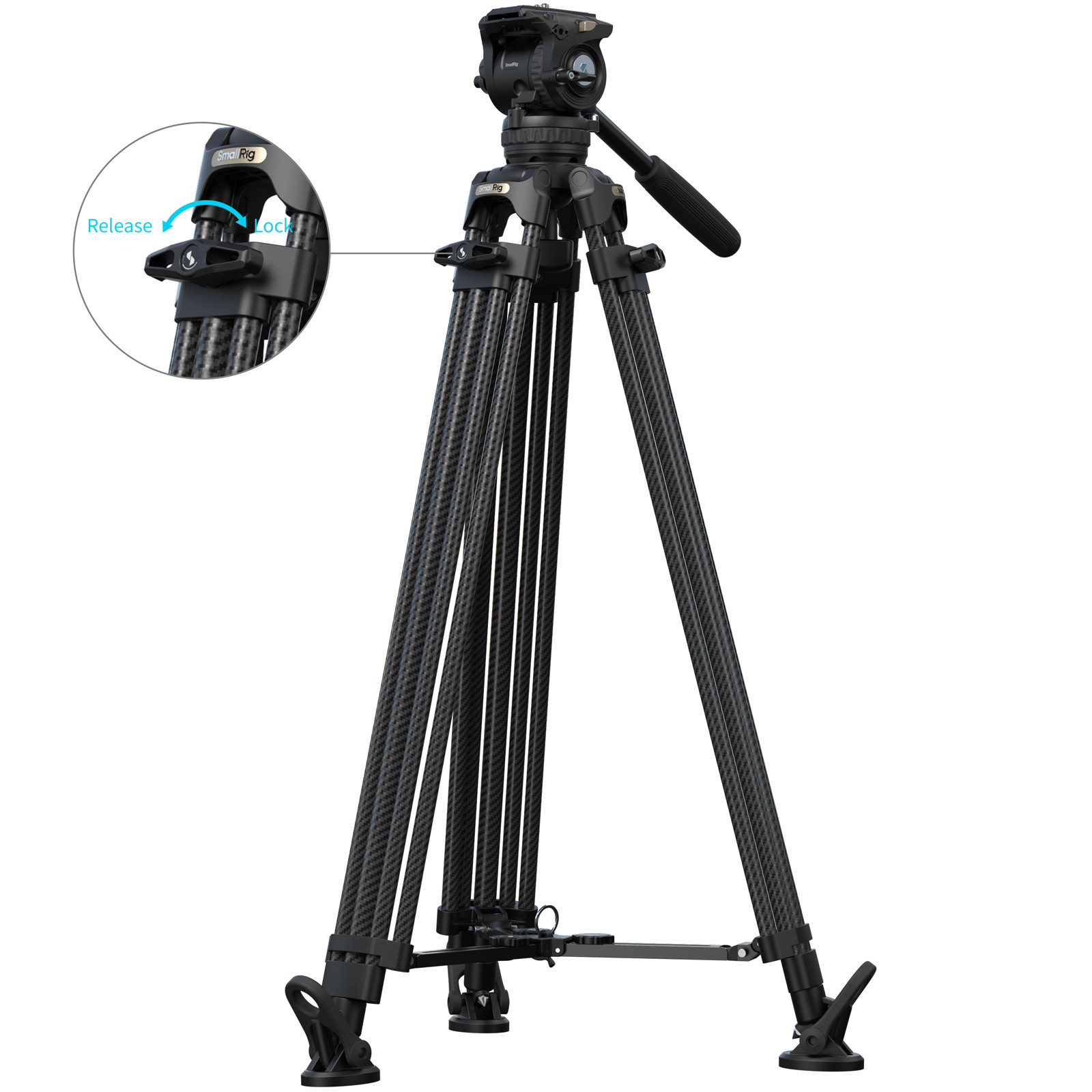

SmallRig FSD16 FreeSpeed Heavy-Duty Carbon Fiber Tripod 5580 is engineered for professional videography, providing elevated shooting perspectives and rapid tripod deployment. Its one-step leg deployment knob allows for quick height adjustments, streamlining your on-site workflow.

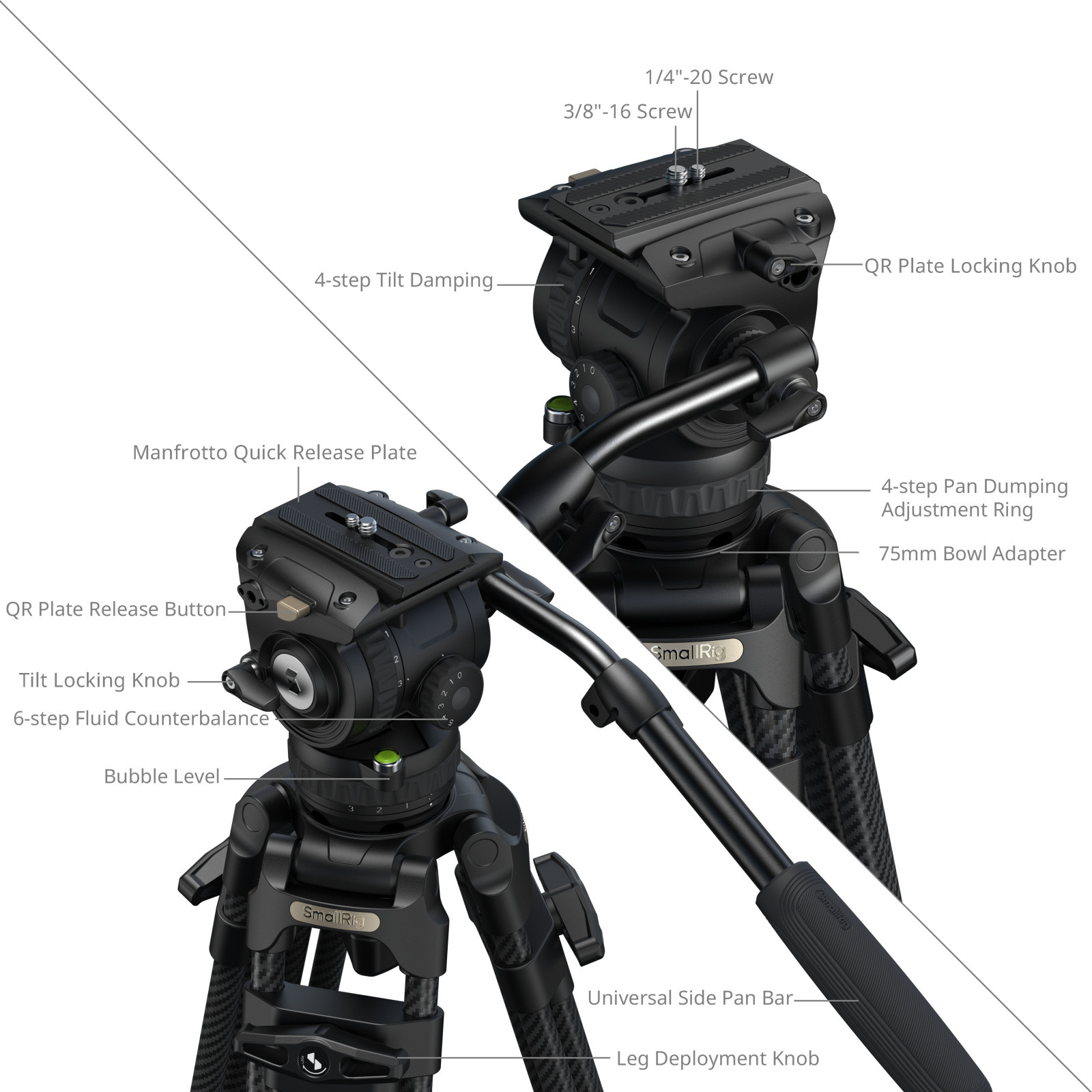

Constructed with carbon fiber legs (Ø16mm) in a 3-section, 2-2-1 segment configuration and a standard 75mm bowl base, the tripod pairs with a fluid head featuring 6-step counterbalance and independent 4-level tilt / pan damping control. The counterbalance mechanism supports loads from 0kg to 6kg (0lb to 13.2lb), while the head offers a safe operational weight of 10kg (22lb) and a maximum load capacity of 15kg (33.1lb). The tripod’s working height ranges from 93.6cm to 214cm (36.9in to 84.3in), ensuring high-load stability and smooth motion for high-angle shooting scenarios.
Work With
Standard Manfrotto Quick Release Plates (501PL) and DJI Manfrotto Quick Release Plates
75mm Bowl Base
Packing List
Tripod x 1
Allen Wrench x 1
Storage Bag x 1
Phone Clamp x 1
Guarantee Card x 1
Technical Data
Product Dimensions: 184.0 x 176.0 x 1004.0mm / 7.2 x 6.9 x 39.5in
Package Dimensions: 240.0 x 200.0 x 1085.0mm / 9.4 x 7.9 x 42.7in
Product Weight: 5.95 ± 0.05kg / 13.1 ± 0.11lb
Package Weight: 7.45 ± 0.05kg / 16.4 ± 0.11lb
Working Height: 93.6–214.0cm / 36.9–84.3in
Storage Length: 99.8cm / 39.3in
Leg Sections: 3
Leg Diameters: 16mm / 16mm / 22mm
Bowl Diameter: 75mm
Tilt Range: +90° / -60°
Tilt Damping Levels: 4
Pan Damping Levels: 4
Counterbalance Levels: 6
Counterbalance Load Range: 0–6.0kg / 0–13.2lb
Max Payload: 15kg / 33.1lb
Safe Load Capacity: 10kg / 22.0lb
Handle Length: 38.5–55.0cm / 15.2–21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy, Carbon Fiber
Special Note: Contains Liquid (0.8ml)
Units per Carton: 2
Carton Dimensions: 415.0 x 250.0 x 1100.0mm / 16.3 x 9.8 x 43.3in
Carton Weight: 16.3 ± 0.05kg / 35.9 ± 0.11lb
