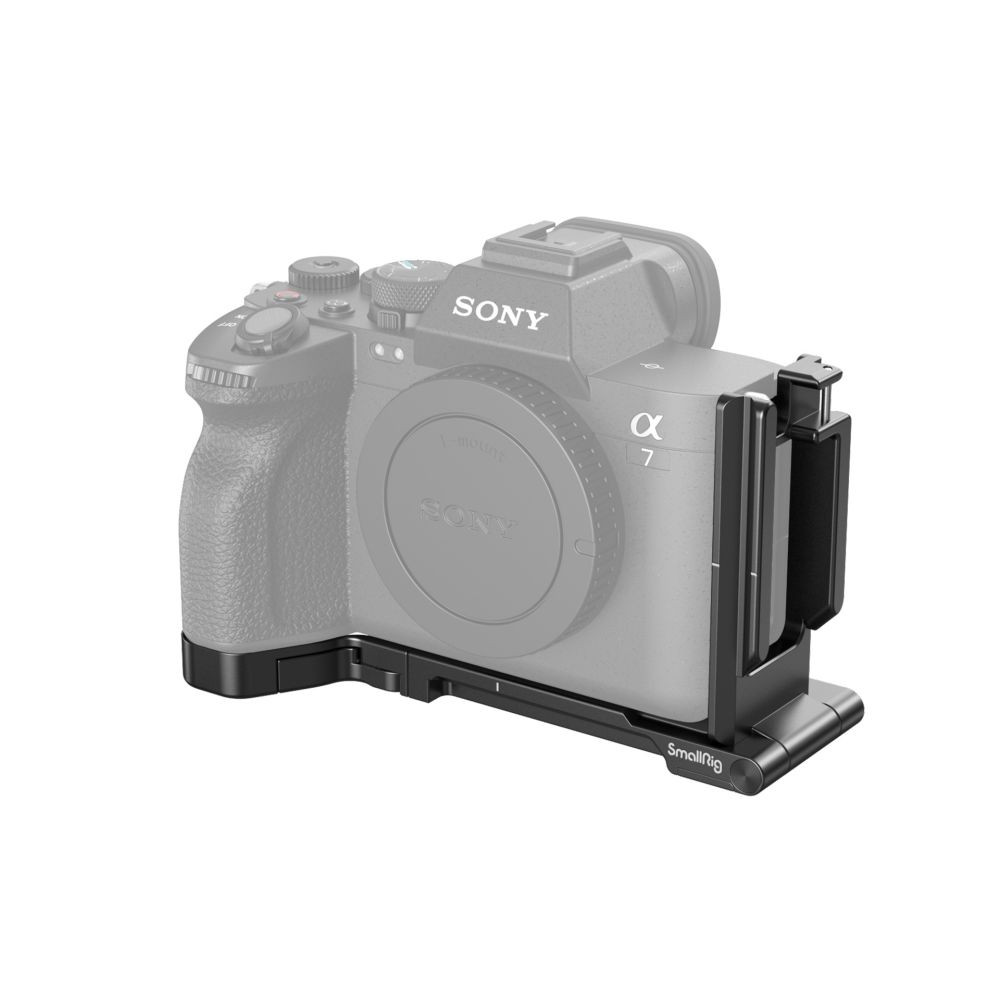

SmallRig Foldable L-Shape Mount Plate for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 3984

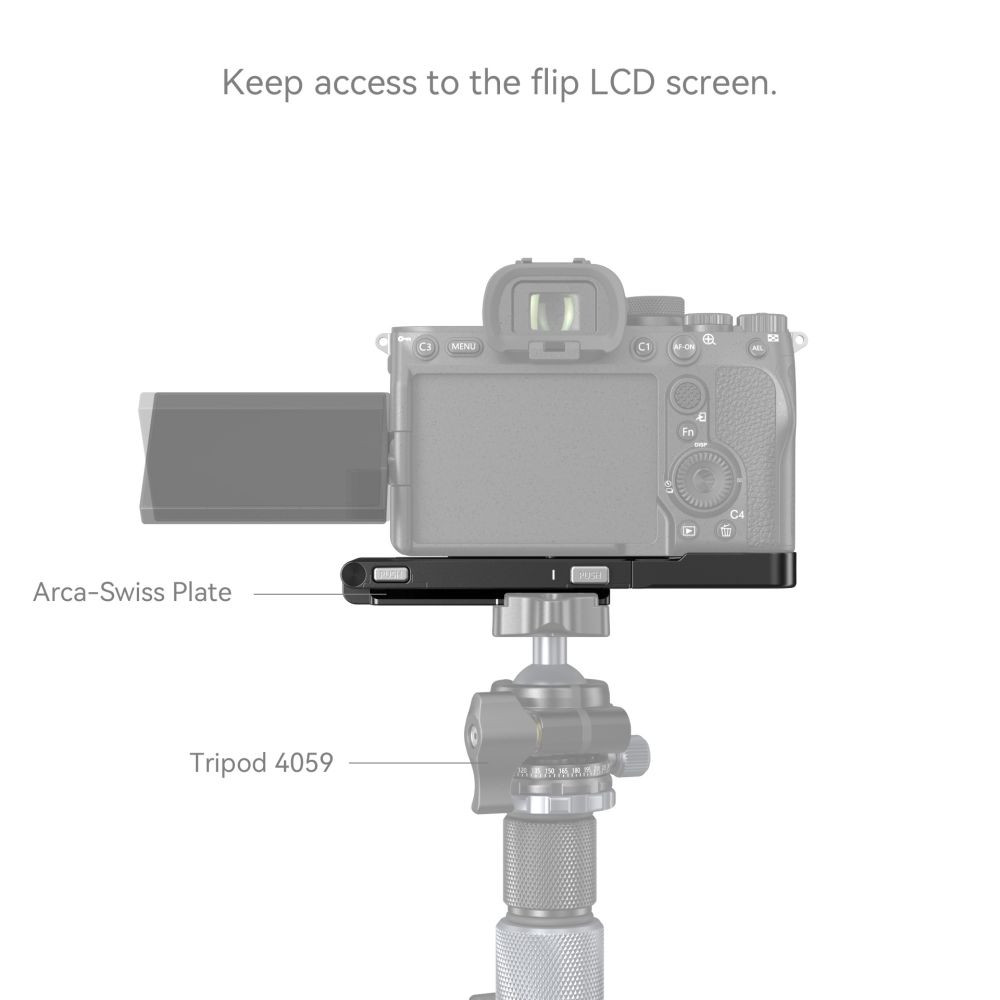

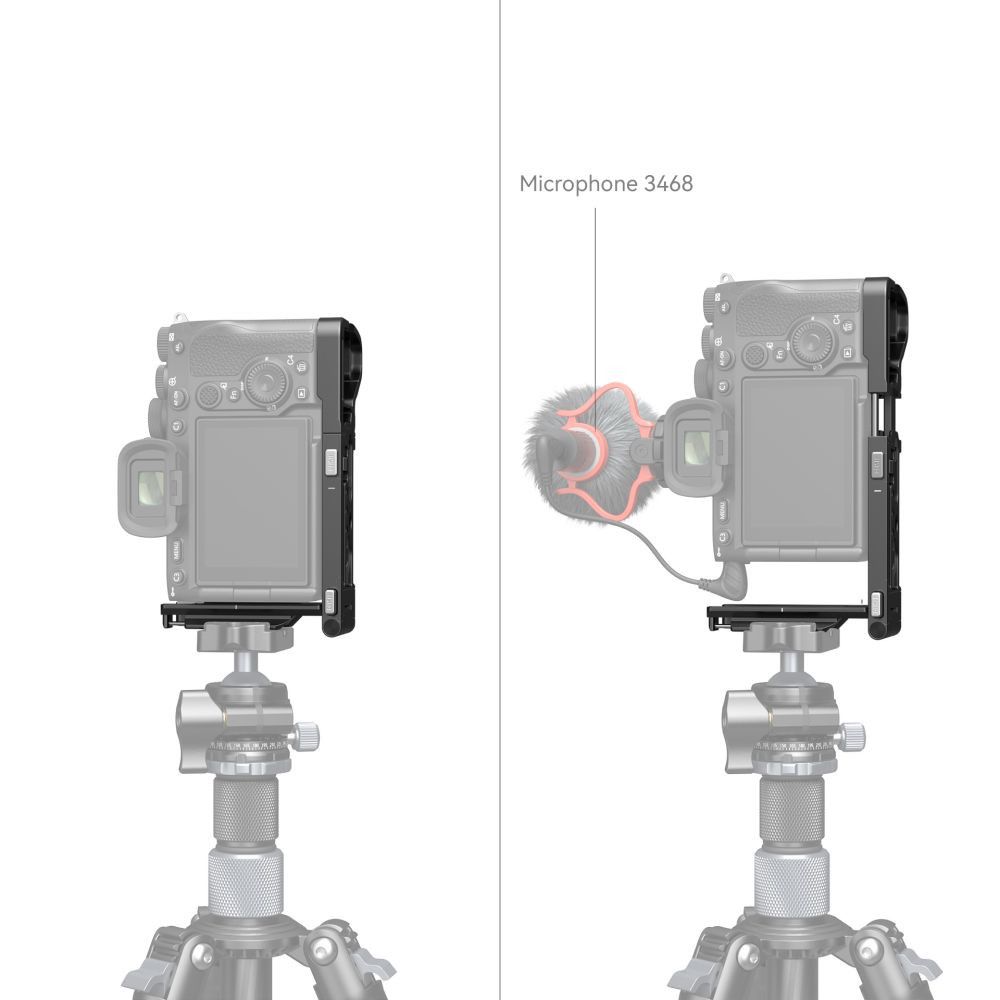

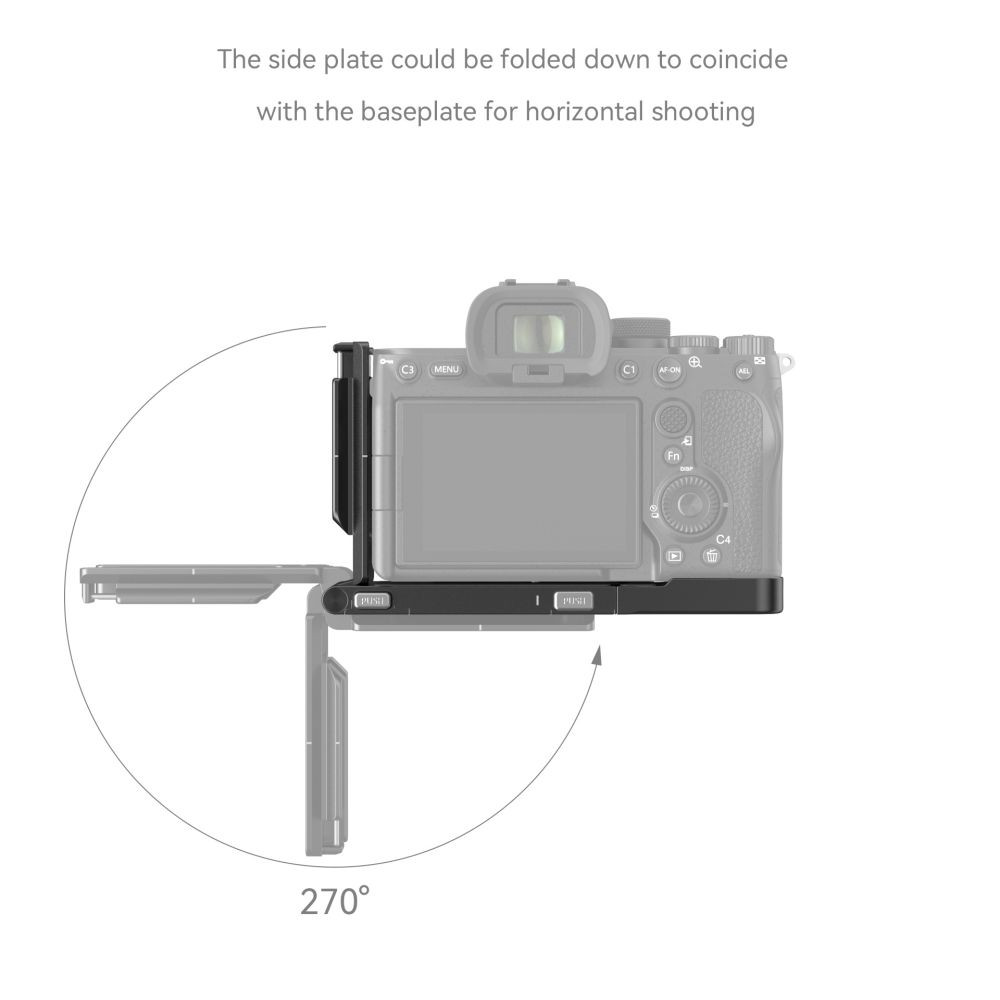

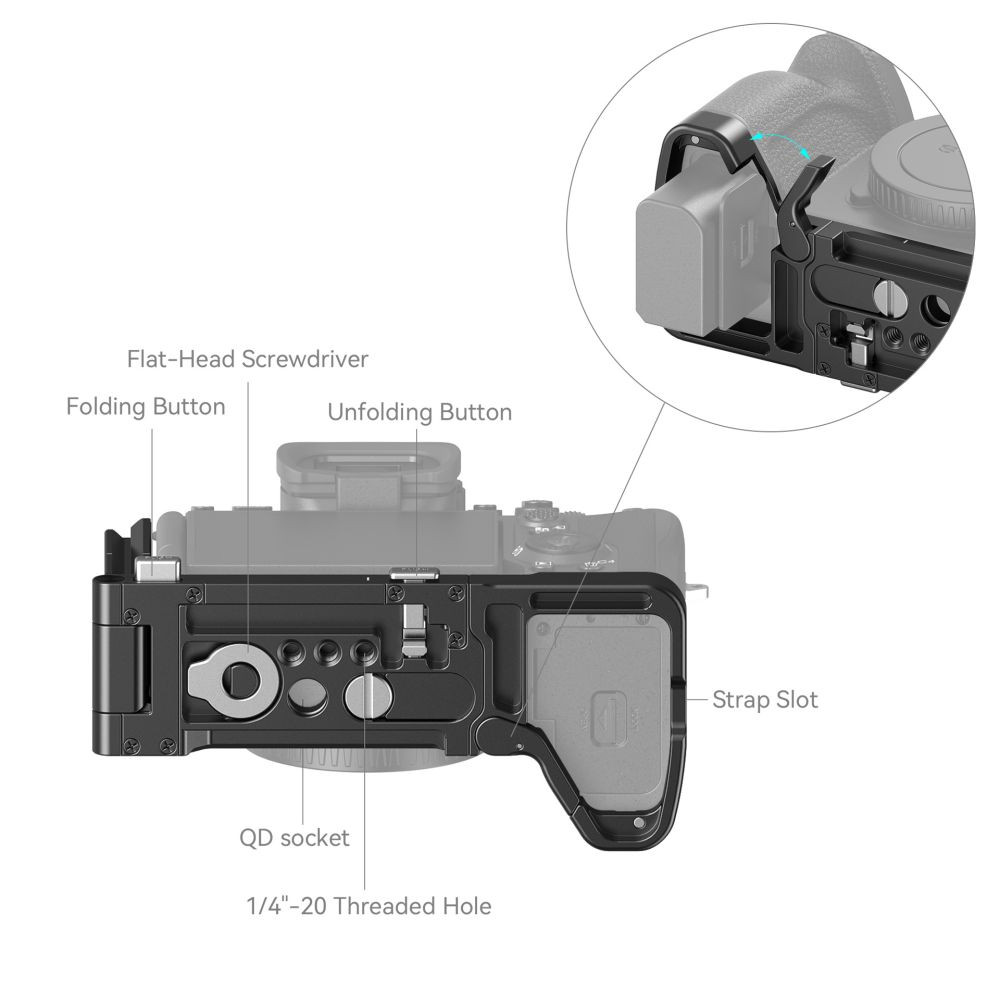

SmallRig Foldable L-Shape Mount Plate for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 3984 facilitates a quick switch between horizontal and vertical shooting while maintaining access to the LCD flip screen. The Arca-Swiss side plate is quickly folded onto the bottom via a folding press button for horizontal shooting and stored as one portable piece of accessory, and the baseplate can be stretched for vertical shooting to allow cable access. Locking the camera via a 1/4"-20 screw and locating pins at the bottom, the L-bracket features cushions to prevent scratches and twisting as well as a hinge arm at the battery door that fits the camera curve and enhances the grip experience. In the baseplate, there are multiple 1/4"-20 threaded holes for Magic Arm 3873 and Cold Shoe 2935 for the monitor, microphone, and other accessories in video production, a wrist strap hole, and a QD connector for quick attachment of the QD shoulder strap and wrist strap, and a slotted screwdriver available for L-bracket disassembly and stretch.
Note:
1. Under Vertical shooting, the baseplate can be stretched to install the wire, HDMI interface can be used normally, but the USB-C and Multi interface is only compatible with right-angle data cable.
2. The maximum load capacity of the vertical shooting state is 5kg.
Work With
Sony Alpha 7R V
Sony Alpha 7 IV
Sony Alpha 7S III
Packing List

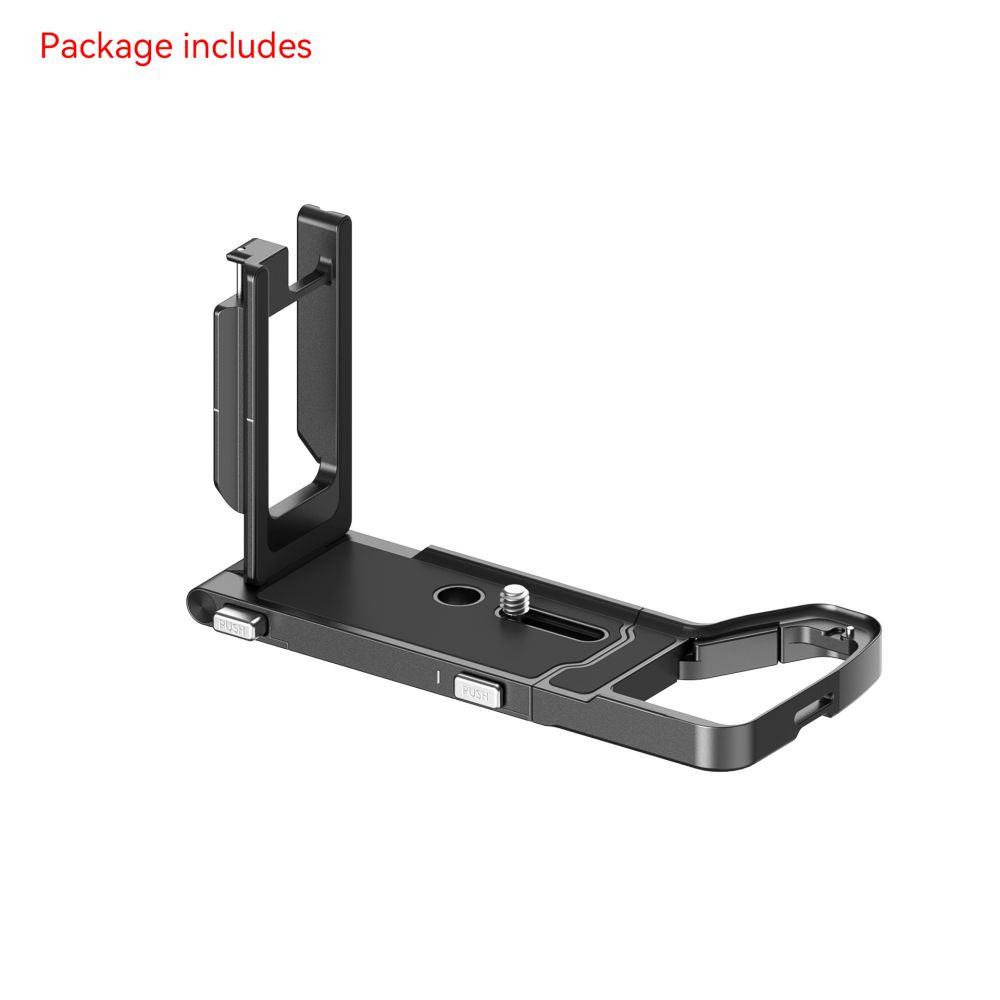

1 x Foldable L-Shape Mount Plate
Technical Data

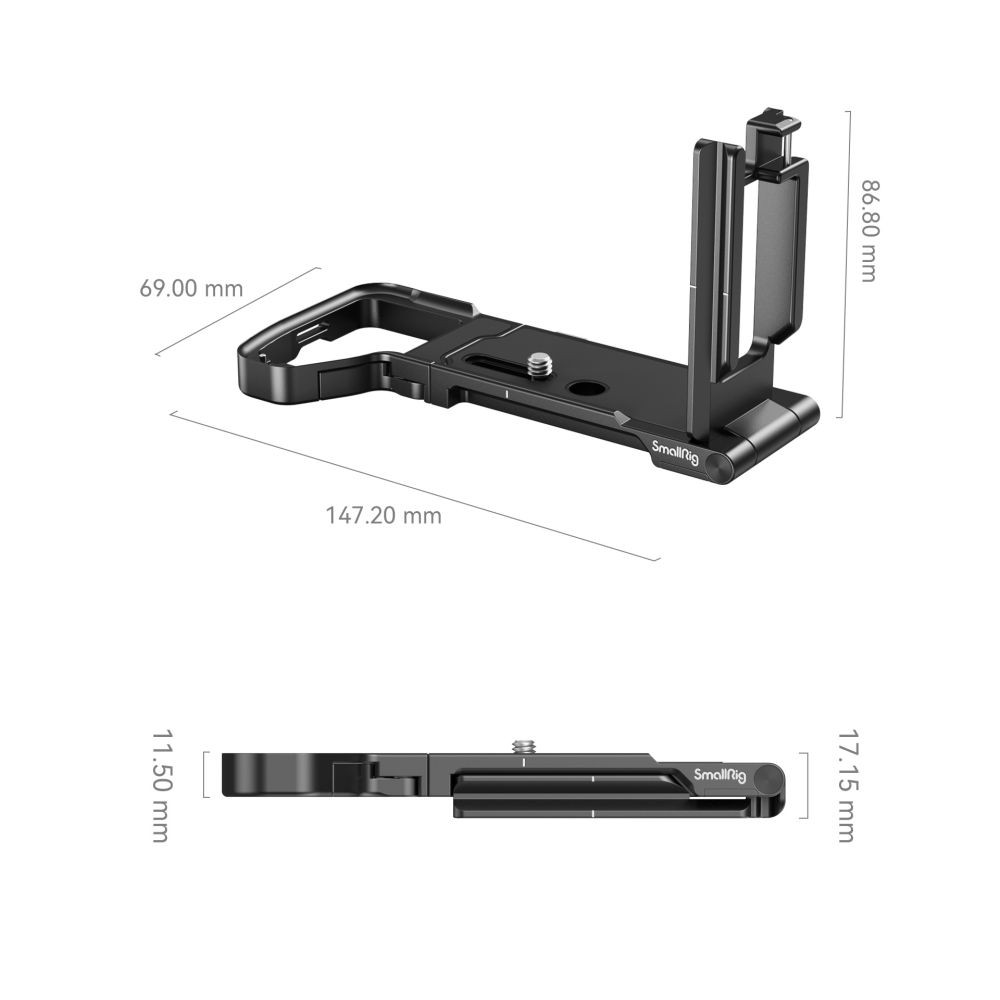

Product Dimensions:147.2 x 86.8 x 69mm
Package Dimensions:181 x 102.5 x 41mm
Product Weight:144g±5g
Package Weight:193.8g±5g
Material(s): Aluminum Alloy, Stainless Steel
