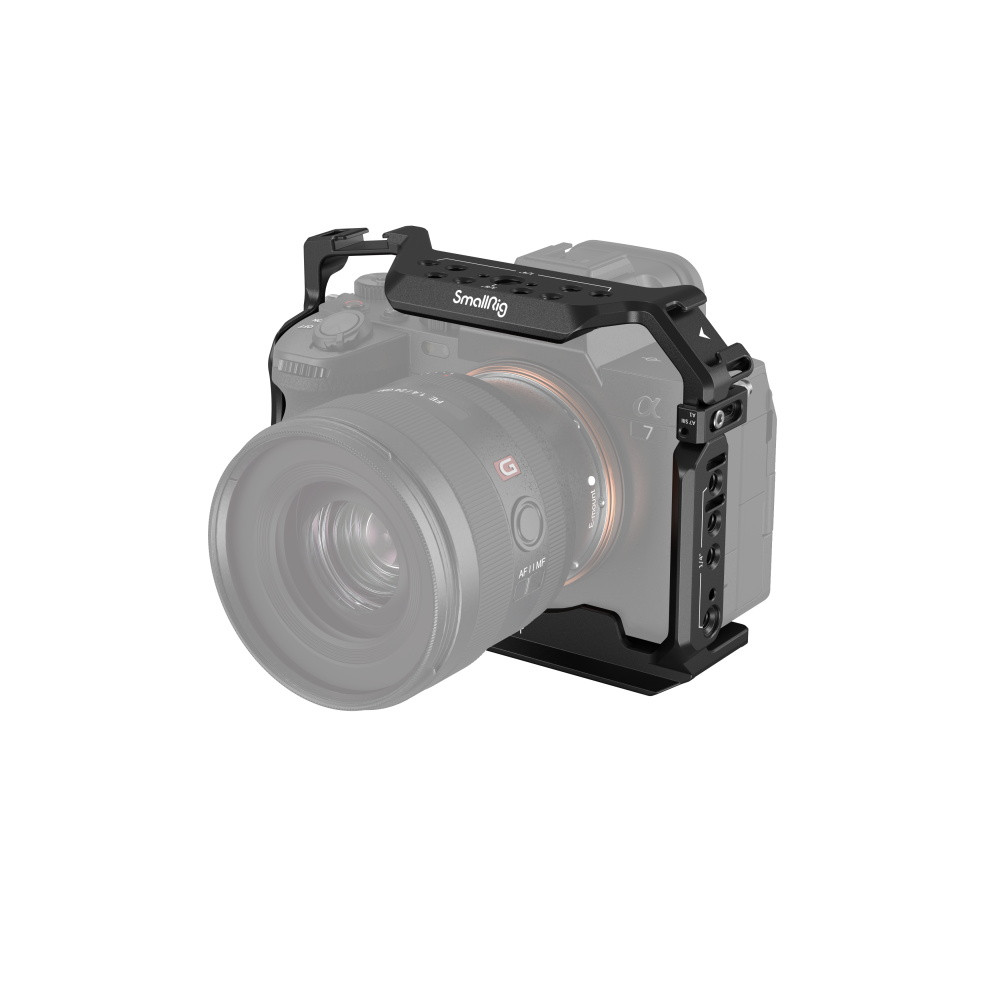

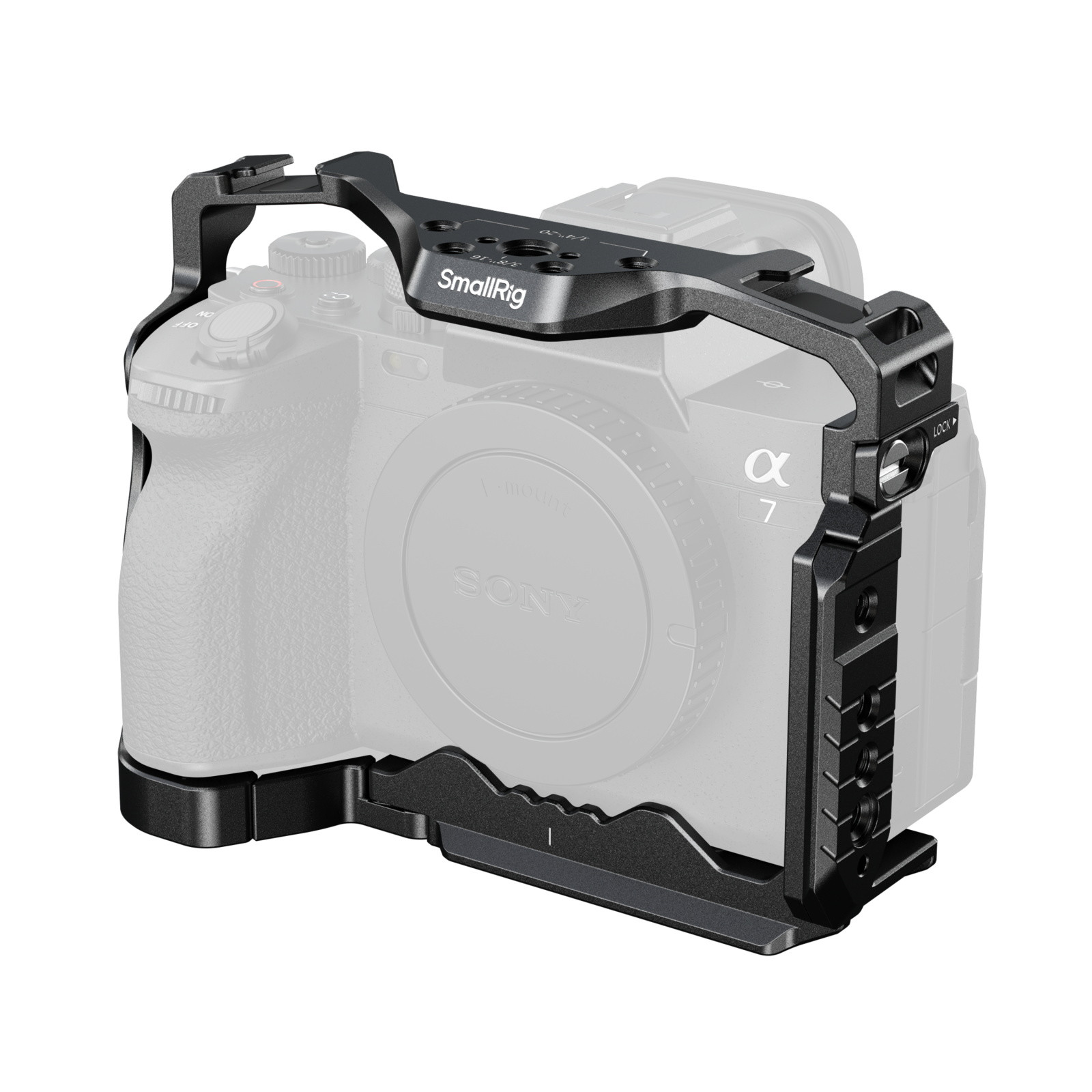

SmallRig Full Cage for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 1 / Alpha 7R IV 3667B

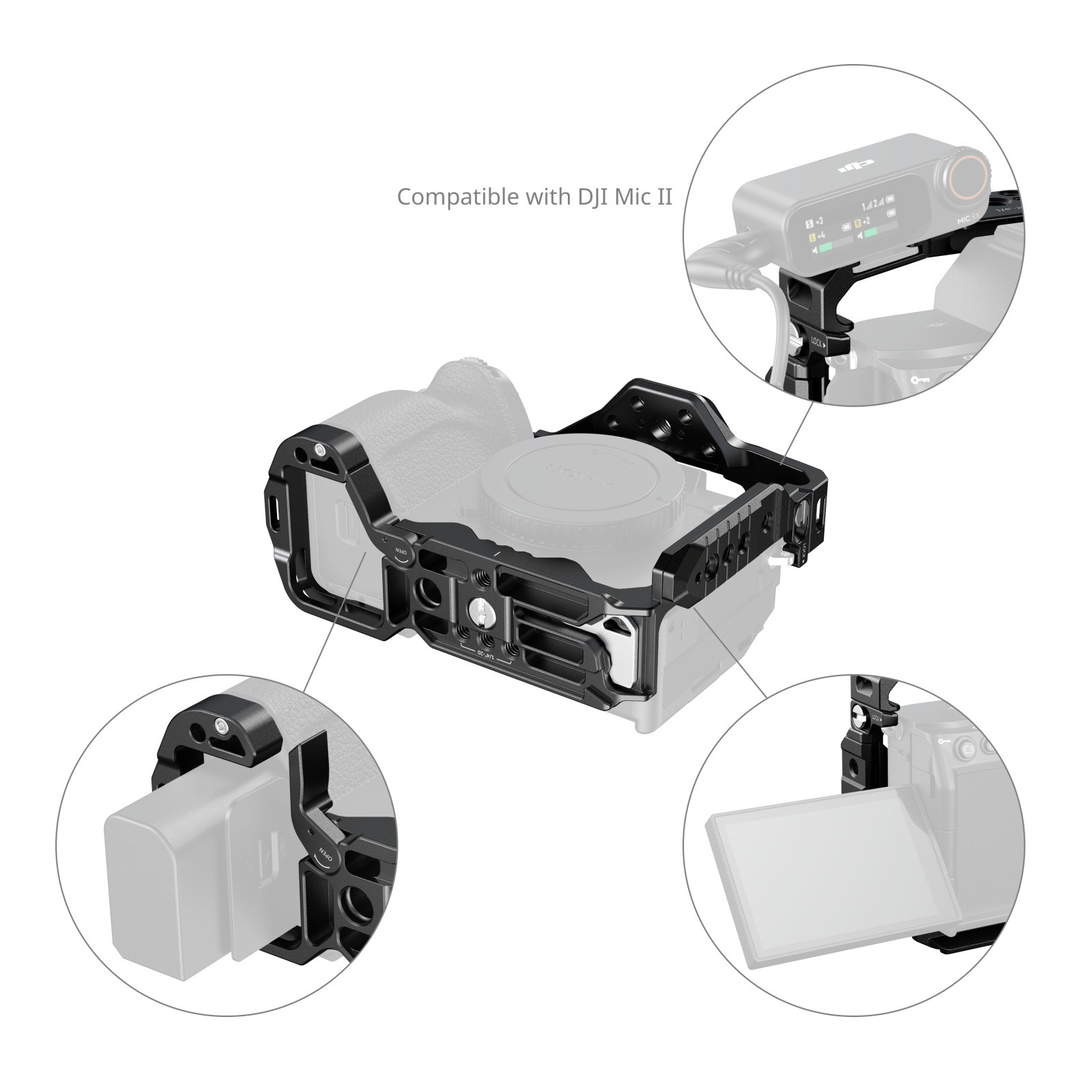

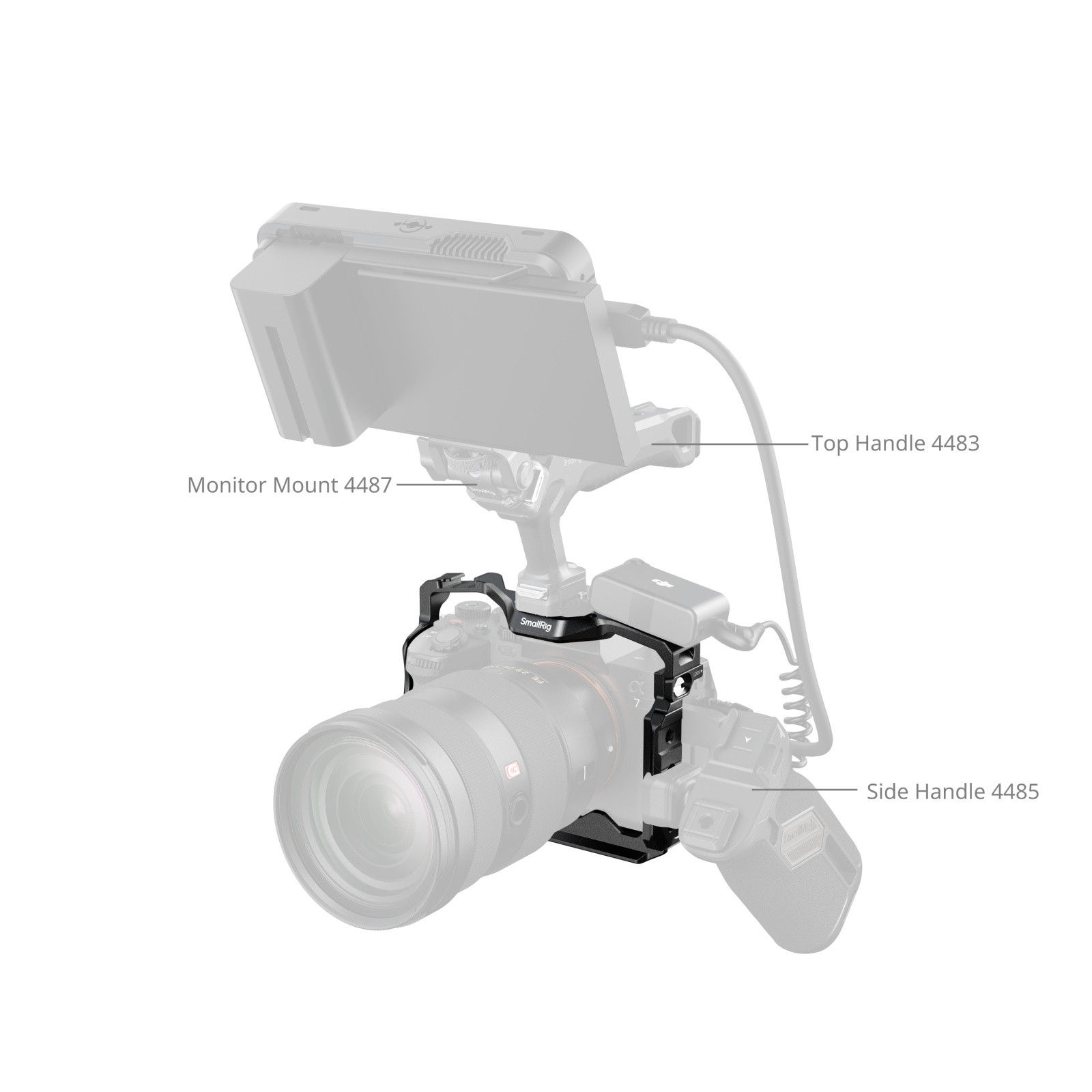

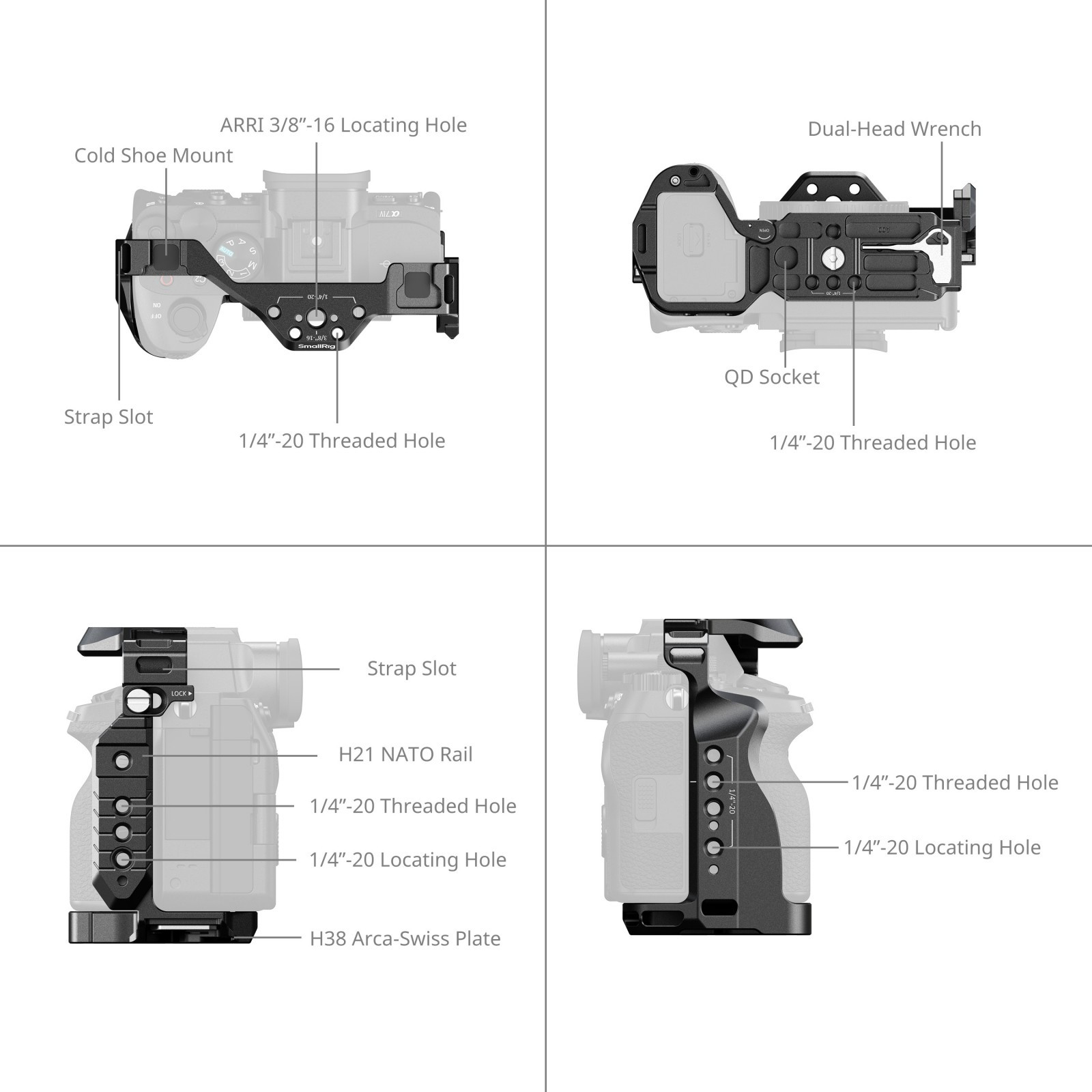

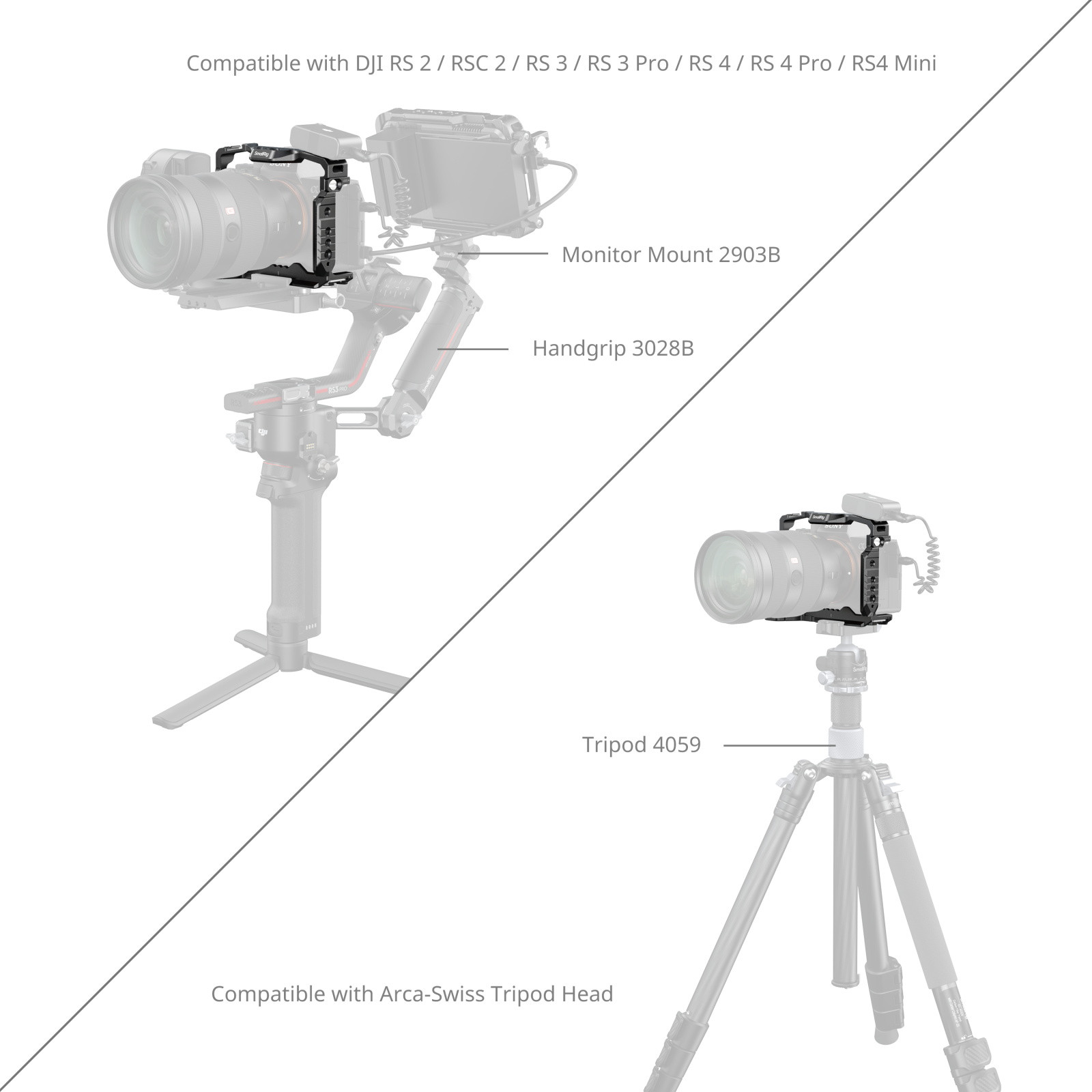

SmallRig Full Cage for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 1 / Alpha 7R IV 3667B is designed to provide accessory mounts and protect the camera. It locks the camera via one bottom locating pin, one 1/4"-20 screw, and one M2.5 screw on the left side. The side lock adapters need to be adjusted in the installation direction to fit different camera types, printed with “ A7 IV” is for Alpha 7 IV and Alpha 7R V while printed with “ A7S III/A1” is for Alpha 7S III / Alpha 1 / Alpha 7R IV. Built-in all-around protective spacers prevent the camera from being scratched. The cage gives access to interfaces, dials, buttons, or battery doors. There is a spindle spanner in the battery compartment which fits the camera curve and leaves room for a little finger for a comfortable grip. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, and cold shoe mounts support top handle 2165C, side handle 2093, monitor mount 2903, microphones, LED lights, monitors, etc. Bottom OD socket support QD shoulder strap. Arca-Swiss quick-release plate at the bottom is compatible with DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro, the quick-release plate (riser plate) of DJI RS 2/RSC 2 stabilizers for stabilizer shooting, and the Arca-Swiss quick release plate 3154. Optional HDMI Cable Clamp 3000 works with Alpha 7R V / Alpha 7 IV / Alpha 7S III to protect interfaces and ensure stable signal transmission during filming. Holes on the sides and bottom of the cage allow attaching such accessories as hand strap PAC2456 and shoulder strap PSC2428. Besides, the cage comes with a built-in magnetic spanner that facilitates disassembly and assembly.
1. After fixing the 1/4"-20 screw at the bottom of the cage, remove the anti-deflection pin from the staging hole in the battery compartment position and secure it to the corresponding position.
2. To use the side lock adapter, please remove the split ring on the left side of the camera first.
3. HDMI Cable Clamp 3000 is not compatible with Alpha 1 and Alpha 7R IV cameras and will interfere with the synchro terminal interface when used on the Alpha 7R V camera.
Sony Alpha 7R V
Sony Alpha 7 IV
Sony Alpha 7S III
Sony Alpha 1
Sony Alpha 7R IV

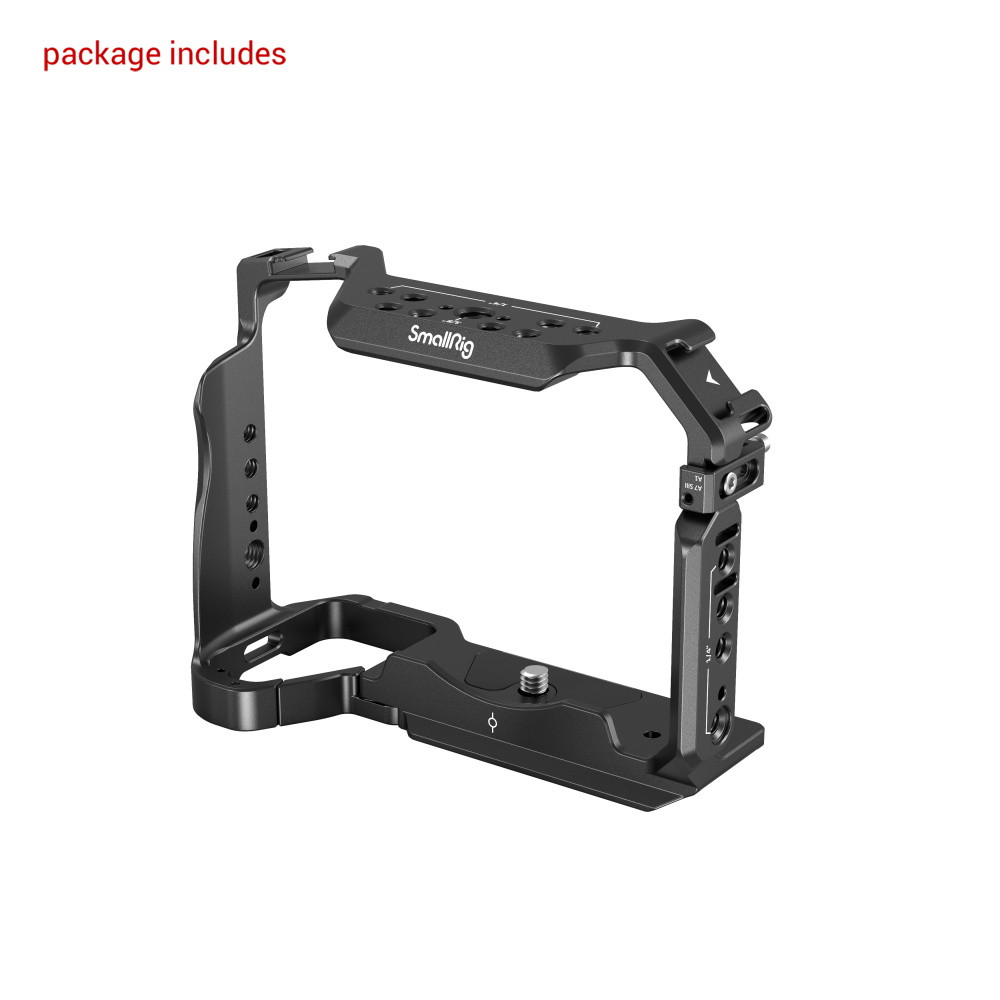

1 x Cage

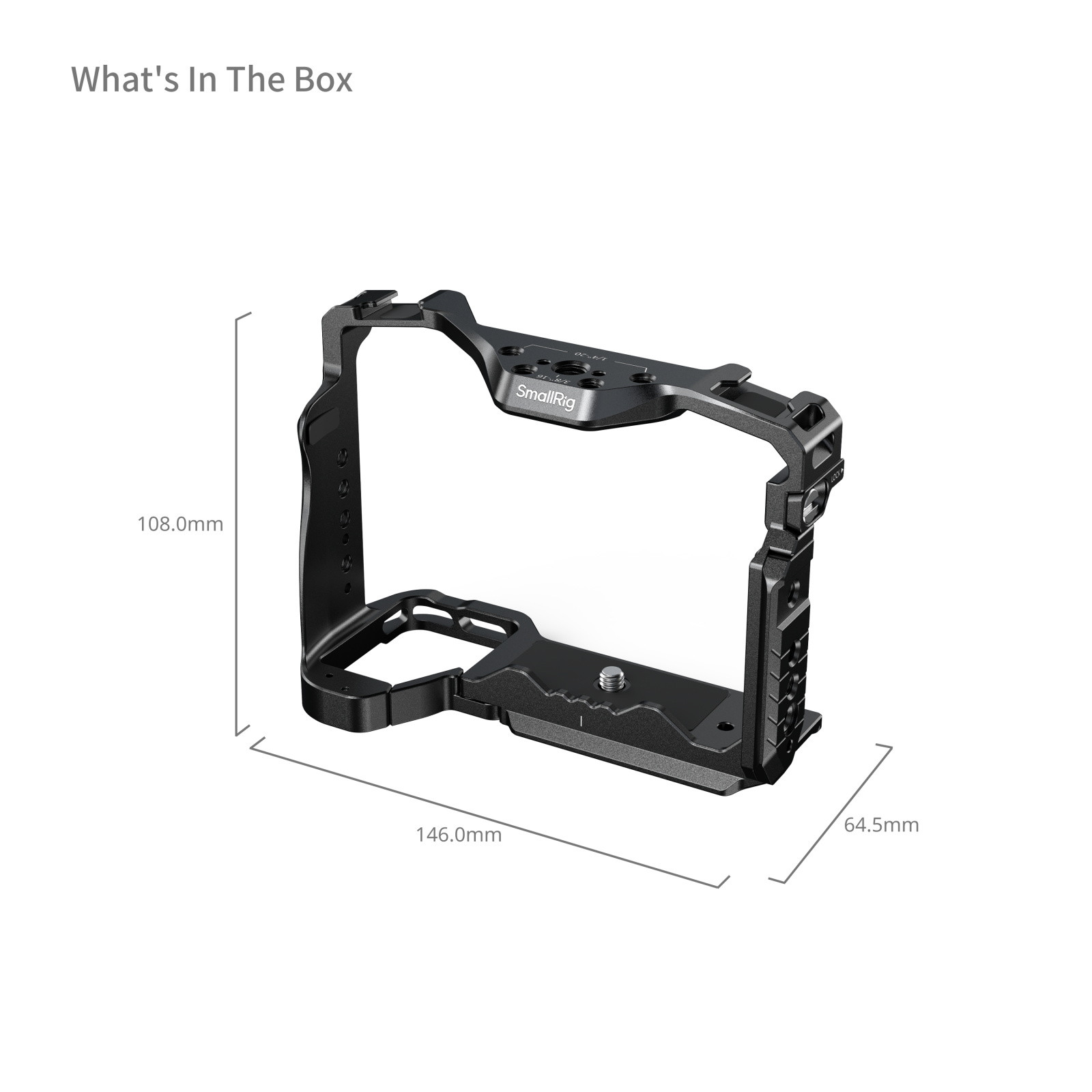

Product Dimensions: 146 x 107.6 x 64.5mm
Package Dimensions: 165 x 155 x 85mm
Product Weight: 180g±5g
Package Weight: 286g±5g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
