SmallRig CB75 Camera Base Battery Kit 5248

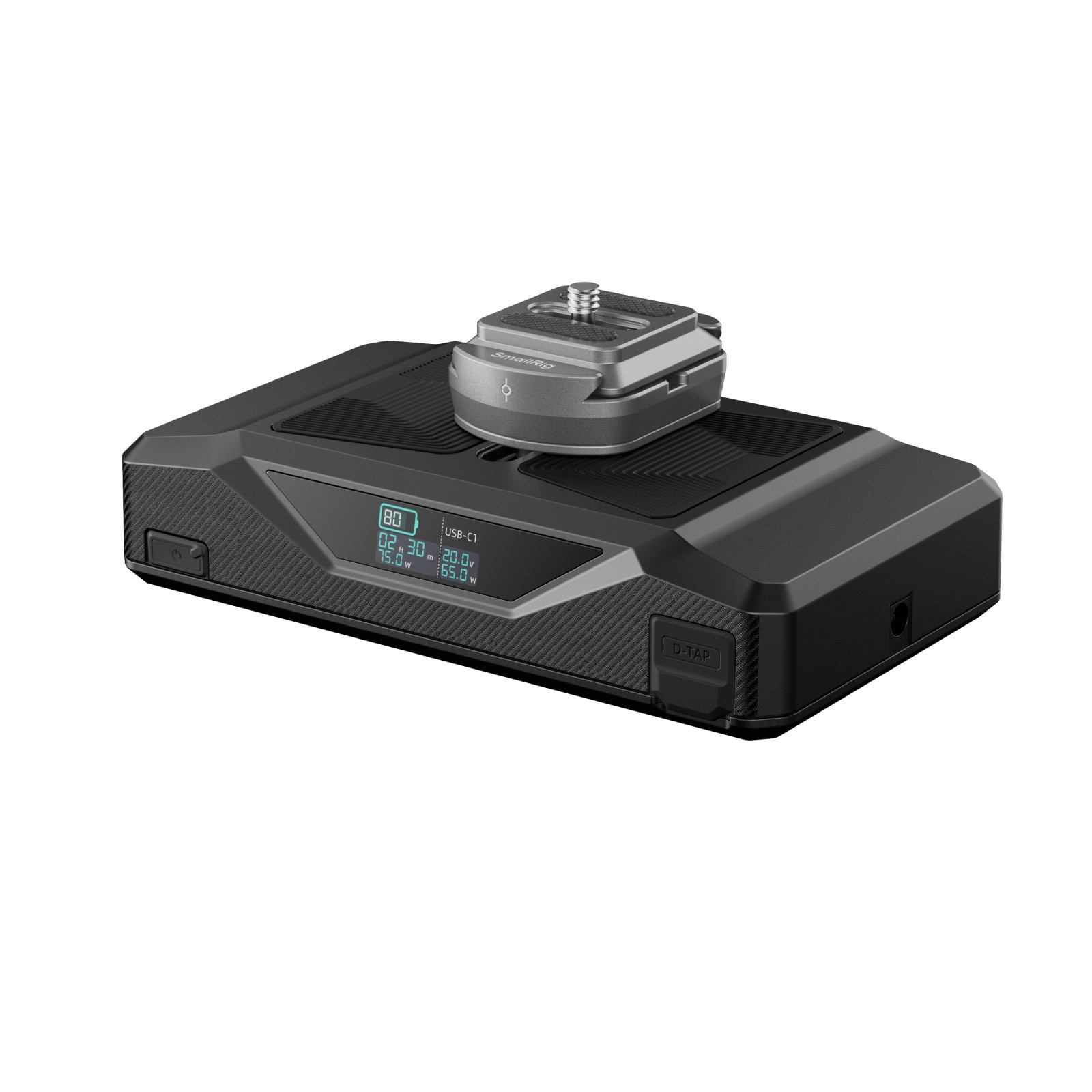

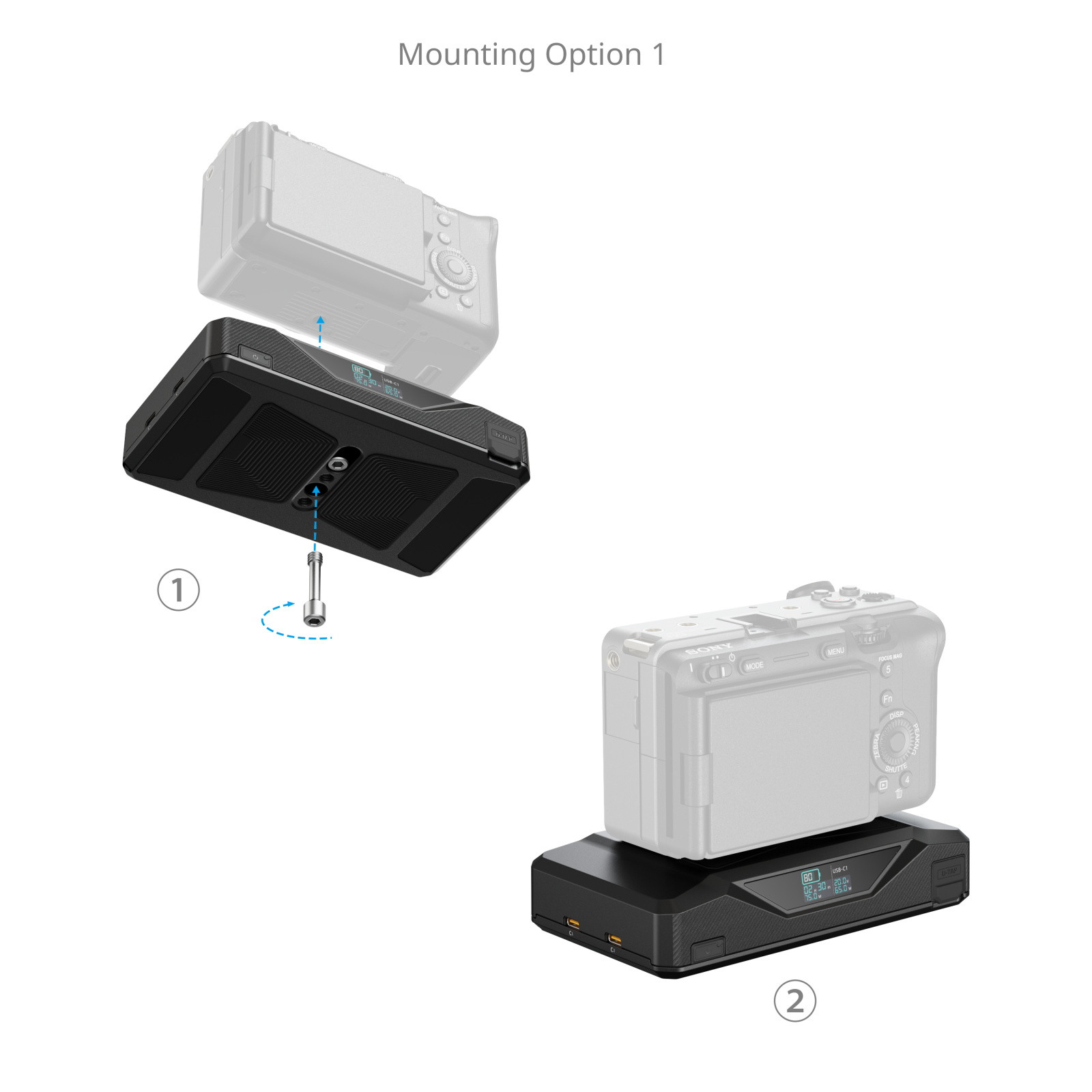

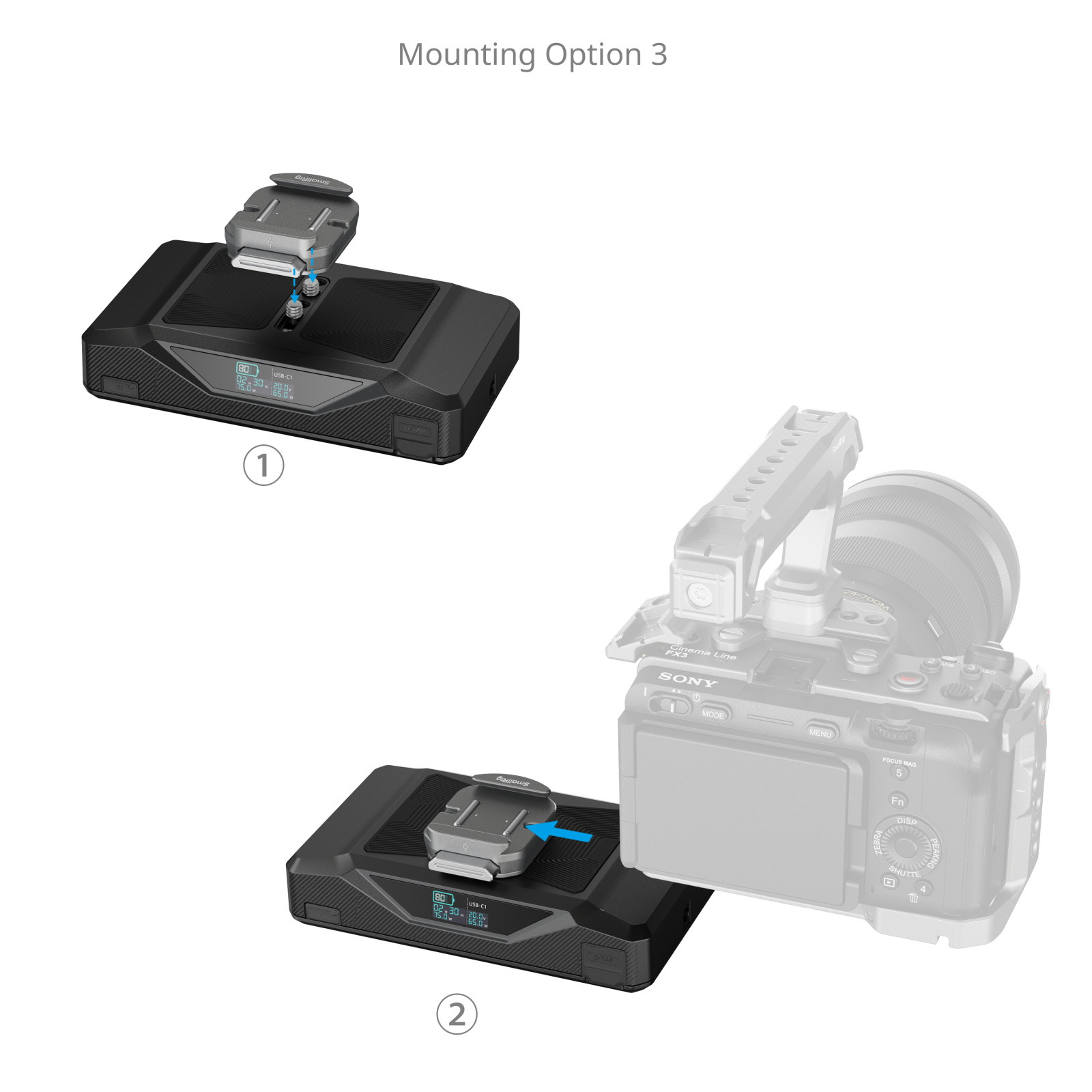

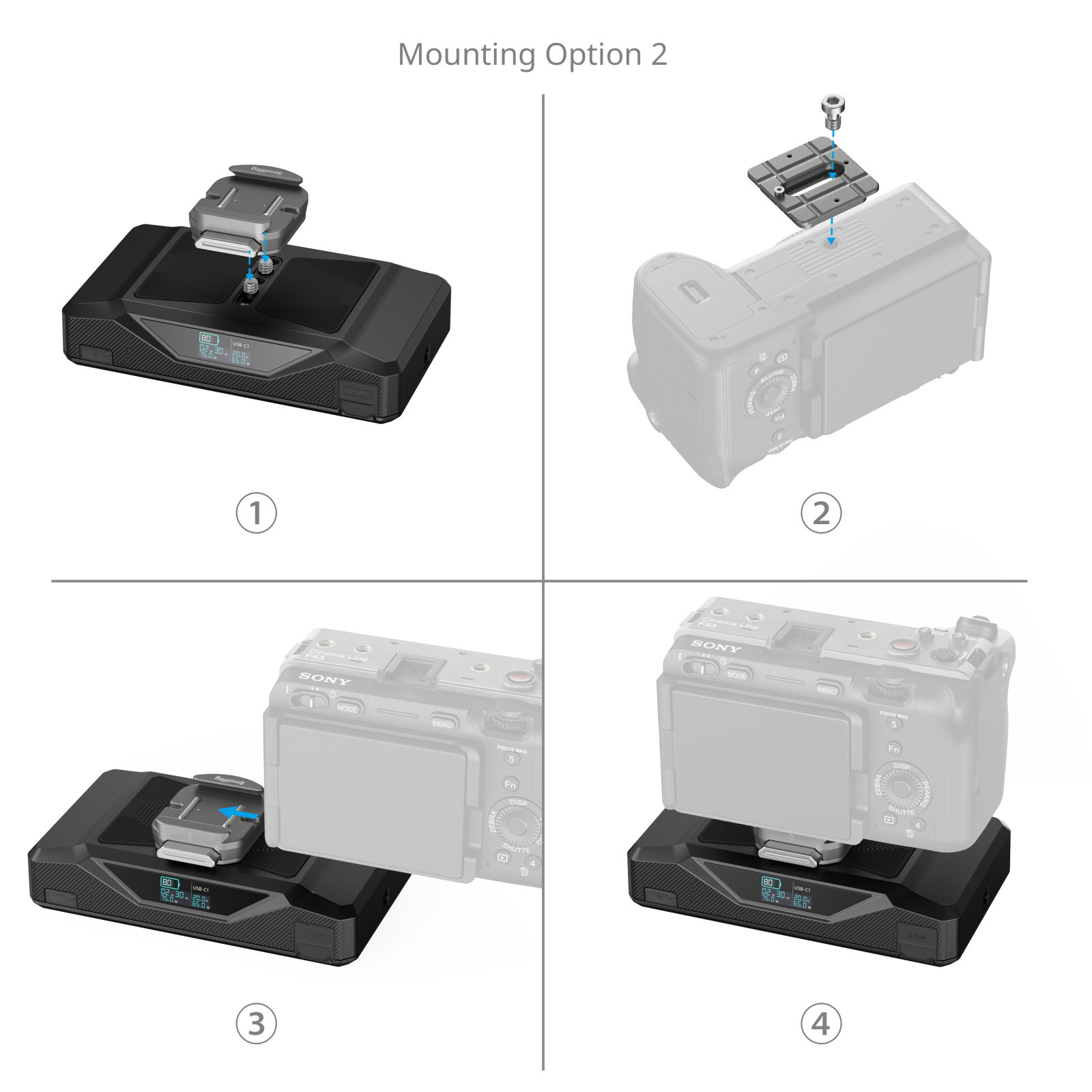

SmallRig CB75 Camera Base Battery Kit 5248 is a kit comprised of components 4826 and 4486. 4826 seamlessly combines high-efficiency power delivery with instant mounting functionality, serving as both a battery and a baseplate. Its dual-sided mounting system includes a top 1/4"-20 screw for direct attachment to cameras or cages, and a bottom 1/4"-20 threaded hole for tripod mounting, eliminating the need for adapters and creating a streamlined power solution. When used with Arca-Swiss quick release mount plates (ID 4486) and compatible cages, it facilitates smooth slide-in installation with one-click auto-locking, significantly enhancing setup efficiency.

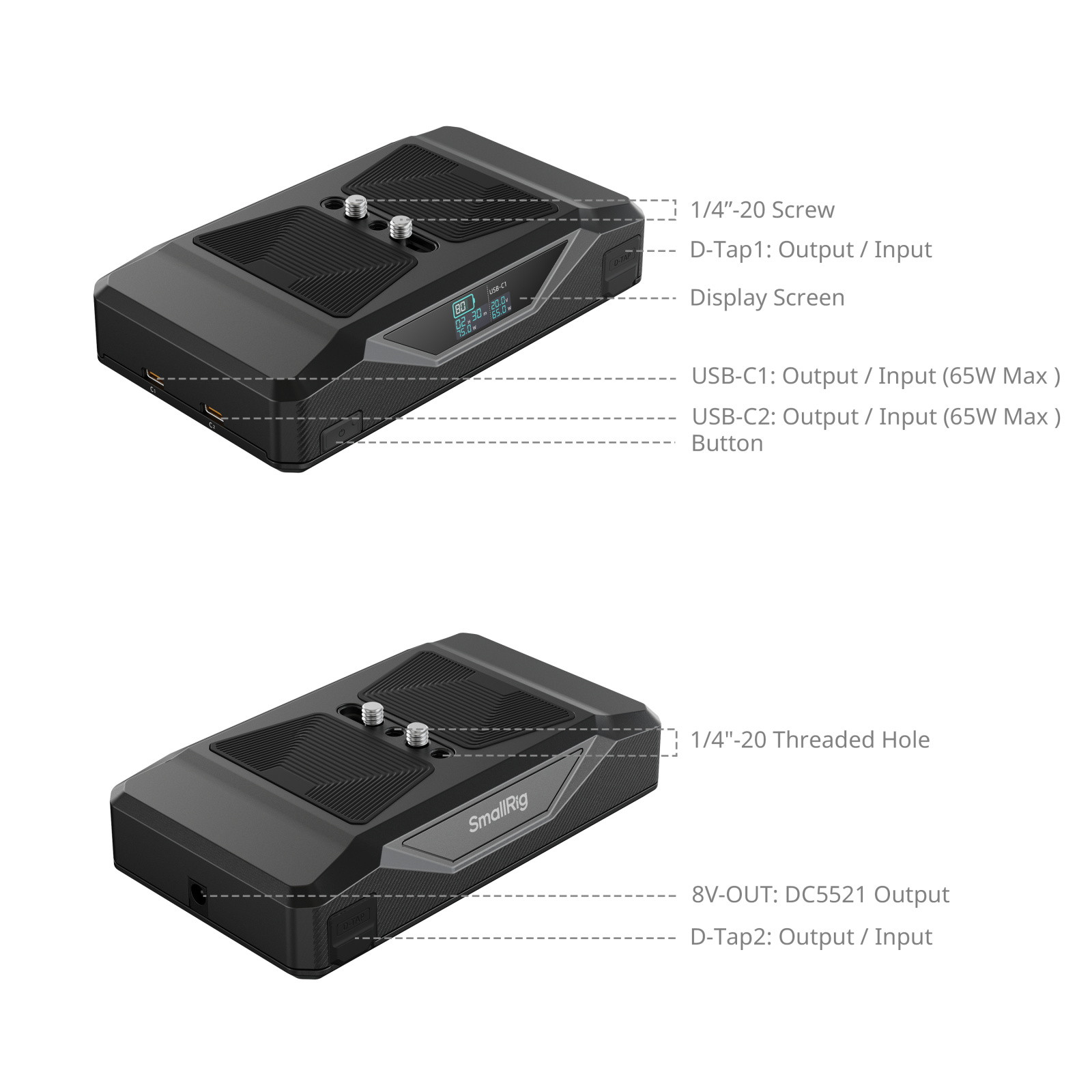

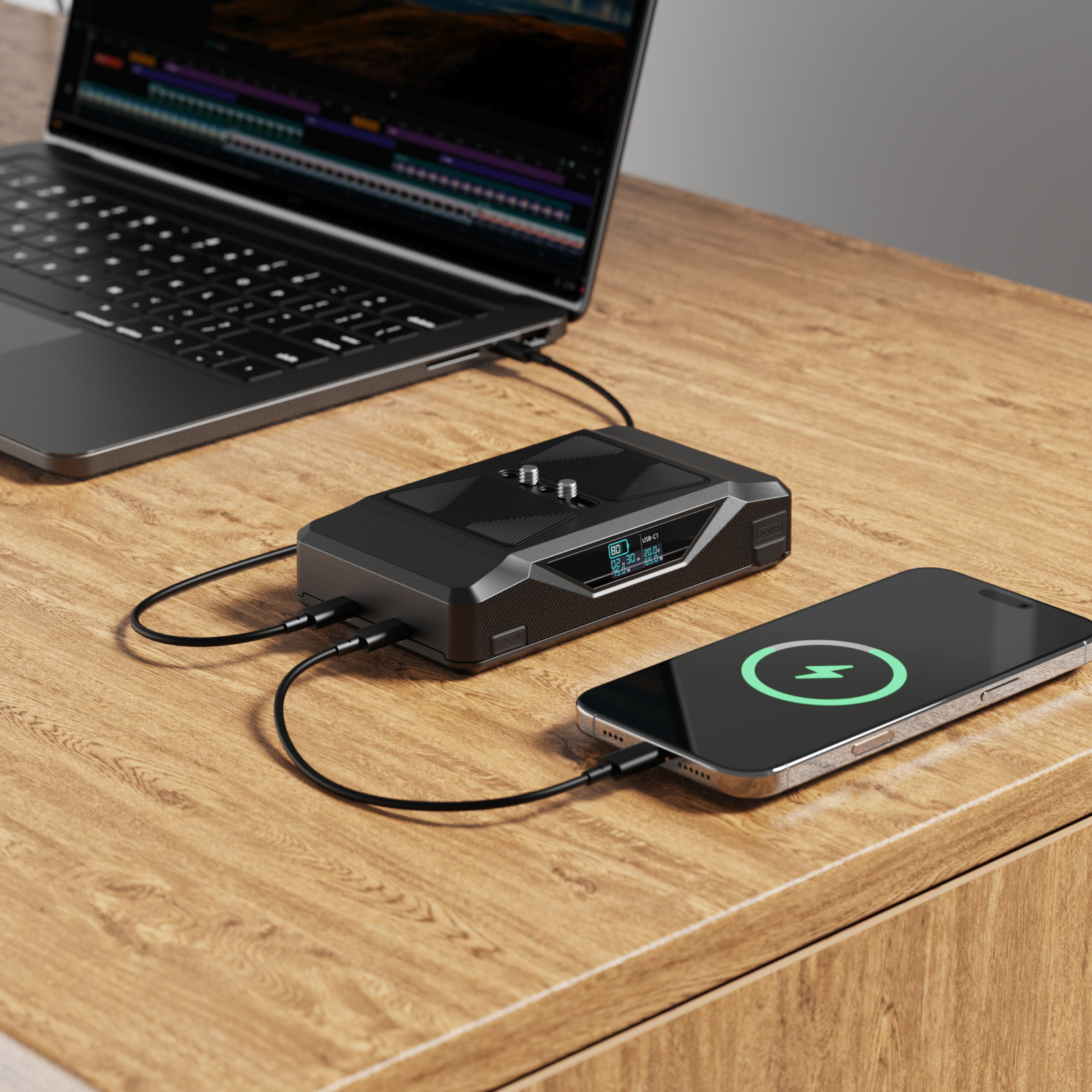

Equipped with versatile power outputs—including two D-Tap ports, two 65W USB-C ports, and one 8V DC5521 DC port—the unit can simultaneously power multiple devices, making it ideal for demanding production scenarios. The 65W fast-charging technology allows for a full recharge in only 2 hours, ensuring uninterrupted shooting schedules. Despite its slim 3cm / 1.2in profile, the battery boasts a substantial 73.8Wh capacity, capable of supporting professional equipment throughout all-day shooting.
Premium LG battery cells integrate with robust protection circuitry to deliver stable, reliable power with enhanced safety. The full-color HD display provides real-time power monitoring for effective energy management. This professional-grade power solution comprehensively addresses core needs—from instant mounting and multi-device power delivery to rapid recharge capability—making it the ideal power foundation for cinematographers.
Certifications: CE / FCC / RoHS

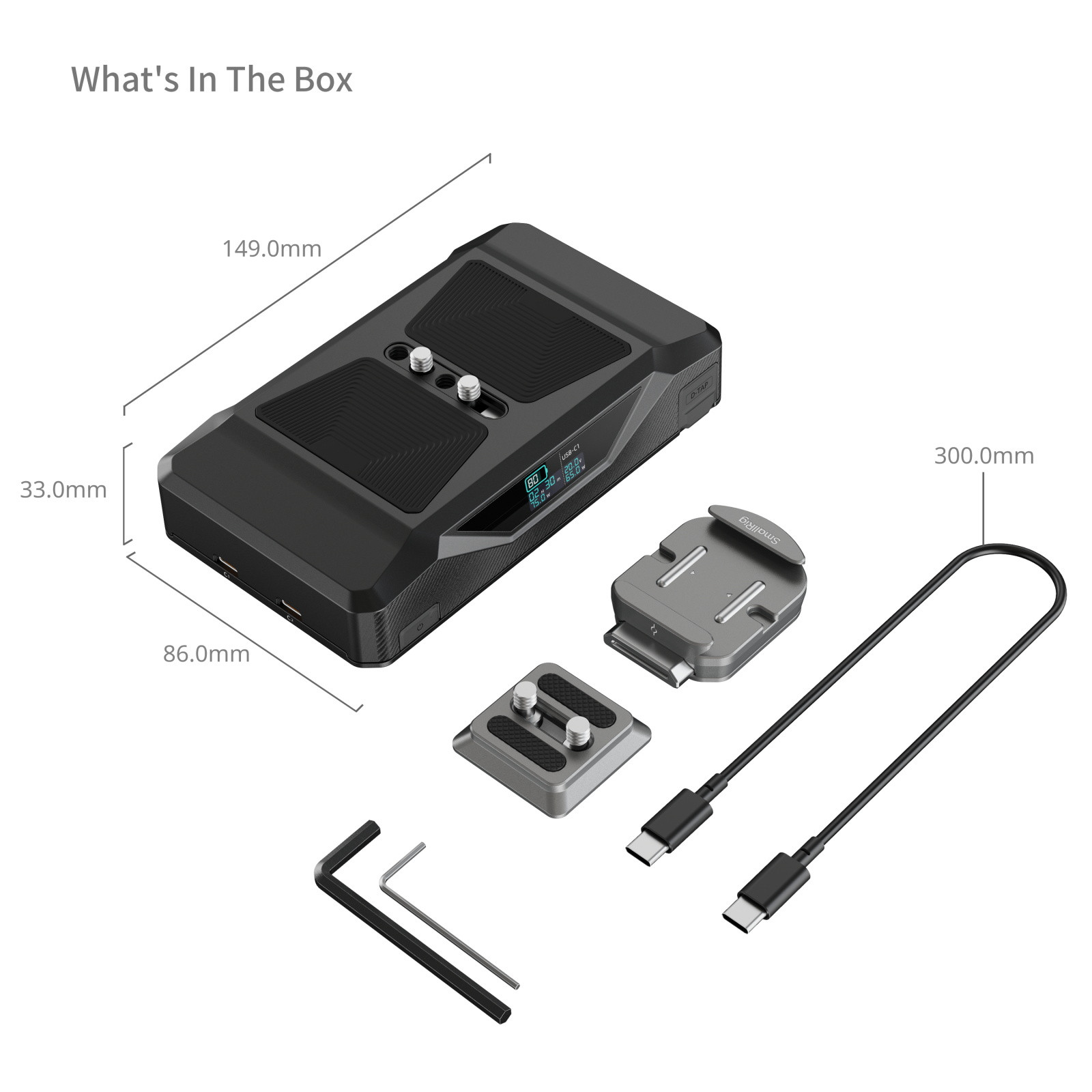

Packing List
CB75 Base Battery x 1

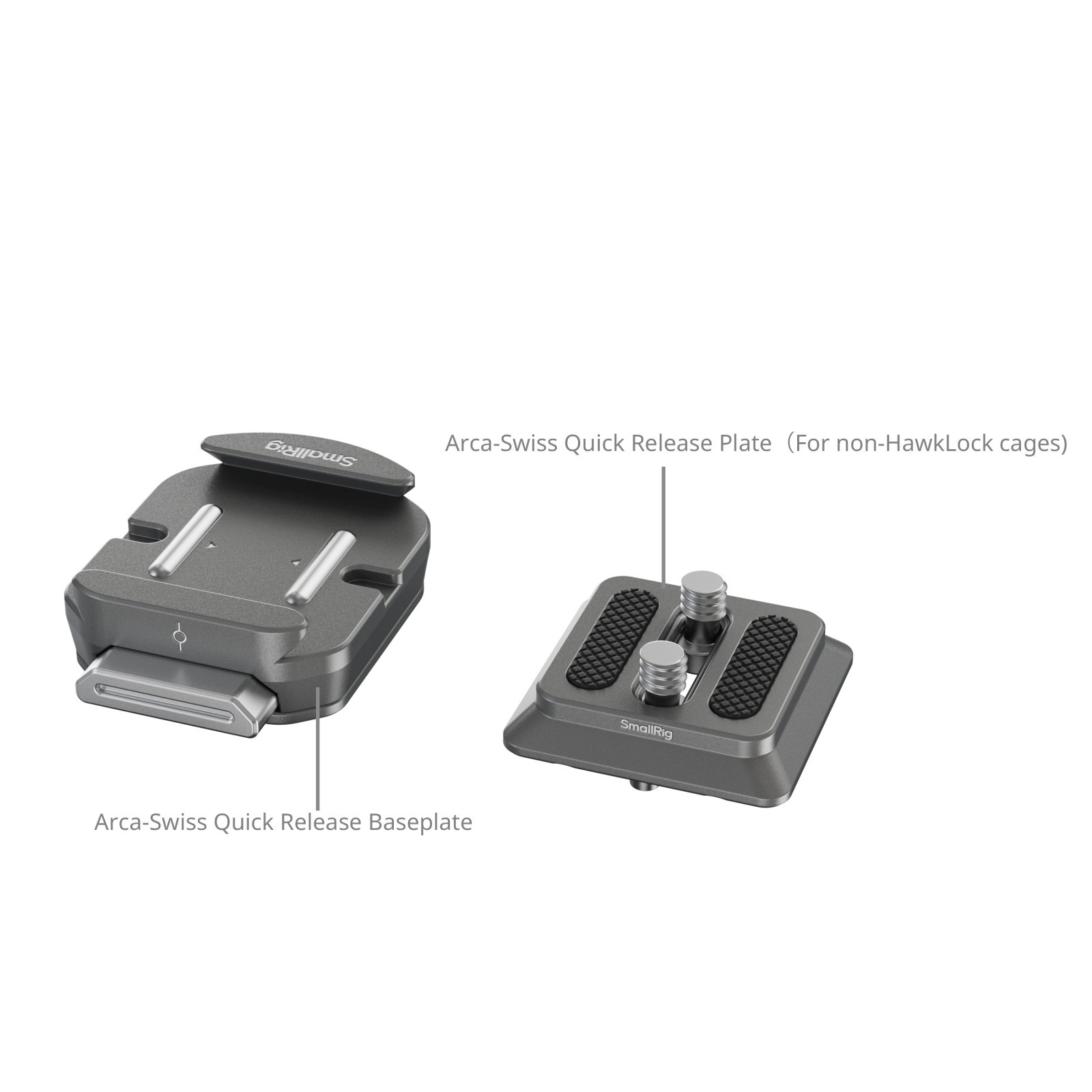

“HawkLock” H38 Arca-Swiss Quick Release Mount Plate x 1
100W USB-C to USB-C PD Cable (30cm / 11.8in) x 1
Allen Wrench x 2
Operating Instruction x 1
Technical Data
Product Dimensions: 149.0 x 86.0 x 49.0mm / 5.9 x 3.4 x 1.9in
Package Dimensions: 178.0 x 153.0 x 57.5mm / 7.0 x 6.0 x 2.3in
Product Weight : 613.0 ± 10.0g / 21.6 ± 0.4oz
Package Weight: 760.0 ± 10.0g / 26.8 ± 0.4oz
Battery Parameters: 14.76 V/5,000 mAh/73.8 Wh
Battery Capacity: 20,000 mAh (4×5,000 mAh)
Rated Total Output: 73.8 W
D-Tap1 / D-Tap2 Input: 16.8 V/6 A (Max)
D-Tap1 / D-Tap2 Output: 10.4-16.8 V/8 A (Max)
USB-C1 Input/Output:
65 W (Max)
5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
USB-C2 Input/Output:
65 W (Max)
5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A
USB-C1 + USB-C2 Simultaneous Output Power: 100 W (Max)
USB-C1/USB-C2 Support Protocols: PD3.0/QC2.0/QC3.0/PPS/AFC/DCP-1.5 A/APPLE-2.4 A
8V-OUT Output: 7.8-8.4 V/3 A (Max)
Discharging Cut-off Voltage: 10.4 V
Charging Temperature: 0℃-45℃
Discharging Temperature: -15℃-60℃
Material: Aluminum alloy+PC+ABS
