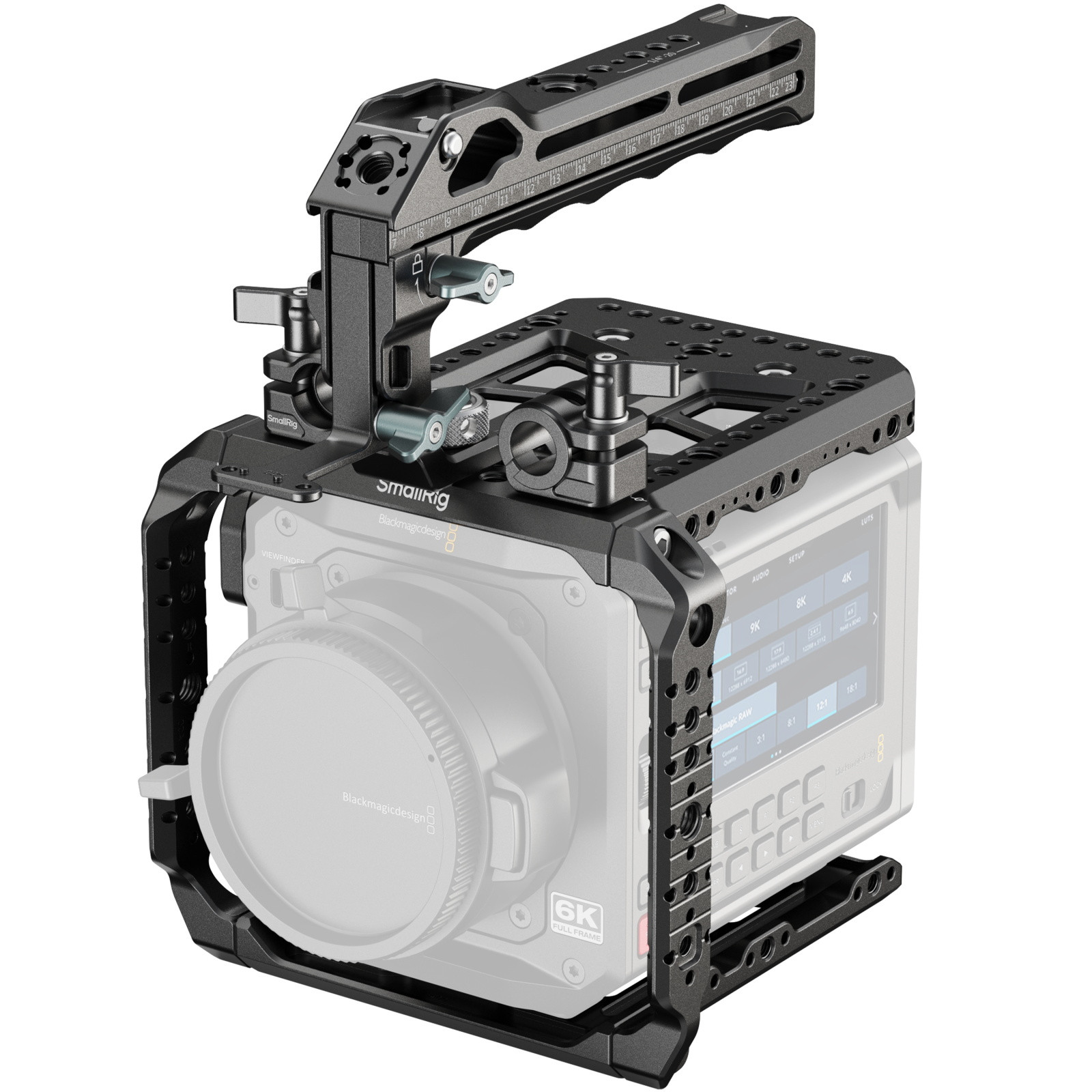

SmallRig Cage Kit for Blackmagic PYXIS 6K / 12K 5281

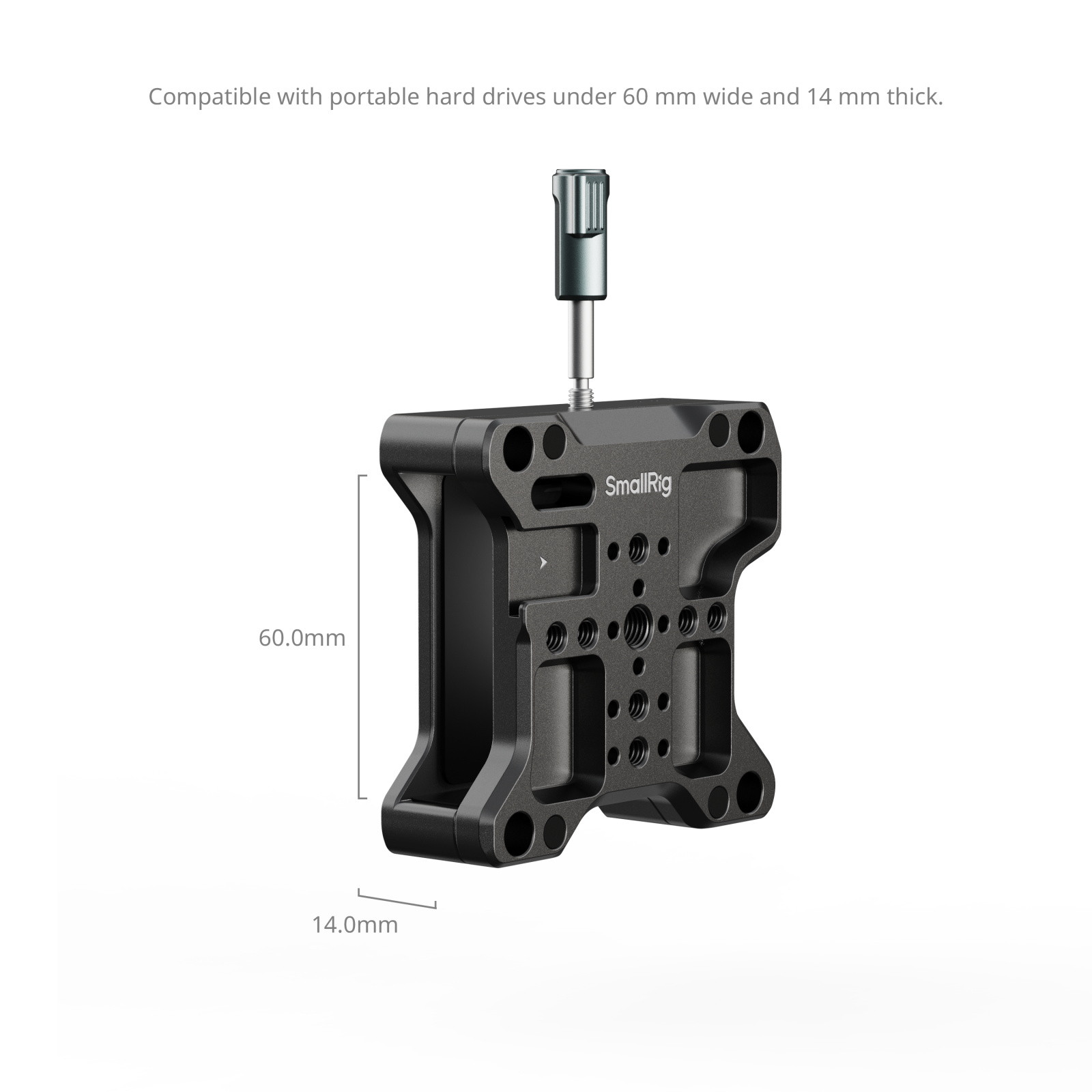

SmallRig Cage Kit for Blackmagic PYXIS 6K / 12K 5281 is a modular cage kit designed specifically for the PYXIS 6K / 12K. Its top plate, baseplate, and right side plate can be used independently or in combination, adapting to various shooting scenarios. It is compatible with the DJI Focus Pro LiDAR, supporting quick mounting and adjustment to optimize focus performance for smoother, more stable shooting. The expandable side plate is compatible with SSDs and features additional mounting points for enhanced stability in vertical shooting.

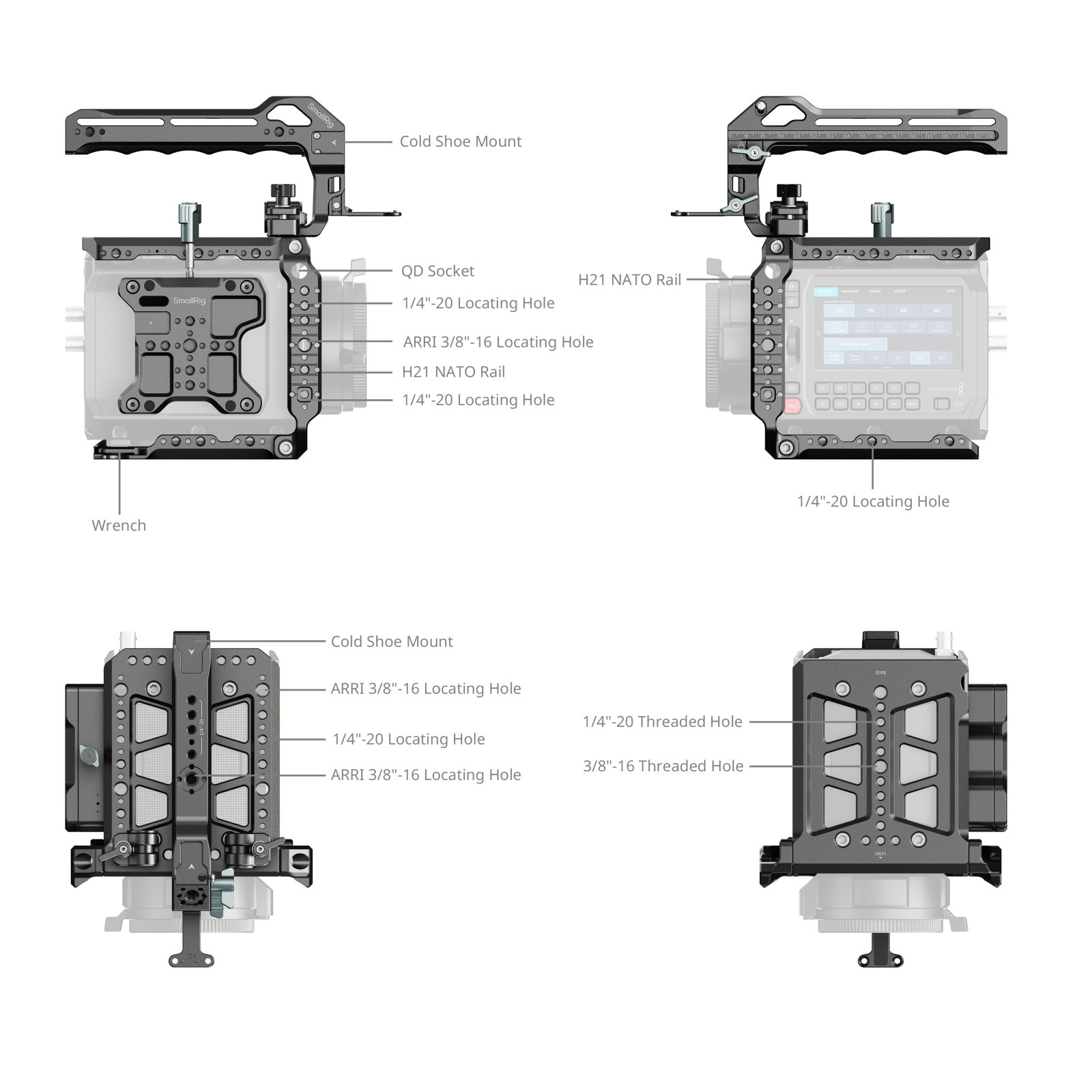

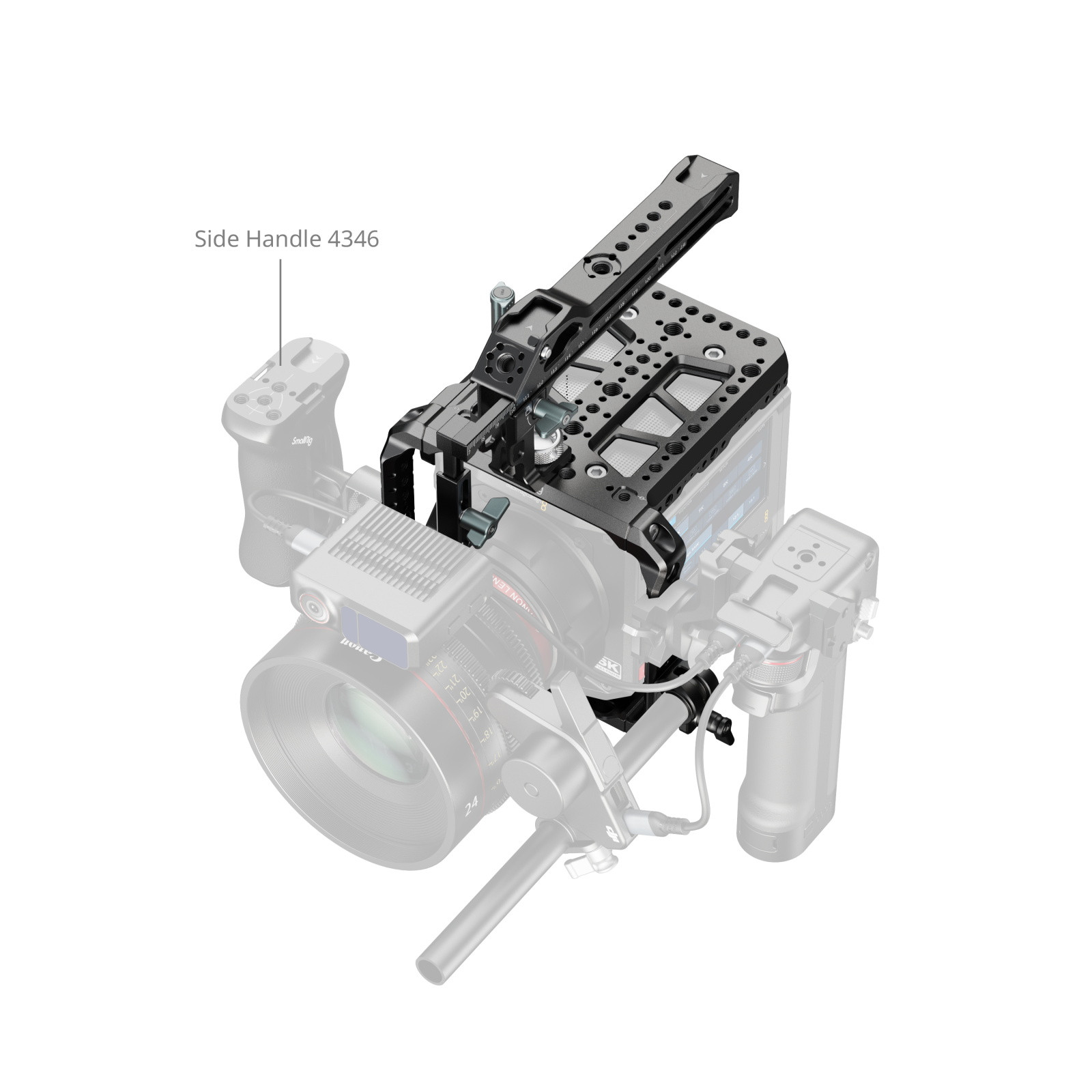

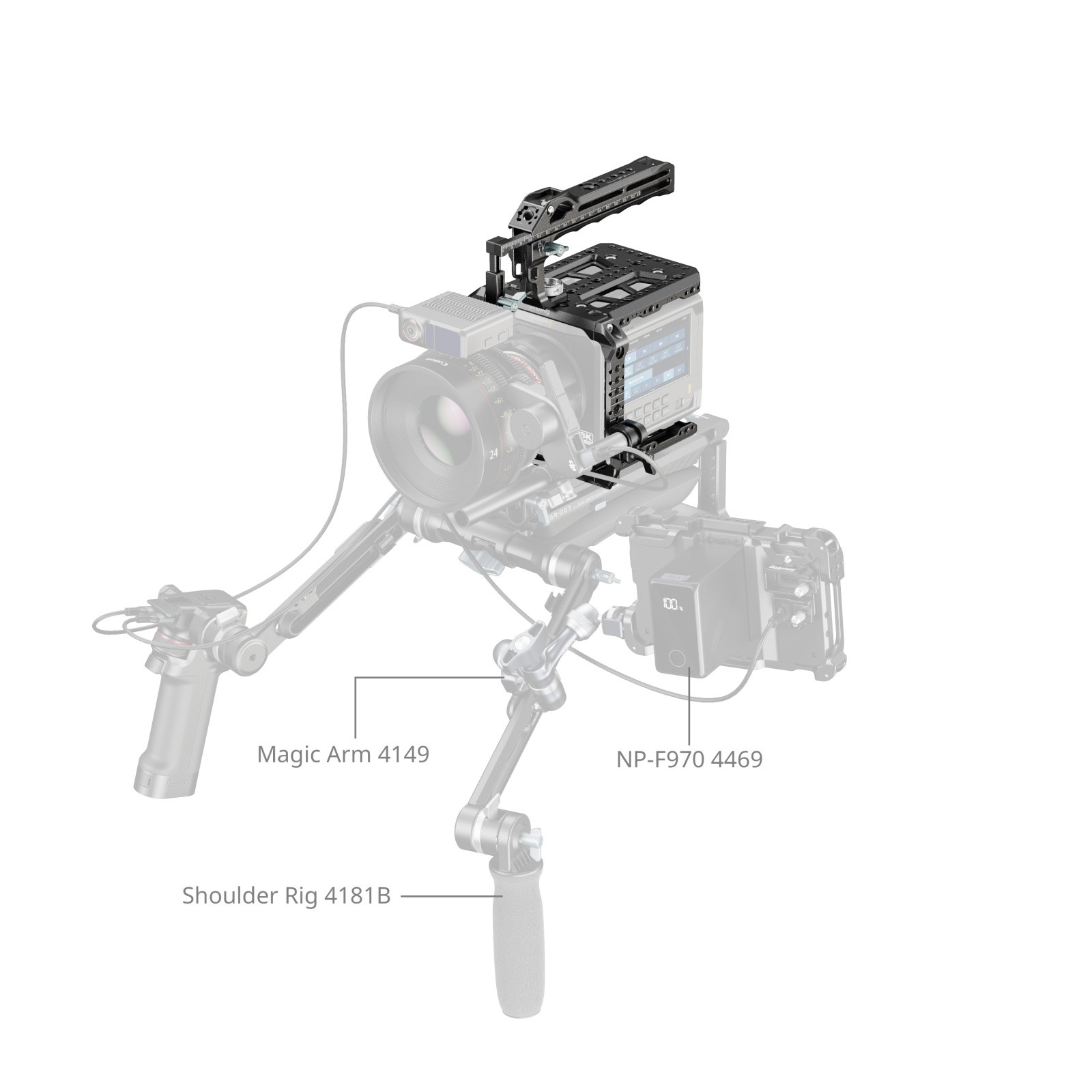

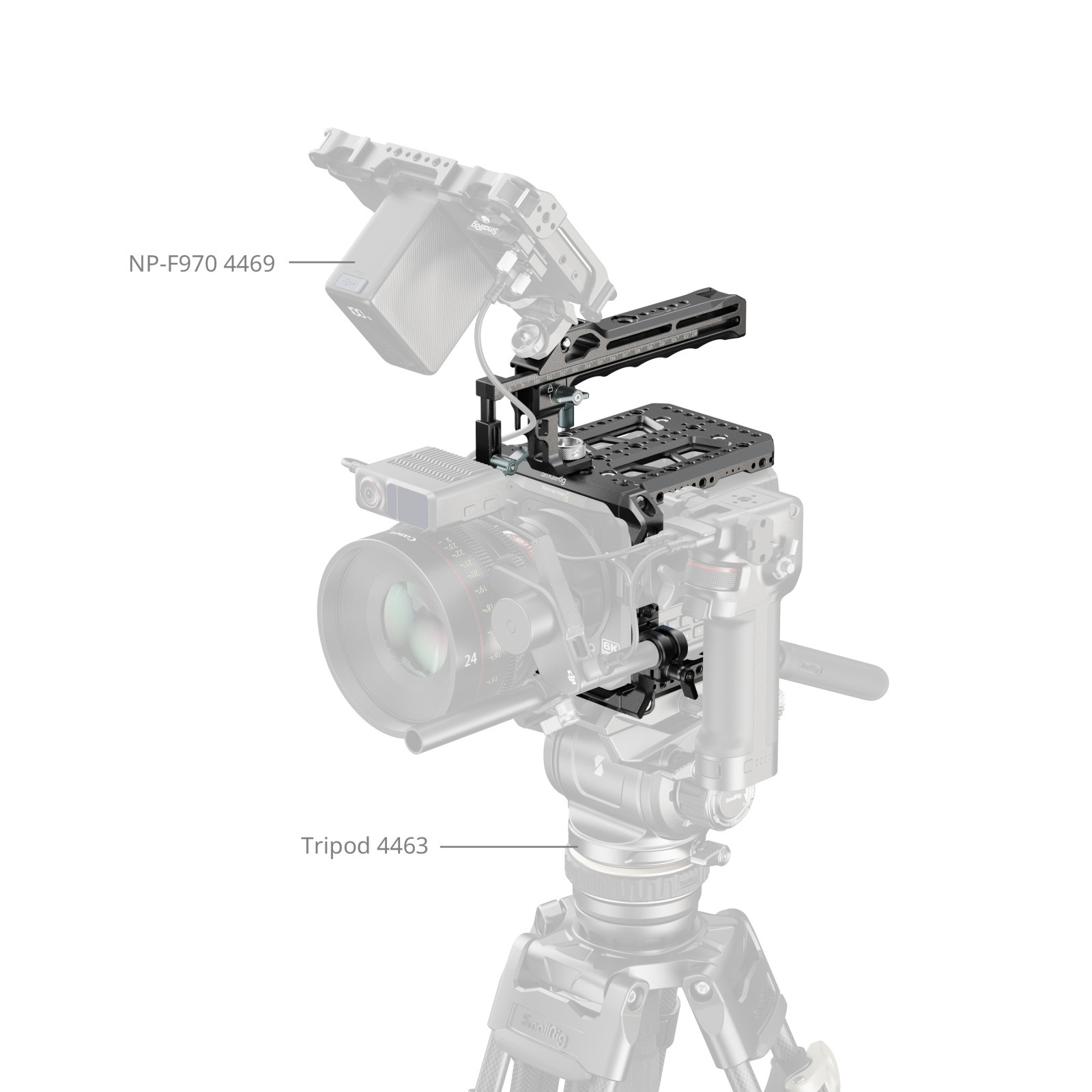

The cage kit is equipped with 1/4"-20 threaded holes, 1/4"-20 locating holes, 3/8"-16 threaded holes, ARRI 3/8"-16 locating holes, and a "HawkLock" quick release NATO rail, allowing for the expansion of accessories such as side handles (ID 4015), monitor mounts (ID 2903B), tripods (ID 3989), single rod clamps (ID 3598), magic arms (ID 3873), and top handles (ID 5632). It also feature a built-in cold shoe mount for the integration of microphones, video lights, and more, as well as a QD socket compatible with QD quick release shoulder straps (ID 4118B). An integrated Allen wrench at the bottom facilitates easy assembly and disassembly.
Work With
Blackmagic PYXIS 6K / 12K

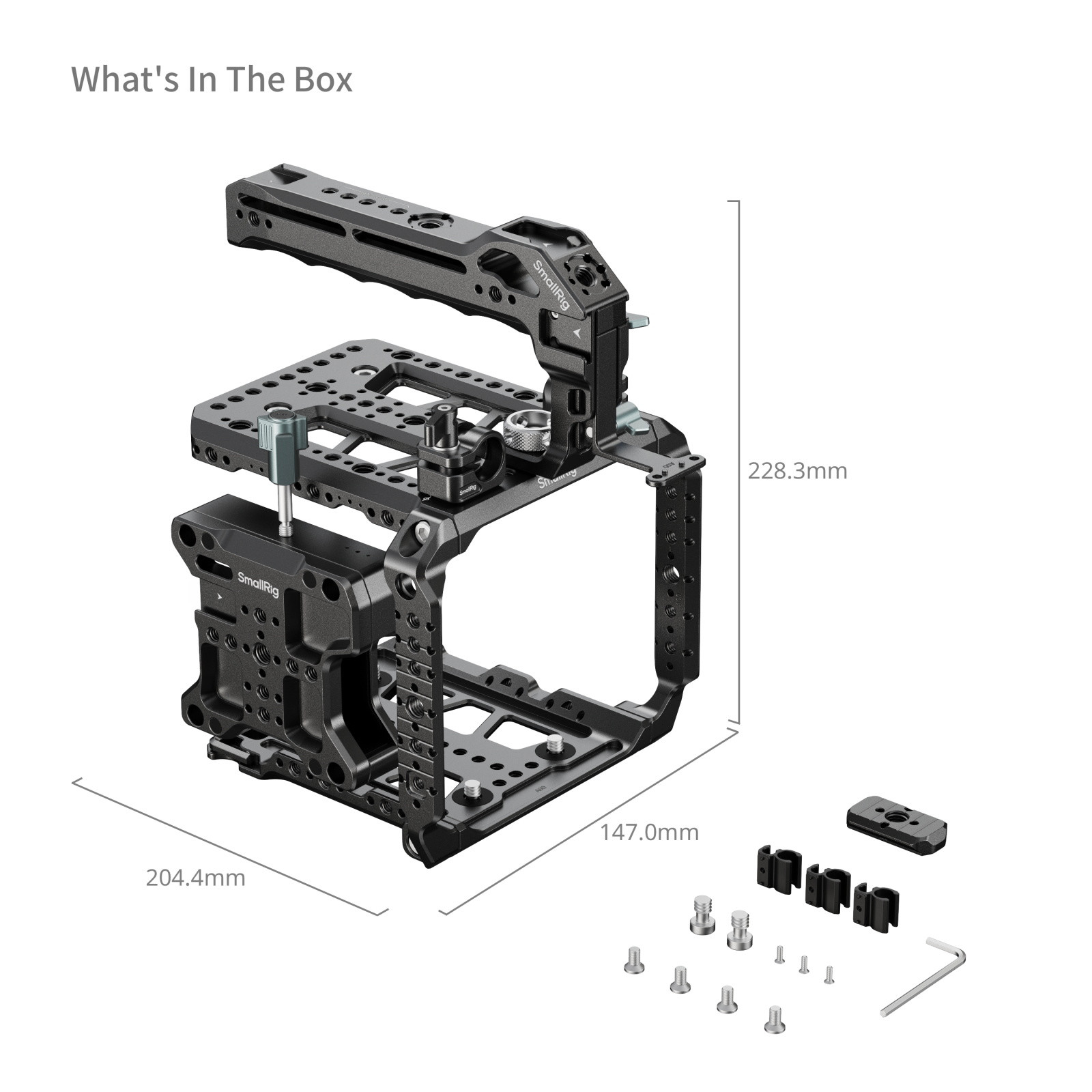

Packing List
Top Plate x 1
Left Side NATO Rail x 1
Right Side NATO Rail x 1
Baseplate x 1
Side Plate x 1
NATO Rail x 1
Cable Clamp x 3
15mm Rod Clamp x 2
Top Handle x 1
Allen Wrench x 1
1/4"-20 Screw x 2
M4 Screw x 4
M2 Screw x 3
Locking Knob x 1
Gasket x 1
Mounting Bracket for DJI Focus Pro LiDAR x 1
Operating Instruction x 1
Guarantee Card x 1
Technical Data
Product Dimensions: 228.3 x 204.4 x 147.0mm / 9.0 x 8.1 x 5.8in
Package Dimensions: 320.0 x 183.5 x 75.0mm / 12.6 x 7.2 x 3.0in
Net Weight: 838.0 ± 5.0g / 29.6 ± 0.2oz
Package Weight: 1063.0 ± 5.0g / 37.5 ± 0.2oz
Material(s): Aluminum Alloy, Silicone
