SmallRig Top Handle for DJI Focus Pro LiDAR 5236

SmallRig Top Handle for DJI Focus Pro LiDAR 5236

1. Built-in Telescoping Module: Enables quick installation and adjustment of the LiDAR module for optimal positioning near the lens front, enhancing focus accuracy.

2. Integrated Measuring Scale: Provides instant distance data between the LiDAR glass plane and the camera focal plane, streamlining the calibration process.

3. Modular Design: Functions as a standard top handle when the LiDAR is not in use, enhancing versatility and cost efficiency.

4. Multiple Mounting Options: Supports various accessories, offering creative flexibility across different shooting scenarios.

$69.99
Sku 5236
EAN 6941590023816

Availability: In stock 20

This product has been viewed 51 times

Product Description



SmallRig Top Handle for DJI Focus Pro LiDAR 5236

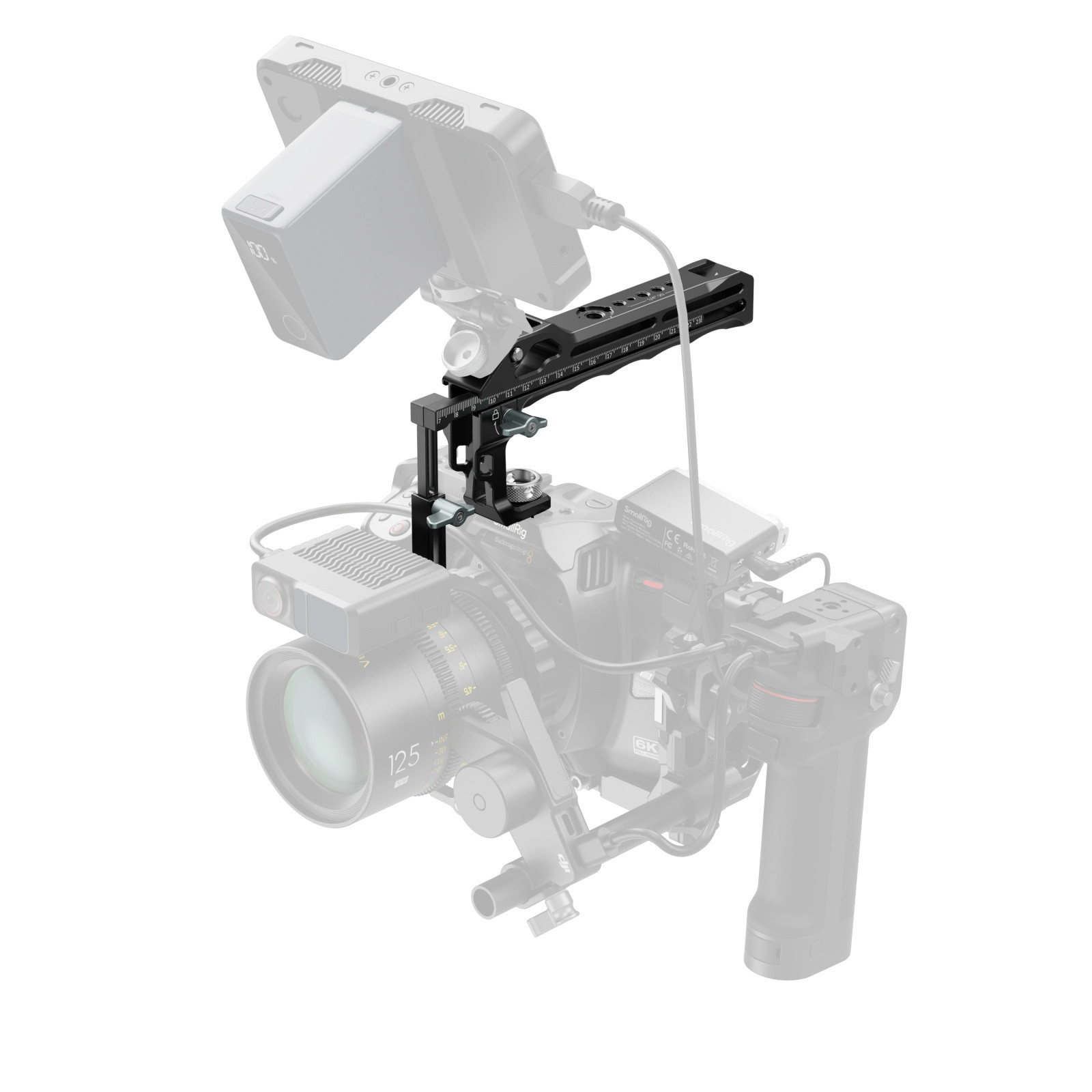

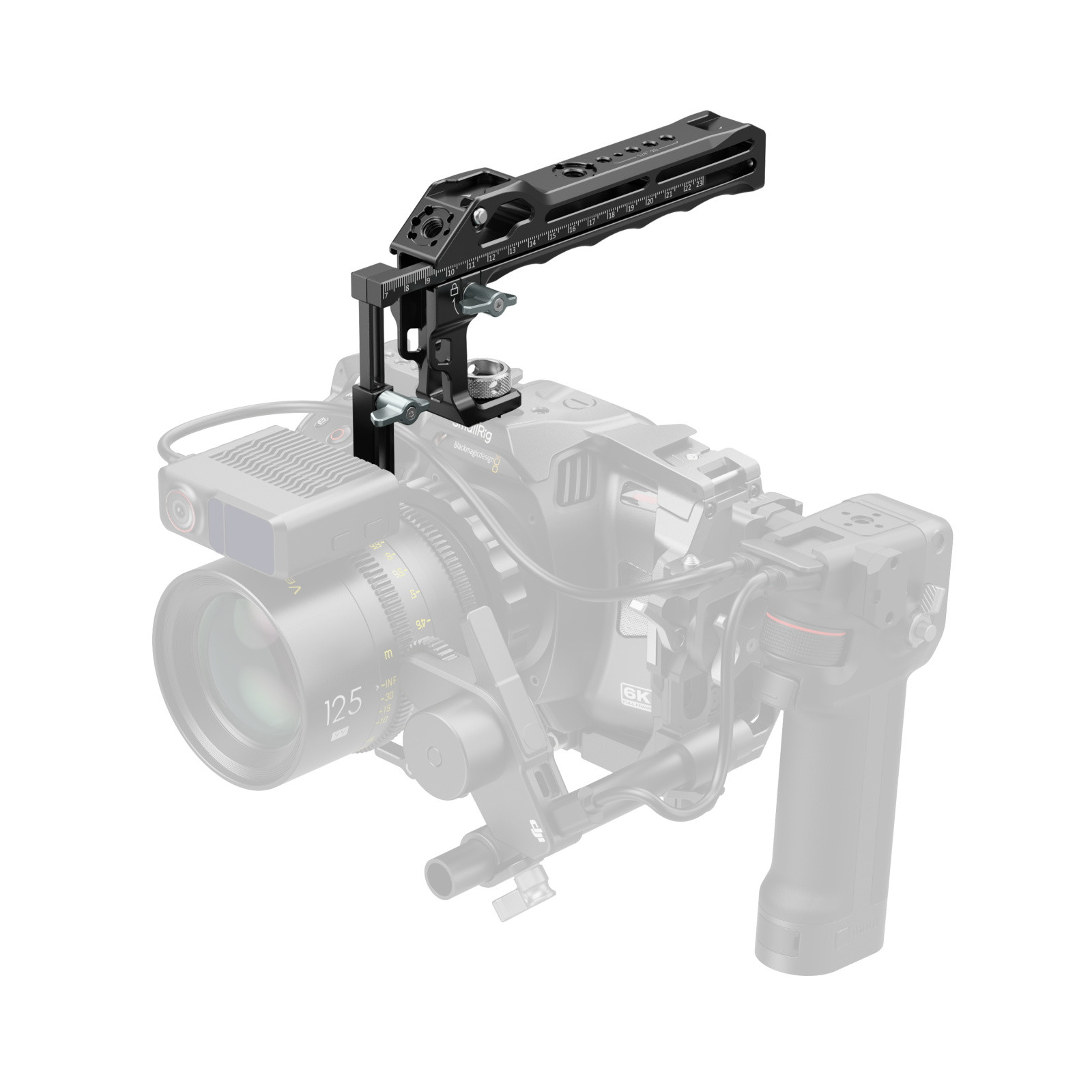

SmallRig Top Handle for DJI Focus Pro LiDAR 5236 is engineered to enhance the focusing experience with the DJI Focus Pro LiDAR. Its integrated telescoping rail system allows vertical and horizontal adjustments of the LiDAR module for precise positioning near the front of the lens, significantly reducing parallax and improving autofocus accuracy.

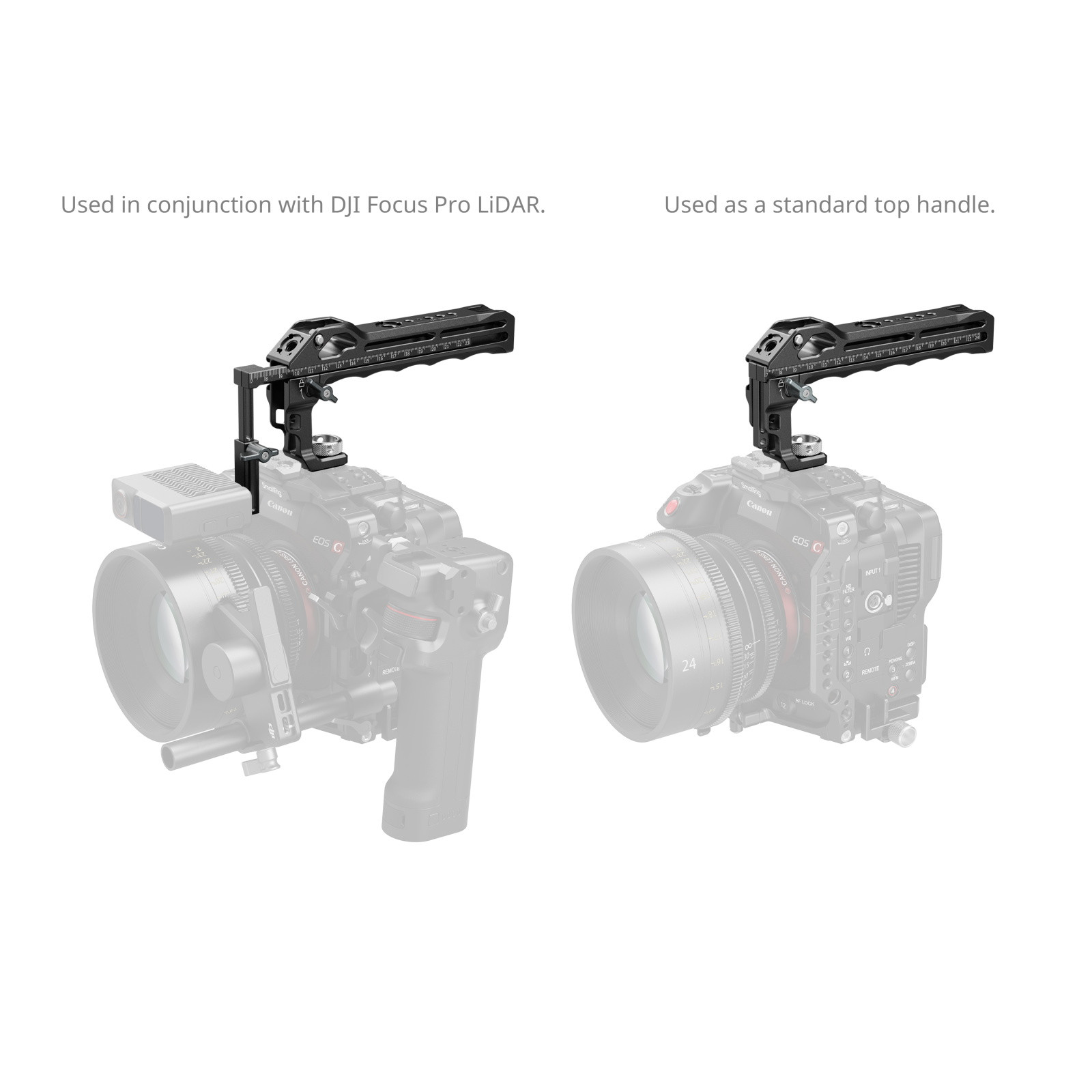

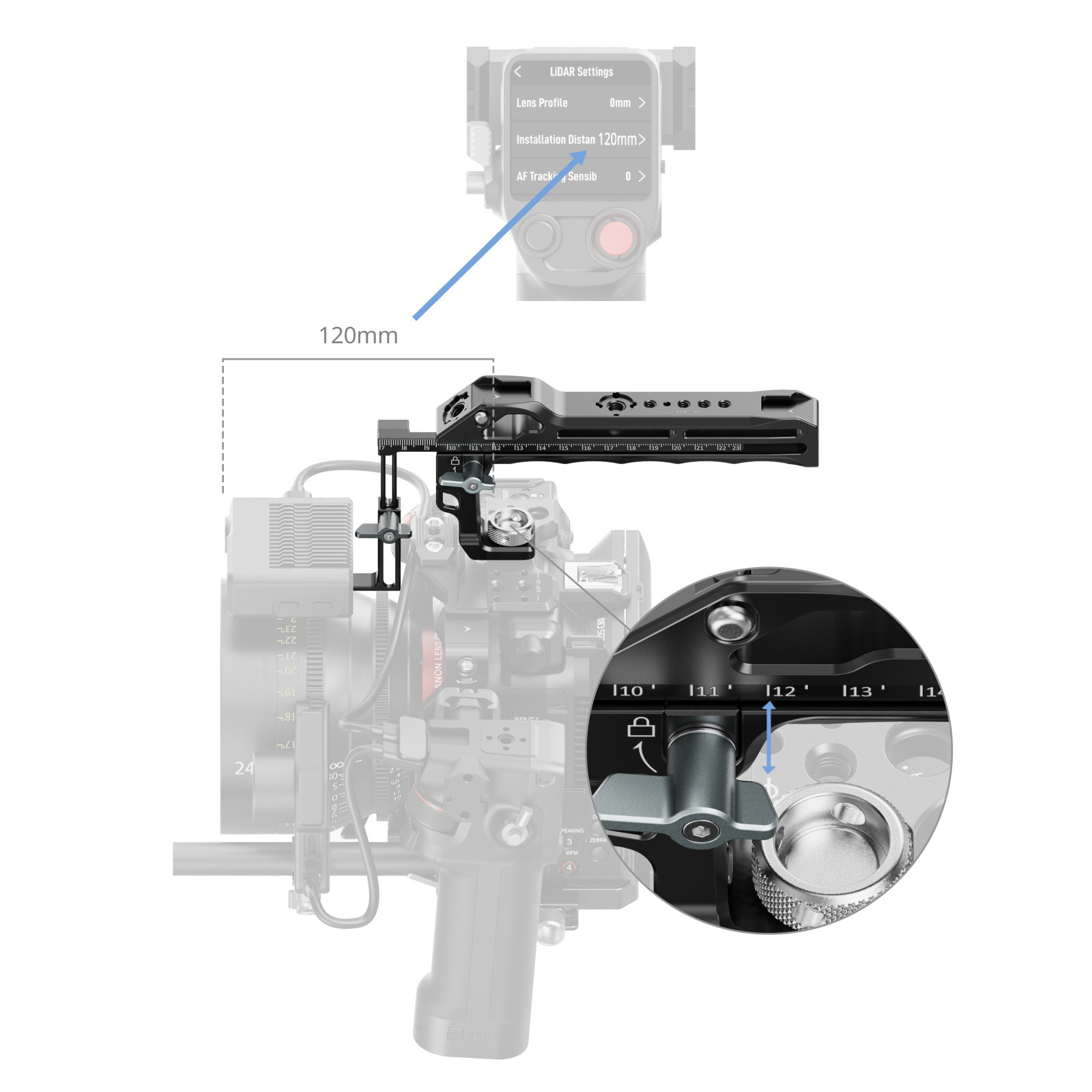

A built-in 23cm / 9.05in measuring scale provides direct distance measurements between the LiDAR glass plane and the camera's focal plane, streamlining calibration. The detachable bracket design offers flexible configurations for various shooting environments. When not in use with the DJI Focus Pro system, the handle serves as a conventional top handle, enhancing versatility and cost efficiency.

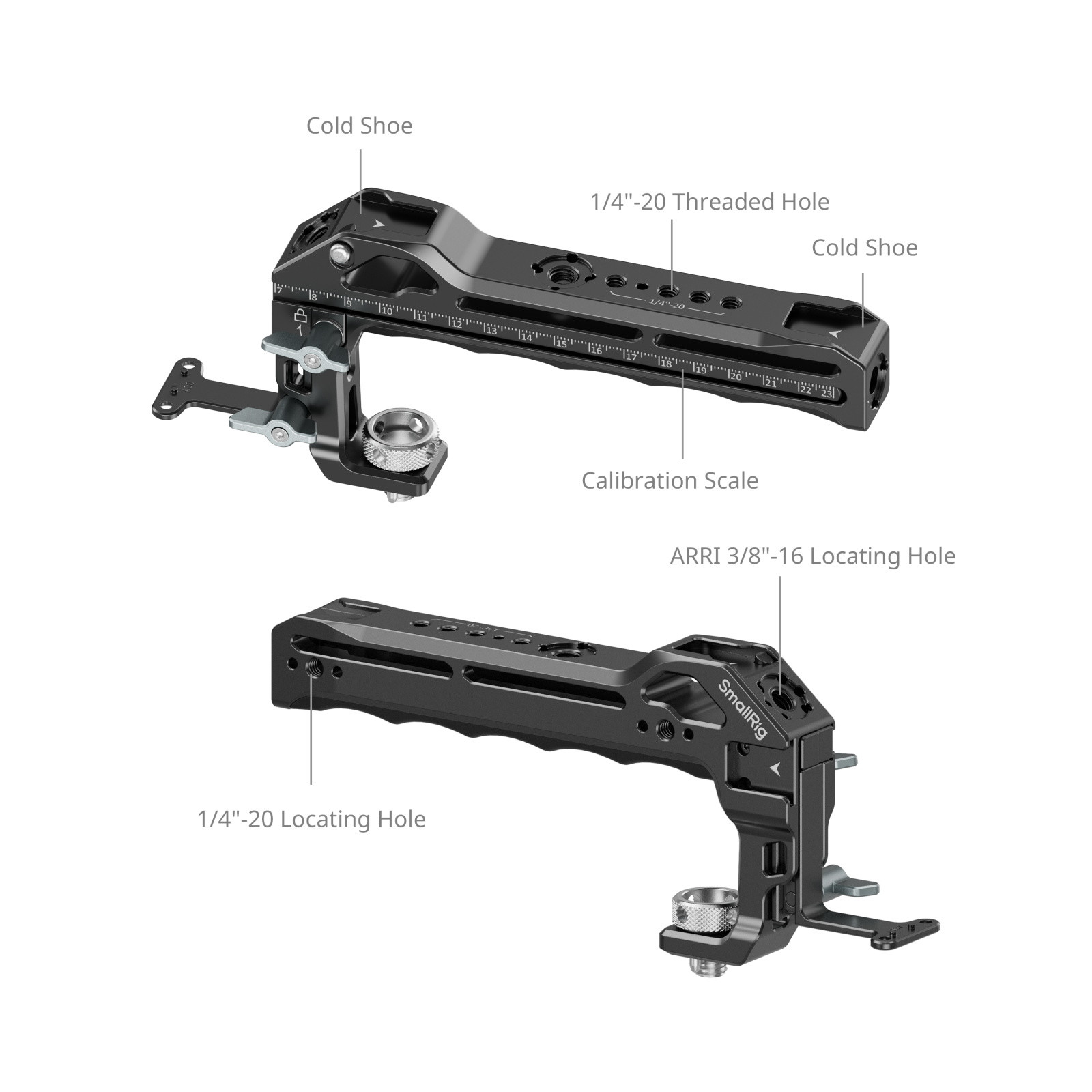

Ergonomically designed, the handle features a comfortable grip with embedded silicone for anti-slip and cold-resistant performance. It’s equipped with two cold shoe mounts on the front and two on the rear for simultaneous attachment of accessories such as microphones, video lights, or monitors. Front and top ARRI locating holes enable the attachment of monitor mounts (ID 2903B) for expanding monitors, while multiple 1/4"-20 threaded holes and locating holes on the top and right side are compatible with magic arms (ID 4194, 4900) for monitor mounting or remote controllers (ID 3902) for camera recording control.

Work With

Compatible with all cages featuring ARRI locating holes on top

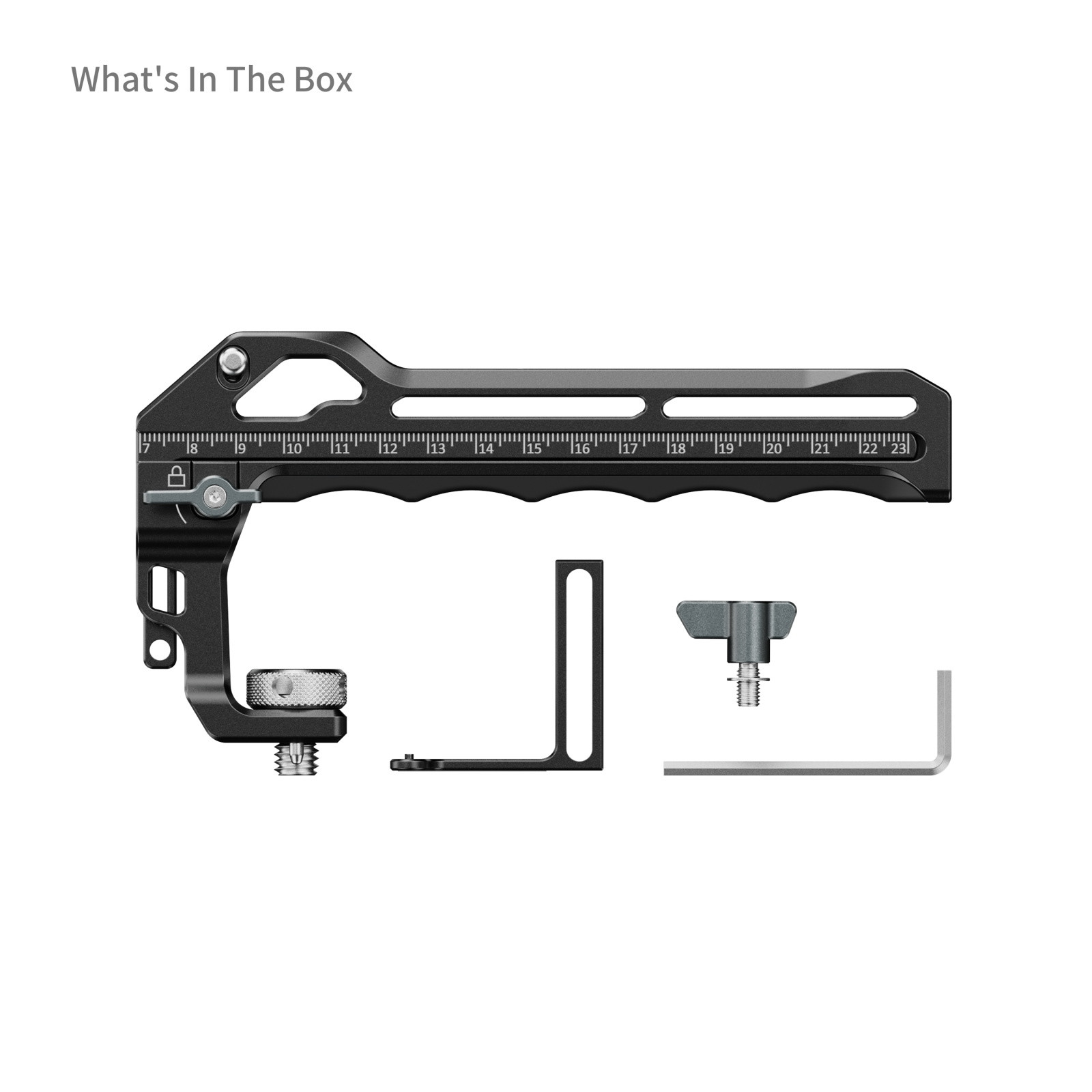

Packing List

Top Handle x 1

Locking Knob x 1

Washer x 1

Allen Wrench x 1

Mounting Bracket for DJI Focus Pro LiDAR x 1

Operating Instruction x 1

Technical Data

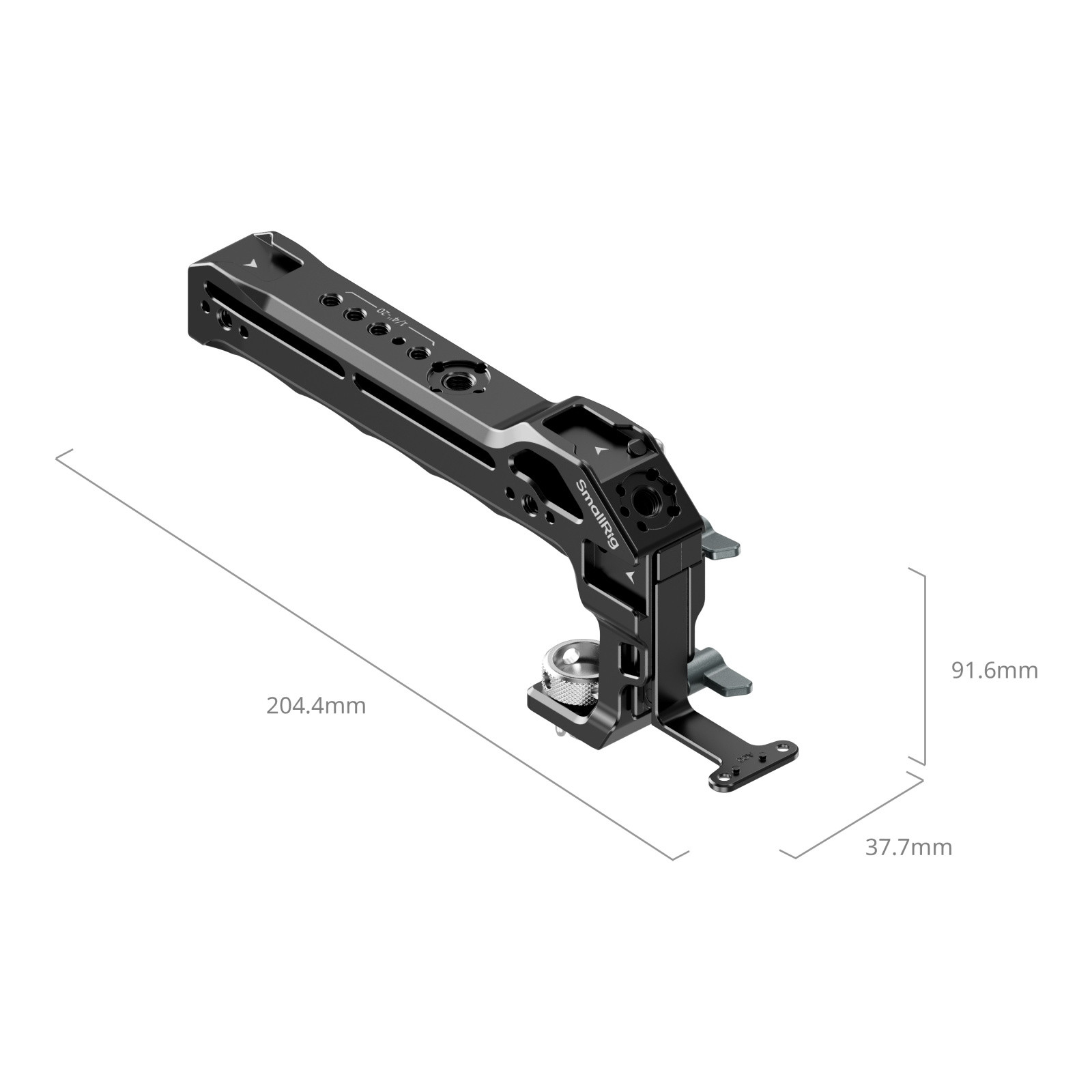

Product Dimensions: 204.4 x 91.6 x 37.7mm / 8.1 x 3.6 x 1.5in

Package Dimensions: 221.0 x 112.5 x 40.0mm / 8.7 x 4.4 x 1.6in

Product Weight: 220.0 ± 5.0g / 7.8 ± 0.2oz

Package Weight: 285.0 ± 5.0g / 10.0 ± 0.2oz

Material(s): Aluminum Alloy, Stainless Steel, Silicone
