SmallRig Cage for Sony A6000/A6300/A6500 with Meike MK-A6300/A6500 Battery Grip 2268
SmallRig Cage for Sony A6000/A6300/A6500 with Meike MK-A6300/A6500 Battery Grip CCS2268 is designed to provide protection and mounting options for Sony A6 series camera. The cage is fixed on the camera via the bottom 1/4"-20 threaded hole and features a m2.5 threaded hole on the left side as a second lock point to prevent the camera from twisting. It comes with a cold shoe on the top for magic arm or microphone mount and a nato rail on the top and right allows to attach nato handle, such as Nato Top Handle 1955 and Nato Side Handle 2187. The cage provides multiple 1/4"-20 and 3/8"-16 threaded holes for accessories such as Magic Arm 2070 and Side Handle 2093. The bottom comes with an integrate Arca Swiss plate for mounting Arca tripod directly. A flat screw driver is included at the bottom for installation. Optional Cable Clamp 1822（for A6300/A6500）and Cable Clamp 1693 (for A6000/A6400) are provided to protect the HDMI cable. You can also mount the Rod Clamp 1943 to the front of the cage for 15mm LWS system.
Note1: Please take off the strap ring on the right side of camera to secure the cage via the m2.5 screw.
Note2: The second lock point (m2.5 threaded hole) doesn’t work for Sony A6000.
Key Features

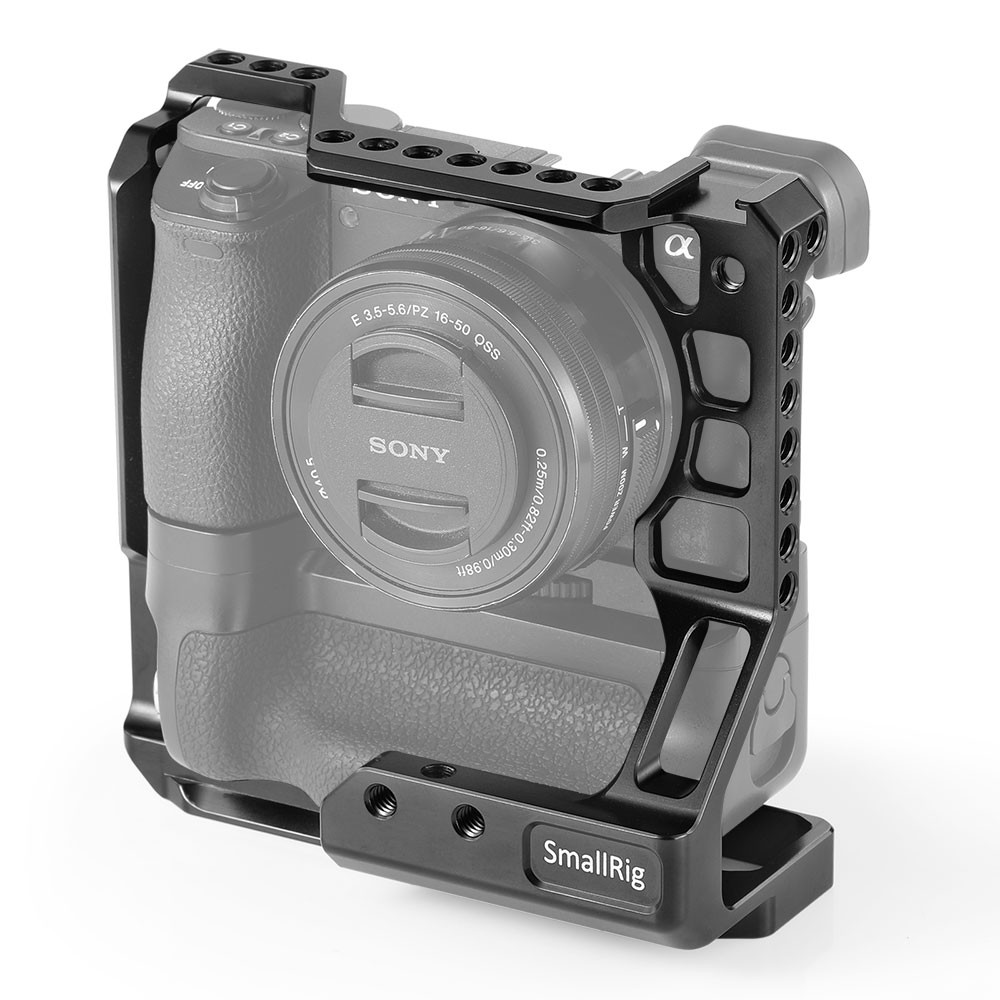

1.Form-Fitted Cage for Sony A6 series with Meike Battery Grip.
2.Features a m2.5 threaded hole on the left side as a second lock point to prevent twisting.

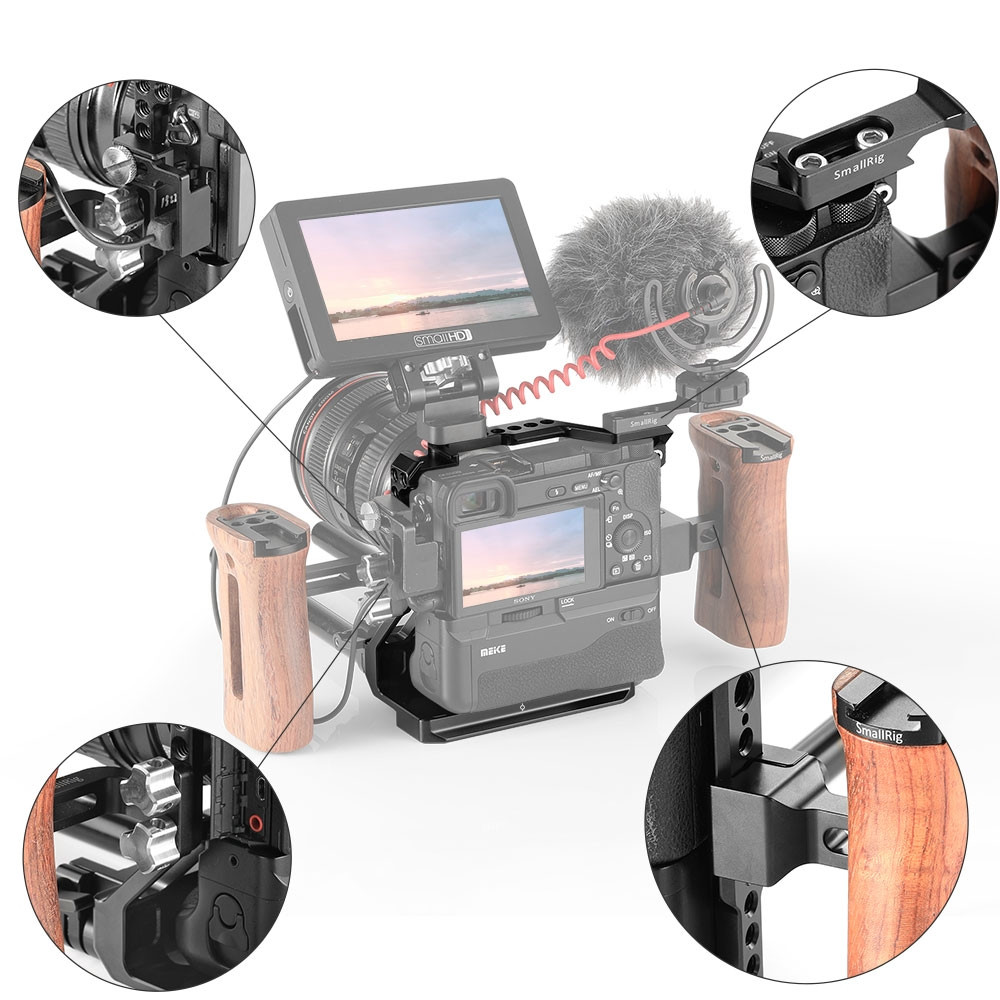

3.Multiple 1/4"-20, 3/8"-16 threaded holes and an arri locating hole for accessory attachment.
4.Comes with nato rail on the top and right side allows to make your setup quick release.

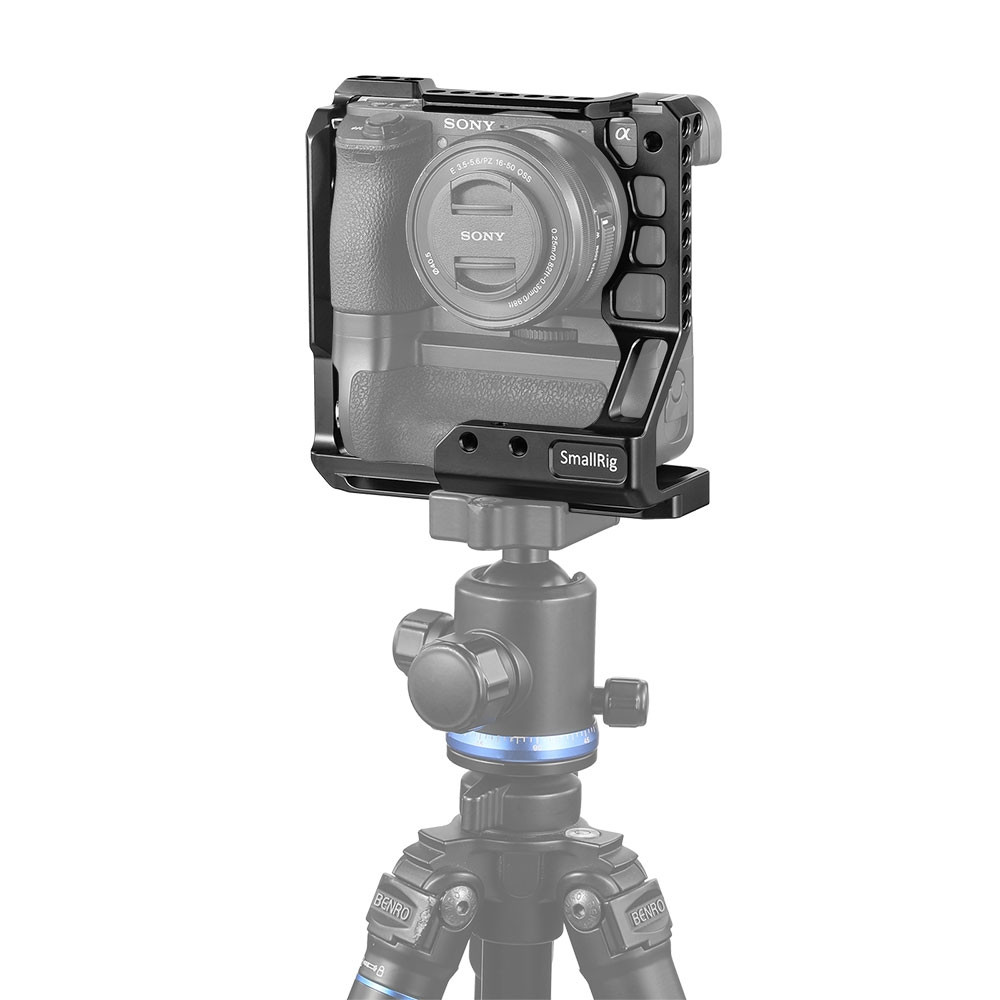

5.Integrate with an Arca-Type compatible dovetail plate on the bottom .

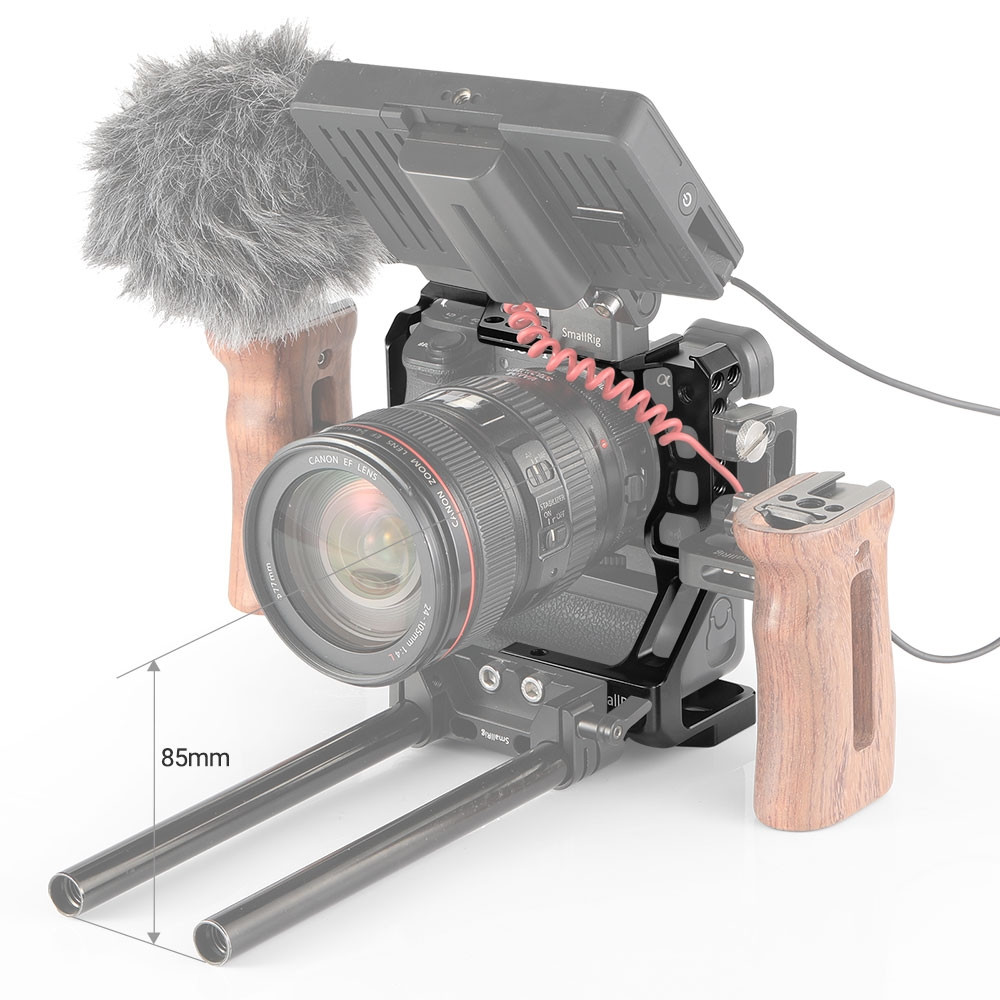

6.Compatible with rod clamp 1943 to attach to the front for 15mm LWS system.
7.Built-in flat screw driver on the bottom.
Work With

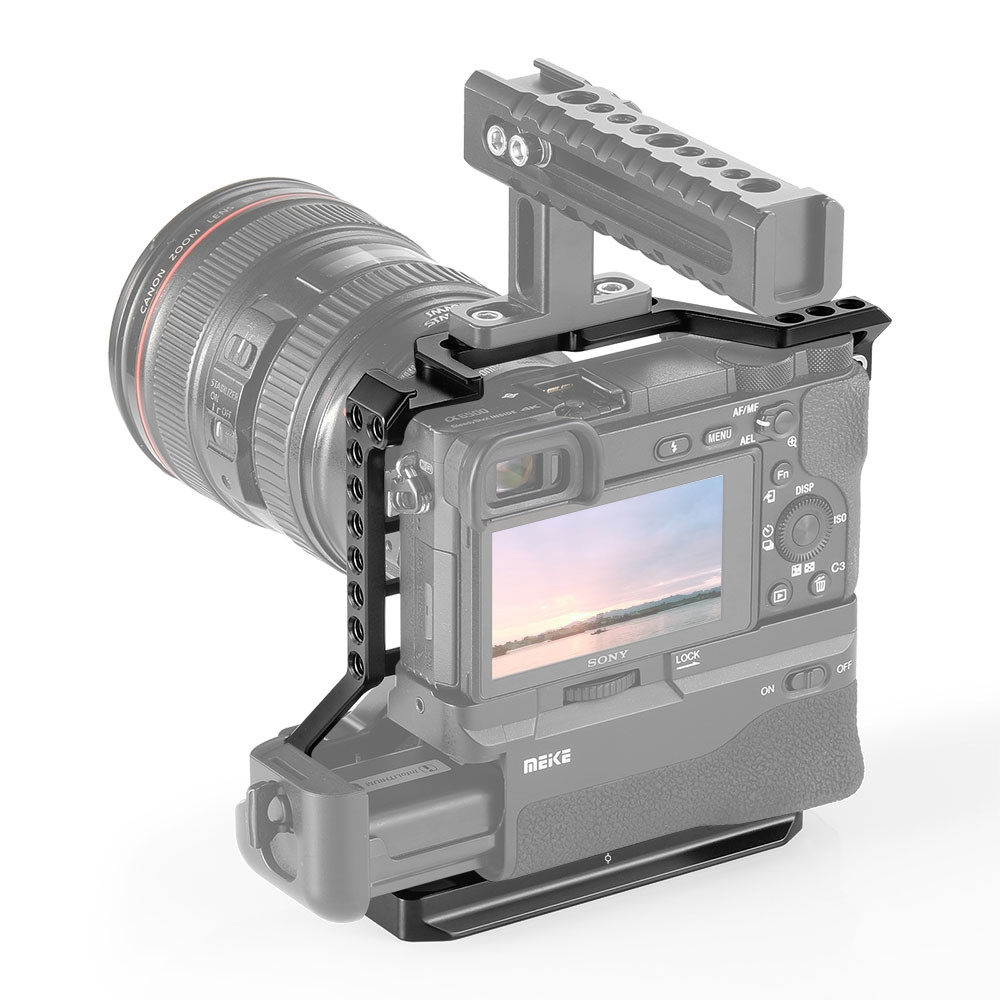

Sony A6000/A6300/A6400 with Meike MK-A6300/MK-A6300 Pro Battery Grip
Sony A6500 with Meike MK-A6500 Pro Battery Grip

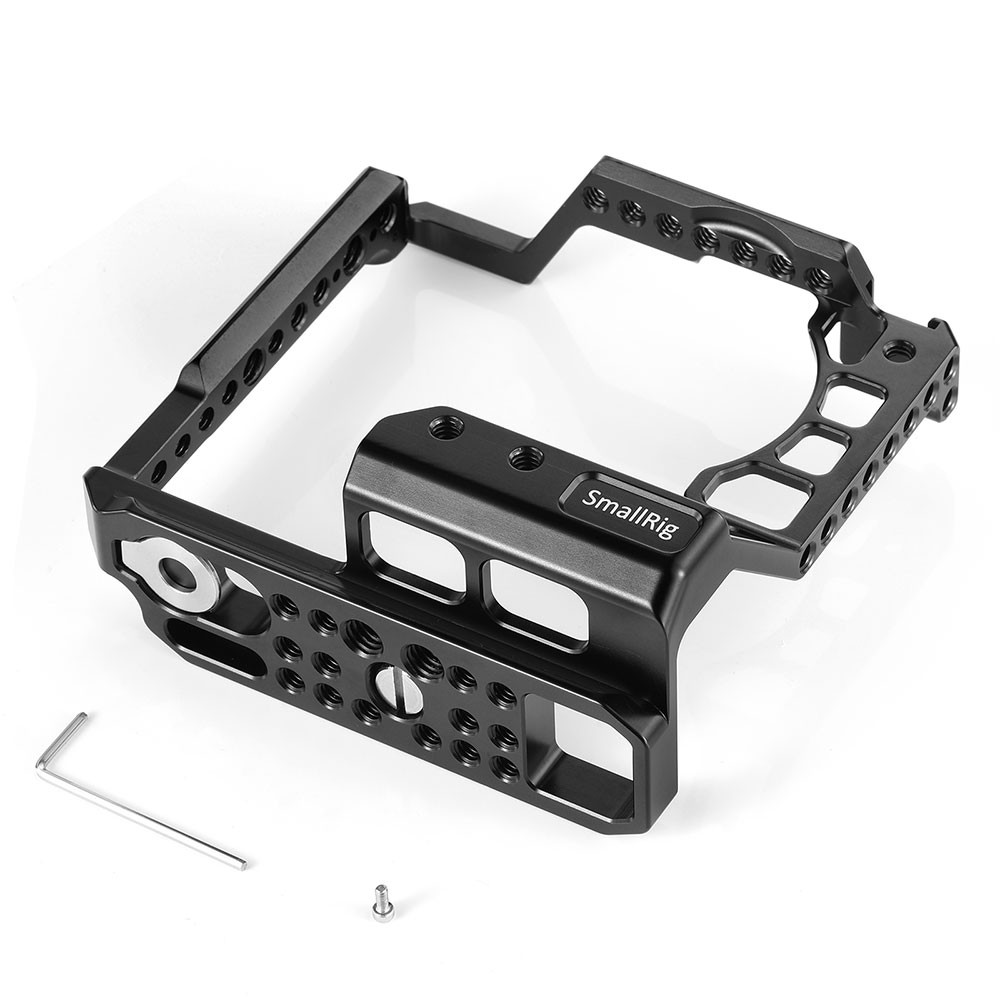

Packing List
1 x Cage
1 x Hex Spanner
1 X M2.5 Screw
Technical Data

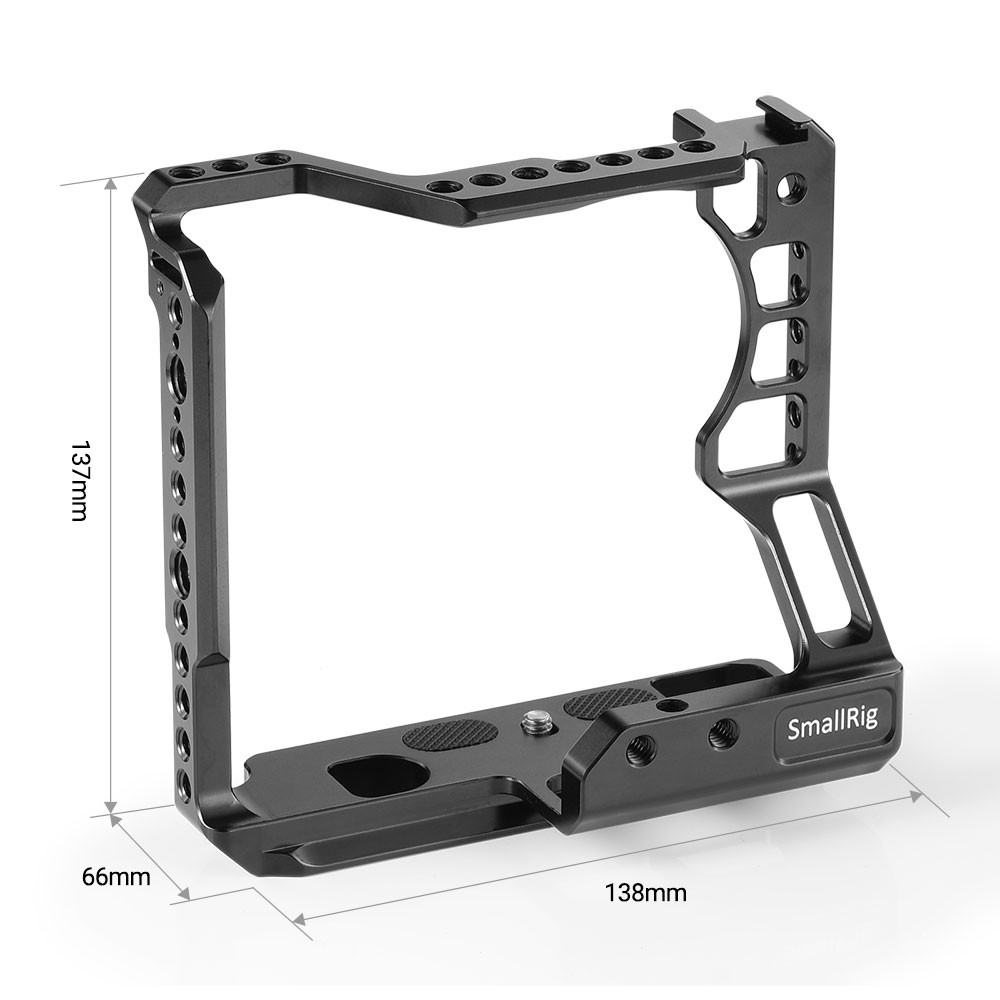

Product Dimensions: 138 x 65 x 137mm
Package Dimensions: 165 x 155 x 85mm
Net Weight: 200g
Package Weight: 307g
Material(s): Aluminum Alloy
