SmallRig Cage for Panasonic LUMIX S5 / S5D Camera 2983

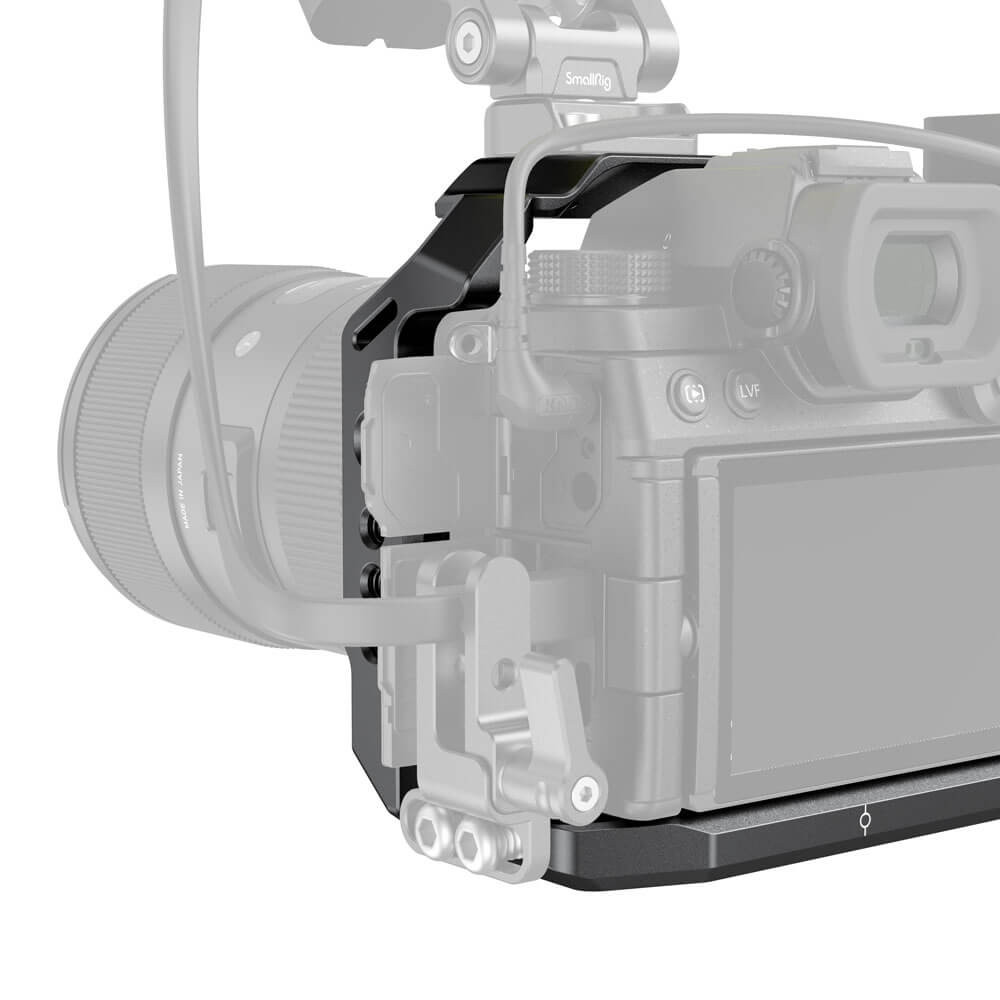

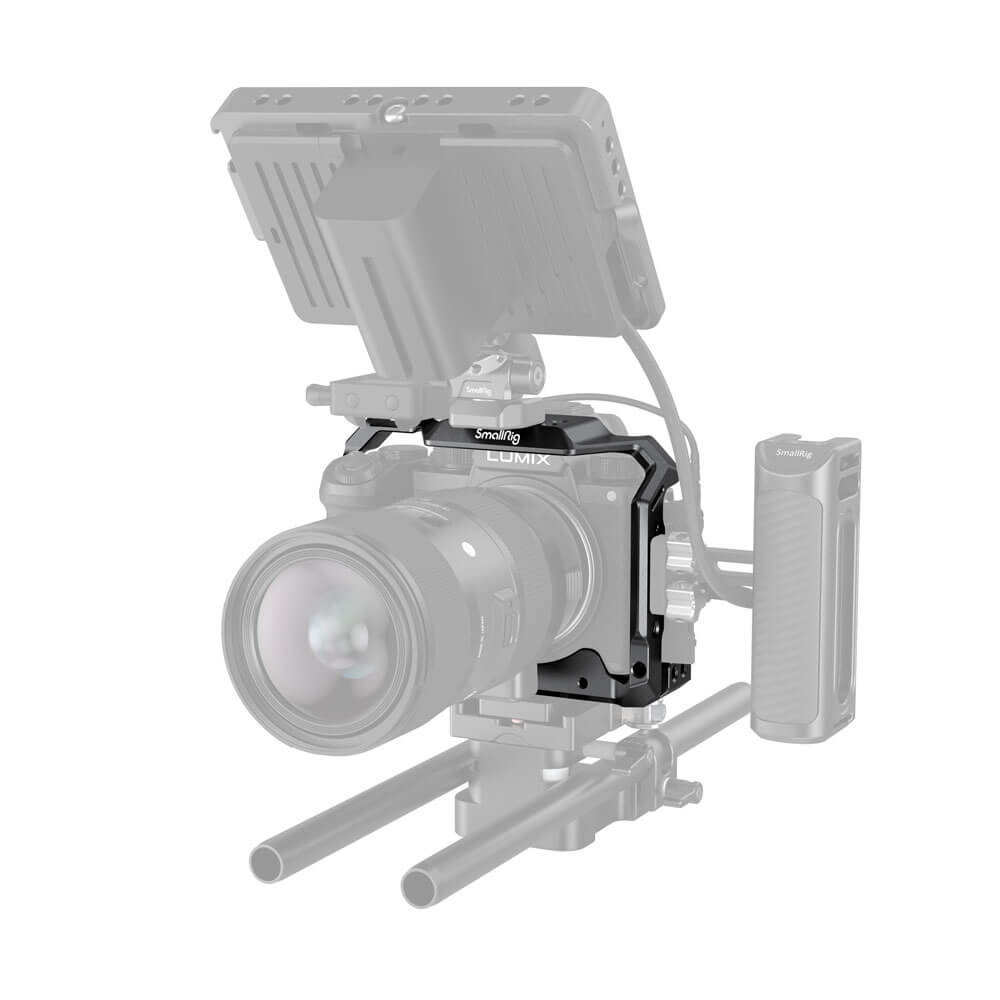

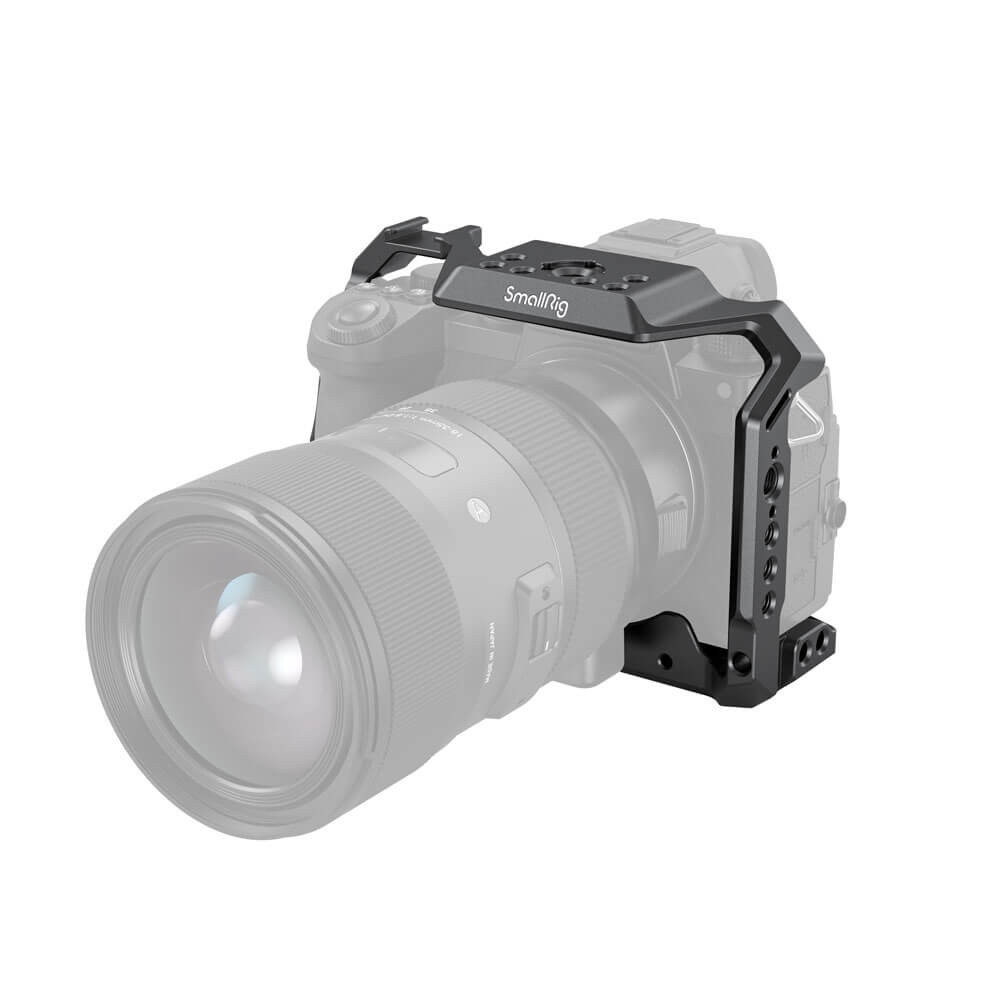

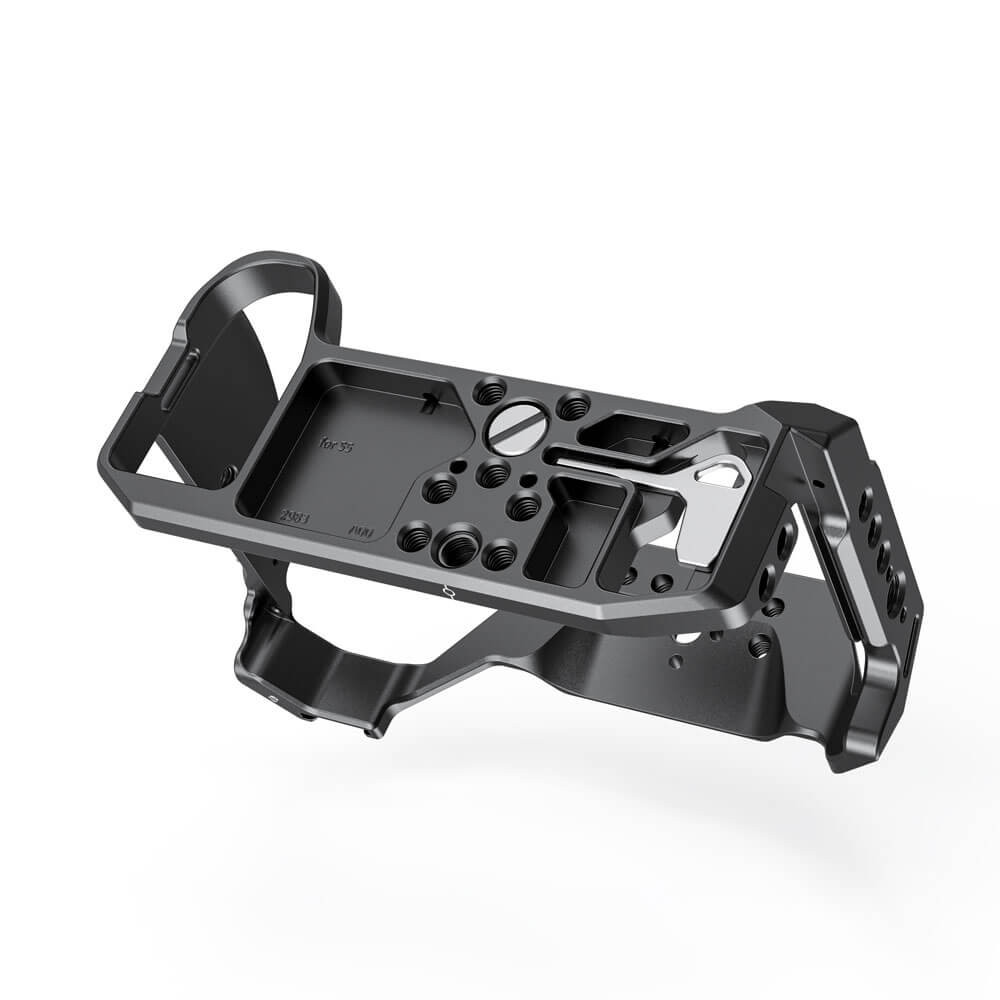

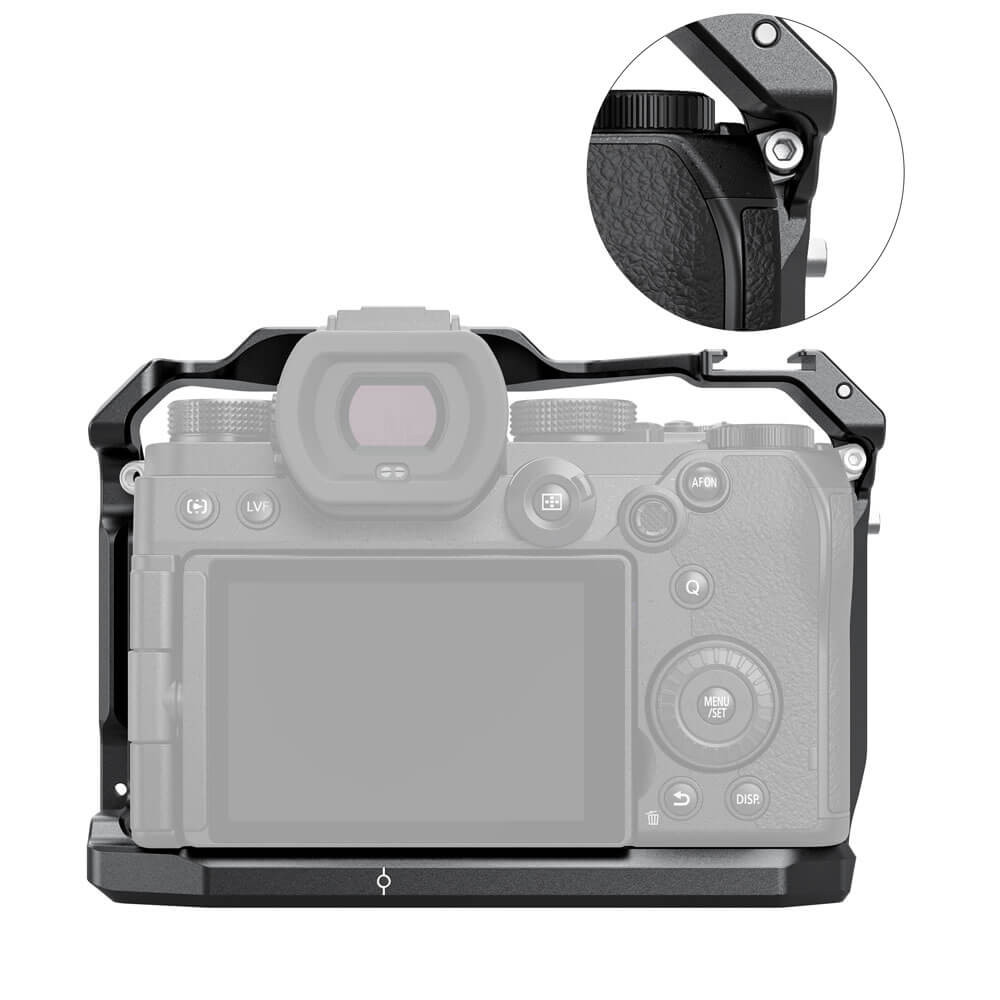

SmallRig Cage for Panasonic LUMIX S5 / S5D Camera 2983 is a formfitting full cage designed to provide protection and accessory mounts. The cage secures the camera via a 1/4”-20 screw on the bottom and an m2.5 screw on the right side for further security to prevent twisting. Featuring multiple 1/4”-20 and ARRI 3/8”-16 threads for accessories, such as Top Handle 2165 and Monitor Mount 2903. The cage integrates with a cold shoe on the top for microphone and light and comes with a NATO rail on the left side for NATO Handle 2187 and Magic Arm 2071. A flathead screwdriver with an Allen wrench is included to secure the camera screw and stored it on the bottom of the cage. Additionally, the cage provides a strap slot on the side for carrying the strap. Optional HDMI Cable Clamp 1679 / 3637 is separately available to protect the HDMI port.
Note:
1. Please take off the strap ring on the right of the camera before installing the cage.
2. The LCD screen will be not available to fully flip while the cage is used with HDMI cable clamp 1679 or 3637.
Work With
Panasonic LUMIX S5
Panasonic LUMIX S5D
Packing List

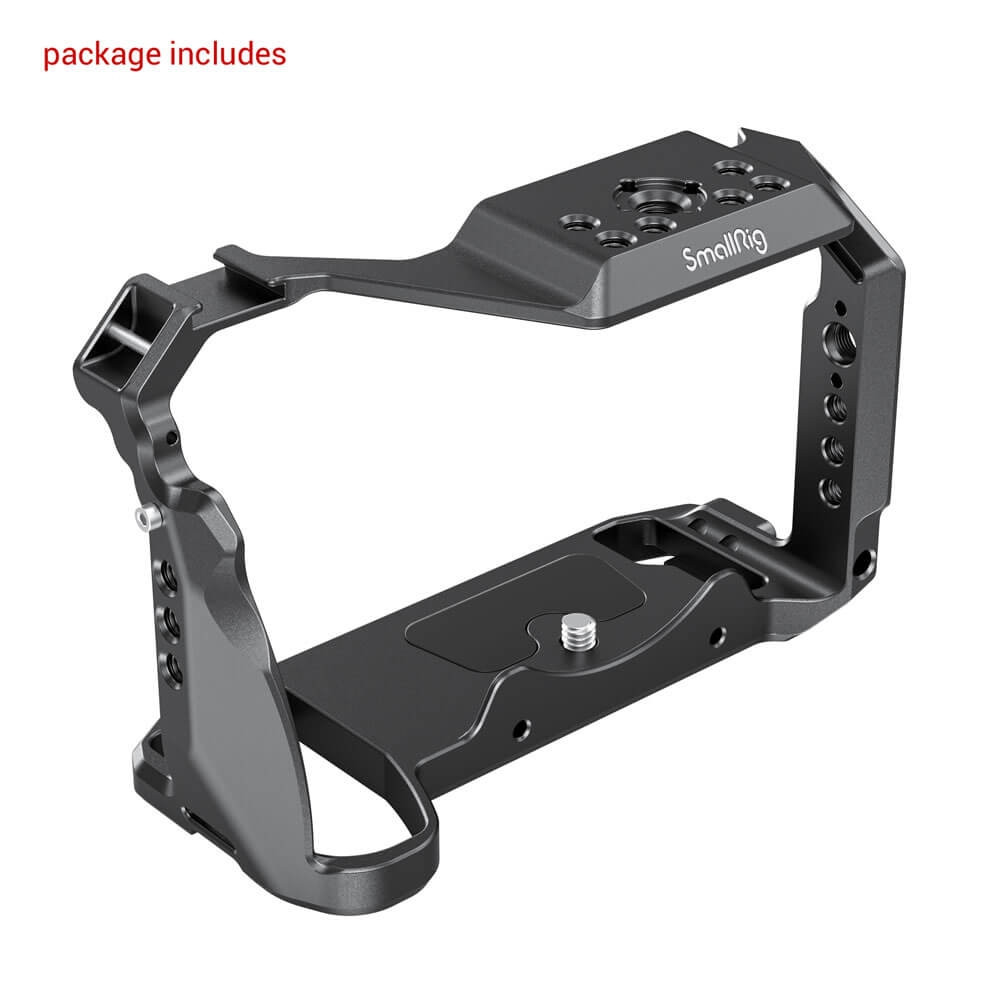

1 x Cage
Technical Data

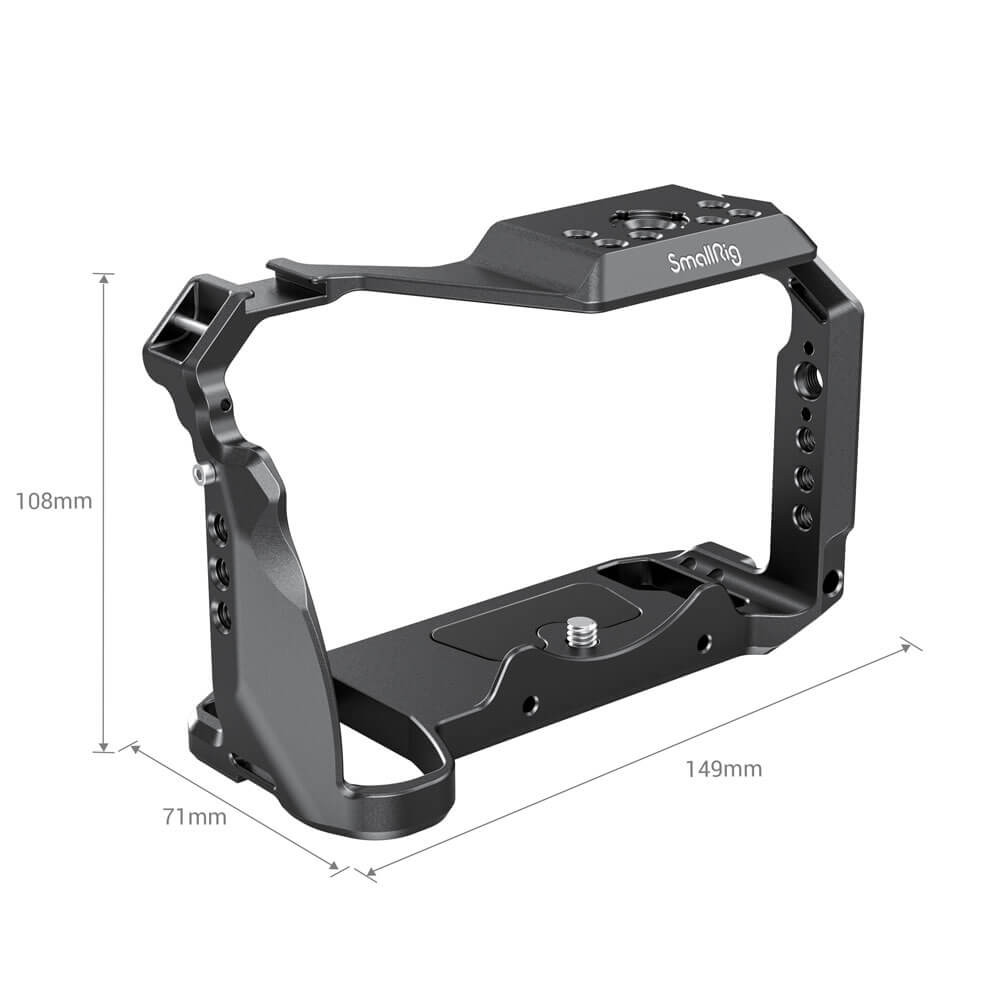

Product Dimensions: 149 x 108 x 71mm
Package Dimensions: 165 x 155 x 85mm
Net Weight: 202g±5g
Package Weight: 316g±5g
Material(s): Aluminum Alloy, Stainless Steel
