SmallRig L Bracket for Panasonic S5 Camera 2984

SmallRig L Bracket for Panasonic S5 Camera 2984

1. Modular Designed Arca-Type L Bracket for Panasonic S5.

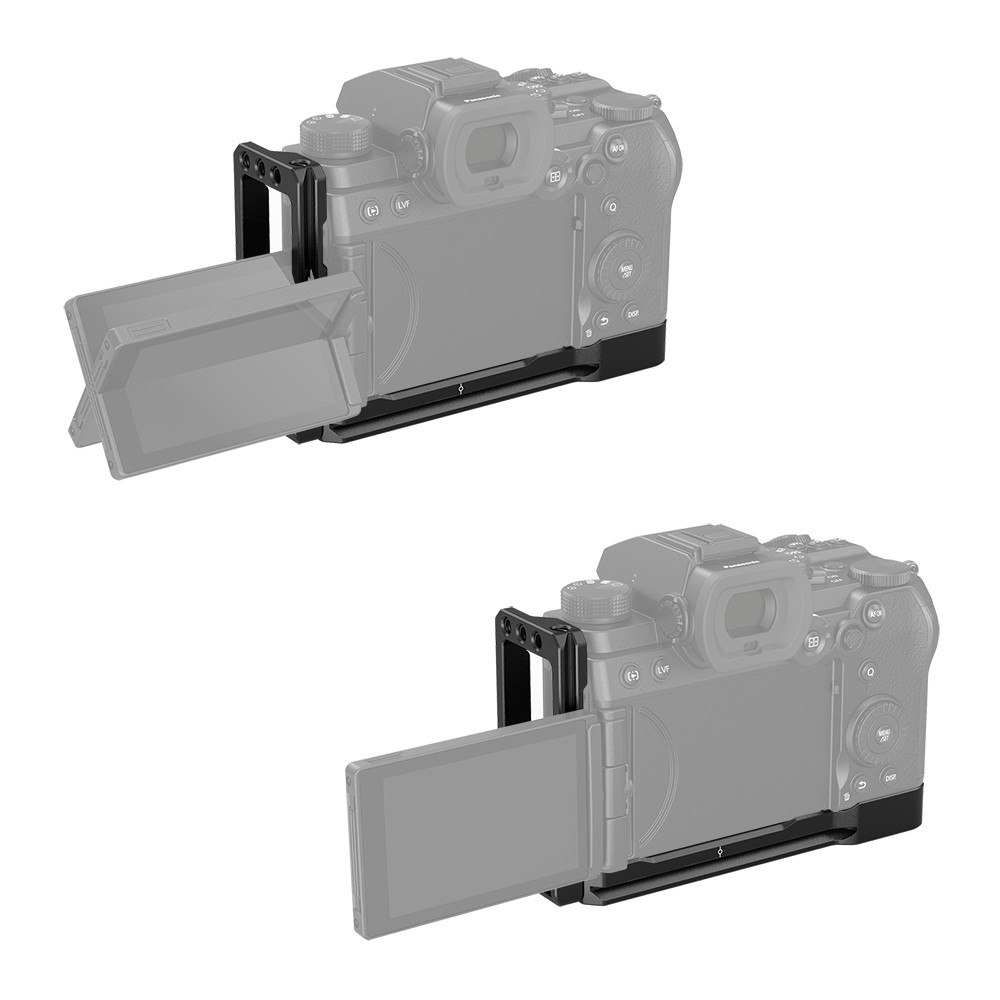

2. The Side Plate Can Be Moved Forward to Have 180° LCD Screen.

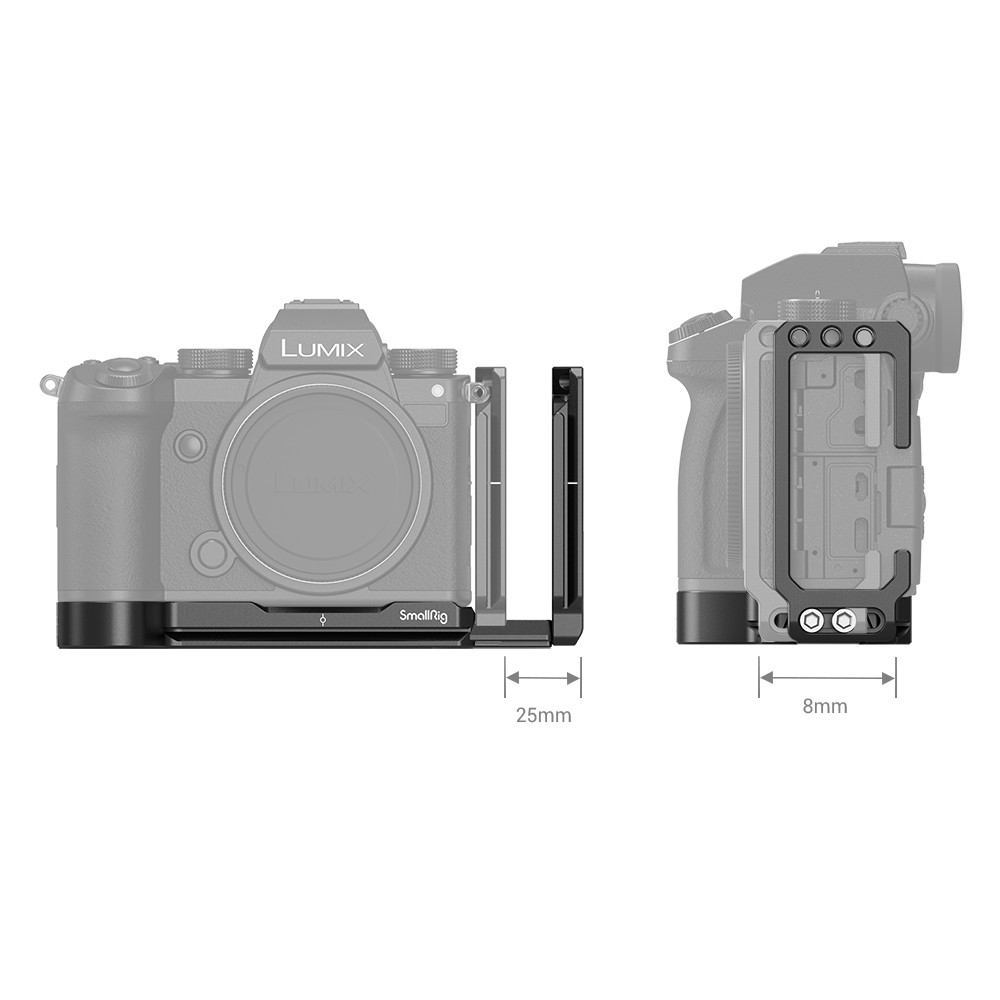

3. Extendable Side Plate for Tethering or Cable Release.

4. 1/4" -20 Accessory Threads & Carry Strap Slot.

5. Built-in Flat-Head Screwdriver.

$39.90
Sku 2984
EAN 6941590002644

Availability: Discontinued Item

This product has been viewed 1817 times

Product Description

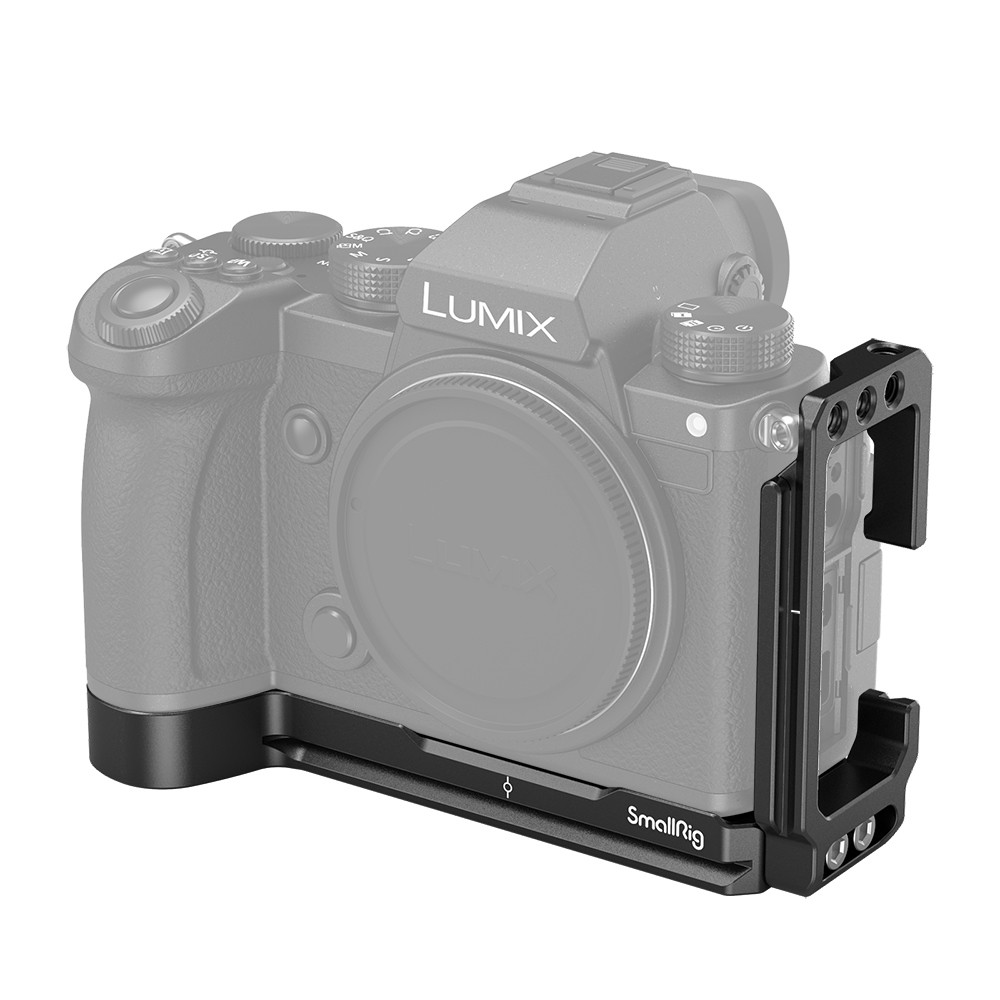

SmallRig L Bracket for Panasonic S5 Camera 2984

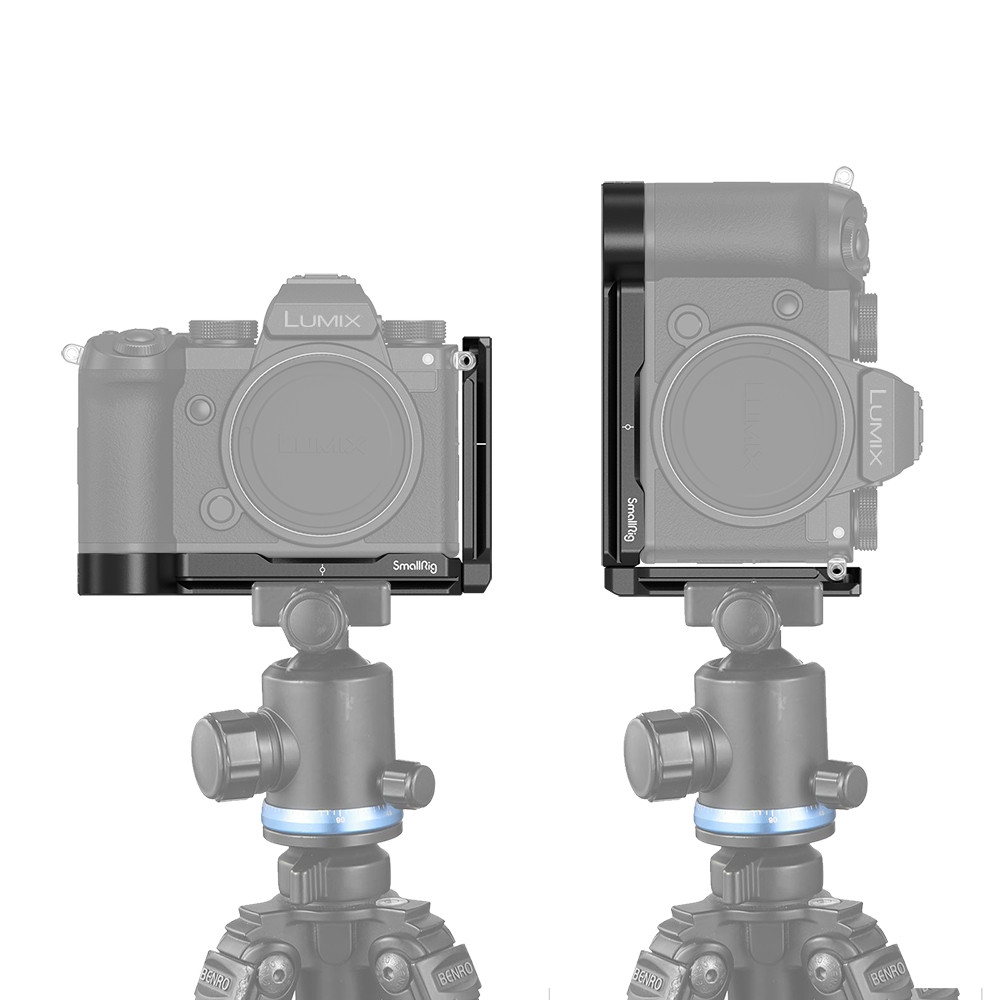

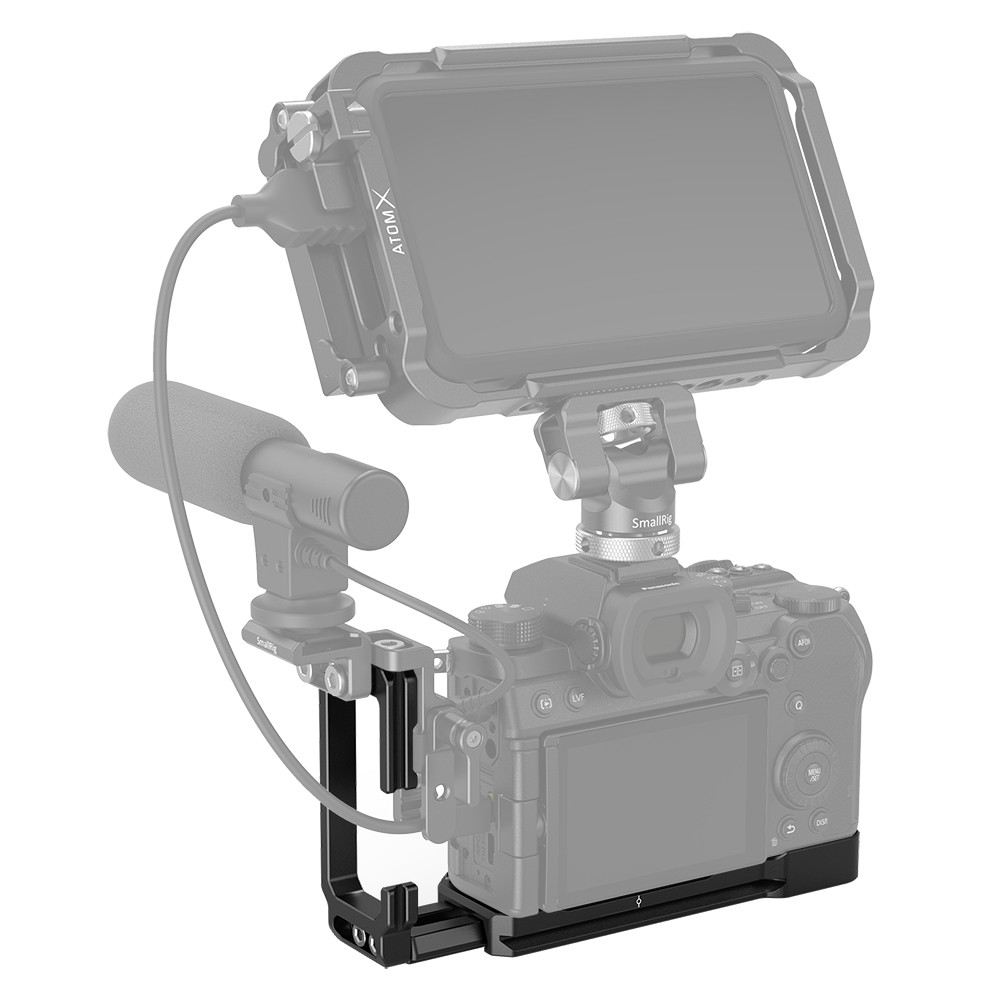

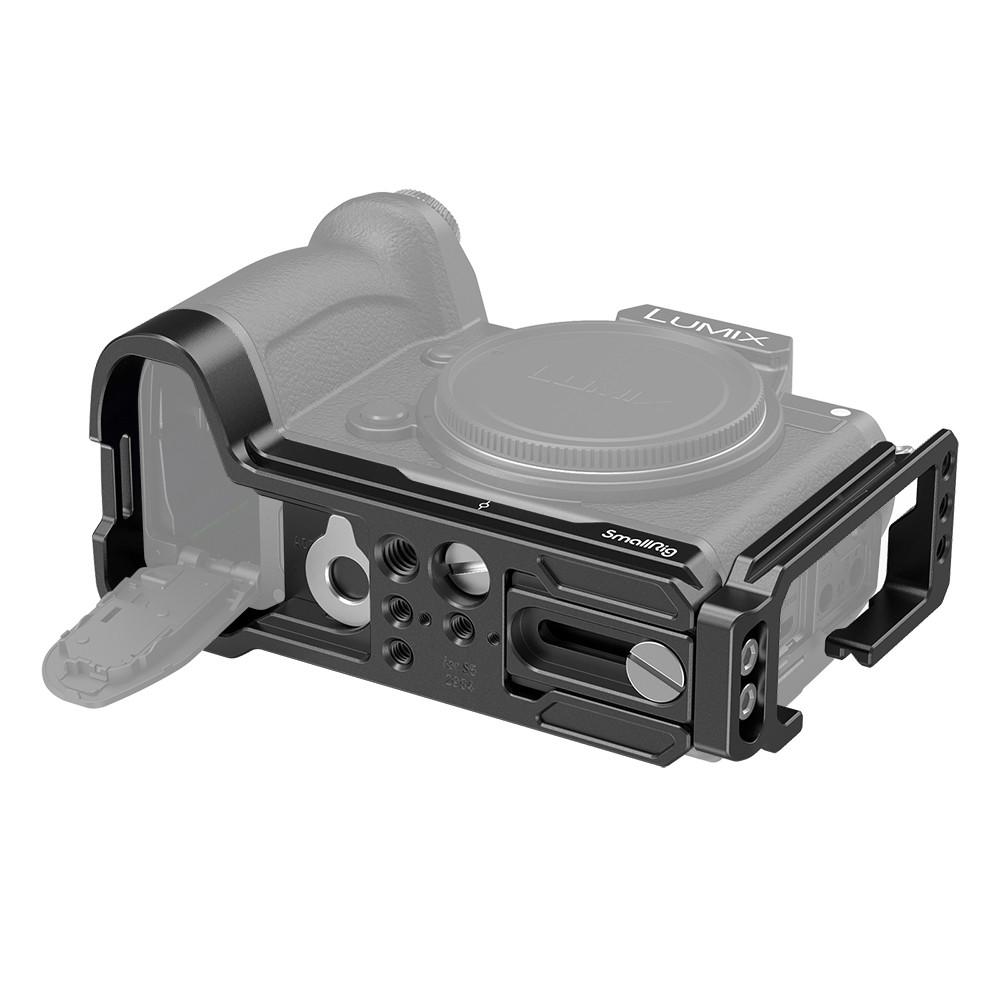

SmallRig L Bracket for Panasonic S5 Camera 2984 is modular designed with anti-twist flanges to keep the camera from twisting and provide a comfortable grip. Both the base plate and side plate are Arca-type compatible dovetails enable the camera to mount in a vertical or horizontal position. It secures to the bottom of the camera with a 1/4 screw and features a rubber pad to prevent your camera from scratching. Each axis features a sensor centering line to align the camera on a tripod head. The side plate can be moved forward to have 180° LCD screen and can be extended to the left if more room is needed for tethering or cable release. Additionally, the L plate features multiple 1/4"-20 threaded holes on the side and bottom for accessory attachment such as Cold Shoe BUC2736 and Cable Clamp 2259. A flat head screwdriver is included to secure the camera screw and stores on the bottom of the L bracket.

Key Features

1. Modular Designed Arca-Type L Bracket for Panasonic S5.

2. The Side Plate Can Be Moved Forward to Have 180° LCD Screen.

3. Extendable Side Plate for Tethering or Cable Release.

4. 1/4" -20 Accessory Threads & Carry Strap Slot.

5. Built-in Flat-Head Screwdriver.

Work With

Panasonic S5

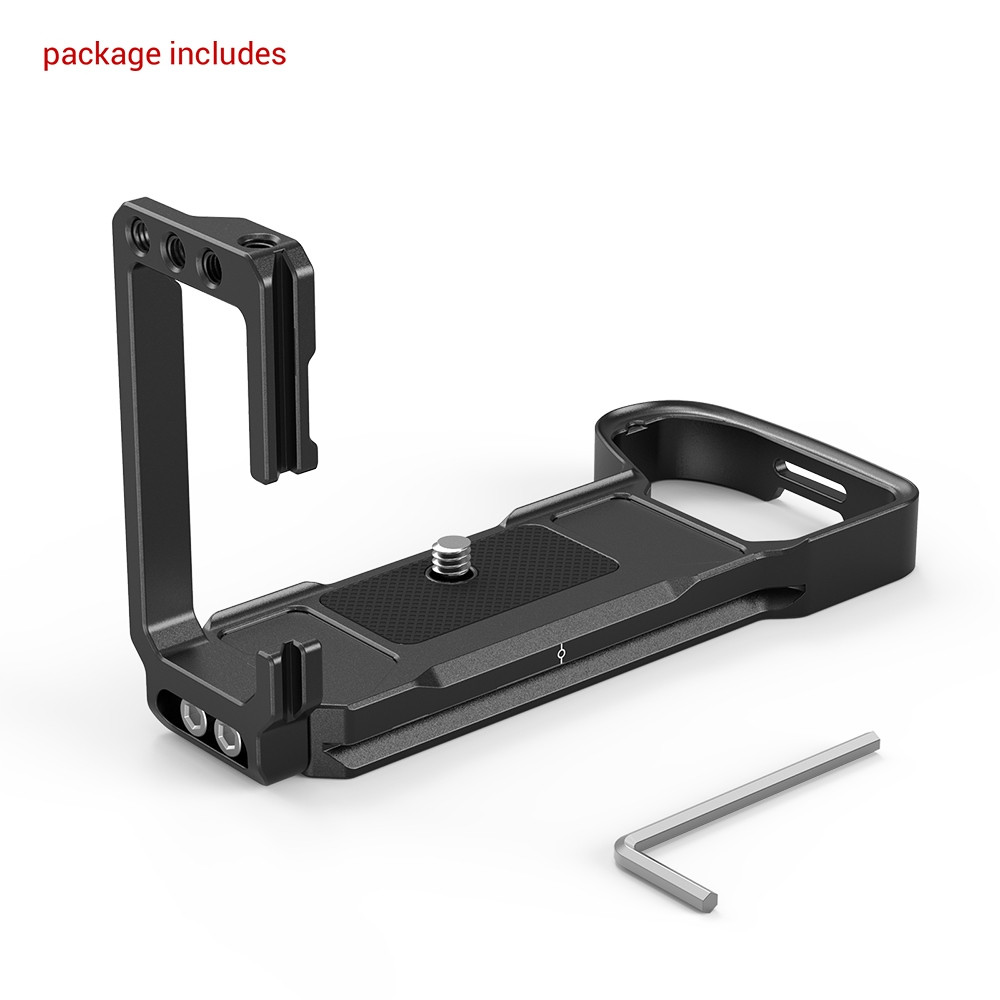

Packing List

1 x L Plate

1 x Allen Wrench

Technical Data

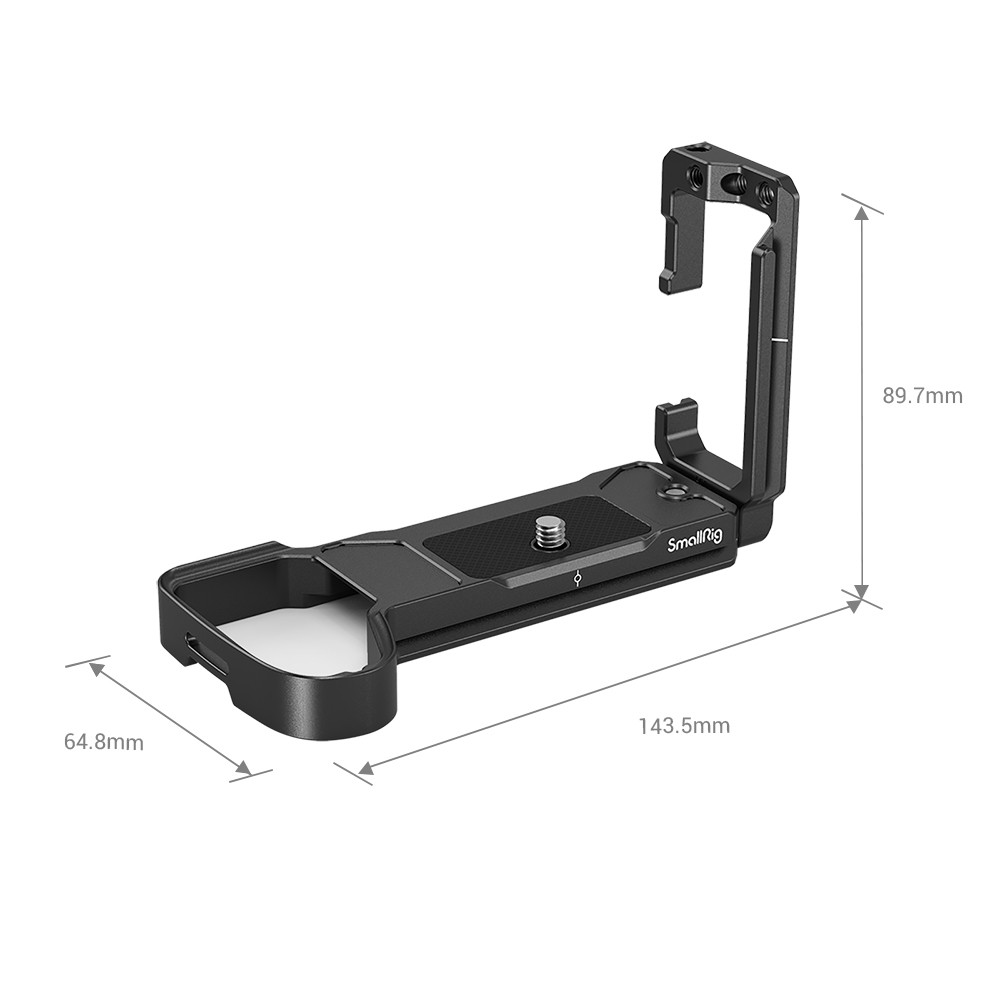

Product Dimensions: 143.5 x 89.7 x 64.8mm

Package Dimensions: 160 x 120 x 68mm

Net Weight: 138g±5g

Package Weight: 219g±5g

Material(s): Aluminum Alloy
