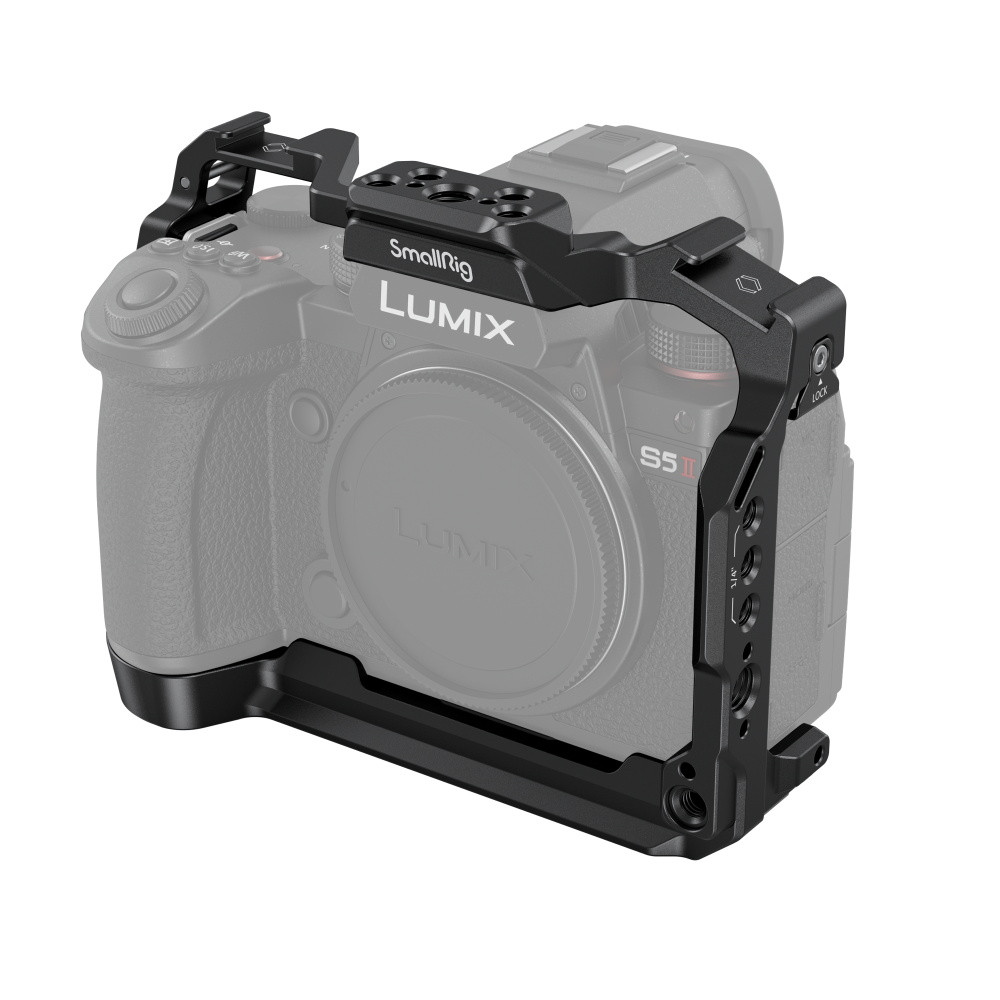

SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022

SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022

1. All-in-one full cage protects the camera and improves grip experience.

2. NATO rails at the top and on the left side.

3. Two cold shoe mounts at the top for the microphone, LED video light, etc.

4. Anti-twist three-point locking design.

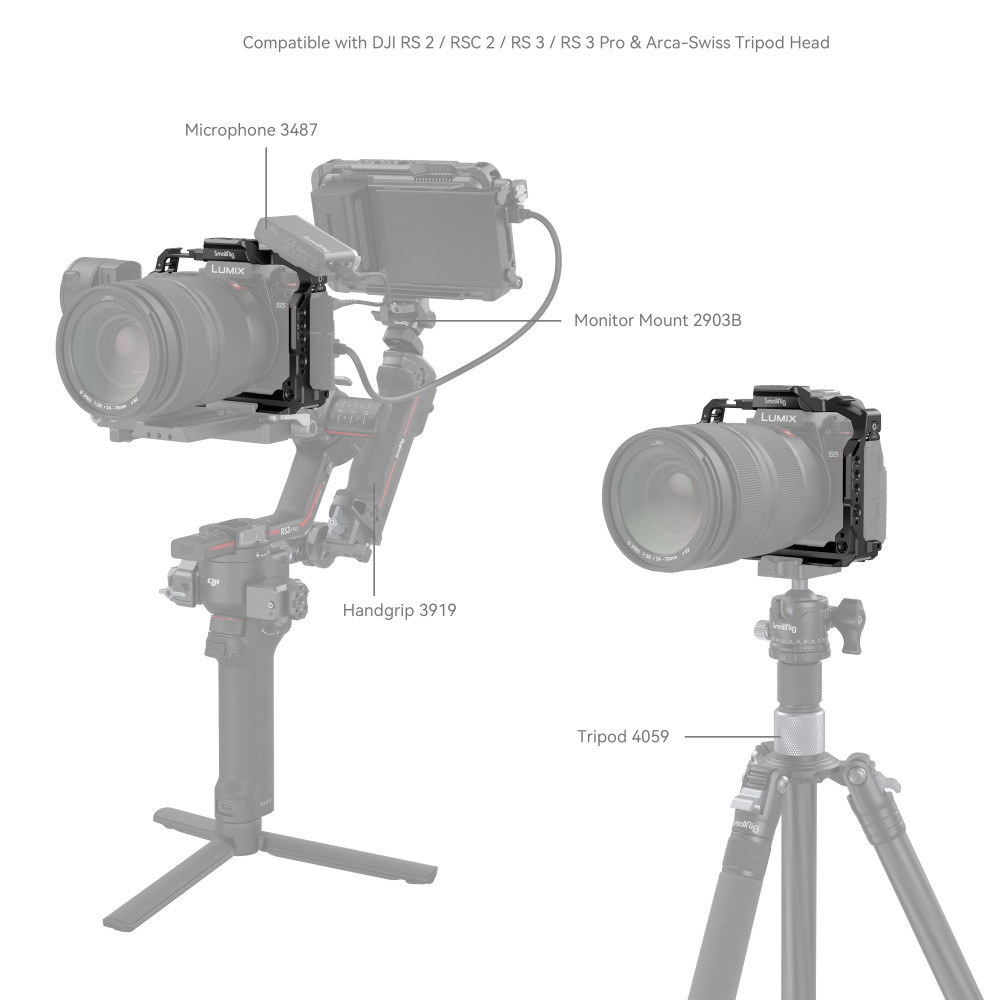

5. The Arca-Swiss bottom plate supports the Arca-Swiss tripod and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.

$69.00
Sku 4022
EAN 6941590011110

Availability: In stock 116

This product has been viewed 1062 times

Product Description



SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022

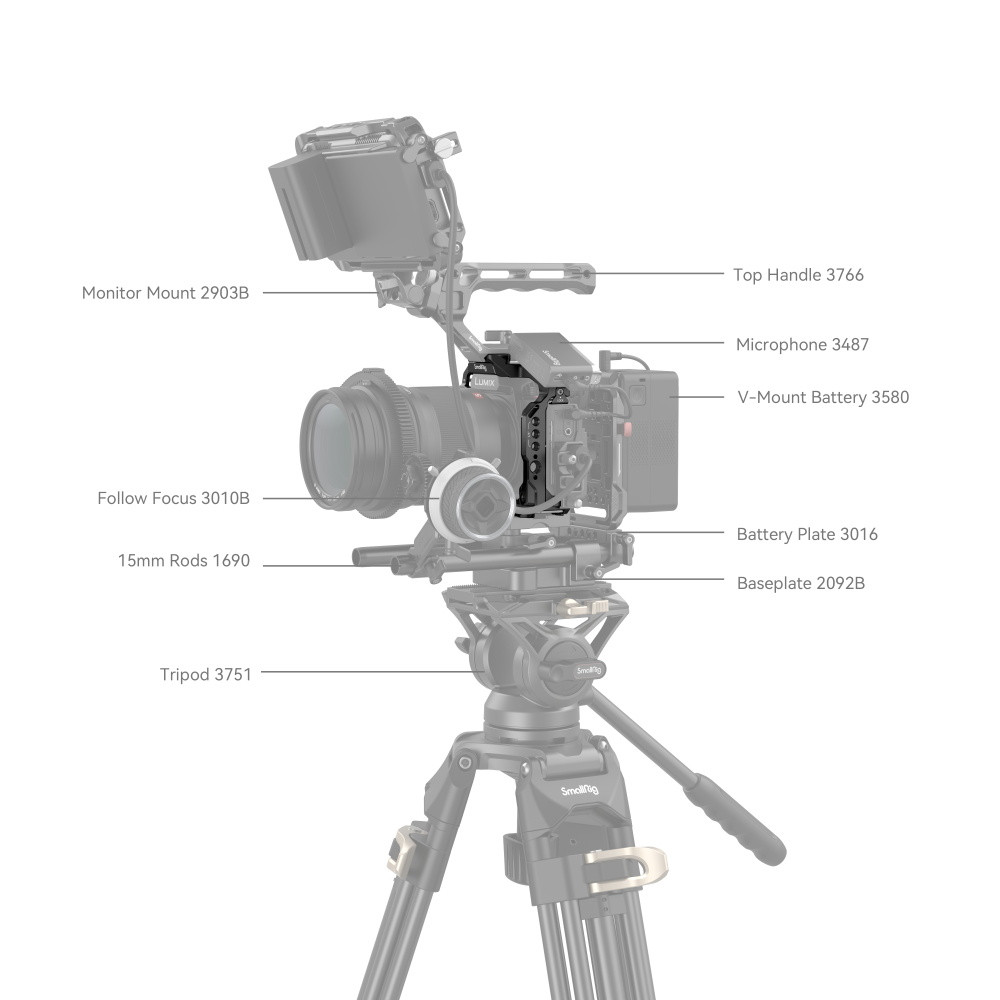

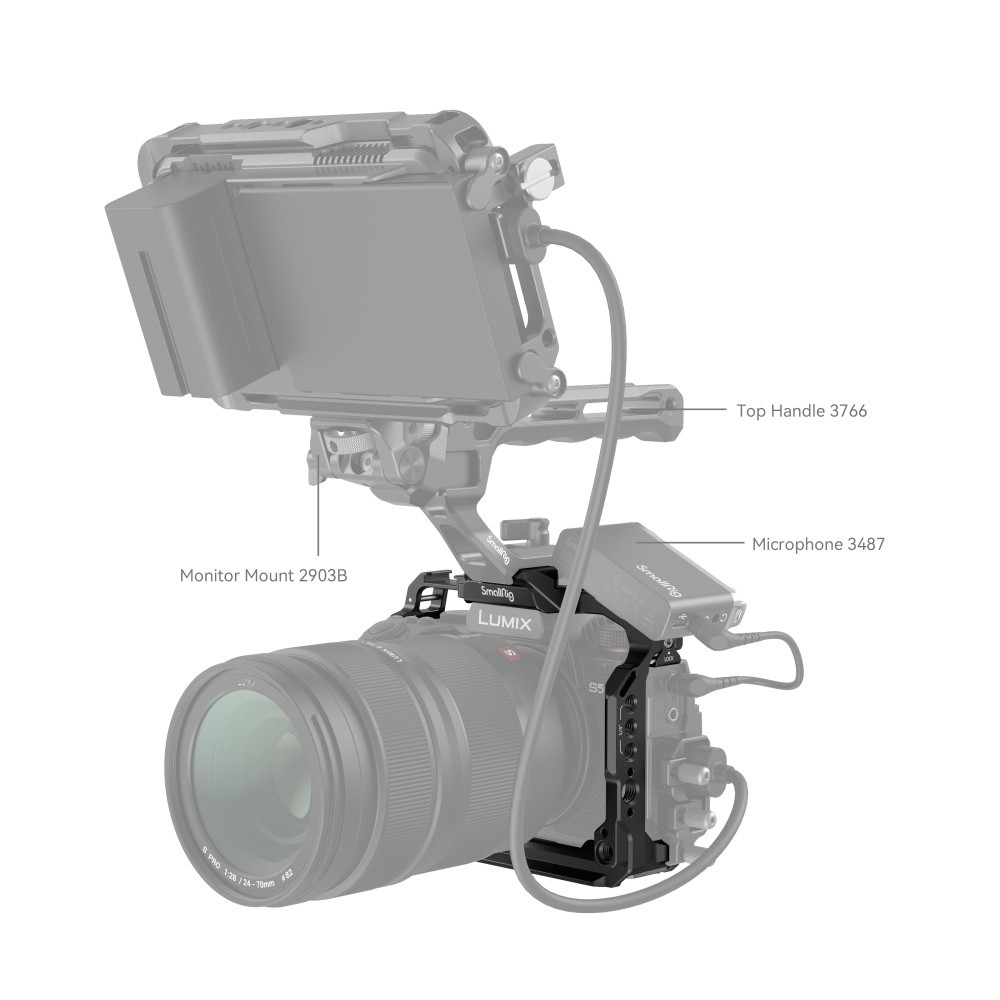

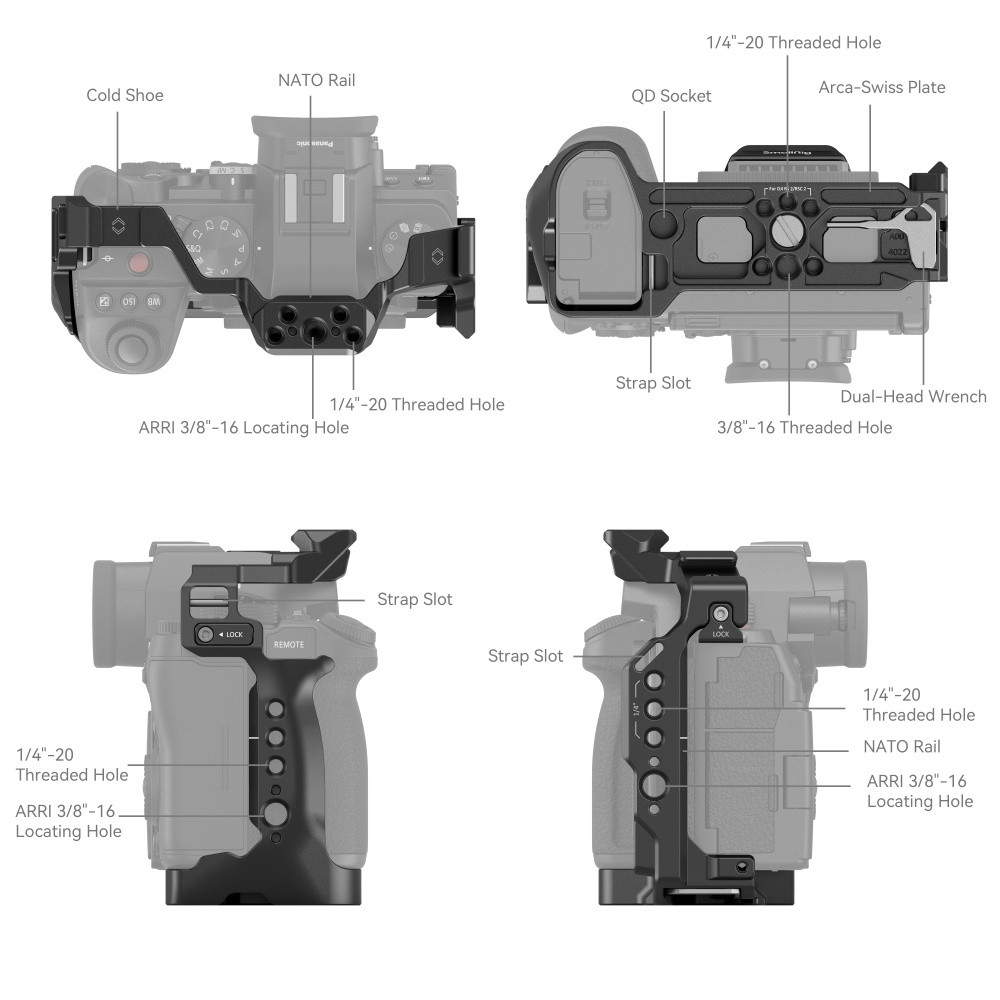

SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches. Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle 2093, etc. for easy camera movement and more stability; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B. It also comes with two cold shoe mounts to attach a microphone, and LED video light; a top NATO rail for Top Handle 3322; a left NATO rail for Side Handle 3847; and a bottom QD socket to install the QD shoulder strap. At the bottom, there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for DJI RS 2 / RSC 2 gimbal quick-release plate (height increase pad) and Arca-Swiss  Quick Release Plate 3154. The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap PAC2456, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.

Note:

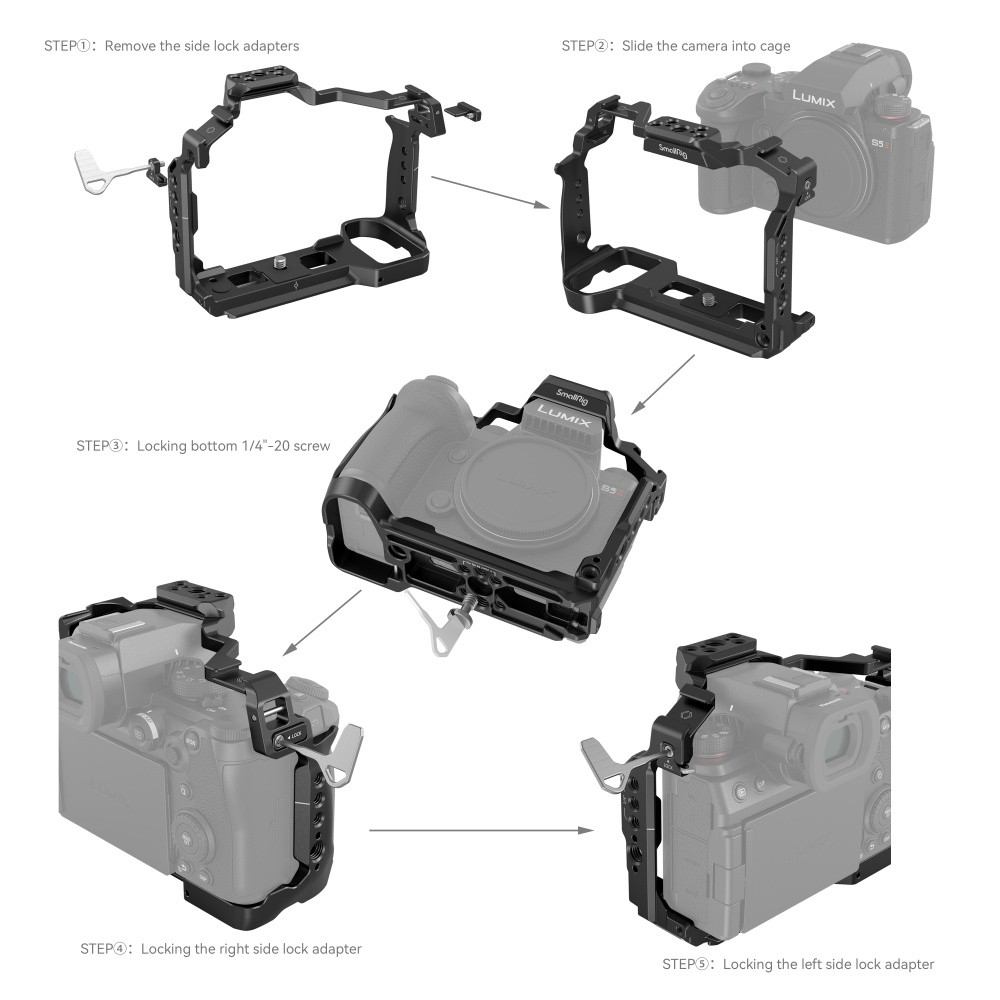

1. Please remove the side lock adapters before installing this cage.

2. This cage is compatible with Panasonic DMW-XLR1, if you need to use it with a top handle, we recommend the Top Lift Handle 3082.

3. For using HDMI & USB-C cable clamp, SmallRig Camera Cage Kit for Panasonic LUMIX S5 II / S5 IIX 4143 is recommended.

Work With

Panasonic LUMIX G9 II

Panasonic LUMIX S5 II

Panasonic LUMIX S5 IIX

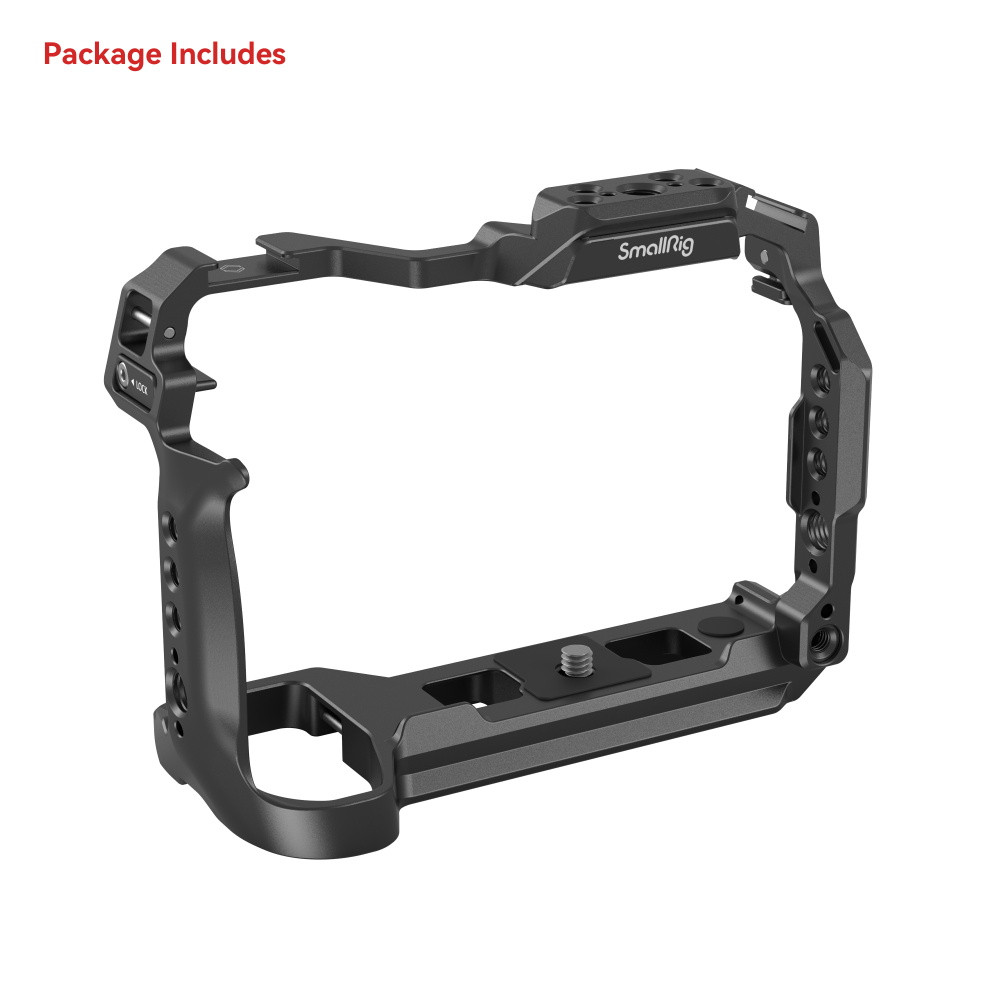

Packing List

1 x Cage

Technical Data

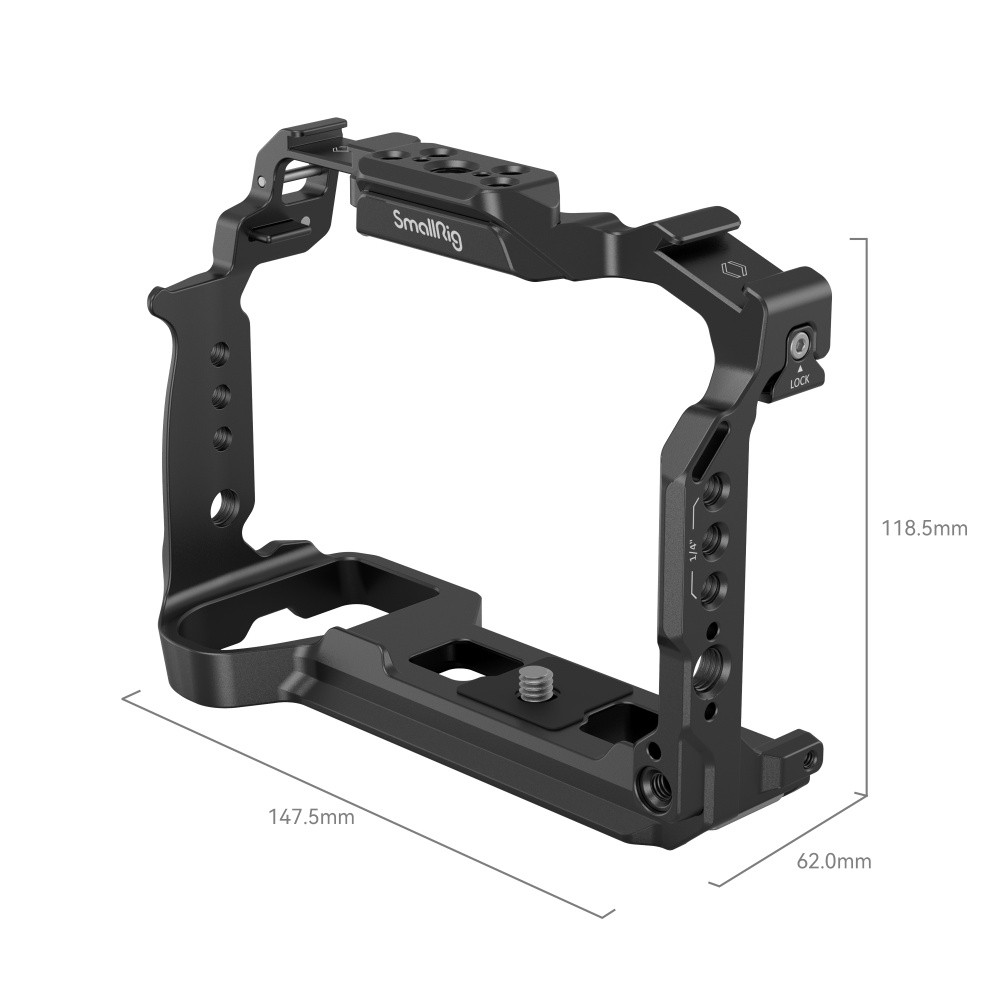

Product Dimensions: 147.5 x 62 x 118.5mm

Package Dimensions: 180 x 129.5 x 75mm

Product Weight: 161g±5g

Package Weight: 242g±5g

Material(s): Aluminum Alloy, Stainless Steel
