SmallRig Cage for Fujifilm X-T30 II & X-T30 and X-T20 CCF2356

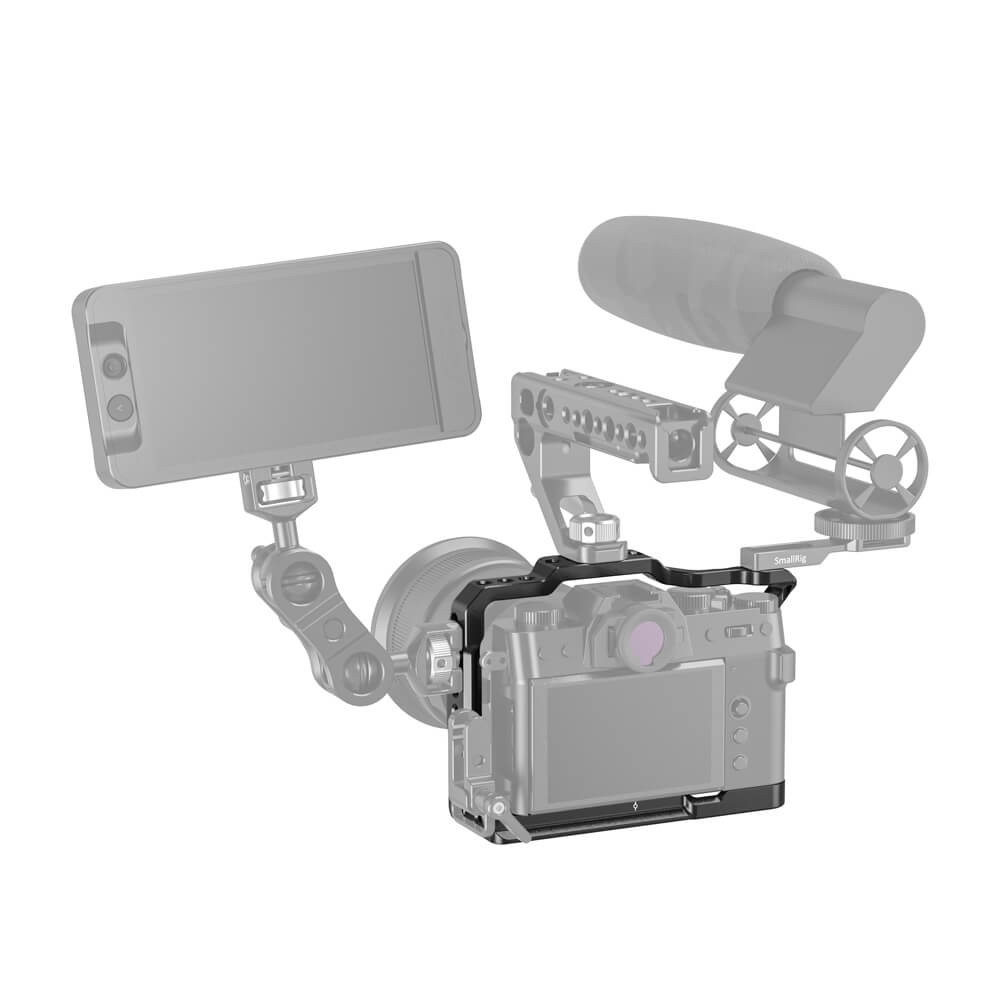

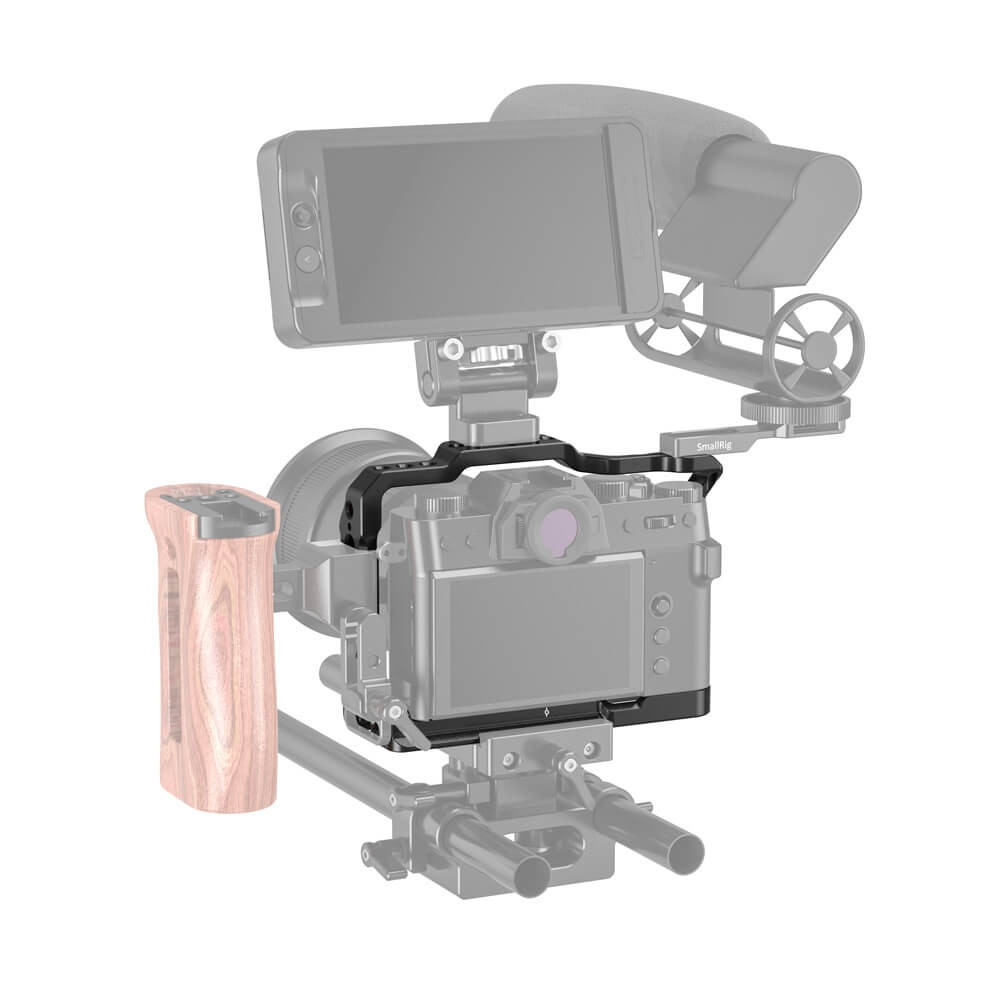

SmallRig Cage for Fujifilm X-T30 II & X-T30 & X-T20 CCF2356 is designed to provide protection and mounting threads for accessories such as monitors, microphones, and light. The cage secures to the bottom of the camera via a 1/4” screw and an m2 screw on the right side as a second lock point to prevent twisting. It features multiple 1/4”-20, 3/8”-16, and ARRI locating holes for accessory attachment, such as Cold Shoe 2260, Top Handle 2165, and Monitor Mount 2294. The left side integrates with a NATO rail for NATO Handle 2187 and Magic Arm 2116. The bottom is Arca compatible dovetail plate for a tripod. Additionally, it features strap slots on the right side for carrying the strap. The bottom of the cage provides 3/8”-16 and 1/4”-20 threads for tripod plates and comes with a built-in flat screwdriver for quick installation. HDMI Cable Clamp 1679 / 3637 is provided to protect the HDMI port.
Note: Please take off the strap ring on the right side of the camera before installing the cage.
Key Features

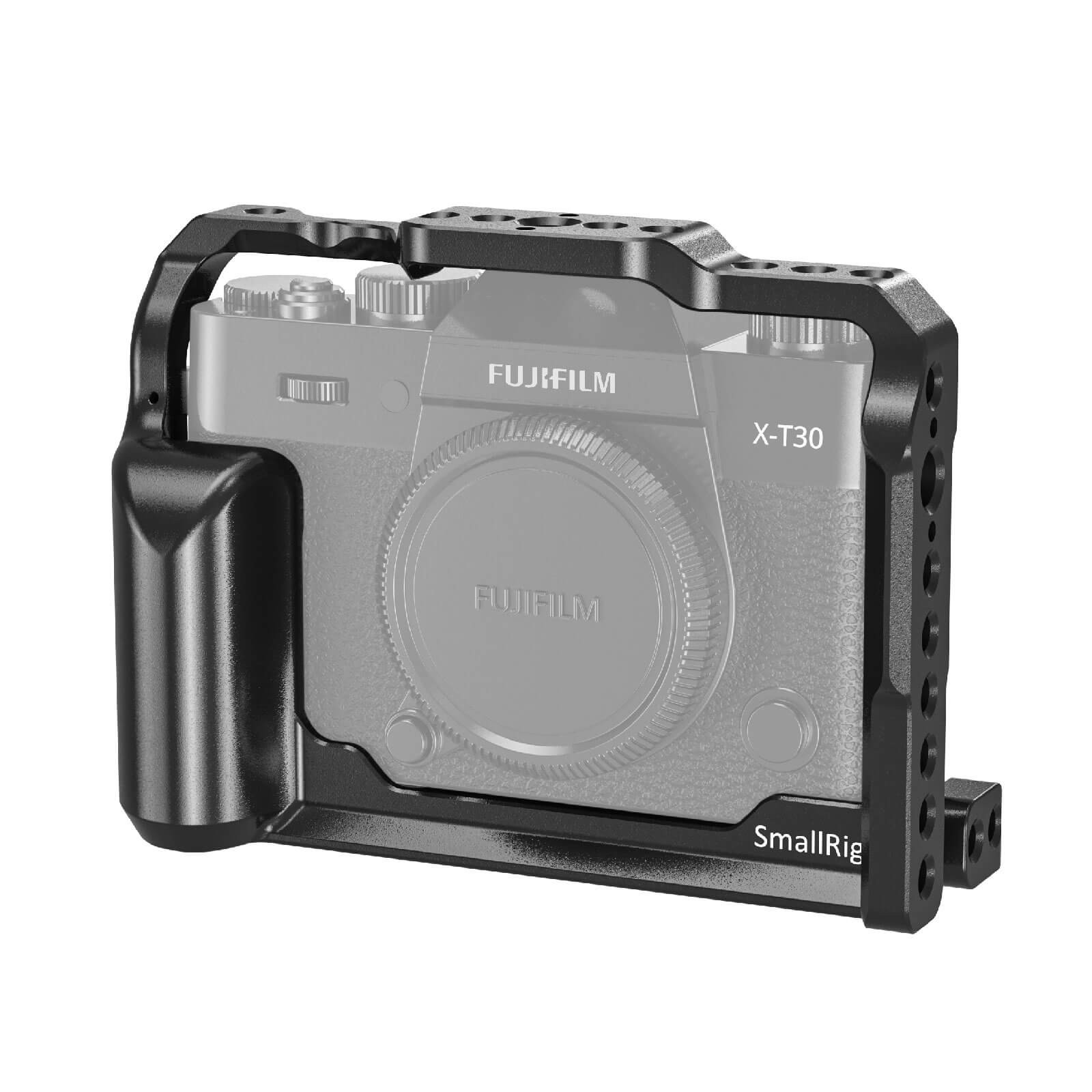

1. Form-Fitted Full Cage for Fujifilm X-T30 II & X-T30 & X-T20.

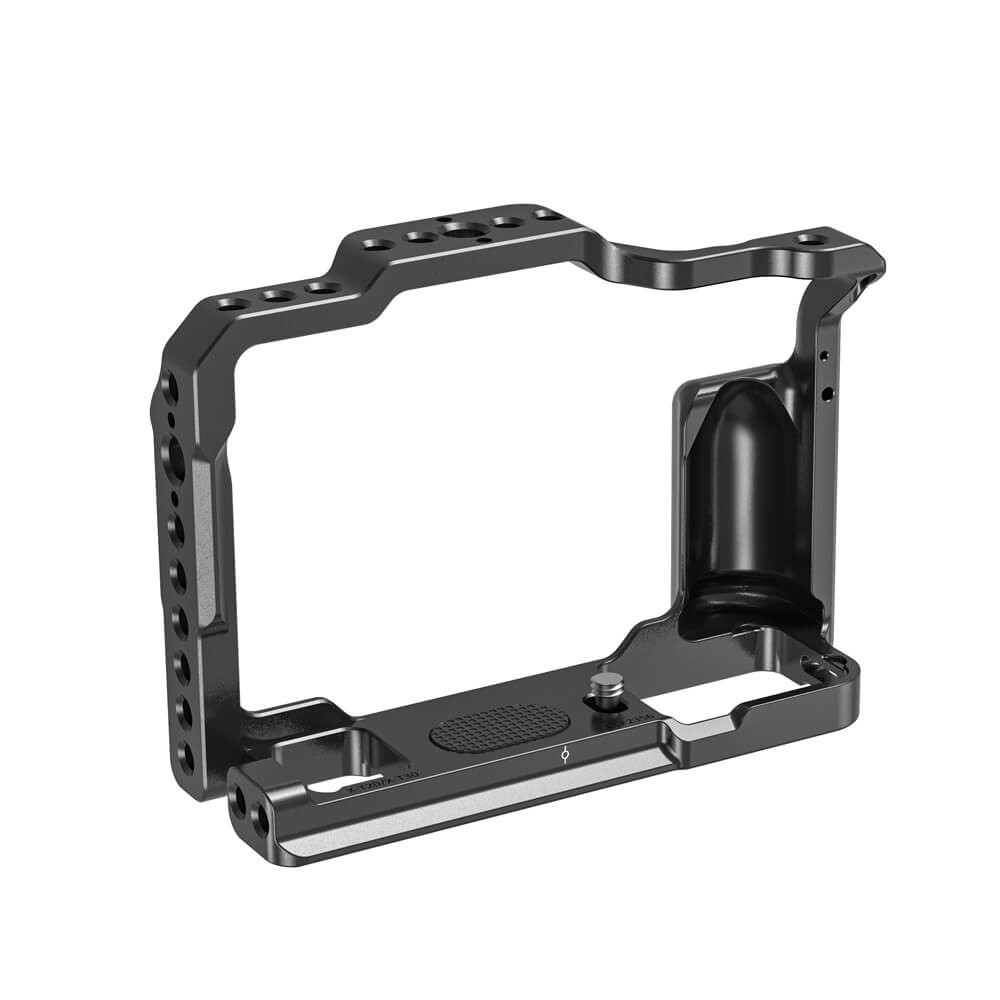

2. Arca Compatible Dovetail Plate on the Bottom.
3. Integrated Side Handle for Comfort Grip.
4. 1/4"-20 & 3/8"-16 & ARRI Locating Accessory Threads.
5. Secures to Bottom of Camera and use an m2 Screw on the Side to Prevent Twisting.

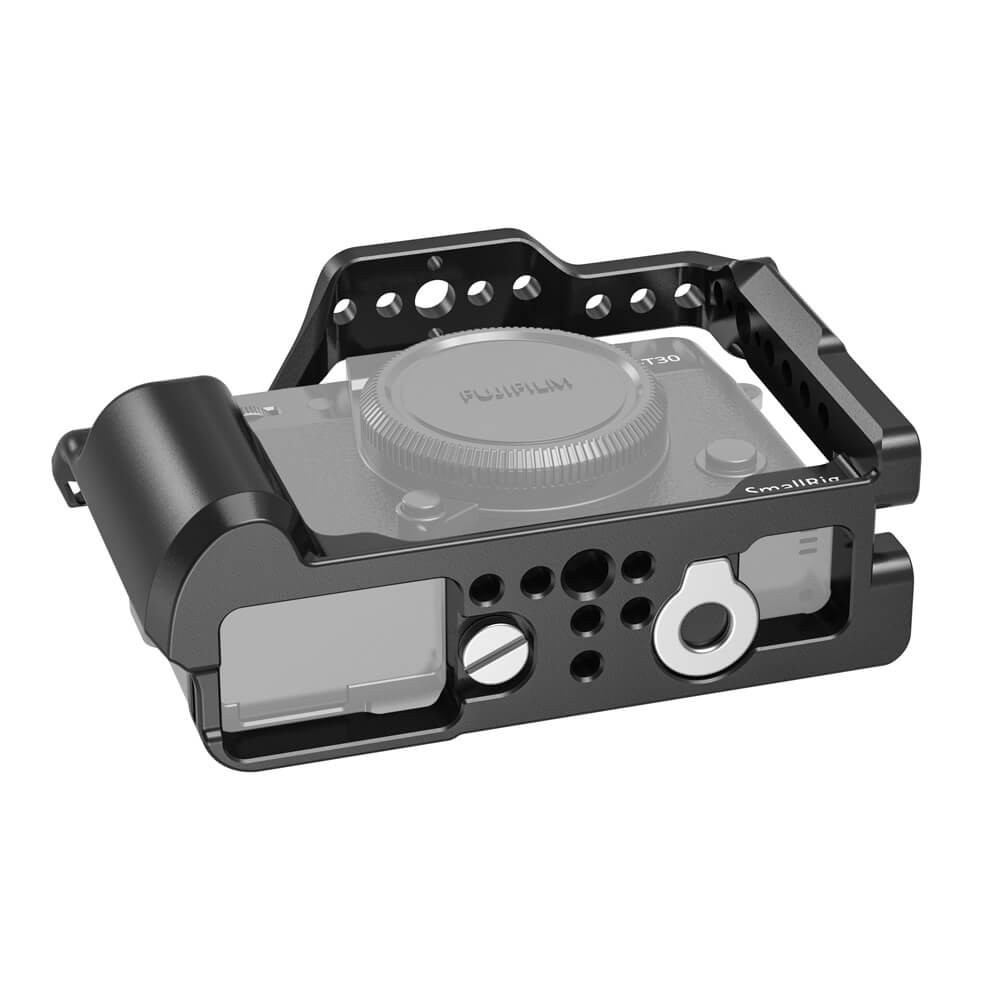

6. Built-in Flat-Head Screw Driver on the Bottom.
Work With

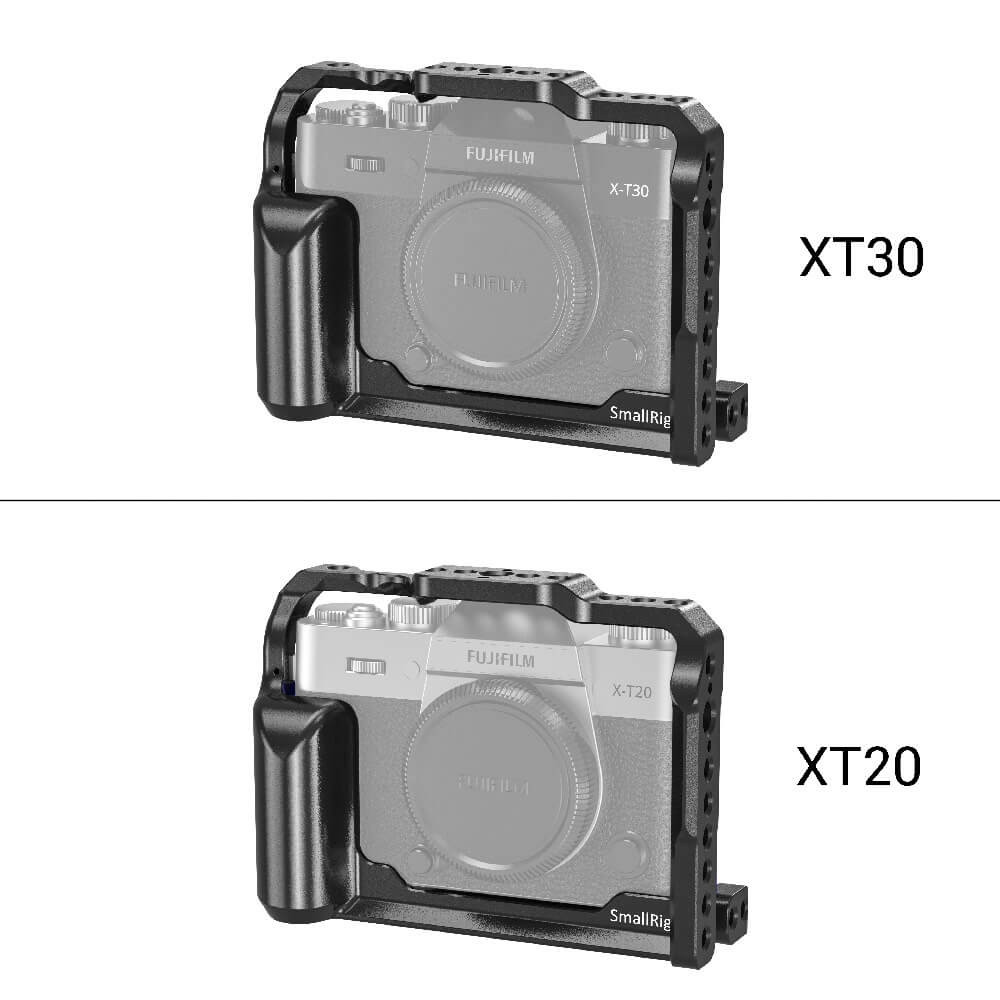

Fujifilm X-T20
Fujifilm X-T30
Fujifilm X-T30 II
Packing List
1 x Cage
1 x Hex Spanner
Technical Data

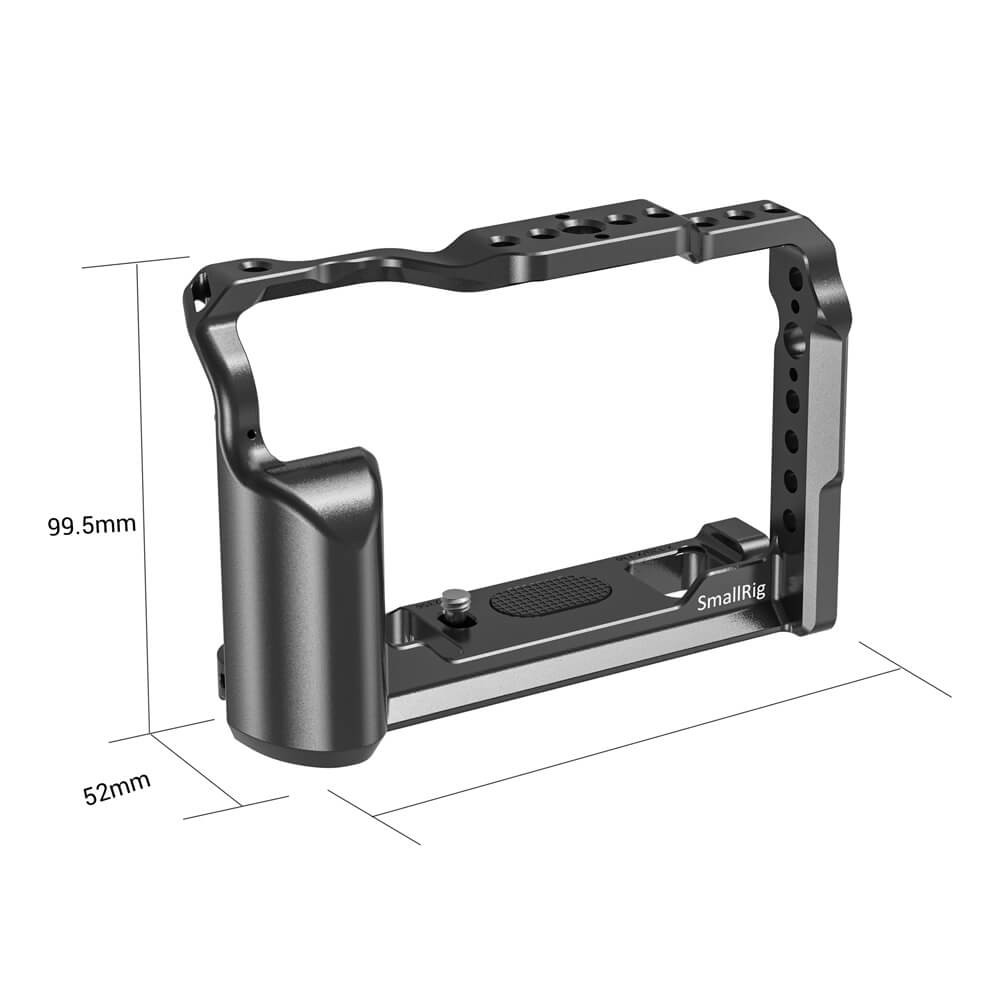

Product Dimensions: 136.2 x 99.5x 52mm
Package Dimensions: 160 x 120 x 68mm
Net Weight: 180g
Package Weight: 230g
Material(s): Aluminum Alloy
