SmallRig Advanced "Hawklock" Handheld Cage Kit for Sony FX5 6775

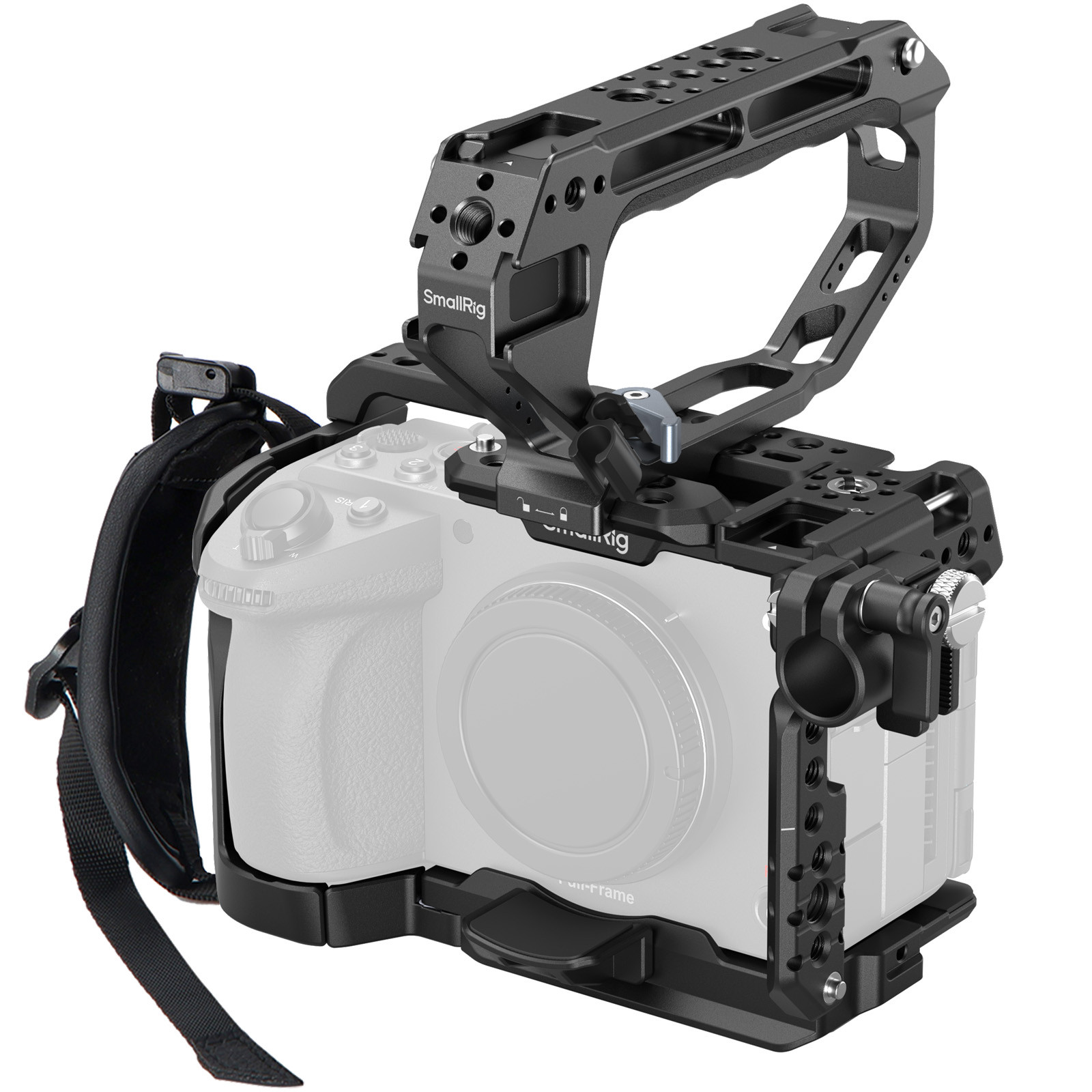

SmallRig Advanced "Hawklock" Handheld Cage Kit for Sony FX5 6775 is designed to protect the camera body, provide multiple mounting interfaces for accessory expansion, and support low-angle shooting.
The cage features a modular design and includes top mount plates and a U-shaped cage, supporting flexible setups for different shooting scenarios. Each module is secured at two or more points for stable, anti-twist mounting. Protective pads are built into camera contact points to help prevent scratches.
The ergonomic top handle offers a comfortable grip and mounts quickly through the NATO clamp. Its enclosed design helps prevent accidental drops during low-angle shooting. A dedicated HDMI cable clamp helps protect the port and maintain stable signal transmission during shooting.
The wrist strap features an ergonomic design to reduce wrist strain and improve security during extended handheld shooting. The 15mm rod clamp is secured at multiple points for stable expansion with accessories such as follow focus units. By securing the adapter ring, the adapter ring support improves lens stability and reduces stress on the camera mount.
The cage also includes built-in 1/4"-20 threaded holes, 1/4"-20 locating holes, 3/8"-16 threaded holes, ARRI locating holes, a NATO rail, an Arca-type quick release plate, a wrist strap slot, and more for the attachment of a wide range of professional accessories. In addition to enabling quick installation and removal, the NATO rail and Arca-type quick release plate feature an anti-drop design at both ends to improve security even in demanding shooting environments.
A magnetic wrench is built into the cage for convenient access and easy assembly.
Note:
1. When using the top plate with the NATO rail, confirmed compatible hot shoe accessories include the Sony ECM-B1M, ECM-M1, ECM-B10, and the DJI Mic 2 hot shoe adapter. Confirmed incompatible hot shoe accessories include the Sony ECM-W3, ECM-W3S, and ECM-W2BT microphones.
2. When using the Sony XLR handle (XLRH2B) or Sony EVF (DVFEL1B), all top plates must be removed first.
3. The Adapter Support is compatible with Metabones, MOFAGE and Nisi PL-E adapter. When using the MOFAGE PL-E adapter, you must first remove it before changing the filter.
Work With
Sony FX5

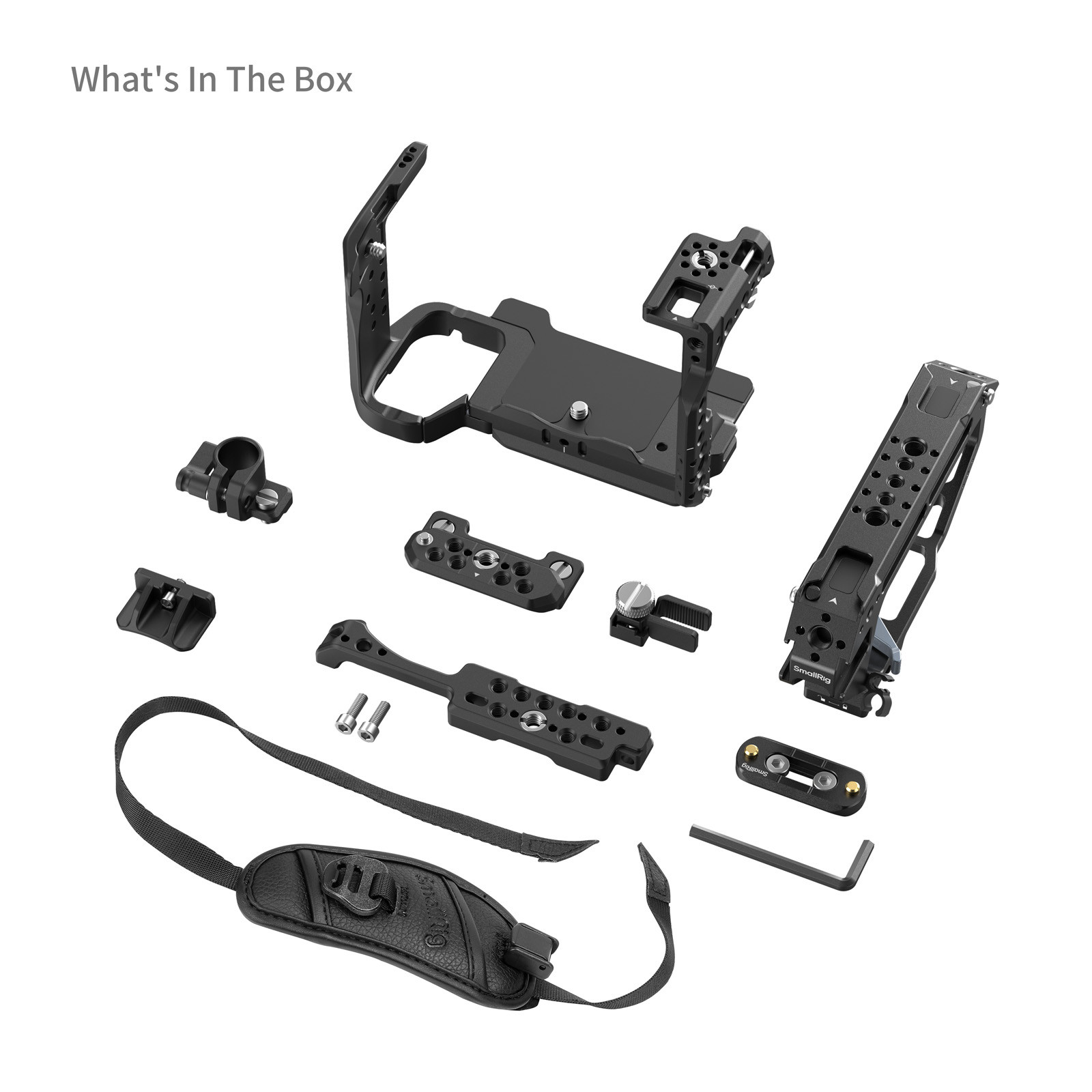

Packing List
Cage × 1
Top Plate × 2
Clamp for HDMI Cable × 1
Hand Strap × 1
Top Handle × 1
NATO Rail × 1
Allen Wrench × 1
15mm Rod Clamp × 1
Adapter Support × 1
M4 Screw × 2
User Manual × 1
Technical Data

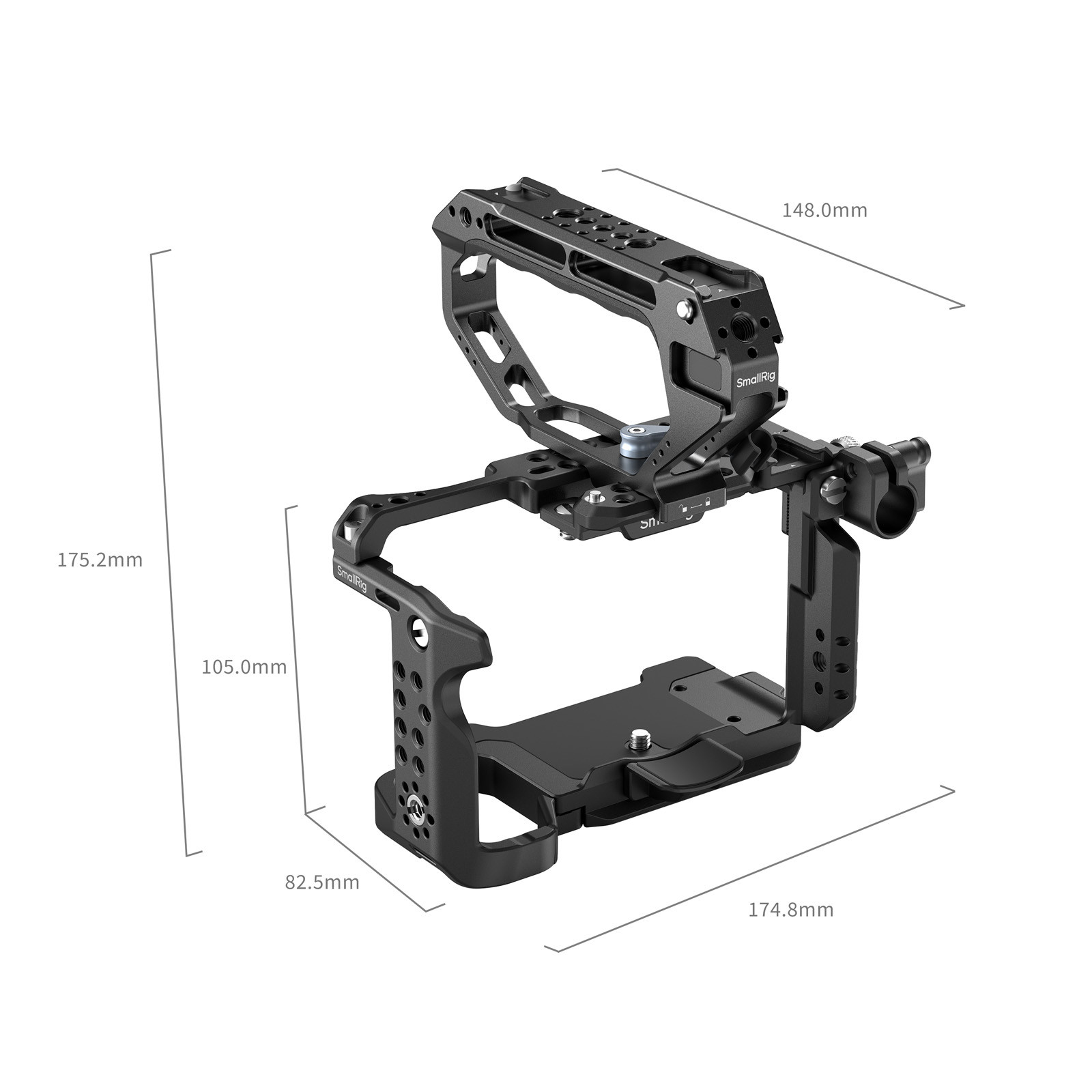

Product Dimensions: 174.8 × 175.2 × 82.5mm
Package Dimensions: 232.0 × 157.5 × 86.0mm
Product Weight: 558.0 ± 5.0g
Package Weight: 757.0 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel, Silicone, PU Leather, Microfiber Leather
