SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386

SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386

1.Designed for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab

2.Supports Monitor up to 1kg

3.Tilt 180° with Free-Stop at Any Position

4.1/4”-20 & Cold Shoe Accessory Mount

5.Features Holes on Each Thumbscrews for Hex Spanner

6.Adjustable Degree of Tightness

$49.90
Sku BSE2386

Availability: In stock 42

Product Description



SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386
SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386
SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386
SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386

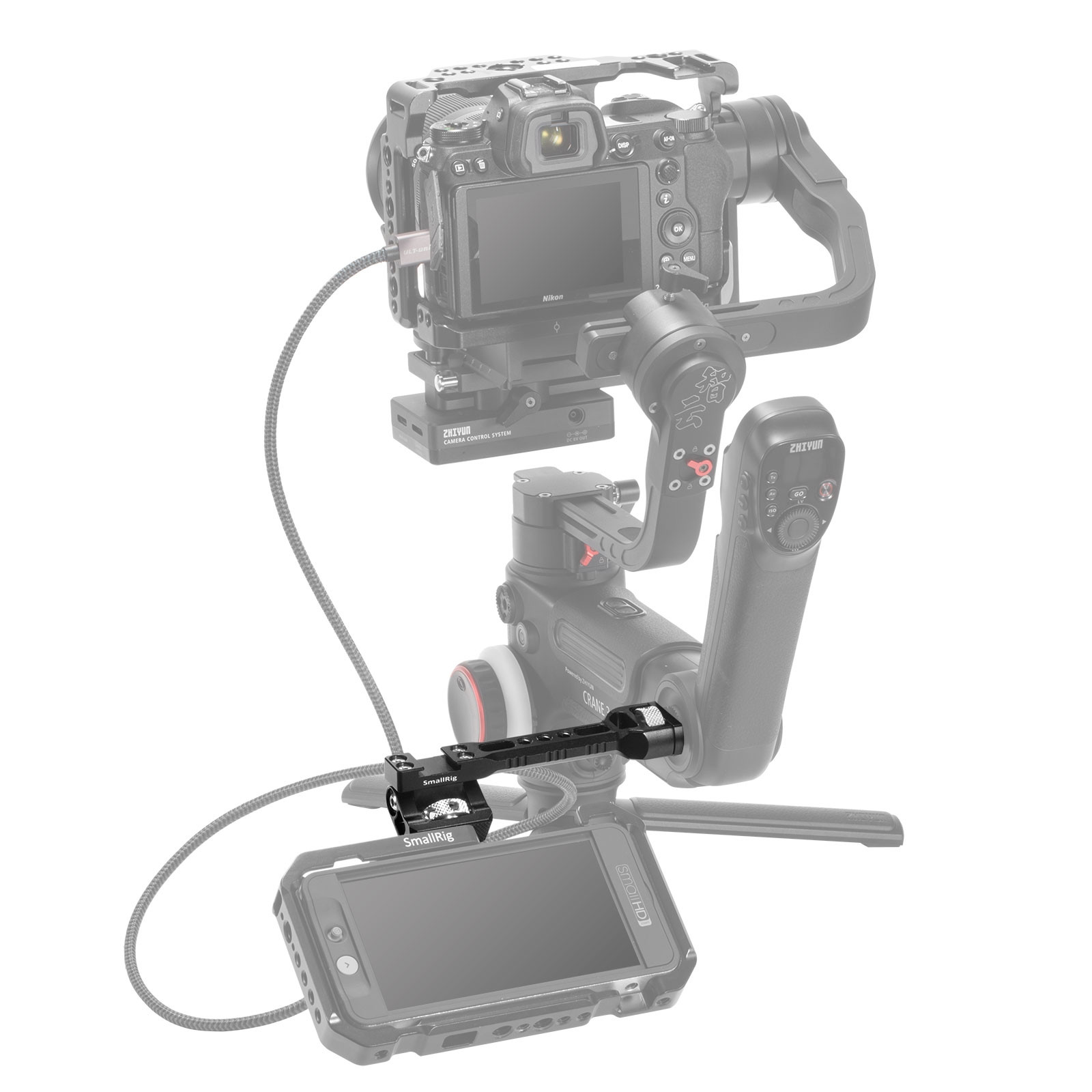

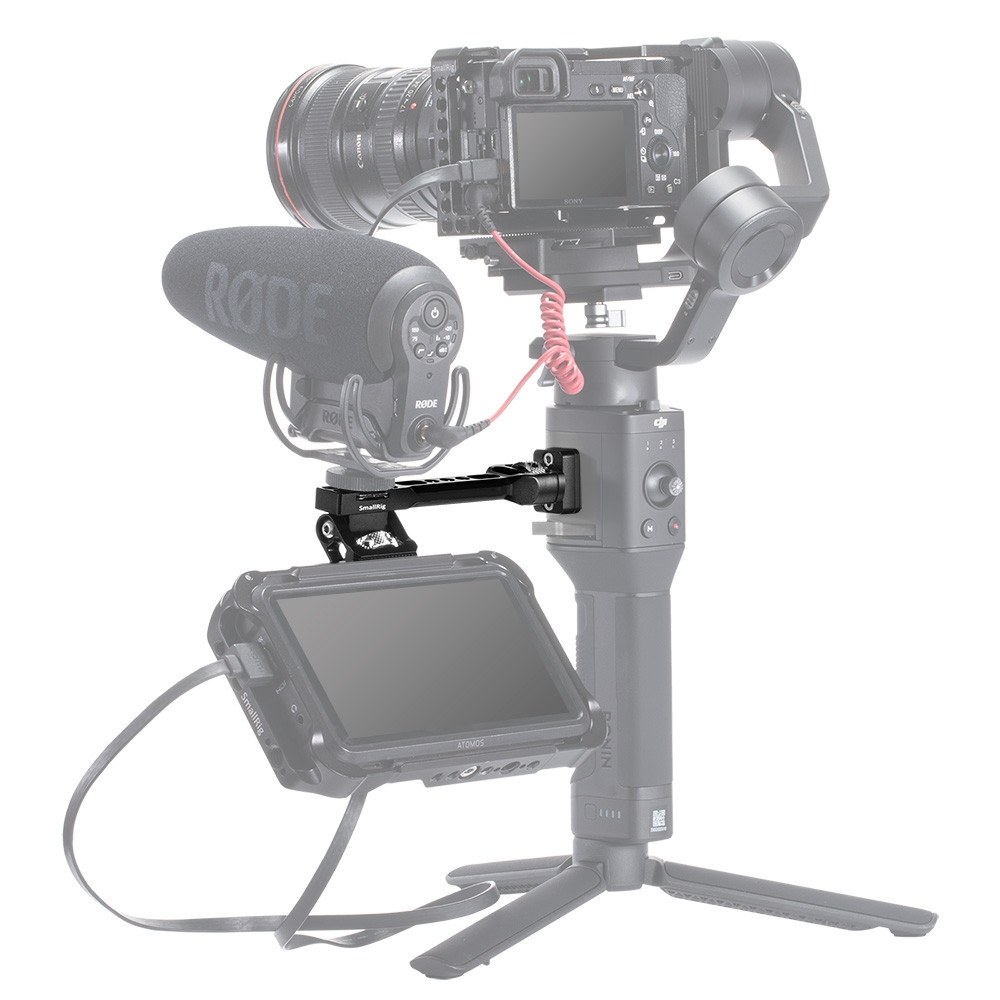

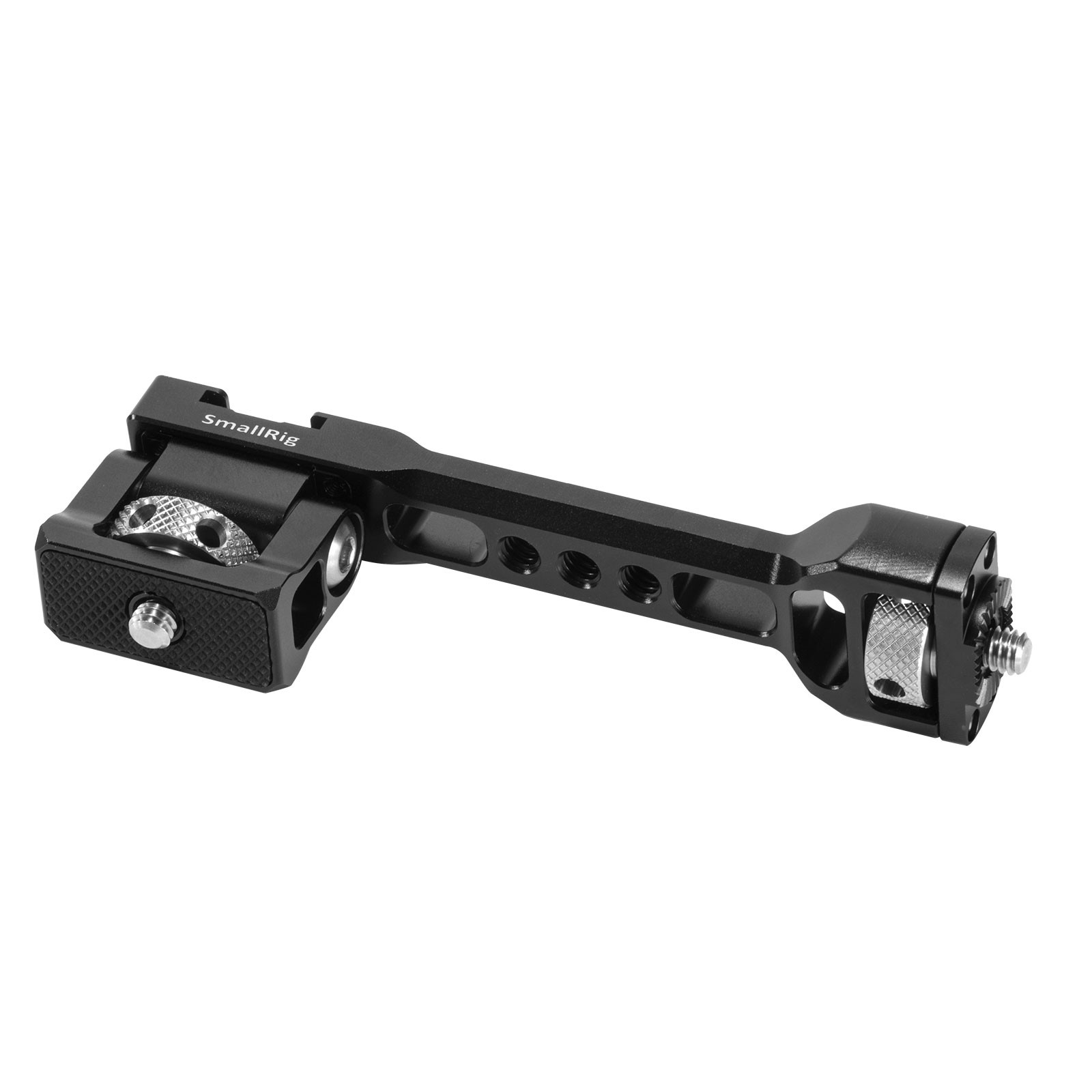

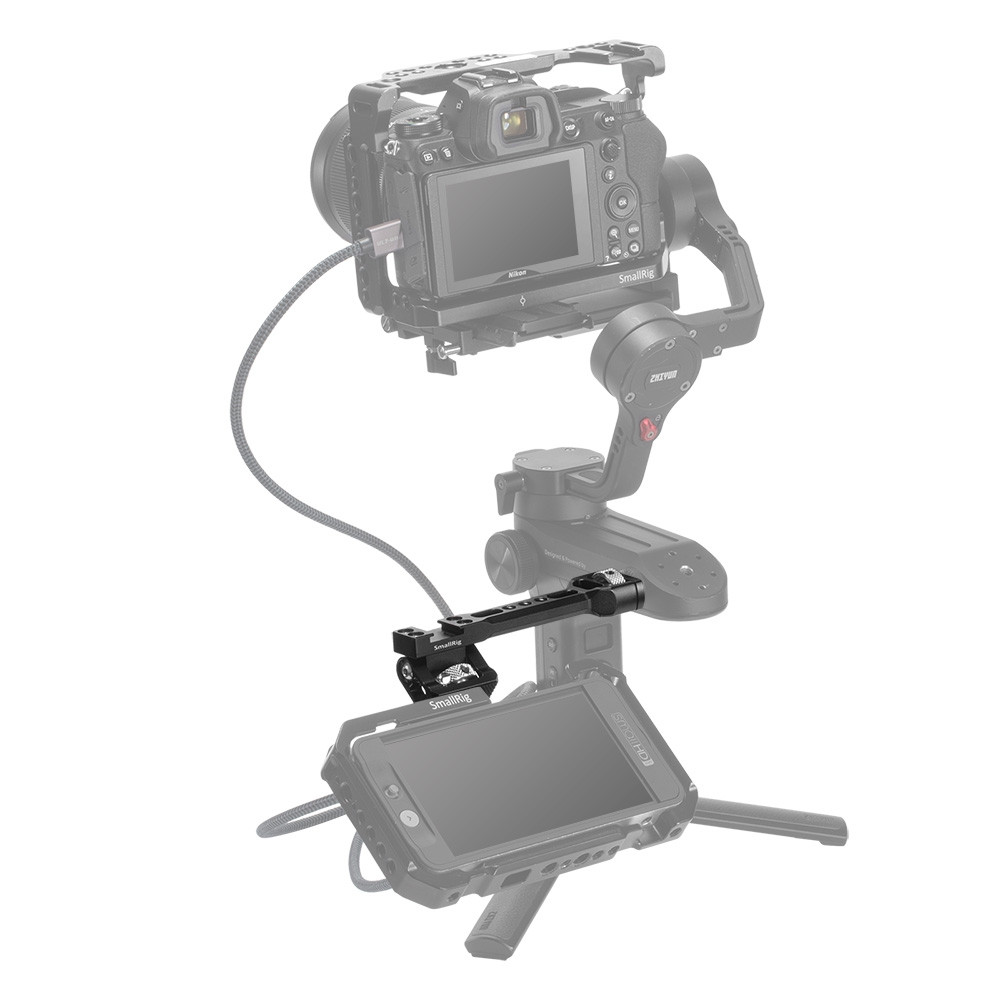

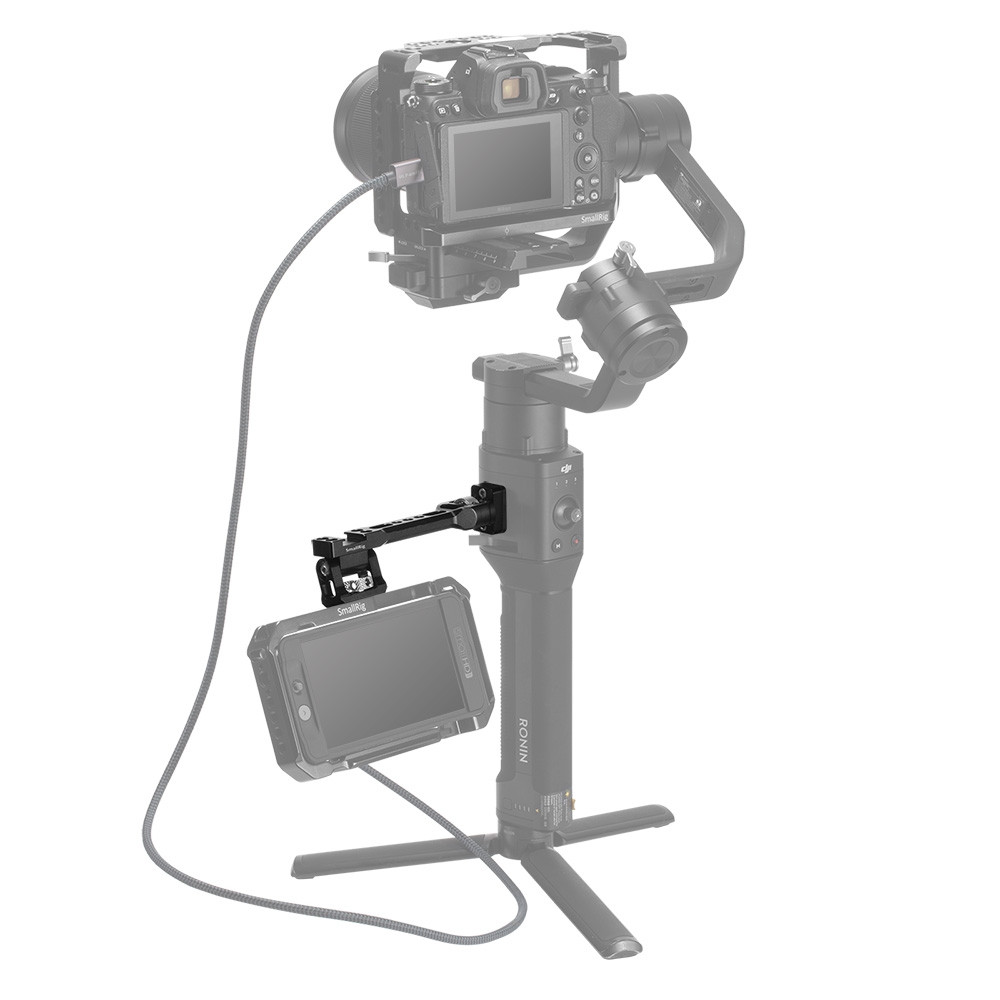

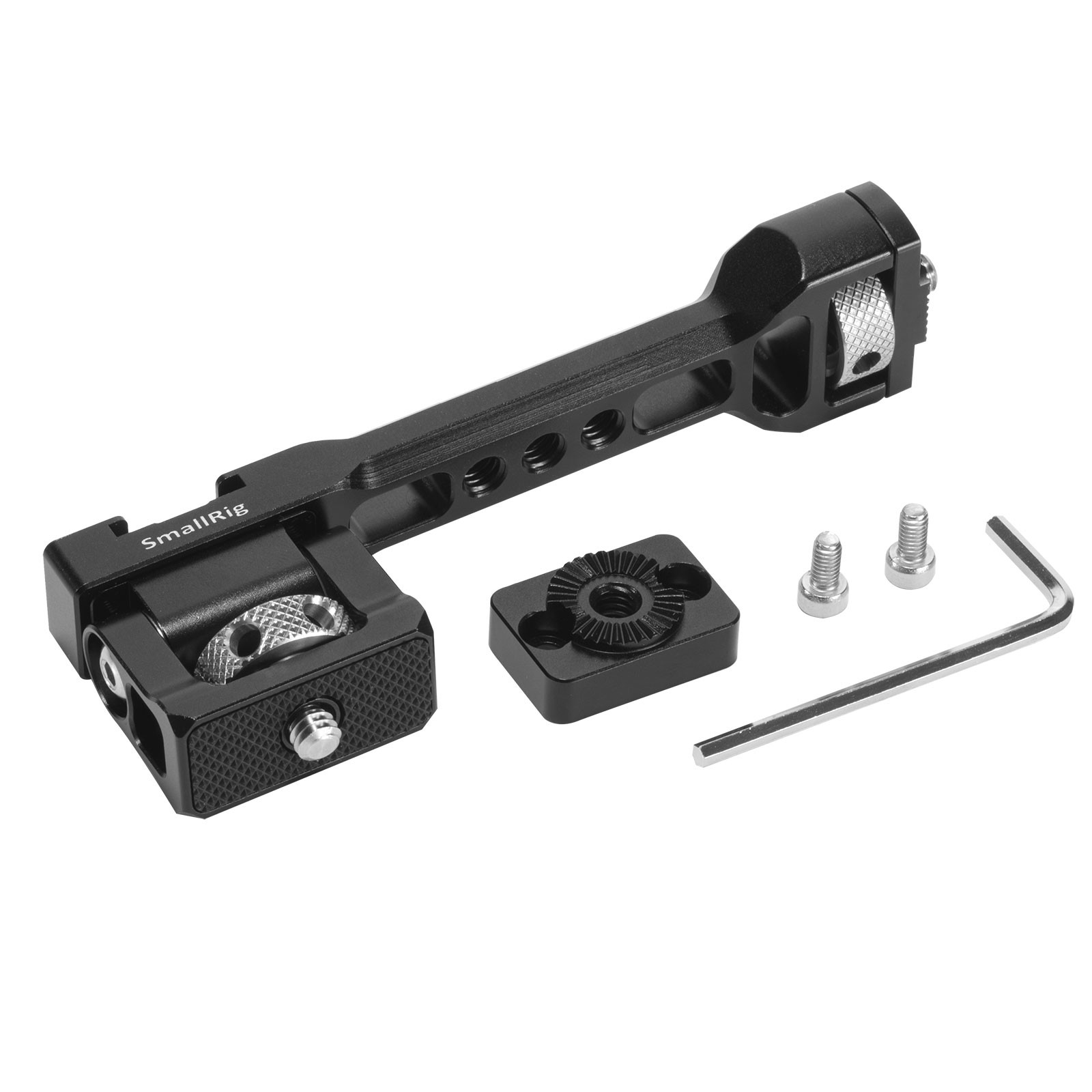

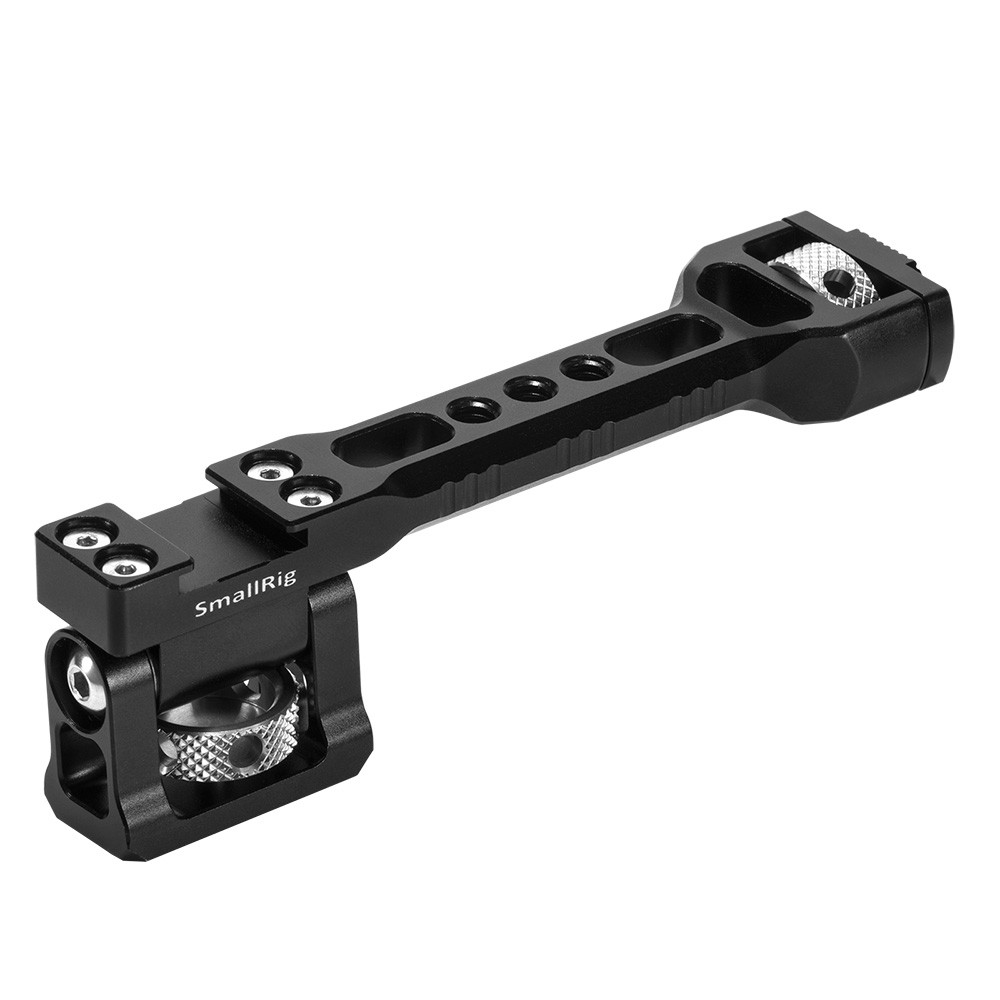

SmallRig Adjustable Monitor Mount for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab BSE2386 is designed to hold your monitor onto the handheld stabilizers instead of attaching a plate and then a magic arm. It connect to the side of Zhiyun Crane 3 and Weebill Lab via the integrate rosette directly. For Ronin-S and Ronin-SC, please take off the original focus wheel and attach the connector rosette plate via the two M4 screws. It can support monitor up to 1kg, especially designed for 5”monitors. The monitor arm enables to tilt 180° and it can stop at any position without limitation. There are three 1/4-20 accessory holes and a cold shoe mount for microphone or light. The robust mount features rubber pad to protect your monitor from scratching. Each thumbscrew features holes for hex spanner to ensure your monitor safe.

Key Features

1.Designed for DJI Ronin-S/Ronin-SC/Zhiyun Crane 3/ Weebill Lab

2.Supports Monitor up to 1kg

3.Tilt 180° with Free-Stop at Any Position

4.1/4”-20 & Cold Shoe Accessory Mount

5.Features Holes on Each Thumbscrews for Hex Spanner

6.Adjustable Degree of Tightness

Work With

DJI Ronin-S

DJI Ronin-SC

Zhiyun Crane 3 LAB

Zhiyun Weebill LAB


Any 5”monitor kit Weights less than 1kg

SmallHD Focus Series

SmallHD Focus OLED Series

SmallHD UltraBright Series

SmallHD 500 Series

Atomos Ninja Series

Blackmagic Video Assist 5”

SmallHD 700 Series

Packing List

1 x Monitor Mount

Technical Data

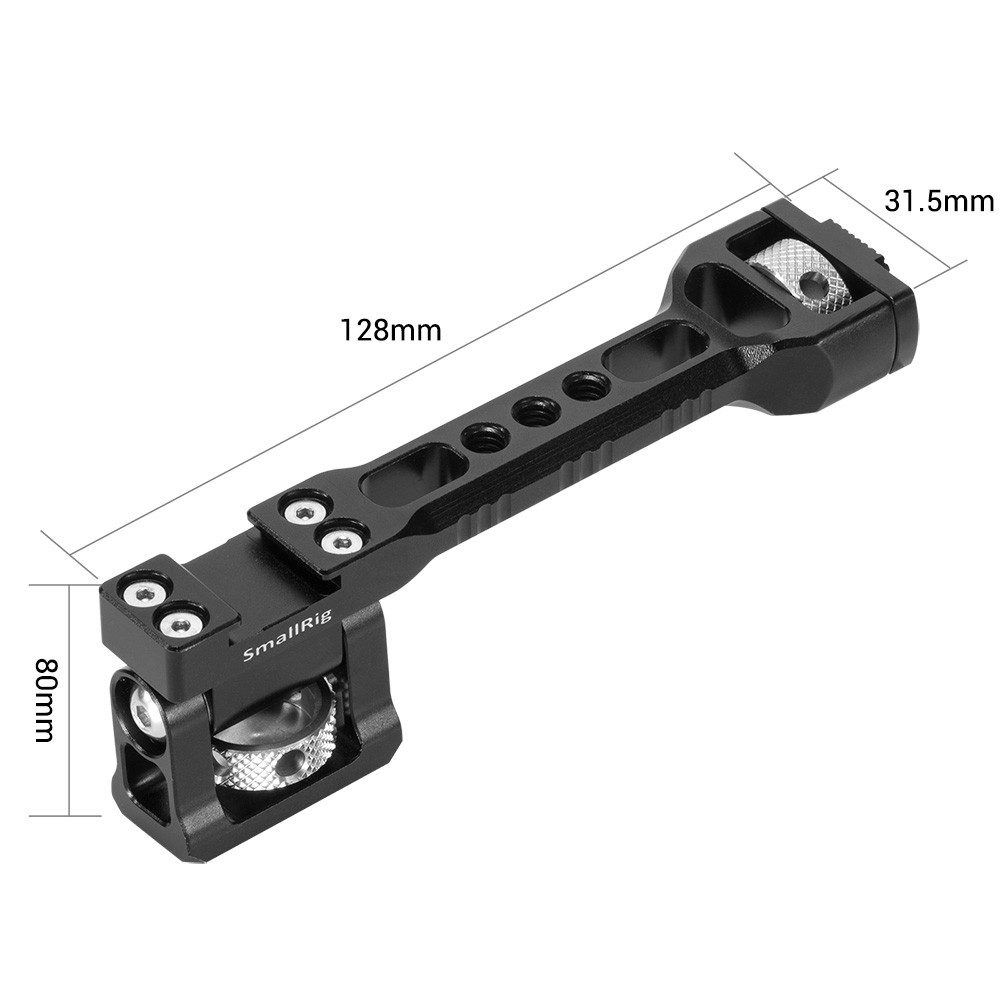

Product Dimensions: 128 x 80 x 31.5mm

Package Dimensions: 155 x 80 x 40mm

Net Weight: 125g

Package Weight: 157g

Material(s): Aluminum Alloy
