SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro /RS 3 Mini / RS 4 / RS 4 Pro 3026B

SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro /RS 3 Mini / RS 4 / RS 4 Pro 3026B

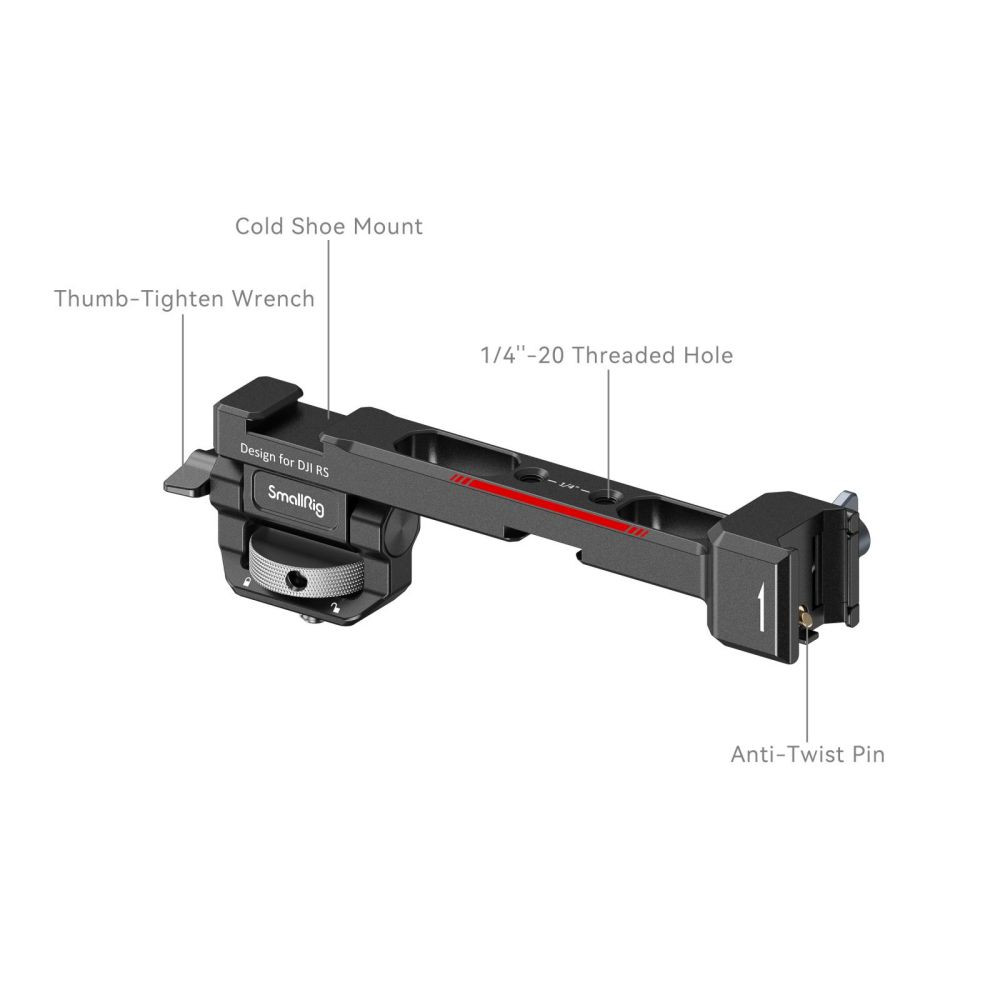

1. Thumb knob for quick adjustment of monitor's viewing angle.

2. Built-in 1/4''-20 threaded holes and cold shoe mount for the monitor, action camera, sound receiver, etc.

3. Designed for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro gimbals.

4. Anti-twist pin for more safety and stability.

5. Quick-release NATO clamp, with an anti-drop button to prevent accidental fall.

$43.90
Sku 3026B
EAN 6941590012506

Availability: Available soon

This product has been viewed 3288 times

Product Description



SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro  /RS 3 Mini / RS 4 / RS 4 Pro 3026B

SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro  /RS 3 Mini / RS 4 / RS 4 Pro 3026B is designed for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 3 Mini / RS 4 / RS 4 Pro gimbals to mount extra accessories, such as monitor, LED video light, sound receiver, image transmitter, action camera, etc. It quickly secures either side of a gimbal via the NATO clamp, which comes with an anti-drop design for added safety, with a thumb knob tilting the monitor up to 170°. There are multiple accessory mounting points, including two 1/4''-20 holes on the top for Magic Arm 3238 for an action camera or image transmitter, and a cold shoe mount on the top and the bottom for the sound receiver, microphone, LED video light, etc. Another highlight is the anti-twist pin that helps further stabilize the monitor. Overall, 3026B, which supports 5" and 7" monitors, is compact and matches DJI RS series gimbals perfectly in terms of design style and accessory attachment.

Note: Load capacity: 1.5kg

Work With

DJI RS 4

DJI RS 4 Pro

DJI RS 3

DJI RS 3 Pro

DJI RS 2

DJI RSC 2

DJI RS 3 Mini

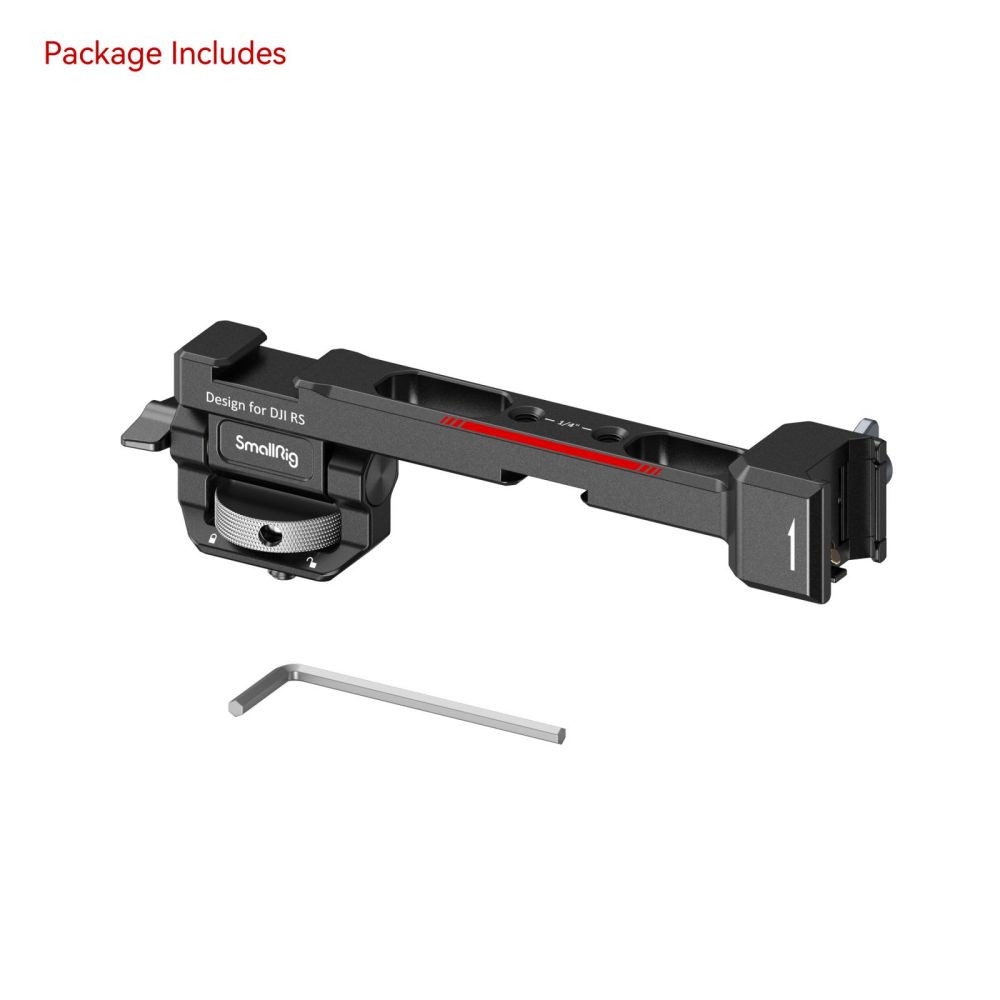

Packing List

Monitor Mount x 1

Allen Wrench x 1

Technical Data

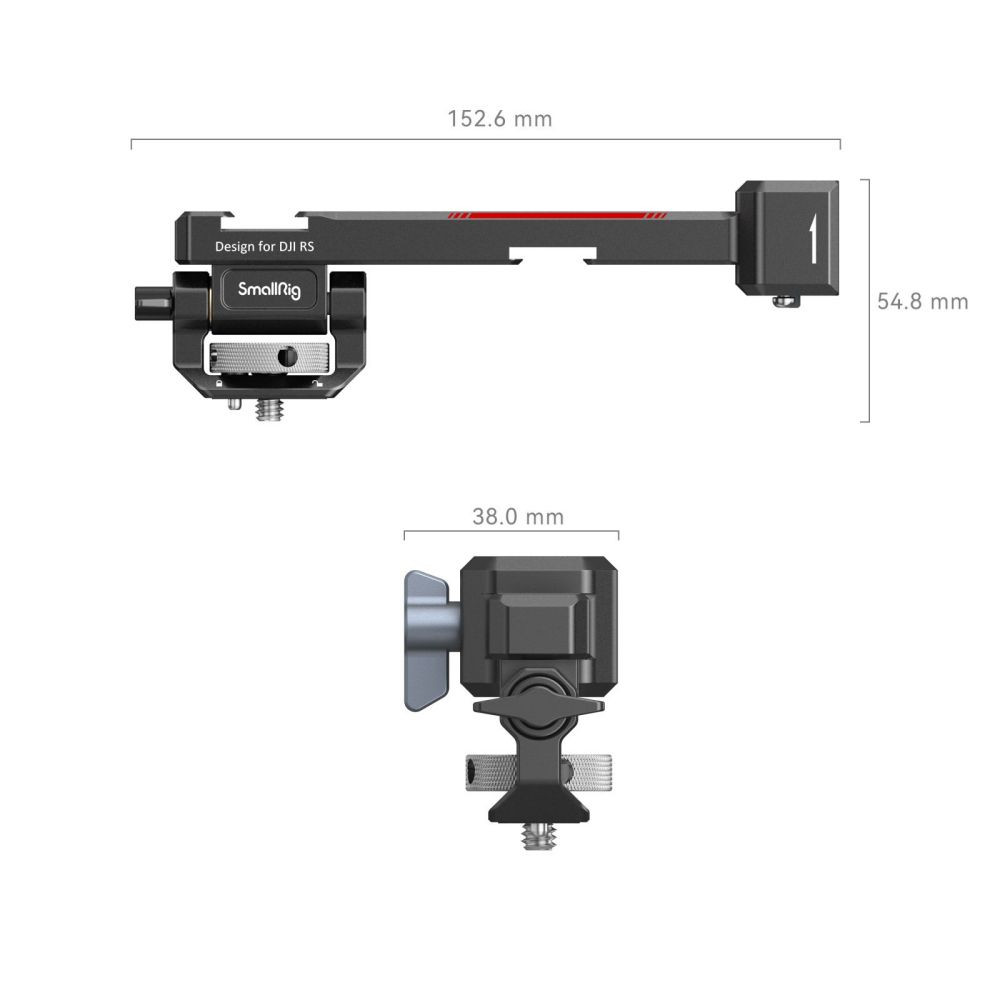

Product Dimensions: 152.6 x 54.8 x 38.0mm

Package Dimensions: 186.0 x 56.5 x 57.0mm

Product Weight: 125.0 ± 5.0g

Package Weight: 167.3 ± 5.0g

Material(s): Aluminum Alloy, Stainless Steel, Brass, Silicone
