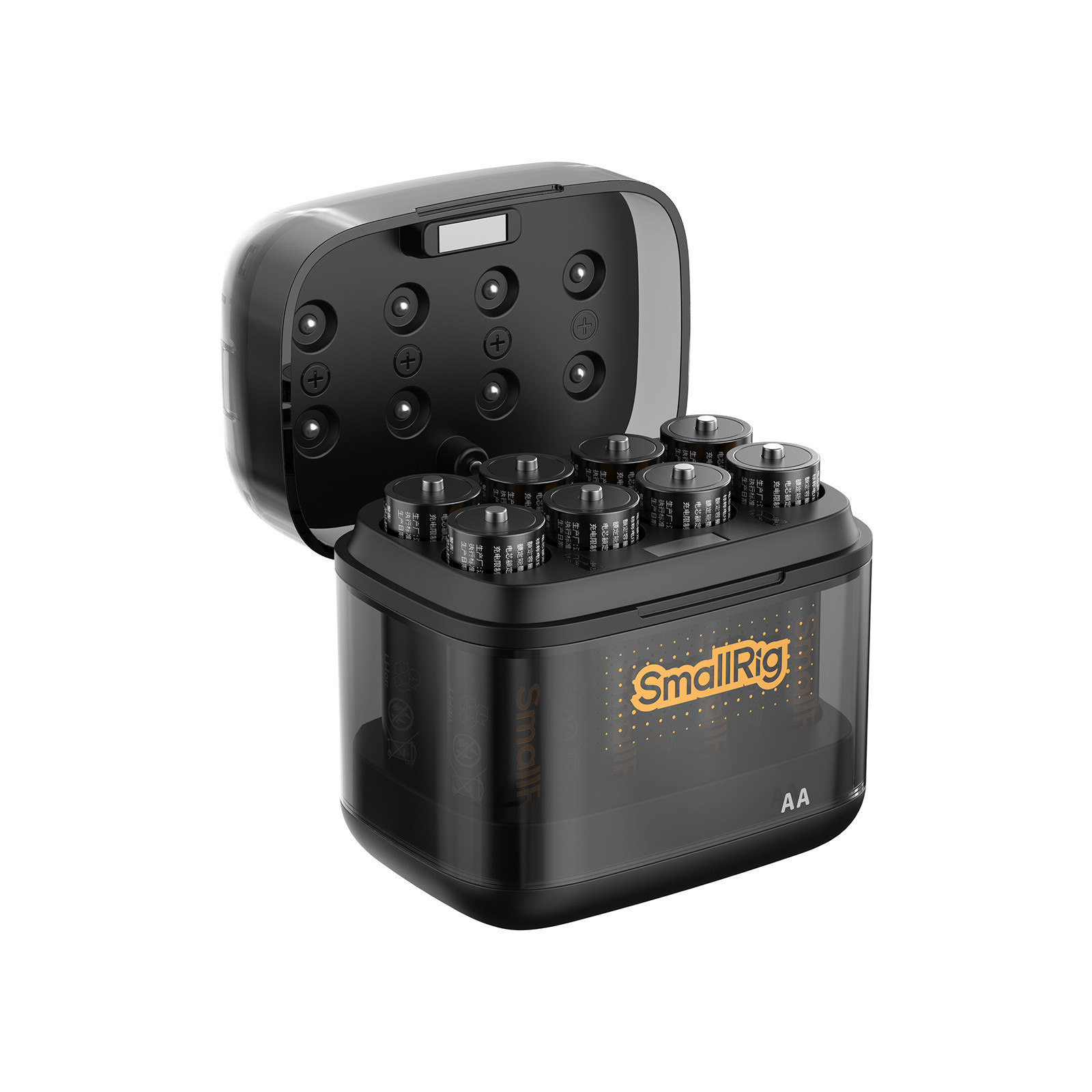

SmallRig AA Rechargeable Lithium Battery Kit (8pcs) 5772
SmallRig AA Rechargeable Lithium Battery Kit (8pcs) 5772 is designed to deliver reliable, long-lasting power for a wide range of devices. The kit includes eight AA-R lithium batteries and an 8-slot charging case. Each battery uses a high-quality lithium cell and offers a rated capacity of 2130.0mAh and energy of up to 3195.0mWh, providing longer runtime than standard alkaline and NiMH batteries in many everyday applications.

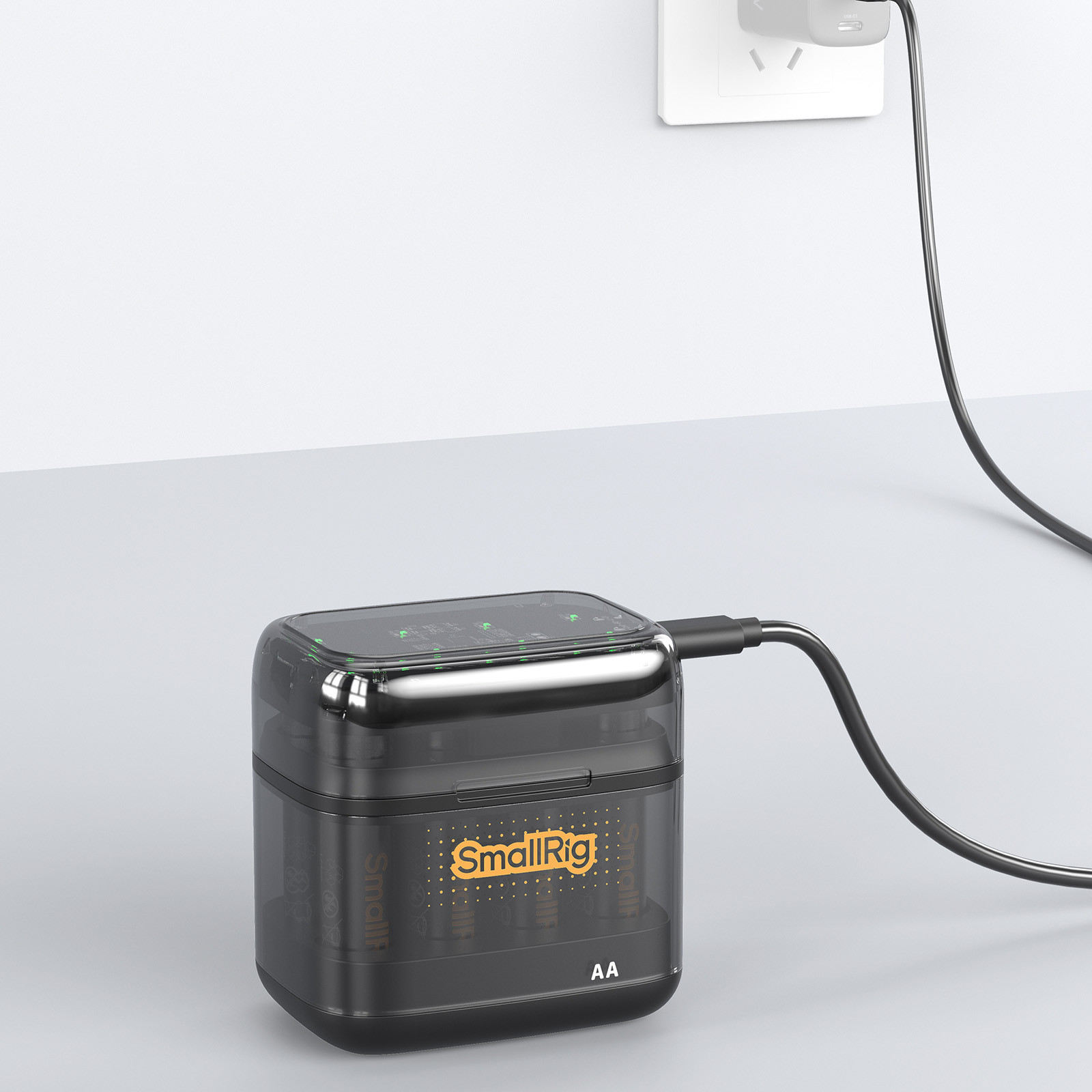

The charging case features eight independent charging slots and supports simultaneous charging of up to eight batteries, or individual charging of any number of batteries as required. This configuration enables flexible battery rotation and recharging for extended outdoor shooting, multi-device operation, and team-based production workflows, reducing downtime and maintaining continuous power across multiple devices.
Designed for both charging and storage, the case keeps all components organized in one compact solution. When not in use, all eight batteries can be stored neatly inside. The magnetic flip-top lid provides quick, easy access while helping prevent loose batteries from getting mixed up or misplaced. Compact enough to fit easily into a camera bag or suitcase, it offers a convenient all-in-one power solution for travel and on-location shooting.
Each of the eight charging slots features an individual LED status indicator for real-time monitoring. A flashing green light indicates charging in progress, a solid green light indicates a full charge, and a solid red light indicates that the inserted battery cannot be charged, as the case does not support NiMH batteries. All charging channels operate independently, allowing the status of each battery to be monitored separately at any time. The entire charging and discharging process remains safe and controlled for peace of mind during use.
Full Charging Time: Approx. 5 hr 22 min.
Certifications: CE, RoHS, FCC, RCM, PSE, and Structural Analysis Report
Note:
1. It is recommended to use a compliant USB-C power adapter rated at 5.0V⎓3.0A, 15.0W (Max).
2. This charging case does not support charging NiMH batteries. If a NiMH battery is inserted, the red indicator will light up, and charging will not start.
3. Do not place the batteries near high heat sources or open flames.
4. Charging temperature range: 0°C to 45°C (32°F to 113°F).
Indicator Status:
Flashing green light: Charging
Solid green light: Fully charged
Solid red light: Not chargeable (NiMH batteries are not supported)
All eight green lights flash in sequence for two cycles, then turn off: Power connection is normal
No light: No battery inserted or no power connected
Work With
Compatible with AA-powered devices that require stable voltage, including shooting devices such as triggers, wireless microphones and transmitters, and flash units, as well as high-use household devices such as remote controls, children's toys, blood pressure monitors, smart door locks, and game controllers.
Packing List
AA Lithium-Ion Battery × 8
Battery Case × 1
Charging Cable × 1
User Manual × 1
Guarantee Card × 1
Technical Data
Product Dimensions: 72.2 × 71.9 × 52.3mm / 2.8 × 2.8 × 2.1in
Package Dimensions: 181.0 × 95.0 × 60.5mm / 7.1 × 3.7 × 2.4in
Product Weight (Cable Included): 252.0 ± 10.0g / 8.9 ± 0.4oz
Package Weight: 325.0 ± 5.0g / 11.5 ± 0.2oz
Material: Lithium-ion battery (NMC)
Battery Size: AA
Battery Model: AA-R
Battery Type: Lithium-Ion Battery
Cell Rated Energy: 3600.0mWh
Rated Voltage: 1.5V
Battery Rated Capacity: 2130.0mAh
Battery Rated Energy: 3195.0mWh
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -20°C to 60°C / -4°F to 140°F

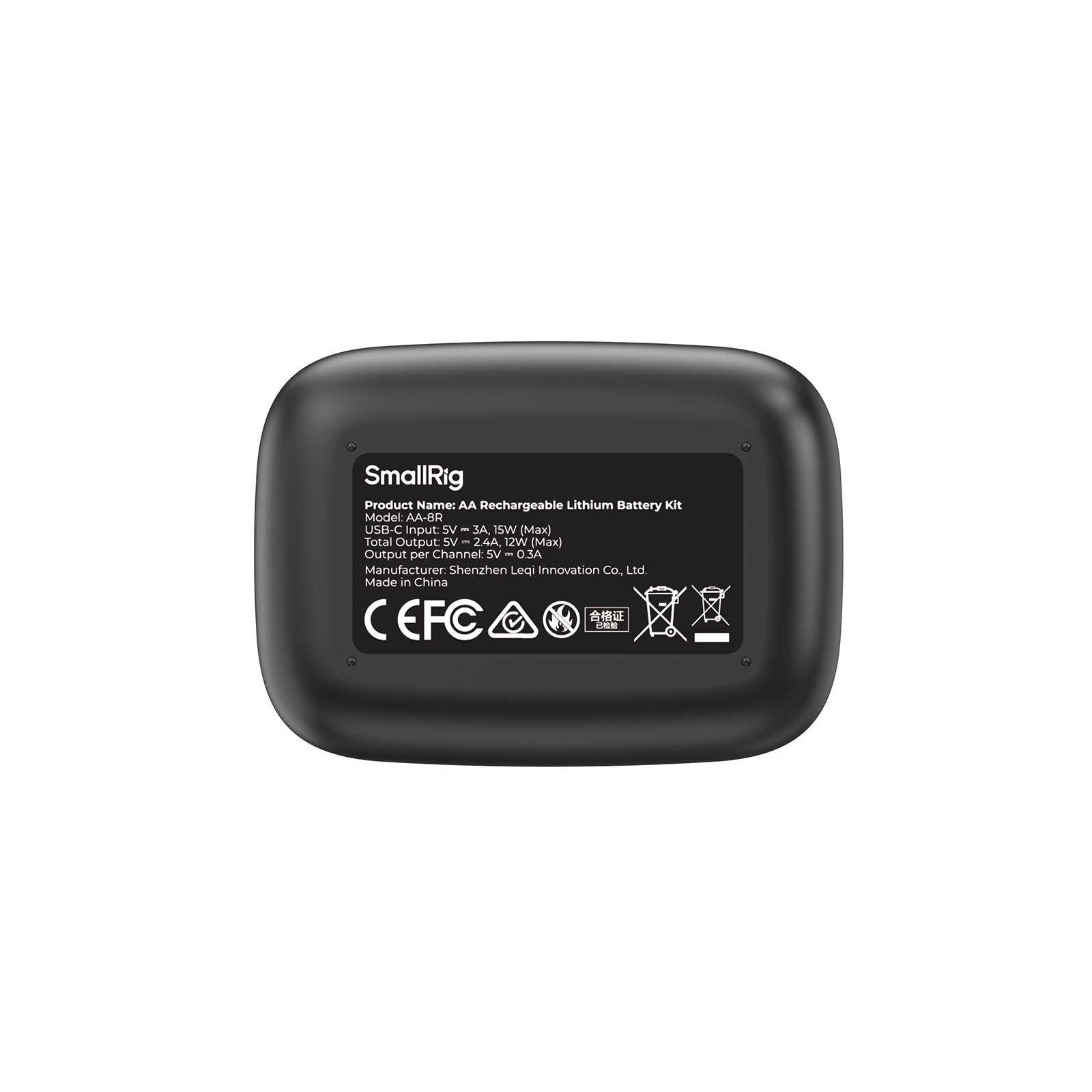

Charging Case Specifications:
Material(s): PC+ABS
USB-C Input: 5.0V⎓3.0A, 15.0W(Max)
Total Output: 5.0V⎓2.4A, 12.0W(Max)
Output per Channel: 5.0V⎓0.3A
Charging Slots: 8
Protection Functions: Overcurrent Protection, Short-Circuit Protection, Charging Overtemperature Protection, Charging Low-Temperature Protection
