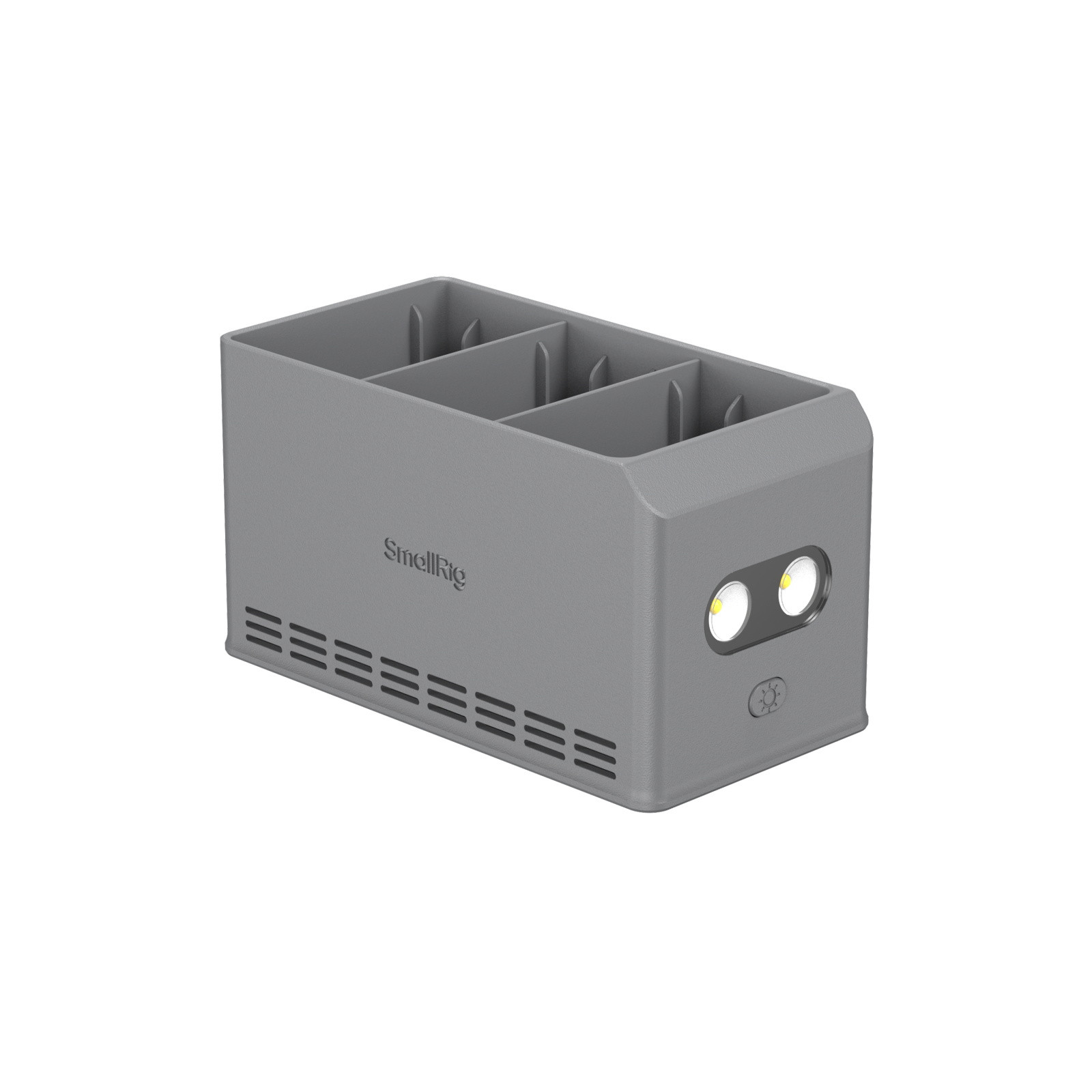

SmallRig 100W Drone Charging Hub 6502

1. Faster Charging at a Lower Price: With a 100W input, it can charge up to three batteries simultaneously, delivering up to 300% faster charging than the original charging hub and fully charging three Intelligent Flight Battery Plus units in 1 hour.

2. Multiple Charging Modes: Includes 60% Storage Mode for travel and long-term storage, 100% Mode (Default) for full charging, and USB Output Mode for powering external devices.

3. Comprehensive Safety Protection: Each output port features protection against short circuit, overcurrent, overtemperature, overvoltage, and undervoltage.

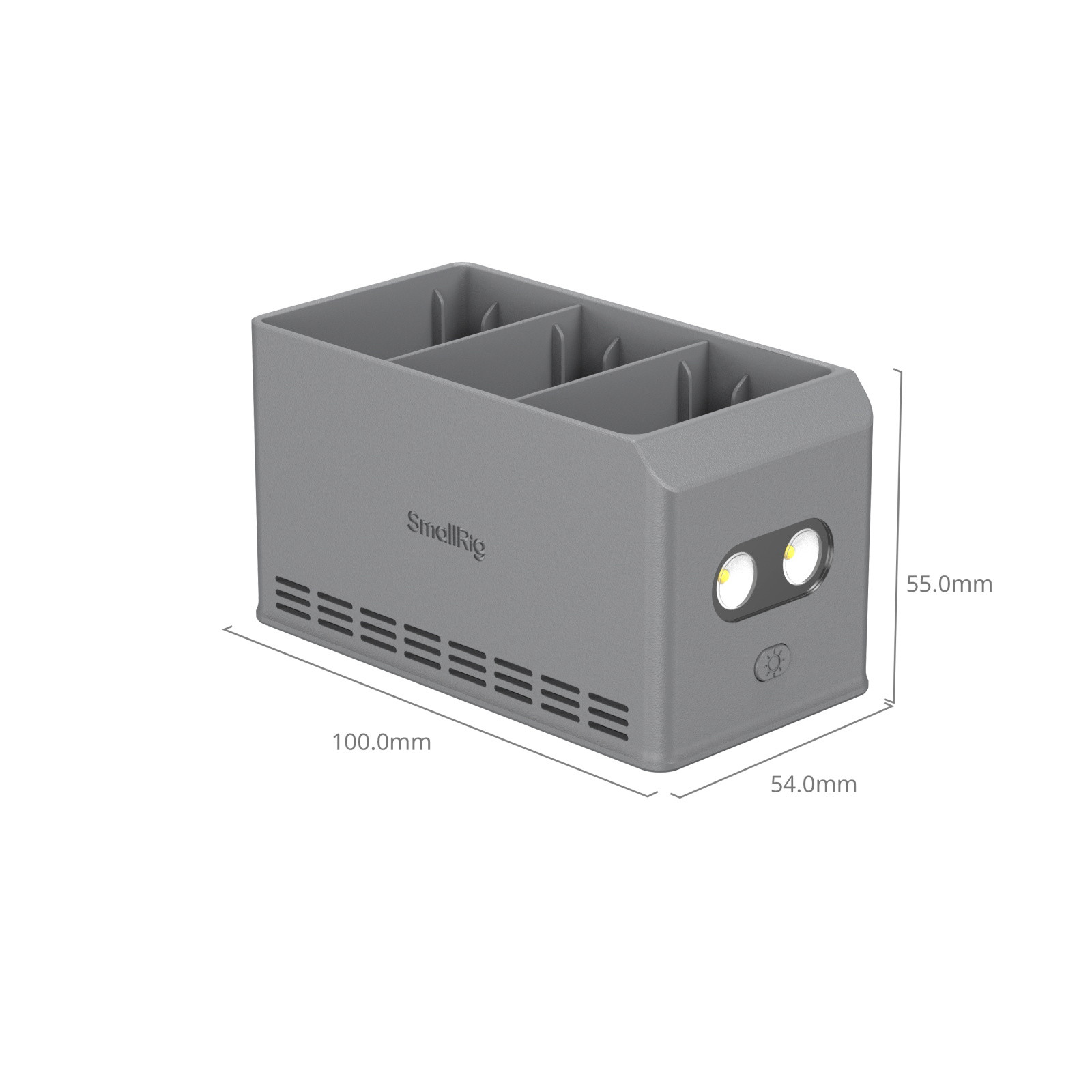

4. Compact and Portable Design: Half the size of the original charging hub, it is perfect for travelling and daily use.

$44.99

Sku 6502

EAN 6941590032153

Availability: In stock 158

This product has been viewed 31 times

Product Description

SmallRig 100W Drone Charging Hub 6502

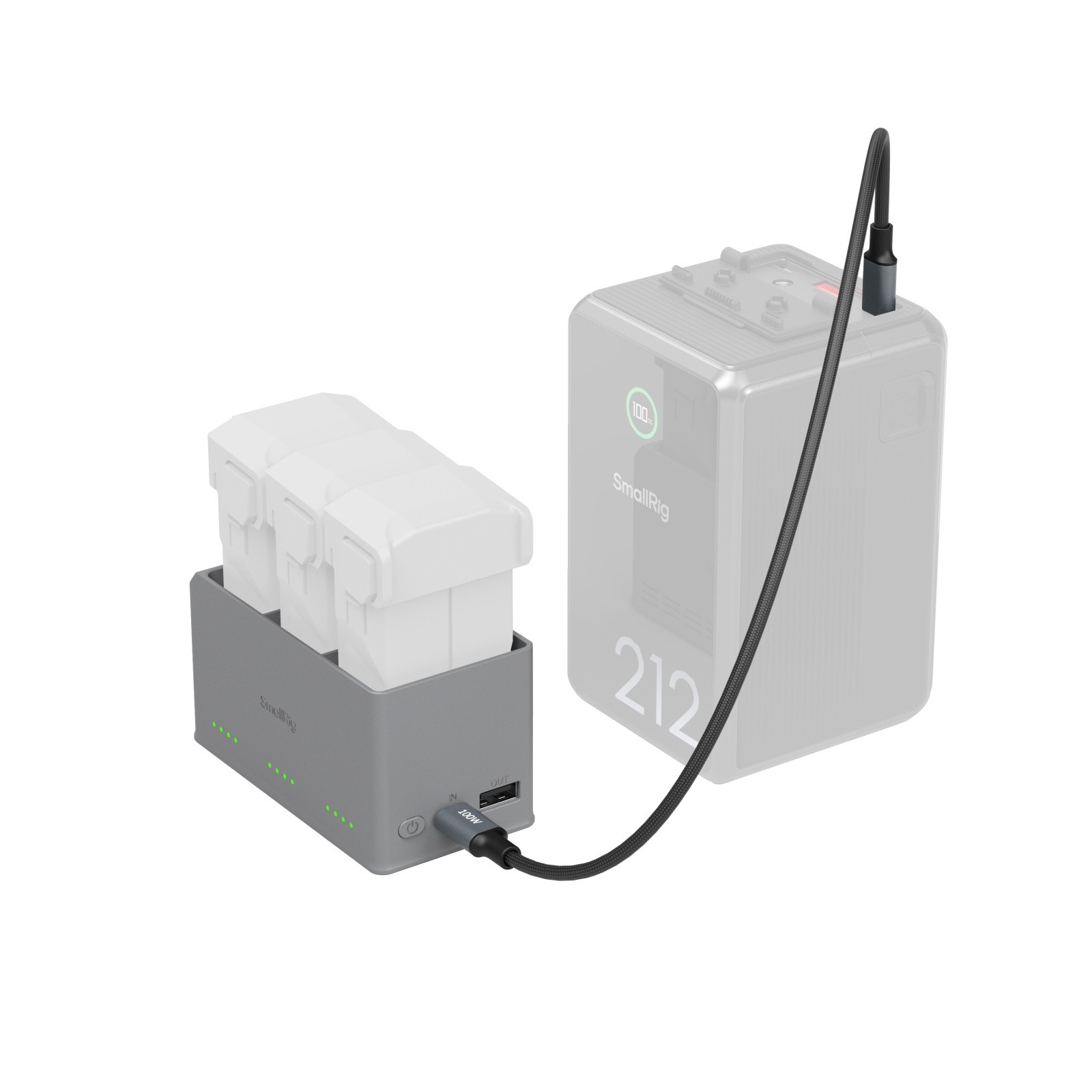

SmallRig 100W Drone Charging Hub 6502 is designed for DJI Mini 5 / 4 / 3 Pro series batteries. It supports up to 100W input and can charge up to three batteries simultaneously. It is also compatible with 5.0V / 9.0V / 12.0V / 15.0V power adapters and supports intelligent sequential charging, prioritizing the battery with the highest voltage. Multiple charging modes are available for different charging needs, and the charger can also provide emergency power to external devices. Each output port features multiple protections and a smart temperature control system for stable charging. With a compact and lightweight design, it is convenient for travel and everyday use.

Note:

1. A 100W or higher USB-C charger is recommended.

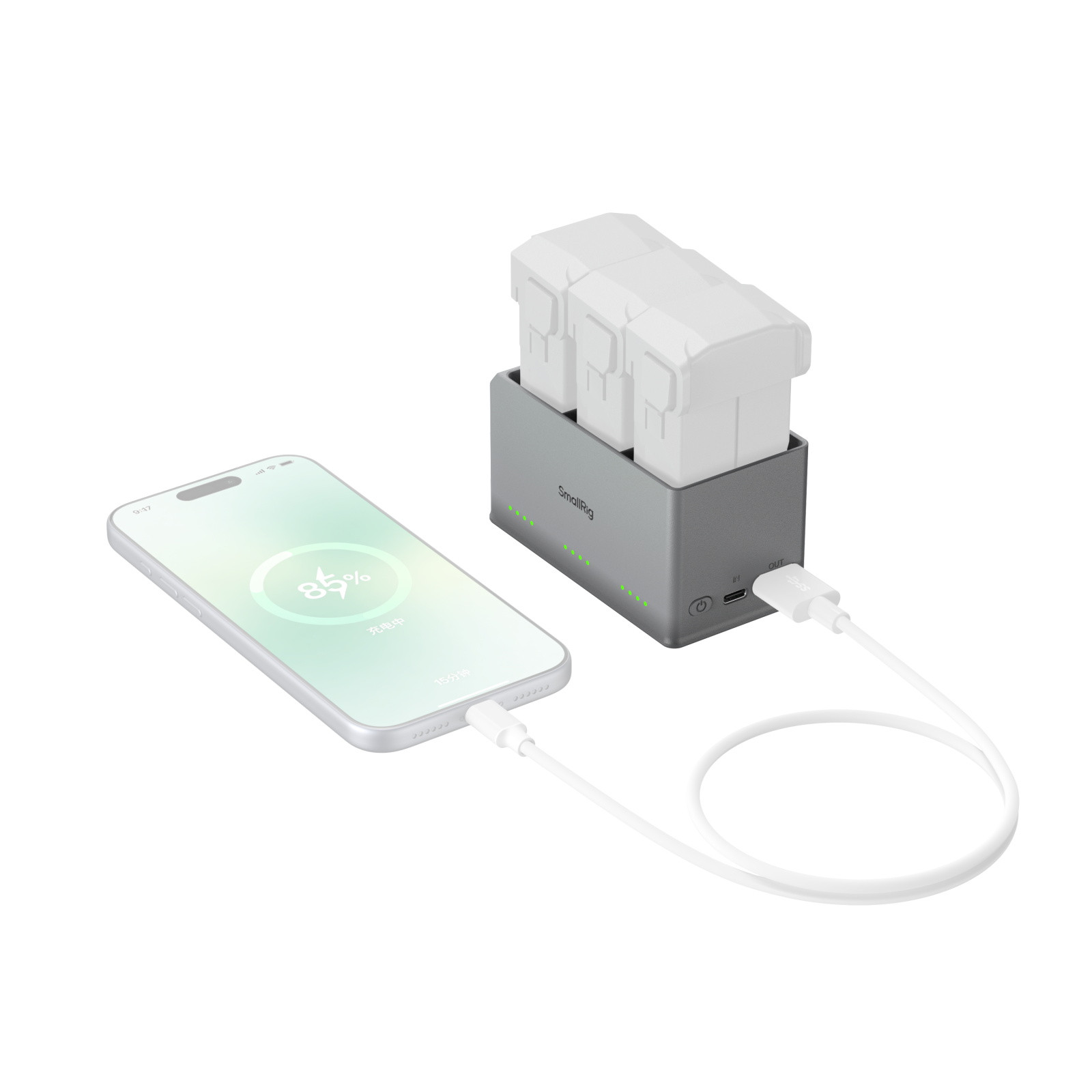

2. In USB Output Mode, insert the batteries, connect an external device to the charger’s USB-A port, and short-press the function button to start output. The batteries discharge in order from the lowest remaining power to the highest. To stop output, disconnect the external device from the charger.

Certifications: Quality Inspection Report / CCC / FCC / CE / PSE / RCM / ISED

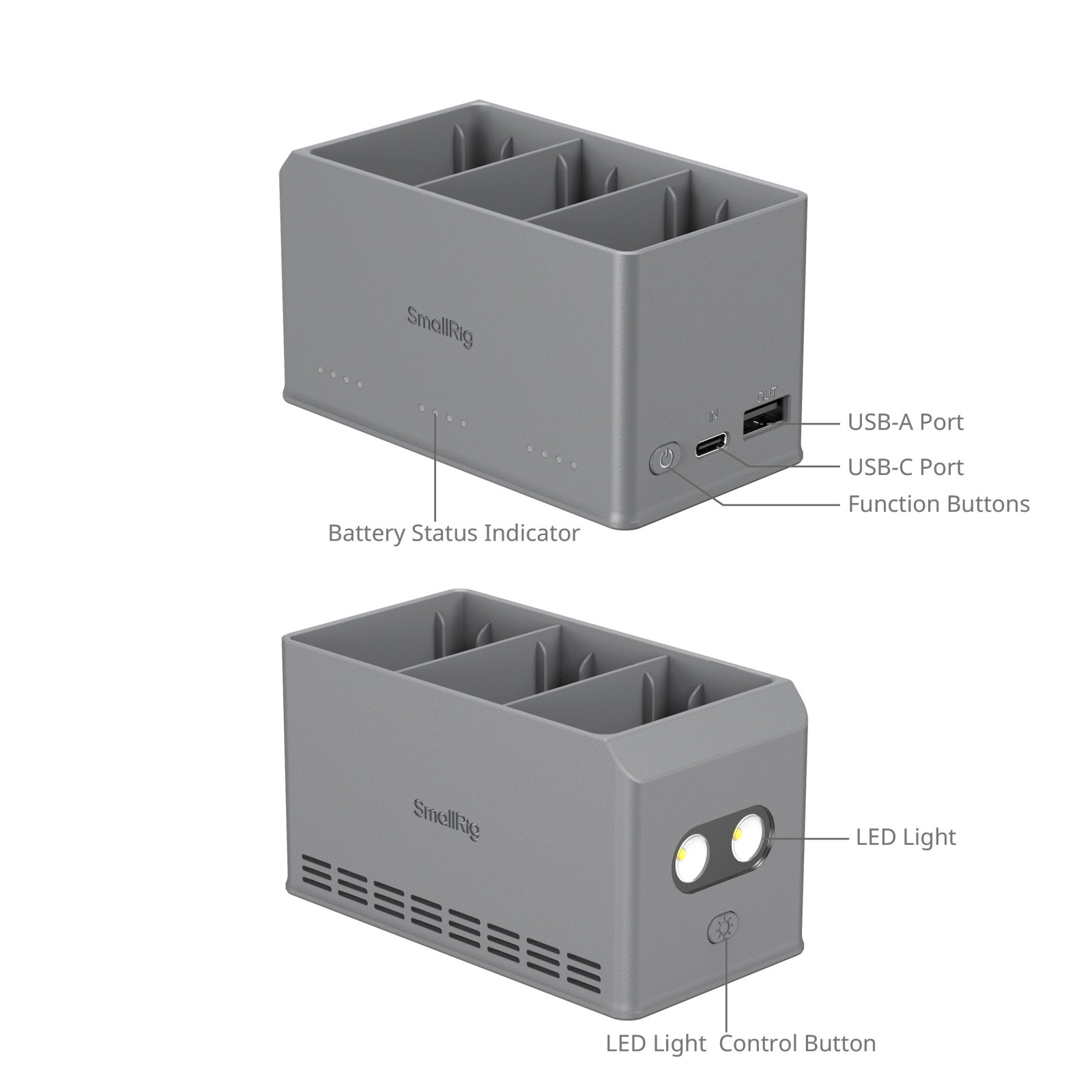

Battery Level Indicator:

Four LEDs On: 100% > Battery Level > 75%

Three LEDs On: 75% > Battery Level > 50%

Two LEDs On: 50% > Battery Level > 25%

One LED On: 25% > Battery Level > 0%

Function Button:

1. SOS Reminder On / Off: Press and hold for more than 2 seconds.

2. SOS Mode Switching: Short press to switch between SOS sound alert mode, SOS light alert mode, and SOS combined sound-and-light alert mode.

3. Battery Level Display: Short press to display the battery level for 5 seconds.

4. 60% Storage Mode On / Off: Press and hold for more than 2 seconds while charging.

Note: 60% Storage Mode is enabled when the first three LEDs in each of the three indicator groups flash three times simultaneously. After power is disconnected, the charger returns to normal mode.
