SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898

SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898

1. Helps attach large V-Mount battery to RED V-RAPTOR.

2. Snaps  directly into the back of RED V-RAPTOR for quick installation.

3. Two D-Taps and one DC output port for powering monitors, image transmission system, etc.

$299.00
Sku 3898

Availability: Available soon

This product has been viewed 108 times

Alcohol wipes or battery items included, please confirm if able to import or export.Especially for country / region:South Korea, India, Taiwan, Japan.
Product Description



SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898

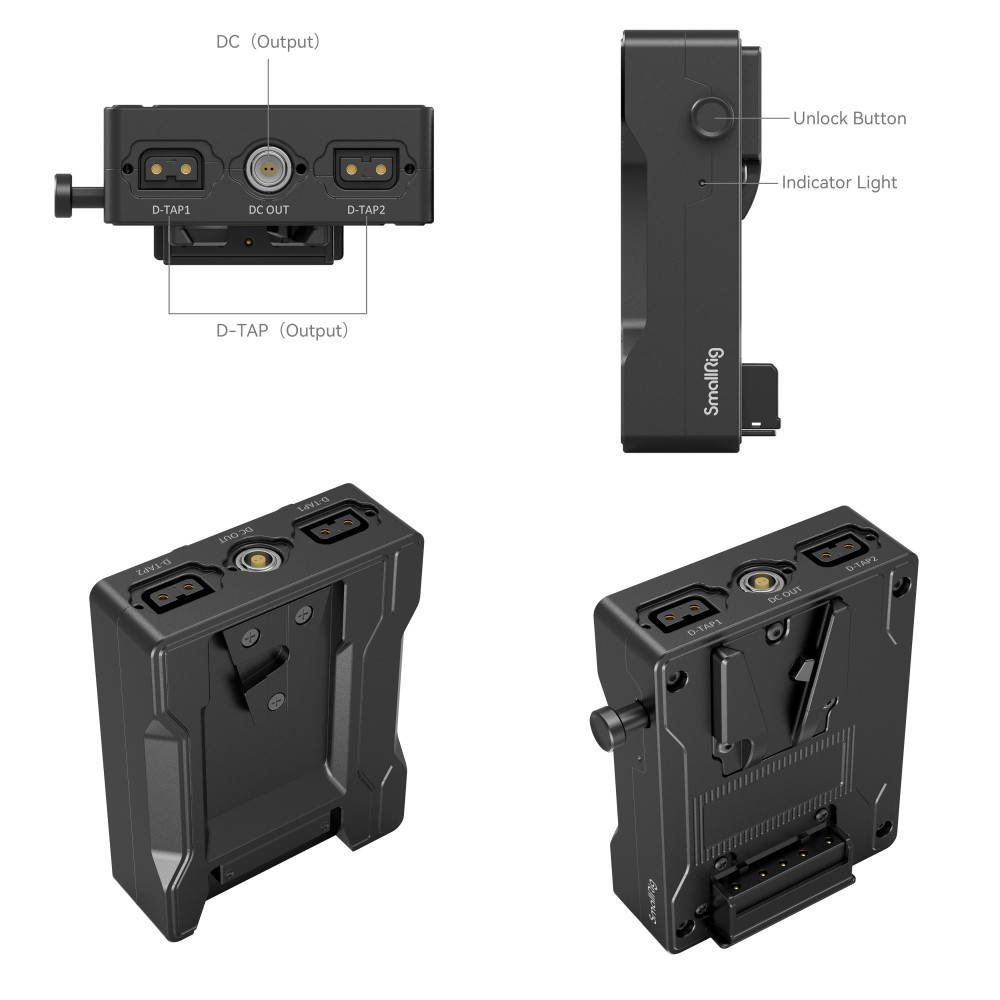

SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898 is designed to connect a large V-Mount battery to RED V-RAPTOR and power other devices if needed. Simply snaps it directly onto the back of the RED V-RAPTOR before attaching a V-Mount battery; it becomes operative when the indicator light is on. By pressing the unlock button on the left, you will quickly remove the battery. The plate also comes with two D-Taps and one DC output port for powering monitors, image transmission  systems, etc.

Work With

RED V-RAPTOR

Packing List

1 x V-Mount Battery Plate Adapter

Technical Data

Input: V-Mount 11V ~ 16.8V / 21A Max

Output: V-Mount 11V ~ 16.8V / 21A Max

             D-TAP1 11V ~ 16.8V / 60W Max

             D-TAP2 11V ~ 16.8V / 60W Max

             DC OUT 11V ~ 16.8V / 60W Max

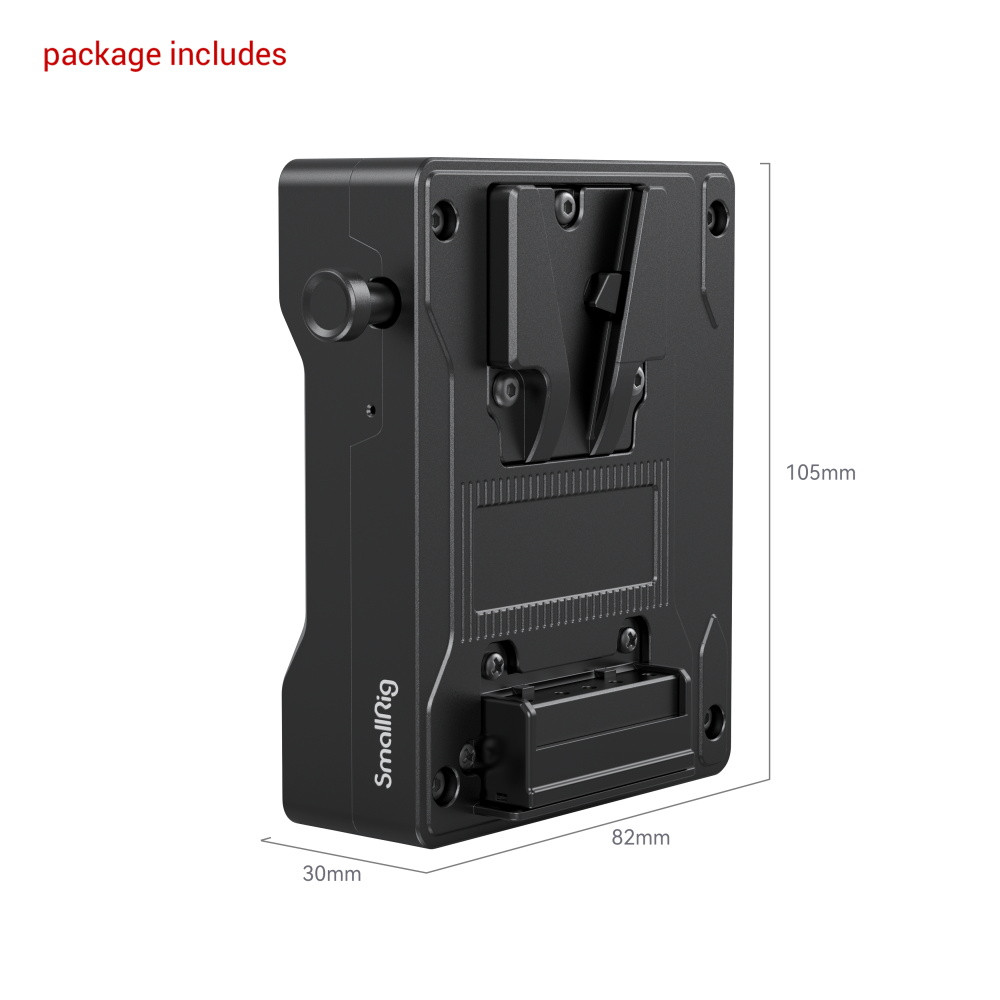

Product Dimensions: 94 × 40 × 105mm

Package Dimensions: 140 × 105 × 55mm

Product Weight: 242g±5g

Package Weight:277g±5g

Material(s): Aluminum Alloy
