SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3058

SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3058

1. The plate utilizing an IDX V mount fits most V mount batteries to provide greater battery life for your camera rig.
2. The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.
3. The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.
4. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.
5. It features multipl1/4-20” thread holes on the back and bottom to attach a dual rod clamp, a magic arm, or other accessories.

$109.00
Sku 3058
EAN 6941590002972

Availability: Discontinued Item

This product has been viewed 1388 times

Product Description



SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3058

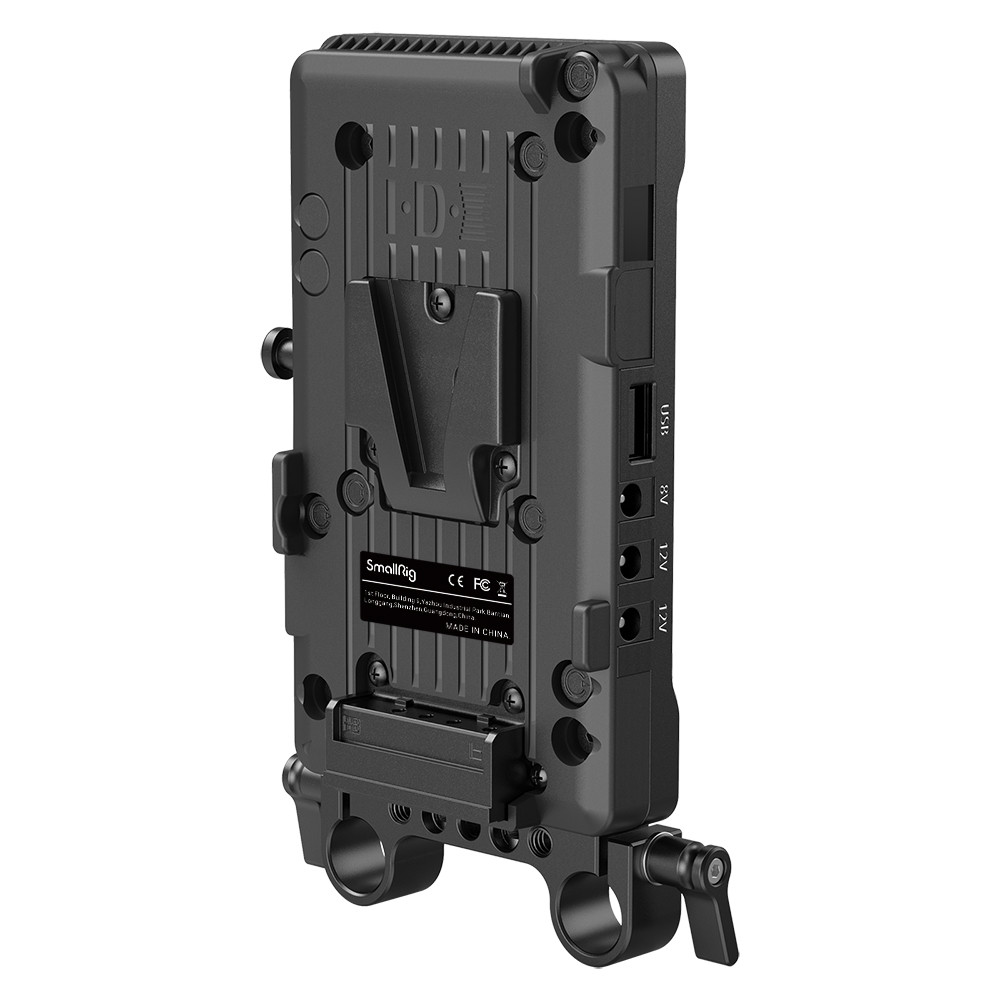

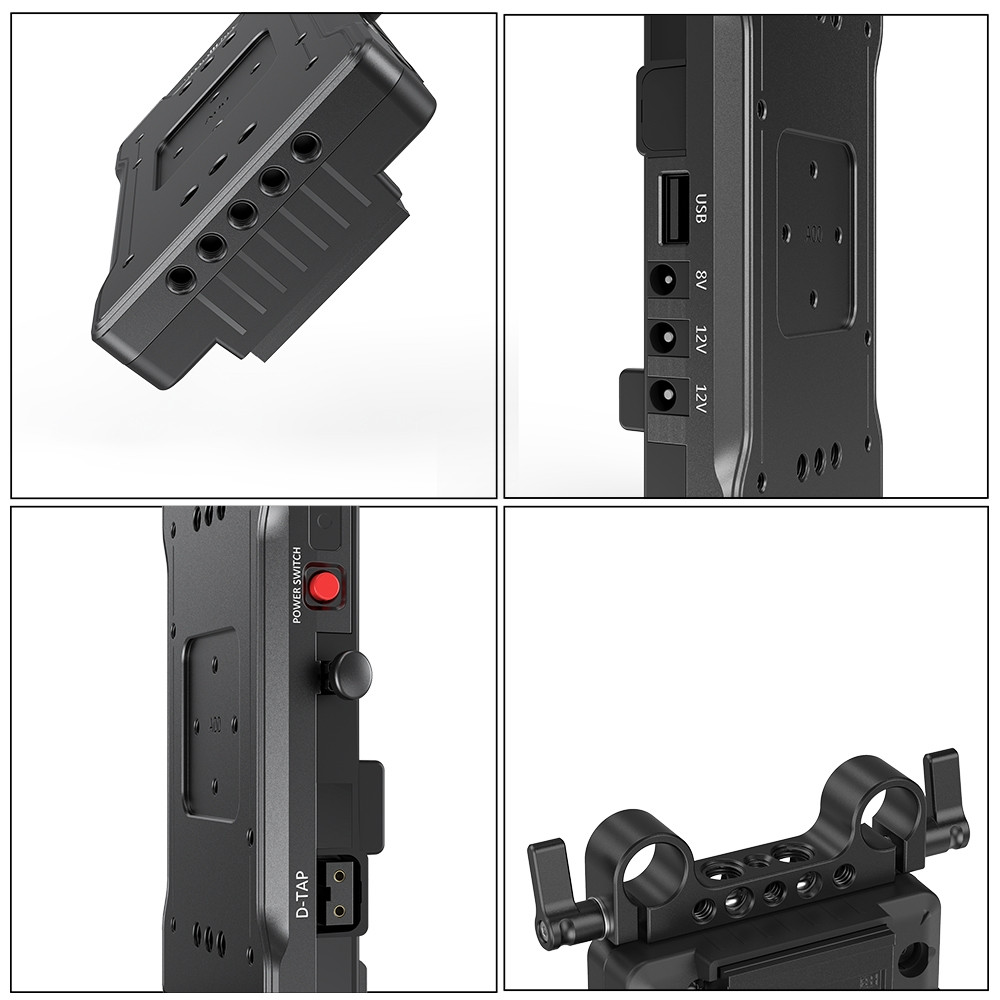

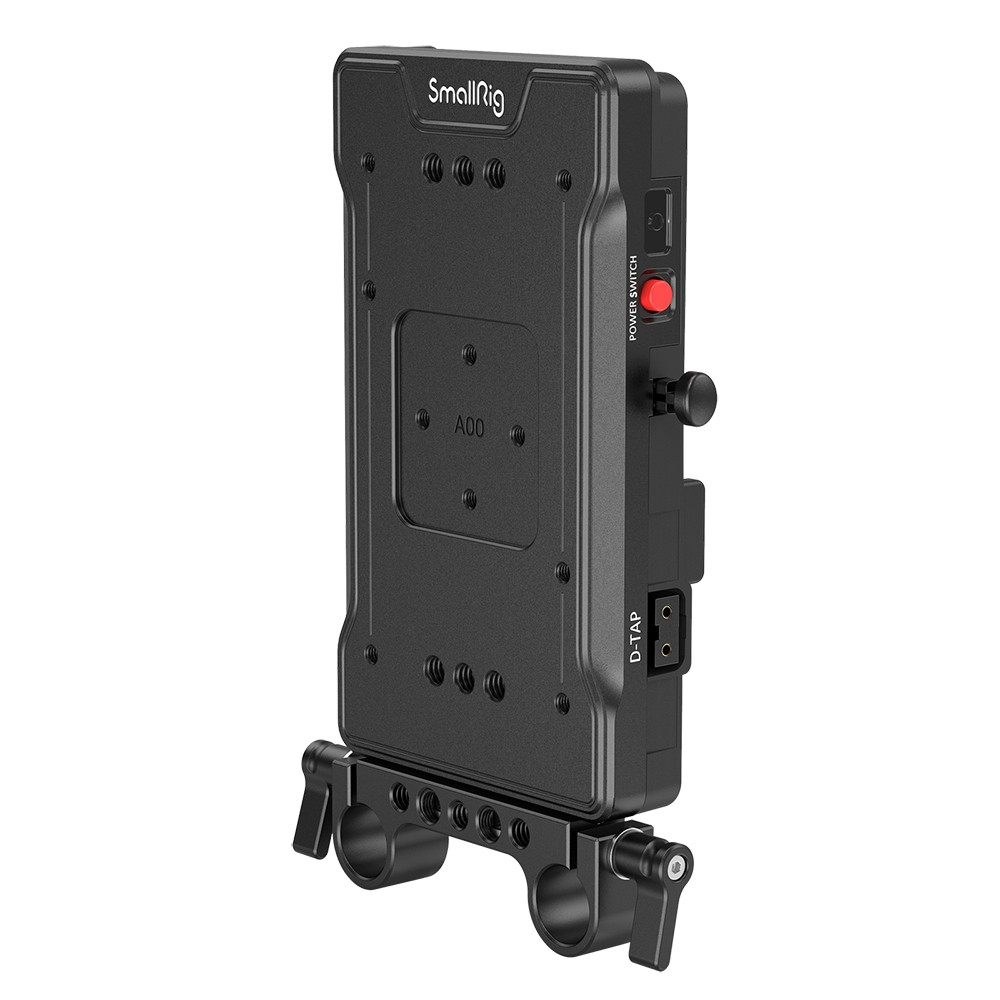

SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3058 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing an IDX V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 14.8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power-on or power-off your rig more quickly and conveniently. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system and multiple 1/4-20” thread holes on the back and bottom, to attach a dual rod clamp, a magic arm or other accessories.

Note: Do not use in damp environment to avoid short circuit.

*Please note the import tax may occur.

Key Features

1. The plate utilizing an IDX V mount fits most V mount batteries to provide greater battery life for your camera rig.
2. The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.
3. The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.
4. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.
5. It features multipl1/4-20” thread holes on the back and bottom to attach a dual rod clamp, a magic arm, or other accessories.

Work With

The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

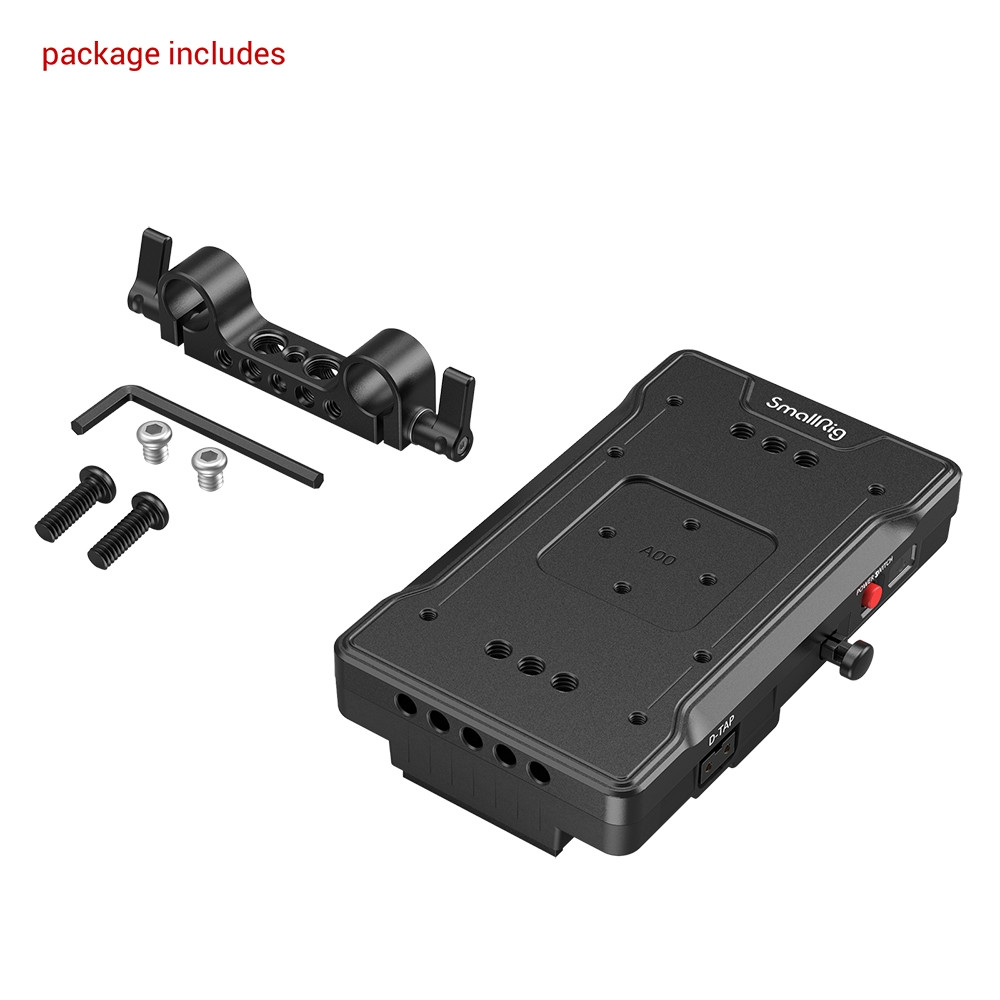

Packing List

1 x V Mount Battery Adapter Plate

1 x Dual 15mm Rod Clamp

1 x Allen Wrench

4 x Mounting Screw

Technical Data

Product Dimensions: 168.7 x 108 x 33mm

Package Dimensions:  220 x 145 x 70mm

Net Weight: 318g±5g

Package Weight: 468g±5g

Material(s): Aluminum Alloy, ABS
