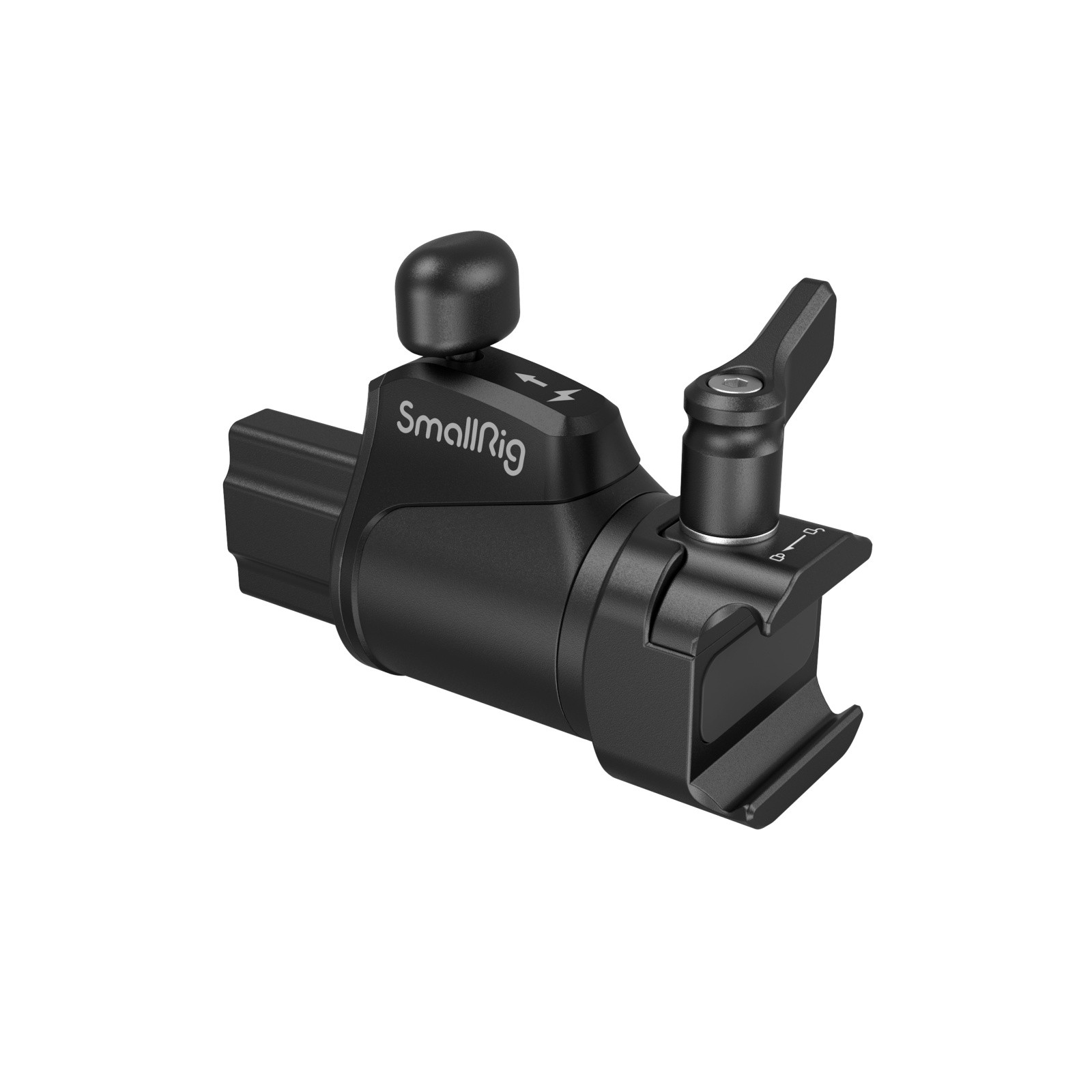

SmallRig Universal Rotating Handle Adapter 4112

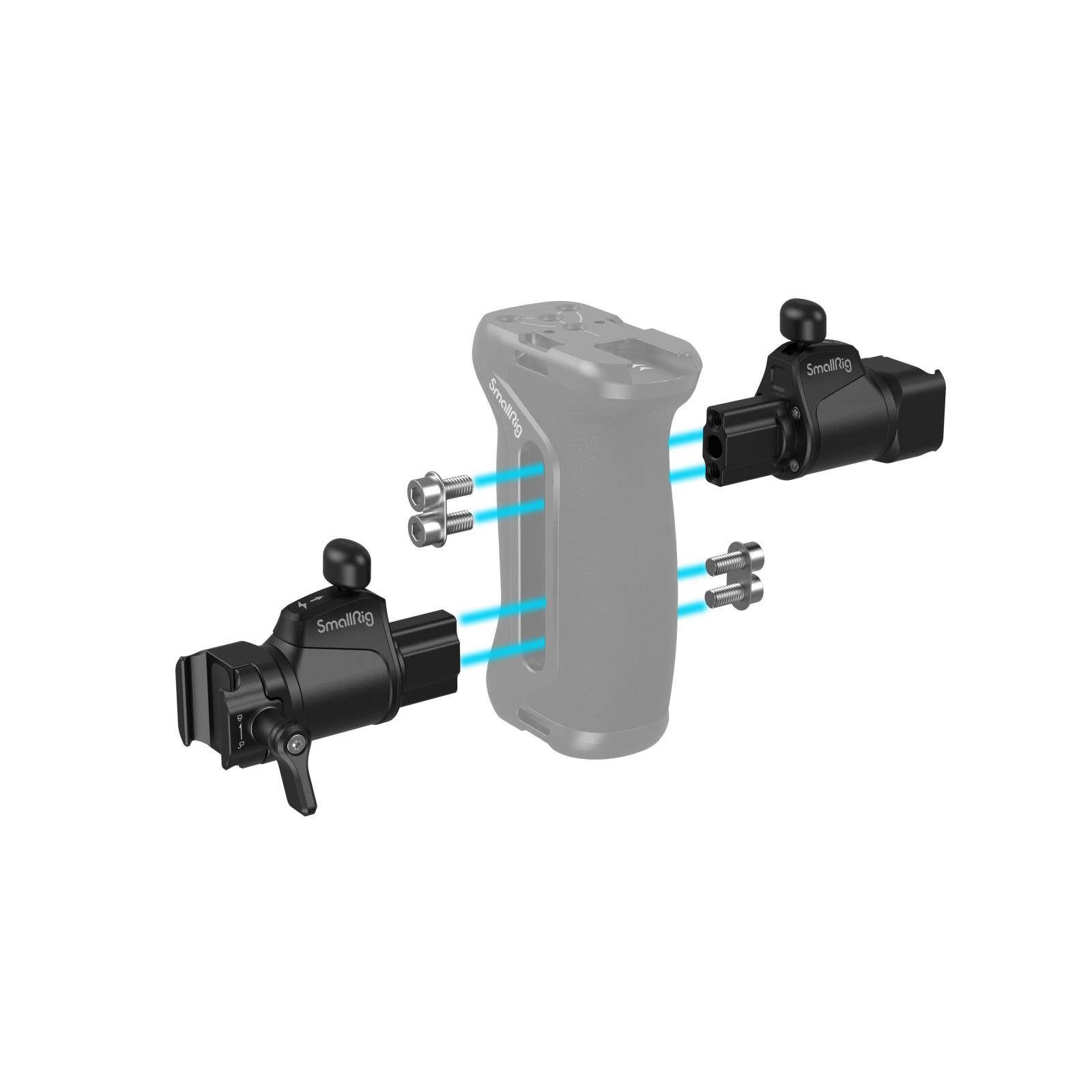

SmallRig Universal Rotating Handle Adapter 4112 is designed to facilitate multi-angle shooting. Built-in 8 hardened stainless steel needle rollers lock the rotating shaft to achieve precise positioning and enable two-way 360-degree step-less rotation for comfortable camera movement. The axis of the adapter is made of hardened stainless steel, and the main body is made of aircraft-grade aluminum alloy, making the item sturdy and durable. The adapter’s load-bearing capacity is 15 kg / 33.1lb. The adapter can be used on handles with grooves via two 1/4"-20 screws.

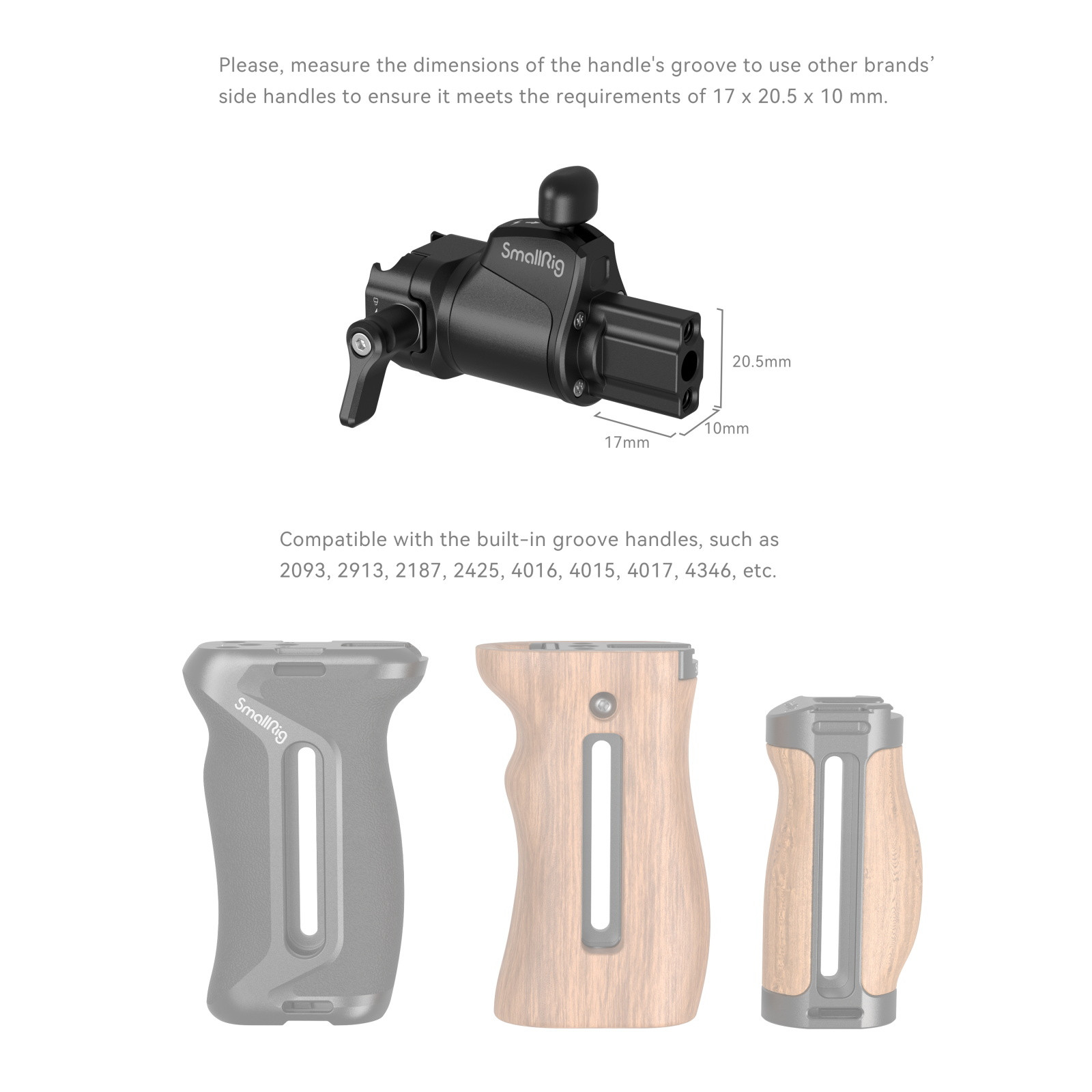

Note: Please, measure the dimensions of the handle's groove to use other brands’ side handles to ensure it meets the requirements of 17 x 20.5 x 10 mm.
Work With

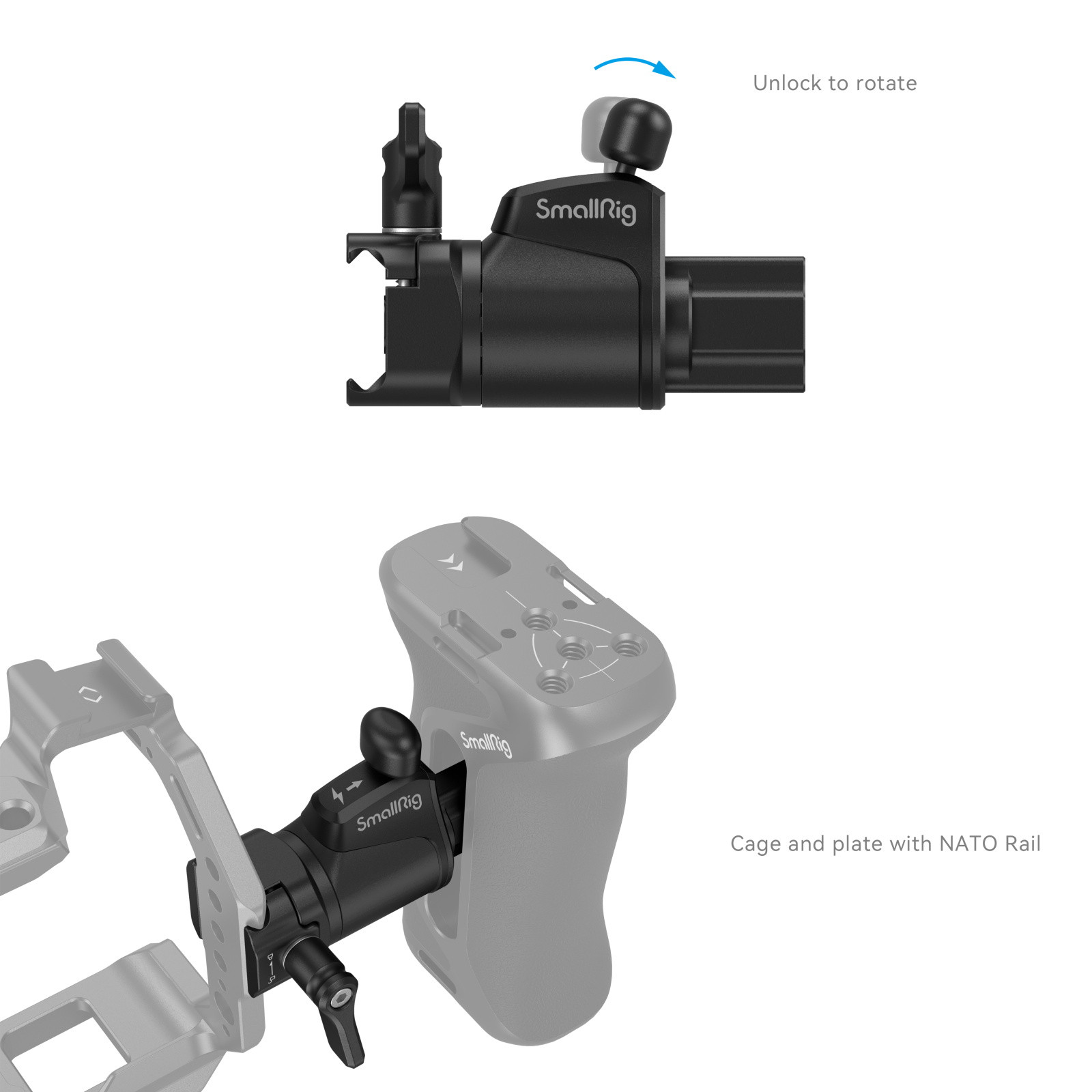

1. Cages and plates with NATO Rail.
2. This adapter is compatible with SmallRig's existing built-in groove handles, such as 2093, 2913, 2187, 2425, 4016, 4015, 4017, 4346, etc.

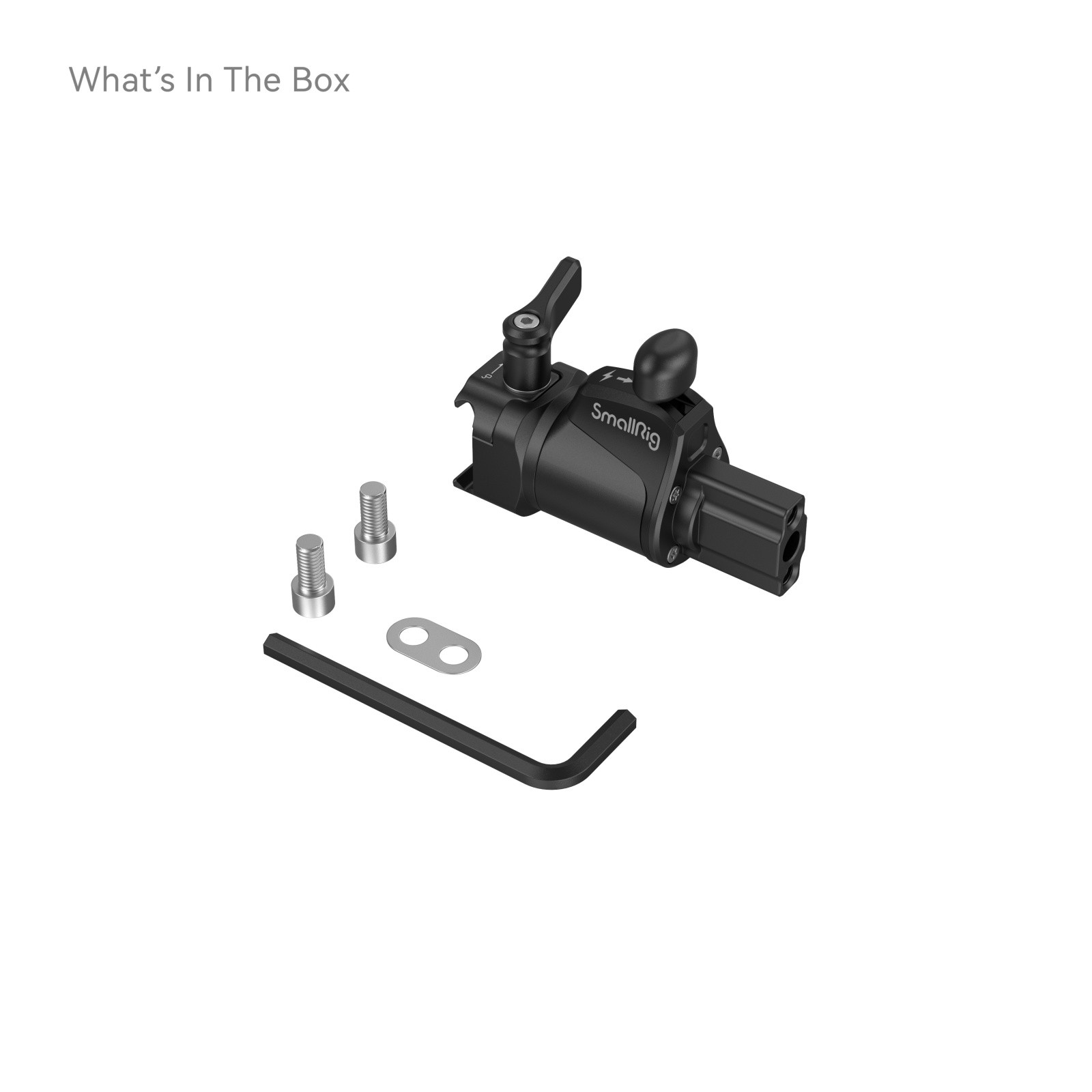

Packing List
Handle Adapter x 1
Allen Wrench x 1
1/4”-20 Screw x 2
Screw Gasket x 1
Technical Data

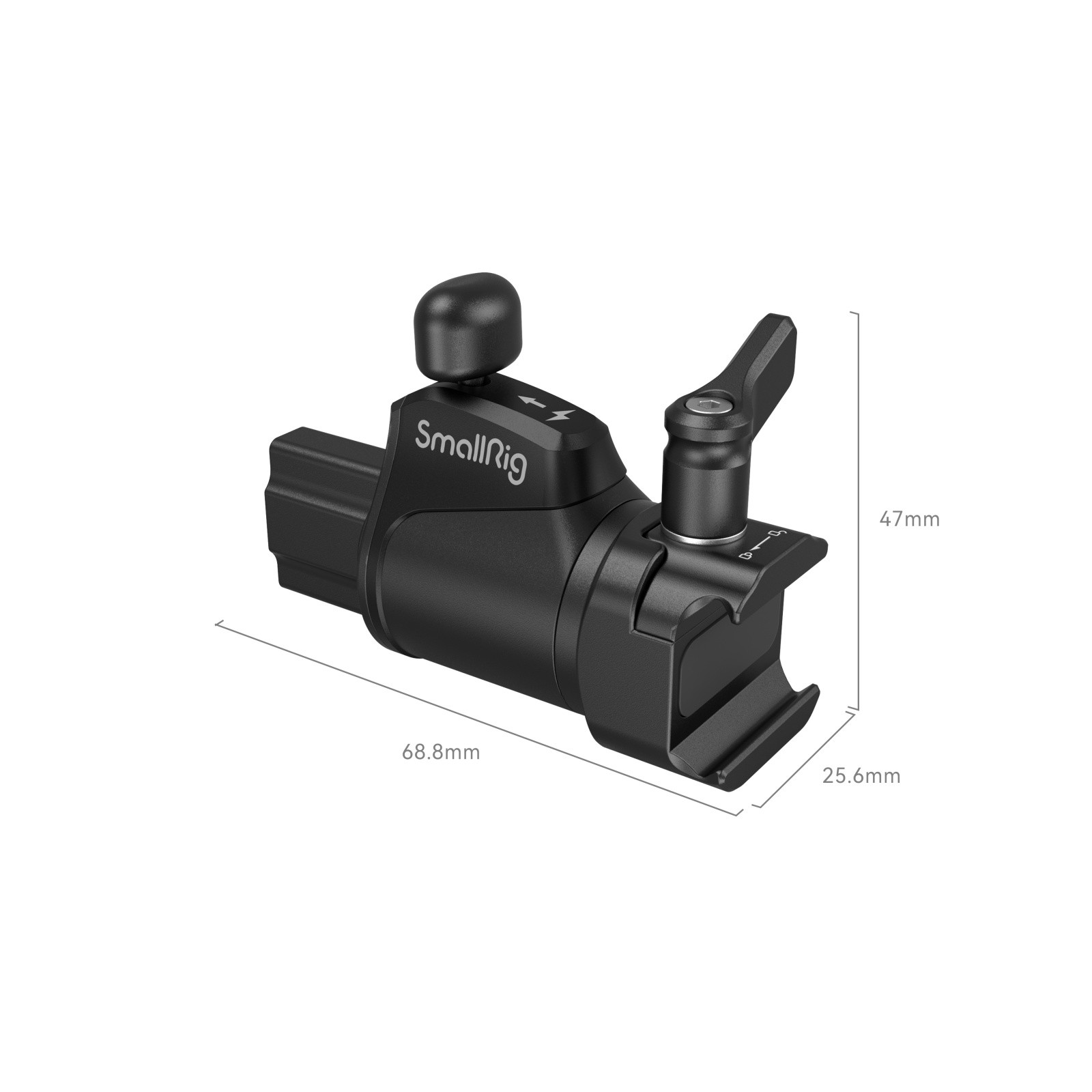

Product Dimensions: 68.8 x 46.6 x 25.0 mm
Package Dimensions: 79.0 x 66.0 x 42.0 mm
Product Weight: 127.0 g±5g
Package Weight: 143.5 g±5g
Material(s): Aluminum Alloy, Stainless Steel
