SmallRig Universal Mounting Clamp for External SSD 5196B

SmallRig Universal Mounting Clamp for External SSD 5196B

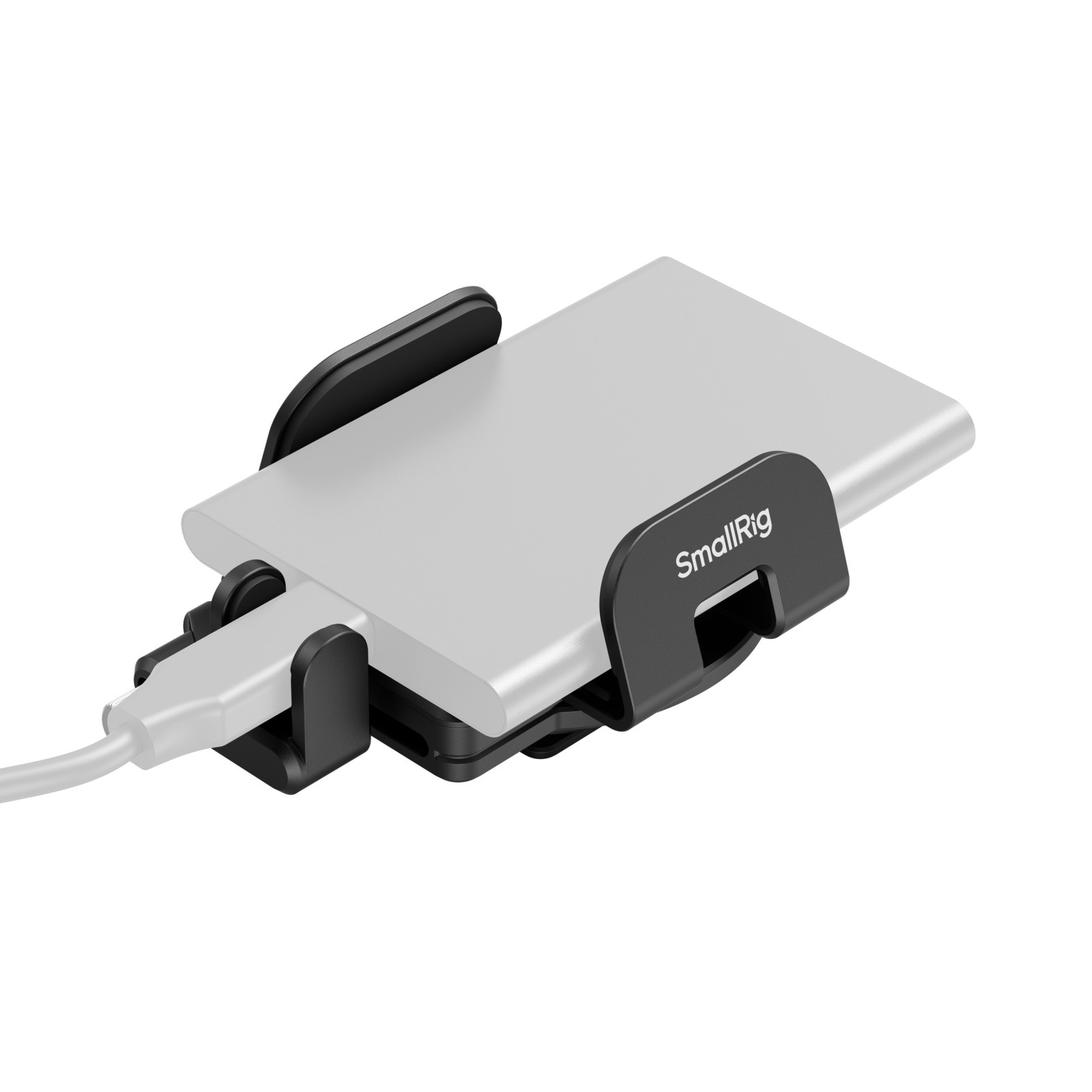

SmallRig Universal Mounting Clamp for External SSD 5196B securely holds portable SSDs (40 -60mm wide x 8 - 17mm thick / 1.6 - 2.4in wide x 0.3-0.7in thick) on camera cages and L-shape mount plates featuring 1/4"-20 threaded holes and cold shoe mounts, as well as MagSafe-compatible iPhones.

Compatible SSD models include: Samsung T5 / T5 EVO / T7 / T7 Shield / T9 / T9 Shield; SanDisk E30 / E61 / E81; Crucial X9 / X9 PRO Mac / X10 PRO; Western Digital WD_BLACK P40 (500GB / 1TB/2TB) ；My Passport (WDBAGF5000AGY-WESN / WDBAGF0010BGY-WESN / WDBAGF0020BGY-WESN / WDBAGF0040BGY-WESN).

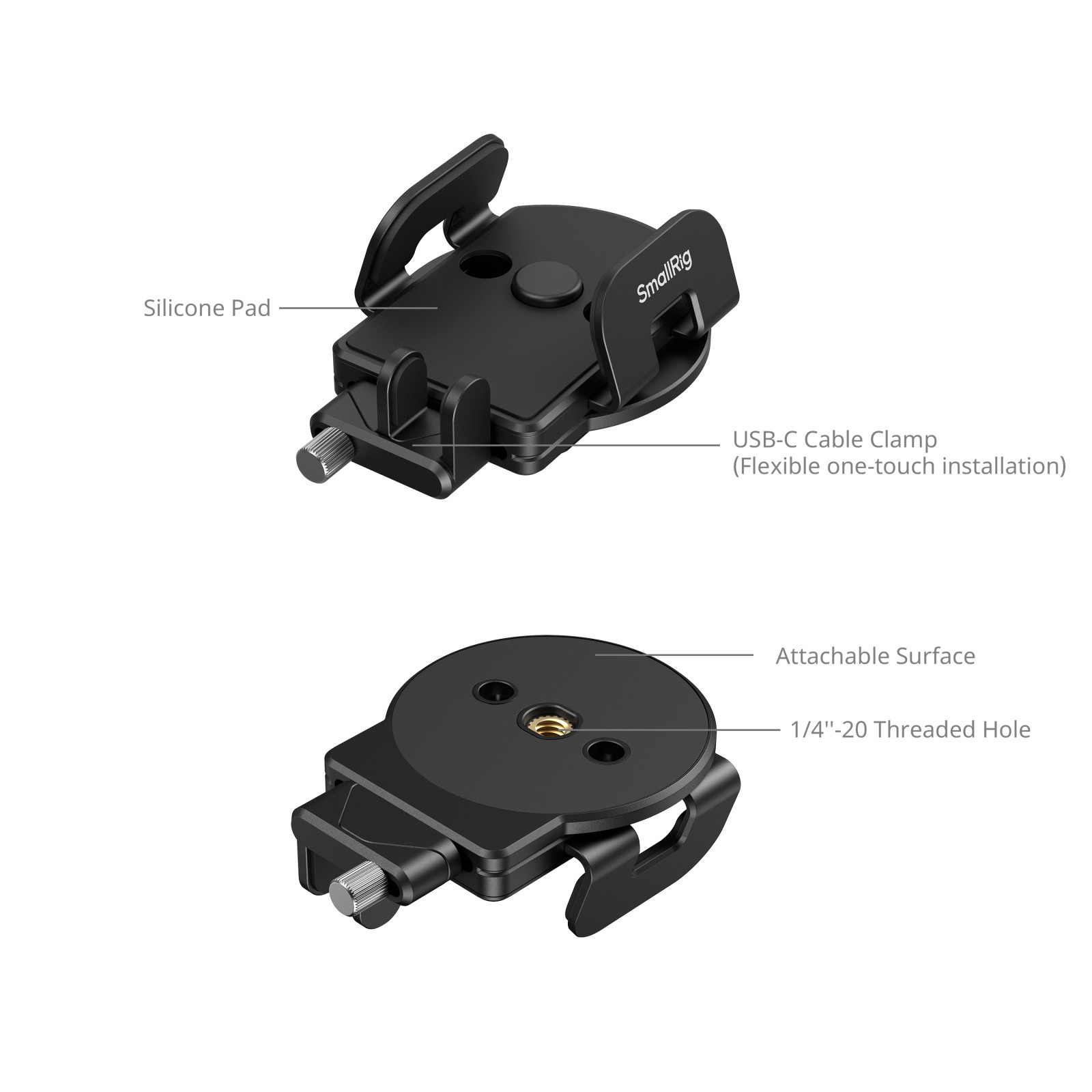

Unlike traditional spring-loaded clamps, this mount features a controlled opening for safe and easy two-step installation. The adjustable cable clamp with one-touch locking ensures secure connections for various SSD ports. With three installation methods (cold shoe mount, 1/4"-20 screw, or MagSafe), it offers a versatile SSD support solution for camera rigs or iPhone setups. Additionally, the internal silicone pads protect SSDs from scratches and slippage.

Installation Options:

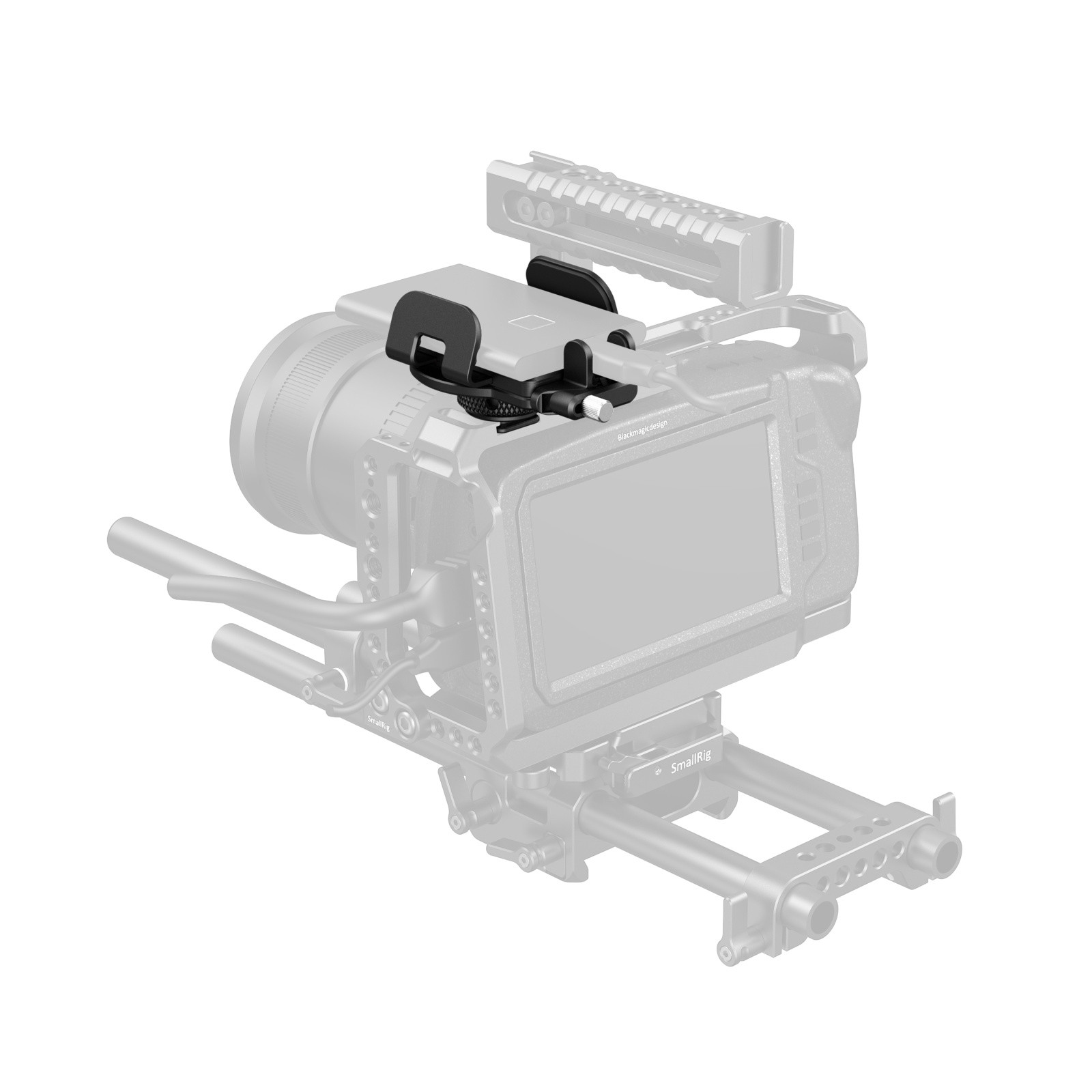

Cold Shoe Mount: Install the cold shoe foot and mount the clamp to the cold shoe mount on the top of the cage

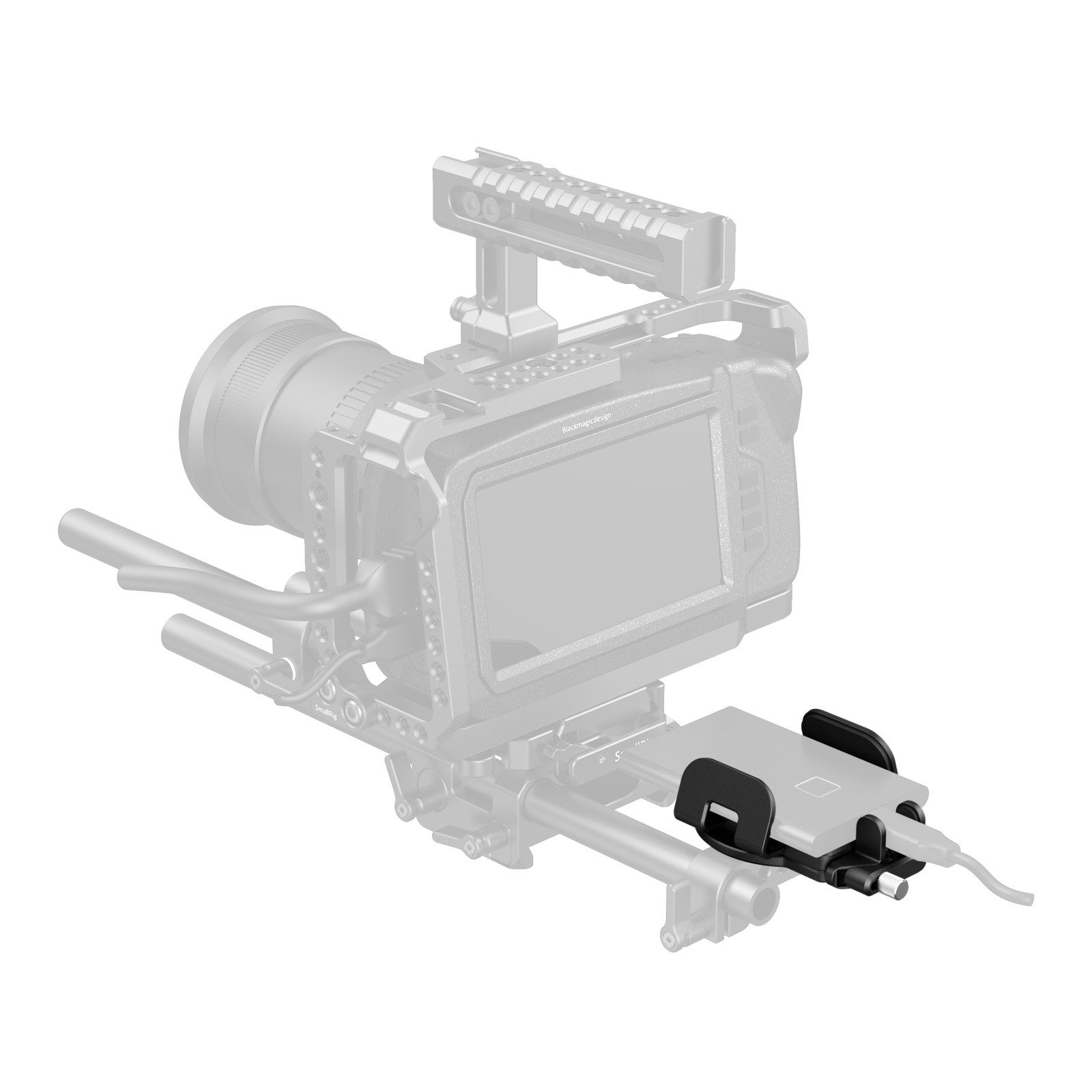

1/4″-20 Screws: Use two 1/4"-20 screws to secure the clamp to the side of the cage

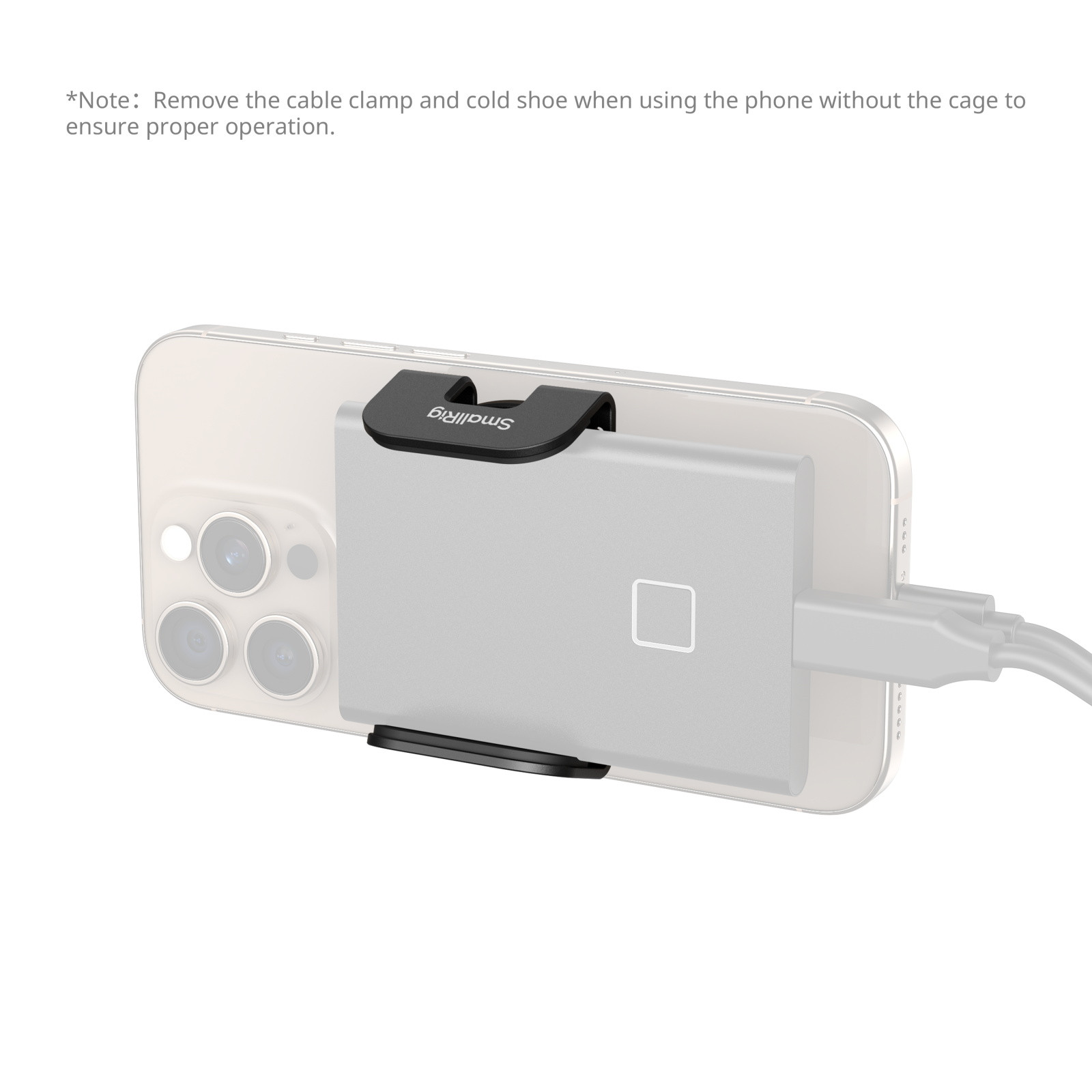

MagSafe: Attach the clamp directly to the back of iPhone 12 - 16 models via MagSafe

Note:

1. For bare iPhone use, please remove the cable clamp and cold shoe foot first.

2. When using with a case, ensure secure attachment between phone and case.

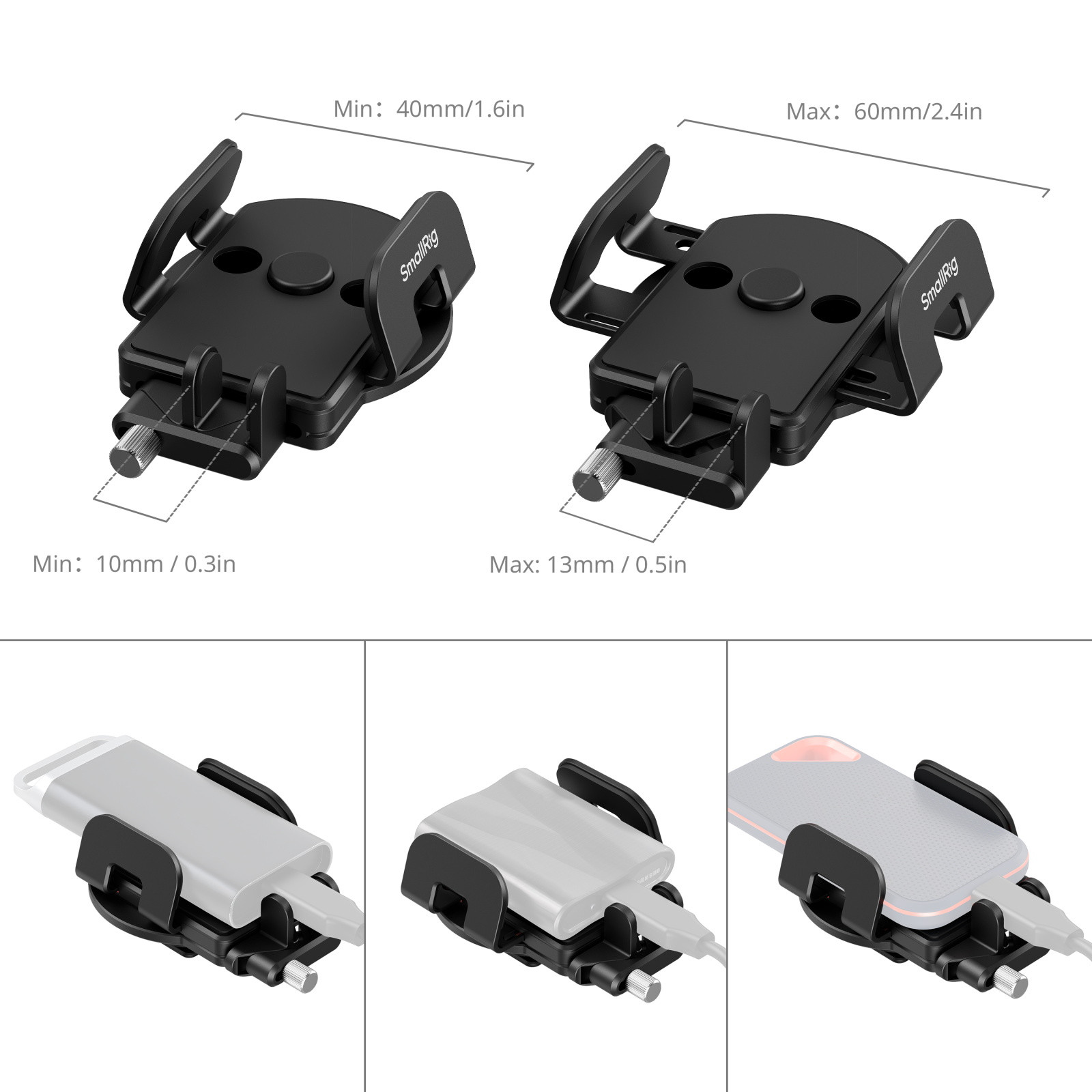

3. Clamping range: SSDs within 40-60mm / 1.6 - 2.4in width and 8-17mm / 0.3 - 0.7in thickness.

4. Non-MagSafe phones can be mounted using a magnetic metal ring (not included).
