SmallRig Turbo Charging Kit for LP-E6P Camera Batteries 5485
SmallRig Turbo Charging Kit for LP-E6P Camera Batteries 5485 includes two high-performance batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Canon LP-E6P batteries, supporting cameras such as the EOS R5 II. It eliminates pop-up warnings while maintaining in-camera power display and compatibility with original Canon chargers.
Each battery delivers a true-rated output of 2520mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2.5 hours for optimal efficiency.
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

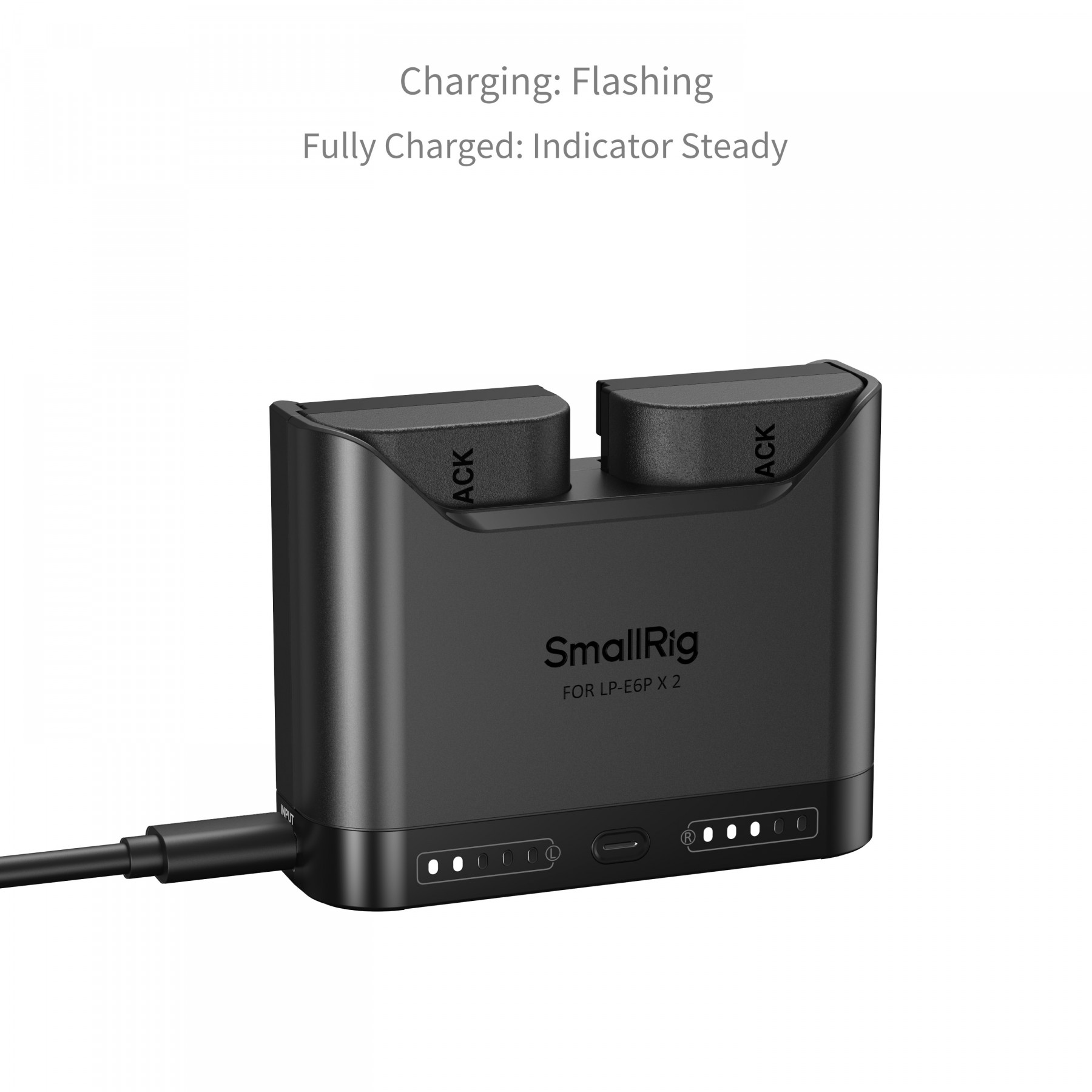

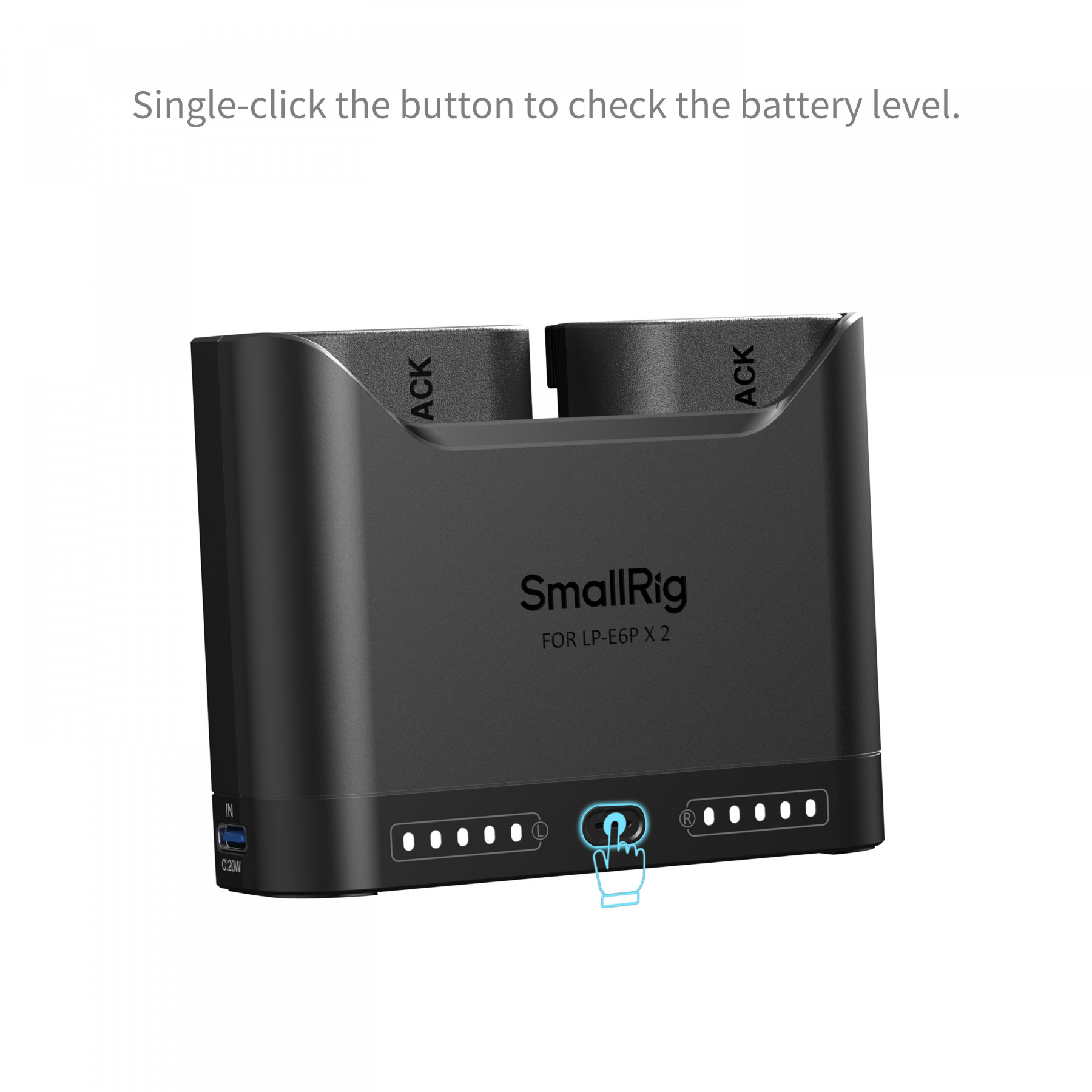

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a USB-C fast-charging port (22.5W) and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Certifications: FCC, CE, RoHS, ISED, KC
Note:

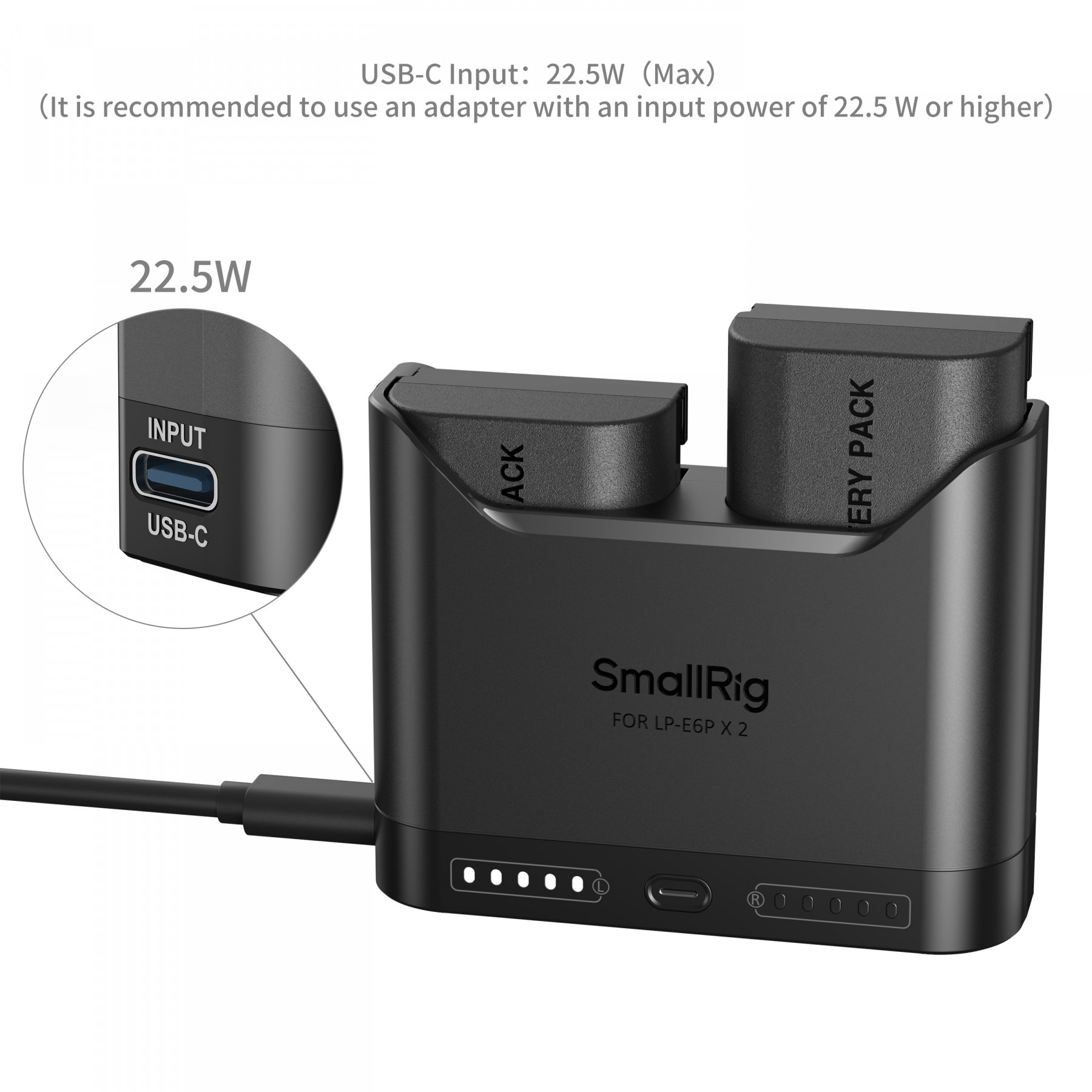

1. Recommended to use a power adapter with 22.5W or higher output.
2. When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
3. LP-E6NH and LP-E6P batteries can share the same charger.
Work With
Canon EOS 5D Mark II / 5D Mark III / 5D Mark IV / 6D / 6DMark II / 7D / 7DMark II / 60D / 60Da / 70D / 80D / 90D / XC10 / XC15 / 5DS / 5DSR / R / R5 / R6 / R5C / R7 / R6 Mark II / R5 Mark II

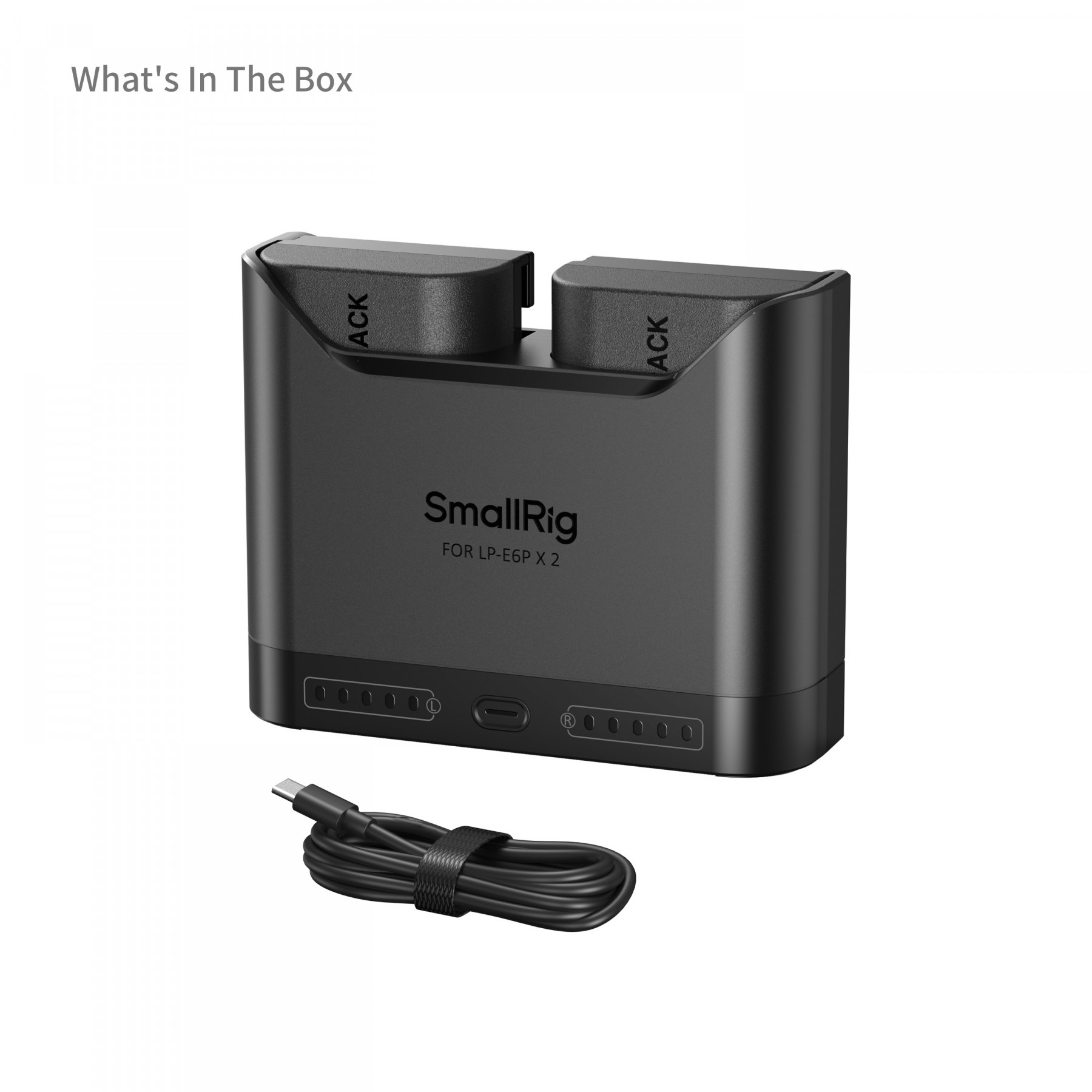

Packing List
Camera Battery Charger for LP-E6P x 1
Camera Battery for LP-E6P x 2
Battery Cover x 2
60W USB-C to USB-C Cable (1m / 3.3ft) x 1
Technical Data

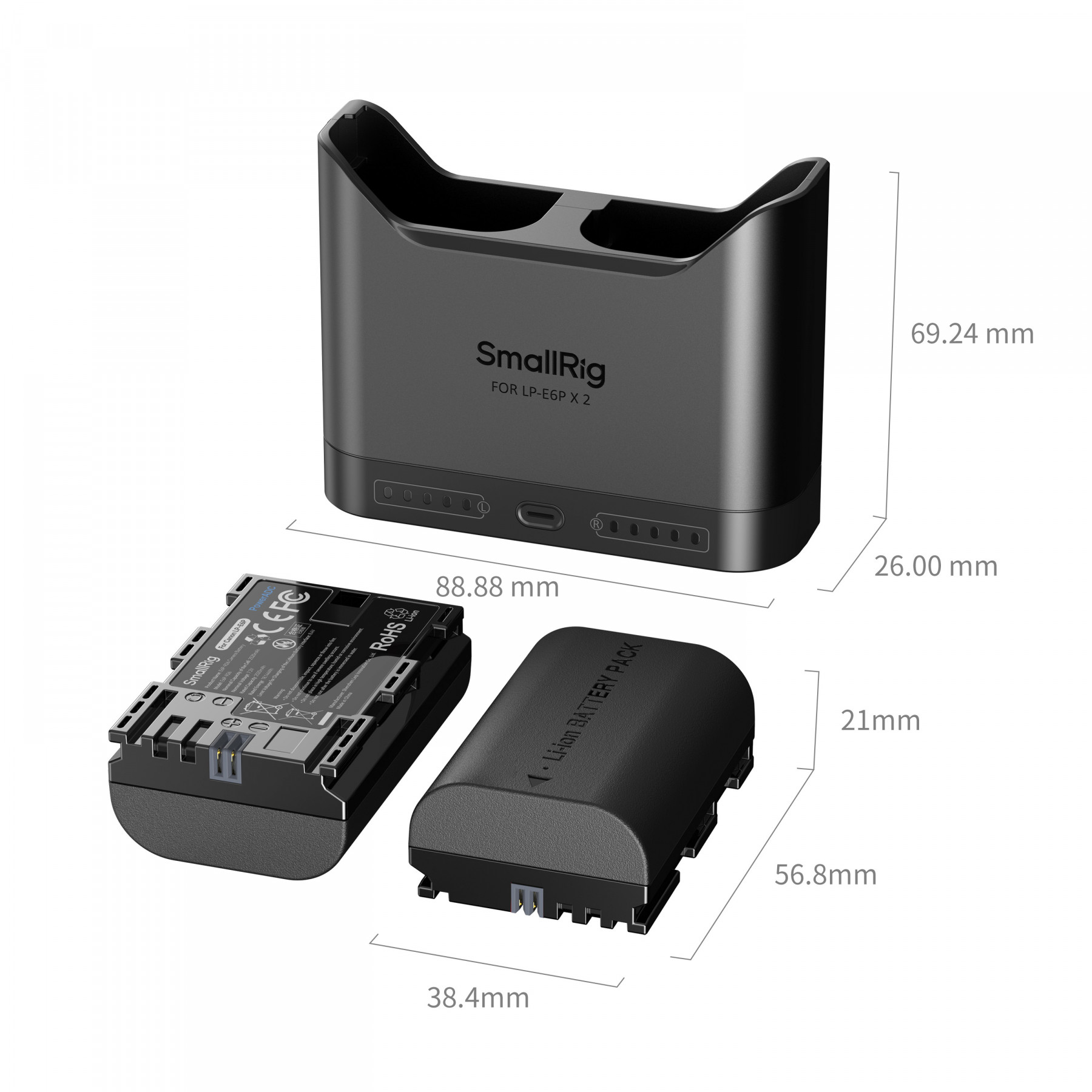

Product Dimensions: 88.9 x 69.2 x 26.0mm / 3.5 x 2.7 x 1.0in
Package Dimensions: 180.0 x 123.0 x 35.0mm / 7.1 x 4.8 x 1.4in
Product Weight: 225 ± 10g / 7.9 ± 0.4oz
Package Weight: 292 ± 10g / 10.3 ± 0.4oz
Charger Specifications:
Material(s): PC + ABS
USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol: PD3.0, QC2.0, QC3.0
Rated Output (Per Channel): 8.4V / 1A
Operating Temperature: 0°C to 45°C / 32°F to 113°F
Battery Specifications:
Battery Type: Lithium-ion Battery
Nominal Voltage: 7.2V
Cell Capacity: 2520mAh
Rated Energy: 18.144Wh
Charging Limit Voltage (Li-ion Battery Interface): 8.4V
Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (520mA)
Fast Charge: 0.7C (1820mA)
Maximum Discharge Current: 6A
Discharge Cut-off Voltage: 5.0V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -20°C to 60°C / -4°F to 140°F
Material(s): PC + ABS
