SmallRig Top Handle Kit for Blackmagic URSA Mini/ Mini Pro 2029
Note: Top Handle 2000 must match with Top Plate 1958 for Blackmagic Ursa Mini/Mini Pro and Ursa Viewfinder.

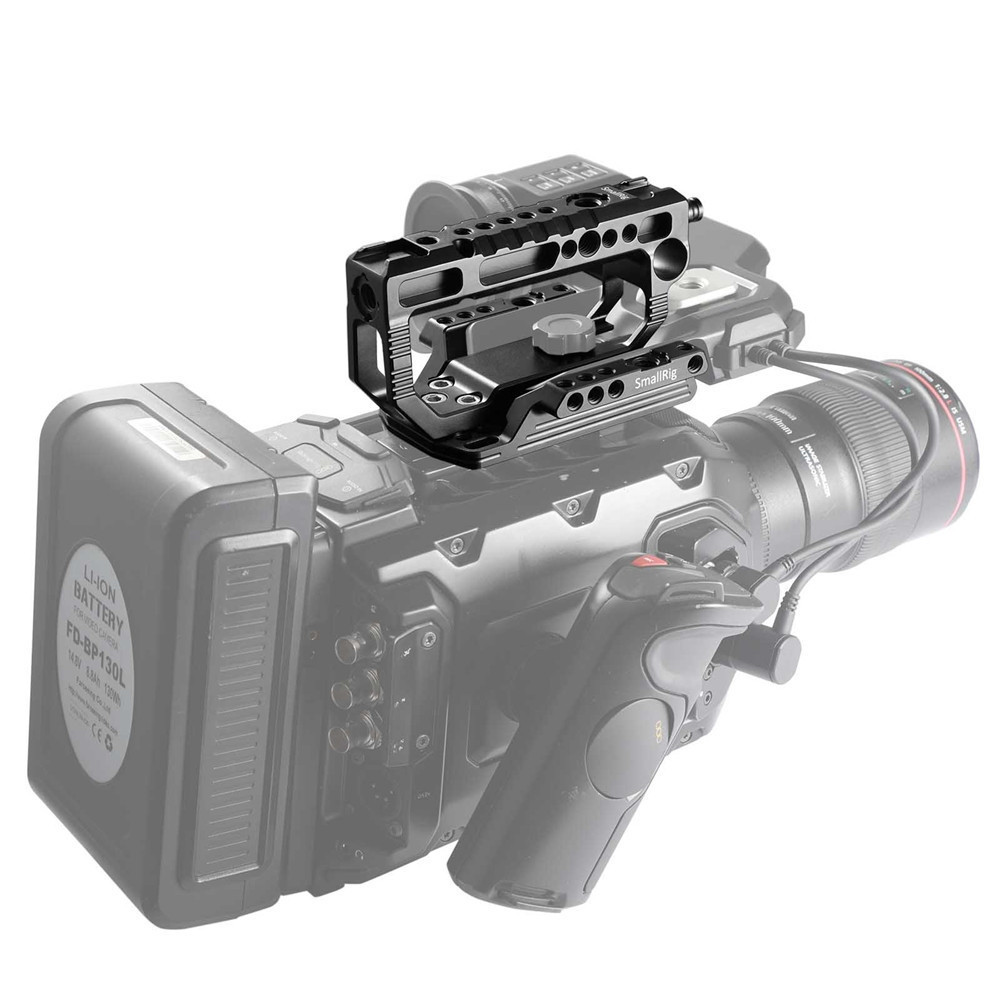

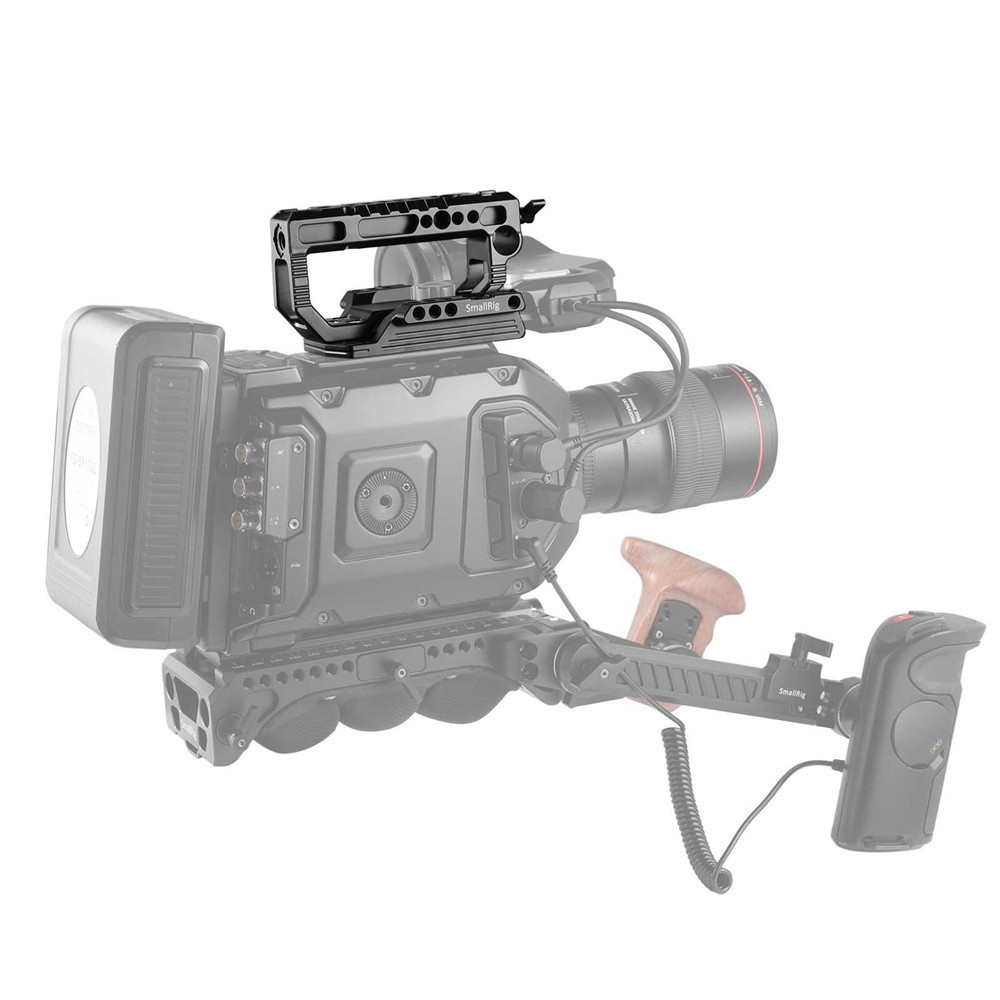

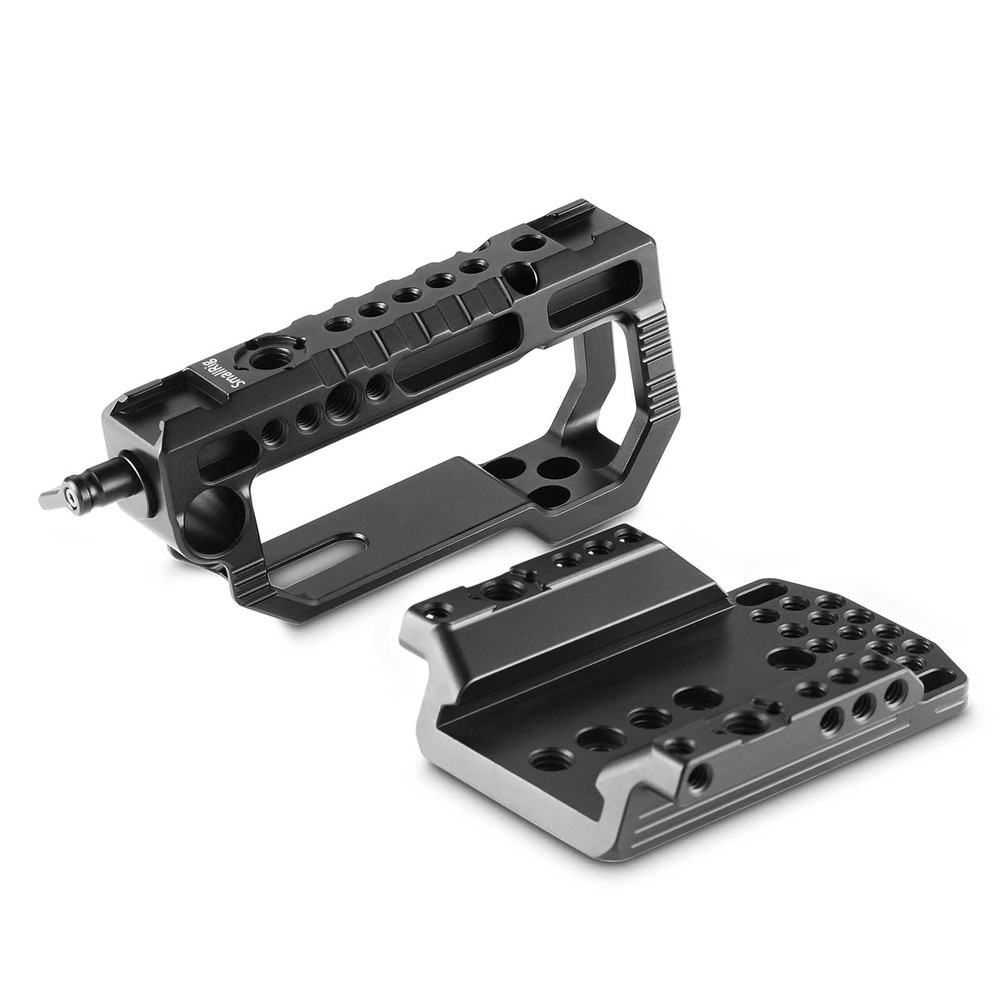

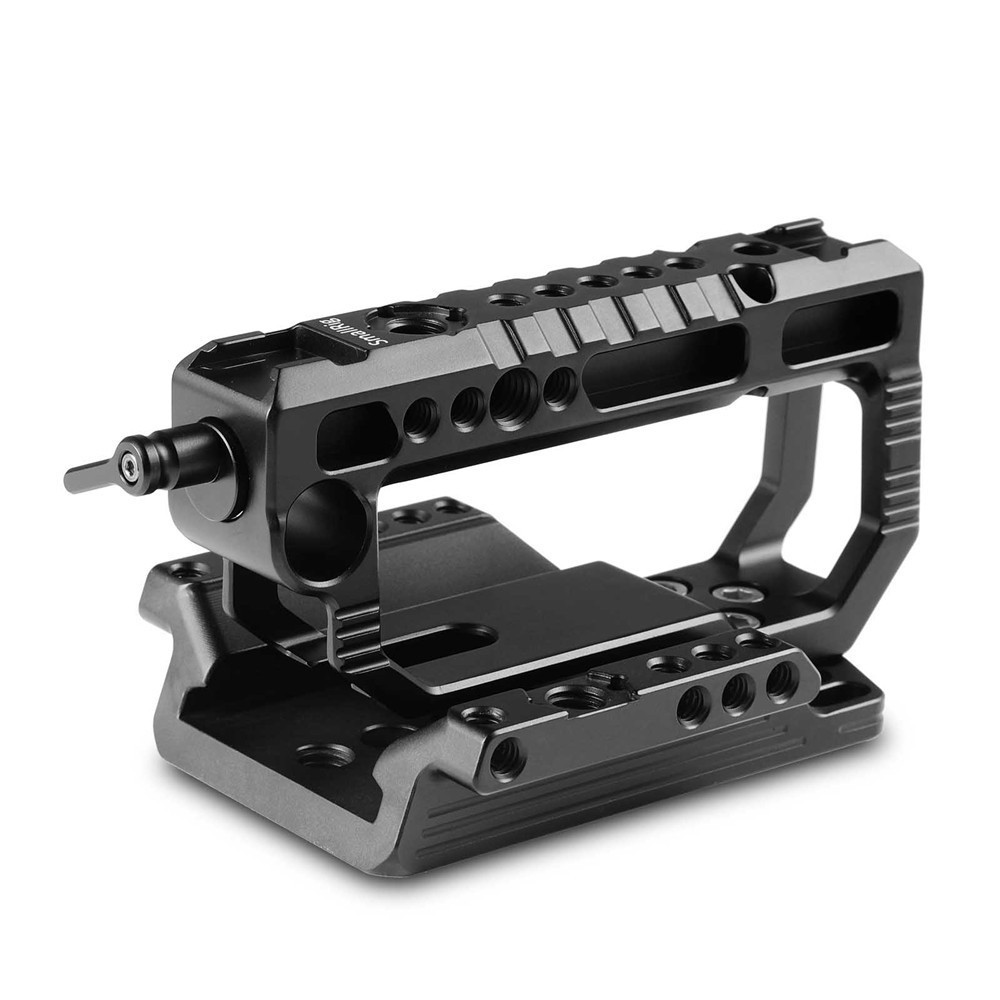

SmallRig Top Handle Kit for Blackmagic Ursa Mini/ Mini Pro 2029 SmallRig Top Handle Kit 2029 is e*clusively designed for Blackmagic URSA Mini/ Mini Pro. It includes Top Plate 1958 and Top Handle 2000.
Top Plate 1958: the top plate could attach to the top of camera via three 1/4" screws on the one end, and it is also compatible with EVF. The top plate could attach Top Handle 2000 firmly via three 1/4" screws on the other end. An original 3/8" screw is used to lock the EVF and top plate tight.

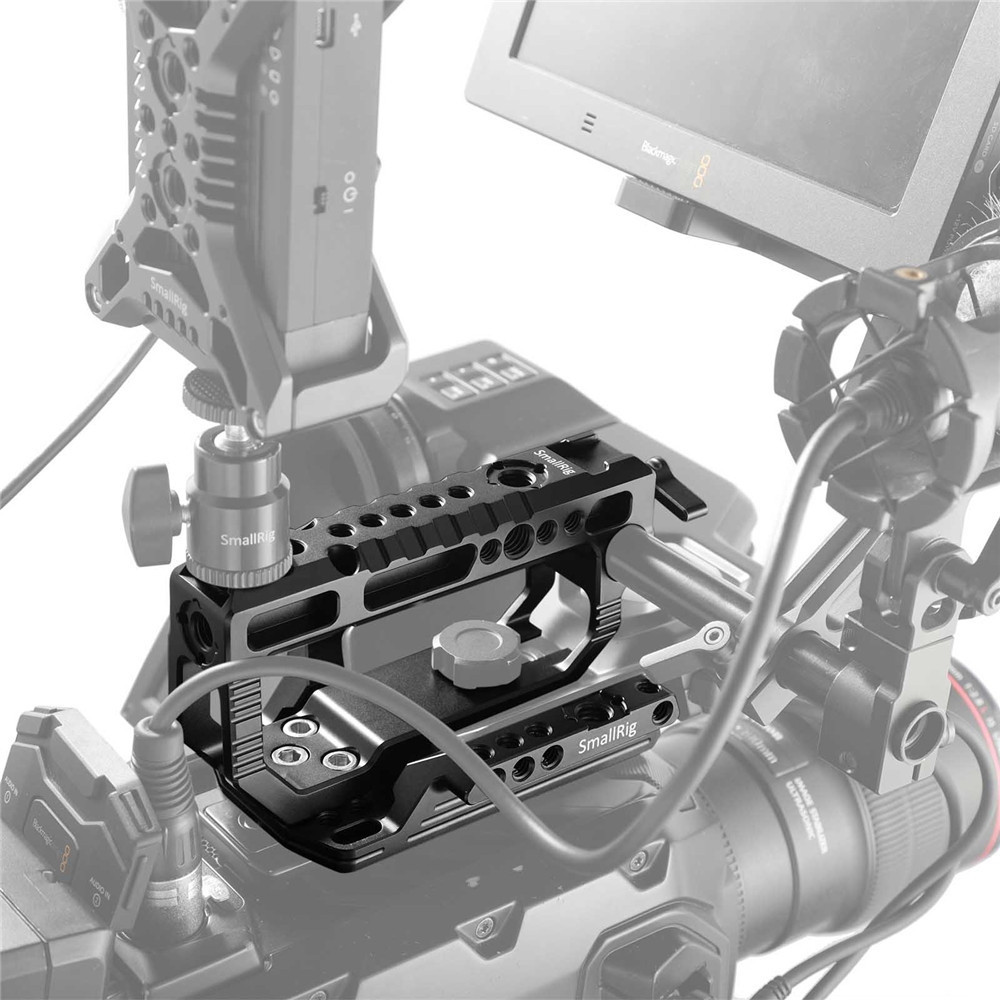

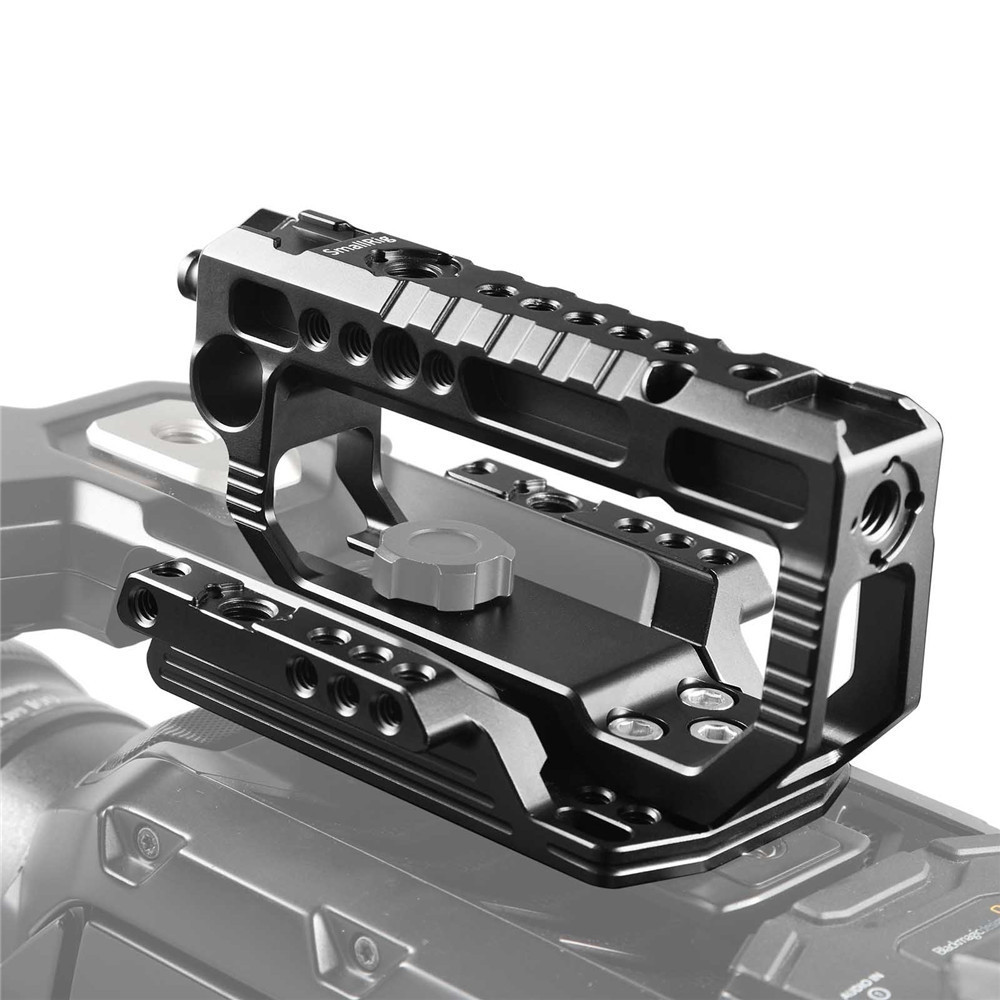

Top Handle 2000: the rod clamp on the right side could attach to 15mm rod for more accessories, such as NATO Rail 1910 to connect EVF support and then monitor. M5 wingnut is utilized to lock rod clamp tight. Both ends of handle are equipped with cold shoes, which could attach microphone or attach Magic Arm 1497 for monitor. Arri locating points could attach Anti-rotation Magic Arm Adapter 1978 or attach Magic Arm 2026 for monitor. It can be locked tight with Top Plate 1958 via three 1/4" screws. It is also equipped with an array of 1/4" and 3/8" threaded holes for DIY options. An original EVF screw of Blackmagic URSA Mini is used to lock Top Plate 1958 and original EVF as well. Top Handle 2000 fits original EVF perfectly.
Key Features
1. It is compatible with original Blackmagic URSA Mini EVF.
2. Rod clamp could be attached to 15mm rod for more accessories.
3. Cold shoes could attach microphone or attach Magic Arm 1497 for monitor.
4. Arri locating points could attach Anti-rotation Magic Arm Adapter 1978 for monitor.
5. It is equipped with 1/4" and 3/8" threaded holes for DIY options.
Work With
Blackmagic URSA Mini/Mini Pro

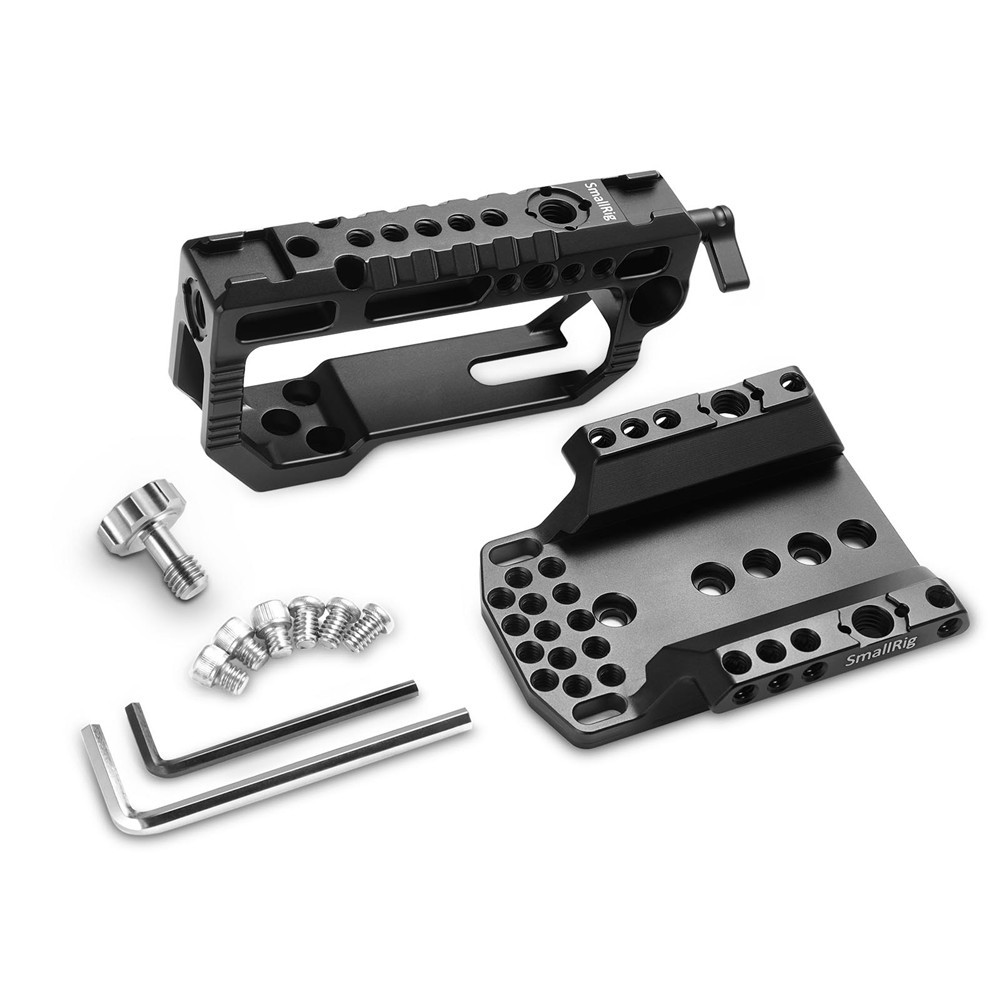

Packing List
1 x Top Handle 2000
1 x Top Plate 1958
2 x Hex Spanner
6 x 1/4" Screw
1 x 3/8" Thumb Screw
Technical Data
Product Dimensions: 146 x 88 x 75mm
Net Weight: 409g
Package Size: 183 x 100 x 60mm
Material(s): Aluminum Alloy
