SmallRig Top Handle Extension Rig 4067

SmallRig Top Handle Extension Rig 4067

1. Dedicated extension rig for Top Handle 1955 & 1984.

2. 68mm long for added space for grip and accessory attachment.

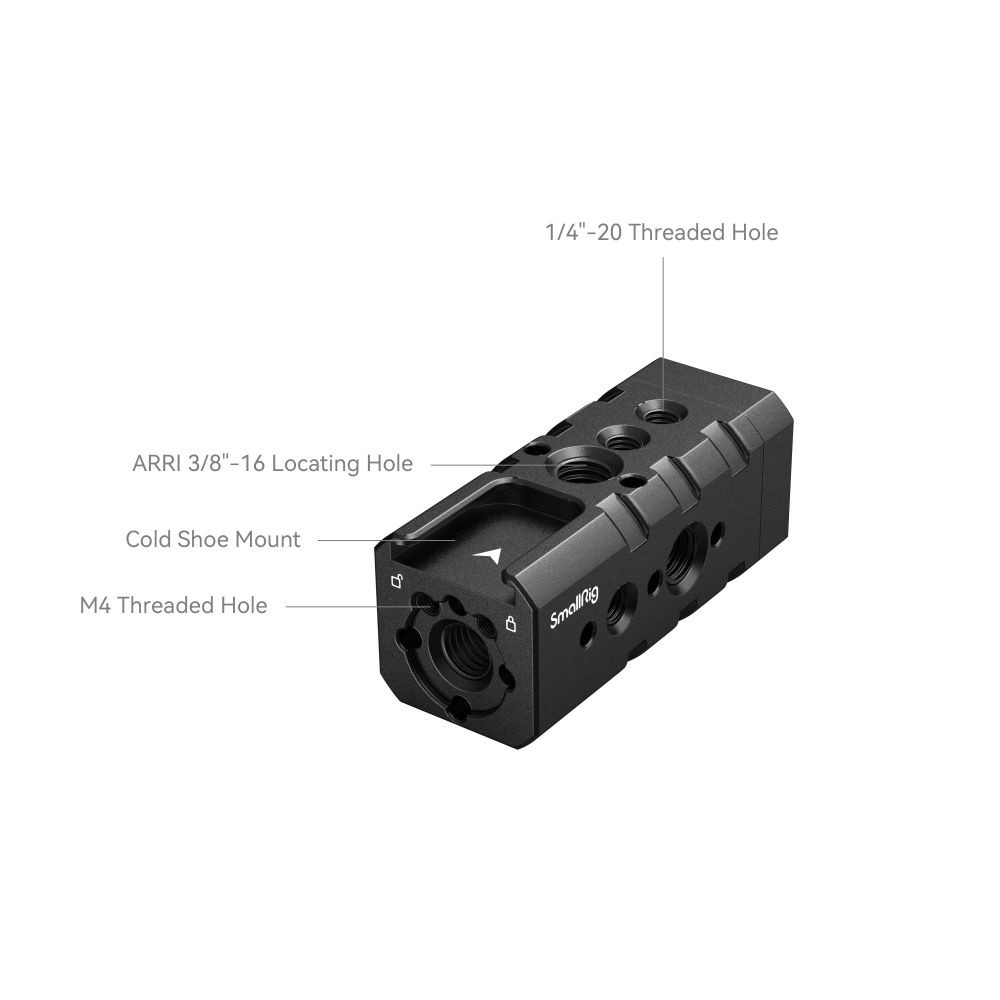

3. Cold shoe  mount, ARRI 3/8"-16 locating holes,  and 1/4"-20 threaded holes for the microphone, LED light, monitor mount, magic arm, etc.

Sku 4067
EAN 6941590011790

Availability: Discontinued Item

This product has been viewed 669 times

Product Description

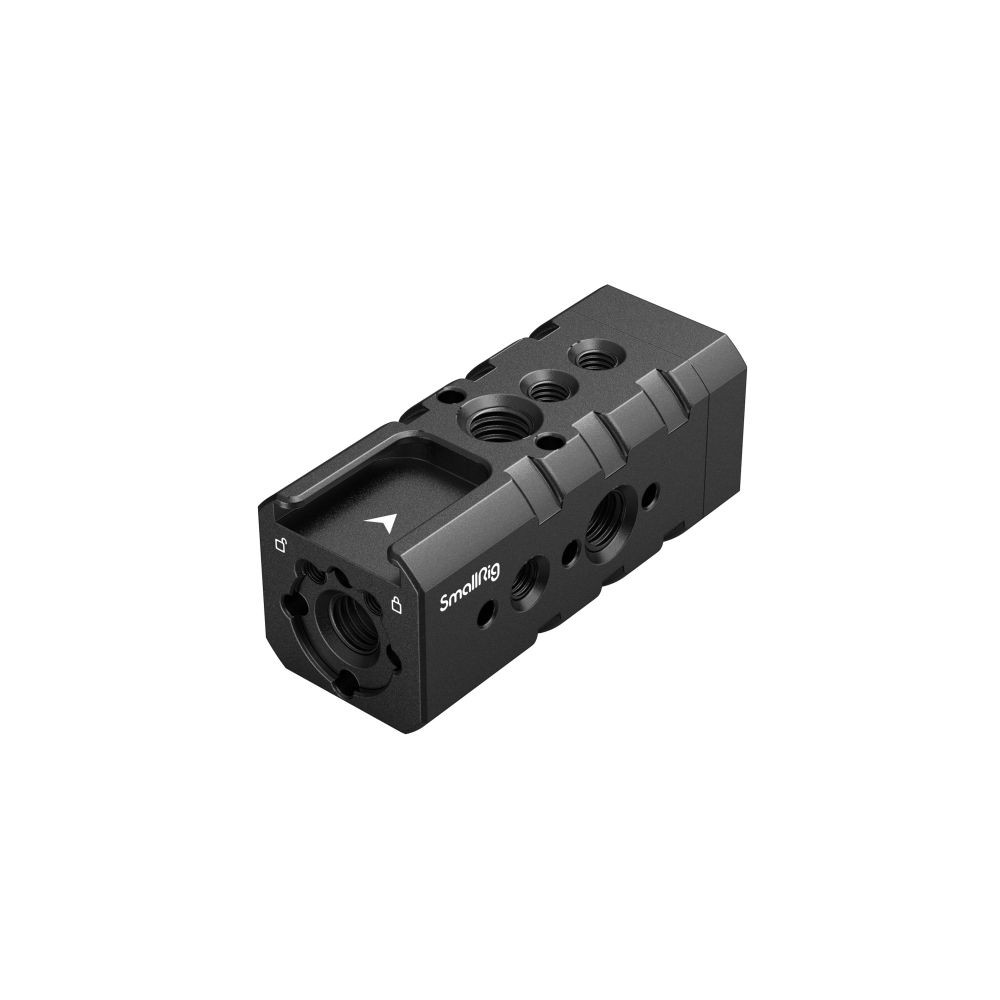

SmallRig Top Handle Extension Rig 4067

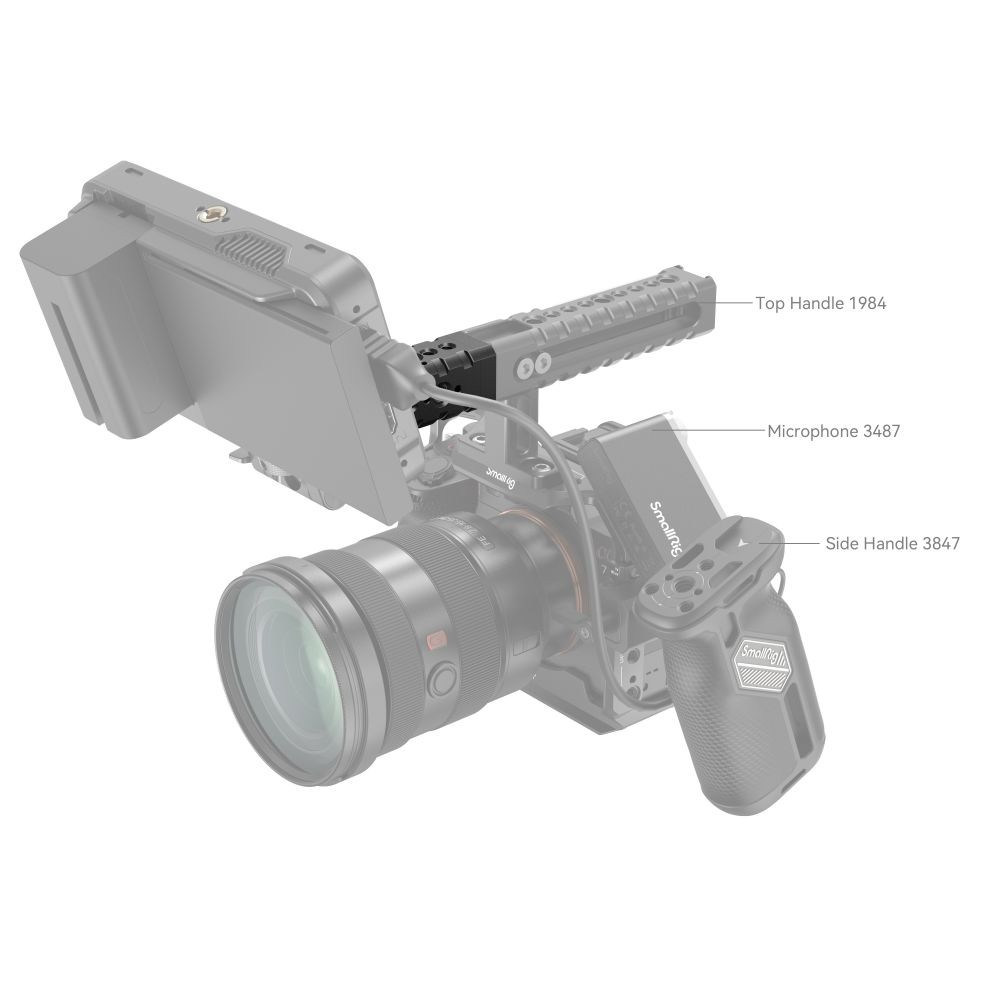

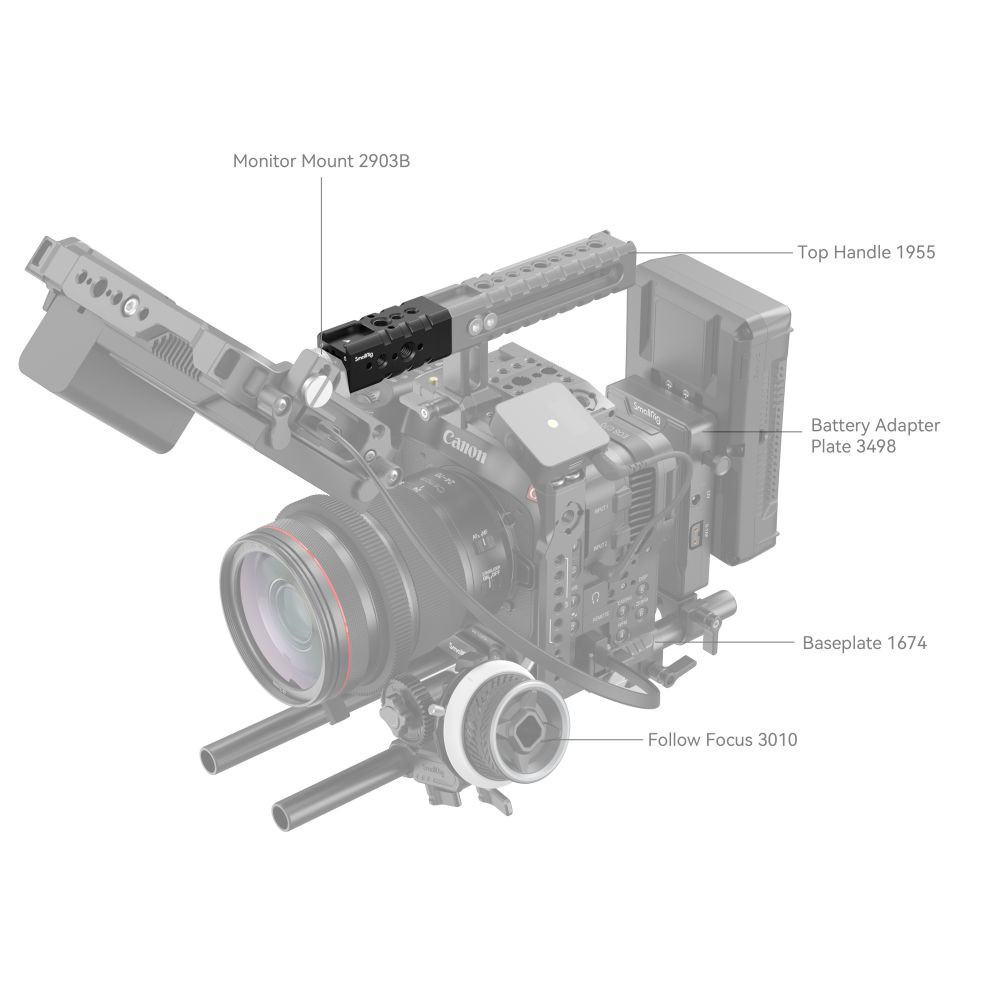

SmallRig Top Handle Extension Rig 4067 is designed especially for Top Handle 1955 & 1984 to add grip space and accessory mount. It secures the front of the handle through an ARRI locating screw tightened by the built-in spanner. Among its mounting points, the three ARRI 3/8"-16 locating holes support Monitor Mount 2903B and Magic Arm 2115 for the monitor; the two M4 threaded holes at the front connect 15mm Rod Clamp 1995 for monitor, viewfinder; the top cold shoe fits Monitor Mount 2905B, microphone and LED light; 1/4"-20 threaded holes and 1/4"-20 locating holes are suited to Magic Arm 2070B & 3873 for monitor, etc.

Note: Attaching this item to handles other than Top Handle 1955 & 1984 may cause unevenness and tilt.

Work With

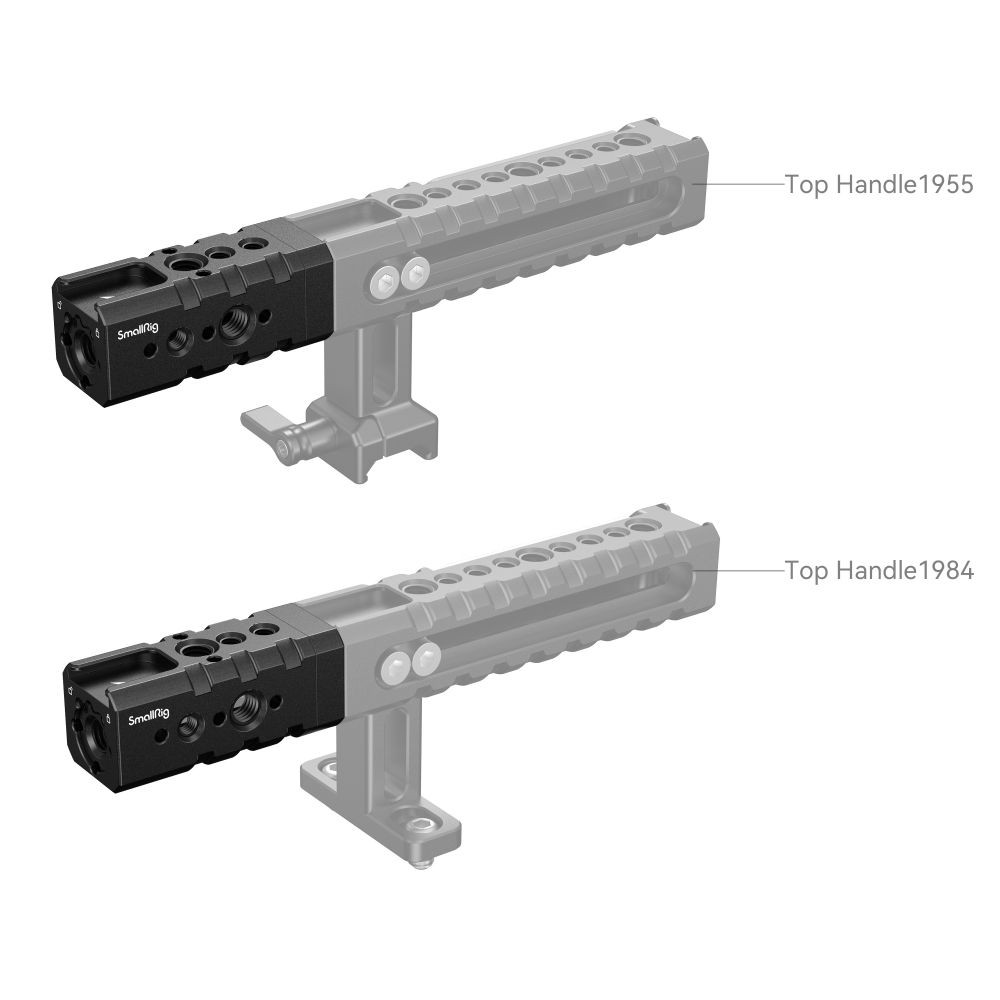

Top Handle 1955 & 1984

Packing List

1 x Extension

Technical Data

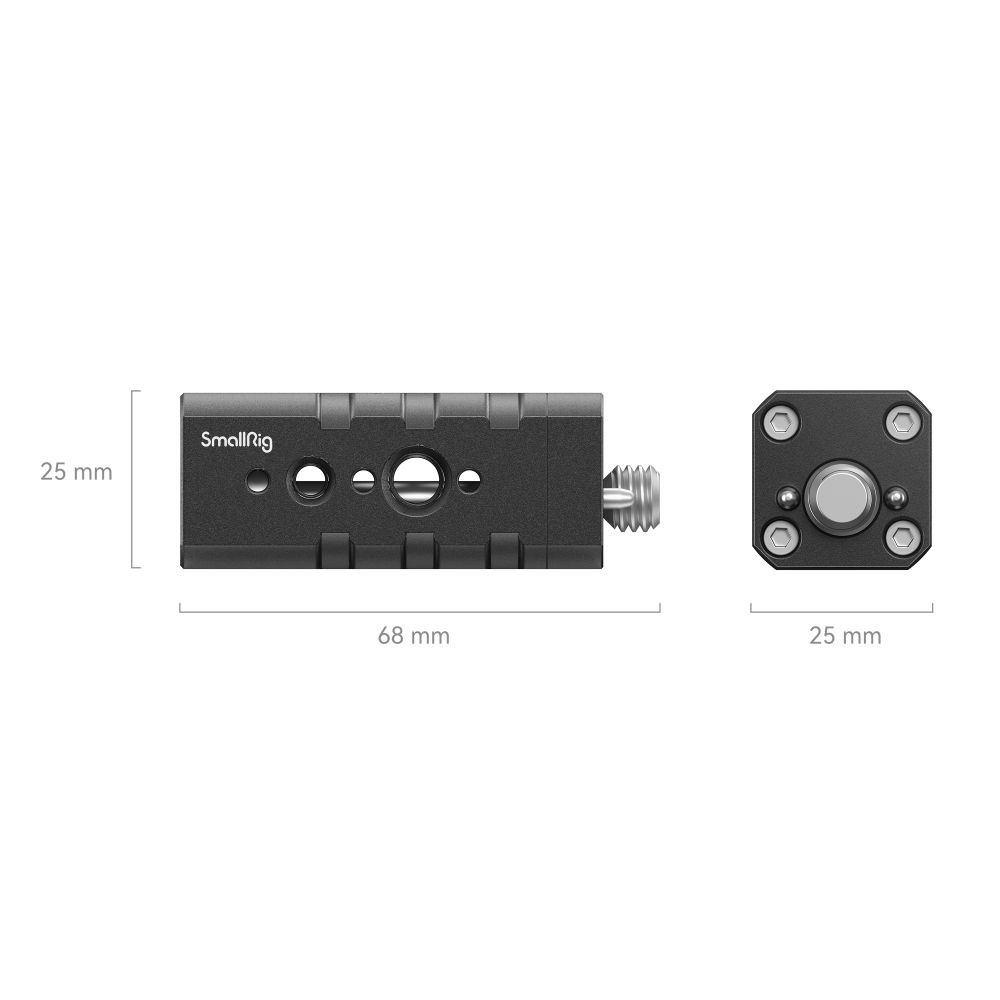

Product Dimensions: 68 × 25 × 25 mm

Package Dimensions: 105 × 96 × 33 mm

Product Weight: 82g ± 5g

Package Weight: 112g ± 5g

Material(s): Aluminum Alloy, Stainless Steel
