SmallRig Support Kit for Vertical Shooting 6316

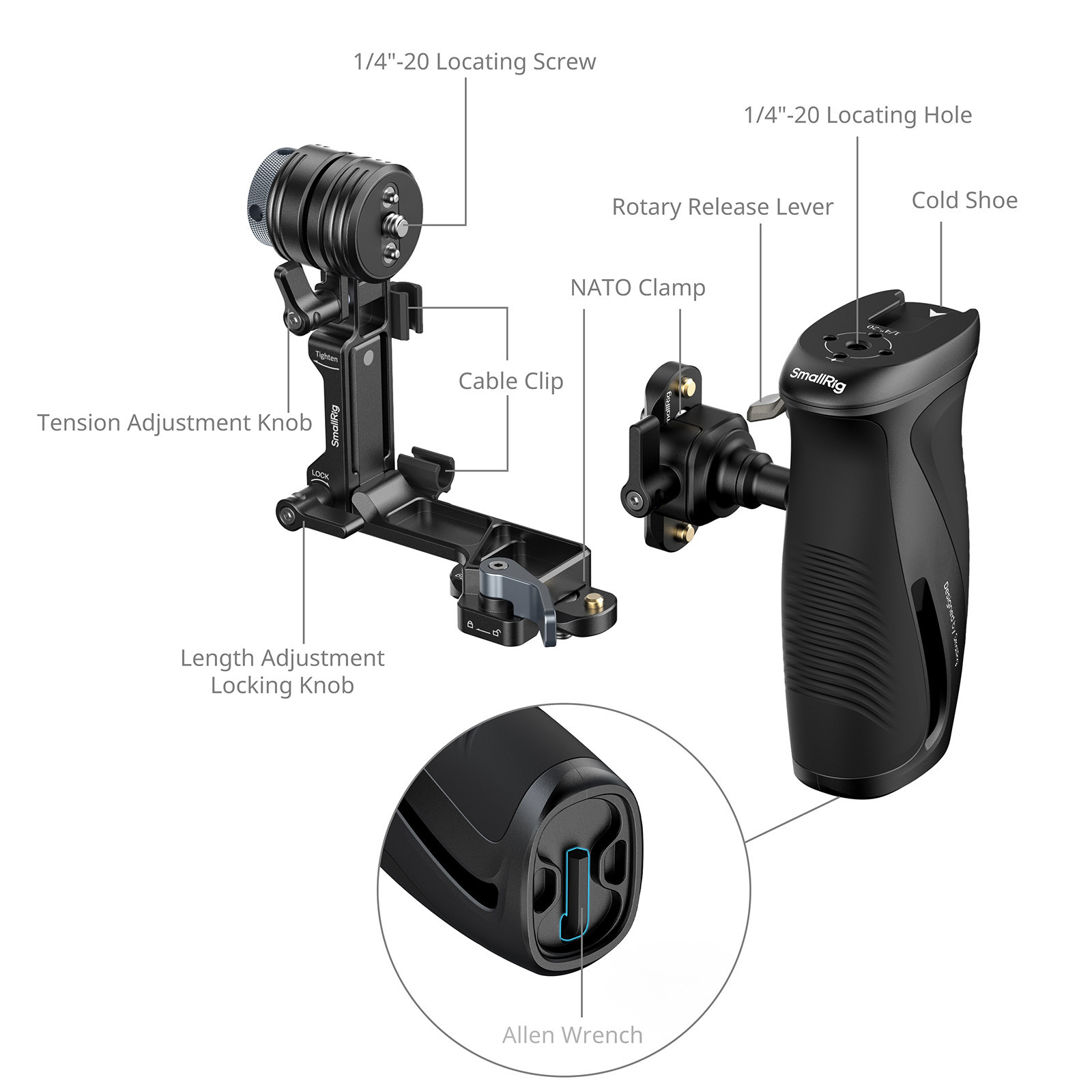

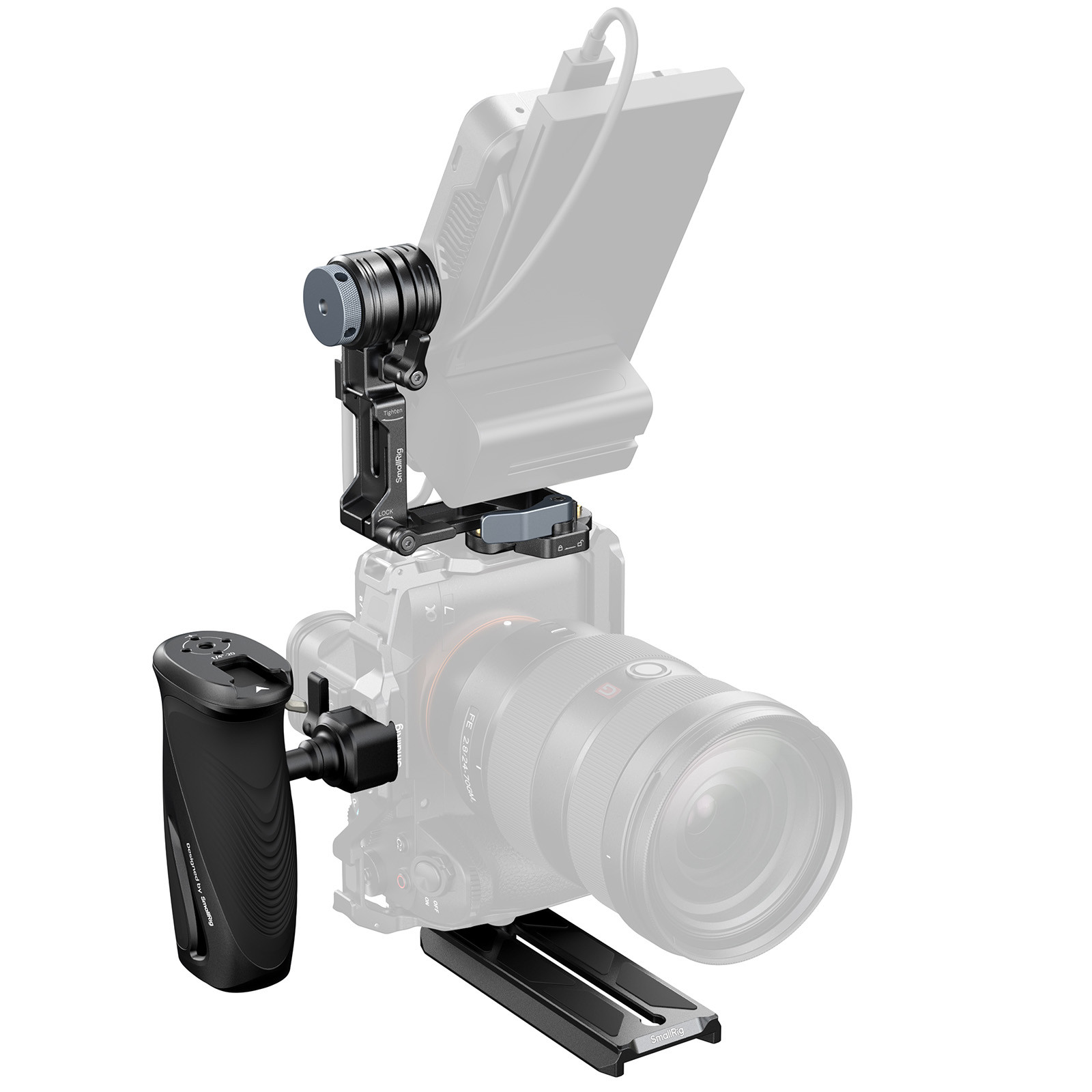

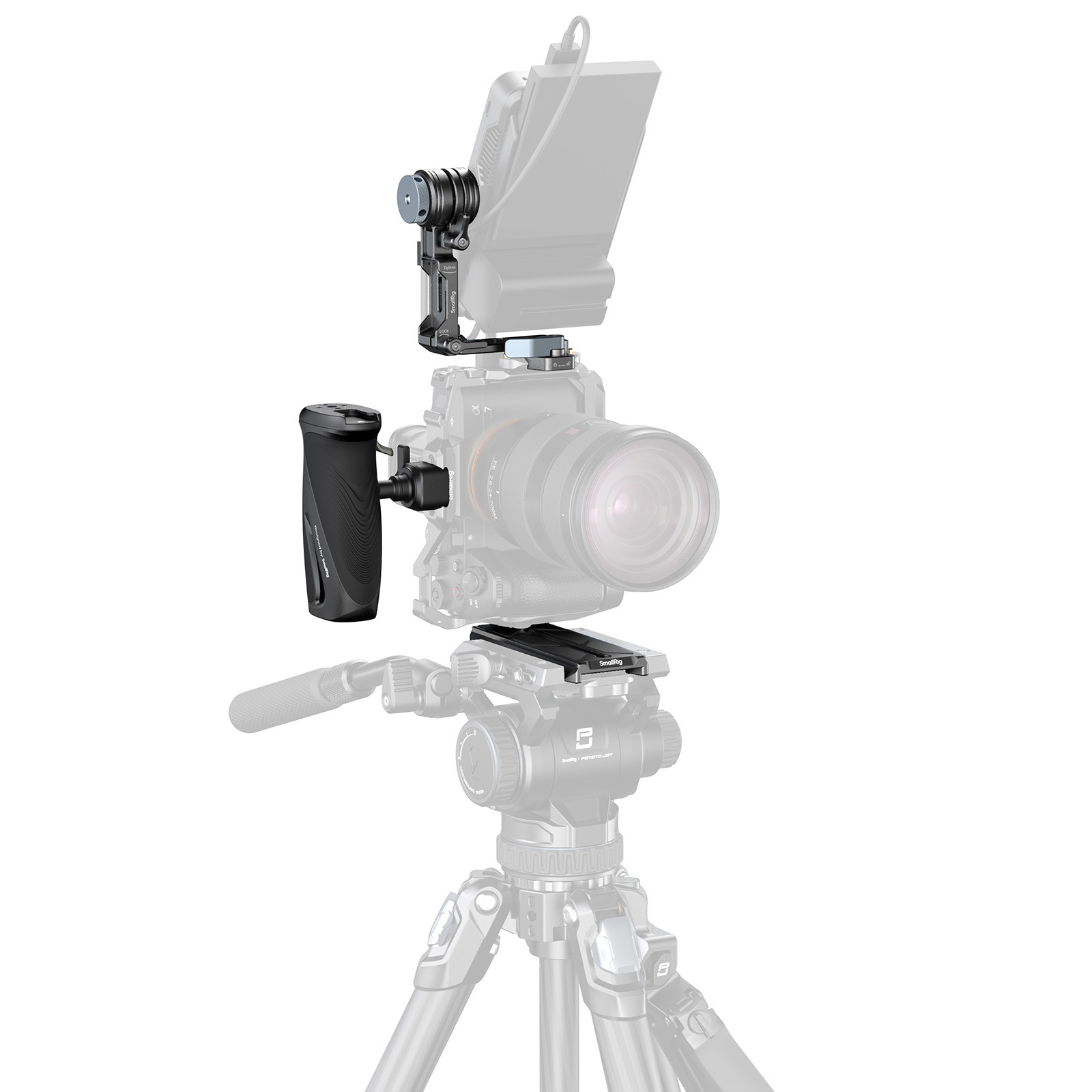

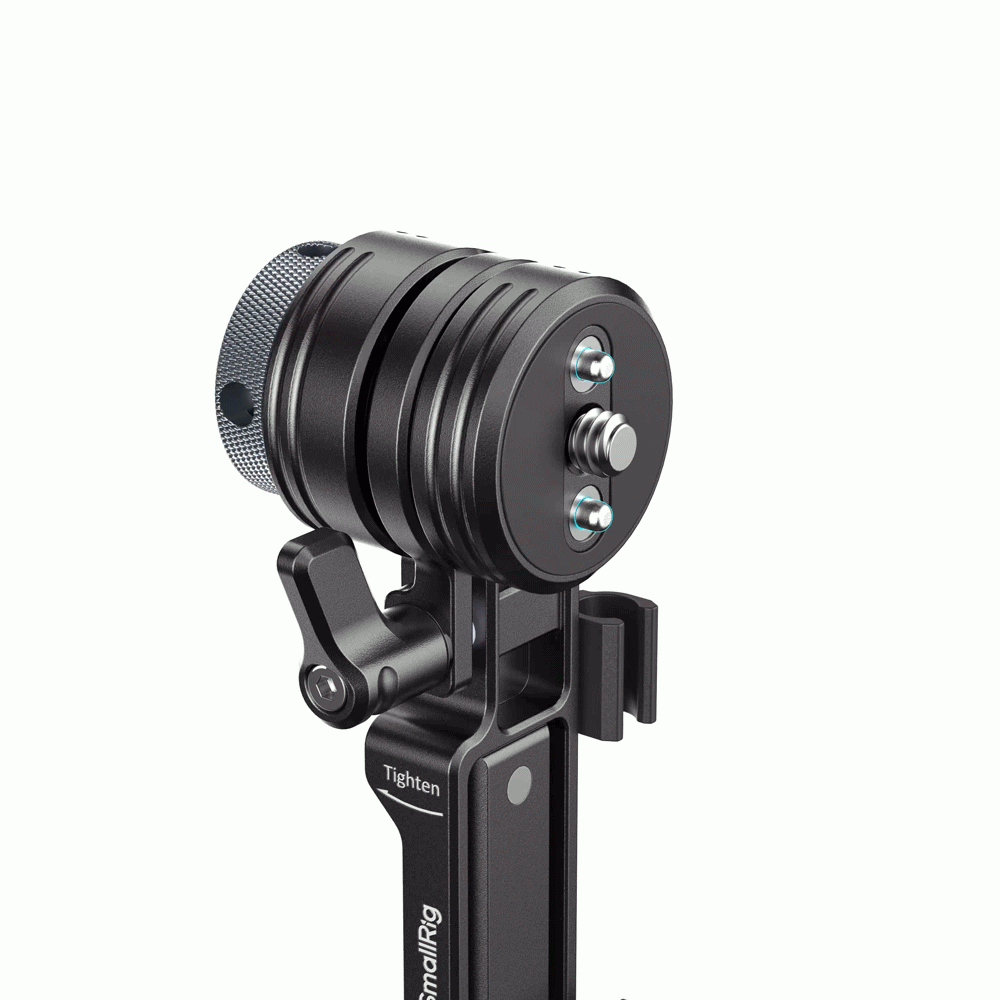

SmallRig Support Kit for Vertical Shooting 6316 is designed to address monitor mounting, handheld camera movement, and tripod installation needs during vertical shooting. The monitor is secured with a retractable 1/4"-20 locating screw for stable, anti-twist mounting. Once installed, it allows quick one-handed tilt adjustment for easier operation.
The side handle features an ergonomic grip design and a one-press rotating mechanism for a comfortable grip and smoother camera movement. The top includes a cold shoe mount and a 1/4"-20 locating hole for attaching accessories such as microphones and magic arms.

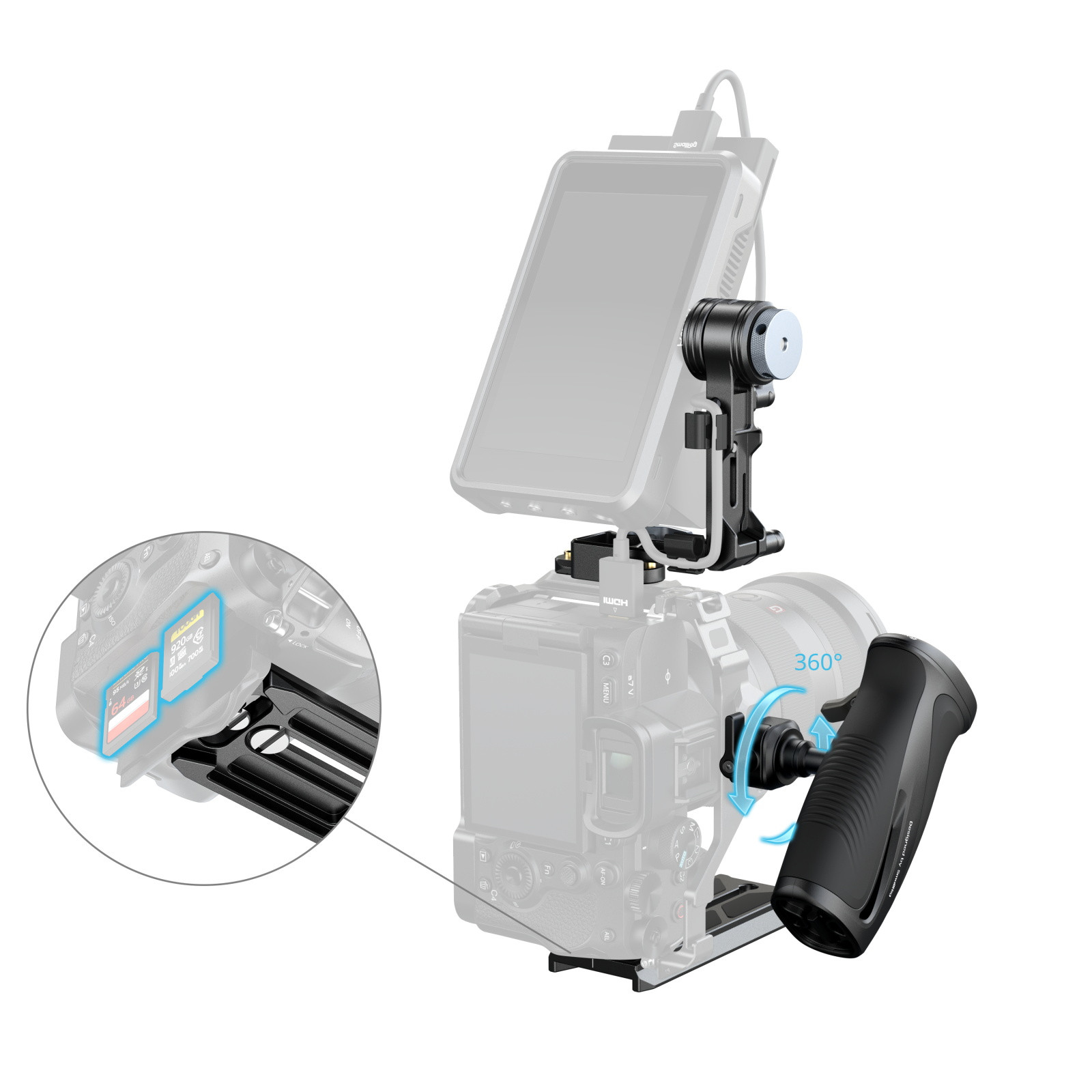

Both the side handle and monitor support use a NATO clamp for quick installation on accessories equipped with NATO rails. The included mounting plate can be secured with two 1/4"-20 screws for stable vertical shooting with full card access.
Two included cable clips help organize cables such as HDMI and dummy battery cables, keeping the setup tidy and helping prevent cable strain from pulling. The included NATO rails can be mounted to accessories with a 1/4"-20 threaded hole for broader compatibility.

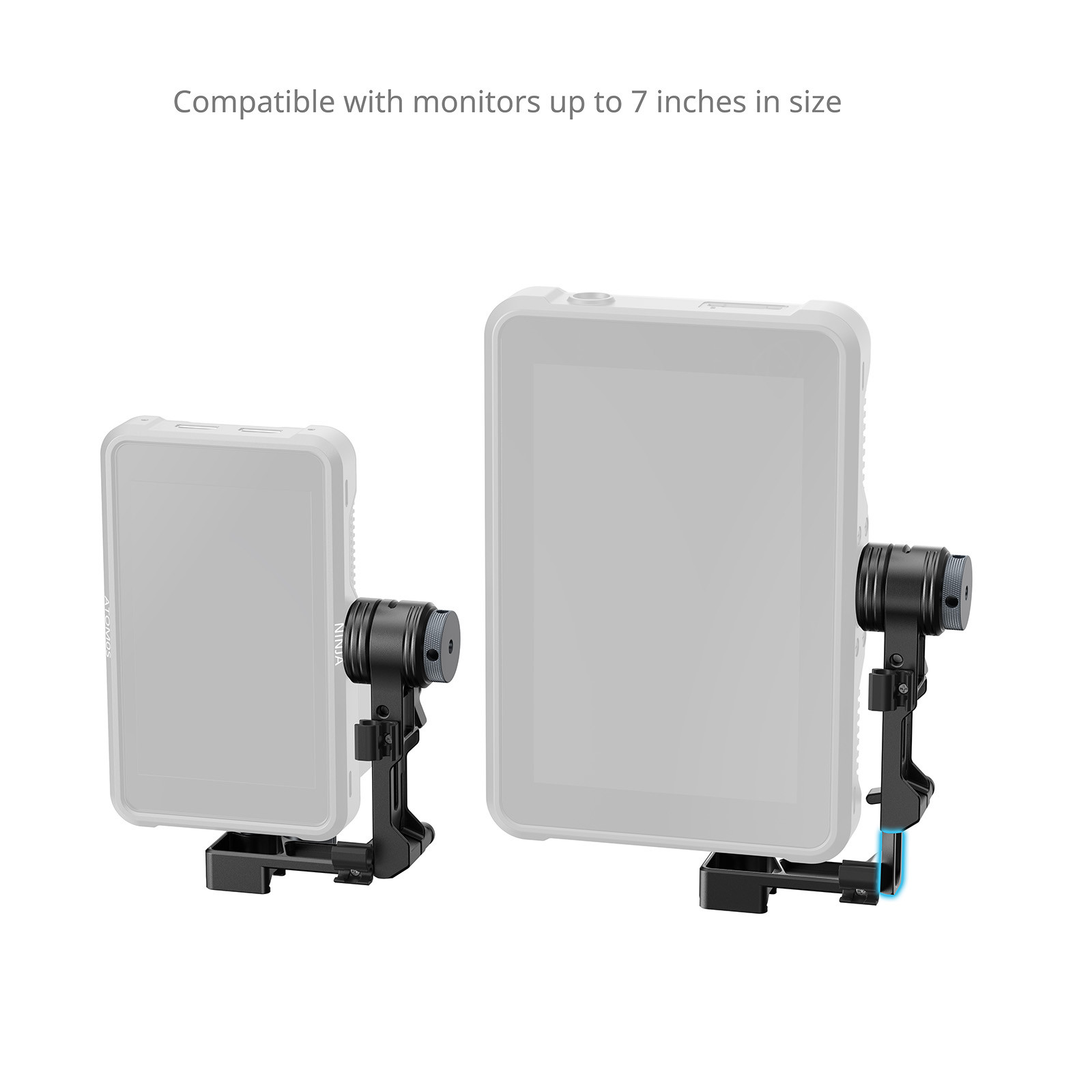

With adjustable height and damping, the monitor support is compatible with most monitors up to 7 inches on the market.
Note:
1. This kit must be used with a cage, preferably a SmallRig cage.
2. Before purchase, please confirm that your cage includes the required mounting interfaces for the best vertical shooting experience.

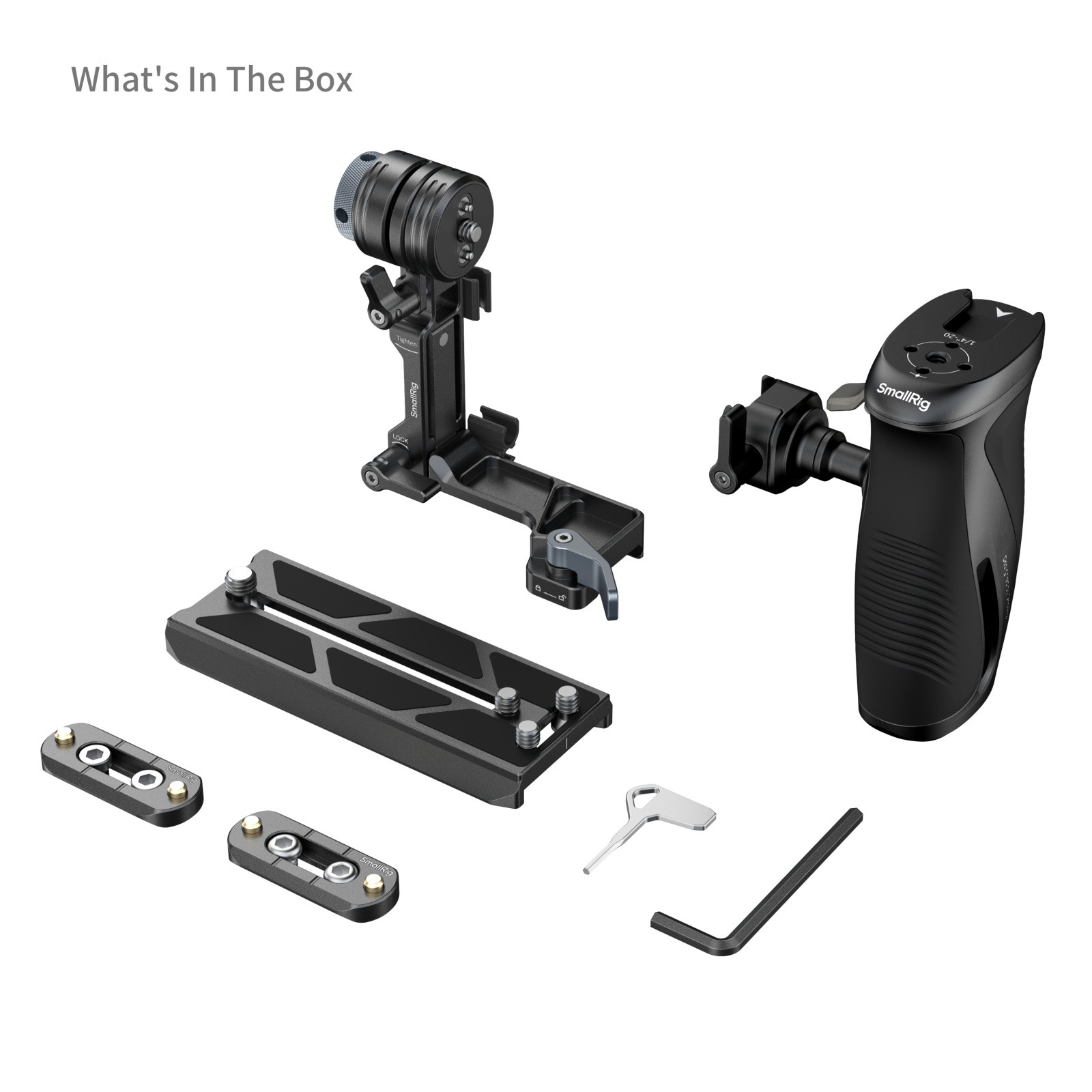

Packing List
Monitor Support × 1
Side Handle × 1
Mount Plate × 1
NATO Rail × 2
Allen Wrench × 1
Dual-Head Wrench × 1
User Manual × 1
Technical Data

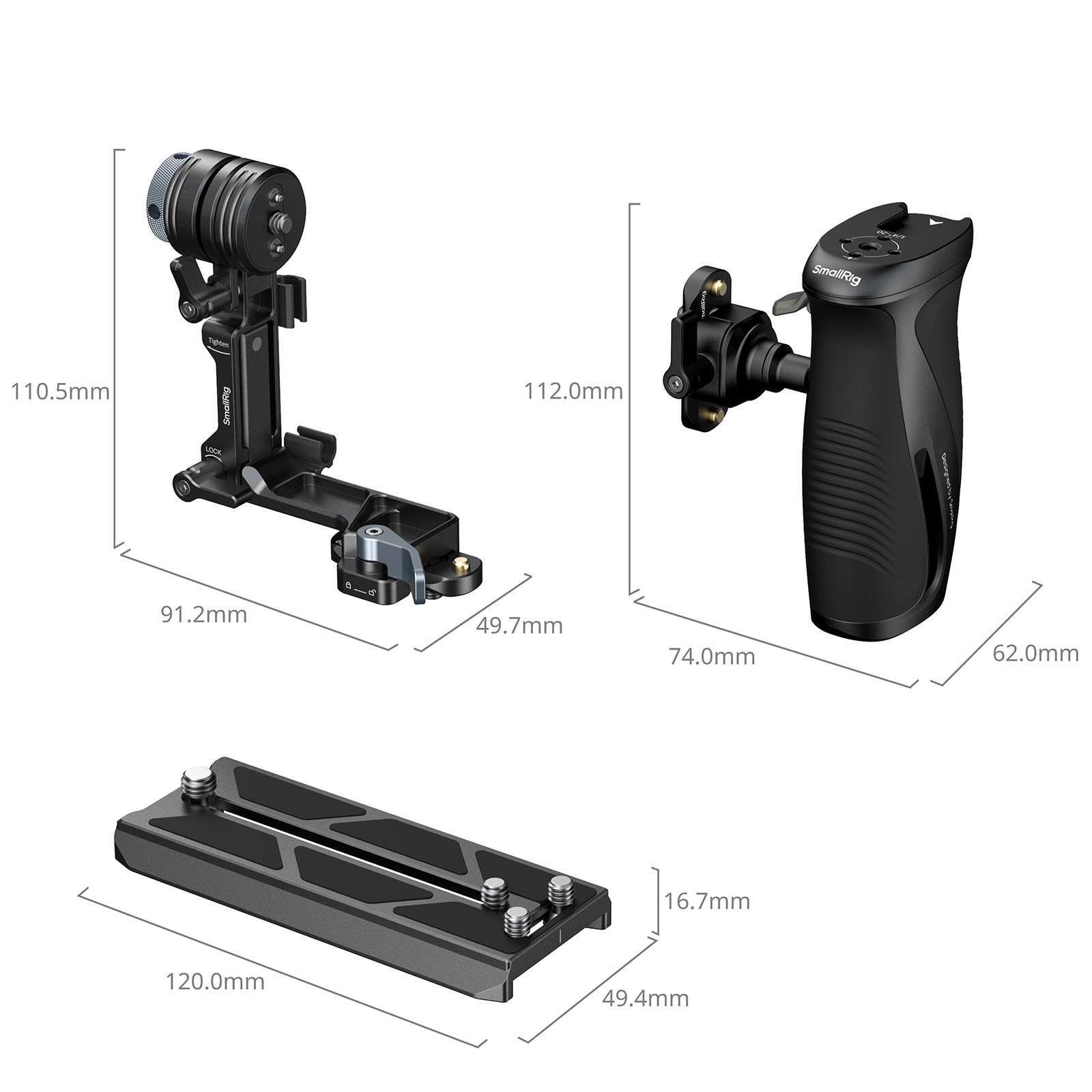

Product Dimensions: 110.5 × 91.2 × 49.7mm / 4.4 × 3.6 × 2.0in
Package Dimensions: 180.0 × 138.0 × 67.0mm / 7.1 × 5.4 × 2.6in
Product Weight: 566.0 ± 5.0g / 20.0 ± 0.2oz
Package Weight: 661.0 ± 5.0g / 23.3 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
