SmallRig Split Filter Kit for DJI Osmo Pocket 4P 6476

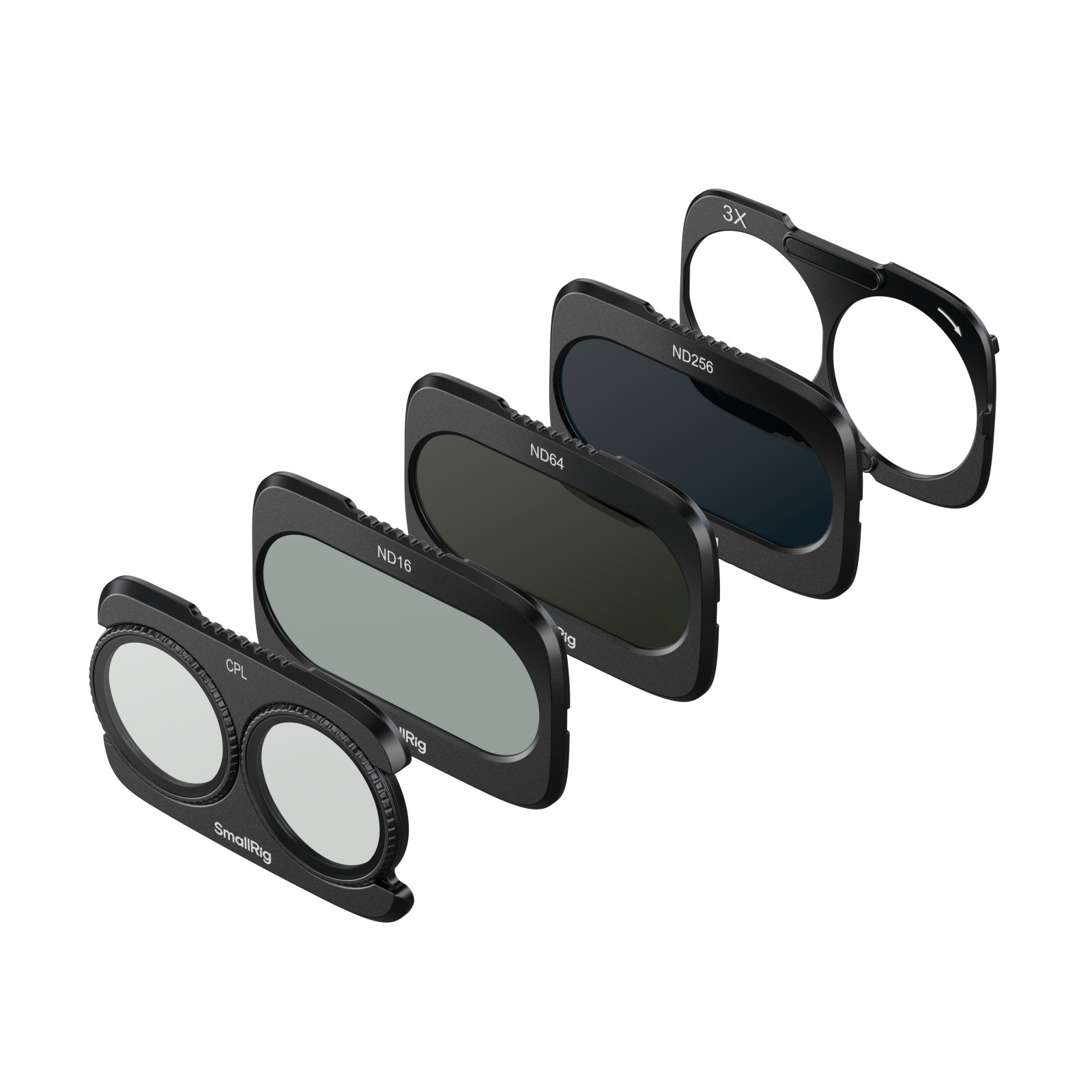

SmallRig Split Filter Kit for DJI Osmo Pocket 4P 6476 is designed for DJI Osmo Pocket 4P. With multi-layer coatings, the filters help reduce light across different wavelengths while maintaining accurate color reproduction. The kit includes an ND16 filter, ND64 filter, ND256 filter, CPL filter, base, and cleaning cloth. Each filter is made of optical glass for reliable optical performance and added durability. The filters also help reduce stray light and maintain image clarity.

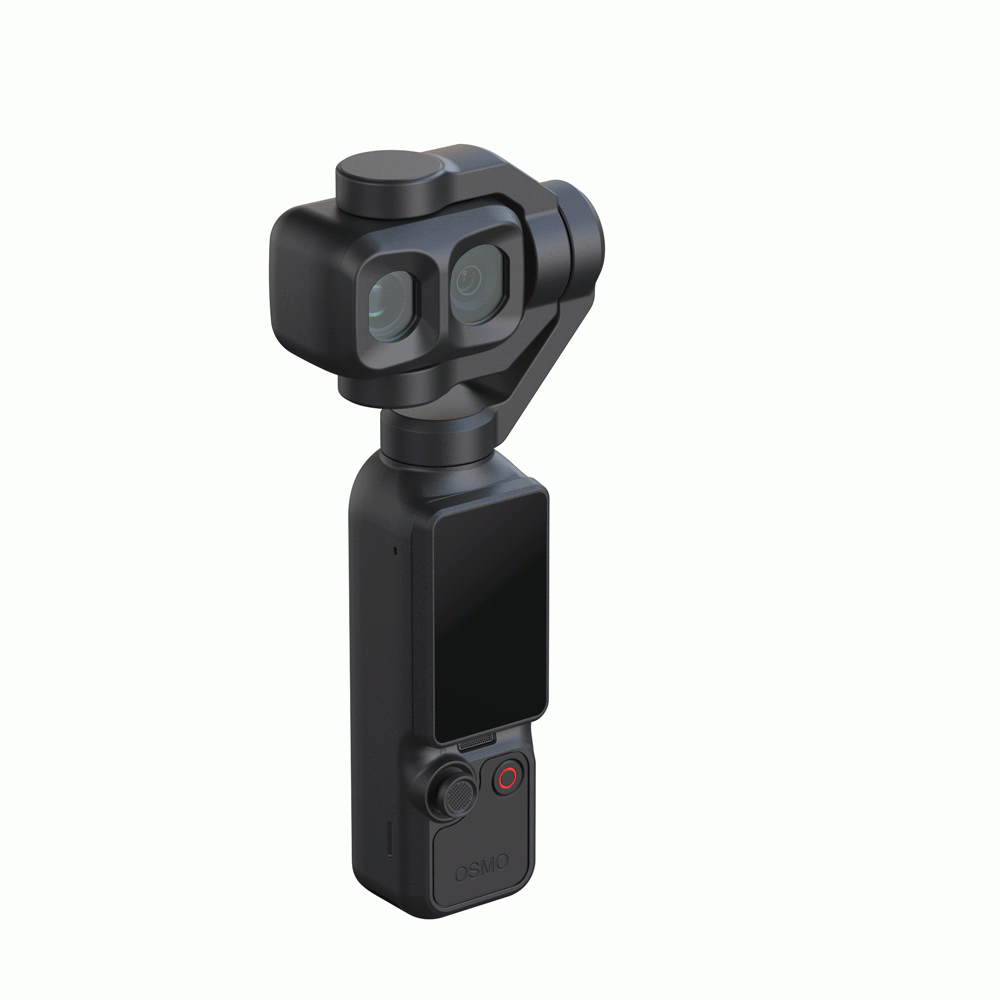

Before installation, power off the device and remove the original filter. Install the filter base in the correct orientation, then attach the desired filter to the base. The kit supports stacking up to two filters during shooting. For easier adjustment, an adjustable filter, such as a CPL or VND filter, should be paired with a non-adjustable filter, such as a Black Diffusion or ND filter. Only one filter should be installed when powering the device on or off. Two stacked filters are recommended only while the device is already powered on. Before turning the device on or off, remove the extra filter to help prevent possible gimbal damage.
ND16 / ND64 / ND256 options provide precise light control to help prevent overexposure in bright daylight. They also enable silky-smooth water effects and slow-shutter time-lapse capture.
The CPL filter reduces unwanted reflections from water, glass, and non-metallic painted surfaces, making details such as underwater subjects and display items behind glass easier to capture.
The included cleaning cloth helps keep the filters clean during daily use.
Other SmallRig products for the DJI Osmo Pocket 4P include 6477, 6658, 6648, and 6649.
Note:
1. Power off the device before installation, and install the dedicated filter base in the correct orientation.
2. Stack no more than two filters at a time.
3. Do not use VND and CPL filters together.
4. An adjustable filter, such as a CPL or VND filter, should be paired with a non-adjustable filter, such as a Black Diffusion or ND filter.
5. Install only one filter when powering the device on or off. Use two stacked filters only while the device is already powered on.

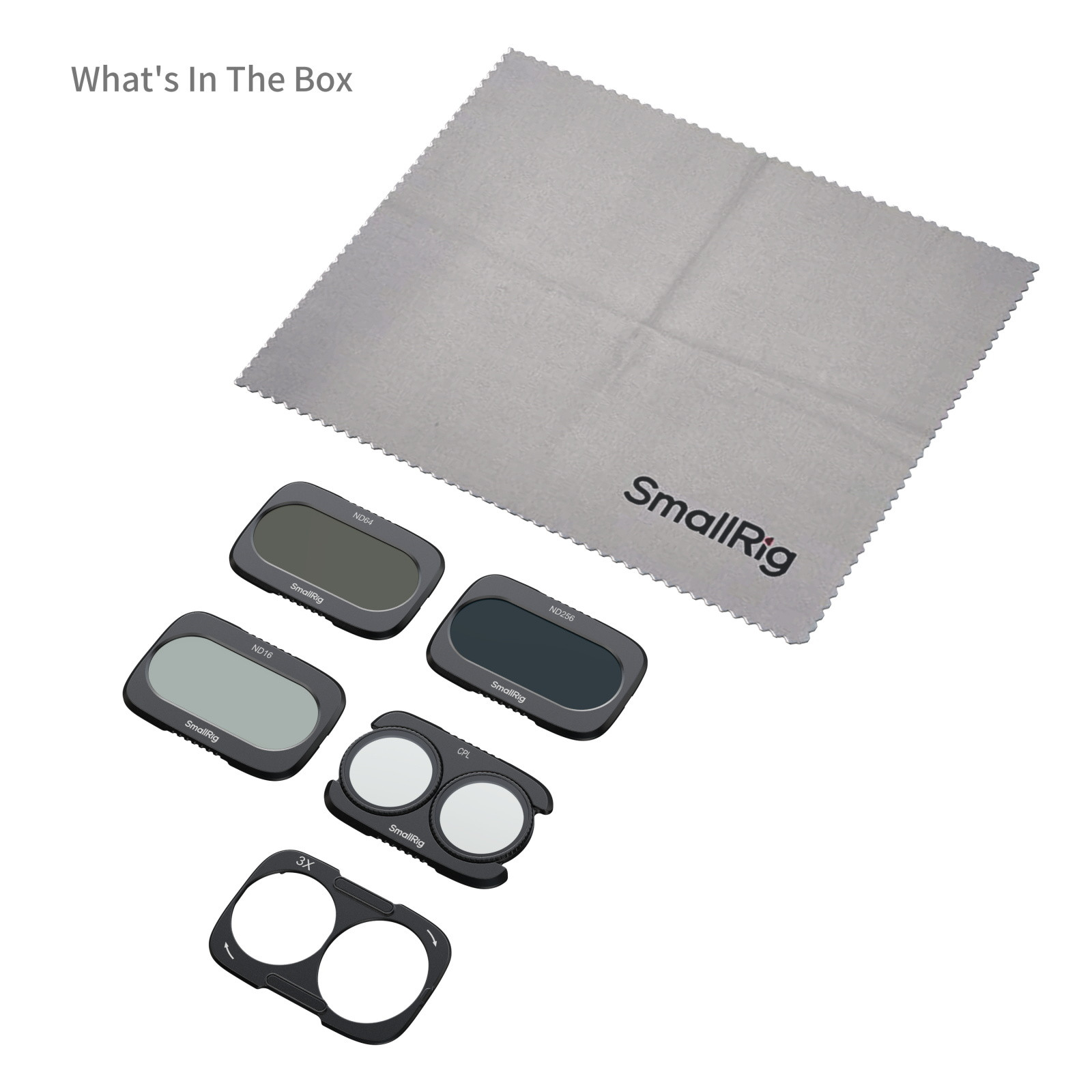

Packing List
ND16 Filter × 1
ND64 Filter × 1
ND256 Filter × 1
CPL Filter × 1
Base × 1
Cleaning Cloth × 1
Technical Data

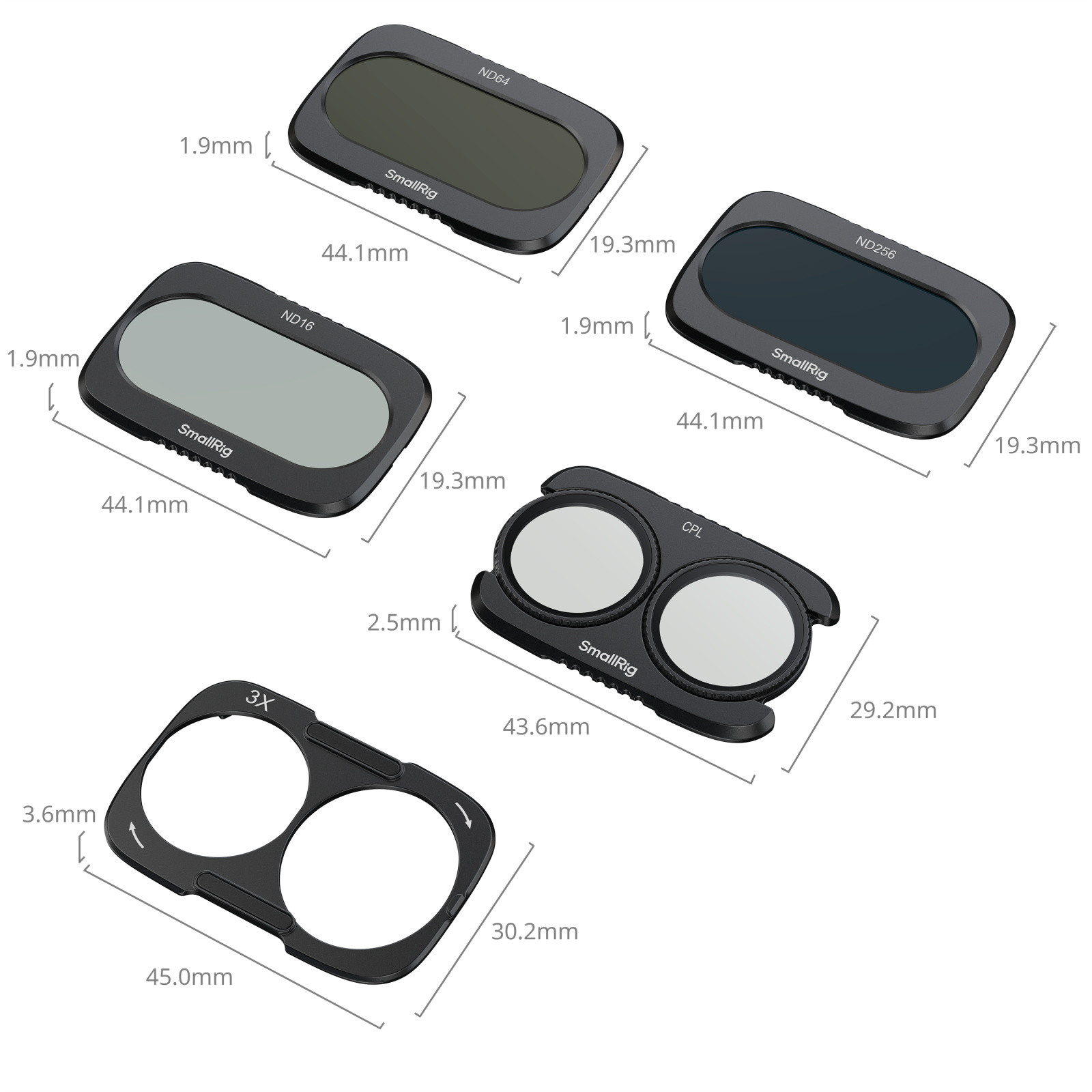

Base Dimensions: 45.0 × 30.2 × 3.6mm / 1.8 × 1.2 × 0.1in
Filter Dimensions (ND): 44.1 × 19.3 × 1.9mm / 1.7 × 0.8 × 0.1in
Filter Dimensions (CPL): 43.6 × 29.2 × 2.5mm / 1.7 × 1.1 × 0.1in
Package Dimensions: 111.0 × 110.0 × 18.0mm / 4.4 × 4.3 × 0.7in
Product Weight: 100.7 ± 5.0g / 3.6 ± 0.2oz
Package Weight: 117.9 ± 5.0g / 4.2 ± 0.2oz
Material(s): Glass, Aluminum Alloy
