SmallRig Universal Shoulder Rig (Compatible with Sony VCT-14 Plate) 2837C

SmallRig Universal Shoulder Rig (Compatible with Sony VCT-14 Plate) 2837C

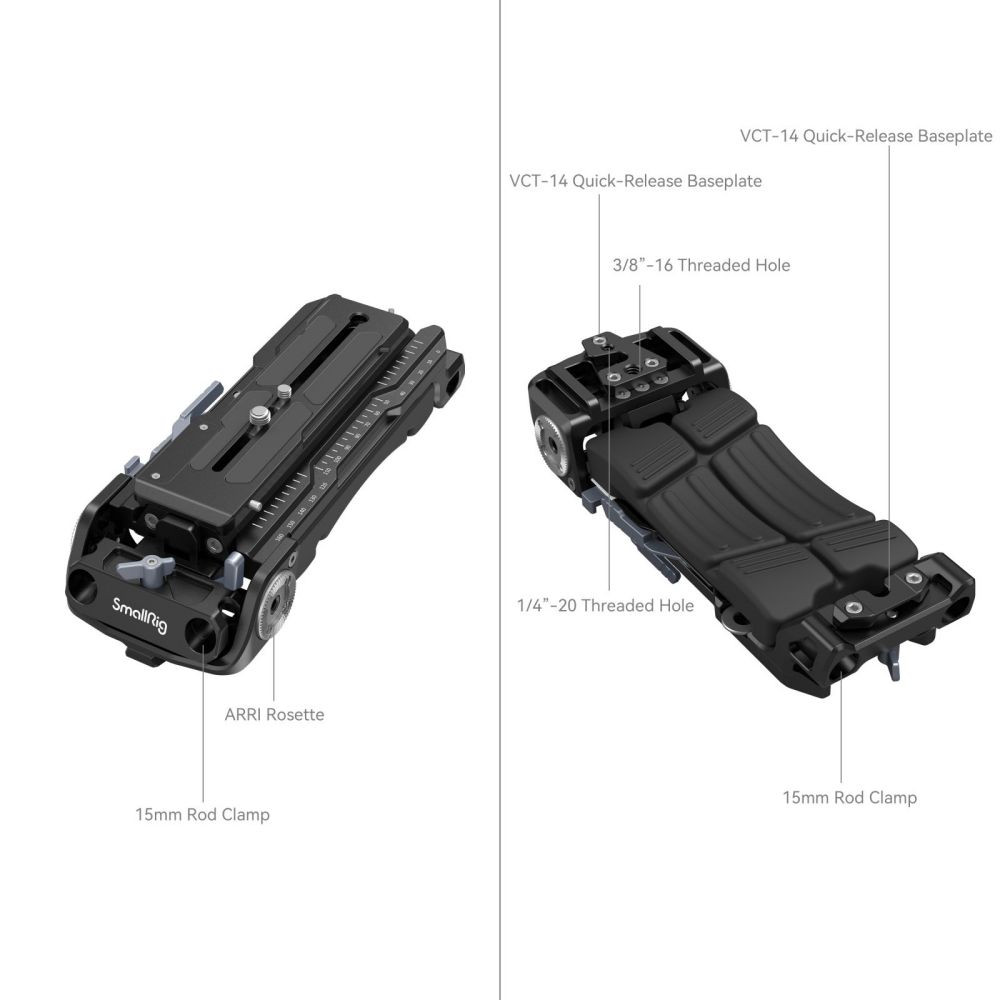

1. Designed for Sony VCT-14 quick release baseplate.

2. ARRI rosettes mounts.

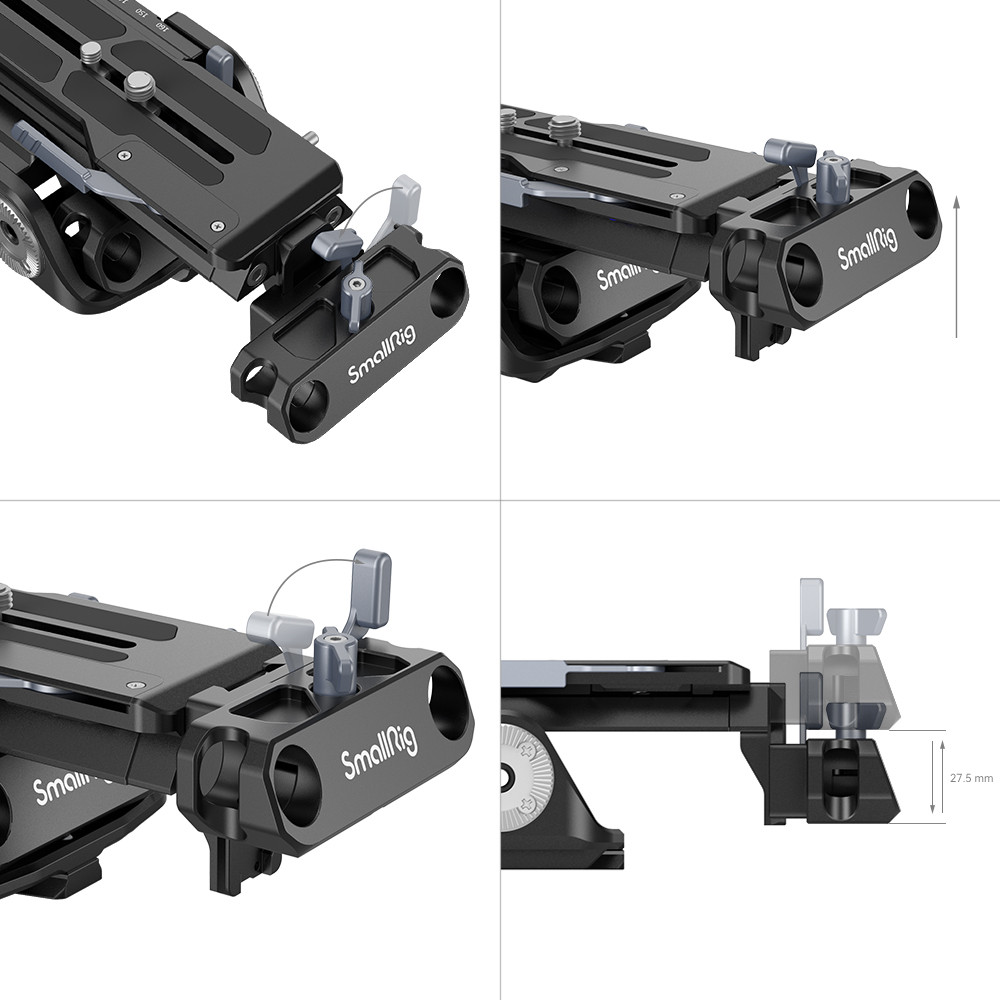

3. 15mm LWS rod systems, 27mm front clamp vertical adjustment.

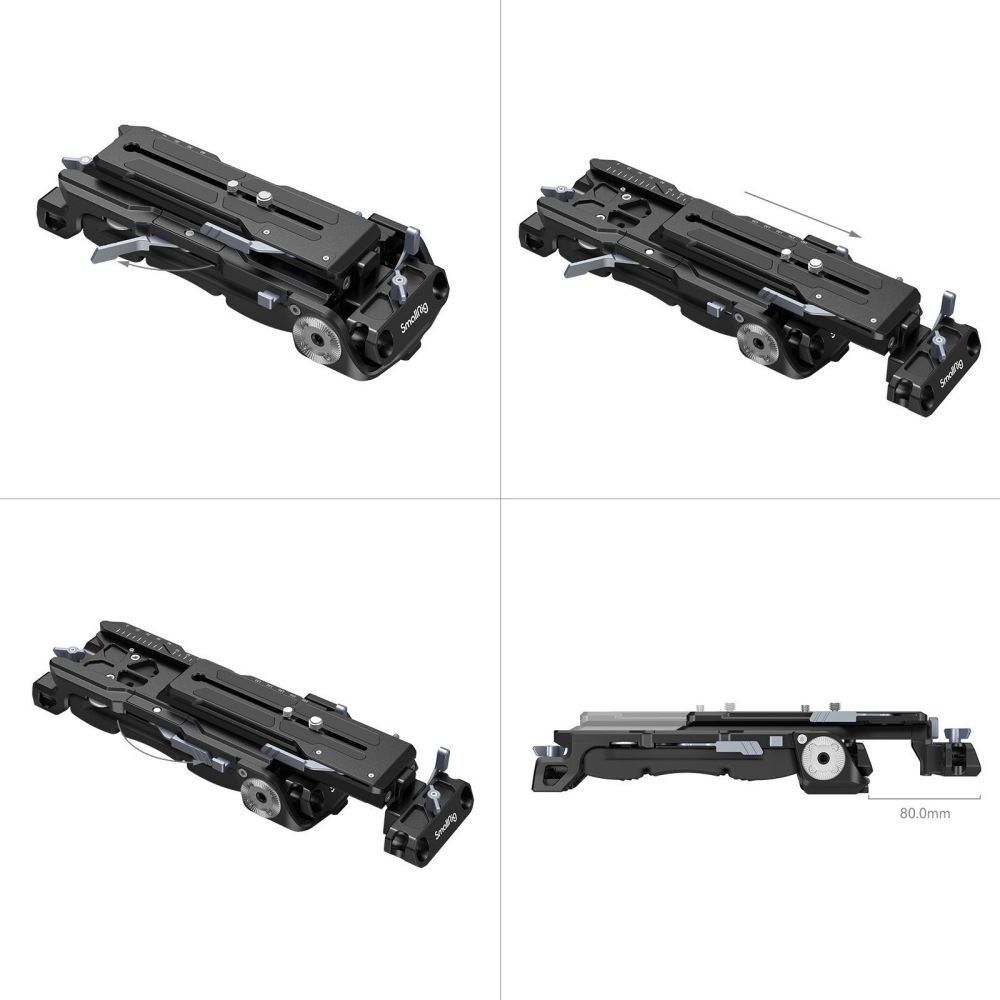

4. Manfrotto 501 plate slides 80mm forward.

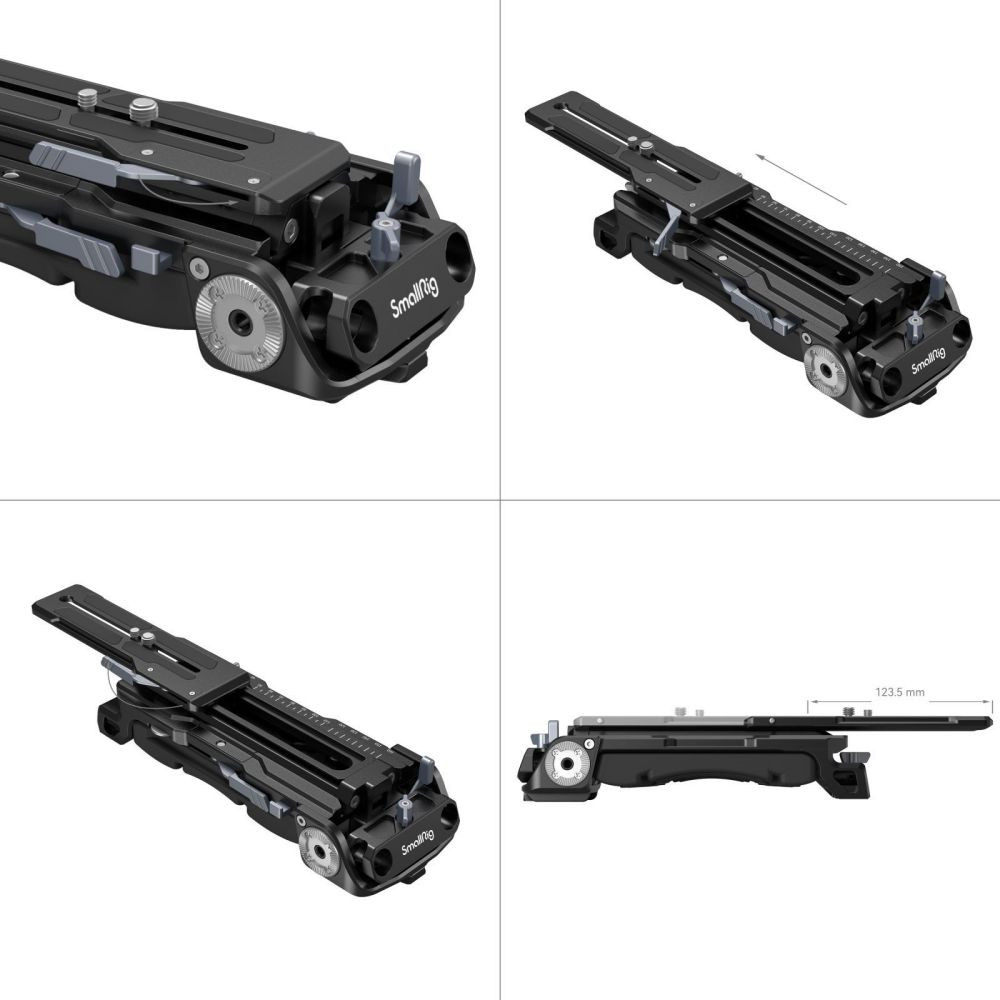

5. SmallRig quick release plate slides 120mm backward.

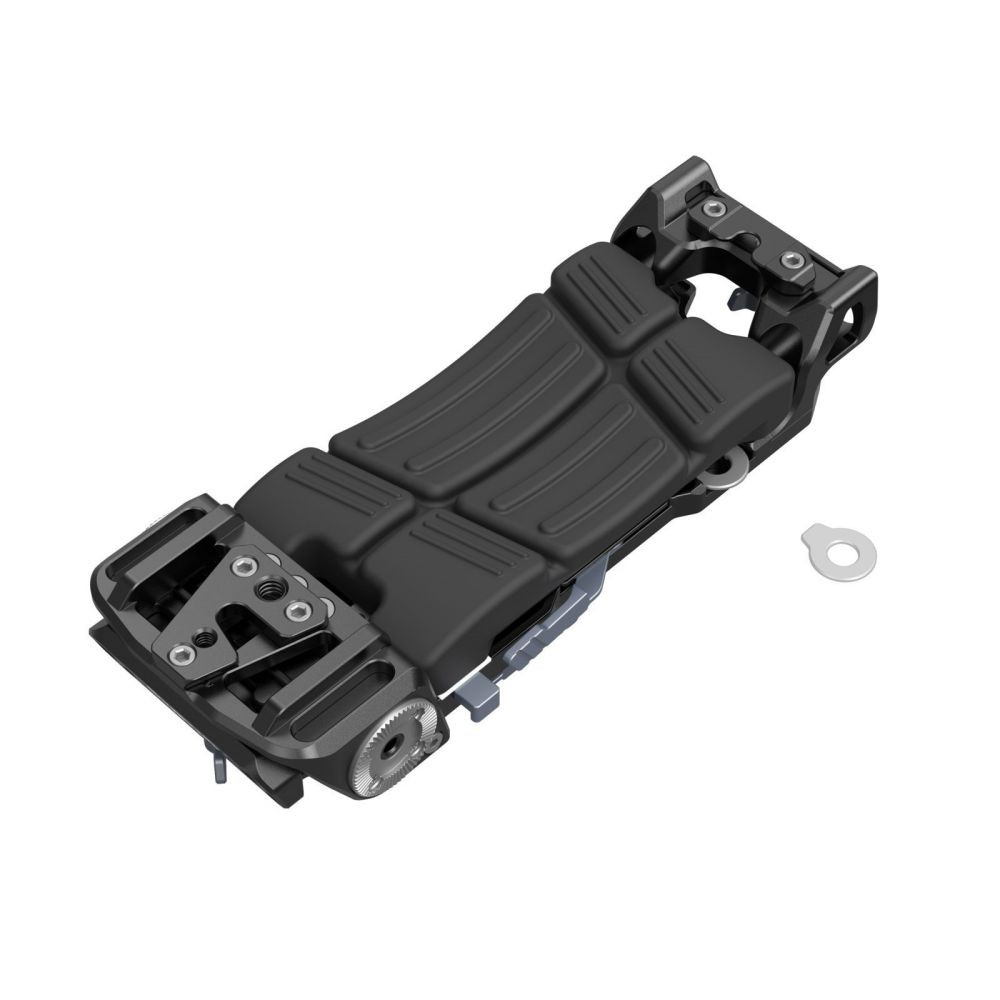

6. Ergonomic silicone shoulder pad.

7. Built-in flat wrench.

$199.00
Sku 2837C
EAN 6941590020969

Availability: In stock 17

This product has been viewed 2378 times

Product Description



SmallRig Universal Shoulder Rig (Compatible with Sony VCT-14 Plate) 2837C

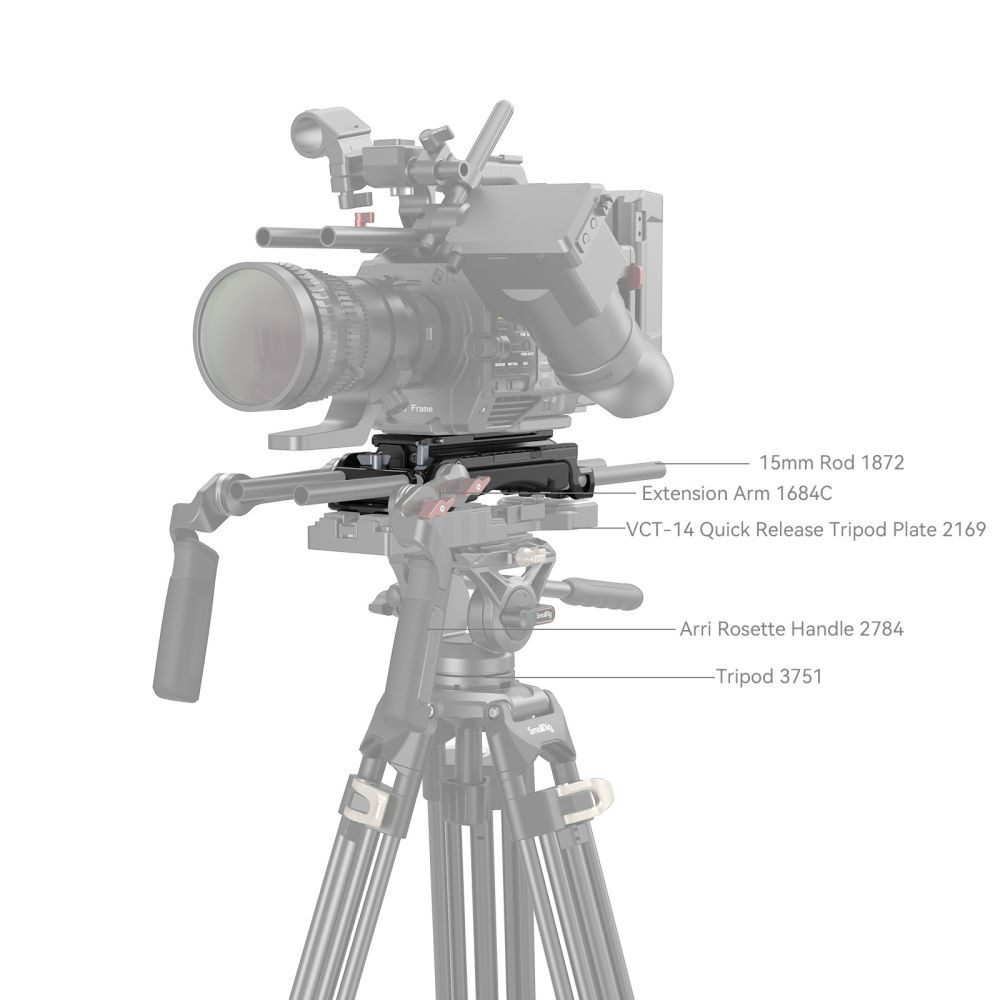

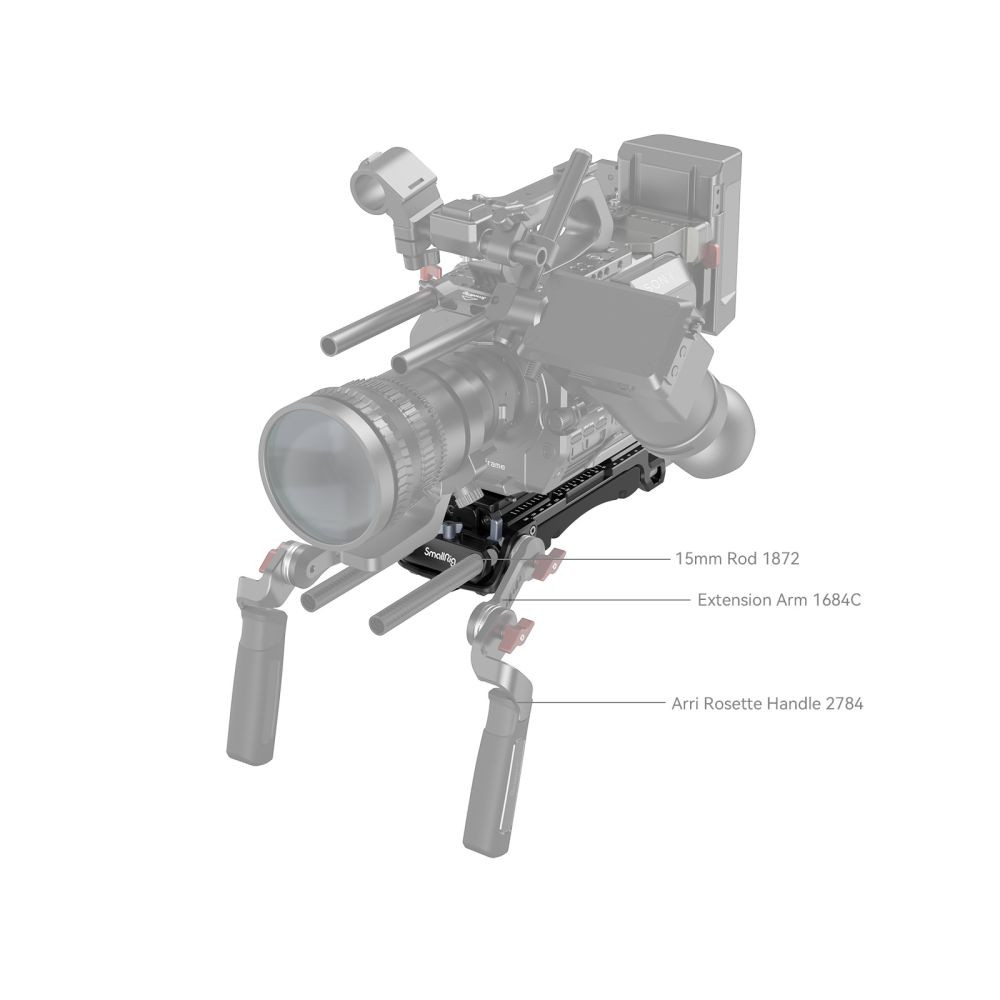

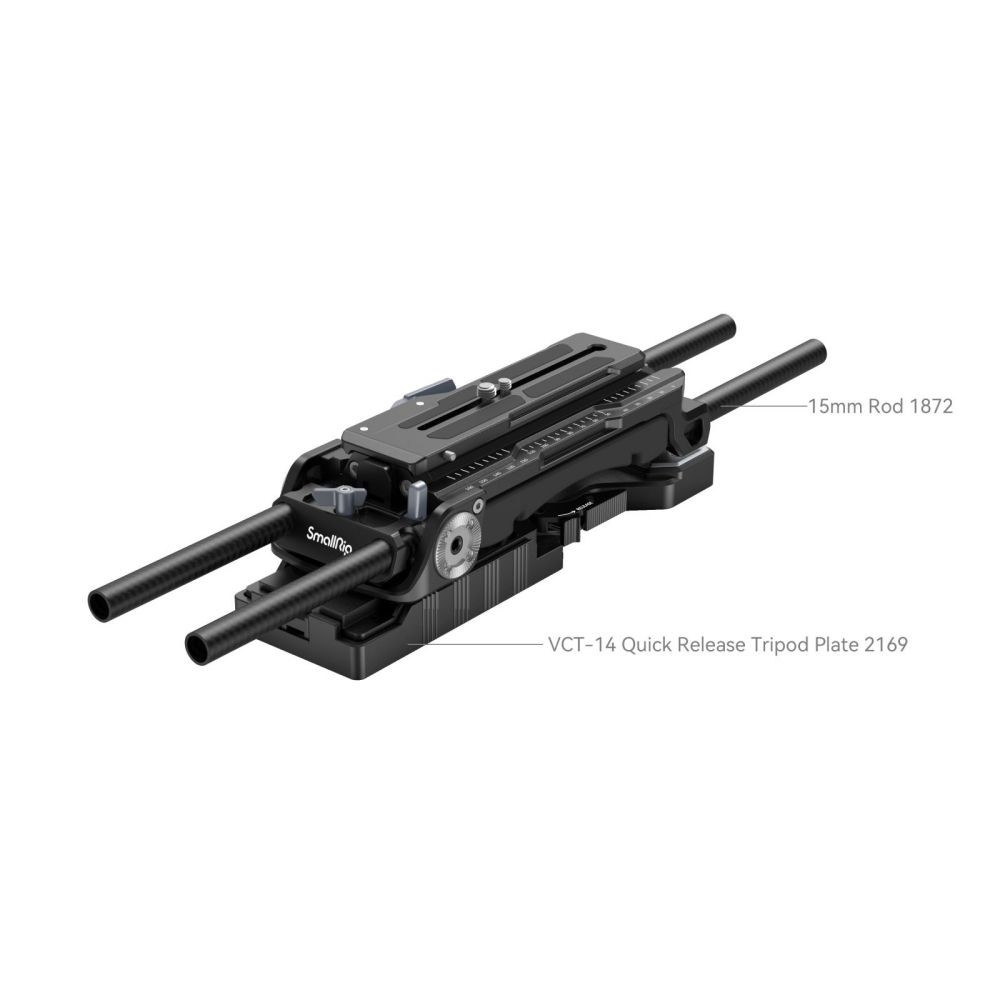

SmallRig Universal Shoulder Rig (Compatible with Sony VCT-14 Plate) 2837C is designed for Sony VCT-14 quick release baseplate. It consists of a SmallRig quick release plate on the top that attaches camera, and a Manfrotto 501 quick release plate connecting a shoulder pad. 2837C allows for quick switch between shoulder shooting, handheld shooting, and tripod shooting. It features a standard M6 ARRI rosette mount on both sides, which is compatible with the original control handle of 1810 or FX9 machines, as well as dual rod systems at front and rear ends, 15mm in diameter and 60mm spaced apart. Particularly, the front rod clamp can be adjusted vertically 27mm to ensure 85mm spacing between lens center and rod center for such camera as FX9, FS5, URSA MINI, CANON C300, etc. 2837C also helps balance your camera on your shoulder or rig and install follow focus system and matte box, thanks to the built-in Manfrotto 501 quick release plate sliding 0-80mm forward, and the SmallRig quick release plate sliding 0-120mm backward. You do not have to first remove follow focus system or matte box as the front rod system goes together with the Manfrotto 501 plate. More features of 2837C include 1/4"-20 threaded holes and 3/8"-16 threaded holes in the V-shaped bottom plate, which support various others quick releasee plates and tripods. The item comes with a new silicone shoulder pad, ergonomically designed to human shoulders to feel soft and comfortable. In addition, there is a built-in flat wrench for easy access.

Note: Incompatible with VCT-U14 plate.

Work With

FS5 / FS5II / FS7 / FS7II / FX9 / FX6

BMPCC4K / 6K

URSA MINI

Canon C100 / C200 / C300 / C500

Panasonic EVA-1

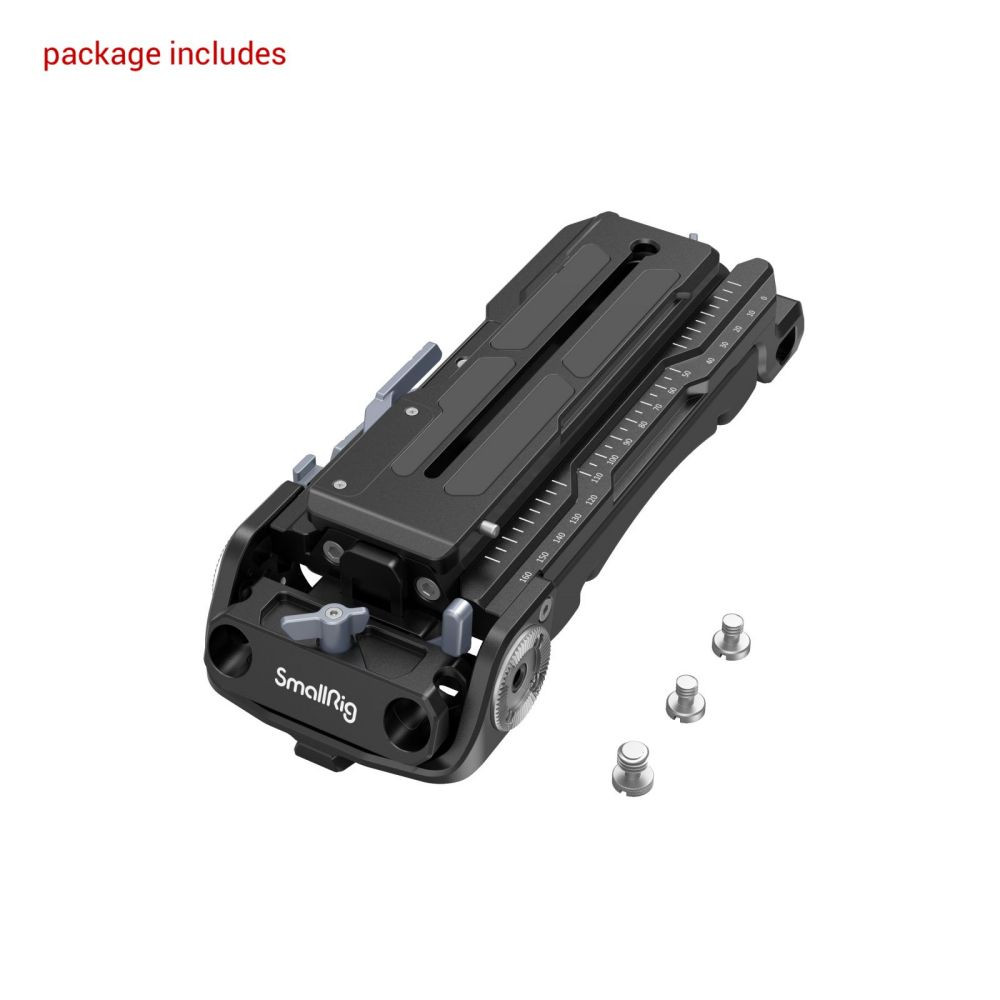

Packing List

Shoulder Pad x 1

Technical Data

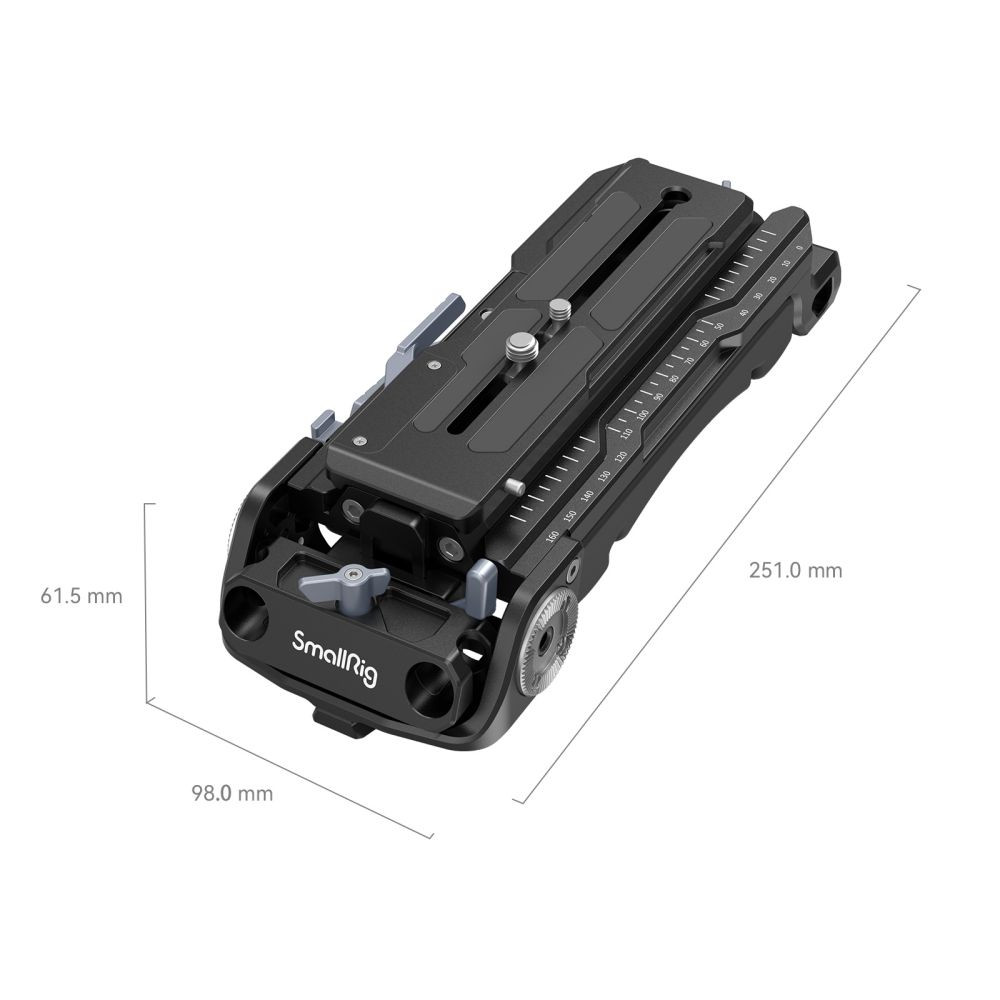

Product Dimensions: 251.0 x 98.0 x 61.5mm

Package Dimensions: 330.0 x 118.0 x 94.0mm

Product Weight: 1036.0 ± 5.0g

Package Weight: 1246.0 ± 5.0g

Material(s): Aluminum Alloy, Stainless Steel, Silicone
