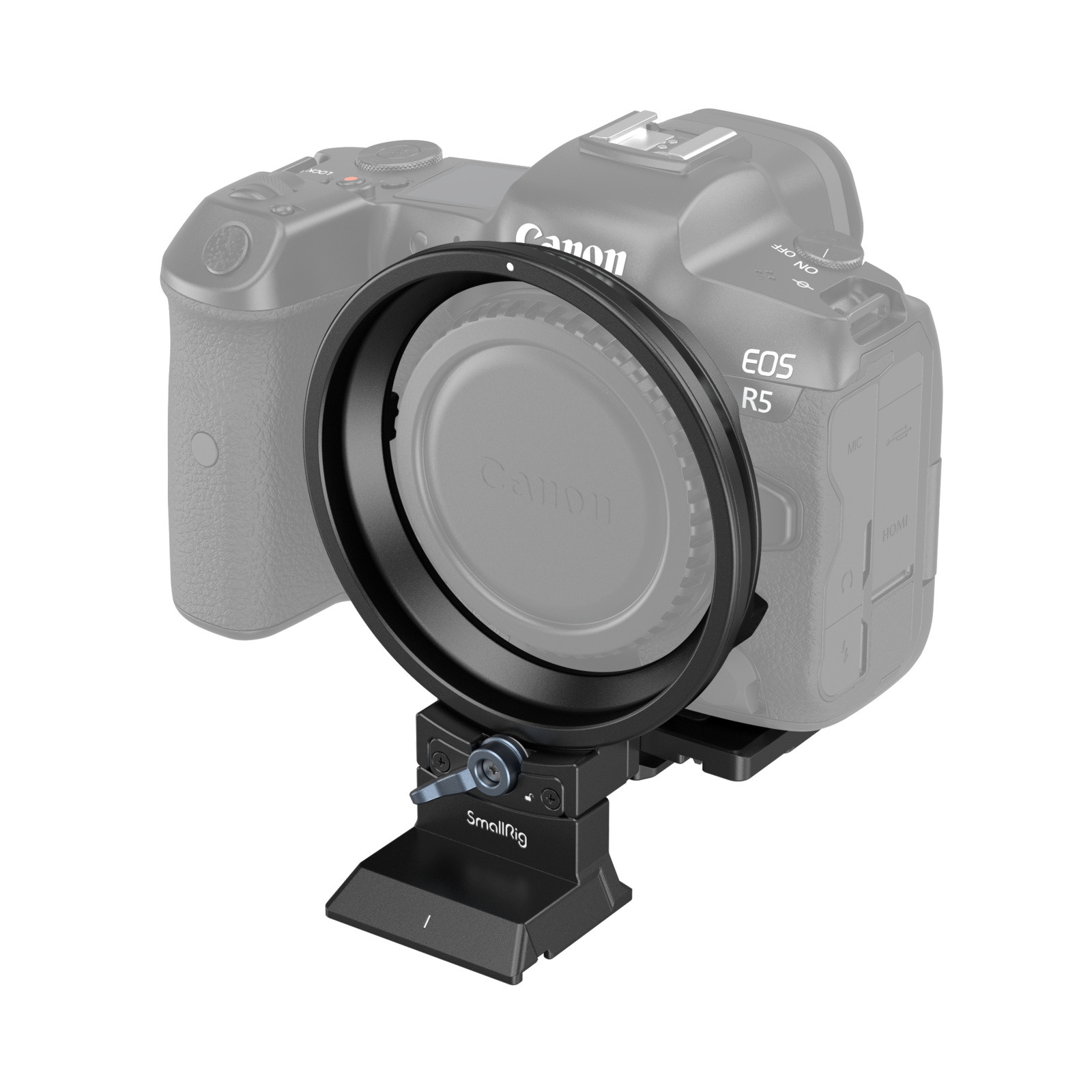

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Canon EOS Specific R Series Cameras 4300

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Canon EOS Specific R Series Cameras 4300

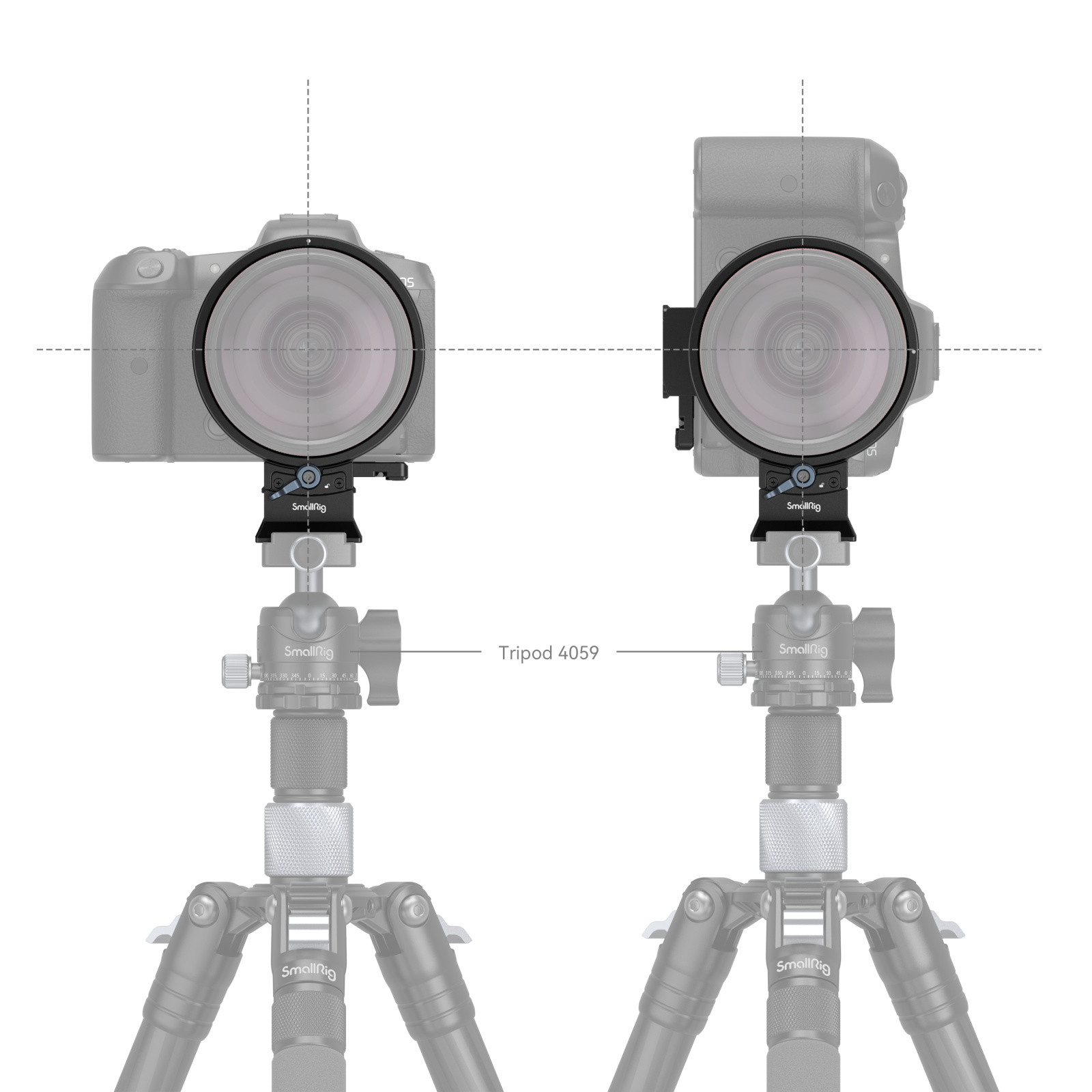

1. Quickly switches between horizontal and vertical modes without adjusting the lens's optical axis.

2. Gives full access to buttons and ports (LCD flip screen, battery door, card slot).

3. Multi-scene switching: Compatible with Arca-Swiss/ Manfrotto RC2 tripods.

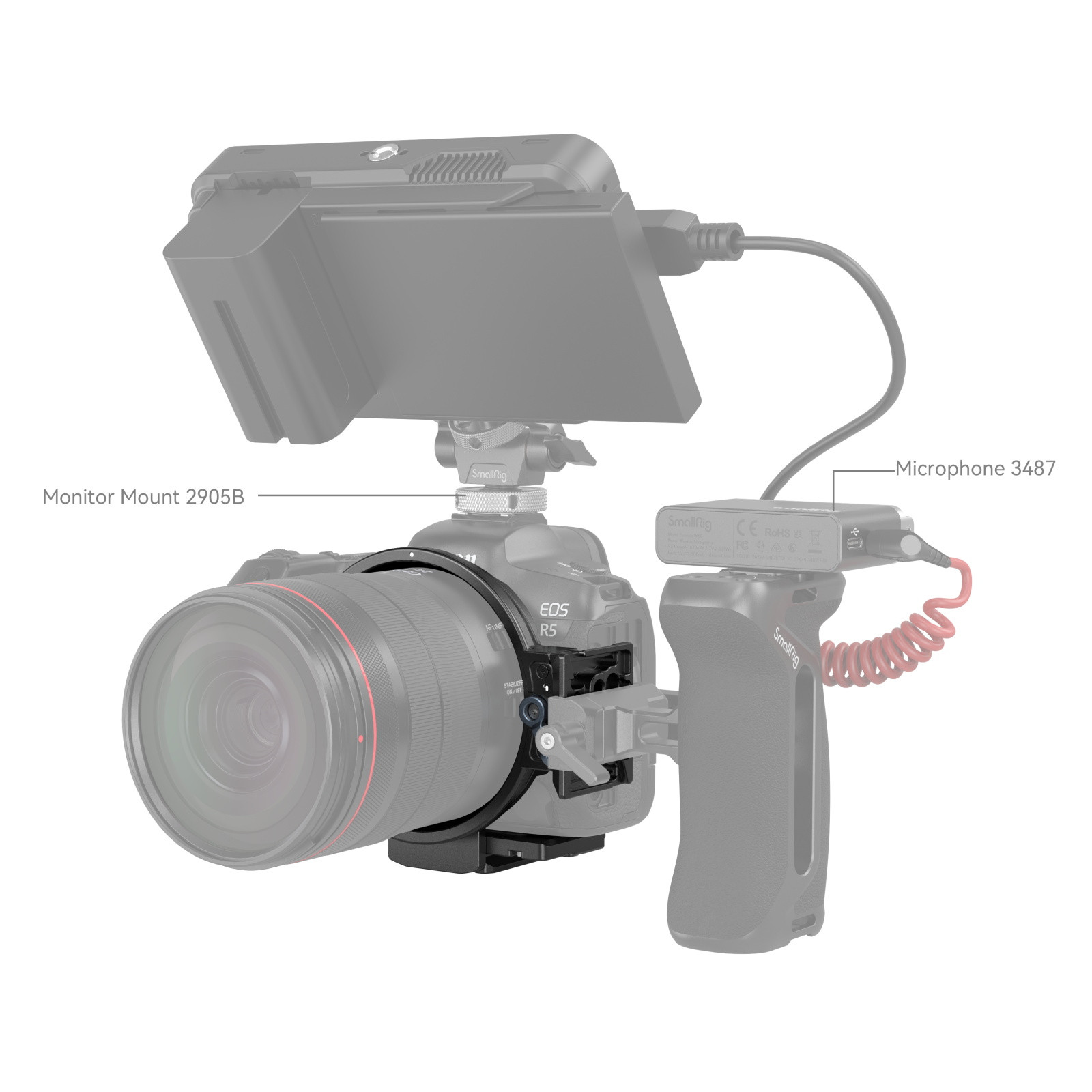

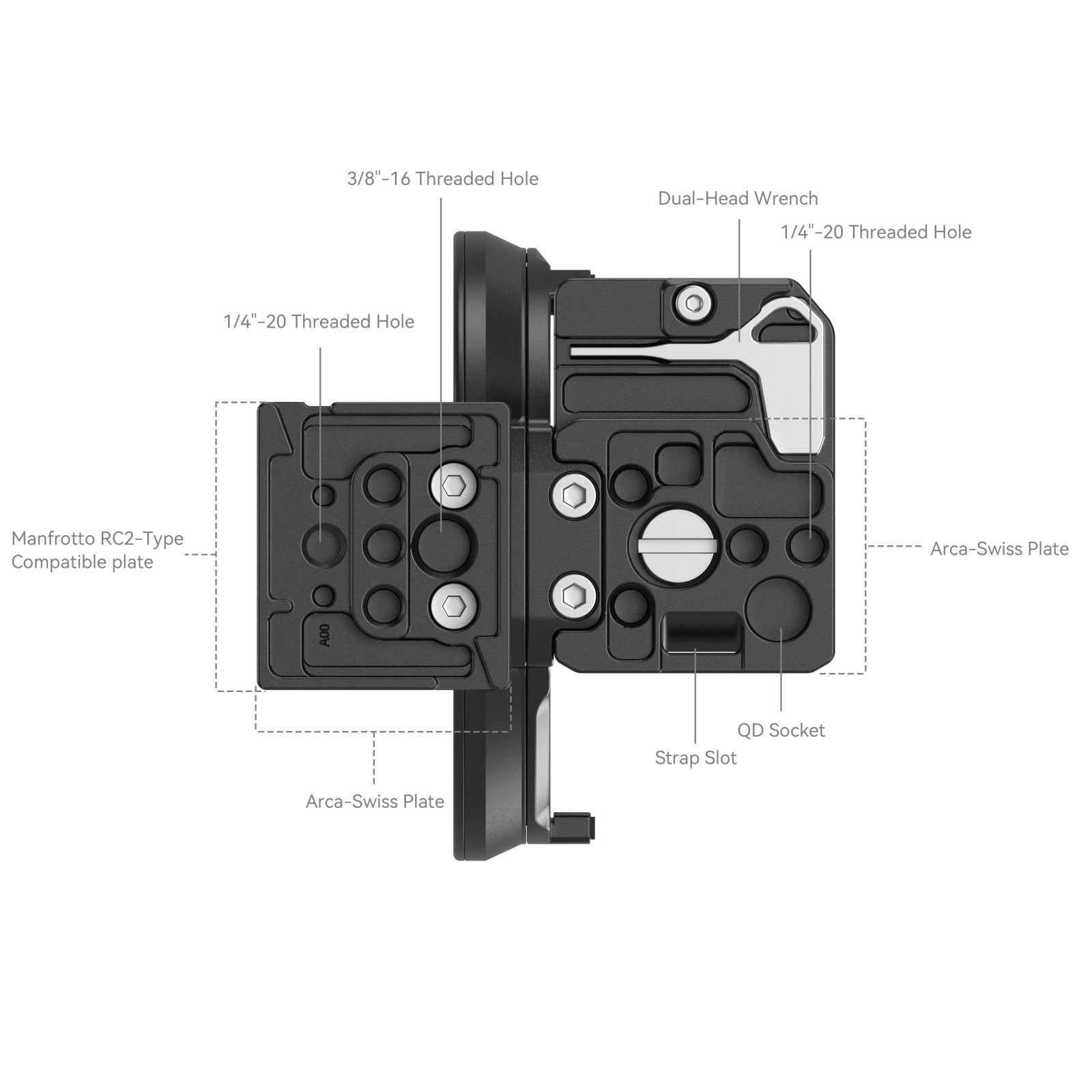

4. Features multiple mounting points, such as 1/4"-20 threaded hole, 3/8"-16 threaded hole, strap slot, QD mount, for handle, magic arm, plate, wrist strap, etc.

$64.90
Sku 4300
EAN 6941590014180

Availability: In stock 41

This product has been viewed 1226 times

Product Description



SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Canon EOS Specific R Series Cameras 4300

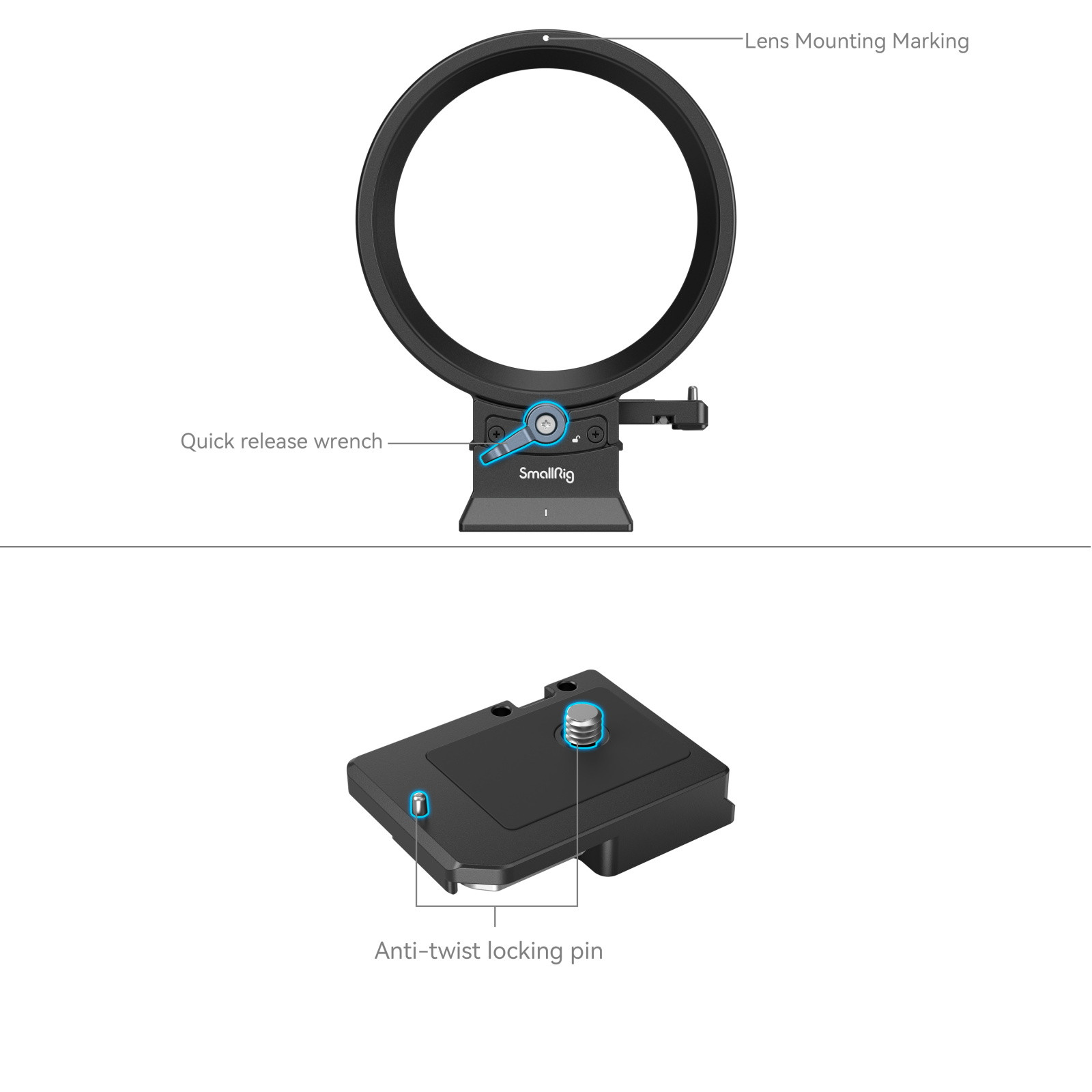

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Canon EOS Specific R Series Cameras 4300 is designed to quickly switch between horizontal and vertical shooting without adjusting the lens's optical axis. It maintains full access to LCD flip screens and ports and features built-in pads that prevent scratches and twists. The rotatable mount plate can rotate by 90 degrees by merely unlocking a knob to switch between horizontal and vertical shooting. Quick release plate with support ring is compatible with Arca-type / Manfrotto RC2 tripod and DJI R Quick Release Plate (Lower), its bottom 1/4"-20 and 3/8"-16 threaded holes can be used to expand side handle or other quick release plates. In the baseplate, there are QD mount, a strap hole for the Wrist Strap 3848, and a magnetic dual-head wrench for easy installation and release.

Note:

1. Please remove the lens before installation/removal.

2. The product is Compatible with the Canon Mount Adapter EF-EOS R, and Canon Control Ring Mount Adapter EF-EOS R.

3. This product is only compatible with the following lenses:

Canon RF 24-70mm f/2.8

Canon RF 24-105mm f/4

Canon RF 24-105mm f/4-7.1

Canon RF 85mm f/2

Canon RF 50mm f/1.2

Canon RF 100-400mm f/5.6-8

Canon RF 15-35mm f/2.8

Canon RF 100mm f/2.8

Work With

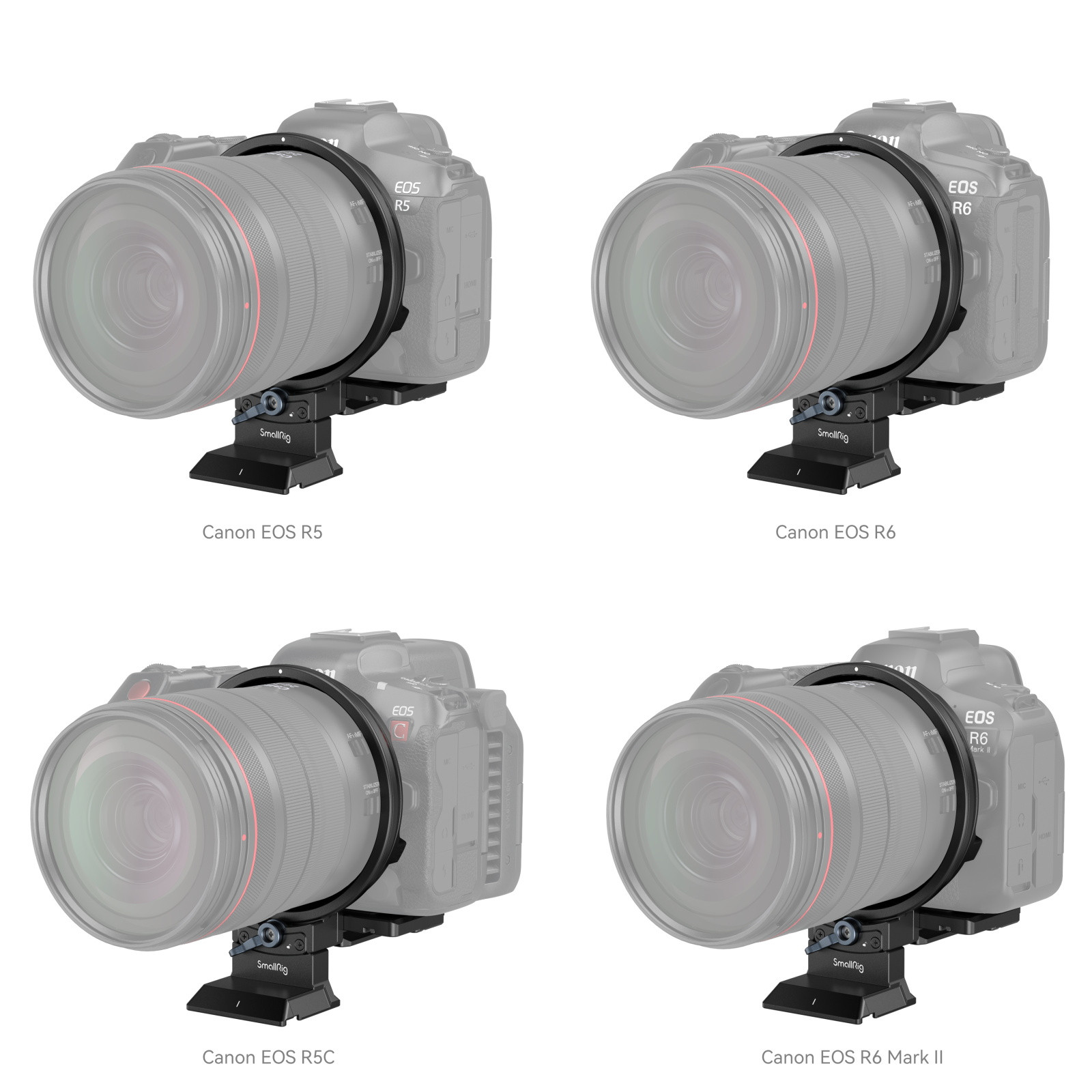

Canon EOS R5 / R6 / R5C / R6 Mark II

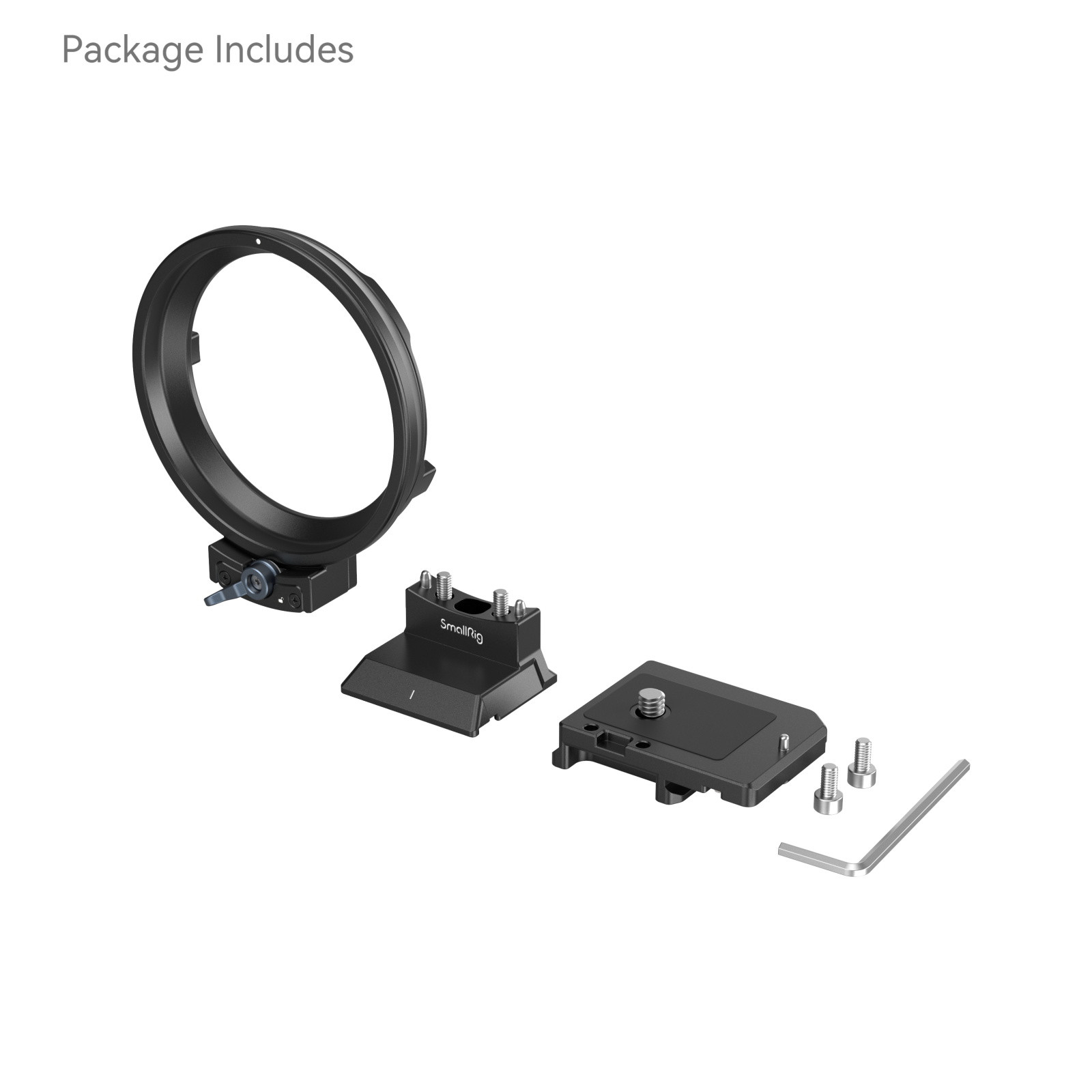

Packing List

Rotatable Horizontal-to-Vertical Support Ring x 1

Rotatable Horizontal-to-Vertical Support Ring Quick Release Plate x 1

Baseplate x 1

Allen Wrench x 1

M4 Screws x 2

Technical Data

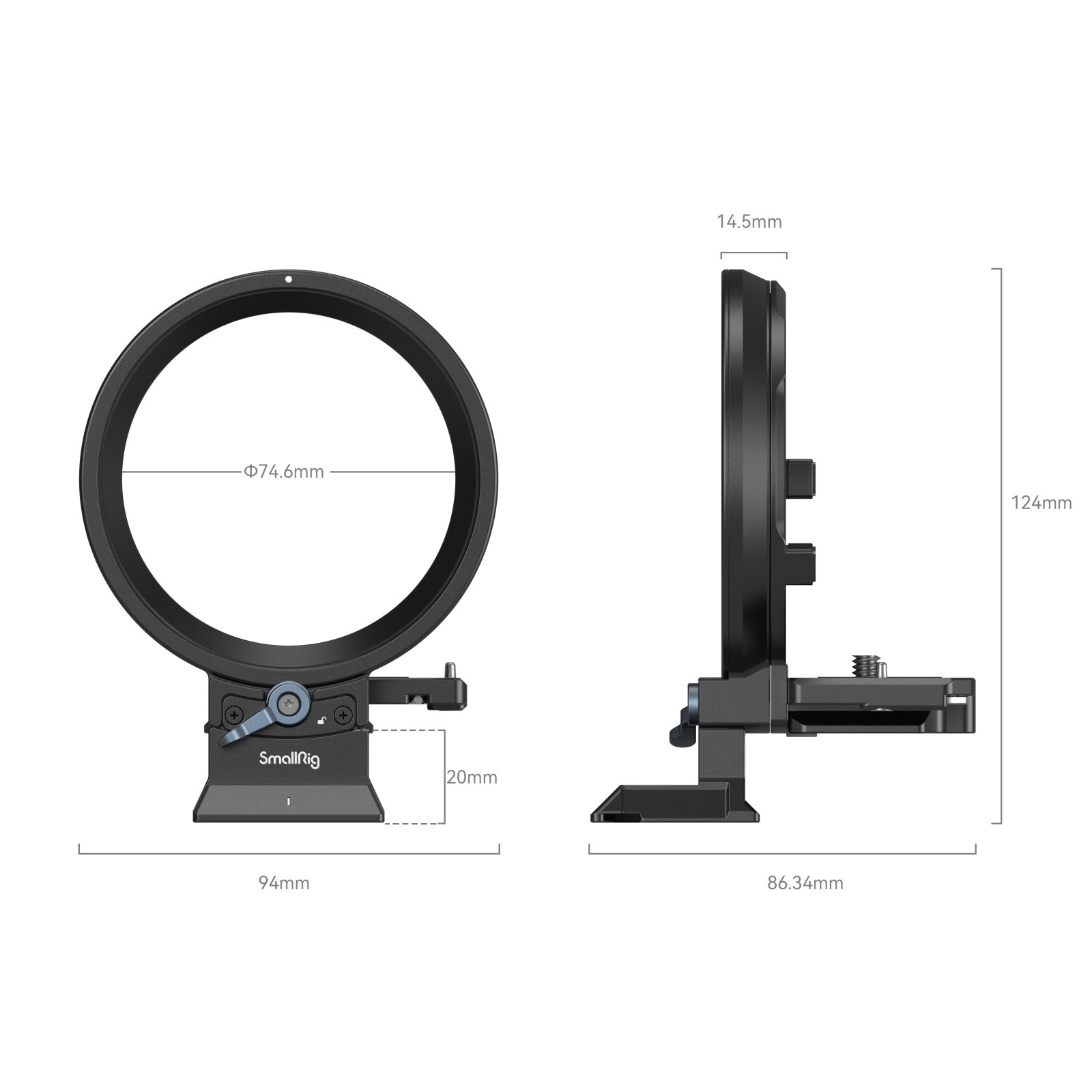

Product Dimensions: 124 x 94 x 68.7mm

Package Dimensions: 144 x 102.5 x 56mm

Product Weight: 163±5g

Package Weight: 223±5g

Material(s): Aluminum Alloy, Stainless Steel
