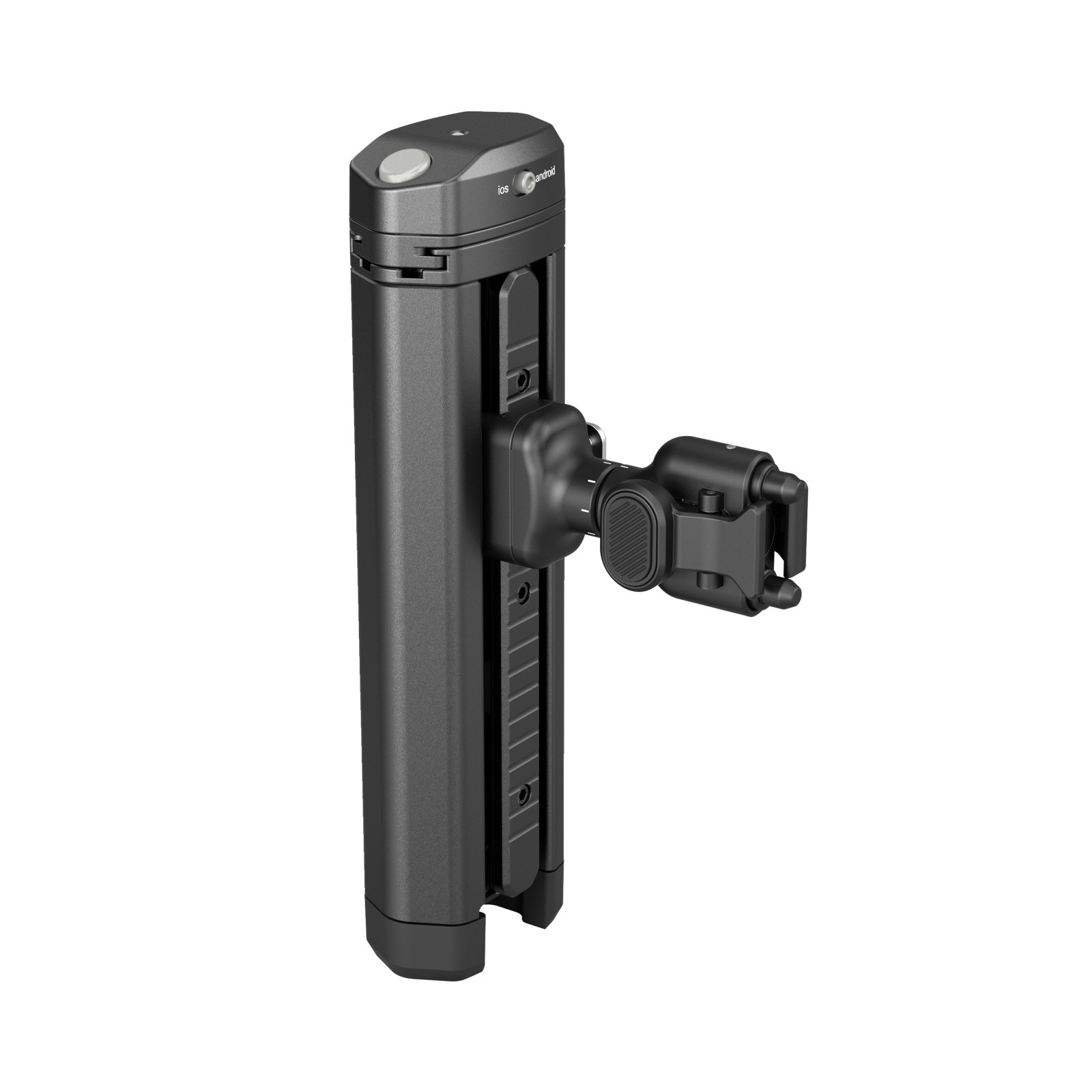

SmallRig Rotatable Bilateral Quick Release Side Handle with Wireless Control and M.2 SSD Enclosure 4841

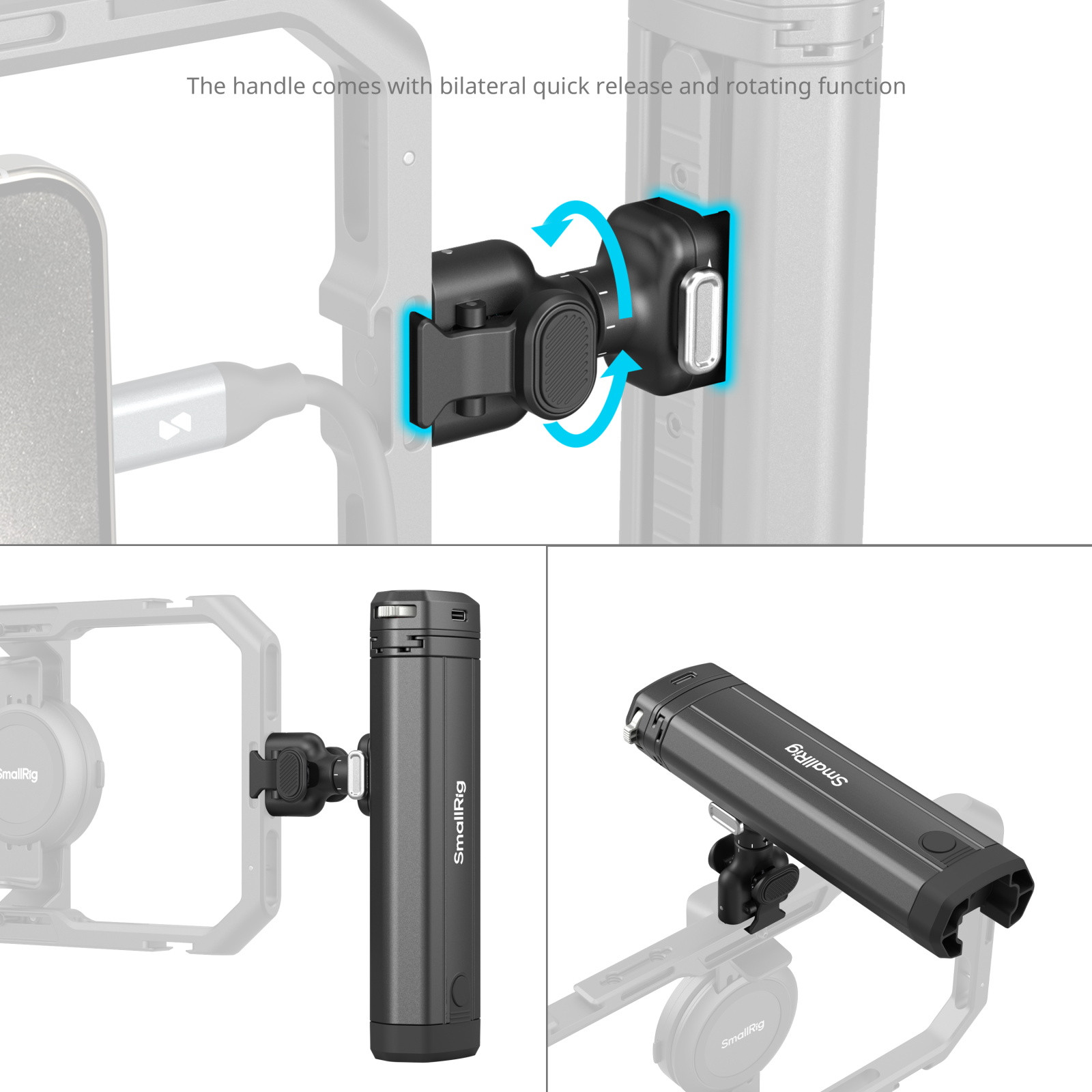

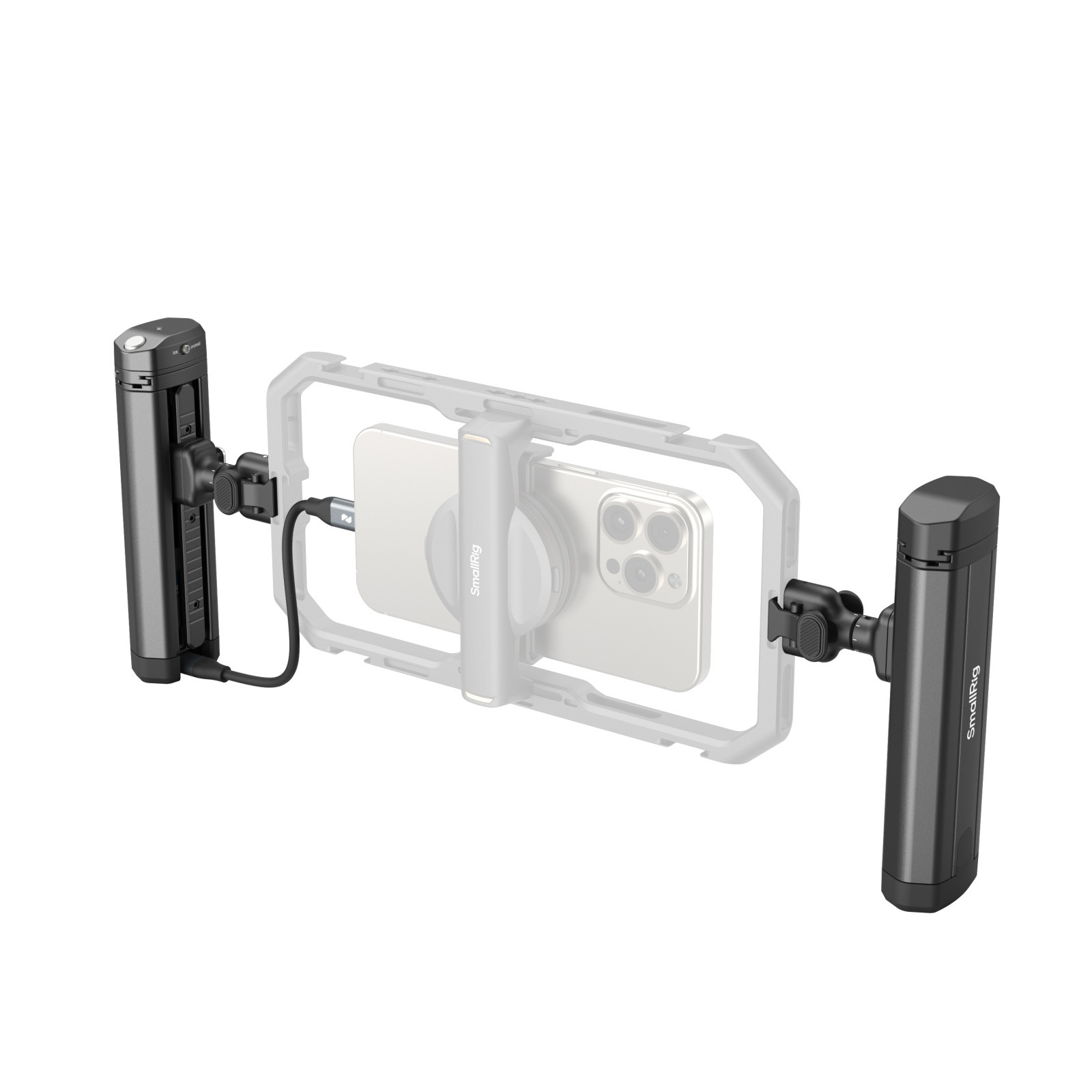

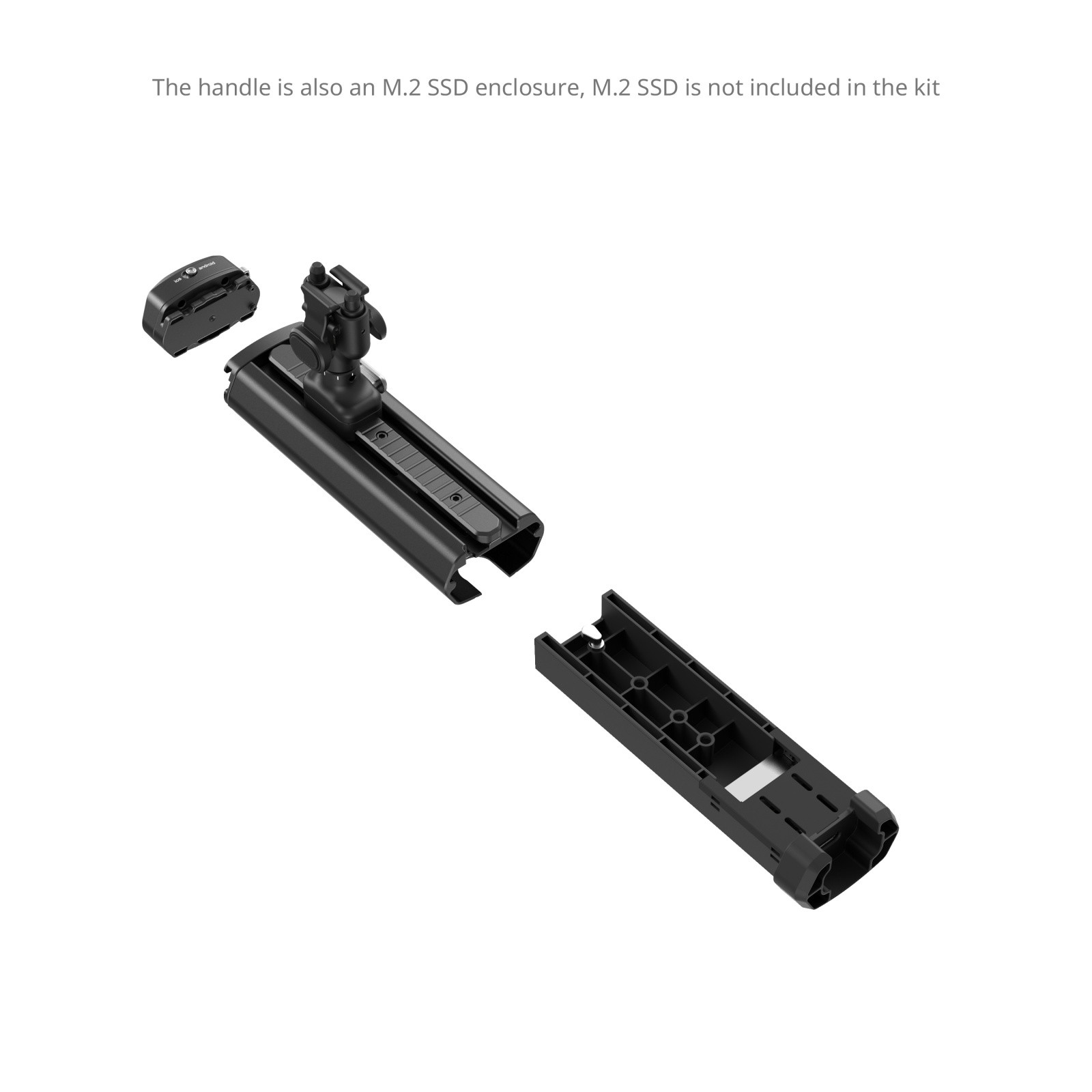

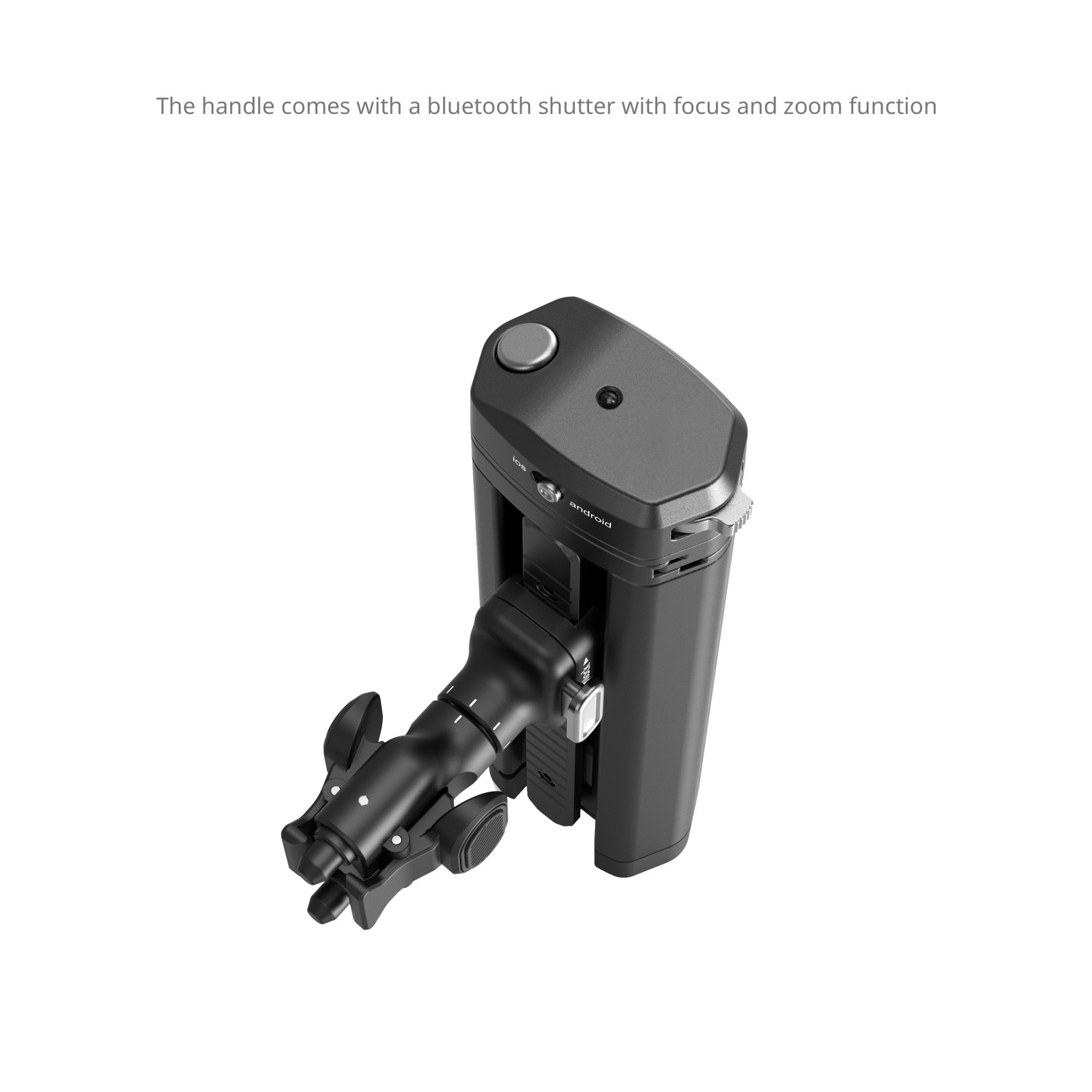

SmallRig Rotatable Bilateral Quick Release Side Handle with Wireless Control and M.2 SSD Enclosure 4841 offers an integrated grip solution for professional mobile video shooting. This handle allows for the attachment of an M.2 SSD drive to support external recording on smartphones. It also features a detachable wireless control enabling remote photo and video capturing, focus, and zoom. The rotatable handle adapter provides seamless switching between side and top handle modes and features infinite rotation. Equipped with bilateral quick-release interfaces, the adapter allows for swift tool-free assembly and adjustment.
Note: When the phone has ample battery (>30%) and the ambient temperature is below 30°C (86°F), it supports direct connection to M.2 SSD enclosure for recording videos in ProRes format. Refer to the following section for SSD models that can be directly read and written to. In case of low phone battery, ambient temperatures exceeding 30°C (86°F), or continuous recording for extended periods (over 40 minutes), please use an external power supply through a docking station to power the SSD, ensuring stable data transmission and smooth video recording.
Work With
Compatible with the following types of M.2 SSDs: 2230, 2242, 2260, 2280
Compatible with SmallRig HawkLock Quick Release Ecosystem for Smartphones
The wireless remote control is compatible with iOS 17.0 and above, Android systems, and HarmonyOS

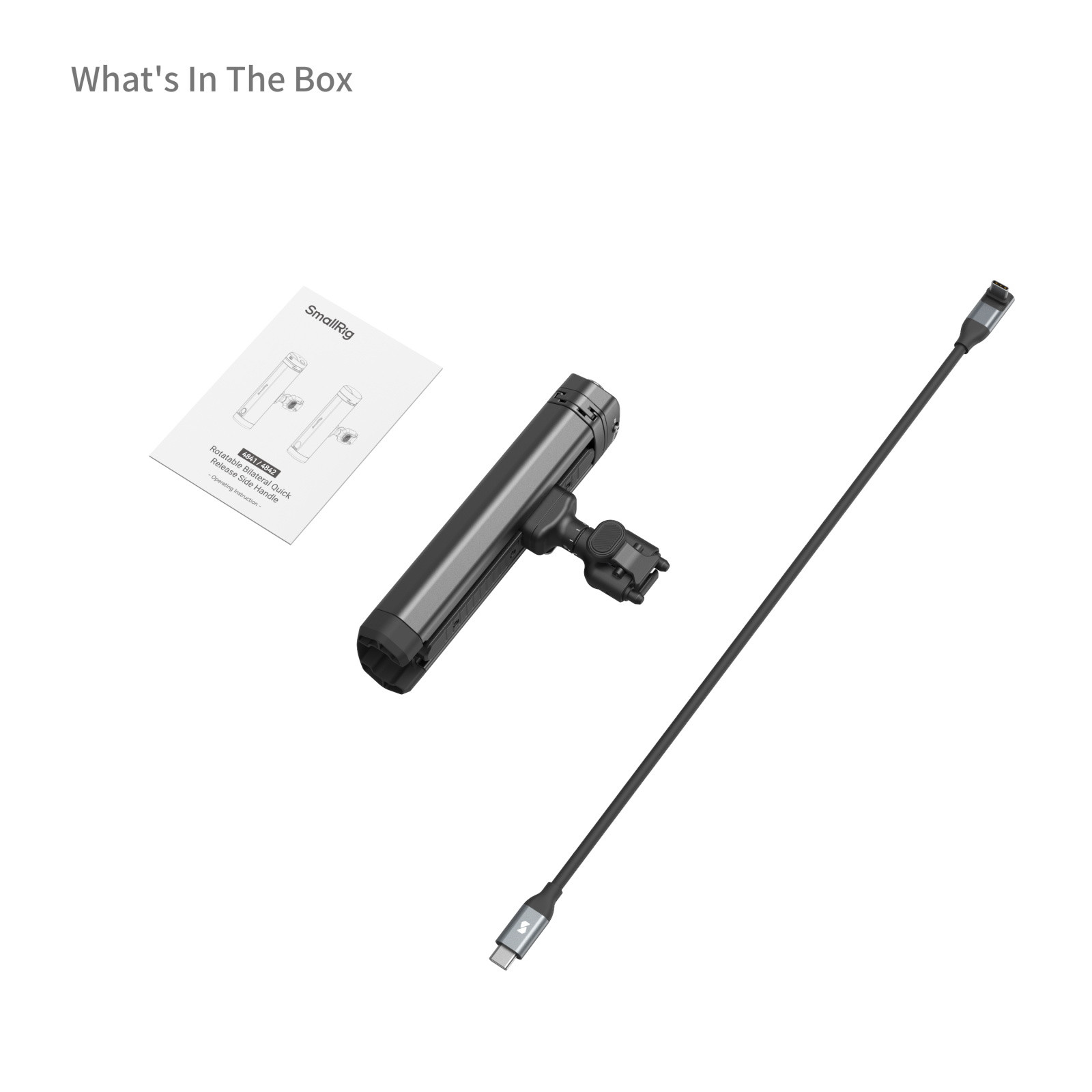

Packing List
Rotatable Bilateral Quick Release Side Handle with M.2 SSD Enclosure x 1
Multifunctional Data Cable x 1
User Manual x 1
Technical Data
Product Dimensions: 148 x 81 x 42mm / 5.8 x 3.2 x 1.7 inch
Package Dimensions: 181 x 102.5 x 41mm / 7.1 x 4.0 x 1.6 inch
Product Weight: 191.7 ± 5g / 6.8 ± 0.2oz
Package Weight: 255.4 ± 5g / 9.0 ± 0.2oz
Material(s): Aluminum Alloy, Plastic, Silicone
Operating Protocol: NVMe V1.3
Built-in Interface: M.2 M-Key
USB Protocol: USB3.1-C
Compatible M.2 SSD: 2230, 2242, 2260, 2280
Standby Power Consumption: 0.38W
Operating Power Consumption: Varies Depending on SSD Models
Transfer Rates: SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps)
Indicator Light Status: Blue LED Light: Always on (power on / sleep / safe ejection); flashes (read/write data)
Wireless Remote Control Parameters:
Operating Power Consumption: ≤3mW
Standby Power Consumption: ≤0.04mW
Battery: 145mAh
Voltage: 3.7V
Current: 2mA
Operating Temperature: -30℃ to 60℃ / -22°F to 140°F
Wireless Control Distance: 10.0m / 32.8ft
Wireless Frequency: 2.4G Hz
