SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller FAQ2323

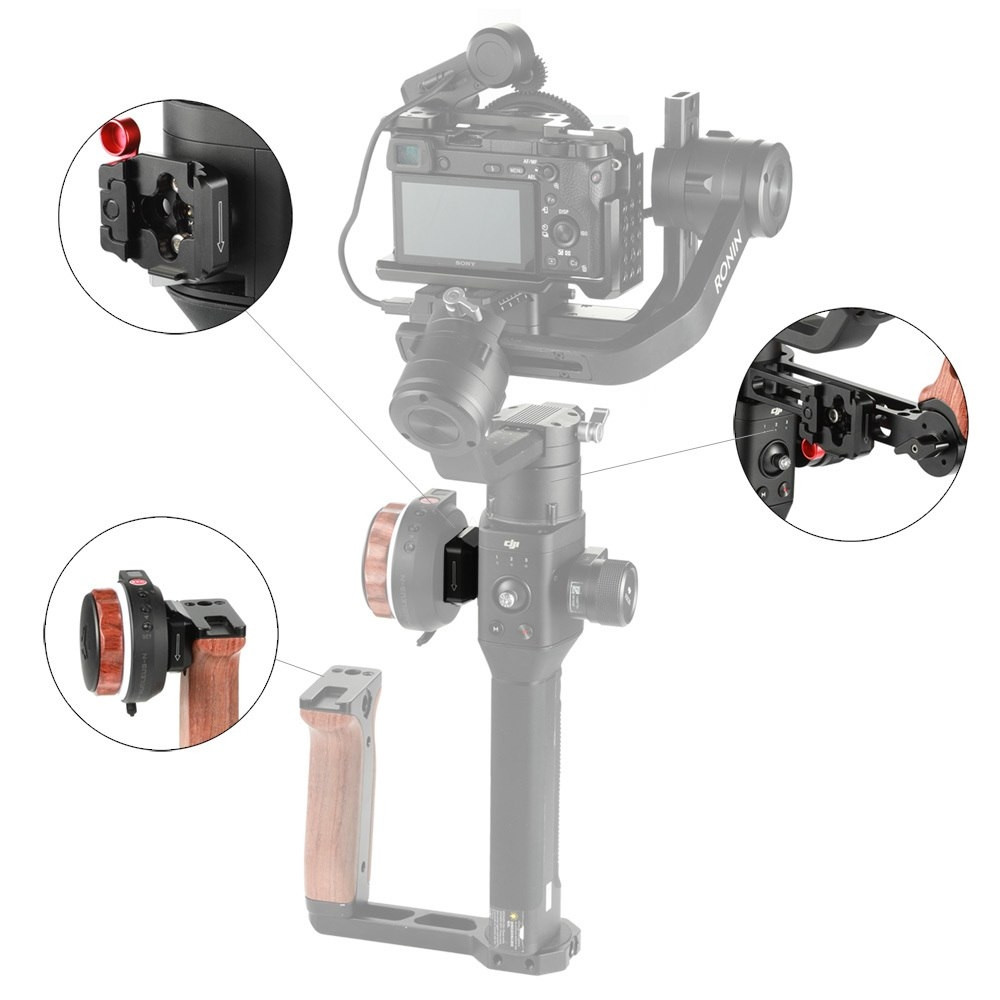

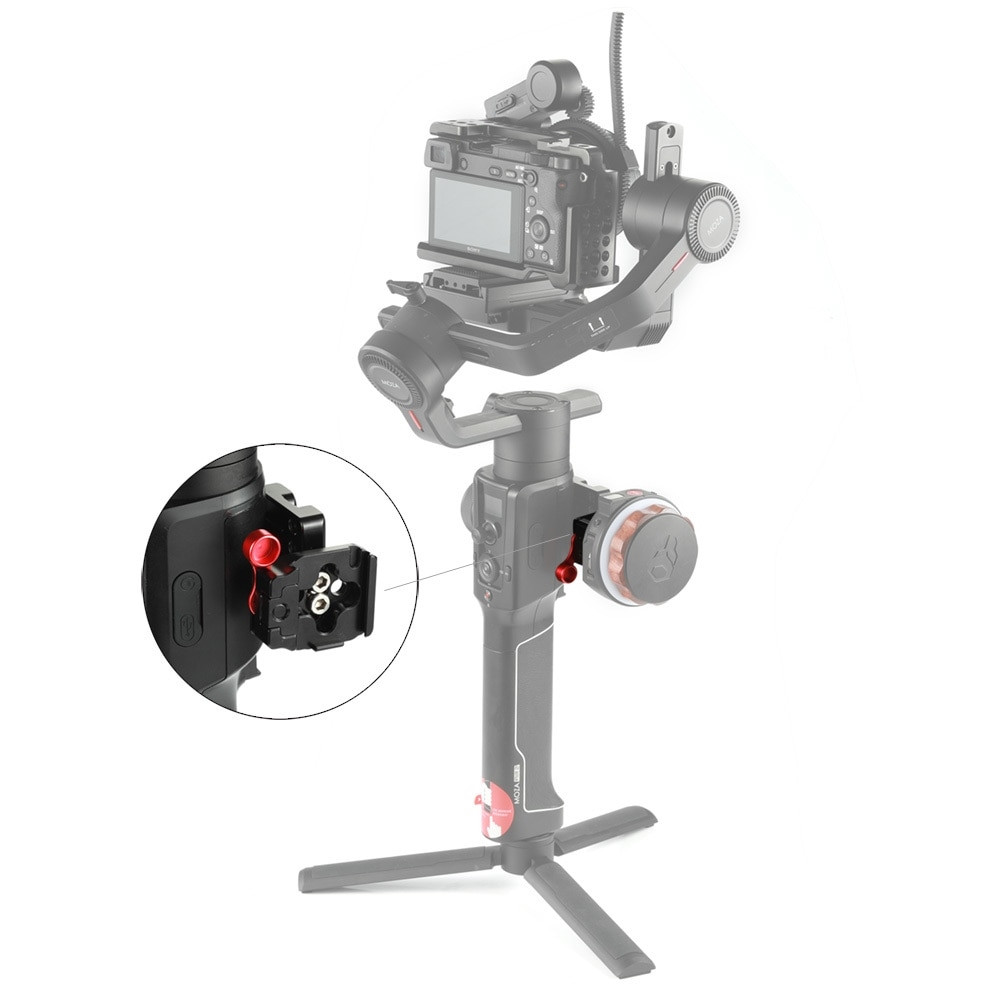

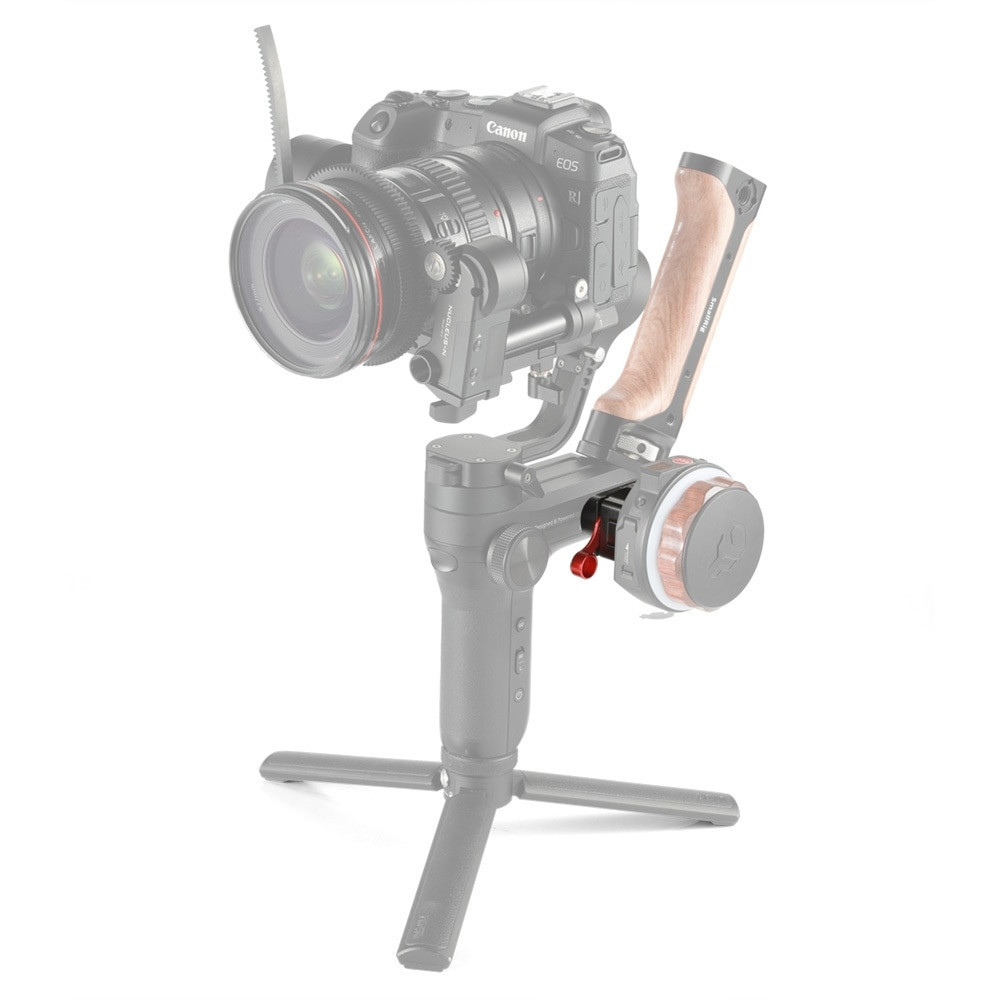

SmallRig Quick Release Mounting Clamp for Tilta Nucleus-Nano Handwheel FAQ2323 is designed for attaching the handwheel controller to gimbals and any other camera equipment with 1/4"-20, 3/8"-16 and m4 threaded holes. The multifunctional plate attaches to the Ronin-S via two m4 screws and attaches to Zhiyun Crane2 via the Mountng Clamp 2119 and Moza Air2 via the Mounting Plate 2319. It's also compatible with m6 screw to attach the handwheel to Tilta G2X Gimbal. Additionally, the quick release mounting clamp features a lever and installation mark to prevent installation error. The adapter is anti-off designed to prevent the handwheel from accidentally sliding off.
Key Features

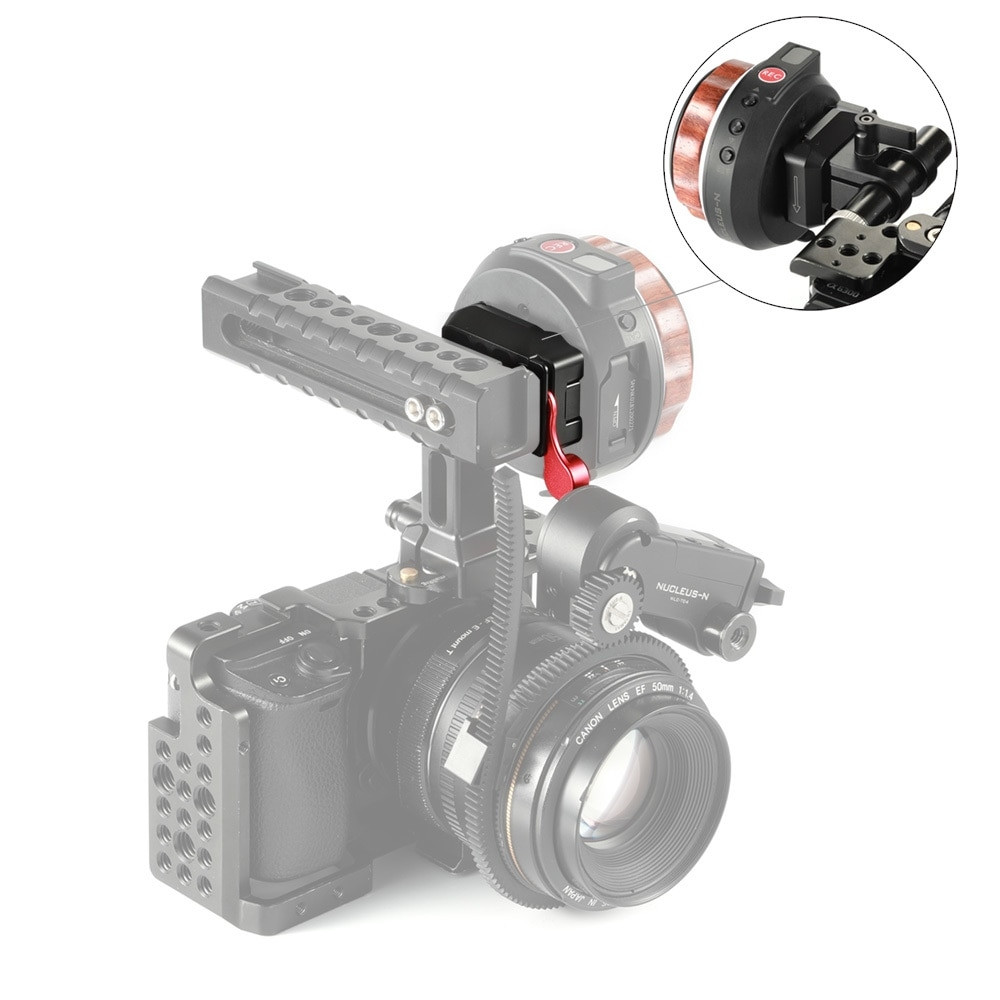

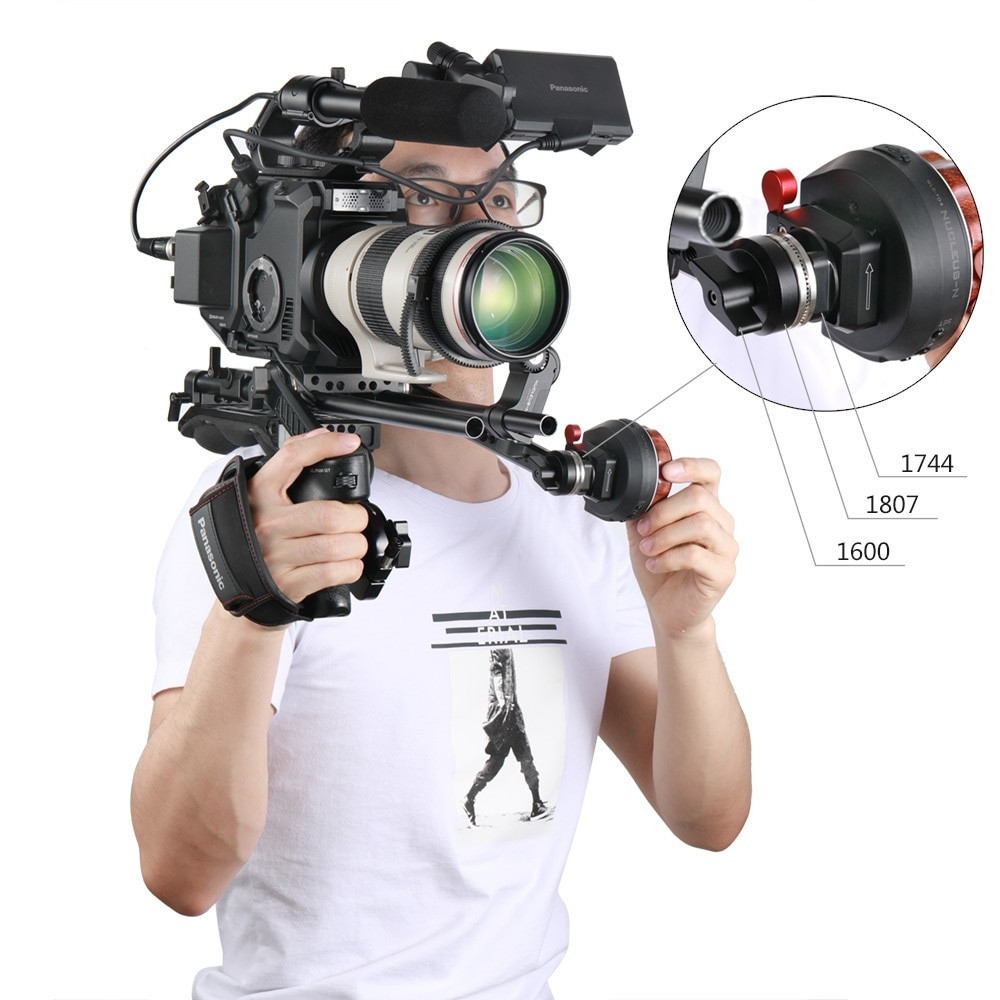

1.Attach Tilta Nucleus-N Handwheel to Gimbals, camera cages and handles.
2.Quick release lever and installation mark.
3.Anti-off design to prevent the handwheel sliding off.

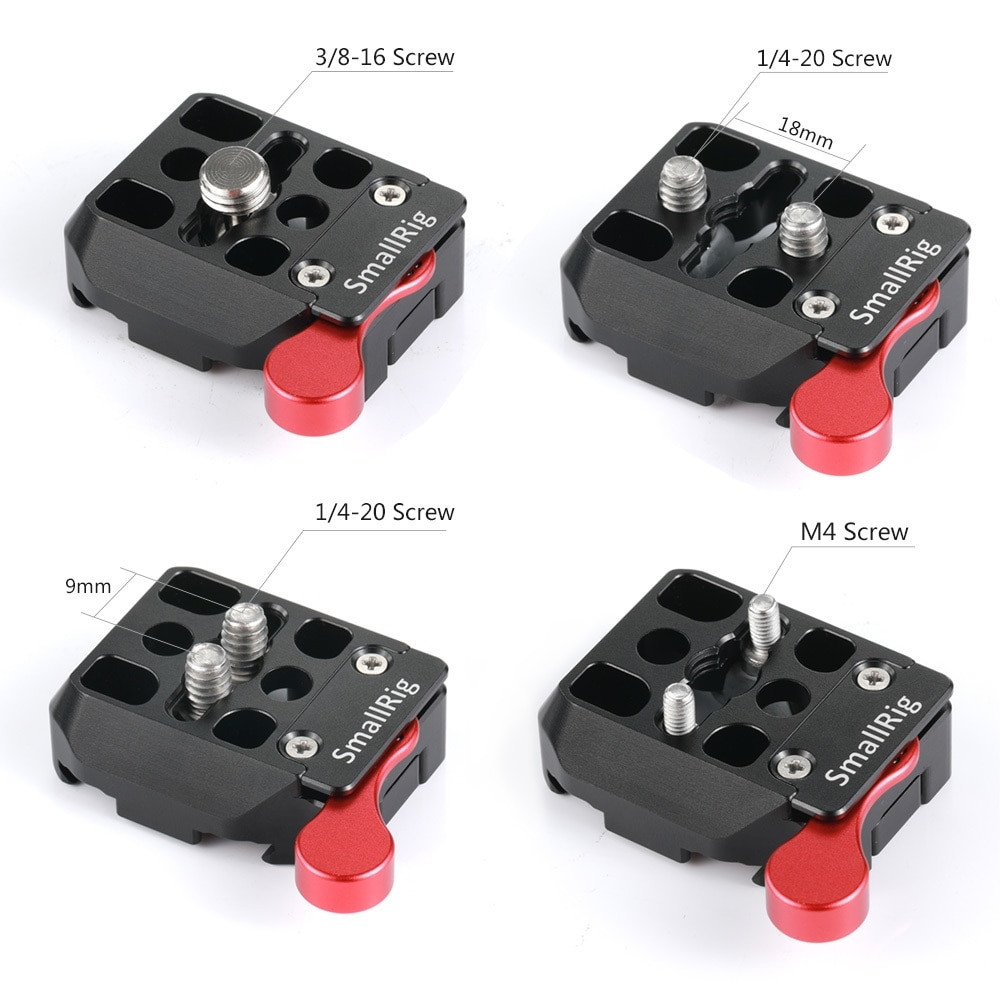

4.Provides multiple mounting points such as 1/4"-20, 3/8"-16 and m4 holes.
Work With
Tilta Nucleus-Nano Wireless Follow Focus

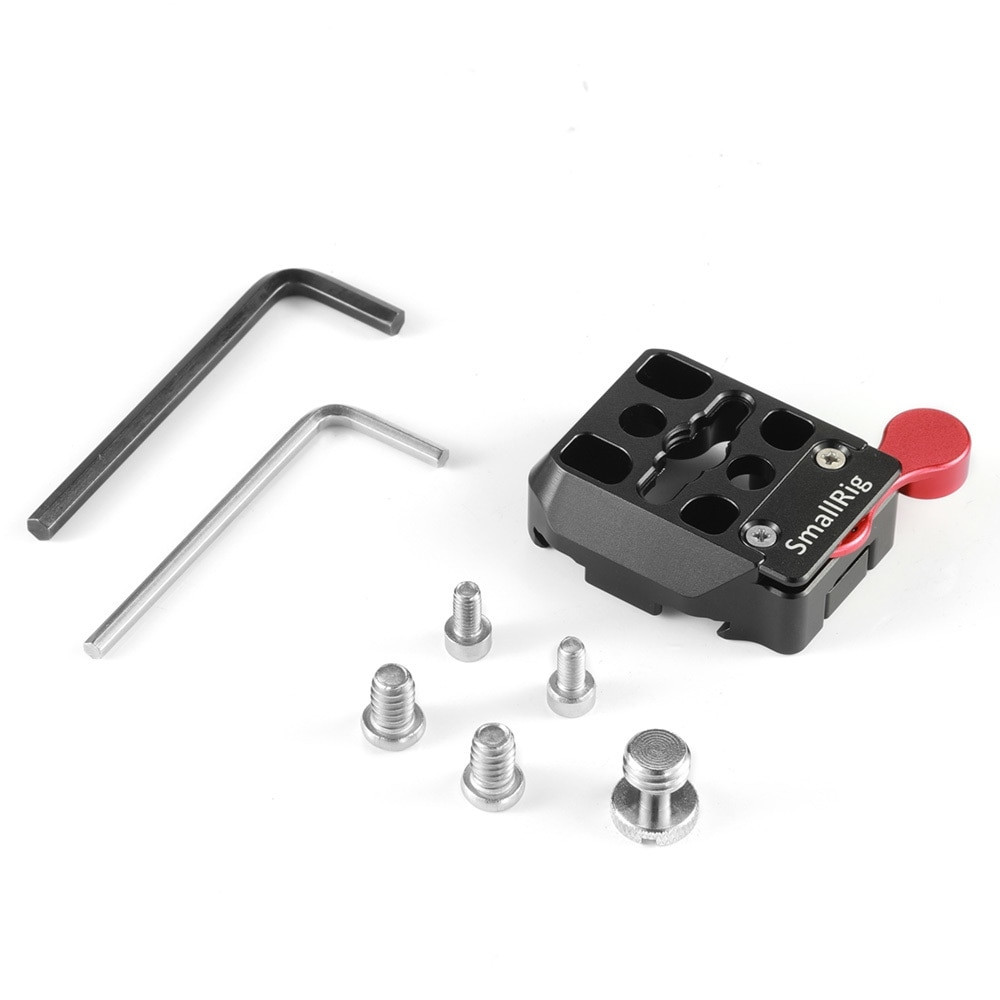

Packing List
1 x Clamp
1 x 3/8”-16 Screw
2 x 1/4”-20 Screw
2 x M4 Screw
2 x Hex Spanners
Technical Data

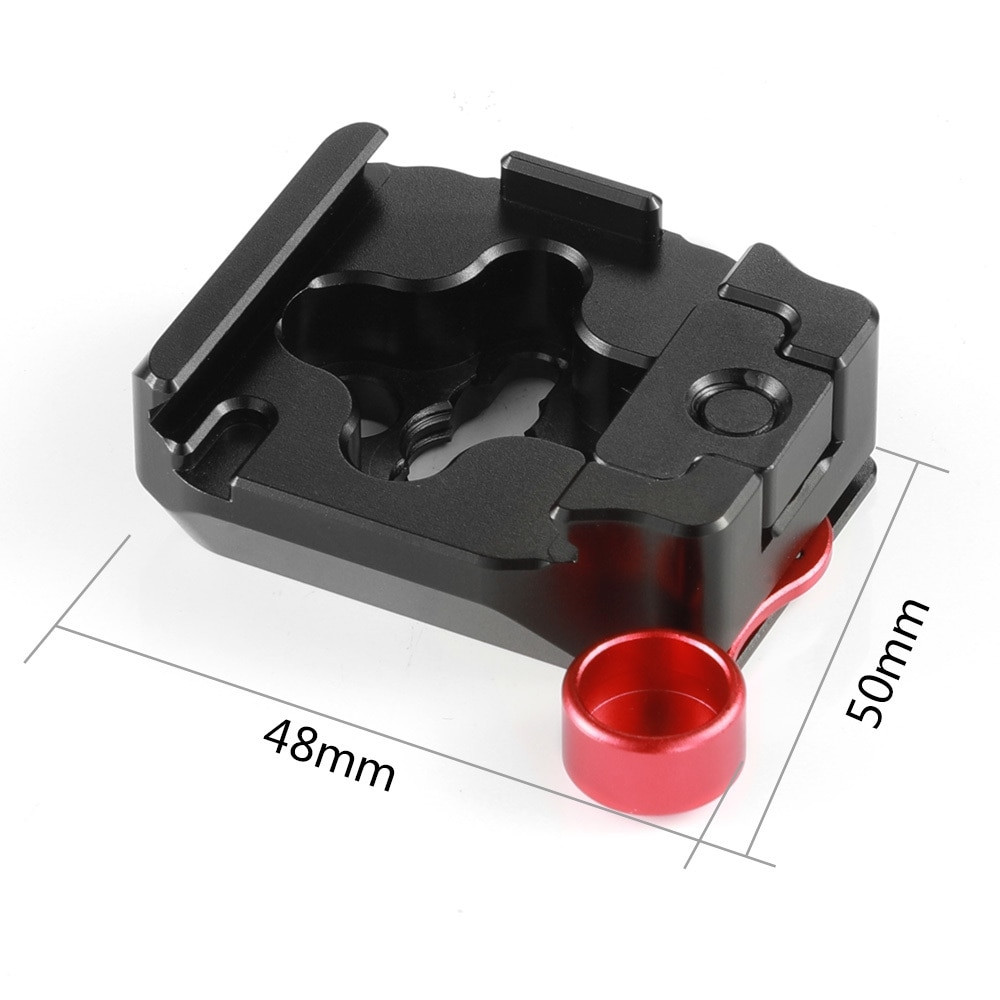

Product Dimensions: 50 x 48 x 22mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 61g
Package Weight: 83g
Material(s): Aluminum Alloy
