SmallRig Phone Holder for DJI Gimbals 4301

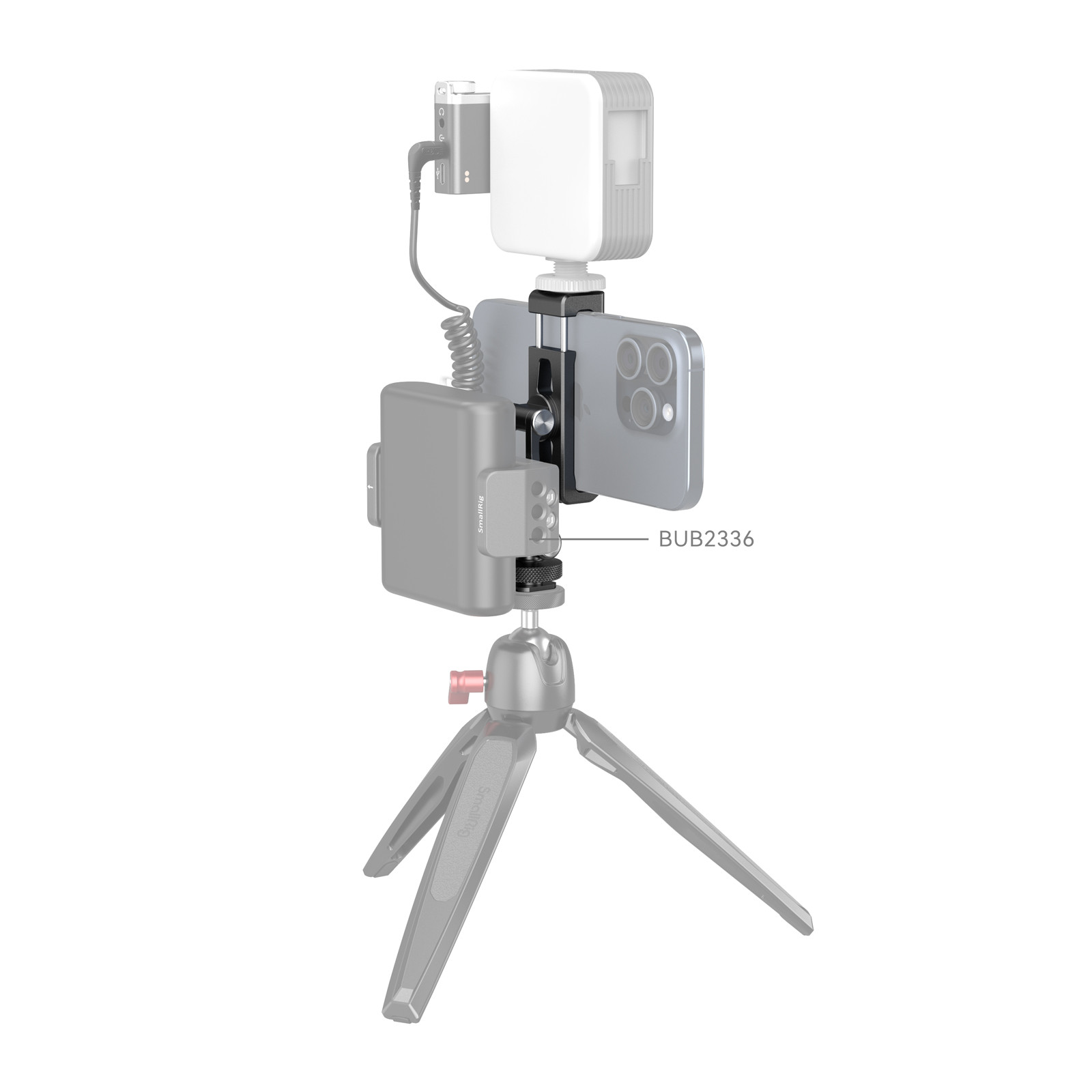

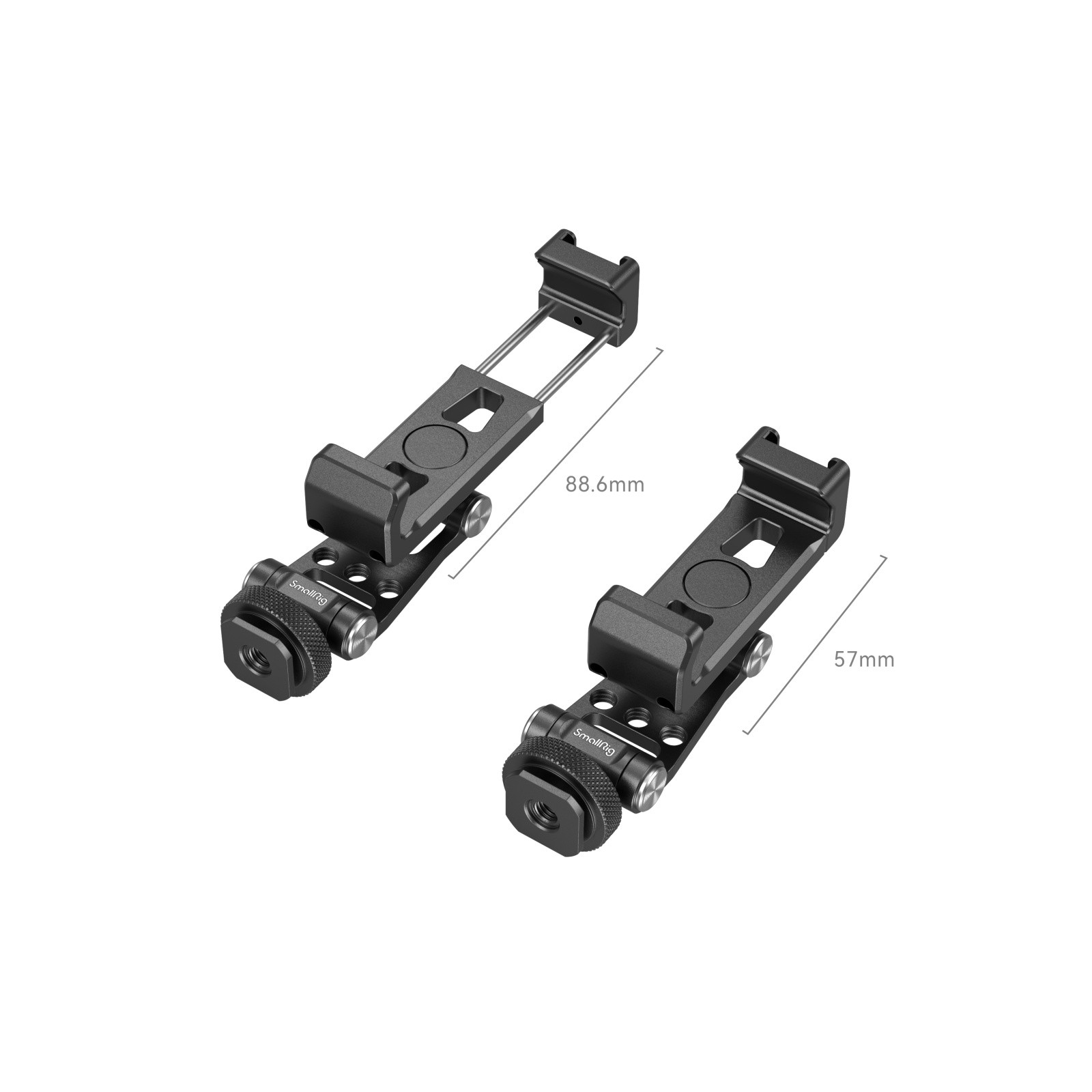

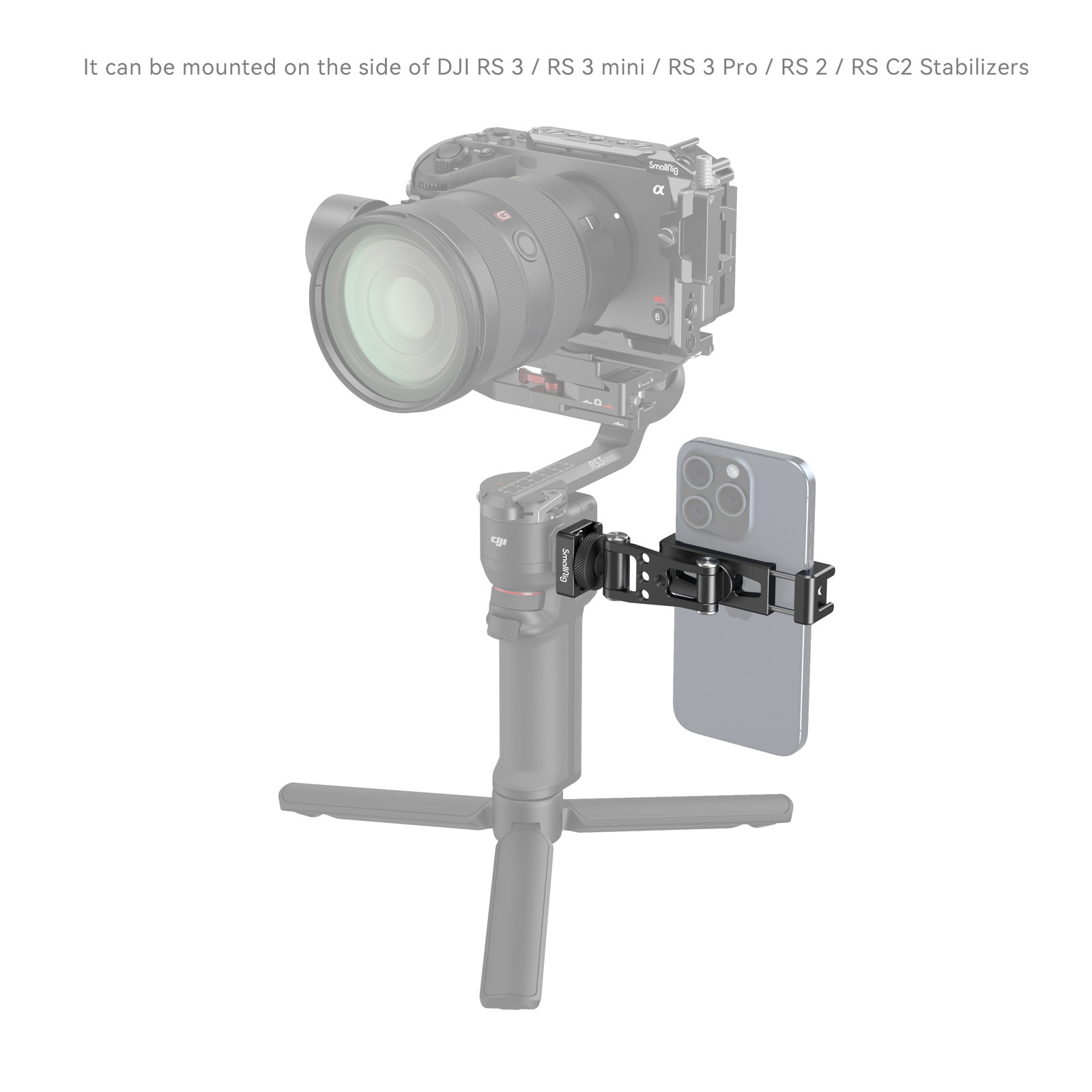

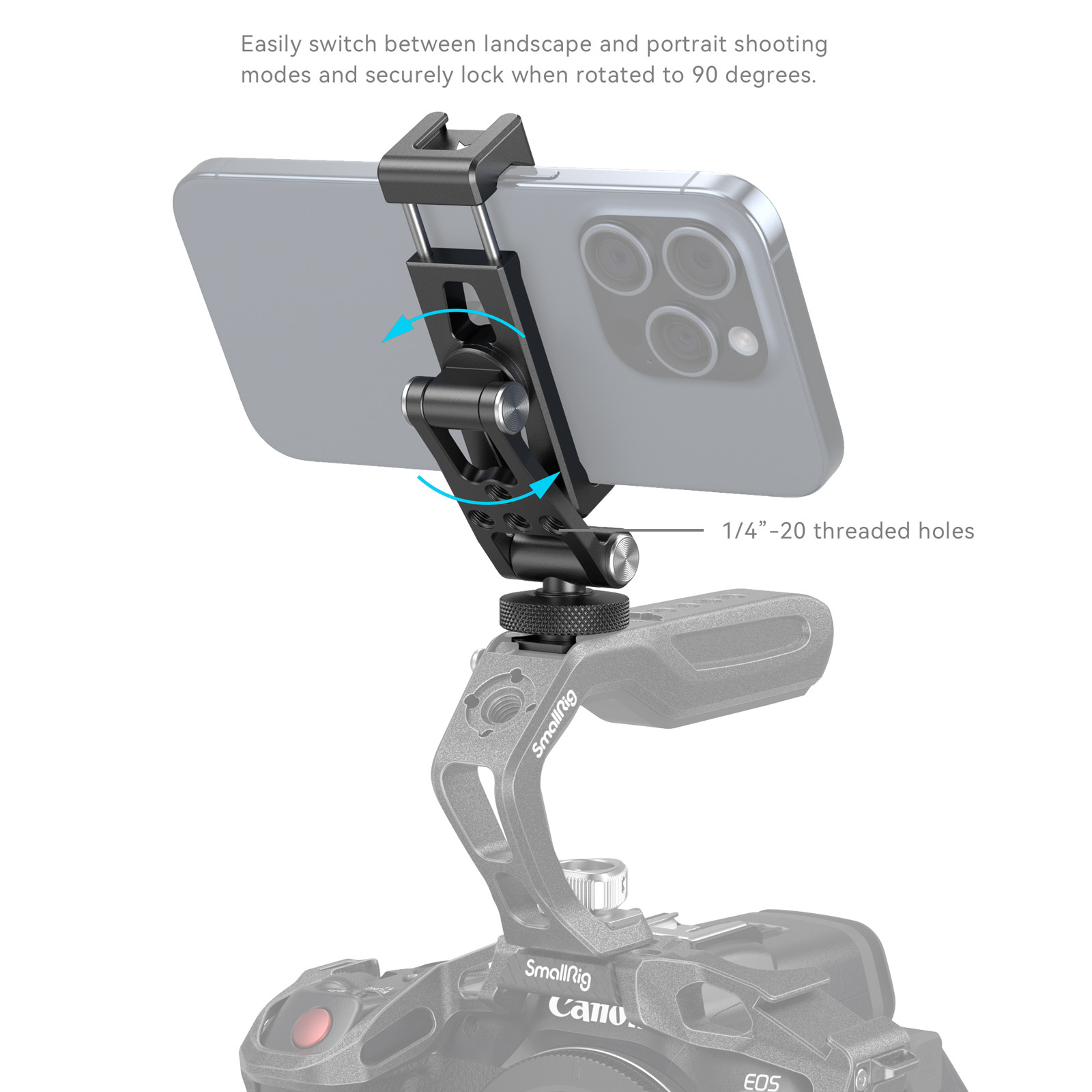

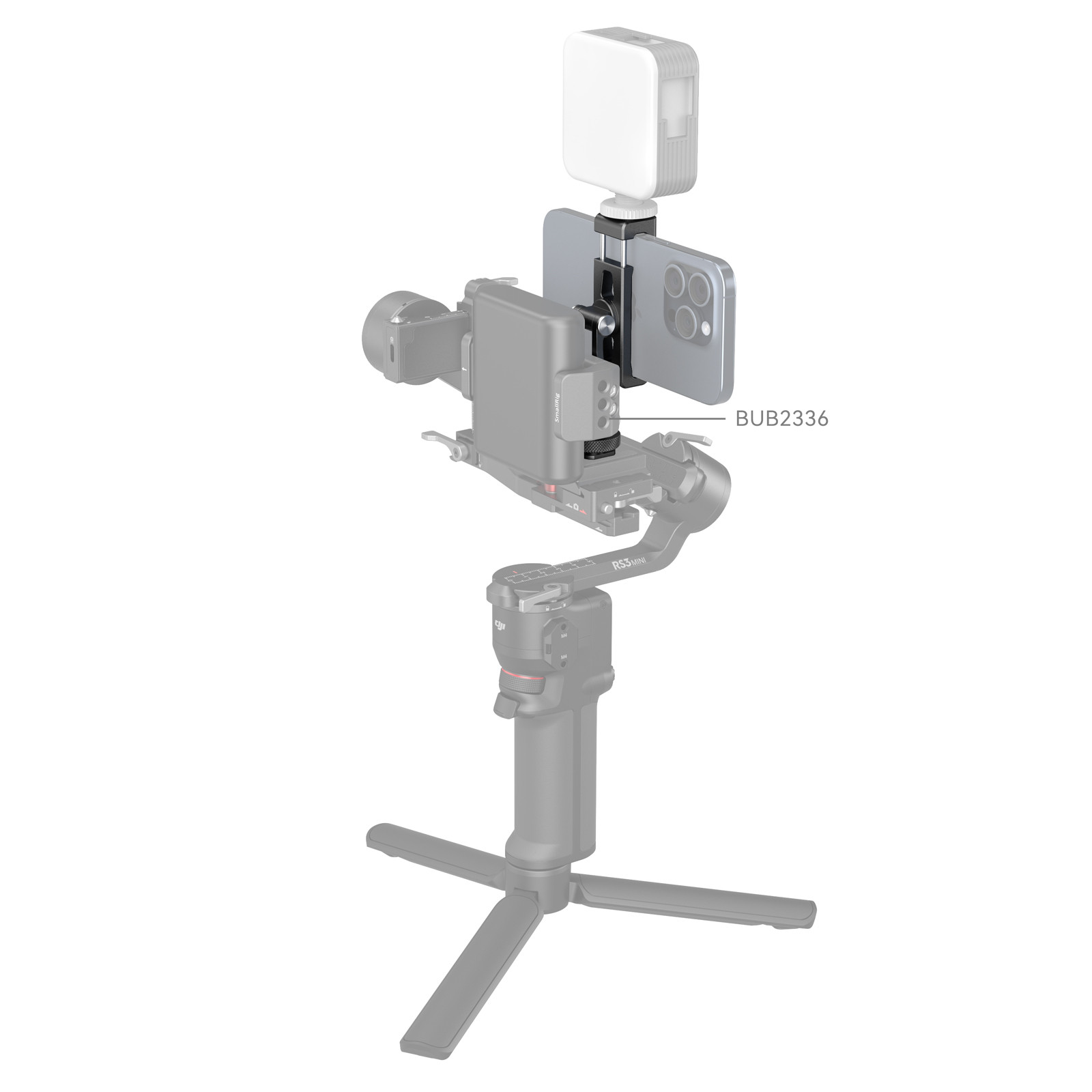

SmallRig Phone Holder for DJI Gimbals 4301 is specially designed for DJI RS 4 / RS 4 Pro / RS 3 / RS 3 Pro / RS 3 mini / RS 2 / RS C2 / R S / R SC and installed onto the side NATO rail through M4 screws. When not in use, release the cold shoe mount to detach your phone. The phone holder can be mounted on the top of a camera cage with a 1/4"-20 screw and supports phones with a width of 57-88mm / 2.5-3.5in. Quick switching between landscape and portrait modes and easy angle fixing with more than 90° rotating. There is a 1/4"-20 threaded hole at the bottom for RS 3 mini or tripod, and a cold shoe mount on top for microphone or light.
Note:
1. Load-bearing capacity: 500g / 17.6oz.
2. Please note, the arrow must point up while installing the cold shoe.
3. When in portrait mode, the phone may block the gimbal axis rotation.
Work With
DJI RS 4
DJI RS 4 Pro
DJI RS 3
DJI RS 3 Pro
DJI RS 3 mini
DJI RS 2
DJI RSC 2
Ronin SC
Ronin S

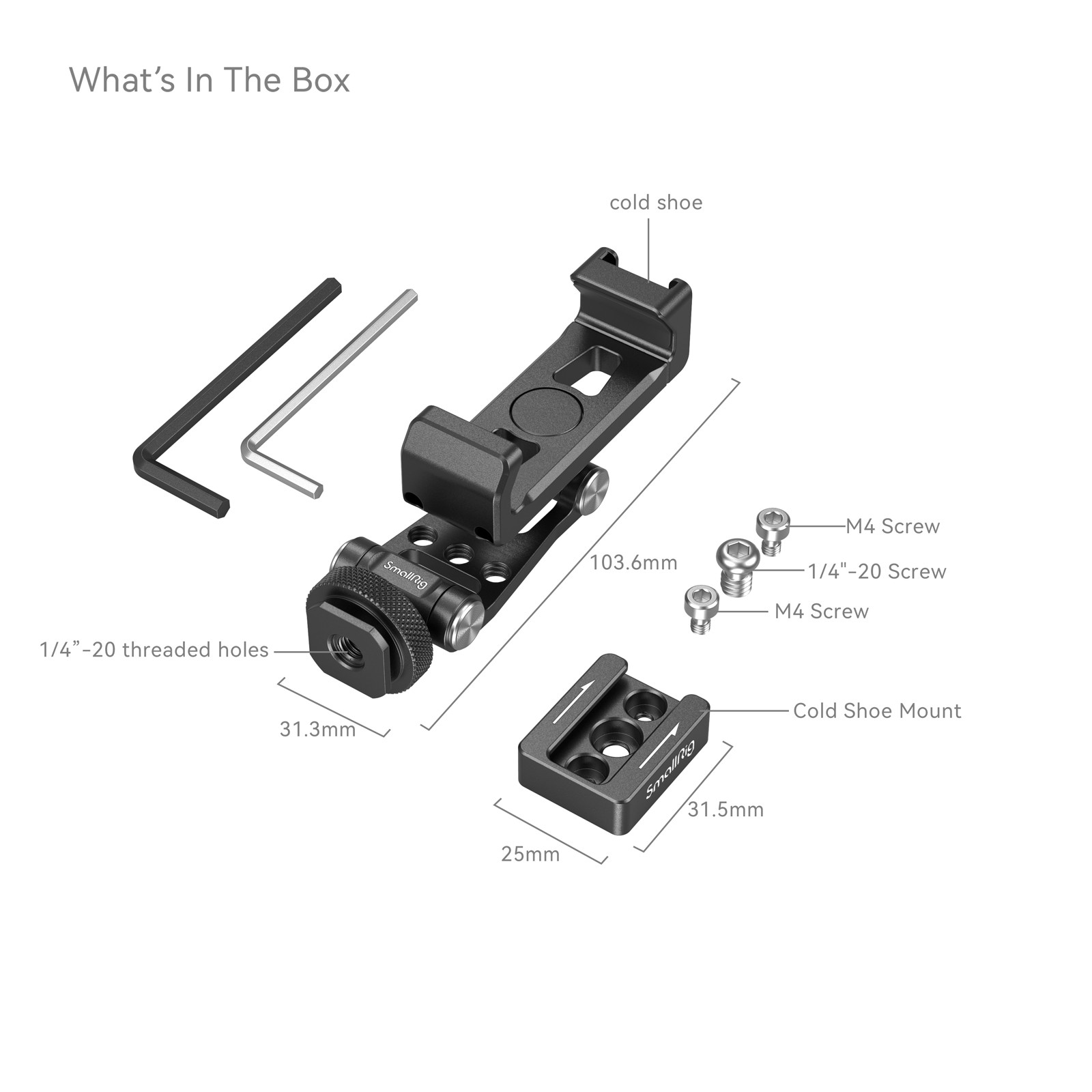

Packing List
Phone Holder x 1
Cold Shoe Mount x 1
M4 Screw x 2
1/4"-20 Screw x 1
Allen Wrench x 2
Technical Data
Product Dimensions: 110 x 31.3 x 41.3mm / 4.3 x 1.2 x 1.6in
Package Dimensions: 155 x 81.5 x 42mm / 6.1 x 3.2 x 1.7in
Product Weight: 101±5.0g / 3.6±0.2oz
Package Weight: 141±5.0g / 5.0±0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
