SmallRig Multifunctional VND Filter Tray Kit 4415

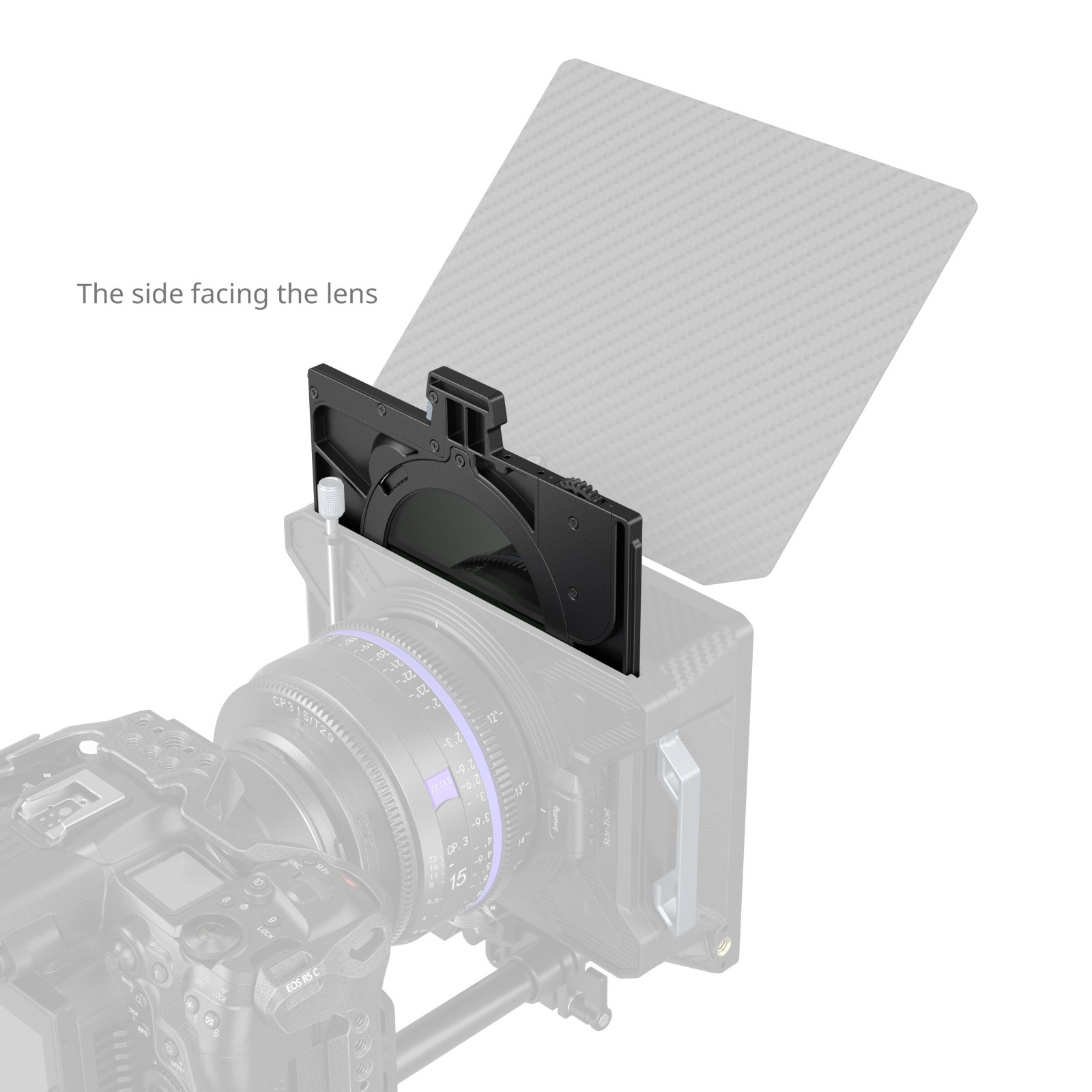

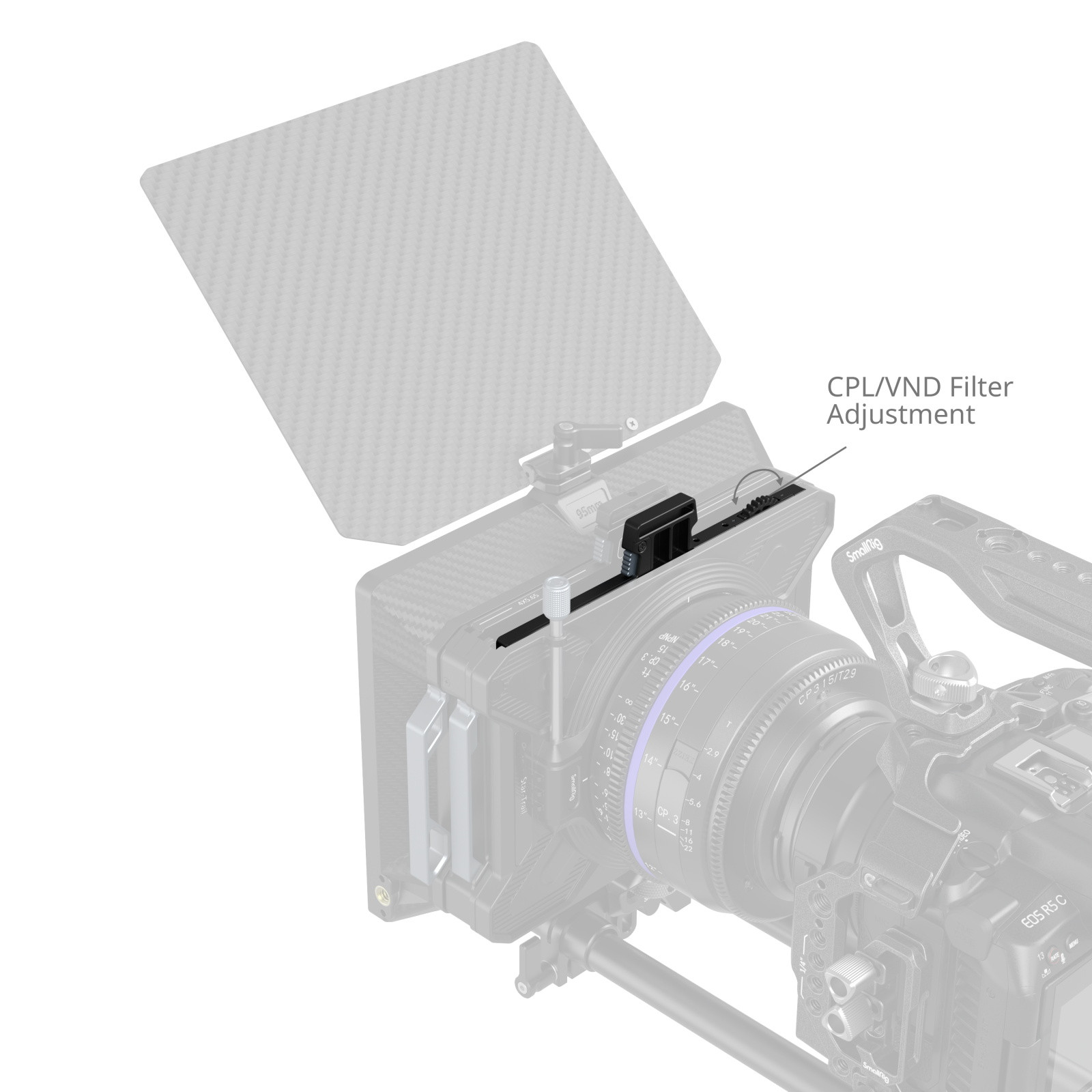

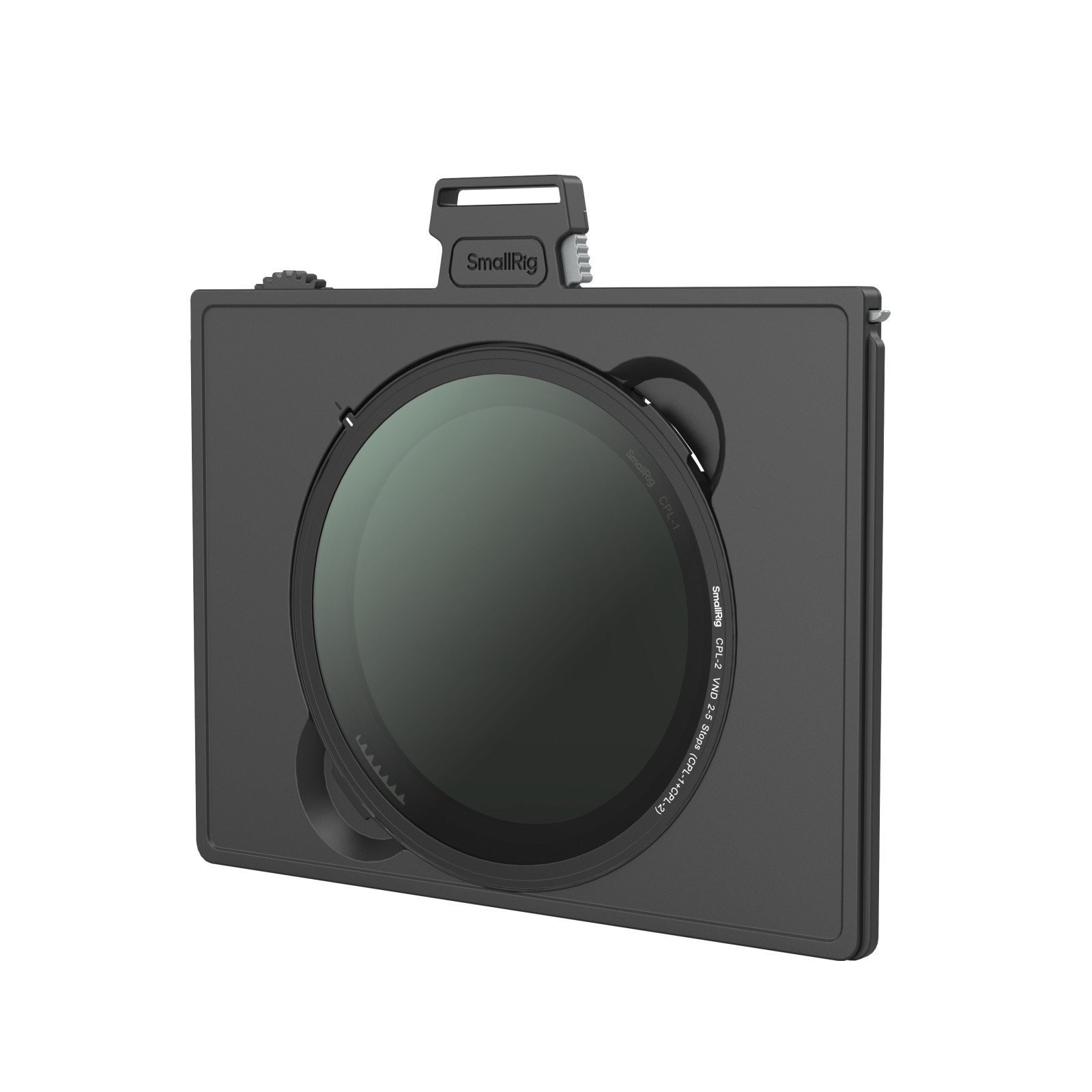

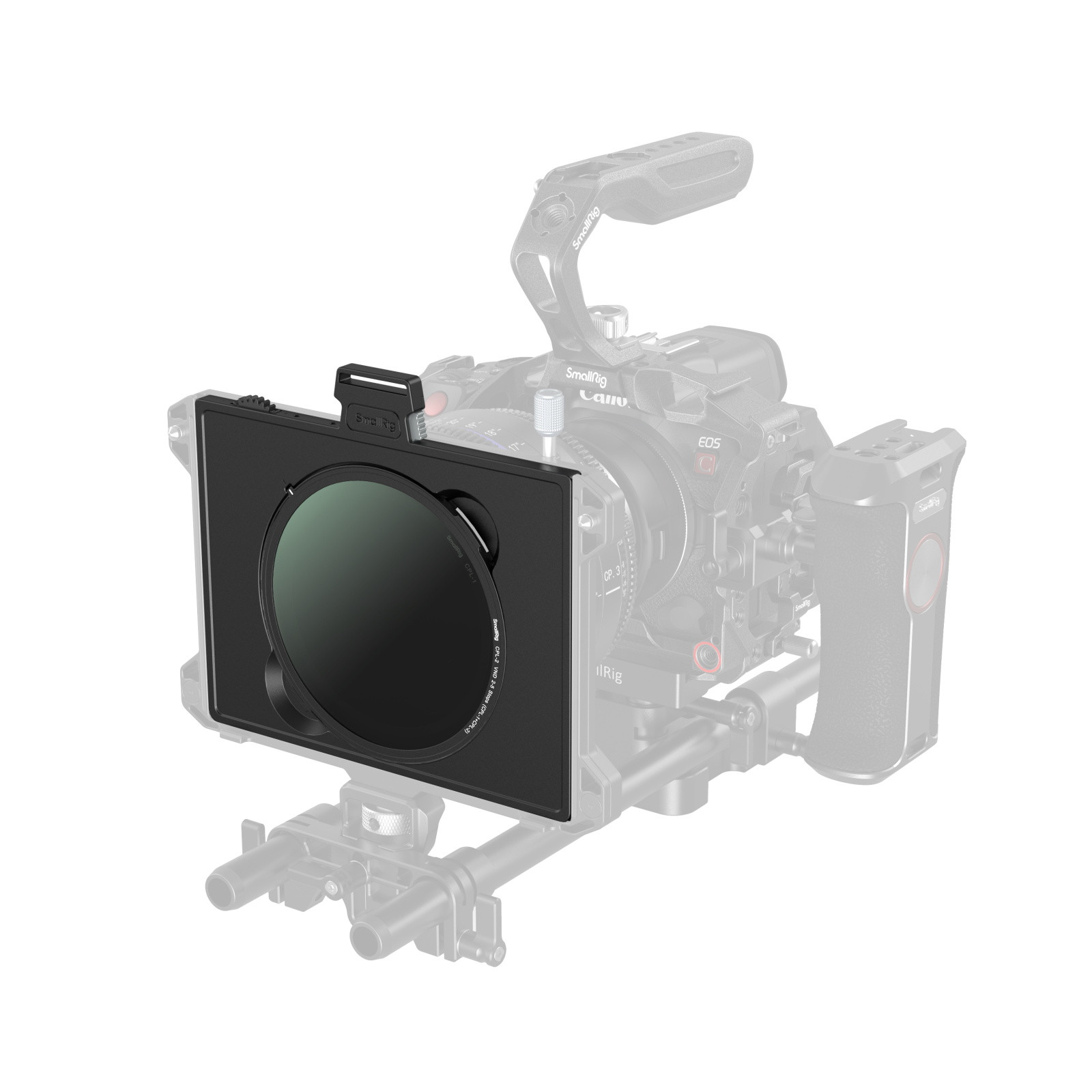

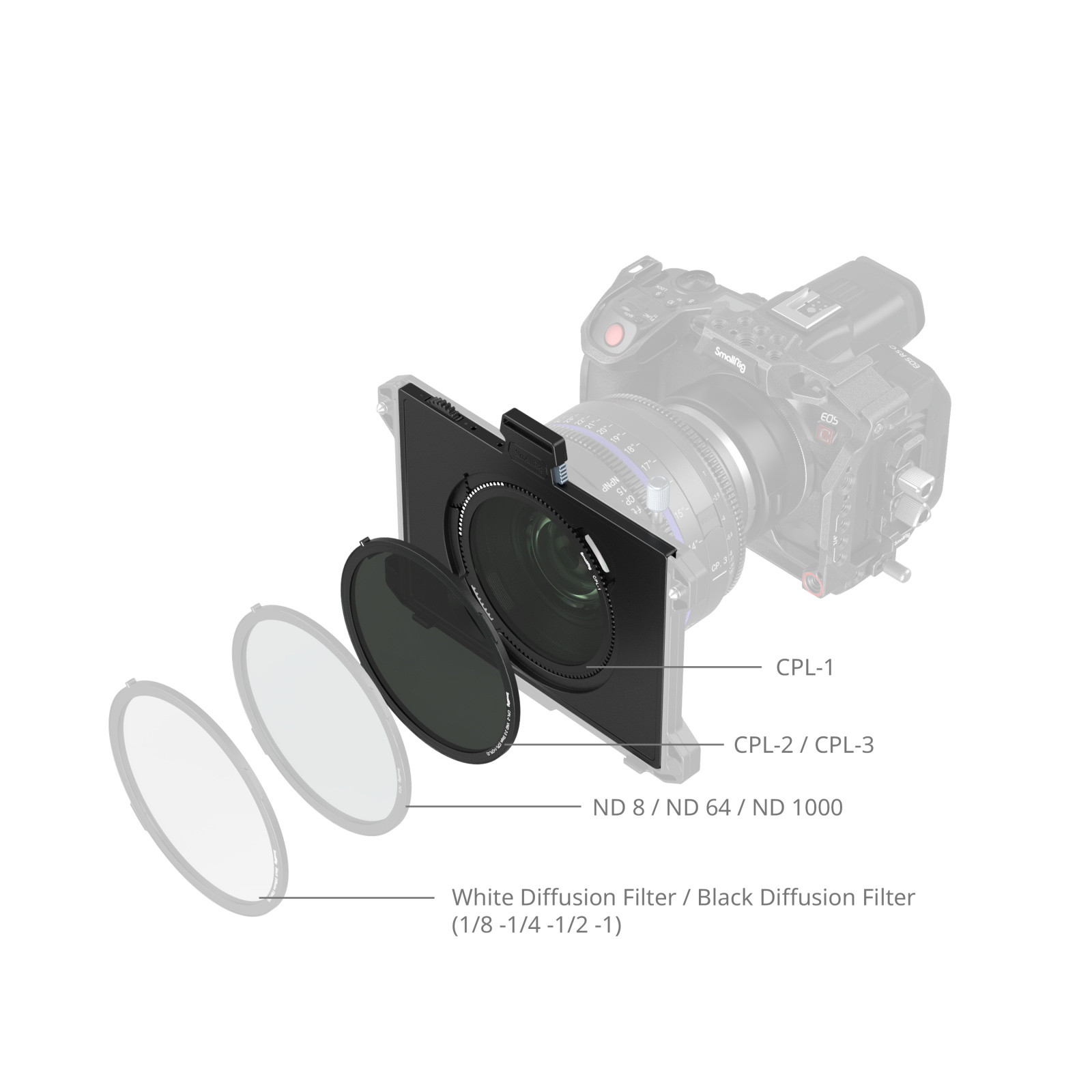

SmallRig Multifunctional VND Filter Tray Kit 4415 is designed for users of matte boxes (ID: 3556 / 3645) to mount filters on the top of the matte box easily. The VND filter tray features an automatic locking mechanism, enabling quick unlocking with a single press. With its slim design and front-mounted installation, it ensures no vignetting at focal lengths ≥16mm (for full-frame cameras and lenses), effectively minimizing glare in challenging conditions. The filter tray allows for versatile combinations, with CPL, VND, and Diffusion filters magnetically stackable. The VND offers a 2-5 stop range with continuous adjustment, preventing the unwanted X-pattern effect with hard stops and light transmission control technology. The filters utilize imported high-definition glass with a 22-layer dual-sided coating, ensuring highly accurate color reproduction and minimal color distortion within the 350-700nm wavelength range.
Note:
1. Compatible only with models such as 3556 / 3645 / 3641 / 3646.
2. Ensure a snug fit of the filter tray against the lens for compatibility across a wider focal length range.
3. The VND filter does not have distinct level markings.

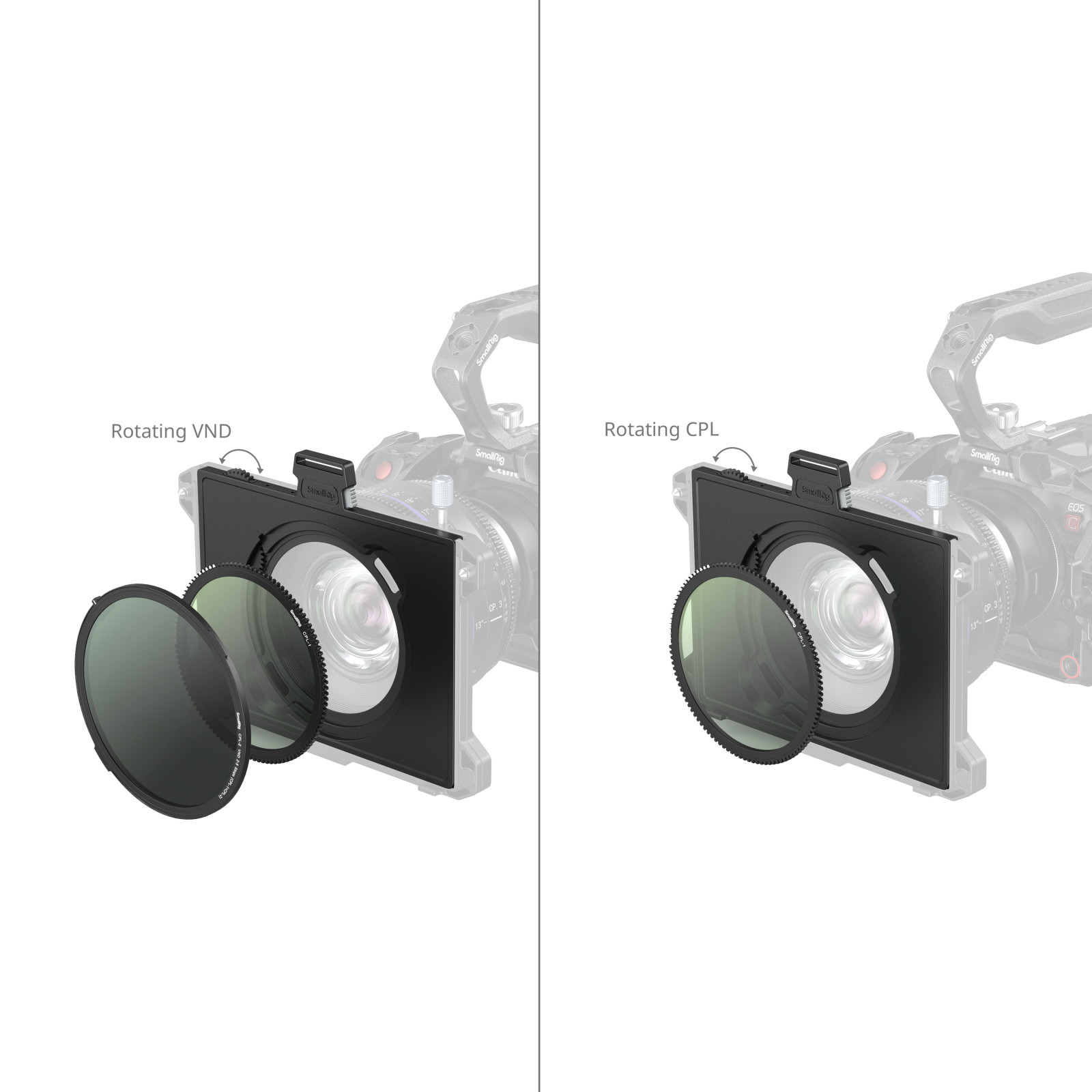

4. When Combining CPL1 with CPL2/CPL3 to form VND, ensure alignment points are within the VND gear line.

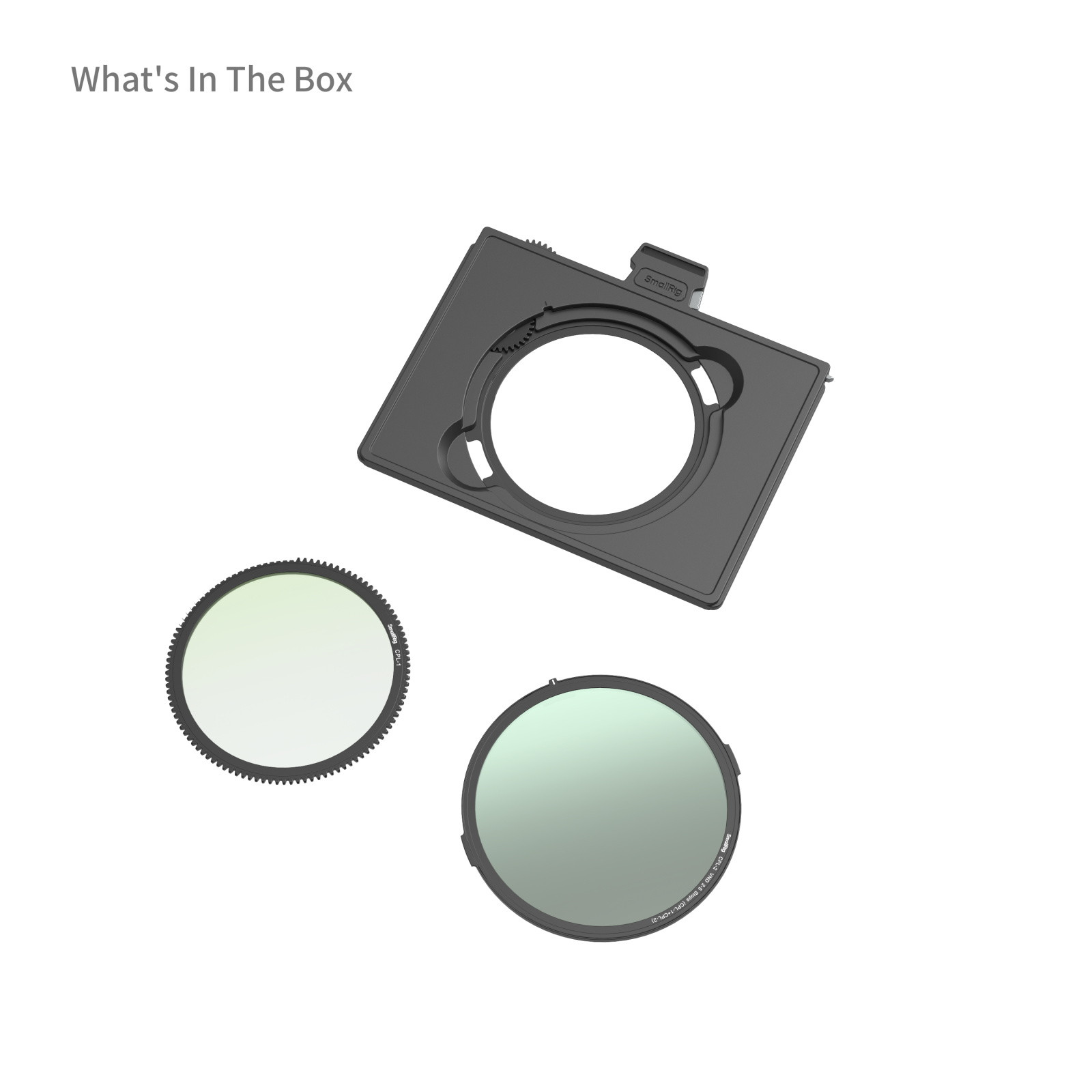

Packing List
4 x 5.65" Filter Tray x 1
CPL 1 Filter x 1
CPL 2 Filter x 1
Cleaning Cloth x 1
User Manual x 1
Technical Data
Product Dimensions: 153 x 134 x 6.3mm
Package Dimensions: 141 x 160 x 31.5mm
Product Weight: 123g±5g
Package Weight: 228g±5g
Material(s): Aluminum Alloy, Nylon + Fiberglass, Carbon Fiber, Magnet, Stainless Steel, Glass
