SmallRig Monitor Cage with Sunhood for SmallHD 502 Bright Monitor 2231
SmallRig Monitor Cage with Sunhood for SmallHD 502 Bright Monitor 2231 is designed to provide an all-around protection and mounting options for SmallHD 502 Bright monitor. The form-fitted monitor cage is fixed on the cage via two 1/4"-20 threaded holes on the back and side. It features a nato rail on each side and bottom for accessories with nato clamp to make your setup quick release, such as Magic Arm 2071. The cage provide multiple 1/4"-20, 3/8"-16 and arri 3/8" holes for accessory attachment. Dedicated sunhood to provides glare protection when shooting outdoors and a HDMI cable clamp to protect HDMI port,optional cable clamp 1693 is able to protect the SDI port. Additionally, rod clamp 1254 can be attached to the bottom with a short rod allows to make your monitor adjustable.
Key Features
1.Form-Fitted aluminum cage for SmallHD 502 Bright Monitor.
2.Dual lock points to secure the monitor for prevent twisting.
3.Nato rail on each side and bottom to quick release your setup.
4.Multiple 1/4"-20, 3/8"-16 and arri 3/8"threaded holes for accessory attachment.
5.Features a HDMI cable lock to secure the HDMI port.

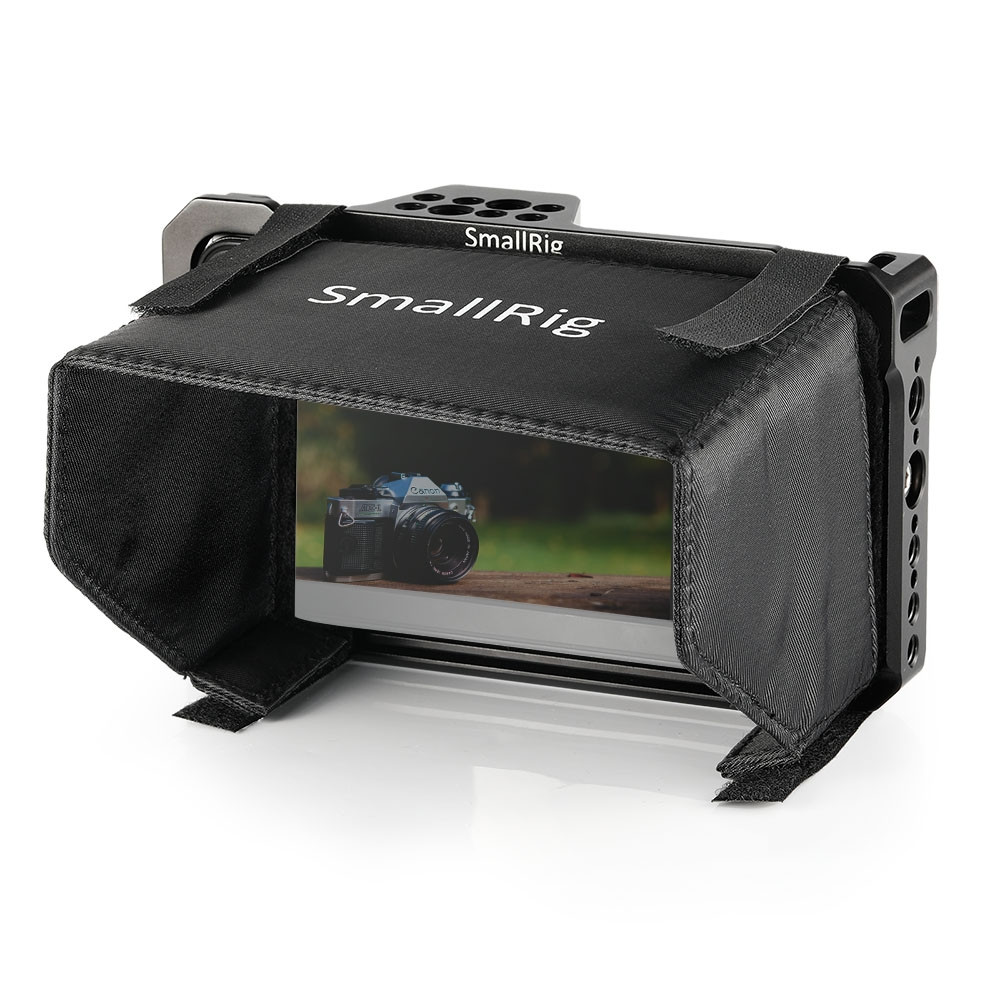

6.Dedicated Sunhood included without obstructing the control button.
Work With
SmallHD 502 Bright Monitor

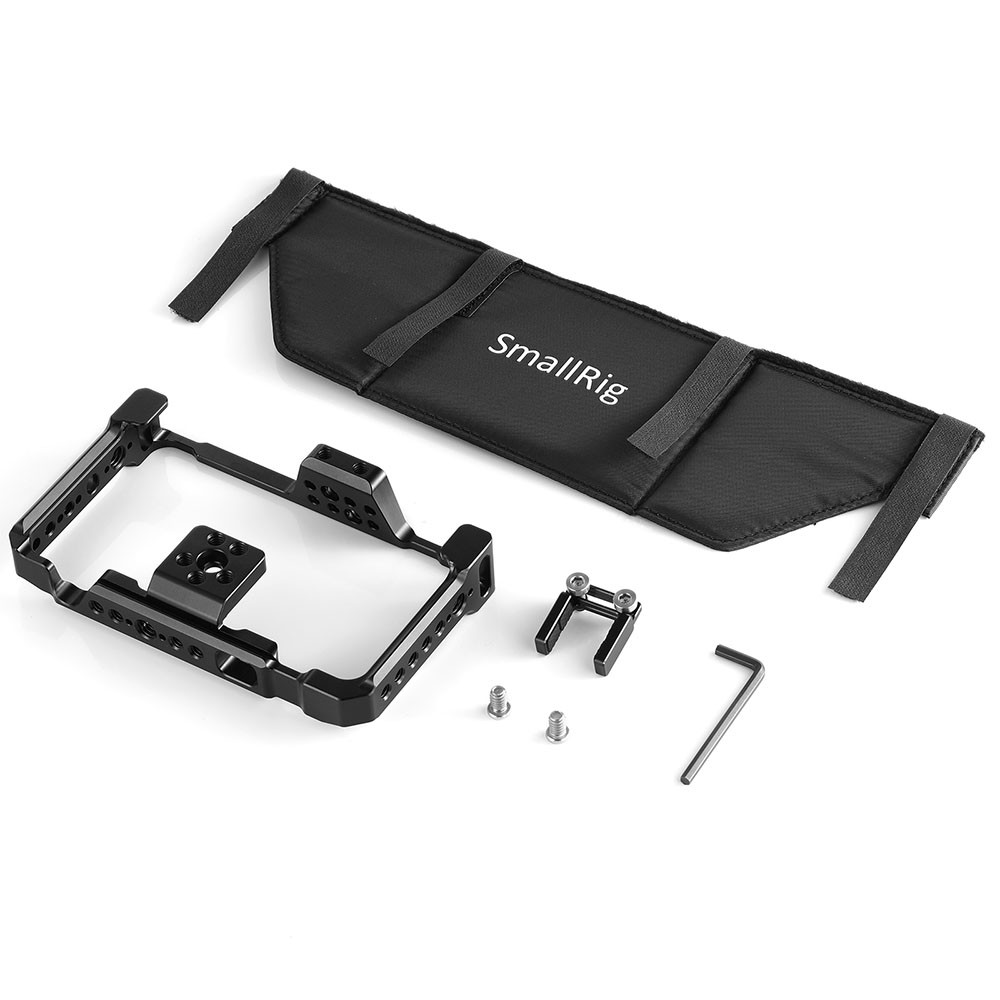

Packing List
1 x Cage
1 x Sunhood
2 x 1/4"-20 Screw
1 x Hex Spanner
1 x HDMI Cable Clamp
Technical Data

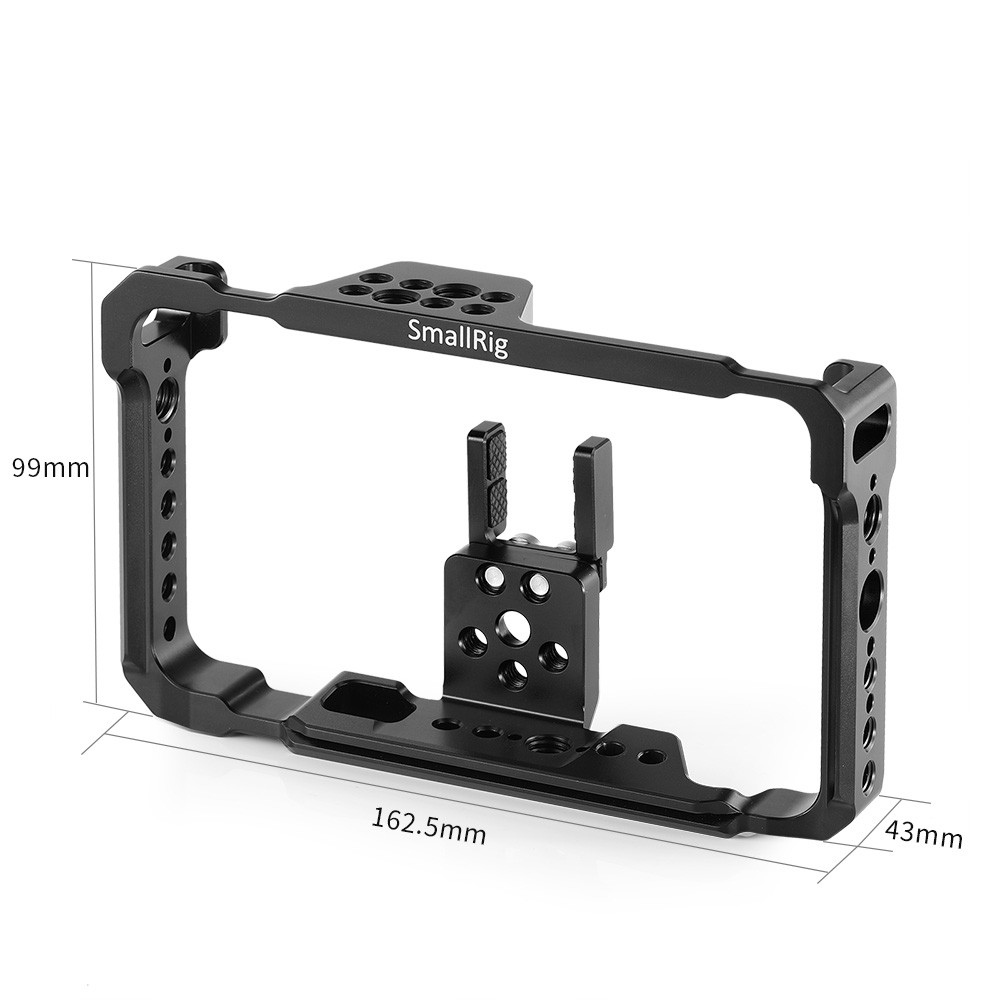

Product Dimensions: 162.5 X 99 X 32.5mm
Net Weight: 235g
Material(s): Aluminum Alloy
