SmallRig mini Shock Absorber Arm for DJI Osmo Pocket 4 / Pocket 3 / GoPro HERO13 / Insta360 X5 / X4 5123

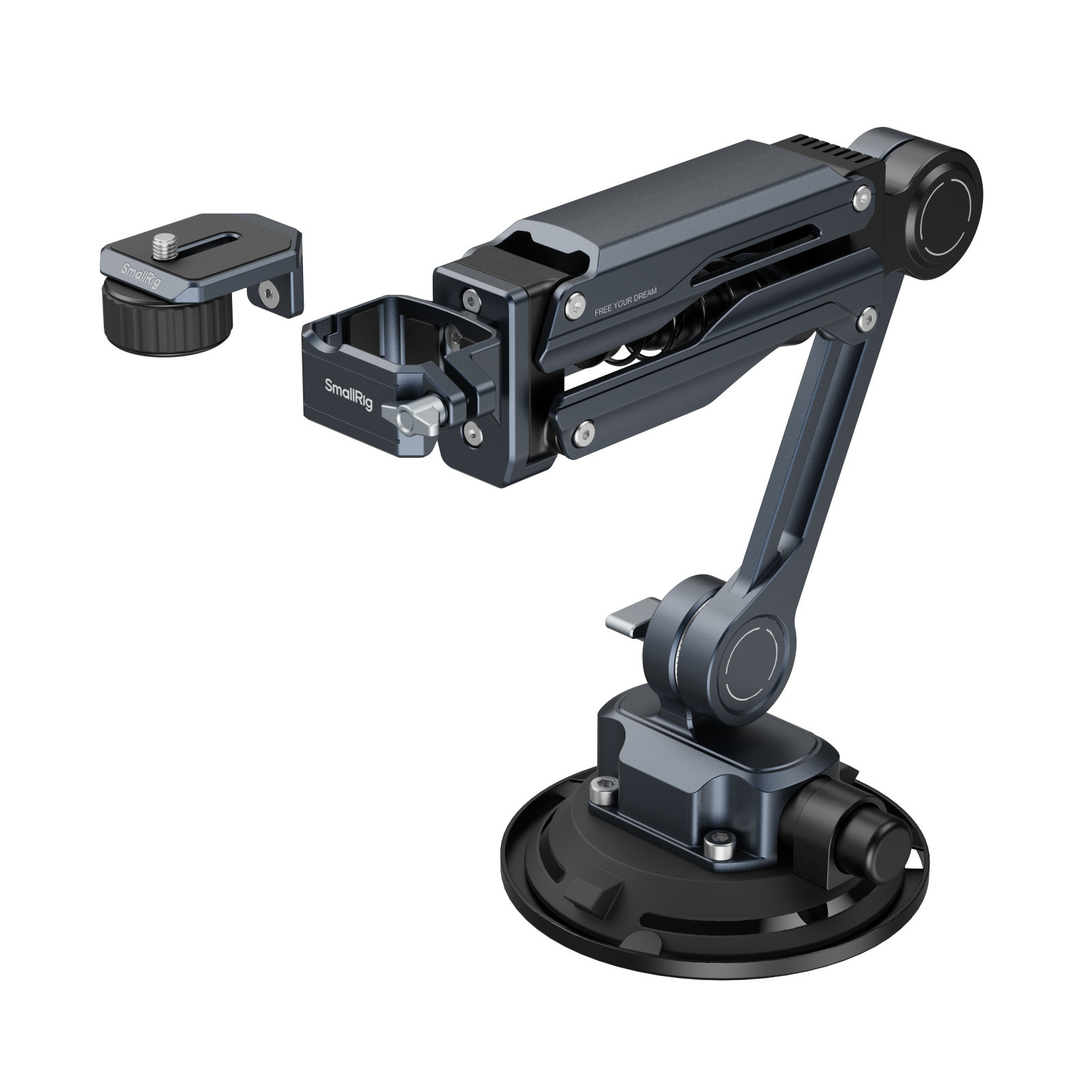

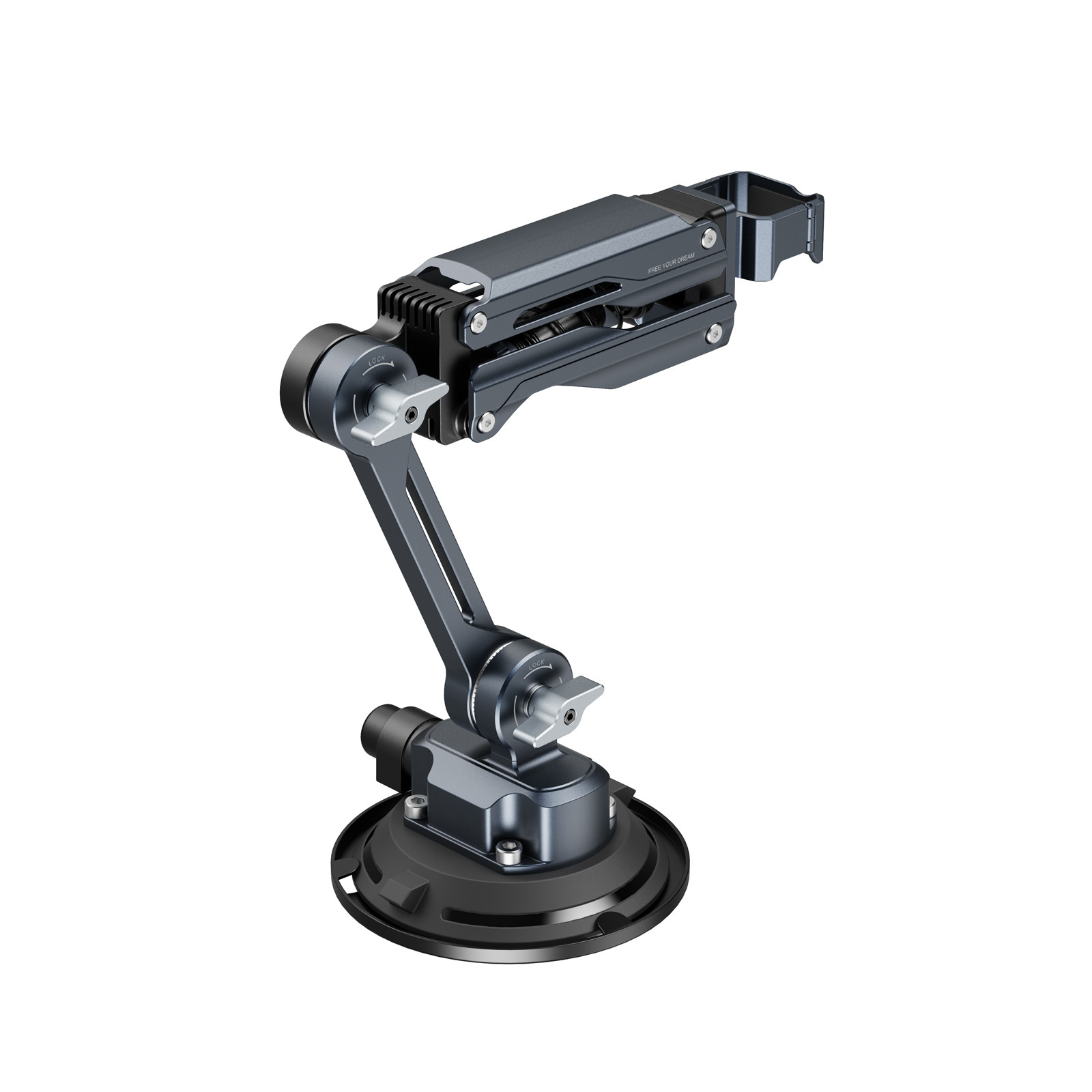

SmallRig mini Shock Absorber Arm for DJI Osmo Pocket 4 / Pocket 3 / GoPro HERO13 / Insta360 X5 / X4 5123 is specifically designed for vehicle-mounted shooting with DJI Osmo Pocket 4 / Pocket 3, while also including an adapter for attaching action cameras like GoPro HERO13 Black and Insta360 X5 / X4. The shock absorber arm features a high-rebound spring and a hydraulic damping system, significantly reducing vertical vibrations during in-vehicle shooting to deliver stable footage.
The arm is equipped with a damping adjustment knob to adapt to varying road conditions, making it suitable for challenging shooting environments. It includes a 4-inch manual vacuum suction cup that supports devices weighing up to 600g / 1.33lb, covering most mainstream action cameras. The suction cup comes with a dust cover to protect against scratches and extend its lifespan. Additionally, it includes a hard storage case for secure storage and easy portability.
Note:
1. The suction cup should only be used on smooth, dry, and flat surfaces. Avoid using it on rough, wet, uneven, dirty, fragile, or delicate surfaces.
2. Ensure that the suction cup base and filter disk are intact and clean. If either is damaged or contaminated, discontinue use immediately.
3. Exercise caution when using the suction cup on surfaces with films.
4. The safety line on the air pump indicates the need for immediate air extraction. Press the air pump button until the safety line is no longer visible.

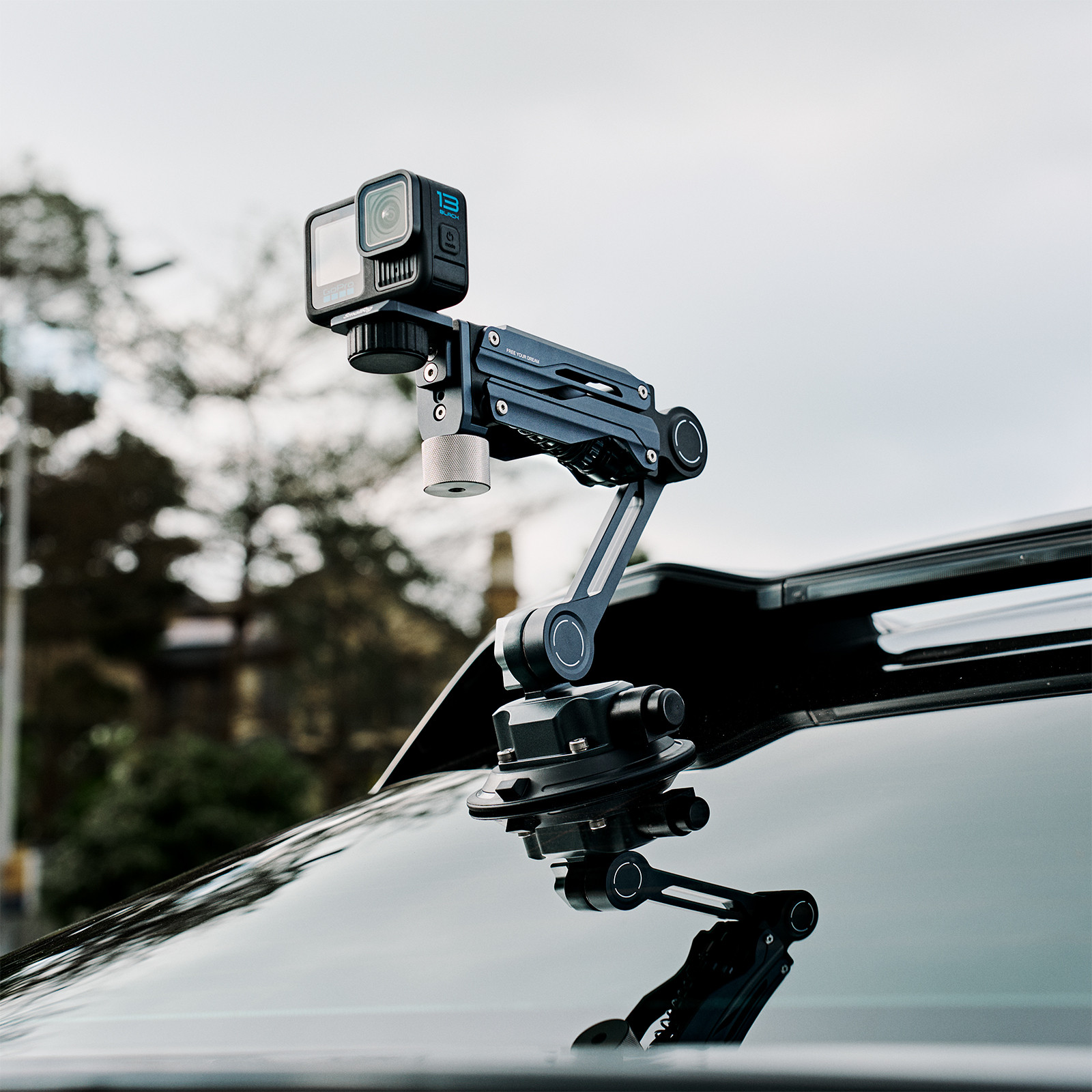

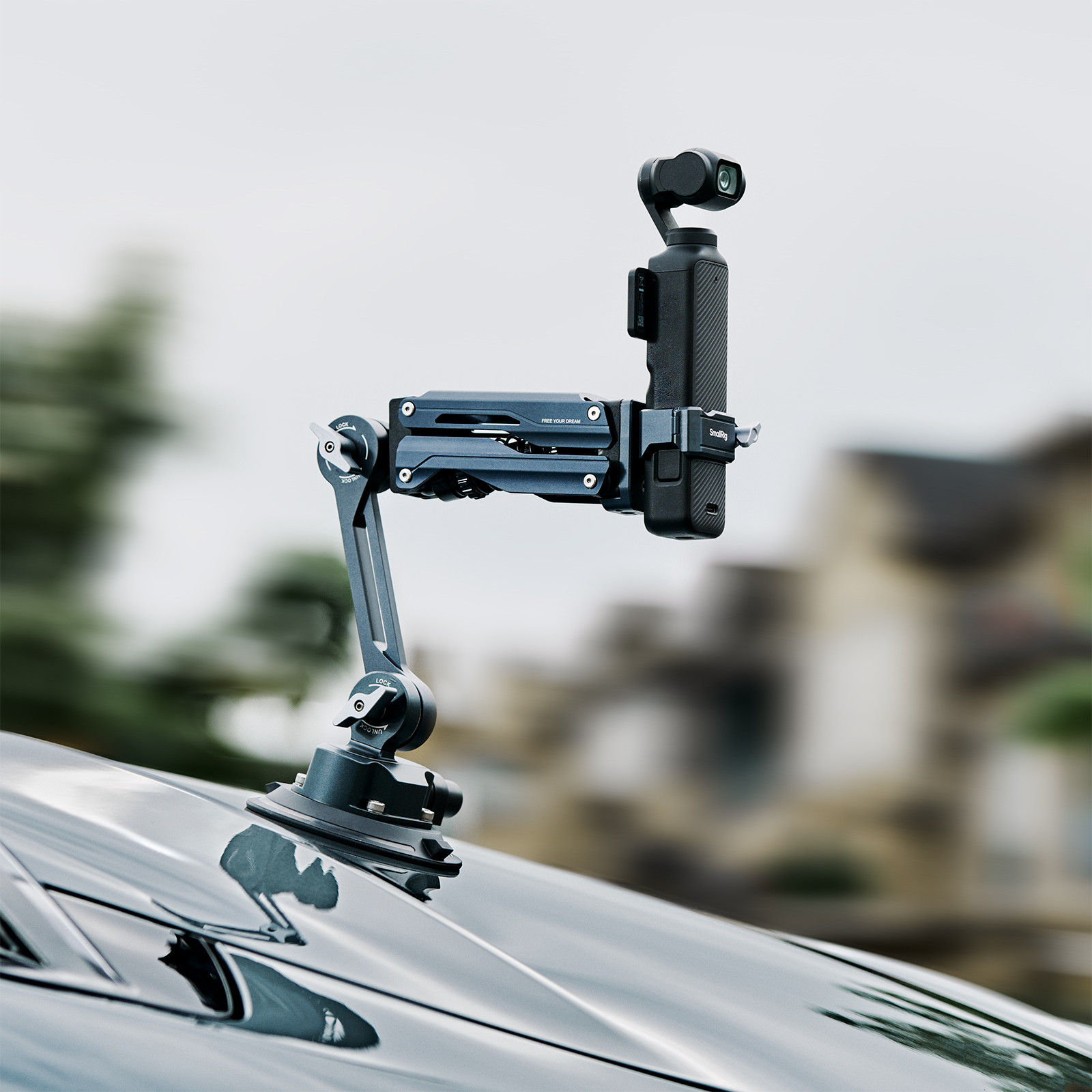

5. When using the device outside the vehicle, secure it with a safety strap, maintain a speed below 100 km/h / 62.1 mph, check the suction performance before use, and inspect it every hour.
6. Straps are not included and can be purchased separately if needed.
7. When using, do not place your hands on the shock absorber arm spring or the angle position to avoid being pinched.
Work With

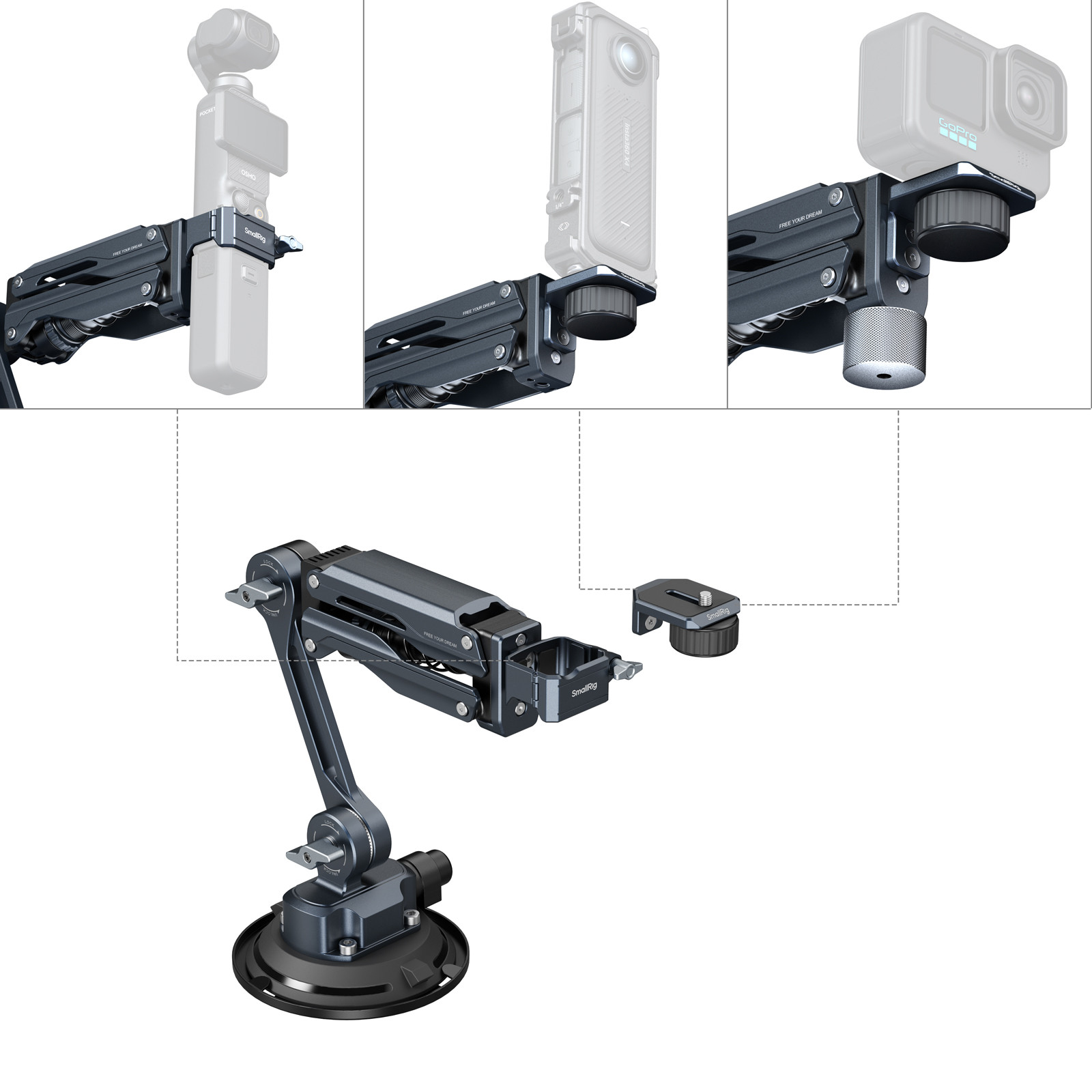

Compatible with action cameras featuring a 1/4"-20 threaded hole at the bottom, such as DJI Osmo Pocket 4 / Pocket 3, GoPro HERO13 Black, and Insta360 X5 / X4.
Compatible with action cameras with a cage (featuring a 1/4"-20 threaded hole), such as GoPro HERO12 Black, HERO11 Black, HERO10 Black, HERO9 Black, and DJI Osmo Action 6 / 5 Pro / 4 / 3.

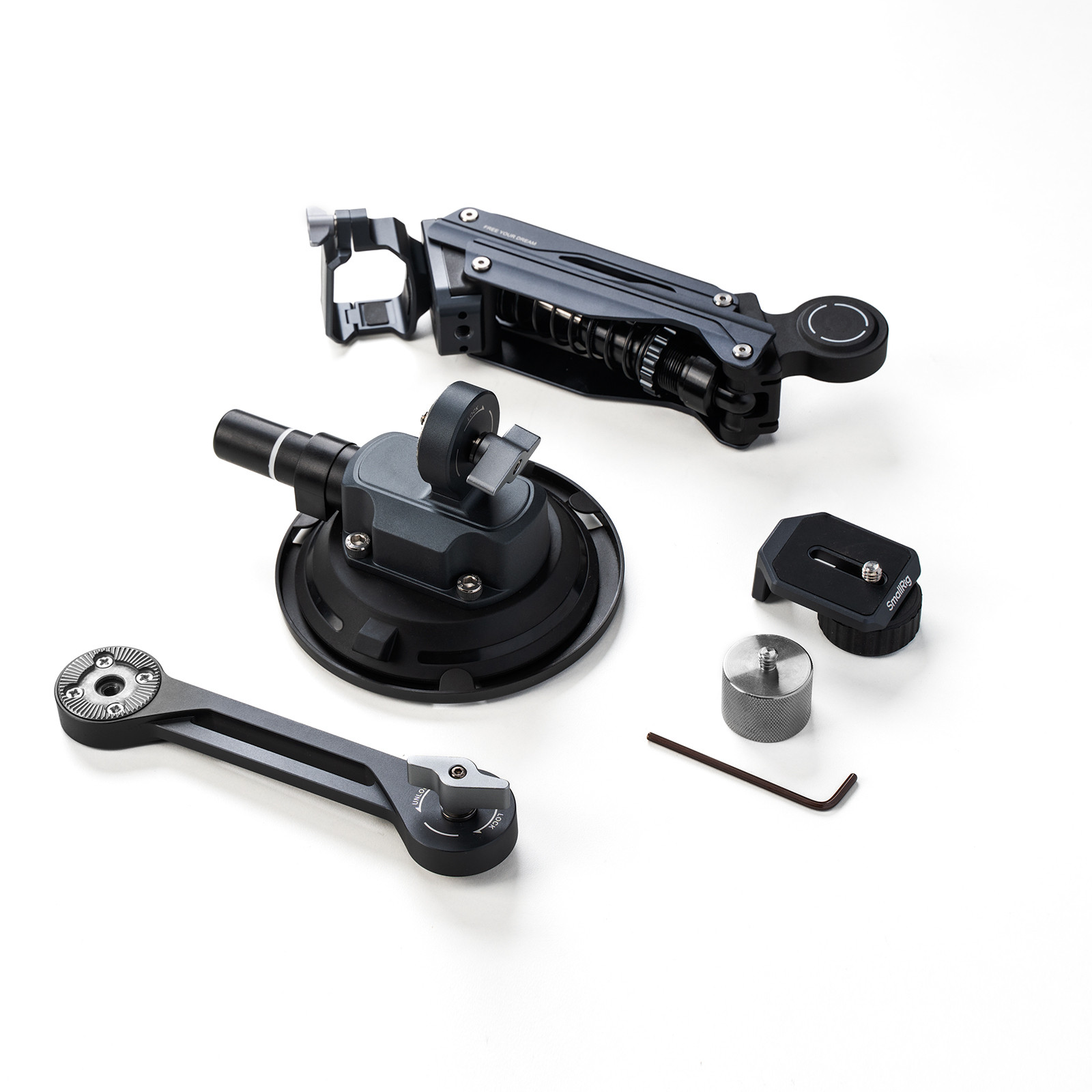

Packing List
Shock Absorber Support x 1
Suction Cup x 1
Suction Cup Dust Cover x 1
Extension Arm x 1
Adapter x 1
Mount Plate x 1
Counterweight x 1
Allen Wrench x 1
Carrying Bag x 1
Technical Data

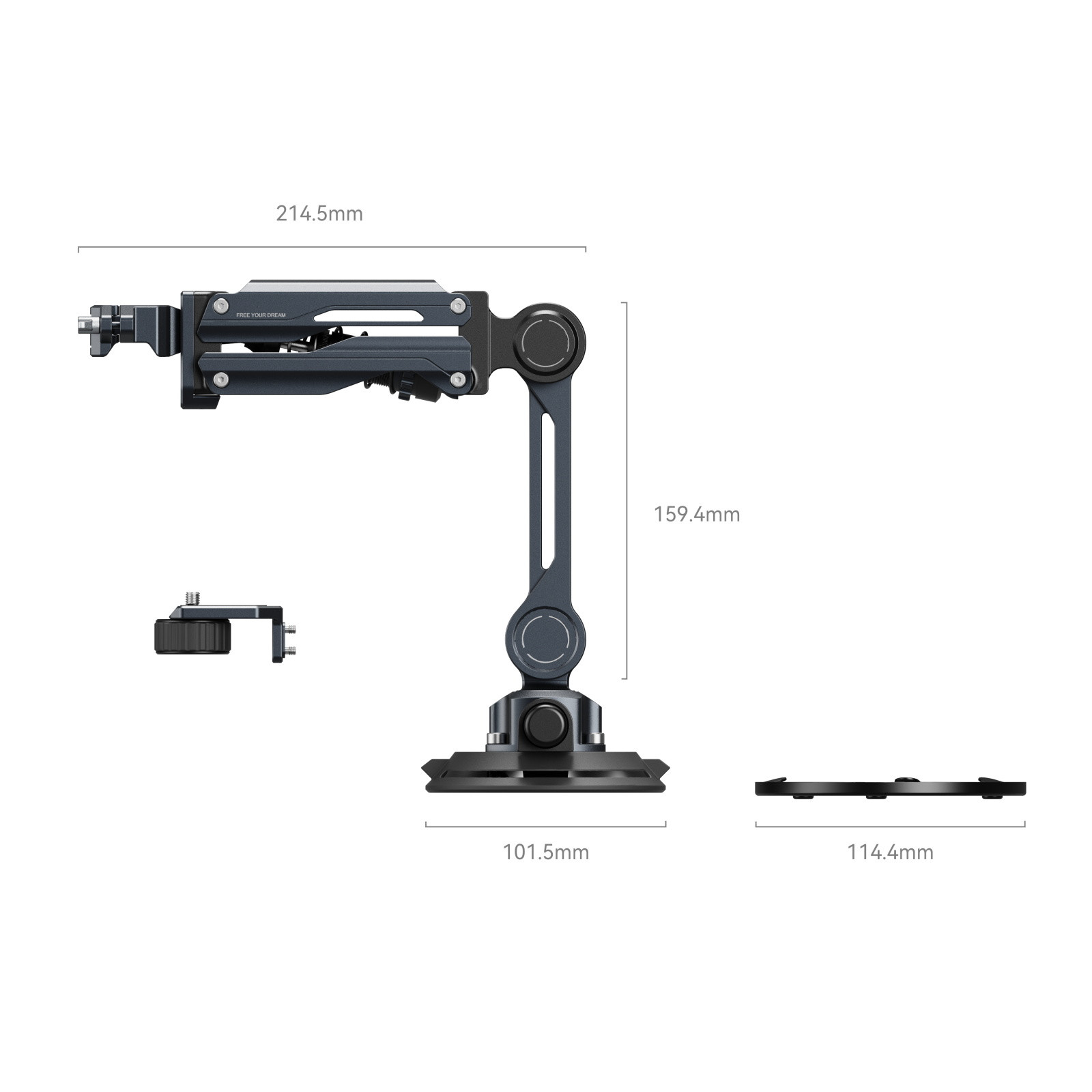

Product Dimensions: 101.5 x 159.4 x 214.5mm / 4.0 x 6.3 x 8.4in
Package Dimensions: 262.0 x 228.0 x 110.0mm / 10.3 x 9.0 x 4.3in
Product Weight: 720.0 ± 5.0g / 25.4 ± 0.2oz
Package Weight: 1260.0 ± 5.0g / 44.4 ± 0.2oz
Material(s): Aluminium Alloy, Stainless Steel, Rubber, Reinforced Polyamide, ABS Plastic
