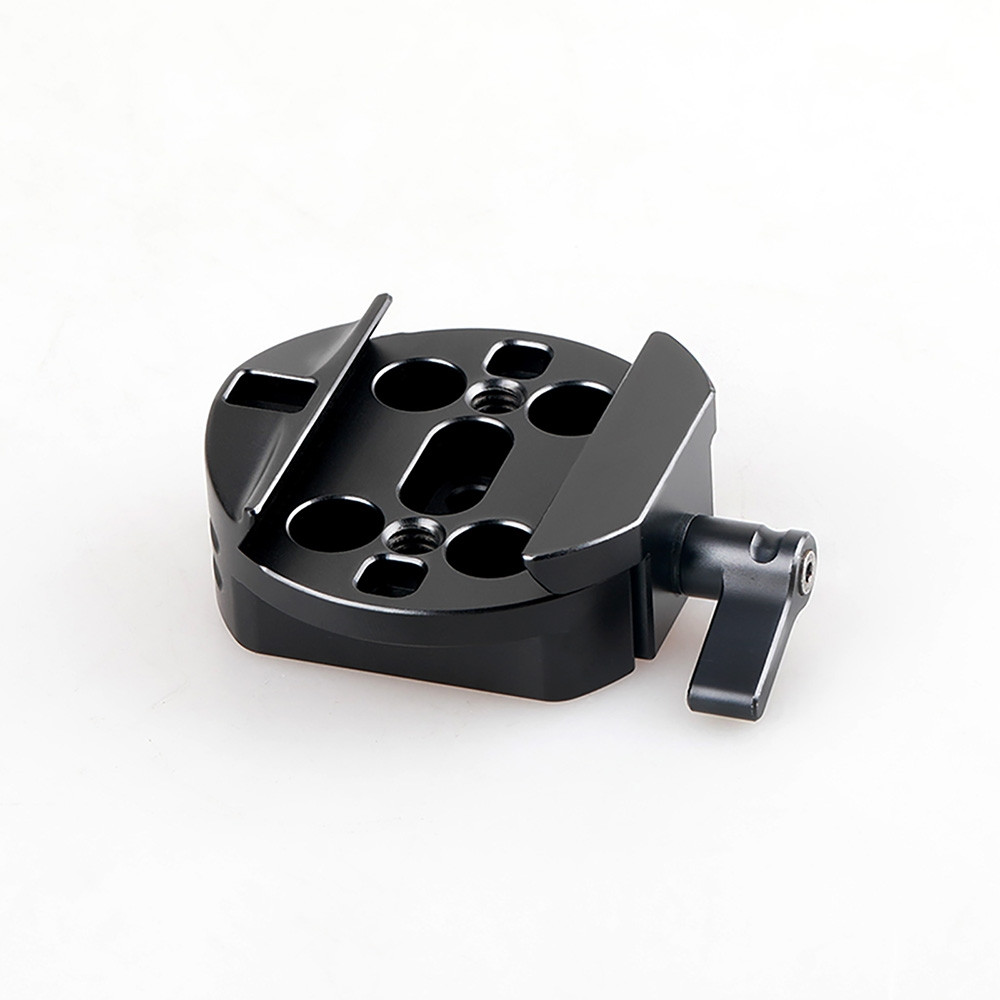

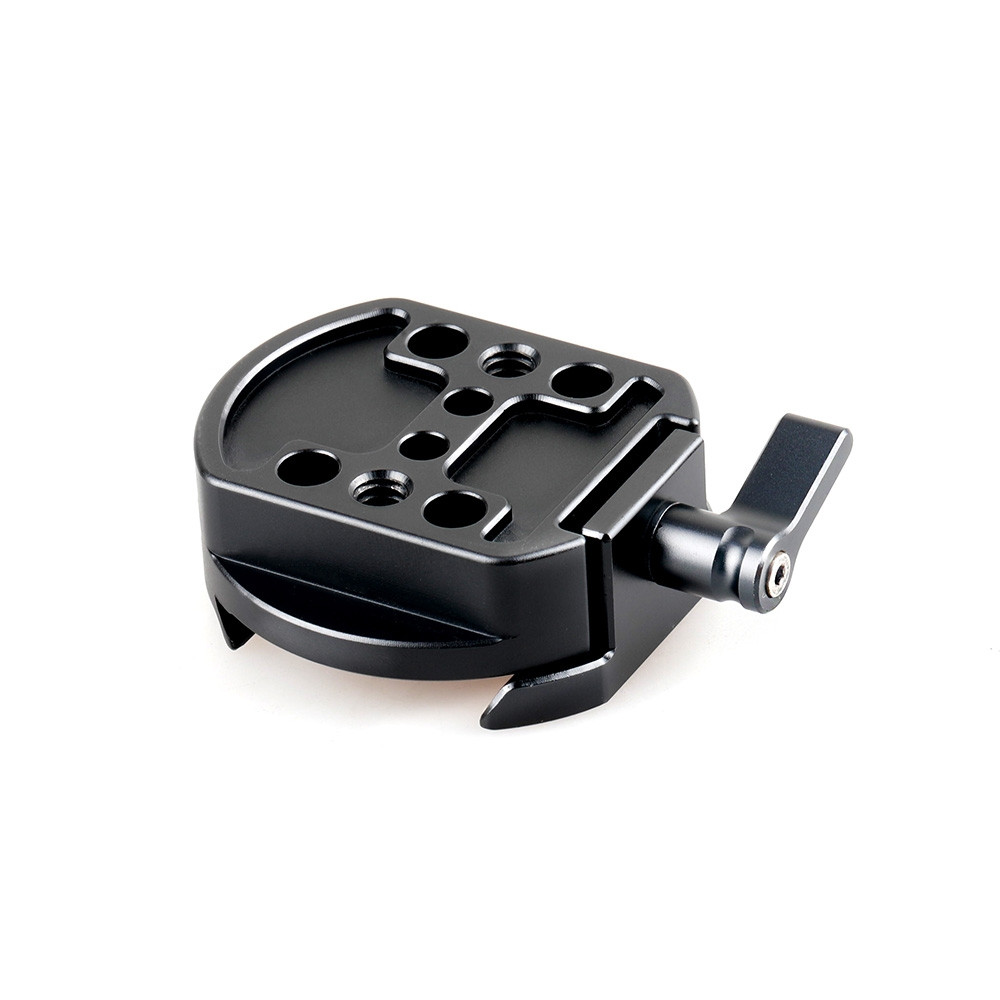

SmallRig Mini Quick Plate Mount for DJI Ronin/Ronin-M/Ronin-MX 1682

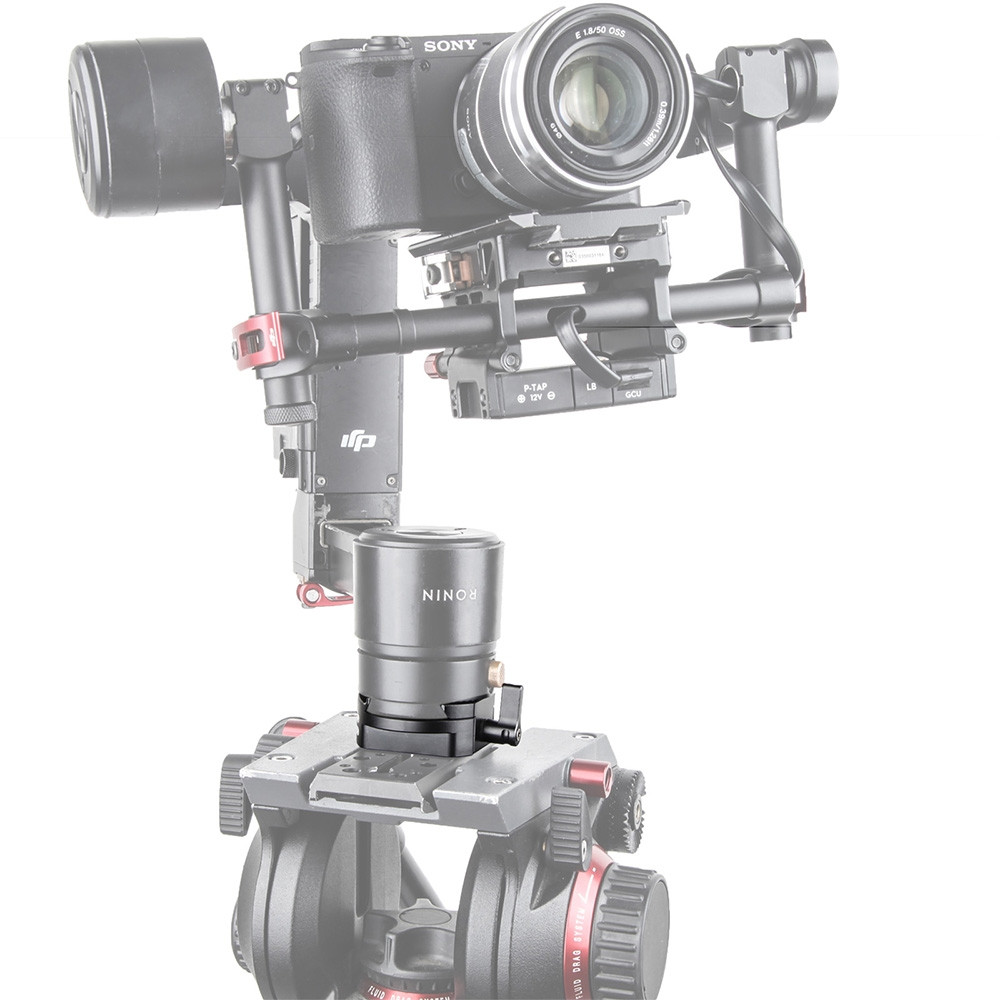

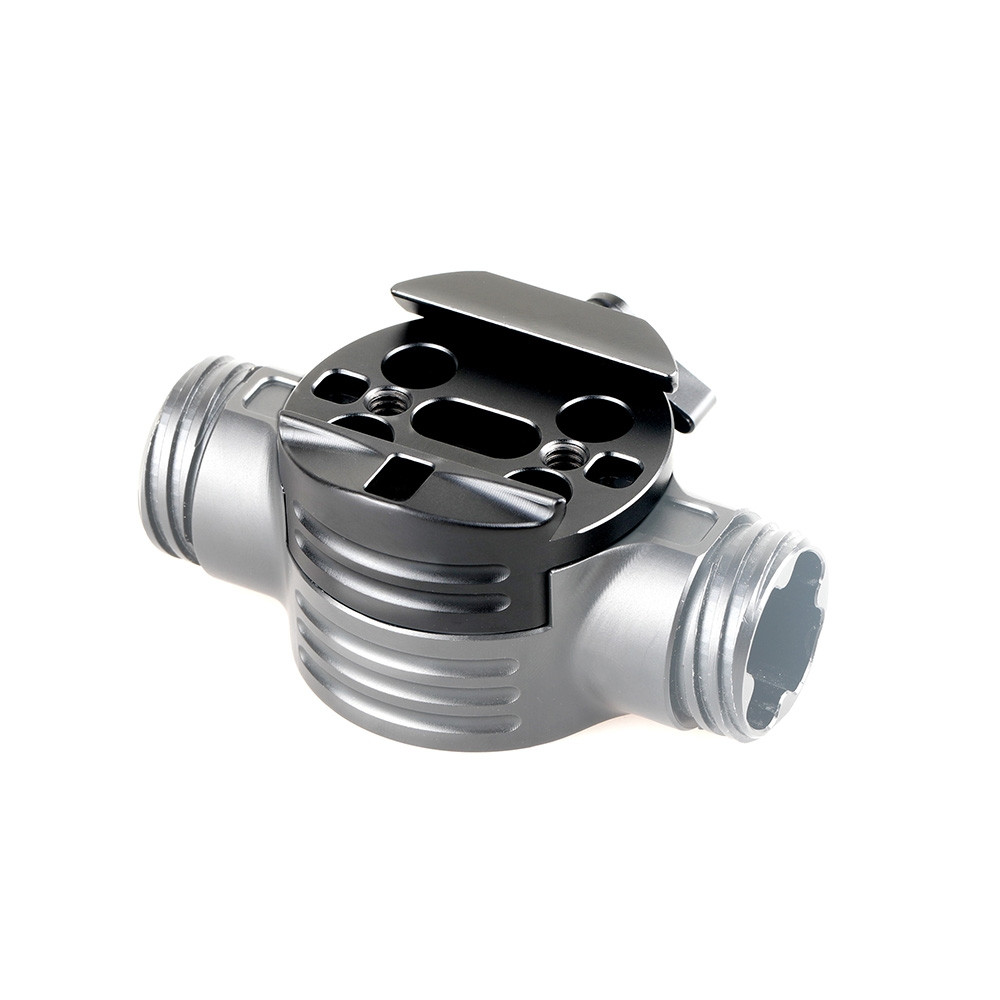

SmallRig Mini Quick Plate Mount for DJI Ronin/Ronin-M/Ronin-MX 1682 is designed to simply and quickly slide onto your Ronin/Ronin-M/Ronin-MX.It offers two 1/4" -20 threads, two M5 holes and four 1/4’’ countersinks, which allow to attach other accessories, such as SMALLRIG Ronin-M/Ronin-MX Handheld to Tripod Adapter 1689. This mount features two anti-release holes that makes no direction restriction to install it to Ronin stabilizer. With this quick plate mount, you are able to quickly switch your camera from Ronin, Ronin-M or Ronin-MX to a tripod.
Key Features
1.Quick switch from handheld to tripod through attaching QR plate
2.Offer multiple 1/4" holes and two M5 holes for attaching other accessories
3.Feature two Ronin anti-release holes that makes no direction restriction for installation
4.Compatible with SmallRig Ronin-M/Ronin-M* handheld to tripod?adapter 1689
Work With
Ronin, Ronin M, Ronin MX
Packing List
1 x Quick Plate Mount (mini)
4 x 1/4''-20 Screw
1 x 1/4’’ Spanner
Technical Data
Product Dimensions: 27.5x27.5x22mm
Net Weight: 73g
Package Size: 85x75x24mm
Package Weight: 112g
Material: Aluminum Alloy
