SmallRig Live Desktop Camera Bracket DT-50 4456

SmallRig Live Desktop Camera Bracket DT-50 4456

1. Multi-Angle Shooting: Adjustable bracket supports 360° rotation.

2. Mobility: The 3-section detachable articulated arm is flexible to combine and easy to customize and carry.

3. Load-Bearing Capacity: 2.7KG/5.9lbs  tilted and 3.3KG/7.3lbs horizontally.

4. The bracket comes with an aluminum alloy crab-shaped clamp and holding arm allowing the connection of an additional device for efficient shooting.

5. Highly Compatible: 1/4 "-20 screw, phone clip, lamp holder, 1/4"-20 to 3/8"-16 adapter and 1/4"-20 to 5/8"-11 adapter.

$49.99
Sku 4456
EAN 6941590015088

Availability: In stock 7

This product has been viewed 325 times

Product Description



SmallRig Live Desktop Camera Bracket DT-50 4456

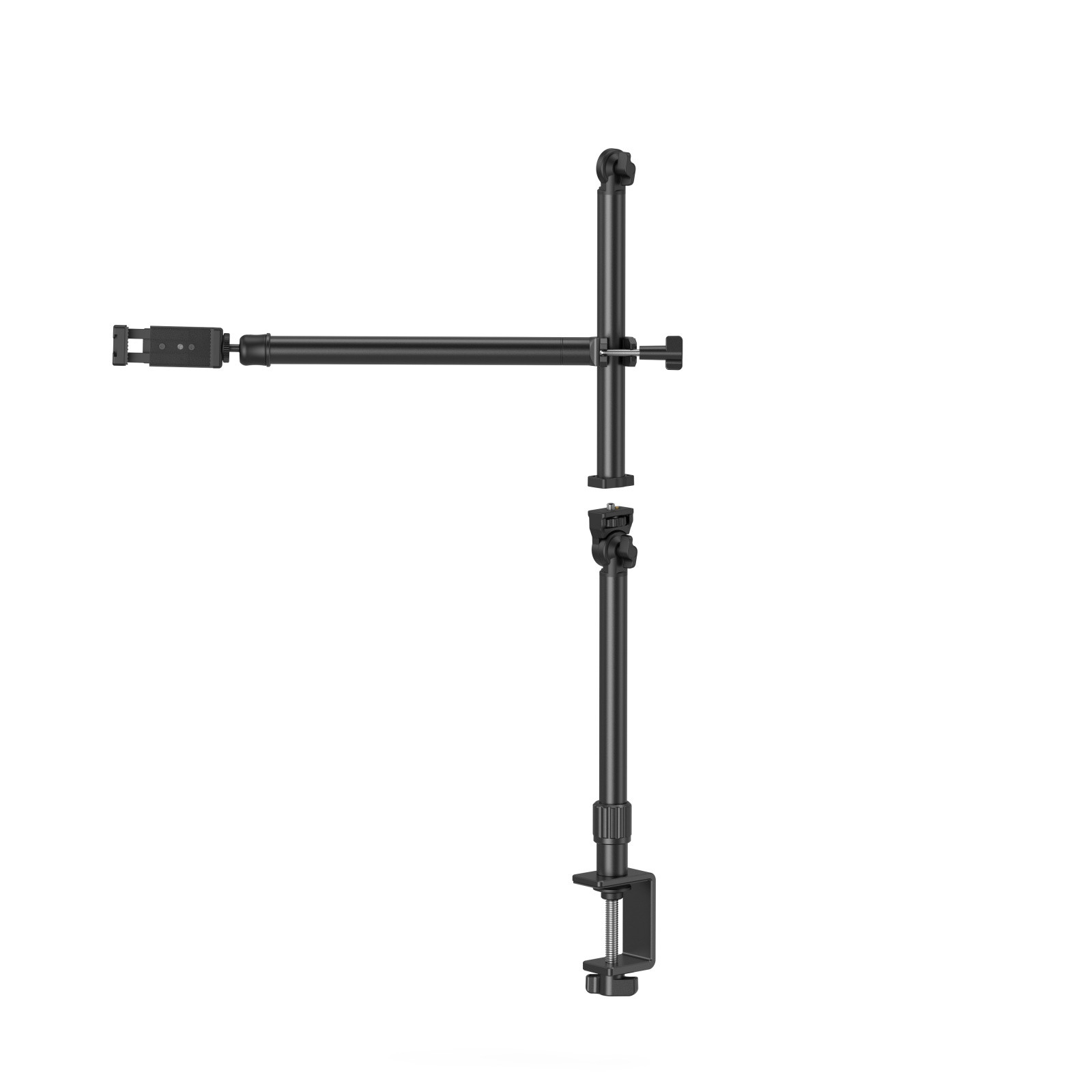

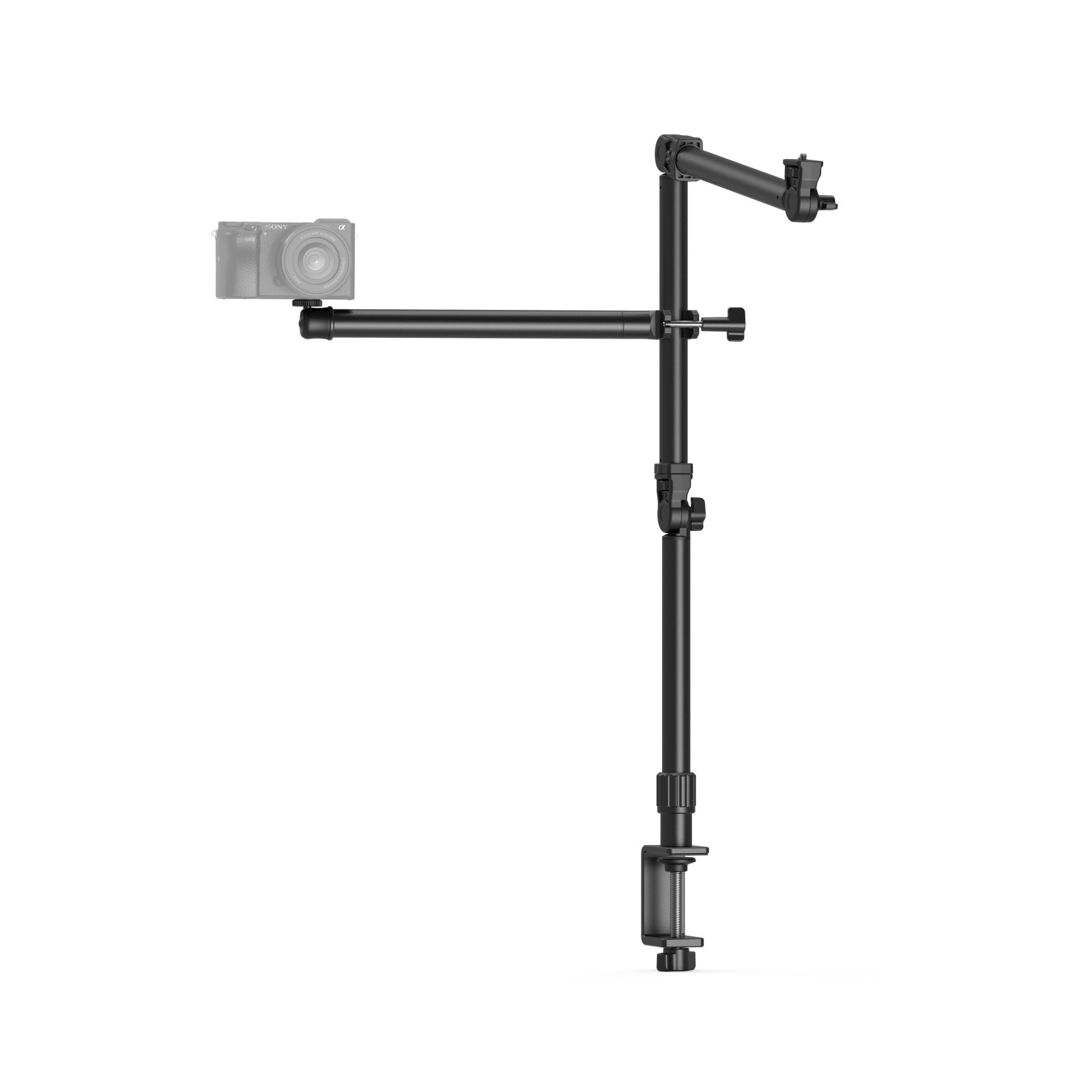

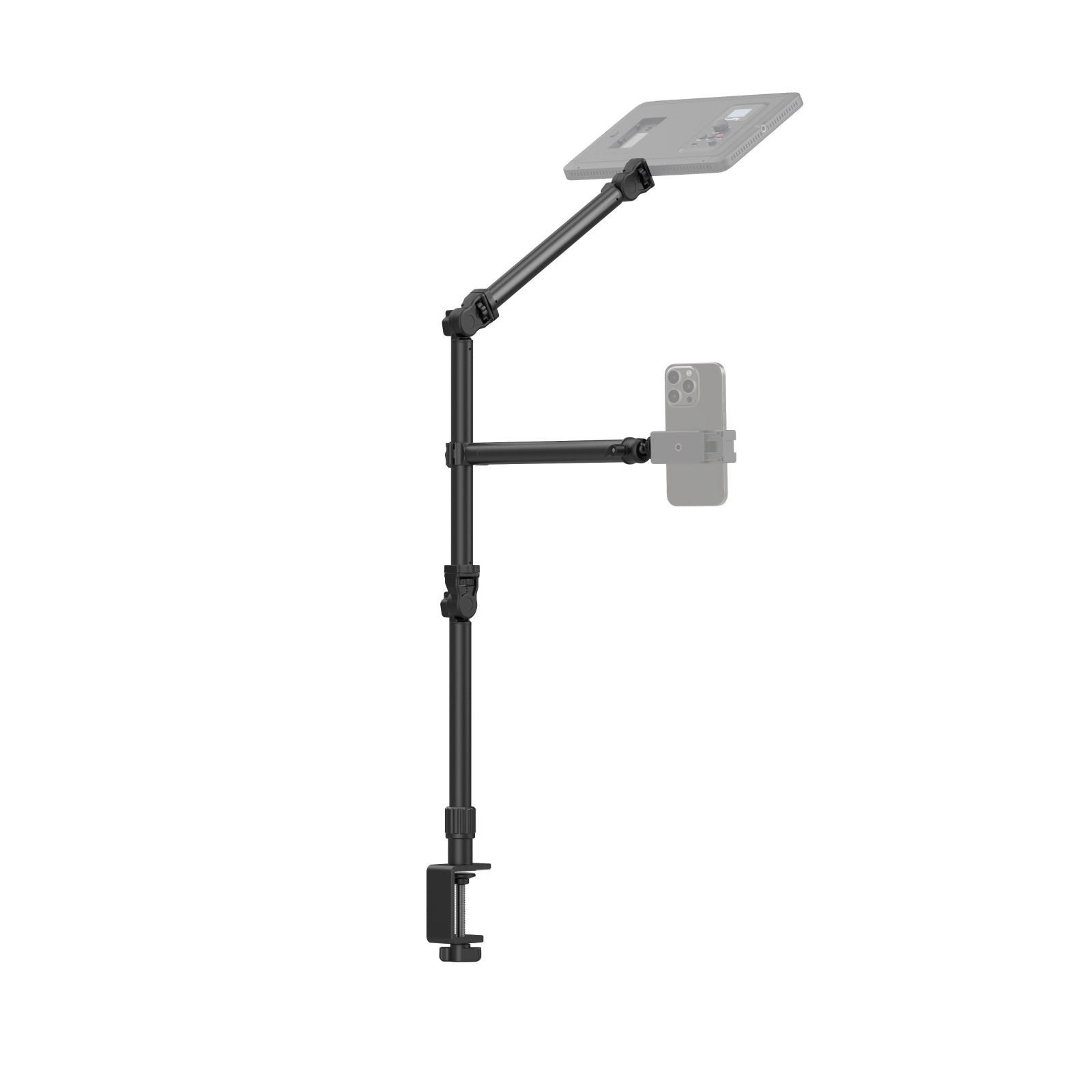

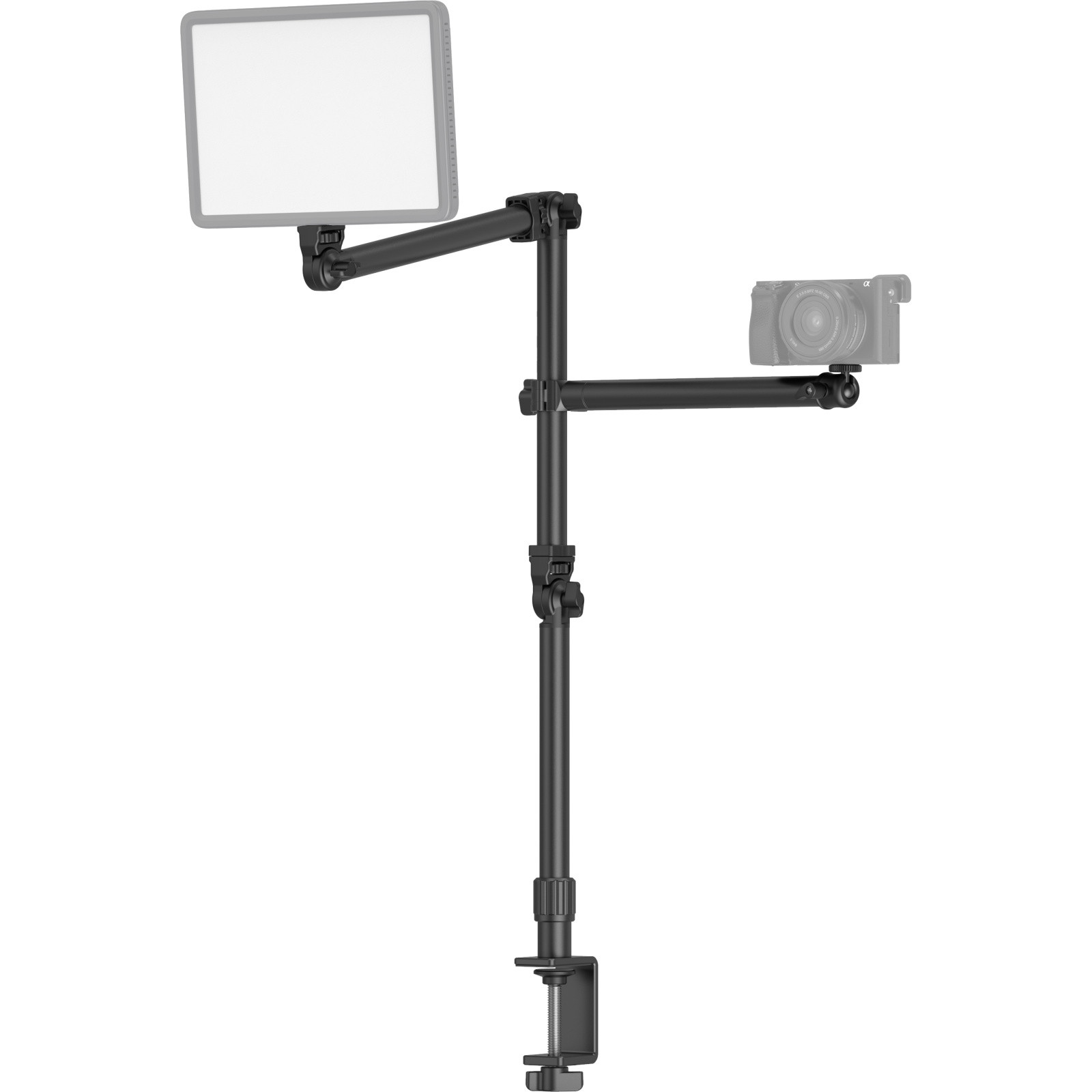

SmallRig Live Desktop Camera Bracket DT-50 4456 is suitable for indoor live broadcasts, creating eye-level, top-down, or Dutch angle photo/video, video conferencing or recording, and more. The C-clamp and articulated arm of the bracket is made of aluminum alloy, which is durable, not easy to rust, and light to carry. The bracket can realize any 360° angle adjustment of the device through a 3-section articulated arm (180° rotation of the sections) and a bottom knob. Both the C-clamp and the articulated arm are detachable, flexible to combine and customize according to your needs, and easy to carry around. The rotating shaft of the articulated arm features a solid gear structure to realize a stable load-bearing capacity of 2.7 kg / 5.9 lbs when tilted and 3.3 kg / 7.3 lbs horizontally. The bracket also comes with an aluminum crab-shaped clamp and holding arm to support an additional device at the same time. The detachable 360-degree ball head on the top of the holding arm makes shooting more efficient. 1/4"-20 screw, phone clip, lamp holder, 1/4"-20 to 3/8"-16 adapter, and 1/4"-20 to 5/8"-11 adapter make it highly compatible with various devices, such as SLR camera, ring light, flat panel light, focus light, microphone, mobile phone, etc.

Work With

1/4"-20, 3/8"-16, 5/8"-11

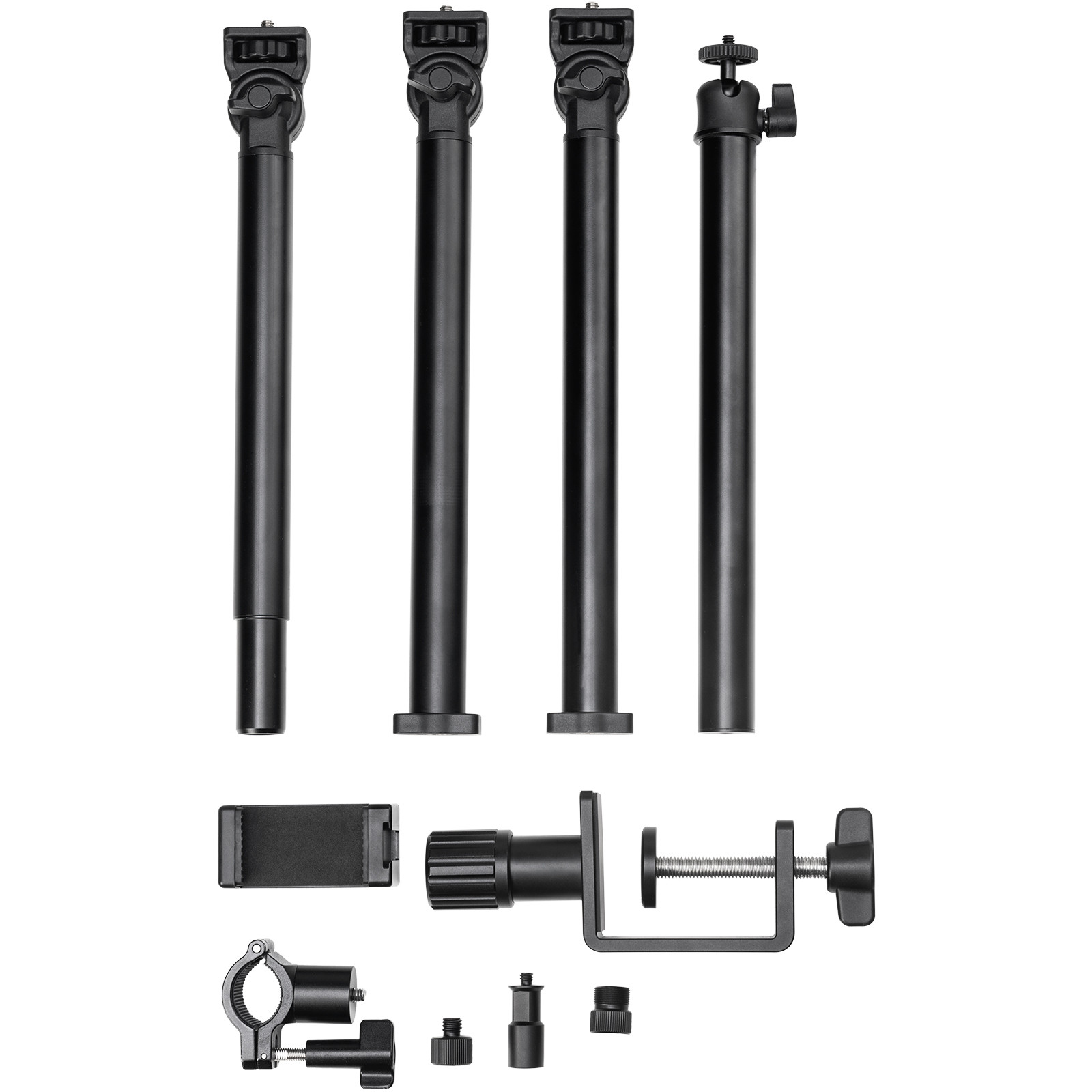

Packing List

C-Clamp x 1

Articulated Arm x 3

Crab-Shaped Clamp x 1

Holding Arm x 1

Phone Clip x 1

Lamp Holder x 1

1/4"-20 to 3/8"-16 Adapter x 1

1/4"-20 to 5/8"-11 Adapter x 1

User Manual x 1

Technical Data

Product Dimensions: 1080 x 68 x 40mm / 42.5 x 2.7 x 1.6in

Package Dimensions: 340 x 200 x 100mm / 13.4 x 7.9 x 3.9in

Product Weight: 930g ± 30g / 33 ± 1.0oz

Package Weight: 1150g ± 50g / 40.6 ± 1.7oz

Material(s): 75% Aluminum Alloy, 21% ABS, 3% Iron and 1% Copper

Maximum Height: 980mm

Articulated Arm Sections: 3

Articulated Arm Section Length: 32cm / 12.6in

Articulated Arm Section Diameter: 25mm / 1.0in

Articulated Arm Head Rotation: 180°

Articulated Arm Load Capacity: 2.7kg - 3.3kg / 5.9 - 7.3lbs

C-Clamp Gripping Distance: < 67mm / < 2.6in

Crab-Shaped Clamp Gripping Distance: 22mm - 28mm / 0.9 - 1.1in

Holding Arm Length: 30cm / 11.8in

Ball Head Diameter: 15mm / 0.6in

Ball Head Load Capacity: < 1kg / < 2.2lbs

Phone Clip Applicable Width: 58-85mm / 2.3 - 3.3in
