SmallRig Left Side Plate for RED DSMC2 Camera 1997

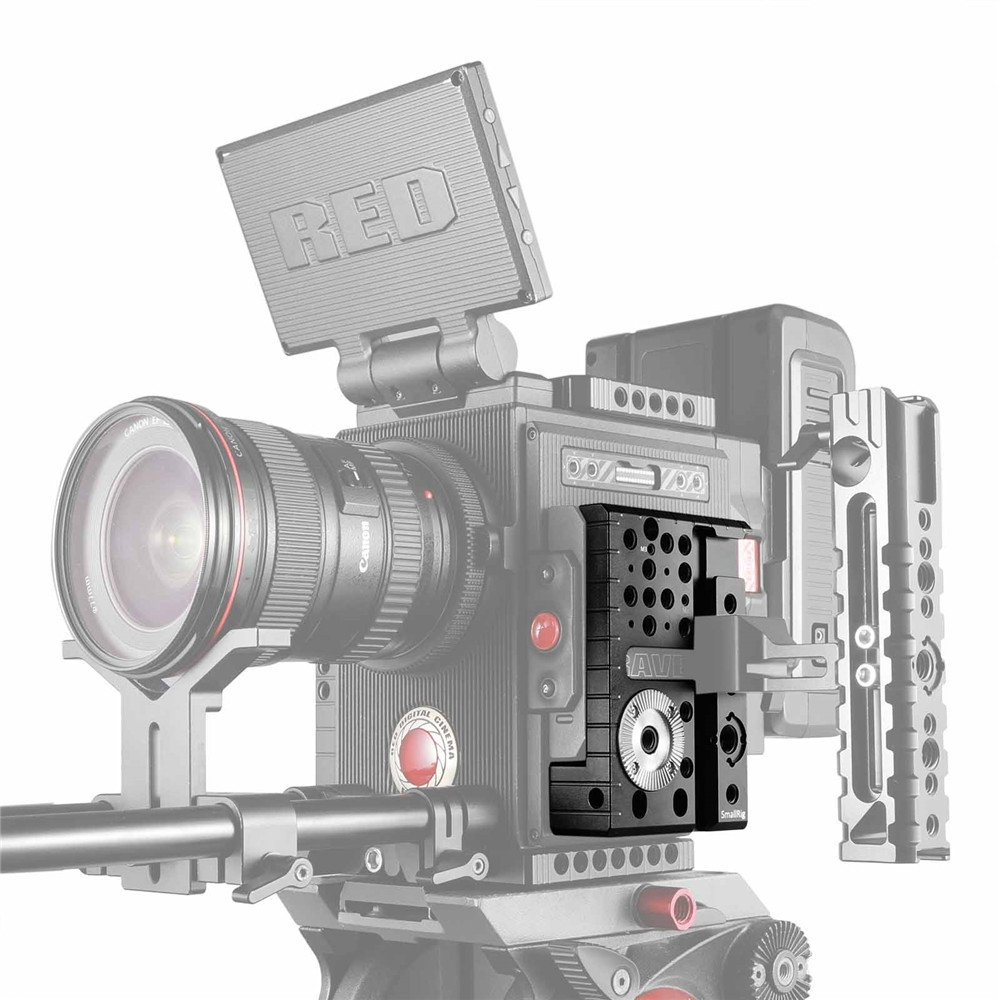

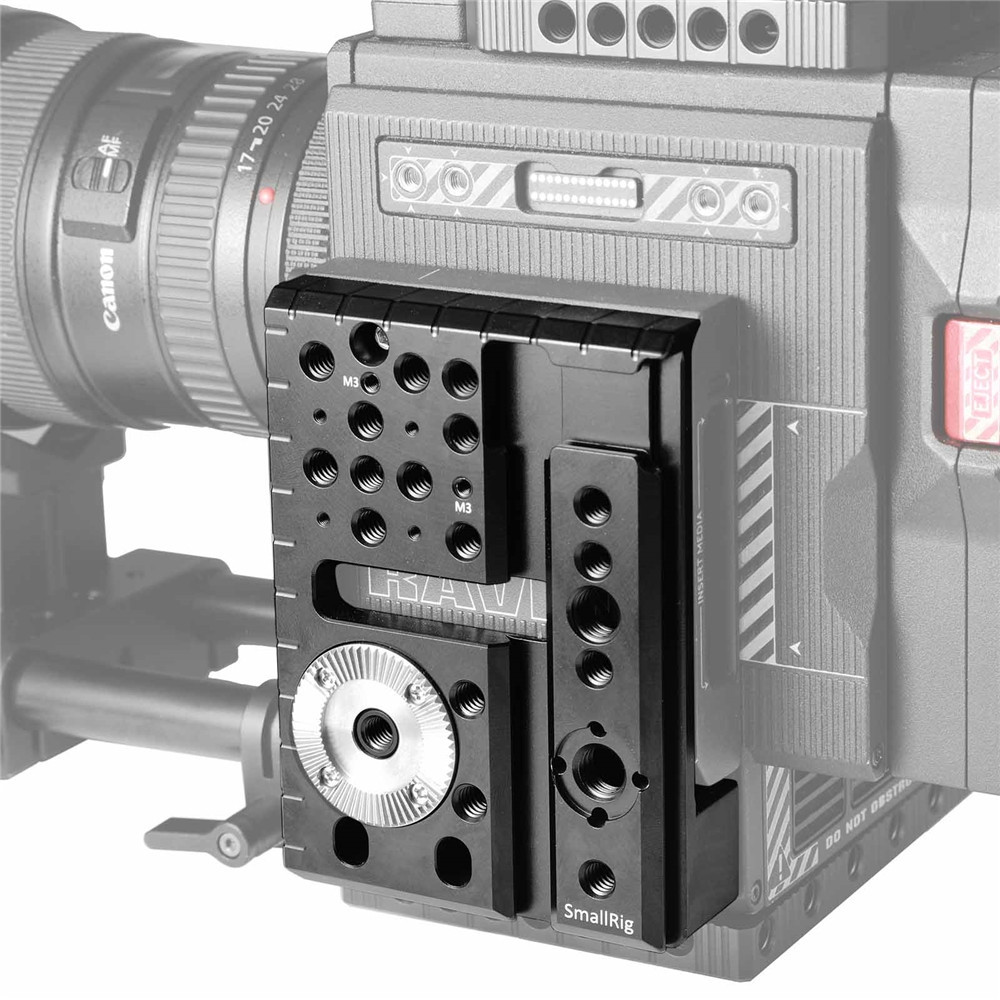

SmallRig Left Side Plate for RED DSMC2 Camera 1997 is used to mount more accessories to RED DSMC2 cameras. It is equipped with an array of 1/4" and 3/8" threaded holes for magic arm and monitor. Its integrated NATO rail is utilized to attach handles and EVF mount. The Arri locating point is used to connect Anti-rotation Magic Arm Adapter 1978 for magic arm, the cold shoe could connect wireless receiver. Also, the Arri rosette is used to mount Left Side Wooden Grip 1891. The plate is secured on the camera body via three M3 screws.
Note: Unscrew the original M3 screw in the upper hole of the camera then secure the cheese plate with 3 SmallRig M3 screws. Max weight load = 4kg (8.82lbs)
Key Features
1. It is equipped with an array of 1/4" and 3/8" threaded holes for magic arm and monitor.
2. Arri locating point is used to connect Anti-rotation Magic Arm Adapter 1978 for magic arm.
3. The cold shoe could connect wireless receiver.
4. The plate is secured on the camera body via three M3 screws.
5. Integrated NATO rail is utilized to attach handles and EVF mount.
Work With
RED RAVEN
RED SCARLET-W
RED WEAPON / RED WEAPON BRAIN
WITH HELIUM 8K S35 SENSOR
RED EPIC-W BRAIN WITH HELIUM 8K
S35 SENSOR
MONSTRO 8K VV
HELIUM 8K S35
GEMINI 5K S35
DRAGON-X 5K S35

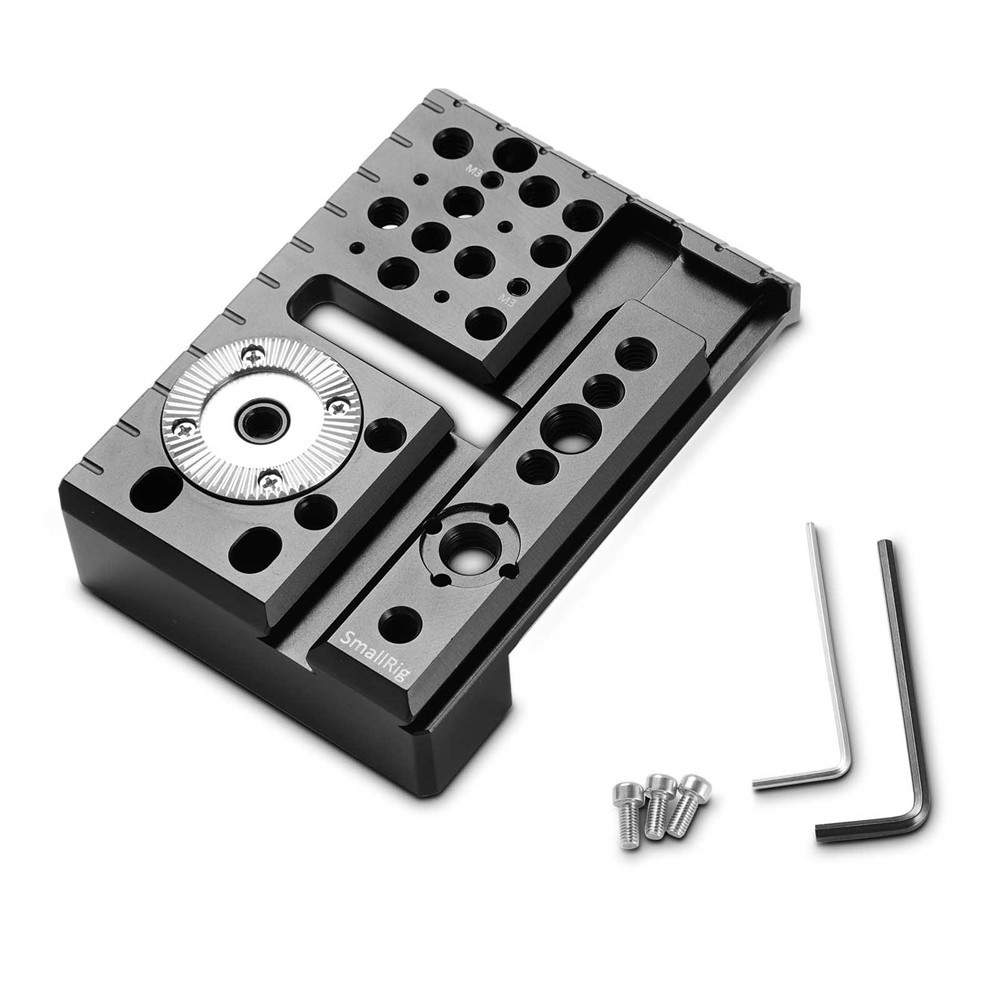

Packing List
1 x Left Side Plate
3 x M3 Screw
2 x Hex Spanner

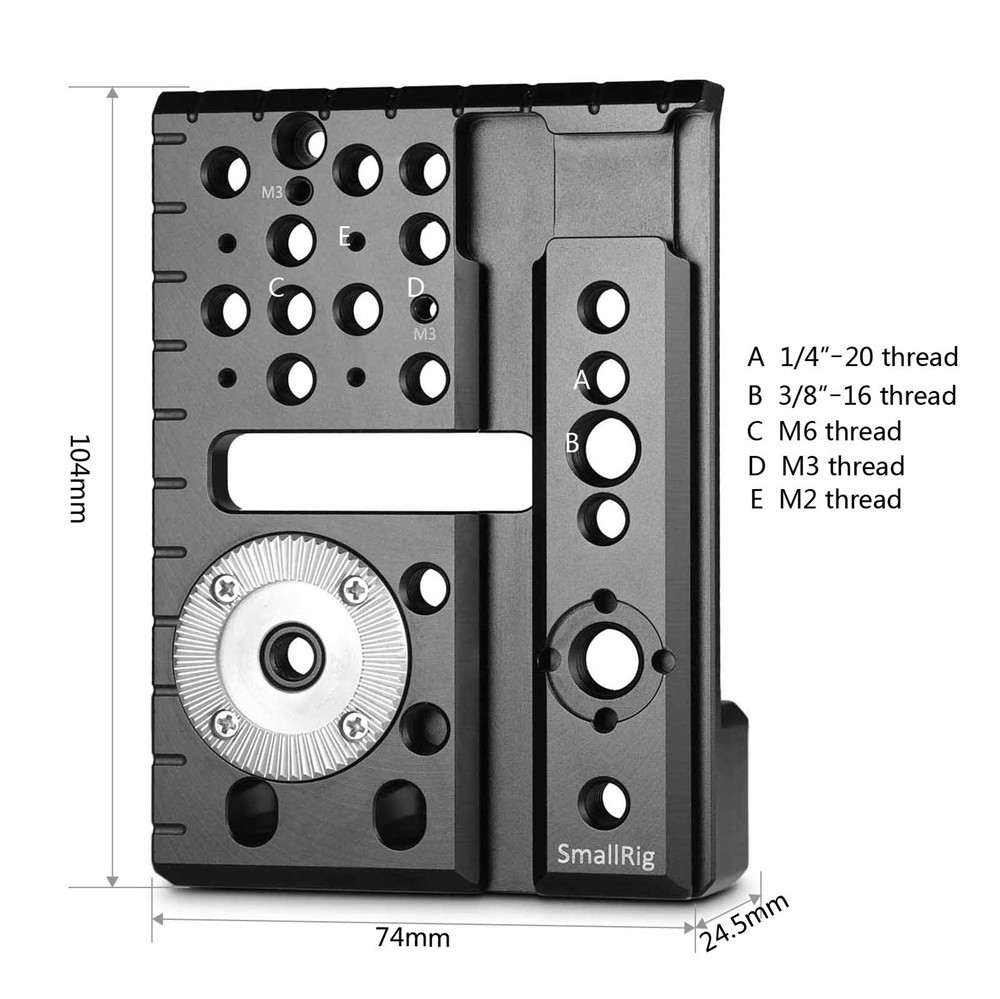

Technical Data
Product Dimensions:104x74x24.5mm
Net Weight: 170g
Package Size: 120x100x40mm
Material(s): Aluminum Alloy
