SmallRig L-Bracket Half Cage for Fujifilm X-T2/X-T3 Camera with Battery Grip APL2282

SmallRig L-Bracket Half Cage for Fujifilm X-T2/X-T3 Camera with Battery Grip APL2282
$89.00
Sku APL2282
EAN 6972070625589

Availability: Discontinued Item

This product has been viewed 1472 times

Product Description



SmallRig L-Bracket Half Cage for Fujifilm X-T2/X-T3 Camera with Battery Grip 2282

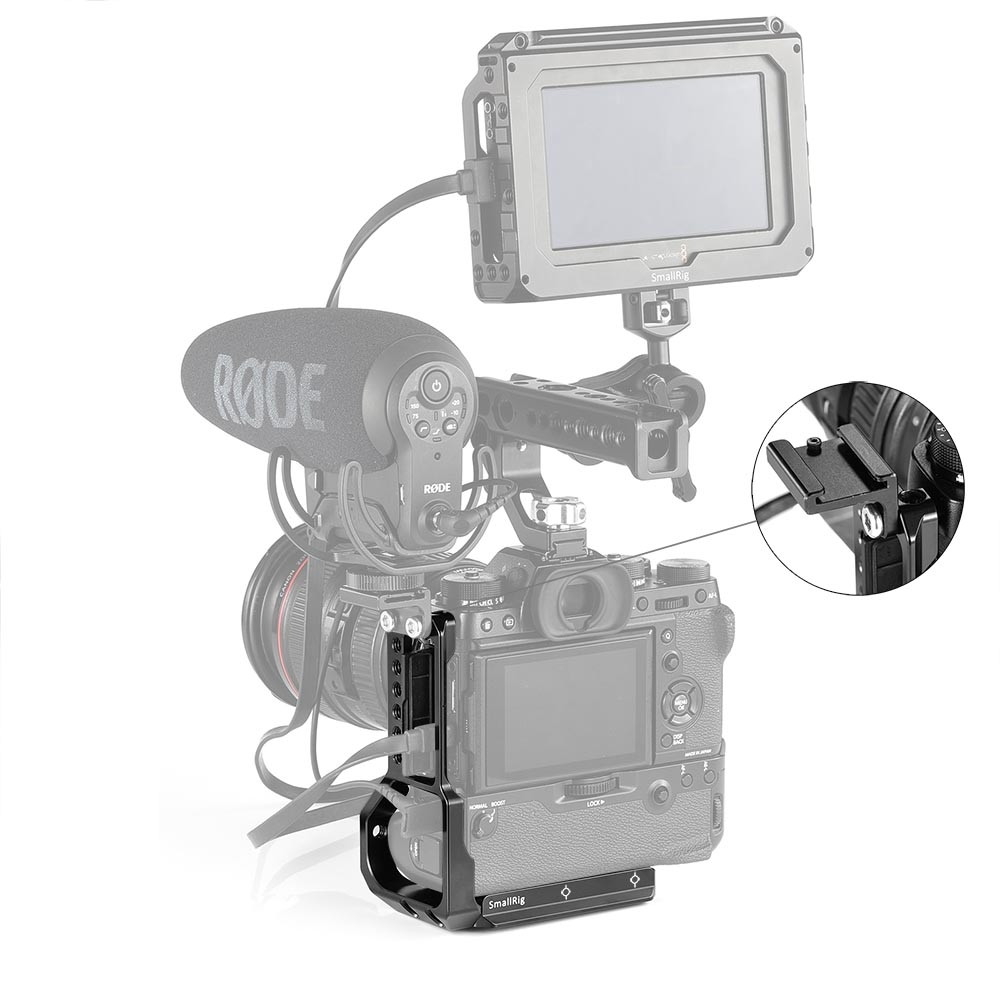

SmallRig L-Bracket Half Cage for Fujifilm X-T2/X-T3 Camera with Battery Grip 2282 is a modular designed L bracket with anti-twist flanges to keep the camera from twisting and provide multiple mounting points. Optional top plate is locked via a M4 screw and a shoe lock to prevent twisting allows to change your L bracket into a half cage. The top plate comes with an arri 3/8"hole and integrate with a cold shoe for more accessories attachment if needed. Both the base plate and side plate are Arca-type compatible dovetails enable the camera to mount in a vertical or horizontal position. Each axis features sensor centering line to align the camera on a tripod head and maintains complete access to the camera's battery and ports. Camera can be extended to the right via the bottom slot if more room is needed for tethering or cable release. An included flat screw driver on the bottom is used to tighten and adjust the L-bracket. It features multiple 1/4"-20 threaded holes on the side and bottom for accessory attachment, such as cold shoe 1593 for microphone.

Note 1:Please take off the strap ring on the left of the camera to install the L bracket.

Note 2: Take off the top plate before extend the camera to the side.

Note 3: Not compatible with Cold Shoe 1593 when using the top plate.

Key Features

1.Modular designed L bracket cage for Fujifilm X-T3 and X-T2 Camera with battery grip.

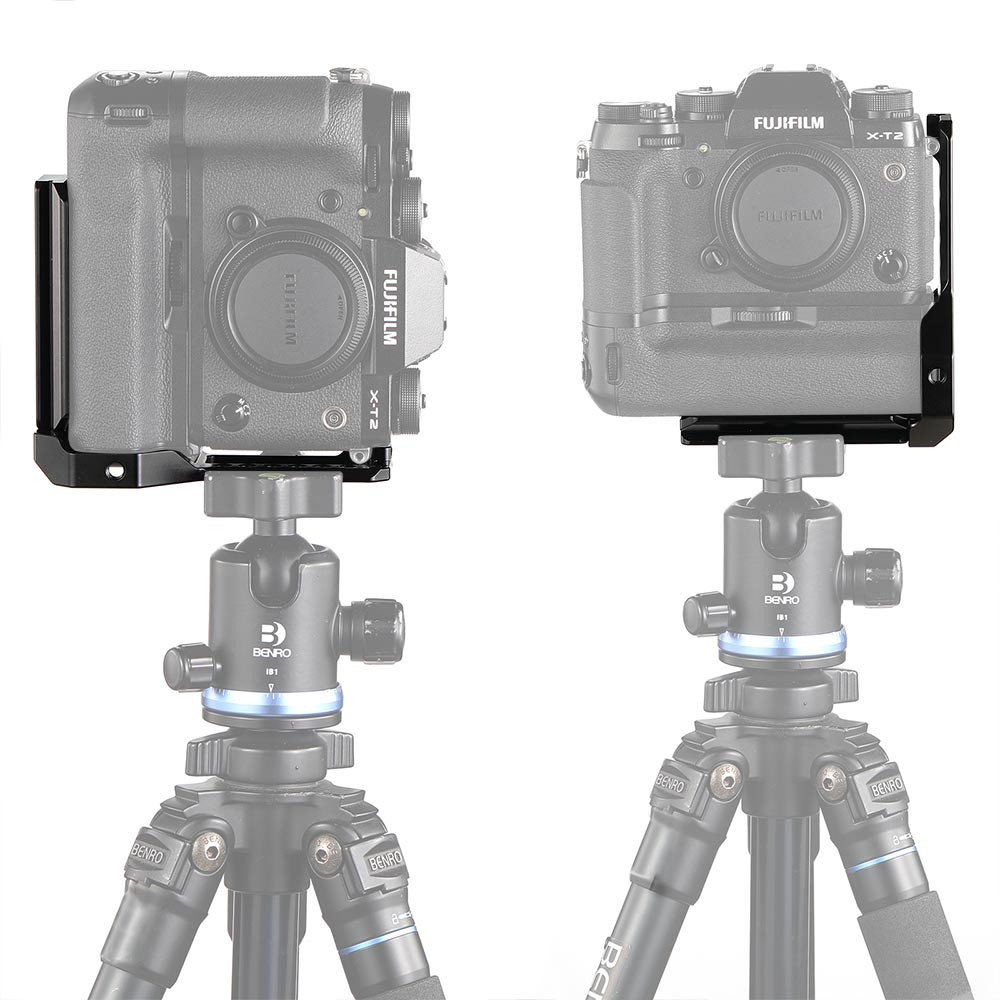

2.Arca-Type compatible dovetail plate with center marks on both axis.

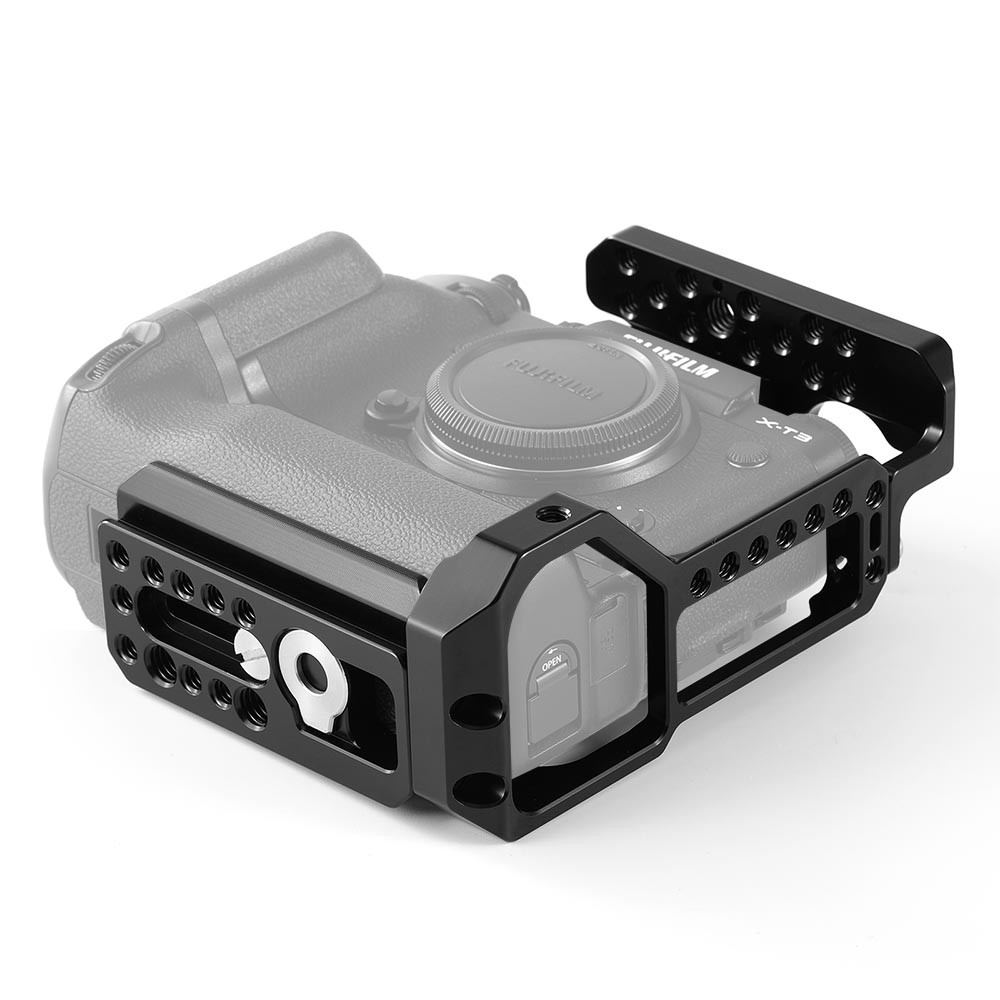

3.Optional top plate to change your L bracket into a half cage for accessories.

4.Features a slot on the bottom allows to extend camera for tethering or cable release.

5.Multiple 1/4"-20 threaded holes and arri 3/8"hole for accessory attachment.

6.Built-in flat screw driver on the bottom for quick adjustment.

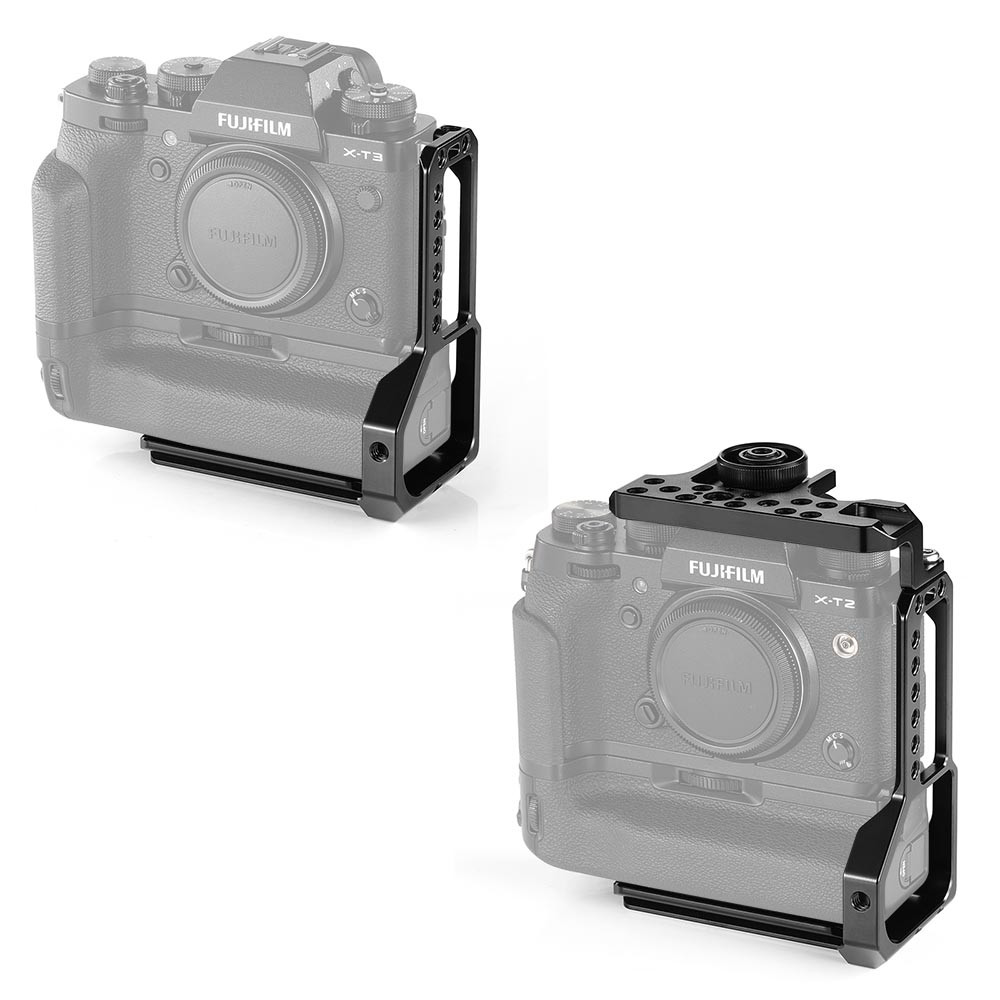

Work With

Fujifilm X-T3 with VG-XT3 Vertical Battery Grip

Fujifilm X-T2 with VPB-XT2 Vertical Battery Grip

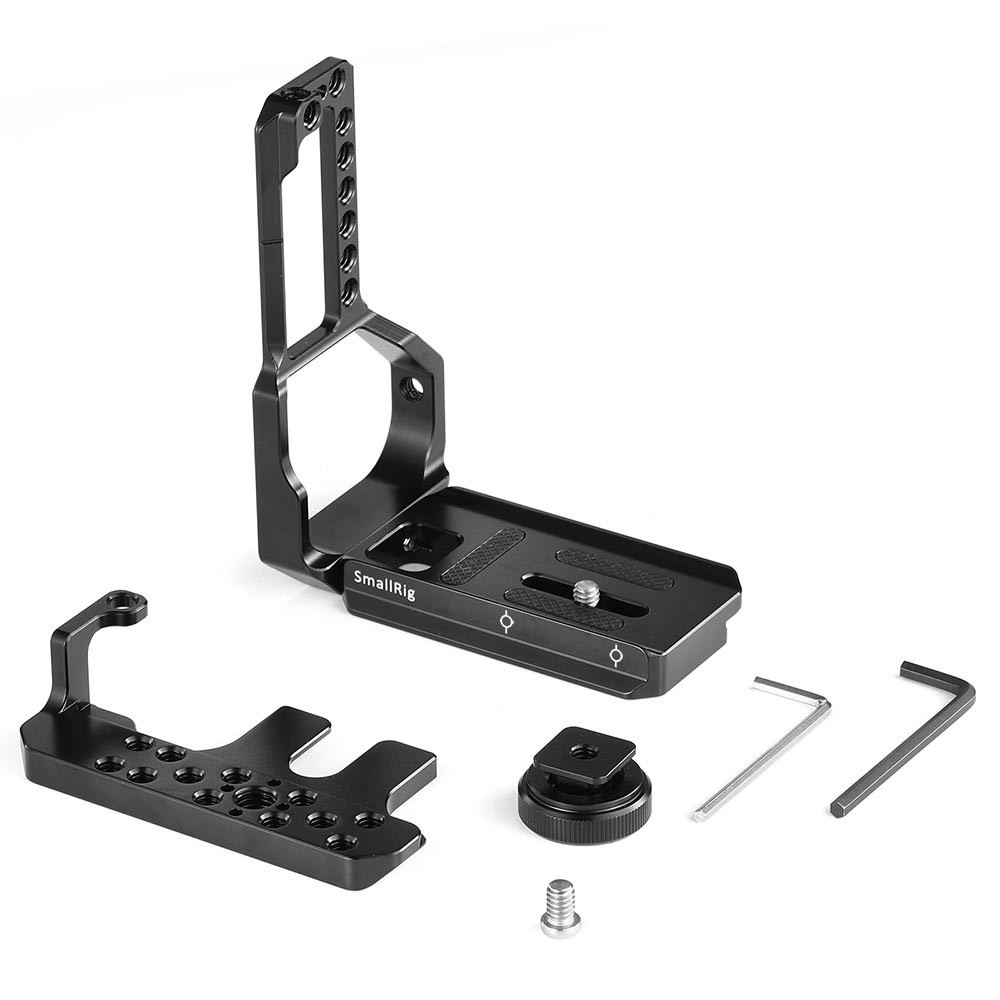

Packing List

1 x Bottom Plate

1 x Side Plate

1 x Top Plate

3 x M4 Screw

1x Hex Spanner

Technical Data

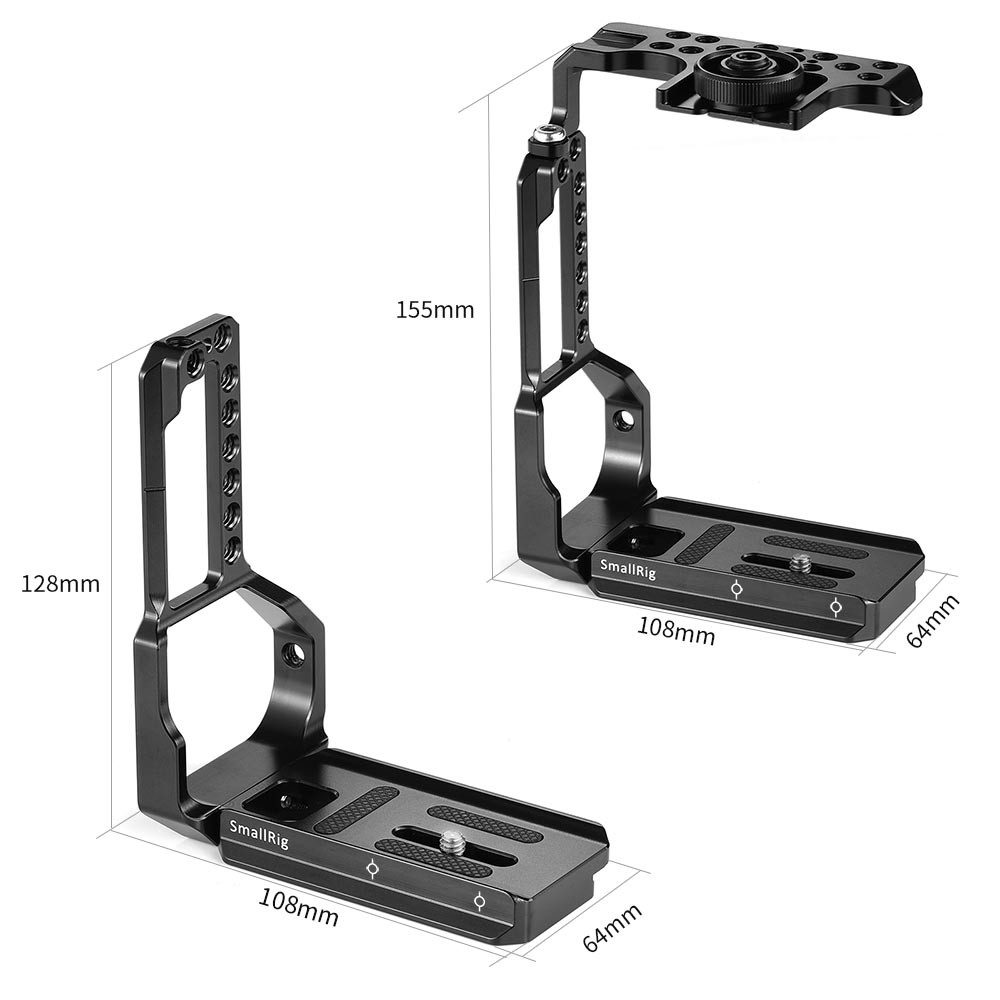

Product Dimensions: 108X 64X155mm

Package Dimensions: 143 x 100 x55mm

Net Weight: 190g

Package Weight: 235g

Material(s): Aluminum Alloy
