SmallRig L-Bracket for Sony Alpha 7R IV & Alpha 9 II LCS2417B

SmallRig L-Bracket for Sony Alpha 7R IV & Alpha 9 II LCS2417B

1. Dedicated Arca-type L bracket for Sony Alpha 7R IV & Alpha 9 II.

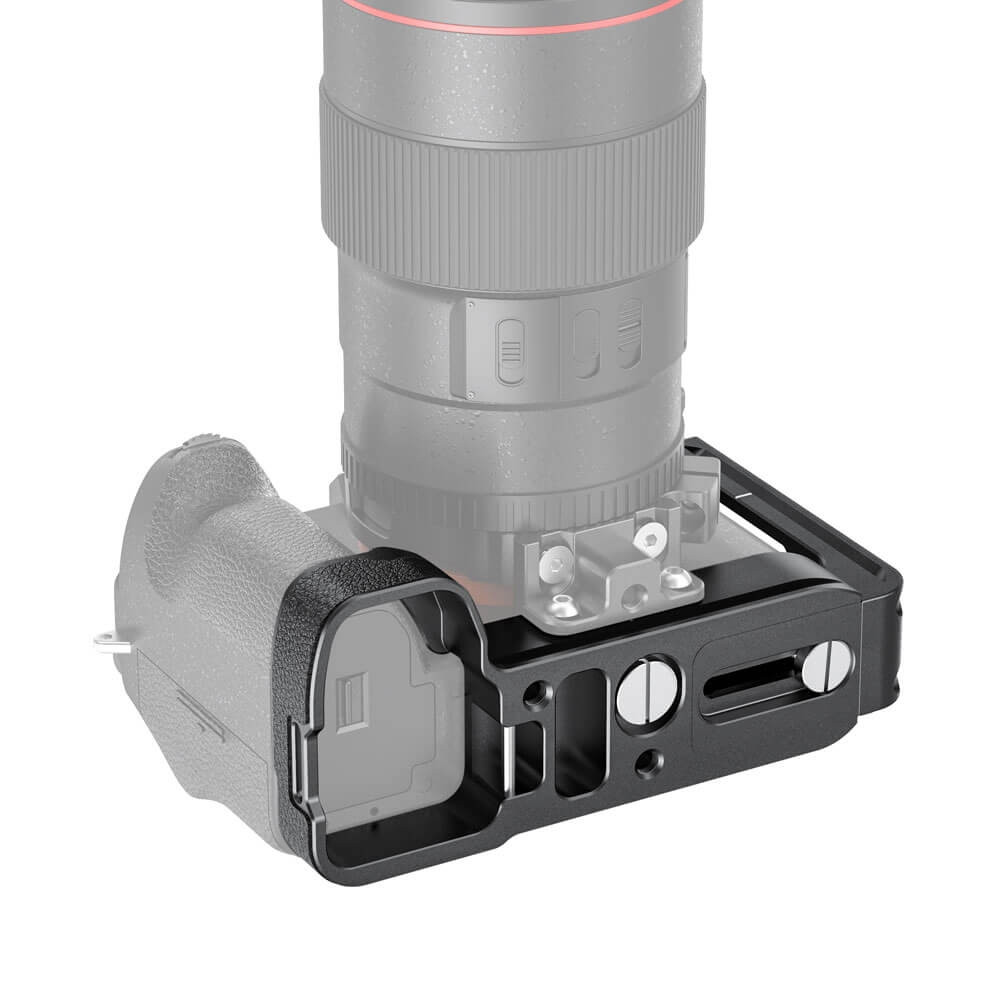

2. The battery compartment has a rotating shaft design for battery changing.

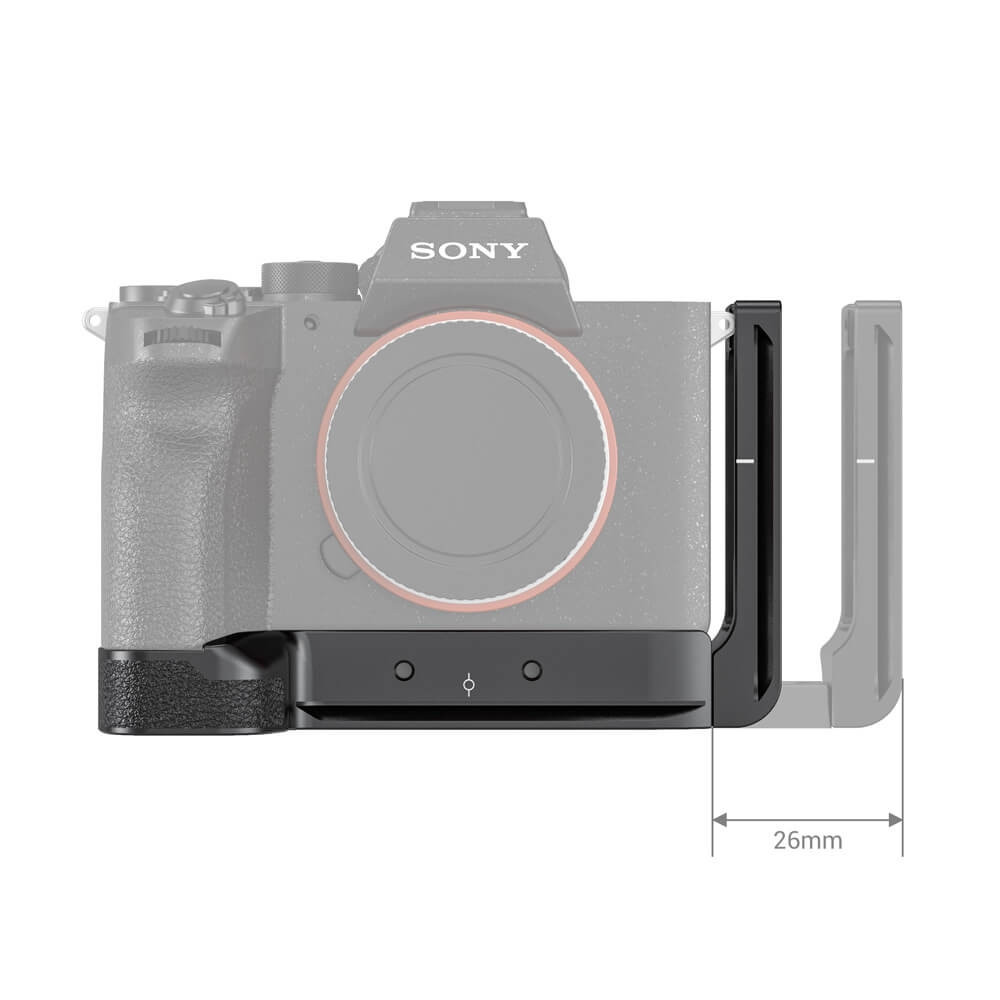

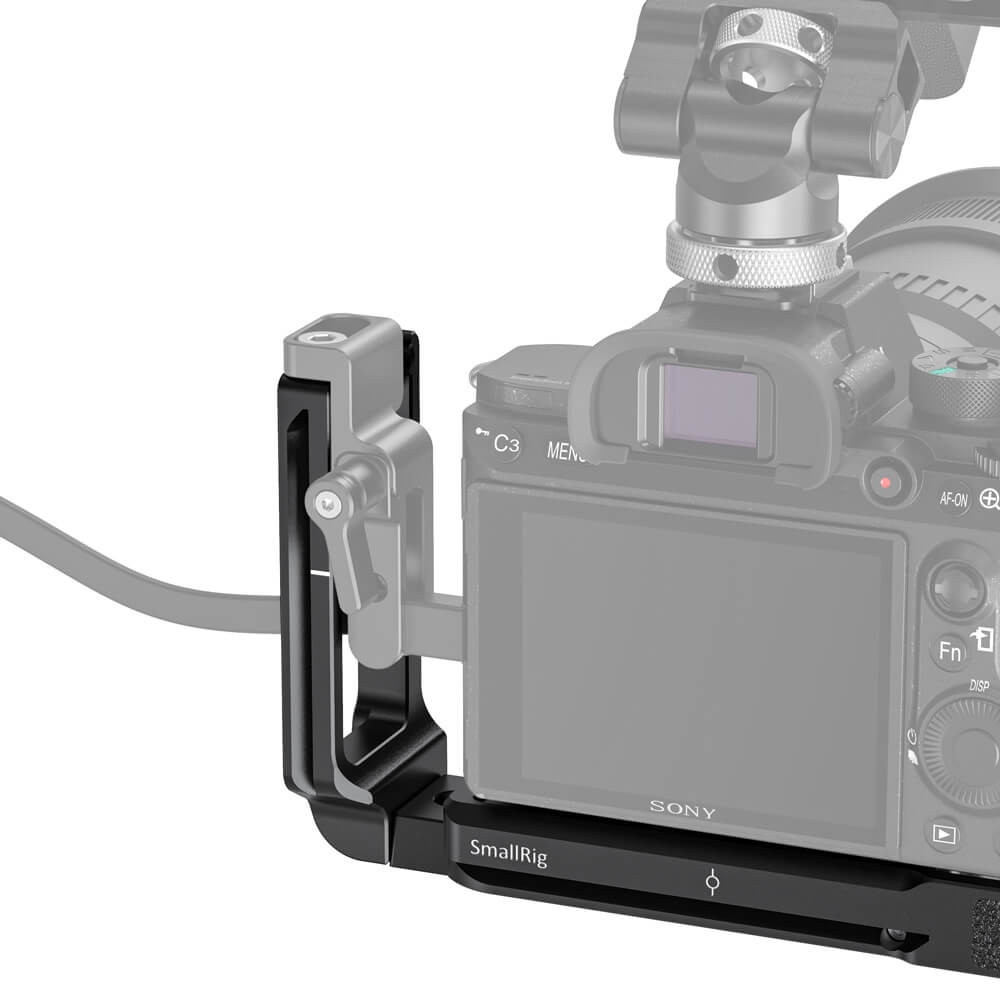

3. The side plate can be stretched to the left for cable tethering.

4. Built-in 1/4”-20 threaded holes and strap slots.

5. Integrates flat-head screwdriver for easy access.

Notice: This item is not sold in the U.S.A.

Sku LCS2417B
EAN 6941590002545

Availability: Discontinued Item

This product has been viewed 1667 times

Product Description

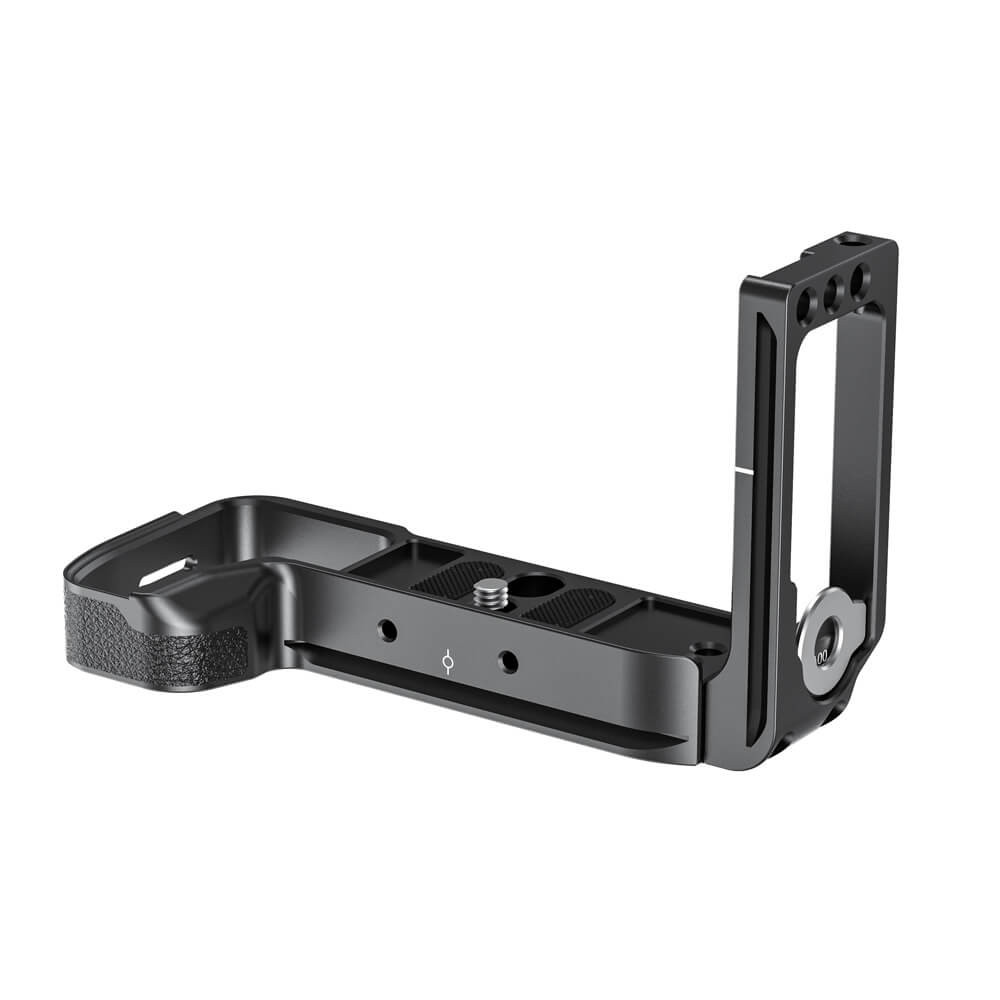

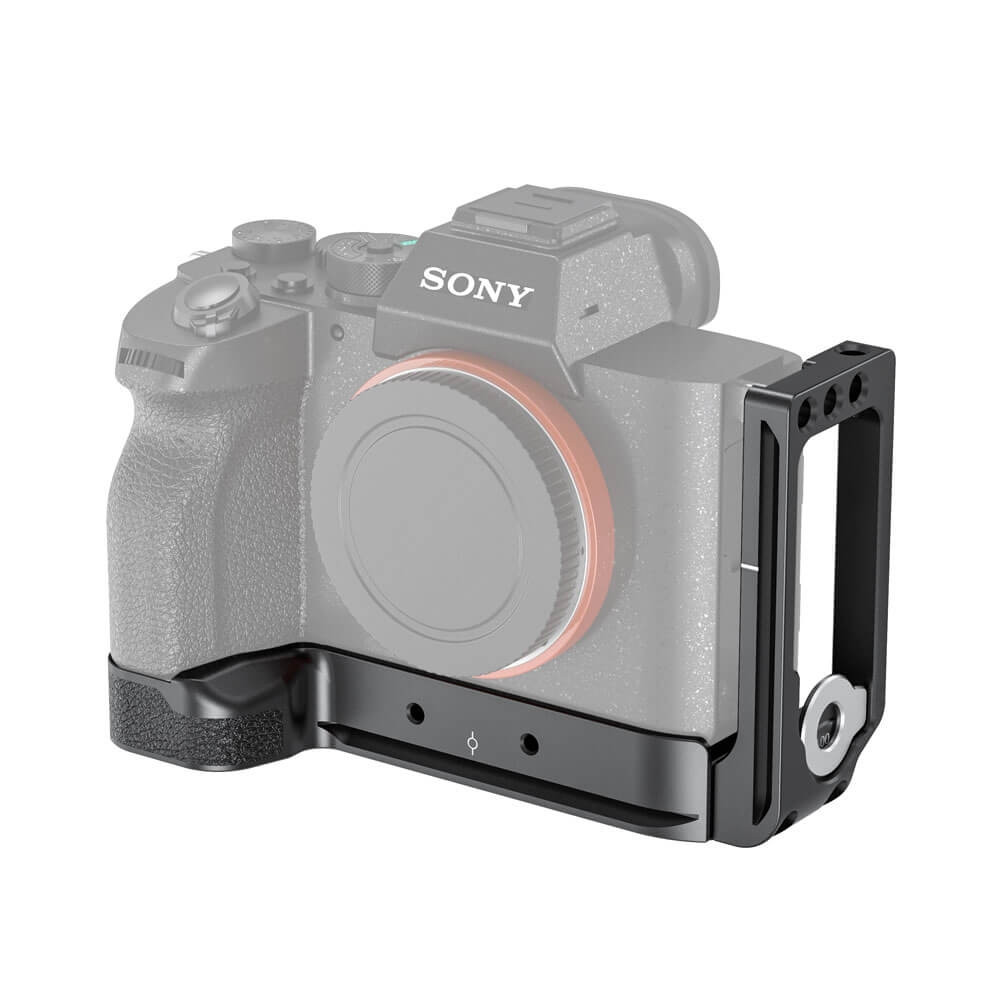

SmallRig L-Bracket for Sony Alpha 7R IV & Alpha 9 II LCS2417B

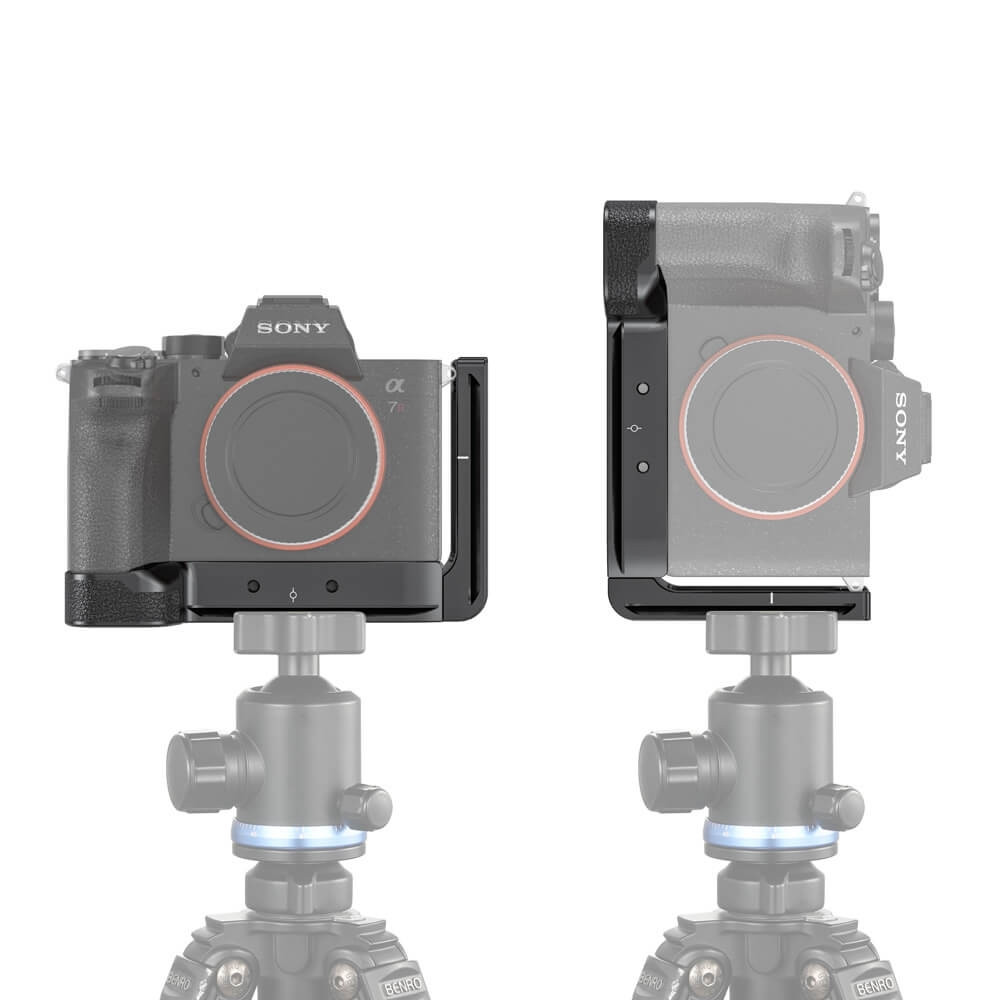

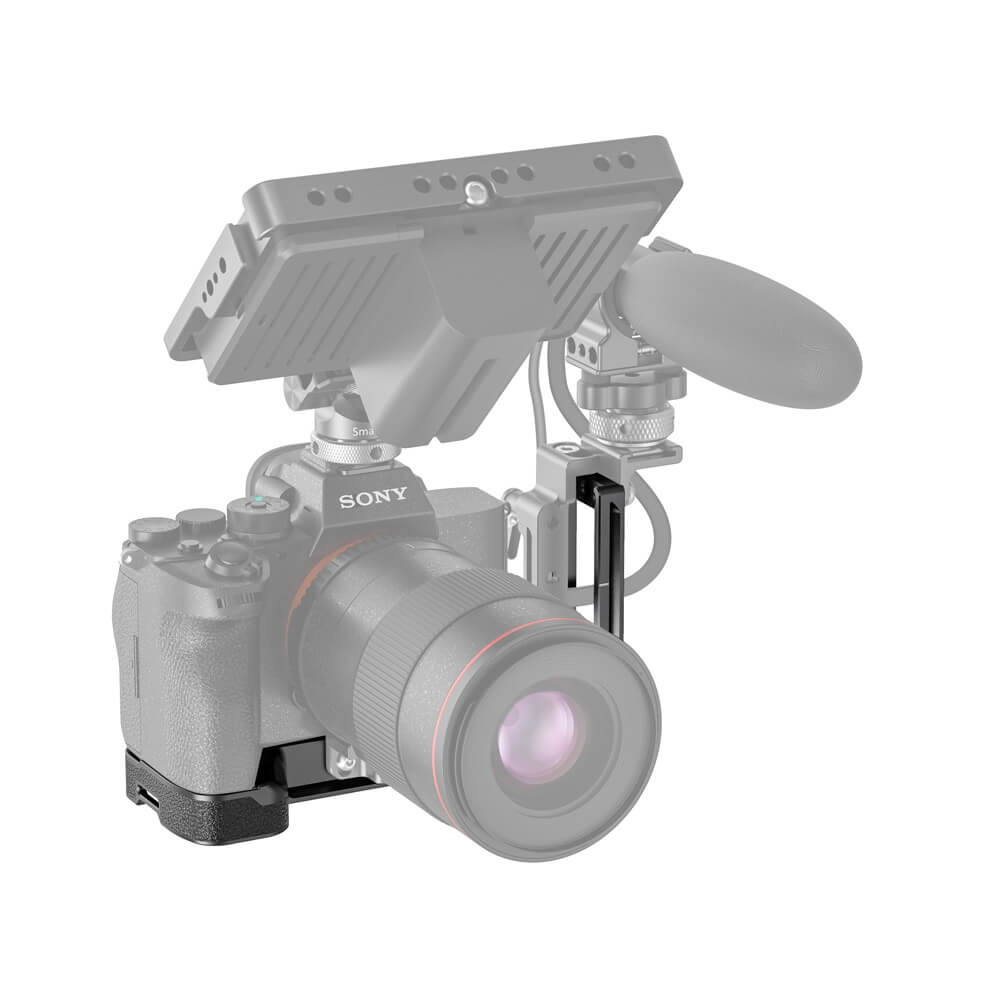

SmallRig L-Bracket for Sony Alpha 7R IV & Alpha 9 II LCS2417B is specially designed for quick switch between vertical and horizontal shooting and for better grip experience. It locks the camera via a 1/4"-20 screw on the bottom and features rubber pads on the baseplate to prevent scratching and twisting. Both the base plate and side plate are of Arca-Swiss standards with center marks. The side plate can be extended to the left if more room is needed for tethering or cable release. The battery compartment door uses a rotating shaft structure design so that the battery can be quick replaced by rotating and opening the battery door. Featuring multiple 1/4"-20 threaded holes on the side for accessory attachment like Cold Shoe Mount BUC2736 and Cable Clamp 2259. The grip features leather pads to support pinky and improve grip comfort. Besides, the L plate provides slots for the carry strap and comes with a flat-head screwdriver to secure the camera screw and stores it on the bottom of the L bracket.

Work With

Sony Alpha 7R IV

Sony Alpha 9 II

Packing List

1 x L Bracket

1 x Allen Wrench

Technical Data

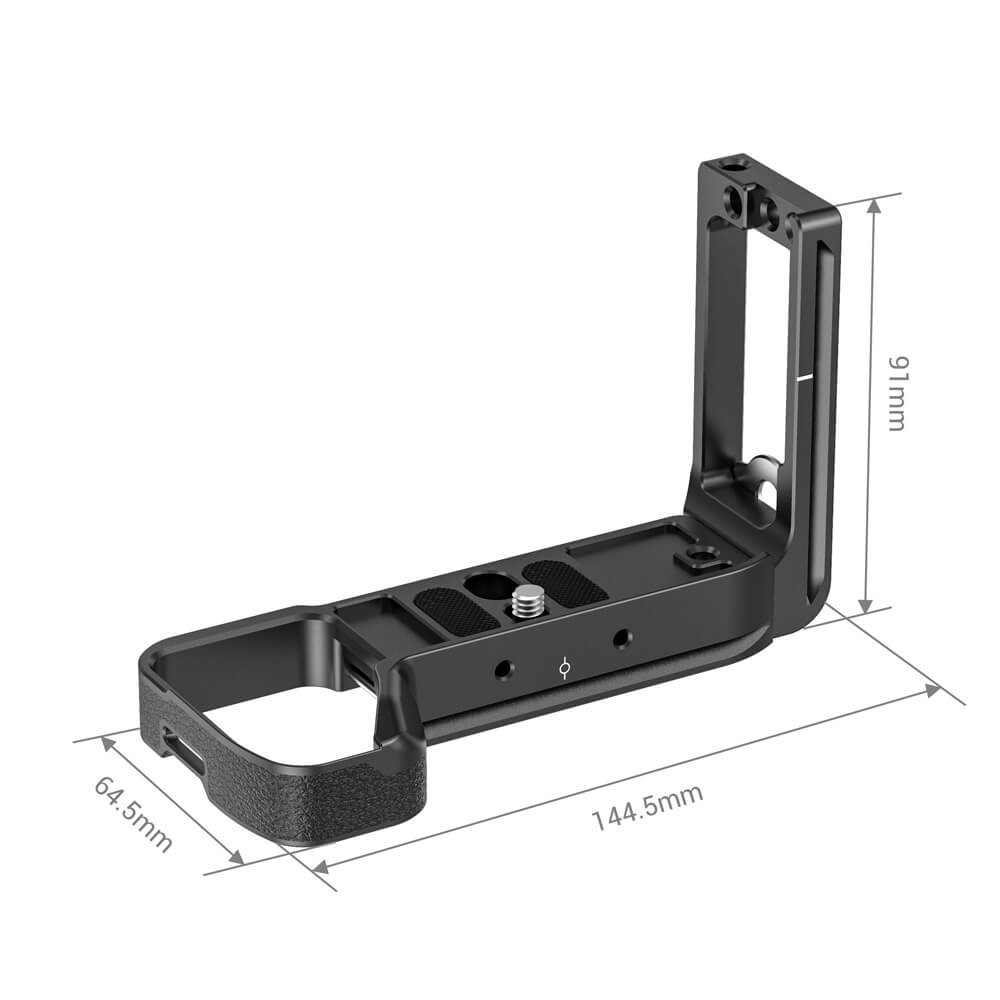

Product Dimensions: 143 x 64.6 x 100mm

Package Dimensions: 160 x 120 x 68mm

Net Weight: 260g±5g

Package Weight: 335g±5g

Material: Aluminum Alloy
