SmallRig L Bracket for Panasonic S1H LCP2655
Pre-order Only
IMPORTANT NOTES about pre-order items:
1. Pre-order can be canceled and refunded before shipping, no cancellation fee.
2.When PRE-ORDER products are included, package will be shipped when all products are available. Please check out for regular products separately if immediate shipping is needed.
3. It is estimated to be shipped out on Mar 28, 2019.

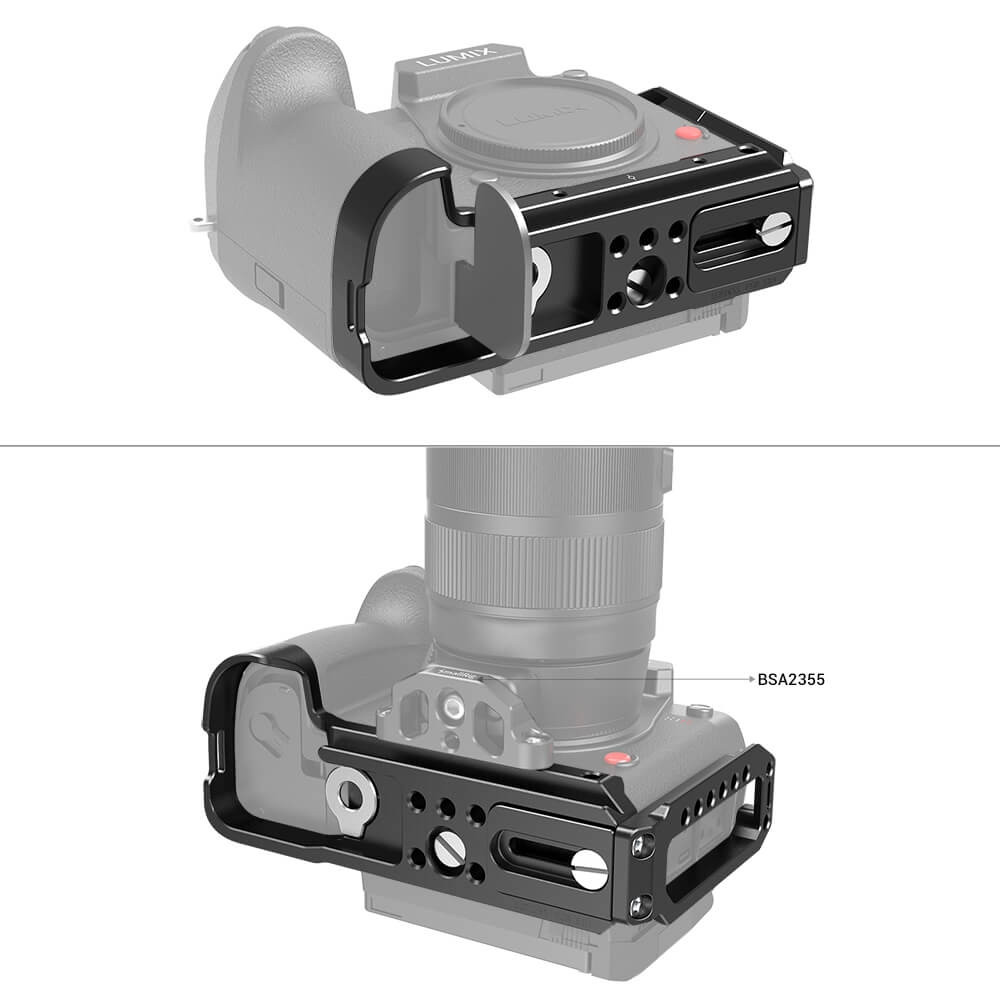

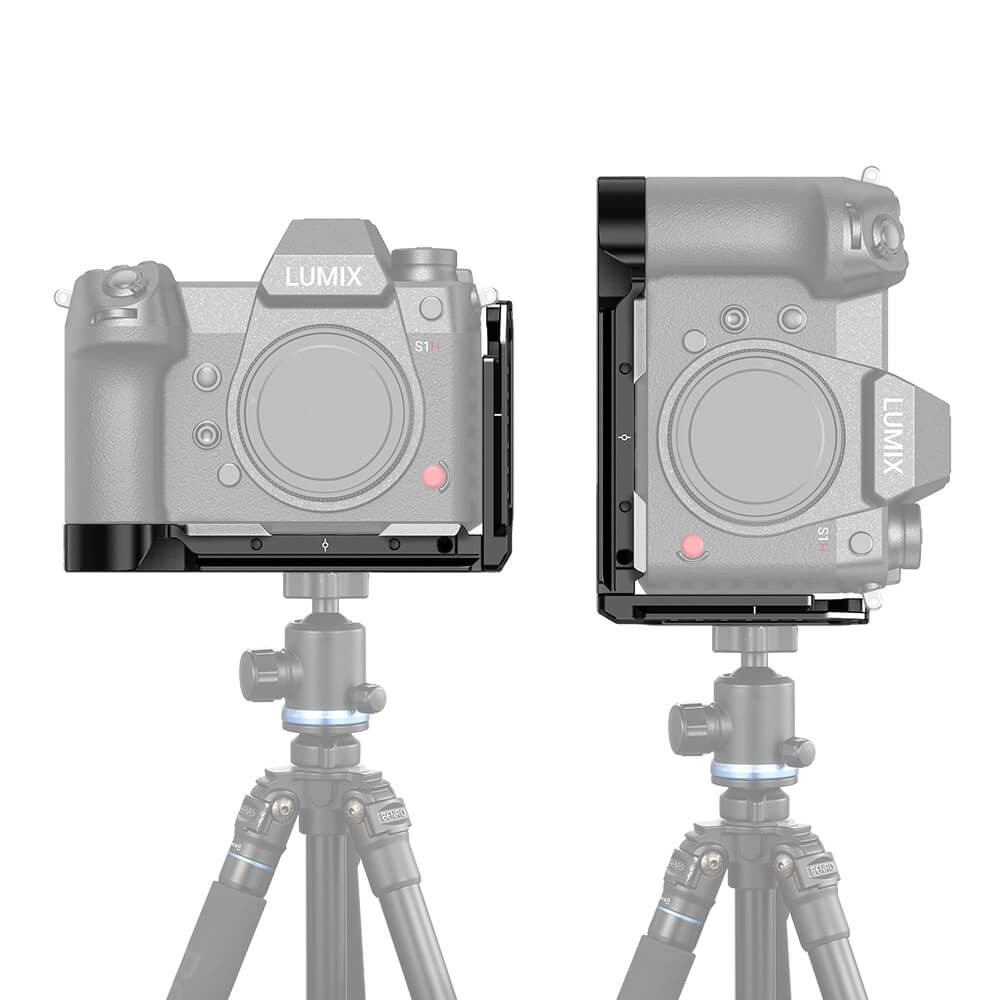

SmallRig L Bracket for Panasonic S1H LCP2655 is modular designed with anti-twist flanges to keep the camera from twisting and provide a comfortable grip to support pinky. Both the base plate and side plate are Arca-type compatible dovetails enable the camera to mount in a vertical or horizontal position. It secures to the bottom of camera via a 1/4 screw and features an anti-twist pin to prevent twisting. Each axis features a sensor centering line to align the camera on a tripod head. The side plate can be extended to left if more room is needed for tethering or cable release. The bottom comes with a flat-head screwdriver allows to install and adjust the L bracket in seconds. Featuring multiple 1/4"-20 threaded holes on the side and bottom for accessory attachment such as Cold Shoe 1593. The bottom plate features two m4 threaded holes for Sigma MC-21 Lens Adapter Support BSA2355 and a 1/4”-20 threaded holes for mounting a 15mm rod 915 for follow focus with 15mm rod clamp.
Key Features
1. Arca-Type L Bracket for Panasonic S1H
2. 1/4”-20 Accessory Threads & Strap Slots

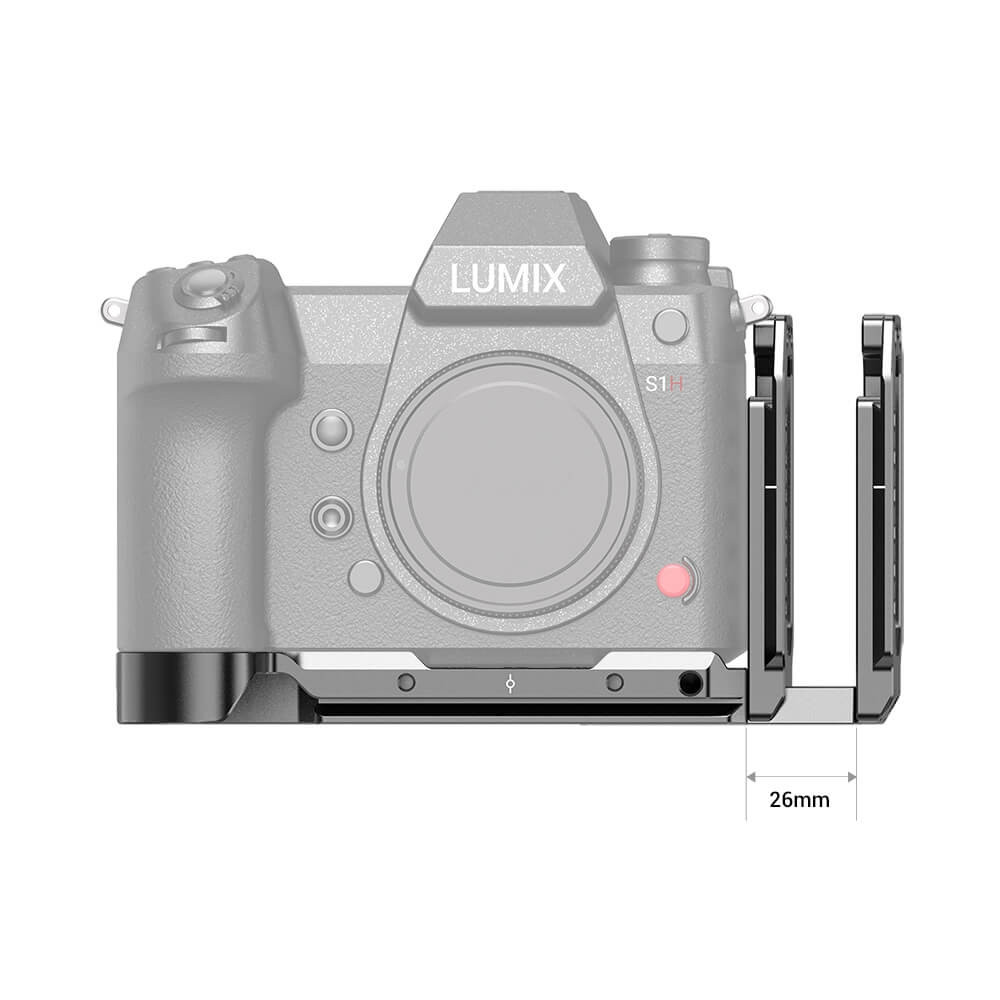

3. Extendable Side Plate for Side Port Access
4. Built-in Flat-Head Screwdriver
5. Compatible with Sigma MC-21 Lens Adapter Support BSA2355
Work With
Panasonic S1H Camera
Packing List
1 x L Bracket
1 x Hex Spanner
Technical Data

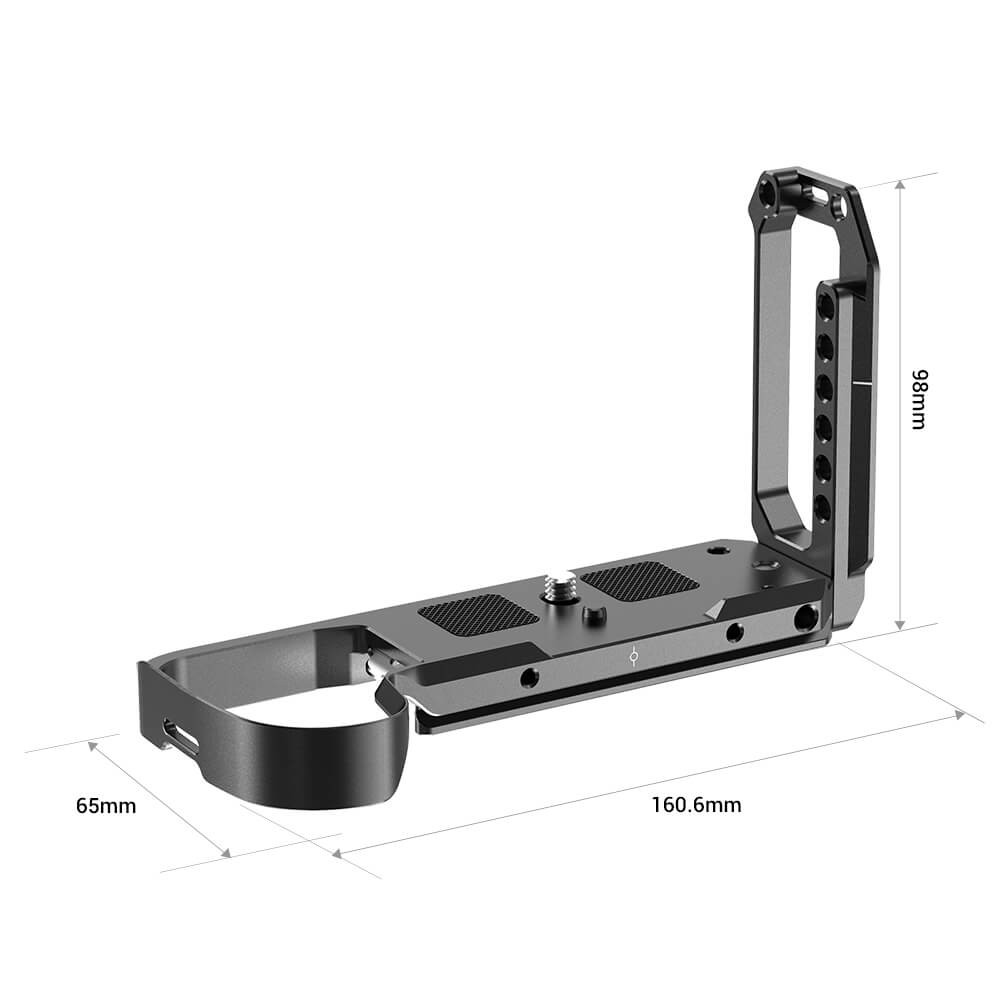

Product Dimensions: 160.6 x 98 x 65mm
Package Dimensions: 143 x 100 x 55mm
Net Weight: 182g
Package Weight: 258g
Material(s): Aluminum Alloy
