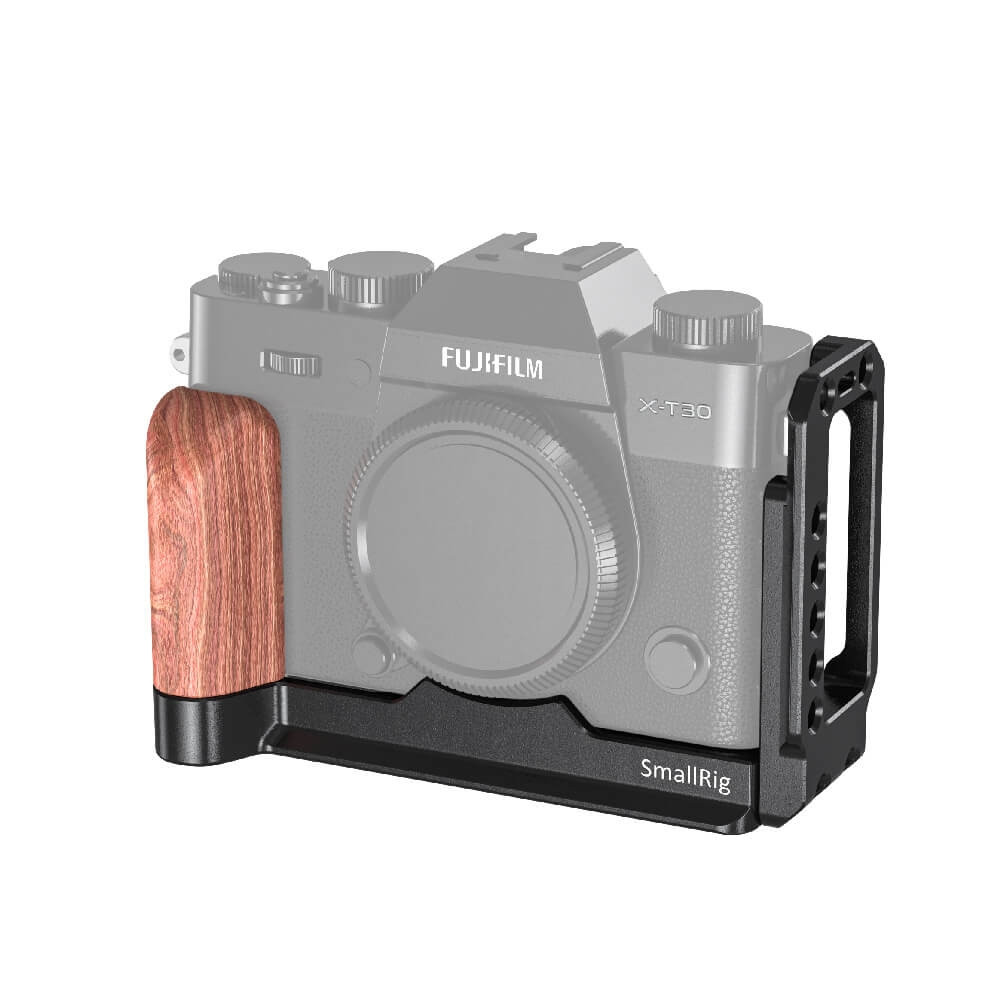

SmallRig L Bracket for Fujifilm X-T30 II & X-T30 &X-T20 APL2357

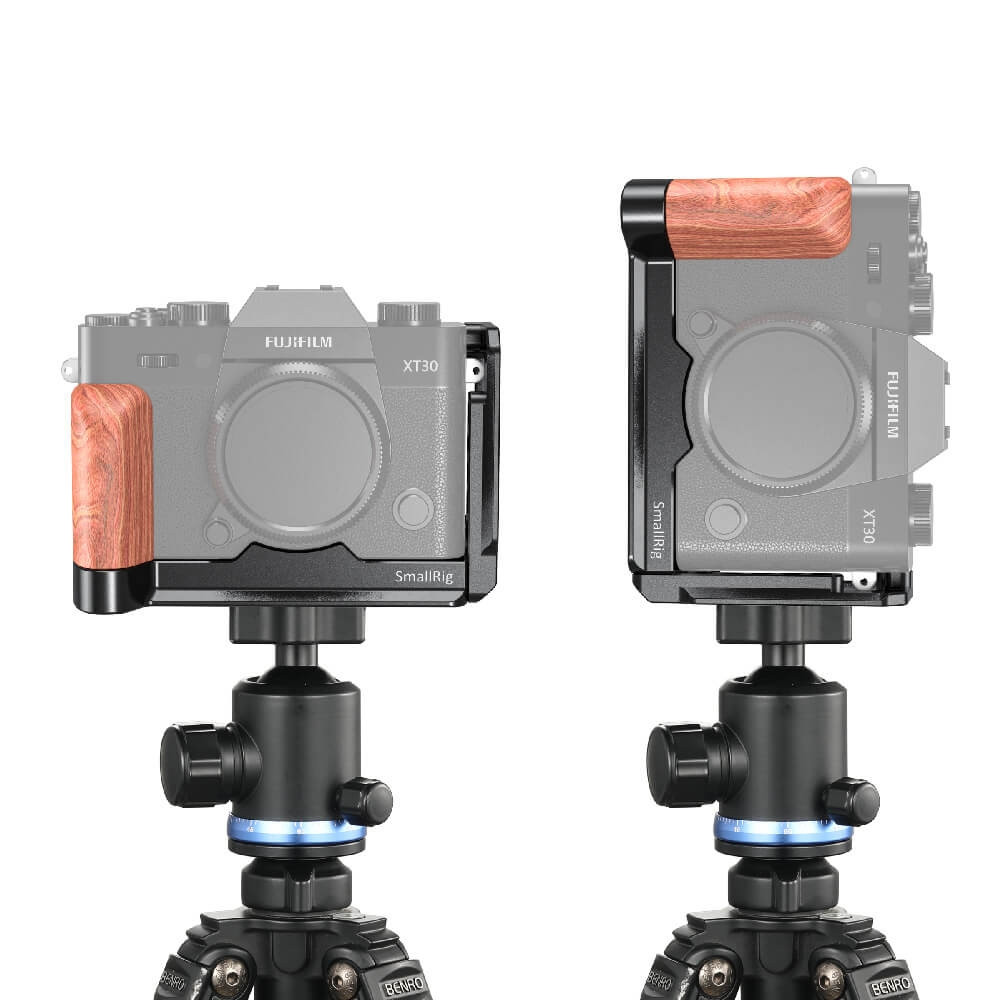

SmallRig L Bracket for Fujifilm X-T30 II & X-T30 &X-T20 APL2357 is modular designed with anti-twist flanges to keep the camera from twisting and provide a comfortable handheld shooting. Both the base plate and side plate are Arca-type compatible dovetails that enable the camera to mount in a vertical or horizontal position. It secures to the bottom of the camera via a 1/4 screw and one locating pin on the base plate to prevent twisting. The plate comes with a wooden handgrip and adds the height to support the pinky. Each axis features a sensor centering line to align the camera on a tripod head. The side plate can be extended to the left if more room is needed for tethering or cable release. An included flat screw driver at the bottom allows installing the L bracket in seconds. Additionally, the L plate features multiple 1/4"-20 threaded holes on the side and bottom for accessory attachment such as Cold Shoe 1593 and Side Handle 2093. Optional cable clamp 1822 is provided to protect the HDMI cable if needed.
Key Features
1.Modular Designed for Fujifilm X-T20 and X-T30
2.Arca-Type Plate with Center Marks on Both Axis
3.Wooden Handle for Comfortable Grip

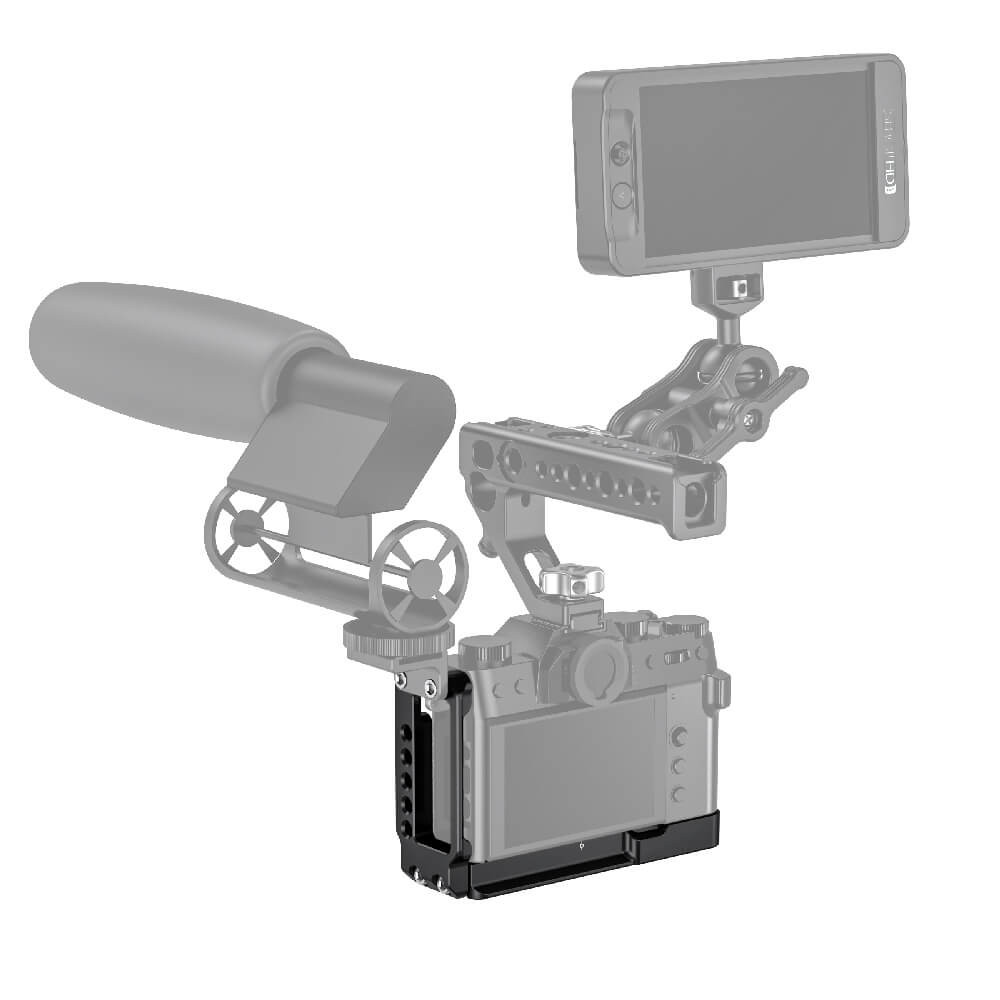

4.1/4”-20 Accessory Threads & Integrated Slot for Carry Strap

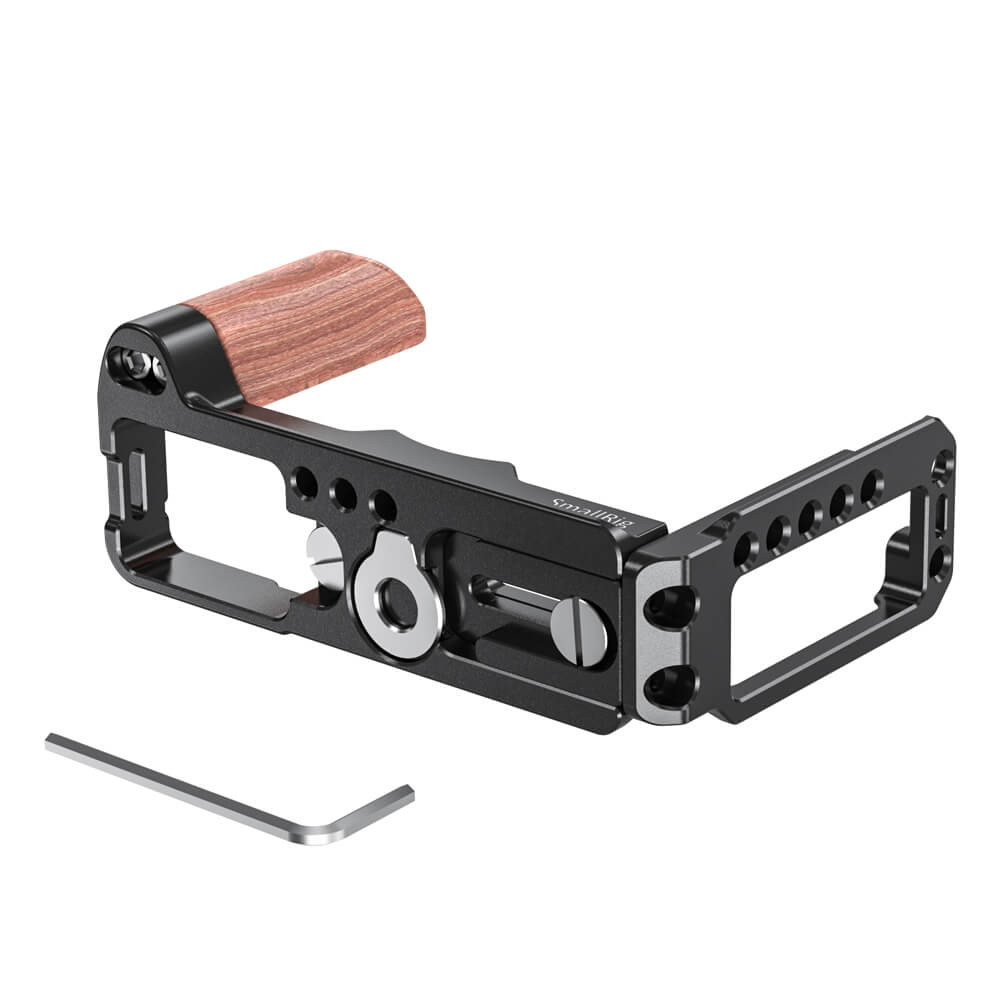

5.Built-in Flat Screw Driver

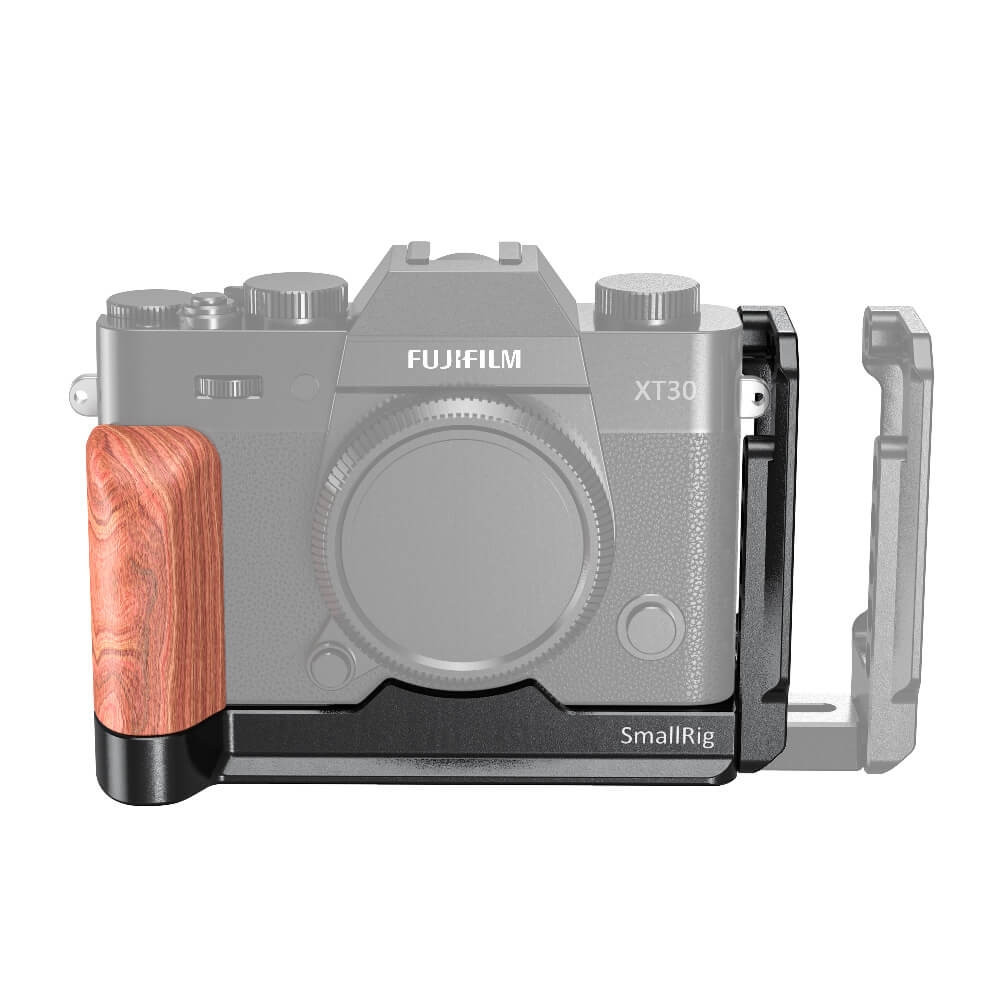

6.Extendable Side Plate for Tethering or Cable Release
Work With

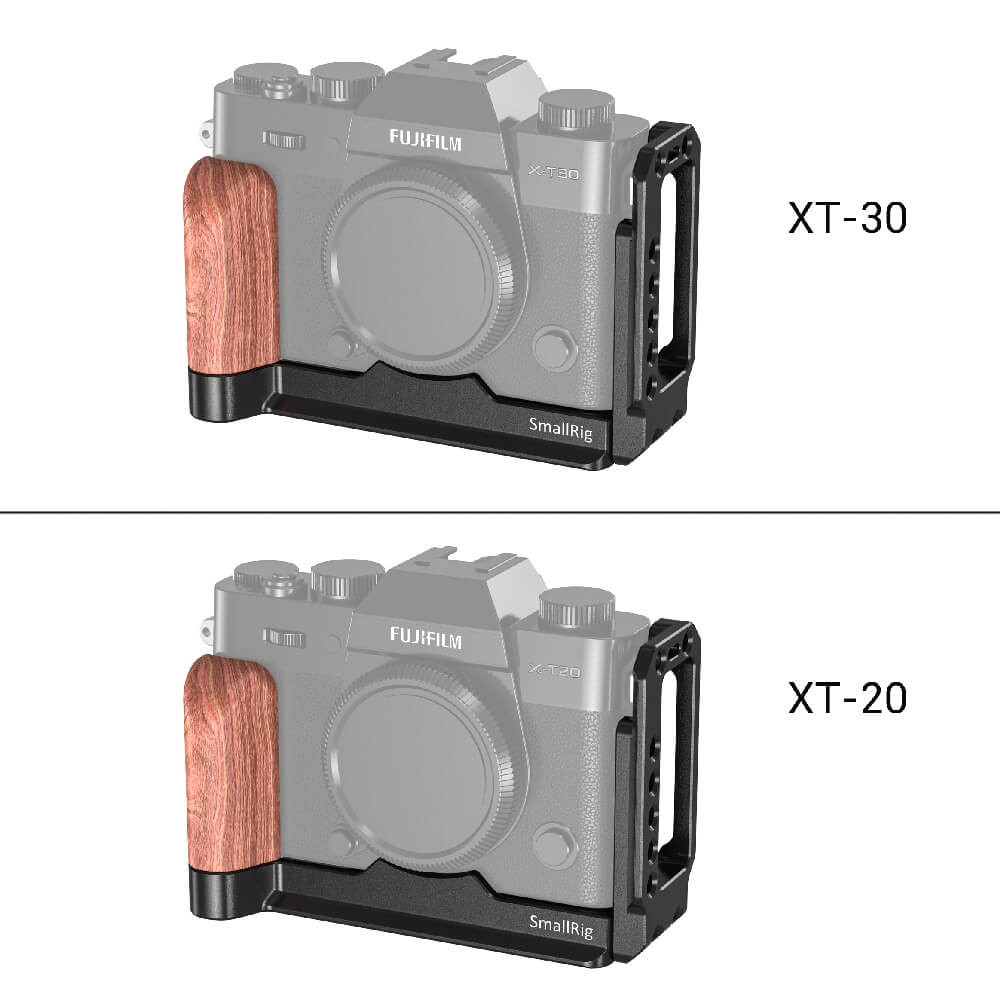

Fujifilm X-T20
Fujifilm X-T30
Fujifilm X-T30 II
Packing List
1 x L Bracket
Technical Data

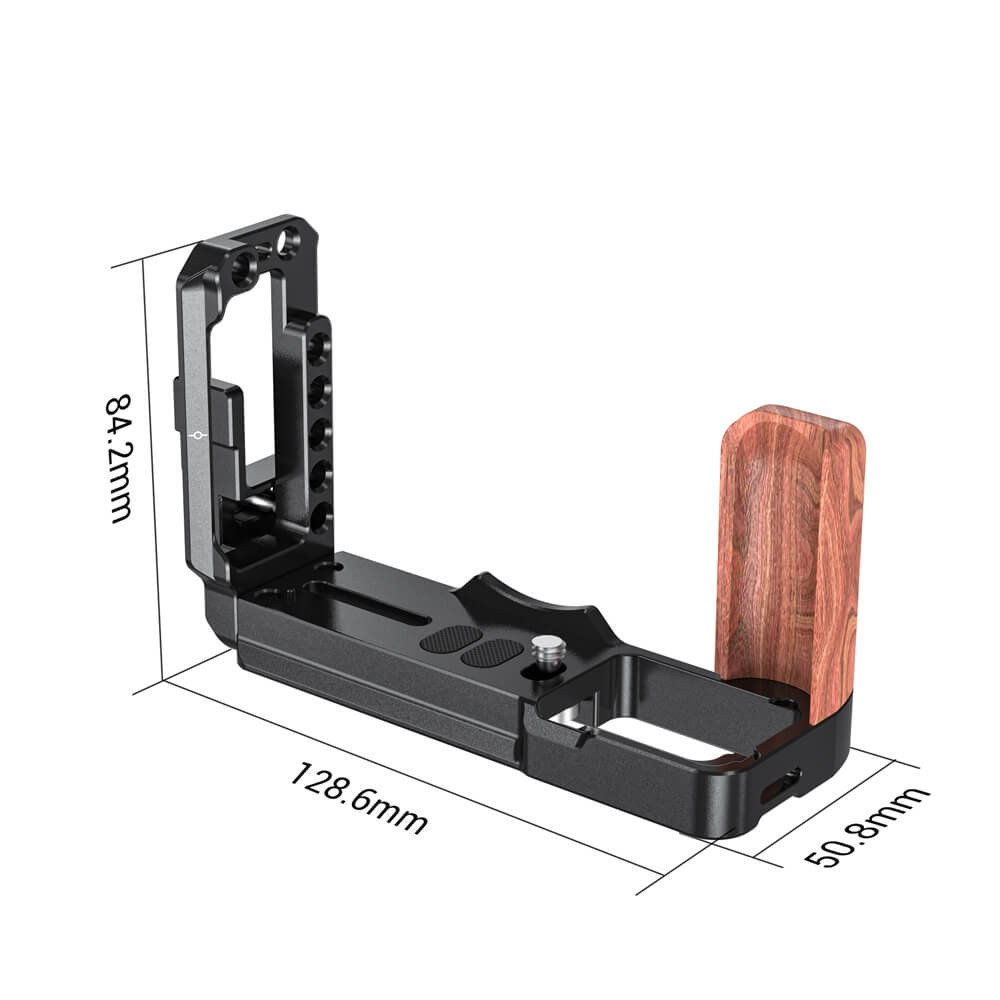

Product Dimensions: 128.6 x 107 x 84.2mm
Package Dimensions: 143 x 100 x 55mm
Net Weight: 130g
Package Weight: 188g
Material(s): Aluminum Alloy/Wood
